An NVIDIA HGX B300 8-GPU system in an 8U air-cooled chassis, sold and supported by Cisco and managed through Cisco Intersight, for AI training and inference in standard data centers.
Product overview
This server brings NVLink-connected training and inference capacity to the Cisco AI compute portfolio without requiring liquid cooling infrastructure. The underlying hardware is the Supermicro GPU SuperServer SYS-822GS-NB3RT, an 8U air-cooled NVIDIA HGX B300 8-GPU system. Cisco handles the selling motion, support through Cisco CX Services, and lifecycle management through Cisco Intersight. Supermicro builds the hardware. Customers get Supermicro’s GPU server engineering and Cisco’s support and operations model in one orderable product.

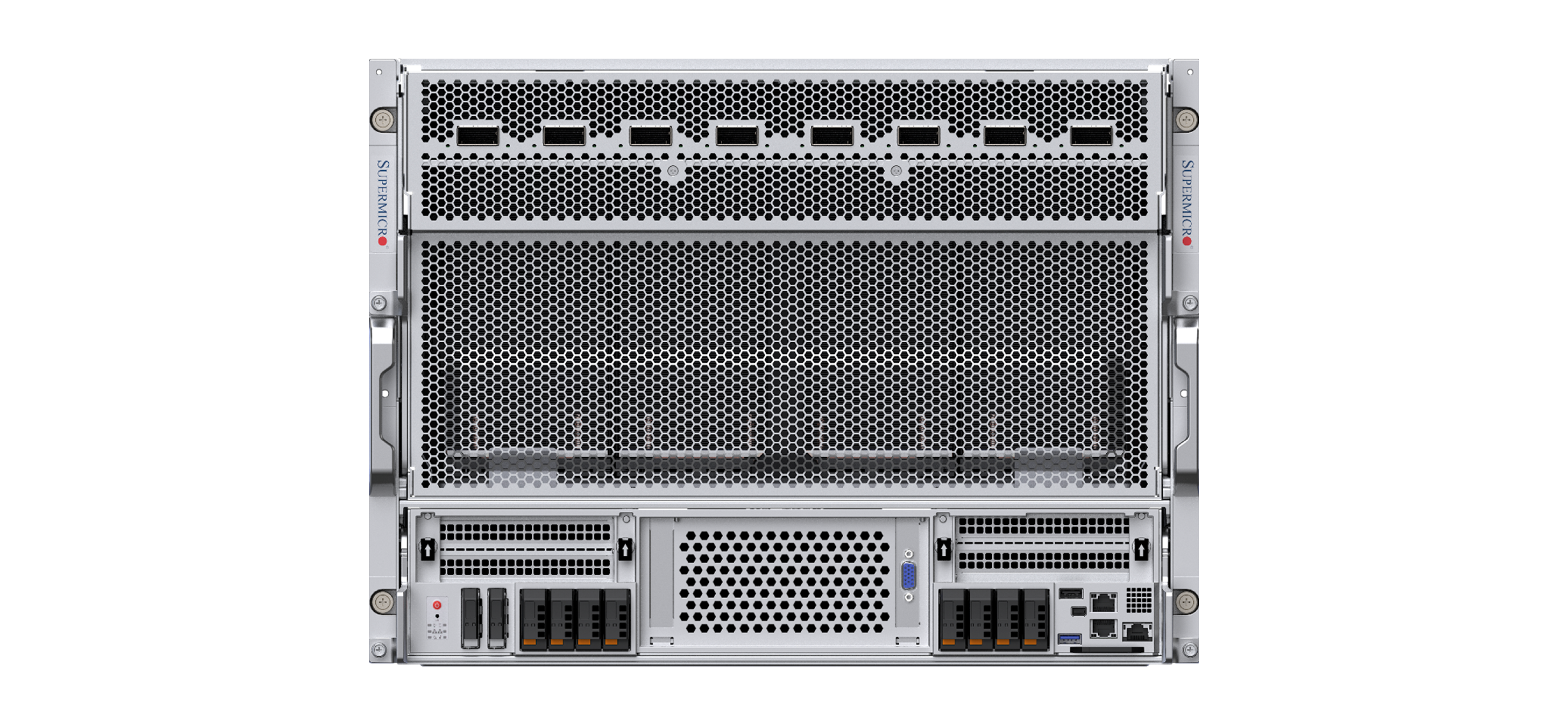

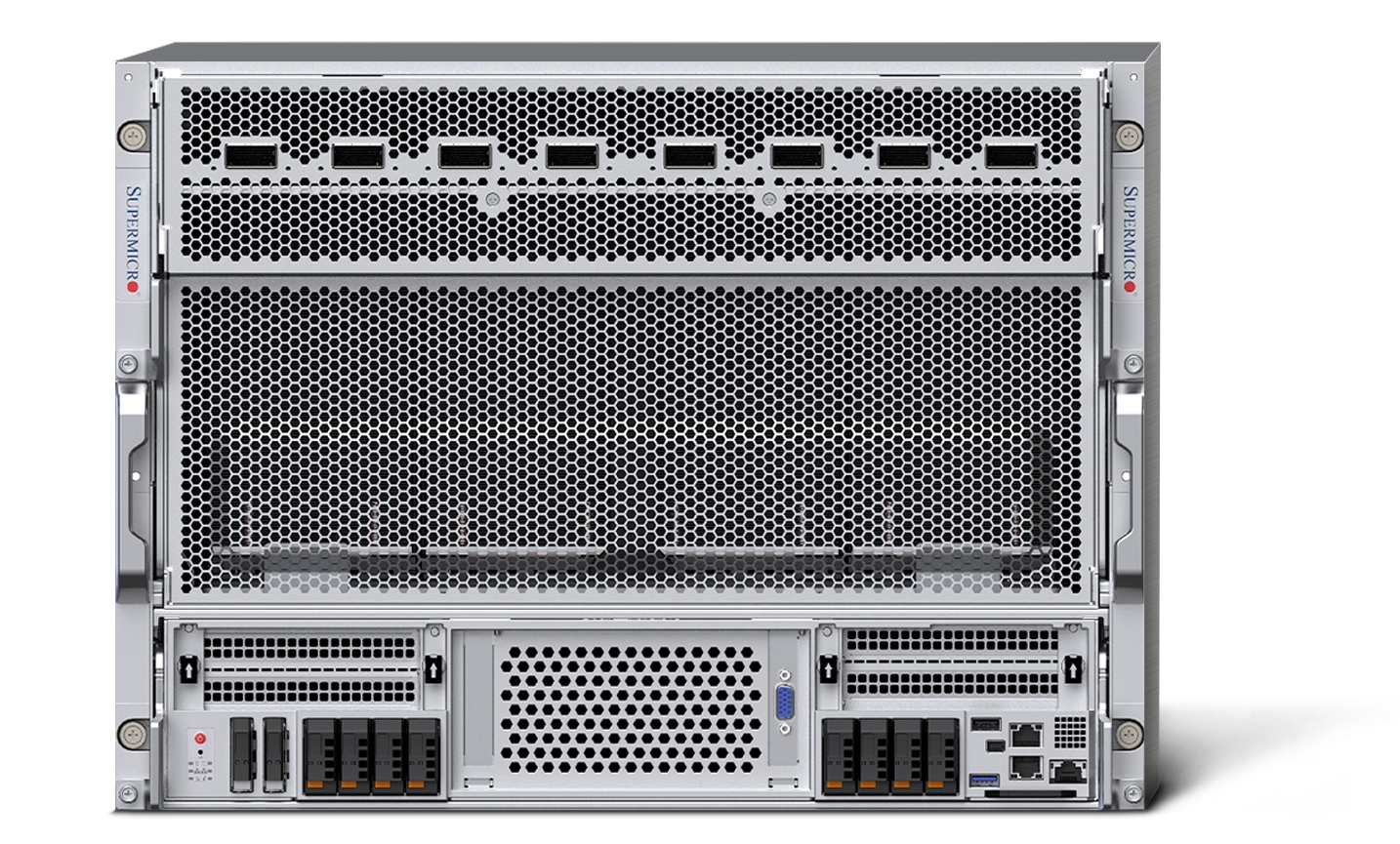

Figure 1. AI Server for NVIDIA HGX B300, Air Cooled
(Supermicro SYS-822GS-NB3RT)
The system pairs two Intel Xeon 6768P processors with an NVIDIA HGX B300 8-GPU baseboard connected over fifth-generation NVLink at 1.8 TB/s per GPU, with 2.3 TB of HBM3e memory across the baseboard. Cooling comes from up to 12 heavy duty fans in a standard air-cooled chassis. Target workloads include large-model training, fine-tuning, and high-throughput inference where eight NVLink-connected GPUs per node are required.

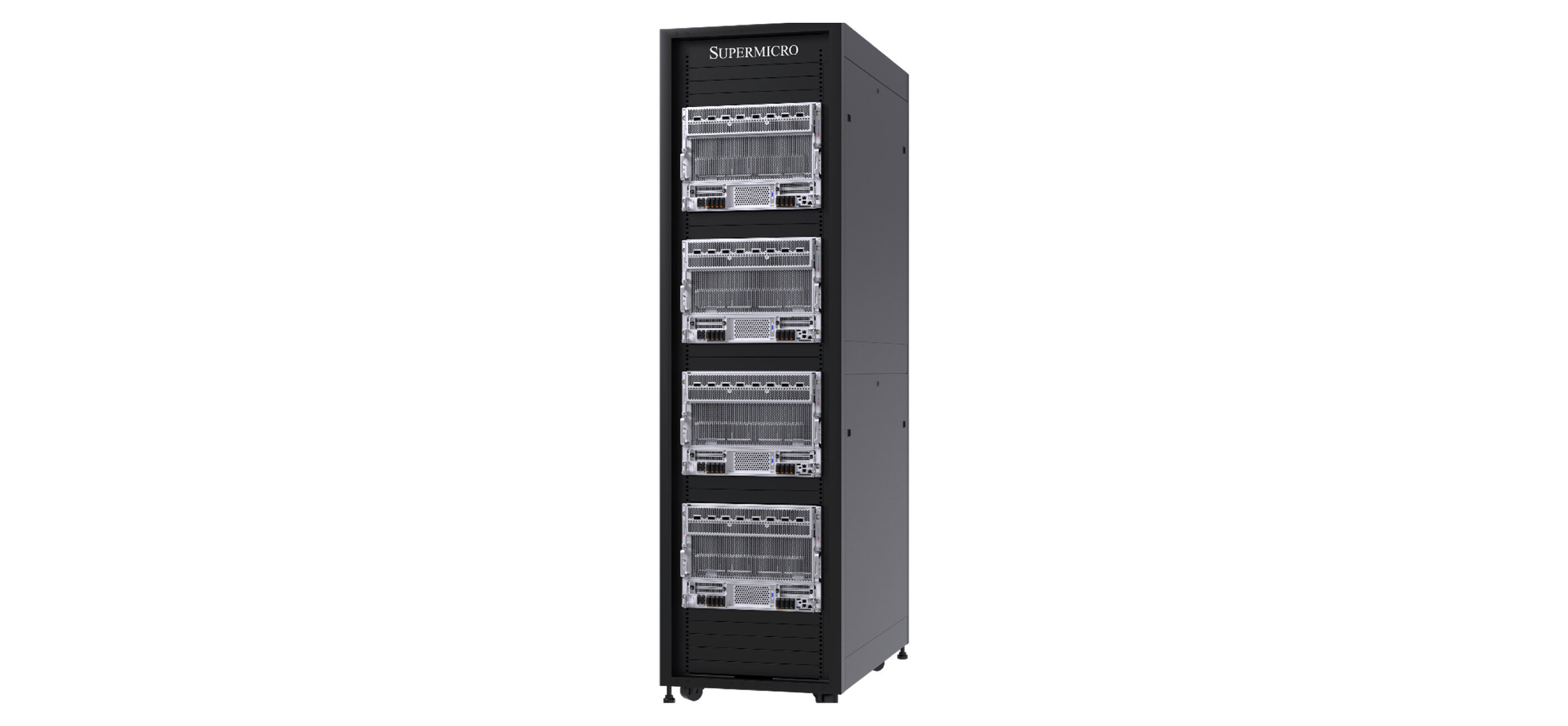

Figure 2. Air cooled cluster of Cisco AI Server for NVIDIA HGX B300,
Air Cooled (Supermicro SYS-822GS-NB3RT)
Features and benefits
Table 1 summarizes the primary features and benefits of the platform.
Table 1. Features and benefits
| Feature | Benefit |
|---|---|
| NVIDIA HGX B300 8-GPU baseboard with NVLink 5 at 1.8 TB/s | Eight GPUs work as one coherent pool for training and longcontext inference |
| 2.3 TB HBM3e GPU memory per system | Large models and KV caches stay resident on fewer nodes |
| Air cooling with up to 12 heavy duty fans | Deploys in standard data centers; no facility water or liquid retrofit needed |
| Dual Intel Xeon 6768P processors | Keeps data pipelines fed, with up to 4 TB of DDR5-6400 in the Cisco configuration |
| 8x NVIDIA ConnectX-8 SuperNICs at 800 Gb/s | One NIC per GPU for non-blocking east-west scale-out |
| NVIDIA BlueField-3 B3240 DPU | Offloads north-south networking and storage from the host CPUs |
| 6x 6600 W Titanium (3+3) power supplies | 96% efficiency with full redundancy under GPU load |
| Cisco Intersight management | One operations model across the Cisco compute estate |
| Cisco CX Services support | Dedicated support contracts from Cisco and Supermicro for a multi-vendor system |
Prominent feature
Eight Blackwell Ultra GPUs, one NVLink domain: the full eight-GPU NVLink domain, with NVSwitch and 2.3 TB of HBM3e, in a chassis that cools itself with up to 12 heavy duty fans and standard data center air.
The server is ready to deploy into existing air cooled datacenters with proper planning. Scale-out fabrics: eight NVIDIA ConnectX-8 SuperNICs give each GPU its own 800 Gb/s east-west port, and an NVIDIA BlueField-3 B3240 DPU carries north-south and storage traffic.
Platform support
Cisco offers this Supermicro platform in a defined configuration, listed in Table 2.
Table 2. Cisco selected configuration, SYS-822GS-NB3RT (HGX B300 air cooled)
| Item | Selected configuration |
|---|---|
| PID | SYS-822GS-NB3RT (Supermicro SKU) |
| Platform | HGX 8U rackmount air-cooled platform, approx. 17.6 in W x 13.8 in H x 37.4 in D |
| GPU | 1x NVIDIA HGX B300 8-GPU baseboard |
| CPU | 2x Intel Xeon 6768P |
| Memory | 16x or 32x 128 GB DDR5-6400 RDIMM (2 TB or 4 TB total) |
| M.2 boot drives | 2x 1.9TB NVMe PCIe4x4 M.2 22x110mm (1DWPD) |
| NVMe storage | 8x E1.S 3.84TB NVMe Drives |
| East-west NICs | 8x NVIDIA ConnectX-8 SuperNICs |
| North-south NICs | 1 NVIDIA BlueField-3 B3240 DPU |
| Software management | Cisco Intersight |
| Support | Cisco CX Services |
| Availability | October 2026 |
Licensing
This is a hardware product; no platform license is required. Cisco Intersight management requires an Intersight license, listed in Table 3.
Table 3. Licensing
| License | Description |
|---|---|
| Cisco Intersight | License tier appropriate to the deployment, see Cisco sales specialist |
Product sustainability
Information about Cisco’s Environmental, Social and Governance (ESG) initiatives and performance is provided in Cisco’s CSR and sustainability reporting.
Table 4. Cisco Environmental Sustainability Information
| Sustainability Topic | Reference | |
|---|---|---|
| General | Information on product-material-content laws and regulations | Materials |
| Information on electronic waste laws and regulations, including our products, batteries and packaging | WEEE Compliance | |
| Information on product takeback and resuse program | Cisco Takeback and Reuse Program | |
| Sustainability Inquiries | Contact: csr_inquiries@cisco.com | |
| Power | Power (Including Pluggable) | |
| Material | Product packaging weight and materials | Contact: environment@cisco.com |
Product specifications
Table 5 reflects the Supermicro data sheet for the SYS-822GS-NB3RT. Product specifications may change without notice.
Table 5. Specifications, Supermicro GPU SuperServer SYS-822GS-NB3RT
| Category | Specification |
|---|---|
| Form factor | 8U rackmount, air cooled; enclosure 449 x 356 x 950 mm (17.6 x 13.8 x 37.4 in) |
| GPU | NVIDIA HGX B300 8-GPU baseboard; 8x SXM modules, 2.3 TB total HBM3e |
| GPU interconnect | NVIDIA NVLink 5 with NVSwitch, 1.8 TB/s GPU-to-GPU |
| Processor | Dual socket Intel Xeon 6700-series with P-cores, up to 86 cores/172 threads per CPU, up to 350 W, up to 336 MB cache |
| System memory | 32 DIMM slots; up to 8 TB DDR5-5200 (2DPC) or 4 TB DDR5-6400 (1DPC) |
| Drive bays | 8 front hot-swap E1.S NVMe bays; 2x M.2 NVMe with hardware RAID (Broadcom 3808N) |
| Expansion slots | 2x PCIe 5.0 x16 FHHL |
| Networking | 8x 800 Gb/s OSFP ports (NVIDIA ConnectX-8 SuperNICs); 2x RJ45 10GbE (Intel X710); dedicated IPMI port |
| Cooling | Air cooled; up to 12 heavy duty fans with optimal fan speed control |
| Power | 6x 6600 W redundant (3+3) Titanium Level (96%) |
| BIOS | AMI 64 MB UEFI |
| System management | Cisco Intersight (Cisco offer) |
| Operating environment | 10 to 35 C operating; 8% to 90% relative humidity, non-condensing |
| Weight | Net 119 kg (263 lb); gross 137 kg (302 lb) |
| Motherboard/ chassis | Super X14DBG-LC/CSE-GP807TS-R000NP |
System requirements
Table 6 lists what must be in place before installation.
Table 6. System requirements
| Requirement | Description |
|---|---|
| Rack | Standard 19-inch rack, 8U, 950 mm chassis depth; verify rail, weight, and airflow clearance |
| Power | 6x 6600 W inputs; provision AC feeds sized for full GPU load |
| Cooling | Air-cooled data center capable of removing full system heat load; 10 to 35 C intake |
| Operating humidity | 8% to 90% non-condensing |
| Management | Cisco Intersight account and claimed device connectivity |
Ordering information
The base platform is a Supermicro SKU offered through Cisco. Cisco ordering PIDs for the configured system are in progress. To order, contact your Cisco account representative or visit the Cisco Ordering Home Page.
Table 7. Ordering information
| Part number | Product description |
|---|---|
| SYS-822GS-NB3RT1 | Supermicro 8U 2x Xeon 6 HGX B300 air-cooled 8-GPU Server, 16 DIMM |
| SYS-822GS-NB3RT2 | Supermicro 8U 2x Xeon 6 HGX B300 air-cooled 8-GPU Server, 32 DIMM |
| SVC-NVSTDSUP-3Y | NVIDIA Enterprise Support Entitlement, 3Yr |
Warranty information
Warranty terms for this Cisco-offered Supermicro platform are standard Supermicro warranty terms. Support is delivered through Cisco CX Services under the applicable service contract, contact your Cisco sales specialist for more details.
