End-of-Sale and End-of-Life announcement

Cisco Meraki MT Product Line (all models)

Please consult the End-of-Life notice for affected products and milestones.

Go to End-of-Life notice

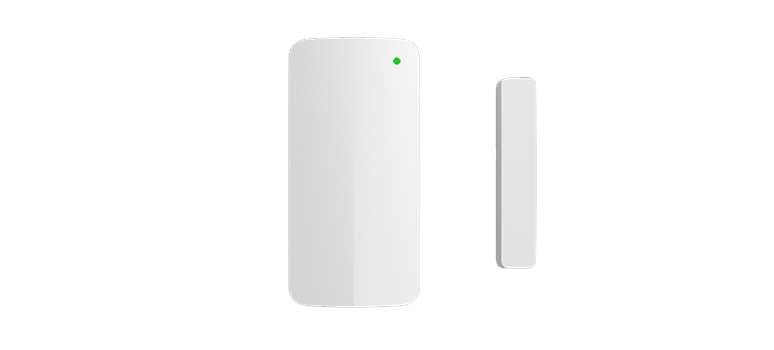

Cisco Meraki MT20 Cloud-Managed Open/Close Sensor

Meraki MT20

Cloud-managed open/close sensor

Monitor door access to detect intrusions, understand usage trends, and prevent business disruptions.

Start a free trial

Documentation

Online Documentation
MT20 Datasheet
MT Sensors At-A-Glance

Details that matter

  • Magnetic field sensor
  • Flexible mounting options
  • Modern mobile app for on-the-go monitoring and troubleshooting
  • Up to five years of battery life
  • Five days on-board storage

Smart spaces start here

  • SMS
  • Email
  • Push notifications
  • Webhook

  • Automatic connectivity to compatible MR and MV gateways
  • 2.4 GHz Bluetooth® Low Energy
  • Messages encrypted and authenticated using Cisco Trust Anchor technology

  • VHB tape
  • Mounting screws
  • 5 mm, 10 mm, 15 mm spacers
  • 90° magnet mount

  • Data reporting to gateway every 20 minutes, or upon threshold violation
  • Onboard storage: 4,000 data points (five days at the default sampling rate)
  • Data is queryable via API and exportable via .csv, and .xls download

  • One AA battery
  • Battery life up to five years
Cisco Meraki MT20 Cloud-Managed Open/Close Sensor

Get hands-on with your environmental data

Transform your organization with IoT sensors.
