Configuring Proxy Mobile IP
This chapter describes how to enable and configure your access point's proxy Mobile IP feature. The chapter contains the following sections:
•
The Proxy Mobile IP Setup Page
Proxy Mobile IP
These sections explain how access points conduct proxy Mobile IP:
•
Note
Introduction to Mobility in IP
The advent of wireless technologies such IEEE 802.11b has presented a tremendous opportunity to those who rely on networking resources. Devices such as laptops or handheld computers are no longer restricted to access provided by Ethernet wiring or telephone lines. As the reach of wireless coverage expands beyond the campus to metropolitan, national, and global levels, maintaining connectivity with a client's parent, or "home" network becomes more viable and expected.
Various approaches exist to providing network access to devices or "nodes" that have roamed away from their "home" network and onto a "foreign" network as shown in Figure 6-1. In some cases, the foreign network may be owned or administrated by a different entity such as a police or fire department. In other cases, the foreign network may simply be another Layer 3 subnet at a remote facility of a large enterprise or university campus.

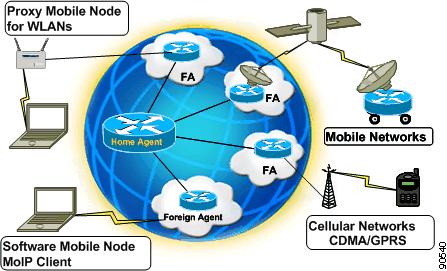

Figure 6-1 The Varied Approach to Mobility
The Nomadic Approach
A "nomadic" node is a device that moves, or "roams" from one network to another. In order to use that network, the device must renew its IP address and re-establish connectivity to any applications that were in progress. There are advantages and disadvantages to the nomadic approach.
In the world of Internet Service Providers (ISPs), all devices are treated as nomads. This means that any device requiring connectivity needs to request an IP address through DHCP and be assigned a routable address that falls within the range assigned to that service provider. Once an address is assigned, the user can connect to the Internet and perhaps run a Virtual Private Network (VPN) on top of the connection to obtain secured access to private networks. While this scheme provides mobility in the sense that a user can move from place to place and connect to a public network, it does not maintain any connection-oriented sessions that may have been in progress. Also, it is not transparent to the user that a change in network service has occurred.
The advantage to being a nomad is that service is available at a number of locations from a number of providers. A disadvantage is that the process of connecting to that network is manual and sometimes cumbersome. In addition, many applications do not run well when an IP address changes or a lengthy connectivity timeout occurs.
The Mobile Approach
In contrast, a mobile node is a device that moves from one network to another while keeping its original IP address. This has an additional advantage of having many connection-oriented applications continue uninterrupted as long as the brief delay involved in roaming does not prompt a disconnect.
The major advantage of being a mobile node is that the device can now cross Layer 3 boundaries and by means of a tunnel back to the a router on its home network, have its traffic forwarded to it. This allows the device to keep its original IP address even though that address is no longer valid for the subnet to which it has roamed.
Mobile IP Explained
A clear understanding of Proxy Mobile IP requires a foundation knowledge of Mobile IP. Figure 6-2 identifies the components and explains the terminology used in Mobile IP.
Figure 6-2 The Mobile IP Environment
In order for a Mobile Node (MN) to successfully roam across subnets it must first be anchored to its home network. The Home Agent (HA) is the router that serves as that anchor. The home agent contains a list of all devices (by IP address) that are capable of roaming from its network. Once the mobile node roams to a new network, it must register with the home agent as being away from home. Its registration is sent by way of the Foreign Agent (FA), the router providing service on the foreign network. The foreign agent includes a "care-of address" in the registration it sends to the home agent. This address is used as the termination address of the tunnel on the foreign router. A tunnel is then built between the home agent and the foreign agent for all traffic destined for the mobile node.
When a mobile node sends traffic to another device (known as a correspondence node or correspondence host), such as a web server, the outbound traffic is routed directly to the destination device. The destination device replies to the source IP address, resulting in the the traffic being routed to the home agent because it is the default router for the subnet from which the mobile node originated. The home agent then forwards the traffic through the tunnel to the foreign agent, which forwards it to the mobile node. Figure 6-3 provides an example of this process.
Figure 6-3 The Mobile IP Traffic Pattern
When the mobile node roams back to its home network, it drops its registration with the home agent and the tunnel is removed. If more than one node has roamed from the same home network to the same foreign network, a single tunnel is used to service traffic for all mobile devices between those two tunnel endpoints.
The protocol used to exchange information between the home agent and mobile node is the Internet Control Message Protocol (ICMP) Router Discovery Protocol (IRDP). Extensions have been added to this protocol to accommodate Mobile IP operation. Mobile IP features on a Cisco router require the IP Plus Feature Set or better.
Proxy Mobile IP Explained
The Mobile IP operation detailed above relies upon the mobile node using specialized Mobile IP client software. This software provides the intelligence needed to communicate with other Mobile IP entities such as home and foreign agents, plus the ability to generate registrations as appropriate. However, there are a few aspects of this method that make it undesirable. They include the cost of client software, the amount of administration required to load it onto some (potentially large) number of devices, and the possibility that the population of mobile nodes may not be immediately known or may change over time.
Proxy Mobile IP supports Mobile IP for wireless nodes without requiring specialized software for those devices. The wireless access point acts as a proxy on behalf of wireless clients that are not aware of the fact that they have roamed onto a different Layer 3 network. The access point handles the IRDP communications to the foreign agent and handles registrations to the home agent. This scheme offers less cost, less administration, and a faster time to deployment.
There are three primary states of operation for proxy Mobile IP:
•
•
•
The following paragraphs offer a high-level view of how proxy Mobile IP operates.
The ICMP Router Discovery Protocol (IRDP) handles agent discovery in proxy Mobile IP. This protocol must be enabled on the home agent and foreign agent router interfaces on which access points reside. The protocol enables the access point to identify services being offered by local Mobile IP entities and provides some necessary information to be used when an access point must register a mobile node.
Any access point in the network may be designated as an Authoritative Access Point (AAP), which means that it is responsible for updating all other access points in the network about networks that have mobile nodes on them. The protocol used for this interaction is UDP-based (port 6500) and is enabled when proxy Mobile IP is enabled.
An access point that has discovered a foreign agent on its network and has received an updated subnet map from the authoritative access point is ready to service mobile nodes, which roam to it from other subnets. The mobile node decides to roam to a new access point based on criteria such as signal strength, traffic load on the access point, and so forth. Once associated, the mobile node eventually sends traffic to the access point. The access point recognizes that the source address in use is from a different Layer 3 network than its own and checks its subnet map table for an entry. If the subnet matches one of the entries in the table, the access point sends a registration request to the local foreign agent asking that the mobile node be registered with the proper home agent. The foreign agent in turn forwards the registration request to the home agent.
The home agent verifies that the mobile node is valid (either through its local security associations or through associations housed on a AAA server). If it is valid, the home agent binds the mobile node to the foreign agent's care-of address and builds a tunnel between the foreign agent and the home agent. Traffic can then flow from the home agent to foreign agent, from foreign agent to access point, and from access point to mobile node. The mobile node can send traffic to directly to the node to which it is intended.
Considerations
Before deploying proxy Mobile IP, you should ask some fundamental questions of the network design and implementation engineers:
•
•
•
•
•
The answers to these questions may vary. For further information, see the Proxy Mobile IP Deployment Guide.
Issues to Consider for Proxy Mobile IP Deployment
When rolling out a proxy Mobile IP deployment, consider these key issues:
•
•
•
•
•
•
•
•
•
•
•
Components of a Proxy Mobile IP Network
Five devices participate in proxy Mobile IP:
•
•
•
•
•
Figure 6-4 shows the five participating devices.
Figure 6-4 Participating Devices in Proxy Mobile IP
How Proxy Mobile IP Works
The proxy Mobile IP process has four main phases. These sections describe each phase:
Agent Discovery
During the agent discovery phase, the home agent and the foreign agent advertise their services on the network by using the ICMP Router Discovery Protocol (IRDP). The access point monitors these advertisements.
The IRDP advertisements carry mobile IP extensions that specify whether an agent is a home agent, foreign agent, or both; its care-of address; the types of services it provides, such as reverse tunneling and generic routing encapsulation (GRE); and the allowed registration lifetime or roaming period for visiting client devices. Rather than waiting for agent advertisements, an access point can send out an agent solicitation. This solicitation forces any agents on the network to immediately send an agent advertisement.
When an access point determines that a client device is connected to a foreign network, it acquires a care-of address for the visiting client. The care-of address is an IP address of a foreign agent that has an interface on the network being visited by a client device. An access point can share this address among many visiting client devices.
When the visiting client associates to an access point, the access point compares the client's IP address with that of its own IP network information and detects that the client is a visitor from another network. The access point then begins the registration. However, before the access point can begin the registration process on behalf of the visiting client, it must have the home agent IP address of the visiting client, which it gets from a subnet map table.
Subnet Map Exchange
Each access point with proxy Mobile IP enabled maintains a subnet map table. The subnet map table consists of a list of home agent IP addresses and their subnet masks. Table 6-1 is an example of a subnet map table.
Table 6-1 Example of a Subnet Map Table
10.10.10.1
255.255.255.0
10.10.4.2
255.255.255.0
10.3.4.4
255.255.255.248
10.12.1.1
255.255.0.0
Access points use the subnet map table to determine the IP address of the visiting client's home agent. When an access point boots up or when proxy Mobile IP is first enabled on an access point, it obtains its own home agent information using the agent discovery mechanism. It sends this information to another access point called an authoritative access point (AAP). The AAP can be any access point on the network that the network administrator chooses. The AAP is responsible for maintaining the latest subnet map table.
When the AAP receives the new information, it replies to the access point with a copy of the latest subnet map table. The new access point now has the latest subnet map table locally and it is ready to perform proxy Mobile IP for visiting clients. Having the subnet map table locally helps the access point do a quick lookup for the home agent information. Meanwhile, the AAP adds the new access point to its list of access points and the home agent information to its subnet map table. The AAP then updates all the other access points with this additional piece of information.
You can designate up to three AAPs on your wireless LAN. If an access point fails to reach the first AAP, it tries the next configured AAP. The AAPs compare their subnet map tables periodically to make sure they have the same subnet map table. If the AAP detects that there are no more access points for a particular home agent, it sends an invalid registration packet with a bad SPI and group key using the broadcast address of the home agent subnet to determine if the home agent is still active. If the home agent responds, the AAP keeps the home agent entry in the subnet map table even though there are no access points in the home agent's subnet. This process supports client devices that have already roamed to foreign networks. If the home agent does not respond, the AAP deletes the home agent entry from the subnet map table.
When a client device associates to an access point and the access point determines that the client is visiting from another network, the access point performs a longest-match lookup on its subnet map table and obtains the home agent address for the visiting client. When the access point has the home agent address, it can proceed to the registration step.
Registration
The access point is configured with the mobility security association of all potential visiting clients with their corresponding home agents. You can enter the mobility security association information locally on the access point or on a RADIUS server on your network, and access points with proxy Mobile IP enabled can access it there.
As an access point on a network with a local home agent, the access point registers mobile nodes with the home agent prior to any roaming taking place. Mobile nodes must be listed by IP address (or address range) in the access point and the home agent along with security information stored either locally, on a AAA server, or both.
On the foreign network, the access point uses the security association information, the visiting client's IP address, and the information that it learns from the foreign agent advertisements to form a Mobile IP registration request on behalf of the visiting client. It sends the registration request to the visiting client's home agent through the foreign agent. The foreign agent checks the validity of the registration request, which includes verifying that the requested lifetime does not exceed its limitations and that the requested tunnel encapsulation is available. If the registration request is valid, the foreign agent relays the request to the home agent.
The home agent checks the validity of the registration request, which includes authentication of the visiting client. If the registration request is valid, the home agent creates a mobility binding (an association of the visiting client with its care-of address), a tunnel to the care-of address, and a routing entry for forwarding packets to the home address through the tunnel.
The home agent then sends a registration reply to the access point hosting the visiting client through the foreign agent (because the registration request was received through the foreign agent). The foreign agent verifies the validity of the registration reply, including ensuring that an associated registration request exists in its pending list. If the registration reply is valid, the foreign agent adds the visiting client to its visitor list, establishes a tunnel to the home agent, and creates a routing entry for forwarding packets to the home address. It then relays the registration reply to the visiting client.
Finally, the access point checks the validity of the registration reply. If the registration reply specifies that the registration is accepted, the access point is able to confirm that the mobility agents are aware of the visiting client's roaming. Subsequently, the access point intercepts all packets from the visiting client and sends them to the foreign agent.
The access point reregisters on behalf of the visiting client before its registration lifetime expires. The home agent and foreign agent update their mobility binding and visitor entry, respectively, during reregistration.
A successful Mobile IP registration by the access point on behalf of the visiting client sets up the routing mechanism for transporting packets to and from the visiting client as it roams.
Tunneling
The visiting client sends packets using its home IP address, effectively maintaining the appearance that it is always on its home network. Even while the visiting client is roaming on foreign networks, its movements are transparent to correspondent nodes (other devices with which the visiting client communicates).
Data packets addressed to the visiting client are routed to its home network, where the home agent intercepts and tunnels them to the care-of address toward the visiting client. Tunneling has two primary functions: encapsulation of the data packet to reach the tunnel endpoint, and decapsulation when the packet is delivered at that endpoint. The tunnel mode that the access point supports is IP Encapsulation within IP Encapsulation.
Typically, the visiting client sends packets as it normally would. The access point intercepts these packets and sends them to the foreign agent, which routes them to their final destination, the correspondent node.
Proxy Mobile IP Security
Mobile IP uses a strong authentication scheme to protect communications to and from visiting clients. All registration messages between a visiting client and the home agent must contain the mobile-home authentication extension (MHAE). Proxy Mobile IP also implements this requirement in the registration messages sent by the access point on behalf of the visiting clients to the home agent.
The integrity of the registration messages is protected by a shared 128-bit key between the access point (on behalf of the visiting client) and the home agent. You can enter the shared key on the access point or on a RADIUS server.
The keyed message digest algorithm 5 (MD5) in prefix+suffix mode is used to compute the authenticator value in the appended MHAE. Mobile IP and proxy Mobile IP also support the hash-based message authentication code (HMAC-MD5). The receiver compares the authenticator value it computes over the message with the value in the extension to verify the authenticity.
Optionally, the mobile-foreign authentication extension and the foreign-home authentication extension are appended to protect message exchanges between a visiting client and foreign agent and between a foreign agent and home agent, respectively.
Replay protection uses the identification field in the registration messages as a timestamp and sequence number. The home agent returns its time stamp to synchronize the visiting client for registration. In proxy Mobile IP, the visiting clients are not synchronized to their home agents because the access point intercepts all home agent messages. If the timestamp in the first registration request is out of the tolerance window (± 7 seconds), the request is rejected. The access point uses the information from the rejection to create a valid value and resends the registration request.
The Proxy Mobile IP Setup Page
This section describes the Proxy Mobile IP Setup page and the links it provides to other pages you use to set up proxy Mobile IP on your access point. Figure 6-5 shows the Proxy Mobile IP Setup page.
Figure 6-5 Proxy Mobile IP Setup page
Follow this link path to reach the Proxy Mobile IP Setup page:
1.
2.
There are 5 links on the page:
General
Selecting the General link takes you to the Proxy Mobile IP General page (Figure 6-6), where you enable proxy Mobile IP on the access point and identify the IP addresses of the authoritative access points on your wireless network.

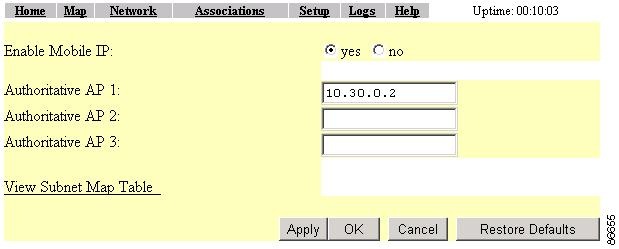

Figure 6-6 Proxy Mobile IP General Page
Settings on the Proxy Mobile IP General Page
Enable Proxy Mobile IP
This setting enables the proxy Mobile IP feature on the access point. The default setting is no.
Note
Authoritative AP n
These settings identify the IP addresses of up to three AAPs on the wireless network. At least one AAP is required for the proxy Mobile IP enabled wireless network. The n represents the number of the authoritative access point. Among other tasks, the authoritative access point is the device that registers with the local home agent. After registering with the home agent, the AAP populates a subnet map that is distributed to other access points. The subnet map links the access points to the home agent to contact and register a mobile client based on the client's IP address. For example, if a mobile client appears with a "30" subnet IP address on the "20" subnet, the access point must register with the home agent that services subnet "30" mobile clients.
Authentication Server
Selecting the Authentication Server link takes you to the Authenticator Configuration page (Figure 6-7). From this page, you configure the RADIUS or TACACS servers that will be managing proxy Mobile IP wireless devices.

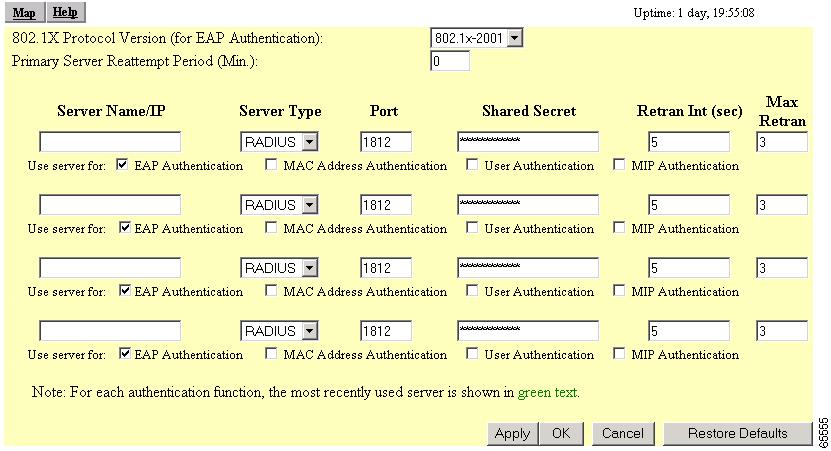

Figure 6-7 Authenticator Configuration Page
Settings on the Authenticator Configuration Page
802.1X Protocol Version (for EAP Authentication)
This drop-down menu allows you to select the draft of the 802.1X protocol the access point's radio will use. EAP operates only when the radio firmware on client devices complies with the same 802.1X Protocol draft as the management firmware on the access point. See the "Setting Up EAP Authentication" section on page 8-15 for additional information.
Primary Server Reattempt Period (Min)
This field specifies how many minutes should pass before checking for the primary server when it was not initially accessible.
Server Name/IP
This field identifies the domain name or IP address of the RADIUS or TACACS server proxy Mobile IP is using for authentication purposes.
Server Type
This drop-down menu displays the selections you can make to designate the server type you want the proxy Mobile IP configuration to use. The choices are RADIUS or TACACS. RADIUS is the default setting.
Port
This field specifies the port number the server uses for authentication. The default setting, 1812, is the port setting for Cisco's RADIUS server, the Cisco Secure Access Control Server, and for many other RADIUS servers. Check your server's product documentation to find the correct port setting.
Shared Secret
This field identifies the shared secret used by your RADIUS server. The shared secret on the access point must match the shared secret on the RADIUS server. The shared secret can contain up to 64 alphanumeric characters. This setting has no default.
Retran Int (sec)
This field specifies the time interval in seconds that the server waits after it failed to contact the server until it tries again. The default setting is 5 seconds.
Max Retran
This field indicates how many times the server attempts to contact the server before it attempts to contact an alternate server. The setting works in conjunction with the Retran Int (sec) parameter.
Use server for:
These check boxes specify the authentication types the server uses: EAP, MAC Address, User, or MIP authentication. Checking the EAP authentication check box designates the server as an authenticator for any EAP type, including LEAP, PEAP, EAP-TLS, LEAP-SIM, and EAP-MD5. Checking the MIP authentication configures the server to authenticate proxy Mobile IP configured clients.
Local SA Bindings
Selecting the Local SA Bindings link takes you to the Local SA Bindings page (Figure 6-8). You use this page to identify valid clients that are able to establish contact with a foreign agent in another network segment or network other than the client's home network.

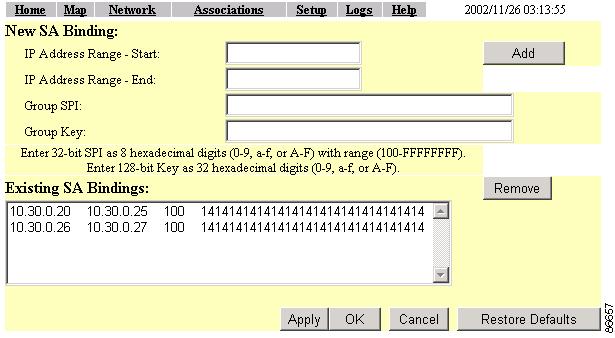

Figure 6-8 Local SA Bindings Page
Settings on the Local SA Bindings Page
IP Address Range - Start
This field contains the beginning IP address of the range in which client devices must reside in order to be valid.
IP Address Range - End
This field contains the ending IP address of the range in which the client devices must reside in order be valid.
Group SPI
This field specifies the security parameter index of the IP address range entered in the IP Address Range - Start and End fields. The SPI is a 32-bit number (8 hexadecimal digits) assigned to the initiator of the security association request by the receiving IPSec endpoint. On receiving a packet, the destination address, protocol, and SPI are used to determine the security association. The security association allows the node to authenticate or decrypt the packet according to the security policy configured for that security association.
Group Key
This field contains an authentication key, similar to a WEP key, that the group specified in the security association uses to access a foreign agent. The group key is a 128-bit key entered as 32 hexadecimal digits (0-9, a-f, or A-F).
Existing SA Bindings
This field contains a listing of previously configured security association bindings. The information contains the beginning and ending IP address range and their associated group SPI and key settings.
Statistics
Selecting the Statistics link takes you to the Proxy Mobile IP Statistics page (Figure 6-9). Two buttons are available on this page:
•
•
Figure 6-9 Proxy Mobile IP Statistics Page
Settings on the Proxy Mobile IP Statistics Page
Mobile IP Status
This informational field indicates whether proxy Mobile IP is enabled or disabled.
Home Agents
This informational field provides information about home agents the access point discovers on its own subnet. If a home agent is discovered, its IP address is displayed. If multiple home agents are discovered, their IP addresses are displayed. If no agent is discovered, the field displays Not Found.
Foreign Agents
This informational field provides information about foreign agents it discovers on the access point discovers on the network. If a foreign agent is discovered, its IP address is displayed. If multiple foreign agents are discovered, their IP addresses are displayed. If no agent is discovered, the field displays Not Found.
Active AAP
This informational field lists the IP address of the active authoritative access point.
MN IP Addresses
This informational field lists the IP addresses of the mobile nodes, which are client devices that the access point is servicing.
Solicitations Sent
The number of agent solicitations messages the access point has sent. If the access point does not hear advertisements, it sends a solicitation message requesting a foreign or home agent acknowledgement. The solicitation forces any agents on the link to immediately send an agent advertisement.
Authentication Failures for HA
The number of times the home agent rejected registration requests because of authentication failures, such as an invalid SPI or group key. When a mobile node moves to a foreign network, the access point registers the mobile node to its home agent. This statistic indicates the number of registration failures caused by failure of the home agent or foreign agent to authenticate each other or the mobile node.
Registration Requests Sent
The number of registration requests sent by the access point for the mobile node.
Registration Request Denied by FA
The number of times a foreign agent rejected a registration request. When a mobile node moves to a foreign network, the access point registers the mobile node to its home agent. This statistic indicates the number of registration requests that were denied by the foreign agent. The reasons for denial vary and include home agent unreachable, no resources found, etc.
Advertisements Received
The number of IRDP advertisements received by agents.
Registration Requests Successes
The number of times registration requests were successful.
Authentication Failures for FA
The number of times the foreign agent rejected registration requests because of mobile node or home agent authentication failures.
Deregister Requests Sent
The number of times the access point sent deregistration requests to the home agent.
Deregister Replies Received
The number of times the access point received deregistration replies from the home agent.
Registration Requests Denied by HA
The number of times the home agent rejected registration requests.
Gratuitious ARPs sent
The number of times the access point sent gratuitious Address Resolution Protocol messages (ARPs). Gratuitious ARPs are sent by the home agent on behalf of a roaming mobile node to update the ARP caches on the local hosts. When the mobile node returns to its home network, the home access point sends gratuitious ARPs (on behalf of the mobile node) to notify the network of the mobile node's MAC and IP address.
View Subnet Map Table
Selecting the View Subnet Map Table link takes you to the Subnet Map Table page (Figure 6-10). The subnet map table contains a list of home agent IP addresses and their associated subnet masks.
Two buttons are available on this page that are not shown on Figure 6-10:
•
•
Figure 6-10 Subnet Map Table Page
Settings on the Subnet Map Table Page
HA Address
This column lists the IP addresses of the home agents.
Subnet Mask
This column lists the subnet mask addresses for the corresponding home agents.
Configuring Proxy Mobile IP
Proxy Mobile IP functions as a proxy on behalf of roaming clients that do not implement a Mobile IP software stack. In a Mobile IP environment, the access point uses the services of a home agent and a foreign agent to allow valid mobile nodes to access a working Mobile IP network on a wired LAN. A working Mobile IP network assumes the following:
•
•
•
•
Optionally, you can implement an AAA server to authenticate mobile clients in addition to home and foreign agents.
Configuring Proxy Mobile IP on Your Wired LAN
Proxy mobile IP on access points works in conjunction with Mobile IP configured on your network routers. For instructions on configuring Mobile IP on a router on your network, refer to the Mobile IP chapter in 12.2 T New Features (Early Deployment Releases). Click this link to browse to the Mobile IP chapter:
http://www.cisco.com/univercd/cc/td/doc/product/software/ios120/120newft/120t/120t1/mobileip.htm
In addition, make sure you have accomplished the following actions:
•
•
•
•
•
At least one access point on the wireless side of a home and foreign network must be a home or foreign agent access point. Both access points must be configured to enable valid mobile nodes to associate with them.
There are no standard procedures that describe how to configure these agent access points. Configuration parameters, such as SSIDs, valid proxy Mobile IP addresses, SPI keys and group keys, and security settings must be carefully considered and coordinated with wired side router settings before any degree of success can be expected. The basic settings are the same for both access points. The only difference is where the access point is located. A home agent access point is on the wireless side of the mobile node's home network. A foreign agent access point is on the wireless side of the network in which the mobile node is authorized to enter in order to communicate back to its home network.
These instructions provide a general overview of the steps involved to configure the wireless network components to operate in a Mobile IP environment. It must be stressed that the majority of configuration effort is devoted to components on the wired network.
Figure 6-11 shows the configuration described in the following sections.

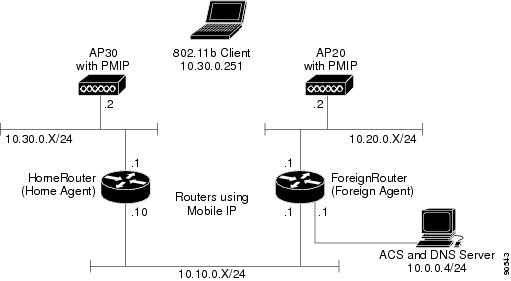

Figure 6-11 A Sample Network
Follow these steps to create a Proxy mobile IP configuration.
Step 1
Step 2

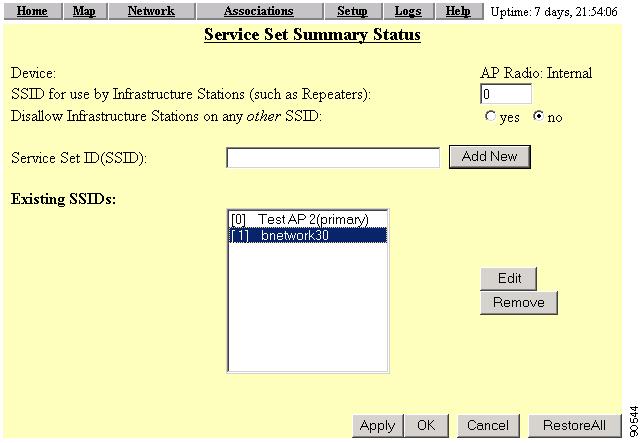

Figure 6-12 Service Set Summary Status Page
Step 3
Figure 6-13 AP Radio Primary SSID Page
Step 4
Step 5
Step 6
Figure 6-14 Proxy Mobile IP Setup Page
Step 7

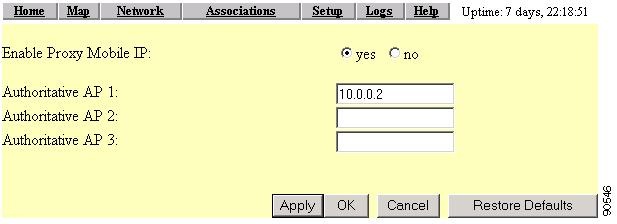

Figure 6-15 Proxy Mobile IP General Page
Step 8
Step 9
Step 10
Step 11
Step 12

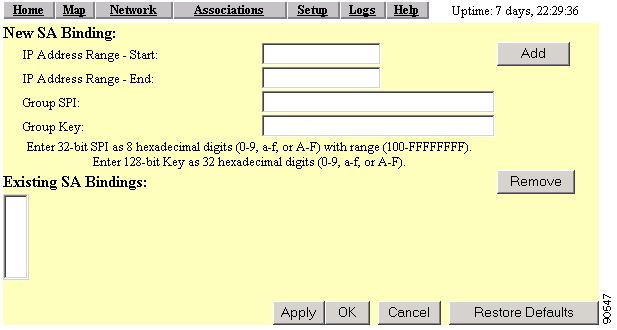

Figure 6-16 Local SA Bindings Page
Step 13
Step 14
Step 15
Figure 6-17 Subnet Map Table
Step 16
Step 17
a.
b.
c.
Note

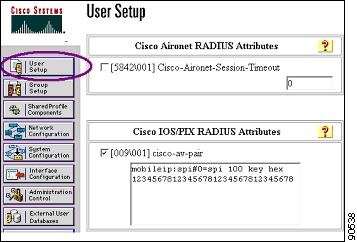

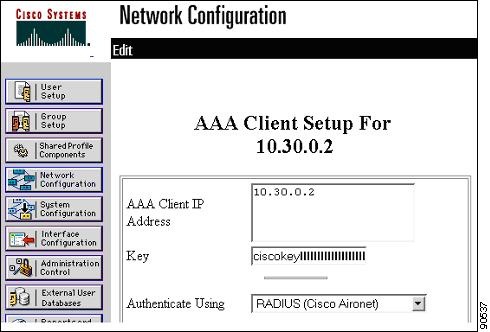

Configuring Mobile IP Security Associations on a CiscoSecure ACS Server
Follow these steps to configure the server:
Step 1

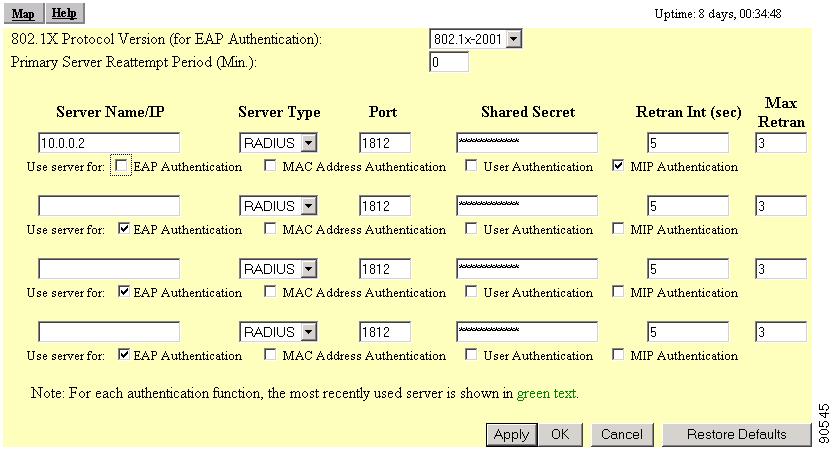

Figure 6-18 Authenticator Configuration Page
Step 2
a.
b.
c.
Step 3
Step 4
Figure 6-19 Network Configuration Screen for a Router Client
Step 5
Figure 6-20 Network Configuration Screen for an Access Point Client
Step 6
Figure 6-21 User Setup Screen
Note
Step 7
Figure 6-22 Passed Authentication Screen
Step 8
Step 9
Step 10
Step 11
Step 12
Step 13
Step 14
Step 15
Step 16
Step 17
