High-Availability Seamless Redundancy (HSR)

Information About HSR

High-availability Seamless Redundancy (HSR) is defined in International Standard IEC 62439-3-2016 clause 5. HSR is similar to Parallel Redundancy Protocol (PRP) but is designed to work in a ring topology. Instead of two parallel independent networks of any topology (LAN-A and LAN-B), HSR defines a ring with traffic in opposite directions. Port-A sends traffic counter clockwise in the ring, and Port-B sends traffic clockwise in the ring.

The HSR packet format is also different from PRP. To allow the switch to determine and discard duplicate packets, additional protocol specific information is sent with the data frame. For PRP, this is sent as part of a trailer called the redundancy control trailer (RCT), whereas for HSR this is sent as part of the header called the HSR header. Both the RCT and HSR header contain a sequence number, which is the primary data used to determine if the received frame is the first instance or a duplicate instance.


Note


HSR is supported on IE3400 Rugged and IE3400 Heavy Duty Series Switches (see Guidelines and Limitations for supported SKUs). The term switch in this document refers to the IE3400 Rugged and IE3400 Heavy Duty Series Switches unless otherwise noted.


The switch supports two HSR modes of operation: HSR-SAN and HSR-PRP. HSR-PRP mode is added in the Cisco IOS XE 17.14.1 release. The switch can support only one mode at a time. When operating in HSR-SAN mode, no PRP instances can be created. When operating in HSR-PRP mode, a single PRP interface is identified in addition to the two HSR ring port interfaces. This is different than creating a PRP instance which has a full PRP channel port with two interfaces on same switch. When operating in HSR-PRP mode, it is expected that two HSR ring nodes will have PRP interfaces, a PRP interface for LAN A and B.

The non-switching nodes with two interfaces attached to the HSR ring are referred to as Doubly Attached Nodes implementing HSR (DANHs). Similar to PRP, Singly Attached Nodes (SANs) are attached to the HSR ring through a device called a RedBox (Redundancy Box). The RedBox acts as a DANH for all traffic for which it is the source or the destination. The switch implements RedBox functionality using Gigabit Ethernet port connections to the HSR ring.

The following figure shows an example of an HSR ring as described in IEC 62439-3. In this example, the RedBox is an IE 3400.

Figure 1. Example of HSR Ring Carrying Unicast Traffic

Devices that do not support HSR out of the box (for example, laptops and printers) cannot be attached to the HSR ring directly because all HSR capable devices must be able to process the HSR header on packets received from the ring and add the HSR header to all packets sent into the ring. These nodes are attached to the HSR ring through a RedBox. As shown in the figure above, the RedBox has two ports on the DANH side. Non-HSR SAN devices are attached to the upstream switch ports. The RedBox generates the supervision frames on behalf of these devices so that they are seen as DANH devices on the ring. Because the RedBox emulates these as DANH, they are called Virtual Doubly Attached Nodes (VDAN).

For more details, see Section A3 (HSR) in IEC 62439-3, version 2021.

Loop Avoidance

Each node in the HSR ring forwards frames received from one port to the other port of the HSR pair. To avoid loops and use network bandwidth effectively, the RedBox does not transmit frames that are already transmitted in same direction. When a node injects a packet into the ring, the packet is handled as follows to avoid loops:

  • Unicast packet with destination inside the ring: When the unicast packet reaches the destination node, the packet is consumed by the respective node and is not forwarded.

  • Unicast packet with destination not inside the ring: Because this packet does not have a destination node in the ring, it is forwarded by every node in the ring until it reaches the originating node. Because every node has a record of the packet it sent, along with the direction in which it was sent, the originating node detects that packet has completed the loop and drops the packet.

  • Multicast packet: A multicast packet is forwarded by each node because there can be more than one consumer of this packet. For this reason a multicast packet always reaches the originating node. However, every node will check whether it has already forwarded the received packet through its outgoing interface. Once the packet reaches the originating node, the originating node determines that it already forwarded this packet and drops the packet instead of forwarding it again.

HSR RedBox Modes of Operation

The most basic mode of operation is HSR-SAN mode (single RedBox mode). In this mode, the RedBox is used to connect SAN devices to the HSR ring. The Redbox’s responsibility in this mode is to represent SAN devices as VDANs on the ring.

HSR-SAN Mode

In HSR-SAN mode, the RedBox inserts the HSR tag on behalf of the host and forwards the ring traffic, except for frames sent by the node itself, duplicate frames, and frames for which the node is the unique destination. In this mode, packets are handled as follows:

  • A source DANH sends a frame passed from its upper layers ("C" frame), prefixes it with an HSR tag to identify frame duplicates, and sends the frame over each port ("A" frame and "B" frame).

  • A destination DANH receives two identical frames from each port within a certain interval. The destination DANH removes the HSR tag of the first frame before passing it to its upper layers and discards any duplicate.

  • Each node in the HSR ring forwards frames received from one port to the other port of the HSR pair. A node will not forward frames received on one port to the other under the following conditions:

    • The received frame returns to the originating node in the ring.

    • The frame is a unicast frame with a destination MAC address of a node upstream of the receiving node.

    • The node had already sent the same frame in the same direction. This rule prevents a frame from spinning in the ring in an infinite loop.

HSR-SAN Interfaces

HSR-SAN mode is supported on interfaces GigabitEthernet 1/1-4. HSR ring 1 is configured as a pair of ports: G1/1 and G1/2 or G1/3 and G1/4.

HSR-PRP (Dual RedBox Mode)

HSR-PRP mode, also called Dual RedBox mode, is used to bridge HSR and PRP networks. Dual RedBox mode is supported on IE3400 and IE3400H switches only.

In this mode, two different RedBoxes connect to LAN A and LAN B of the PRP network. Two ports connect to the HSR ring and one port connects to one of the two PRP LANs. The traffic on the upstream interlink port connecting the RedBox to the PRP network is PRP-tagged. In HSR-PRP mode, the RedBox extracts data from the PRP frame and generates the HSR frame using this data, and performs the reverse in the opposite direction. To avoid loops and use network bandwidth effectively, the RedBox does not transmit frames already transmitted in same direction (see Loop Avoidance).

The following figure shows an HSR ring connected to a PRP network through two RedBoxes, one for each LAN. In this example, the source frame originates in the PRP network. RedBoxes are configured to support PRP traffic on the interlink ports and HSR traffic on the ring ports. Nodes connected to the HSR-PRP Redbox act as a SAN to the PRP Redbox and a VDAN to the HSR-PRP Dual Redbox.

The sequence number from the PRP RCT is reused for the HSR tag and vice versa to allow frame identification from one redundancy network to the other and to identify the pairs and duplicates on either network. In the figure above, RedBox A and RedBox B send the same frame (A and AB and B and BA, respectively), but a RedBox does not transmit a frame that it already received.

Every DANH device generates its own sequence number, which is incremented for each outgoing frame. When a packet is switched from HSR to PRP or PRP to HSR, the sequence number is taken from the incoming packet so the same sequence number is used. Any node, whether it is an intermediate or final destination in the HSR or PRP network, uses the source MAC address and sequence number as the key for duplicate packet detection. Because the source address is expected to be unique for each node, there are no overlapping sequence numbers between different nodes.

Multicast frames or unicast frames without a receiver in the ring (arrows with the black outline in the figure) are removed by the RedBox that inserted them into the ring, if they originated from outside the ring. For this purpose, the frames carry a LAN identifier that is also the RedBox identifier.

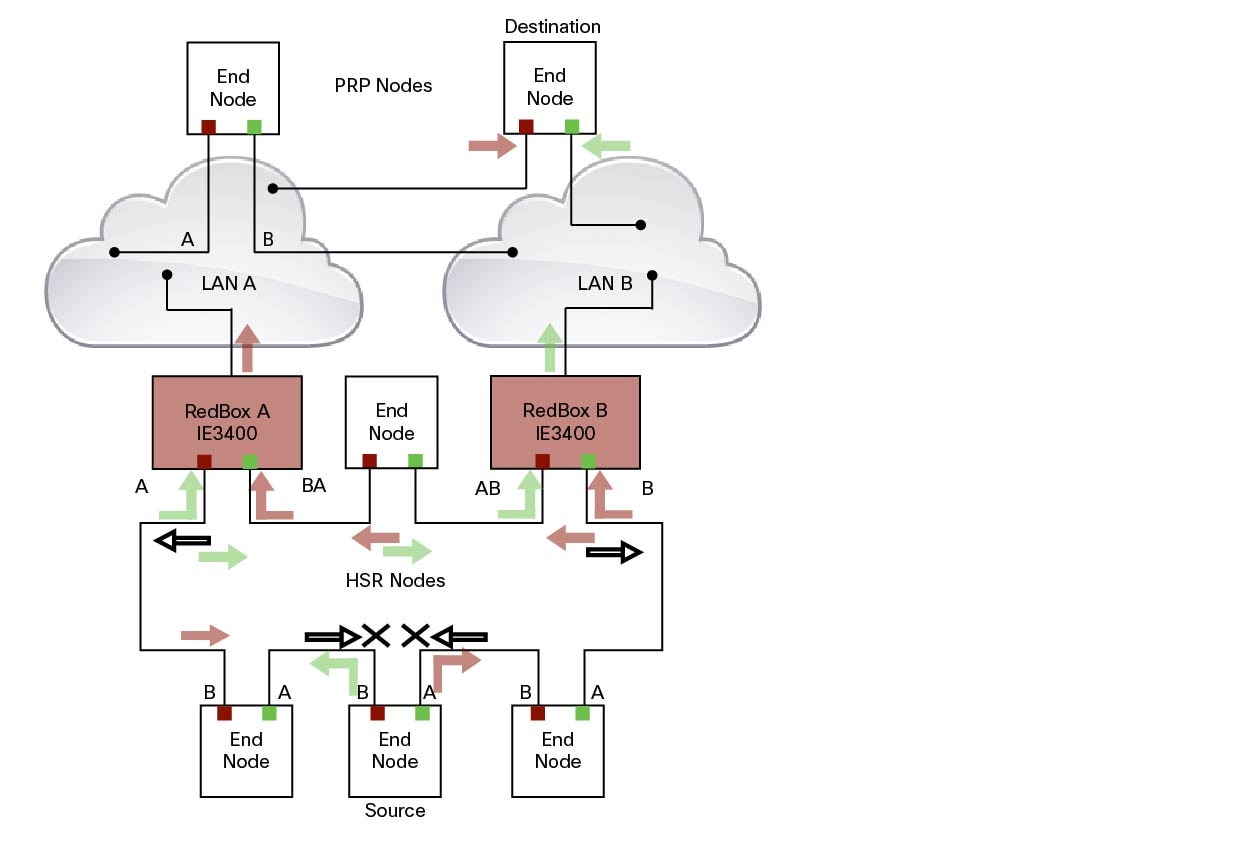

The following figure shows an HSR ring coupled to a PRP network, where the source frame originates in the HSR ring.

To prevent frames from being reinjected into the PRP network through the other RedBox, each HSR frame carries the 4-bit PathId, which identifies the PRP network from which the frame came originally. RedBoxes are configured and identified by the PathId of the PRP LAN to which they are attached.

Different PathIds can be used to bridge more than one PRP network to an HSR ring. Likewise, more than one HSR ring can be bridged to a PRP network.

PRP is not needed for HSR-PRP to function in the IE3400. Any third port can be connected to PRP LAN A or LAN B network without PRP or any specific configurations.

PRP Supervision frames are sent toward PRP LAN A or LAN B from conversion of HSR Supervision Frames originated from DANHs and VDANs of HSR RedBoxes in the HSR ring. The HSR-PRP Redbox does not generate them but passes them along.

Packet flow in HSR-PRP

Packets coming from PRP network in the coupled PRP LAN-A or LAN-B are expected to have an RCT (Redundancy Control Trailer) tag. The switch removes the RCT and transfers the information to the HSR header using the programmed Net ID and LAN ID, recalculates the CRC, and sends the modified packet out to both ring A and ring B. If the packets originate from a SAN in the coupled PRP network, the switch treats it similarly as a VDAN to the HSR ring.

Egress Data Path—Packets coming from a SAN or PRP LAN A or LAN B to the HSR ring:

  • For PRP packets, the switch converts the PRP RCT to an HSR tag for all packets (transfers Sequence Number and LAN ID from PRP to HSR).

  • For SAN packets, the switch just inserts the HSR tag as is done in HSR-SAN RedBox mode.

  • The switch needs to learn the MAC source address and add it to the Proxy Node table (VDAN table) with a new additional bit that allows the switch to distinguish between DANP or SAN. This allows the ingress path to determine whether to include the RCT trailer or not.

Ingress Data Path—Packets coming from the HSR ring to a SAN or PRP LAN A or LAN B:

  • If the Proxy Node table or VDAN table lookup of the MAC destination address returns DANP, the switch converts the HSR tag to PRP RCT for accepted packets (transfers Sequence Number and LAN ID from HSR to PRP RCT).

  • If the Proxy Node table or VDAN table lookup of the MAC destination address returns SAN, the switch strips the HSR tag and sends the packet without the RCT.

HSR-PRP Interfaces

In HSR-PRP Dual RedBox mode, two ports are connected to the HSR ring, and one port is connected to the PRP LAN A or LAN B network. When set to HSR-PRP mode, the two ports that connect to the HSR ring (Gi1/1 and Gi1/2) are automatically configured to HSR. The port connected to PRP LAN A or LAN B can be any other port from the base module or expansion module. The HSR-PRP RedBox can use all remaining ports (base module or expansion module ports) for other purposes, such as connecting a DHCP server. These non-PRP and non-HSR ports must be in the same VLAN as the HSR and PRP ports to achieve SAN/VDAN behavior.

Connecting Multiple PRP Networks to an HSR Ring

A maximum of six PRP networks, identified by the PathId, can be connected to the same HSR ring. The 4-bit PathId consists of the following:

  • The 3-bit NetId (1 to 6), which identifies a PRP network and the two RedBoxes that connect the PRP network to an HSR ring.

  • The 1-bit LanId (LAN A = 0 and LAN B = 1)

NetId values are as follows:

  • 0 for regular HSR frames

  • 1 to 6 for frames originating from a PRP network

  • 7 is reserved

The following table lists the combinations of NetIds and LanIds for Redbox-A and Redbox-B.

PathId

NetId

LanId

RedBox-A

RedBox-B

001

0

1

010

0

1

011

0

1

100

0

1

101

0

1

110

0

1

000

Used for Local HSR Ring

111

Reserved

The following figure shows an example of an HSR ring connected to two PRP networks.

To prevent reinjection of frames coming from one PRP network into another PRP network or from the other LAN of the same PRP network, a RedBox only forwards frames that do not carry its own PathId from the HSR ring.

When a PRP frame from LAN A or from LAN B of a PRP network with a given NetId is inserted to the HSR ring, a RedBox inserts its own NetId and the LanId “A” or ”B” into the PathId of the HSR tag.

When forwarding a frame from the HSR ring to a PRP network, the RedBox inserts the LanId “A” or ”B” into the RCT.

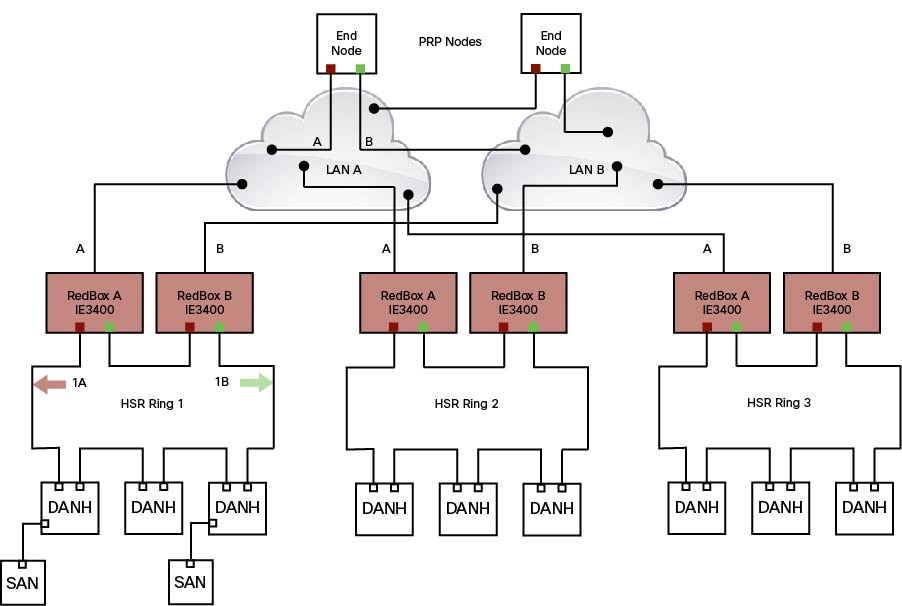

Connecting Multiple HSR Rings to a PRP Network

A PRP network can be connected to any number of HSR rings, but these rings cannot be connected to each other because this would create loops. The following figure shows an example of three HSR rings connected to one PRP LAN.

CDP and LLDP for HSR

HSR supports the Cisco Discovery Protocol (CDP) and Link Layer Discovery Protocol (LLDP). CDP and LLDP are Layer 2 neighbor discovery protocols. Both CDP and LLDP can provide information about nodes directly connected to the device. They also provide additional information such as the local and remote interface and device names.

When CDP or LLDP is enabled, you can use the CDP or LLDP information to find the adjacent nodes on an HSR ring and their status. You can then use the neighbor information from each node to determine the complete HSR network topology and debug and locate ring faults.

CDP and LLDP are configured on physical interfaces only.

For more information, see Configuring an HSR Ring and Verifying Configuration.

PTP over HSR

Precision Time Protocol (PTP) is supported on the IE3400 Rugged and IE3400 Heavy Duty Series Switches for the PTP Power Profile only.

In the HSR ring, PTP packets carry HSR tags that are removed when exiting through a VDAN port.

To understand how PTP clock synchronization operates within an HSR network, consider a scenario, When a VDAN or SAN acts as the PTP grandmaster clock (GMC), dually attached devices receive PTP packets on both HSR ports. Due to HSR discard logic, each device processes only the first valid PTP packet received and discards duplicates, preventing synchronization loops.

For more details, see Section A2 (PRP) in IEC 62439-3, version 2021.


Note


Cisco is moving from the traditional Master/Slave nomenclature. In this document, the terms Grandmaster clock (GMC) or time source and time recipient are used instead.


The PTP grandmaster in an HSR network can be a RedBox, a VDAN/SAN, or a DANH.

To use PTP over HSR, configure HSR and PTP separately. PTP over HSR works without any additional configuration. Note that in most cases, you do not need to perform any PTP configuration on the interfaces because PTP is enabled by default on all physical ethernet interfaces.

Supported PTP Profiles and Modes

PTP over HSR is supported only for the for the PTP Power Profile. For unsupported PTP profiles, PTP traffic flows over HSR port-A only.

The following table shows the HSR support for PTP profiles, clock modes and RedBox types.

PTP Profile

Clock Mode

Supported?

HSR Redbox Type as per IEC 62439-3

Power Profile

BC

Yes

HSR RedBox as doubly attached BC (DABC) with P2P

P2P TC

Yes

HSR RedBox as doubly attached TC (DATC) with P2P

GMC-BC

No

Not applicable

Forward

No

Not applicable

Default Profile

BC

No

Not applicable

E2E TC

No

Not applicable

HSR RedBox as Doubly Attached BC (DABC) with P2P

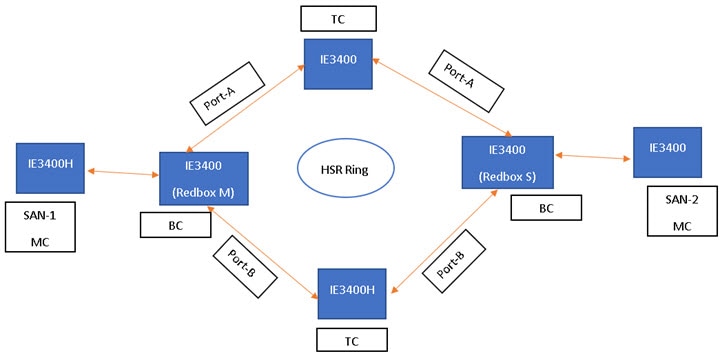

This section describes the operation of PTP over HSR using an example where RedBox M and RedBox S are configured to run in Power Profile as Boundary Clocks that use the Peer-to-Peer delay measurement mechanism.

Assume for this example that SAN-1 is the GMC. All the clocks are configured to run Peer-to-Peer Delay measurement and the peer delay is regularly calculated and maintained on every link shown in the figure. The BMCA on RedBox M determines the port to SAN-1 to be connected to the time source. The PTP protocol running on RedBox M will forward Sync and Follow_up messages on ports A and B.

On RedBox S, the regular BMCA operation determines port A to be time recipient and port B to be PASSIVE. However, with the knowledge that ports A and B are part of the same HSR ring, port B is forced into PASSIVE_SLAVE state and port A becomes active for PTP.

Port A works as a regular time recipient port. It uses the Sync and Follow_Up messages along with their correction field to calculate the delay and offset from time source and synchronize the local clock. (Unlike an E2E BC, it does not need to generate Delay_Req messages since all the link delays and residence times along the PTP path are accumulated in the correction field of the Follow_Up messages.)

Port B, which is in PASSIVE_SLAVE state operates as follows: Just like port A, it maintains the delay and offset from time source, but does not perform any operation on the local clock. Having all the synchronization information available enables it to seamlessly take over as the new time recipient in case port A loses communication with the GMC. Note that on IE switch platforms we currently do not support PTP profile conversion. For example, if RedBox S in the figure above were an IE switch, it would not support the Delay_Req/Delay_Resp message exchange. It would only support the Peer-to-Peer delay measurement mechanism using PDelay messages.

Configuration Example
SAN-1#conf t
Enter configuration commands, one per line.  End with CNTL/Z.
SAN-1(config)#ptp profile power
SAN-1(config)#ptp mode boundary pdelay-req
SAN-1(config)#ptp priority1 1
SAN-1(config)#end

SAN-2#conf t
Enter configuration commands, one per line.  End with CNTL/Z.
SAN-2(config)#ptp profile power
SAN-2(config)#ptp mode boundary pdelay-req
SAN-2(config)#end

REDBOX-M#conf t
Enter configuration commands, one per line.  End with CNTL/Z.
REDBOX-M(config)#ptp profile power
REDBOX-M(config)#ptp mode boundary pdelay-req
REDBOX-M(config)#end

REDBOX-S#conf t
Enter configuration commands, one per line.  End with CNTL/Z.
REDBOX-S(config)#ptp profile power
REDBOX-S(config)#ptp mode boundary pdelay-req
REDBOX-S(config)#end

DANH-TOP#conf t
Enter configuration commands, one per line.  End with CNTL/Z.
DANH-TOP(config)#ptp profile power
DANH-TOP(config)#ptp mode p2ptransparent
DANH-TOP(config)#end

DANH-BOTTOM#conf t
Enter configuration commands, one per line.  End with CNTL/Z.
DANH-BOTTOM(config)#ptp profile power
DANH-BOTTOM(config)#ptp mode p2ptransparent
DANH-BOTTOM(config)#end

SAN-1#sh ptp parent
 PTP PARENT PROPERTIES
  Parent Clock:
  Parent Clock Identity: 0x0:35:1A:FF:FE:94:4F:0
  Parent Port Number: 0
  Observed Parent Offset (log variance): N/A
  Observed Parent Clock Phase Change Rate: N/A

  Grandmaster Clock:
  Grandmaster Clock Identity: 0x0:35:1A:FF:FE:94:4F:0
  Grandmaster Clock Quality:
	Class: 248
	Accuracy: Unknown
	Offset (log variance): N/A
	Priority1: 1
	Priority2: 128

SAN-2#sh ptp parent
 PTP PARENT PROPERTIES
  Parent Clock:
  Parent Clock Identity: 0x0:29:C2:FF:FE:3C:6A:C0
  Parent Port Number: 9
  Observed Parent Offset (log variance): N/A
  Observed Parent Clock Phase Change Rate: N/A

  Grandmaster Clock:
  Grandmaster Clock Identity: 0x0:35:1A:FF:FE:94:4F:0
  Grandmaster Clock Quality:
	Class: 248
	Accuracy: Unknown
	Offset (log variance): N/A
	Priority1: 1
	Priority2: 128

REDBOX-M#sh ptp parent
 PTP PARENT PROPERTIES
  Parent Clock:
  Parent Clock Identity: 0x0:35:1A:FF:FE:94:4F:0
  Parent Port Number: 3
  Observed Parent Offset (log variance): N/A
  Observed Parent Clock Phase Change Rate: N/A

  Grandmaster Clock:
  Grandmaster Clock Identity: 0x0:35:1A:FF:FE:94:4F:0
  Grandmaster Clock Quality:
	Class: 248
	Accuracy: Unknown
	Offset (log variance): N/A
	Priority1: 1
	Priority2: 128

REDBOX-S#sh ptp parent
 PTP PARENT PROPERTIES
  Parent Clock:
  Parent Clock Identity: 0x0:29:C2:FF:FE:3C:5D:80
  Parent Port Number: 3
  Observed Parent Offset (log variance): N/A
  Observed Parent Clock Phase Change Rate: N/A

  Grandmaster Clock:
  Grandmaster Clock Identity: 0x0:35:1A:FF:FE:94:4F:0
  Grandmaster Clock Quality:
	Class: 248
	Accuracy: Unknown
	Offset (log variance): N/A
	Priority1: 1
	Priority2: 128

DANH-TOP#sh ptp parent
 PTP PARENT PROPERTIES
  Parent Clock:
  Parent Clock Identity: 0x0:29:C2:FF:FE:3C:5D:80
  Parent Port Number: 3
  Observed Parent Offset (log variance): N/A
  Observed Parent Clock Phase Change Rate: N/A

  Grandmaster Clock:
  Grandmaster Clock Identity: 0x0:35:1A:FF:FE:94:4F:0
  Grandmaster Clock Quality:
	Class: 248
	Accuracy: Unknown
	Offset (log variance): N/A
	Priority1: 1
	Priority2: 128

DANH-BOTTOM#sh ptp parent
 PTP PARENT PROPERTIES
  Parent Clock:
  Parent Clock Identity: 0x0:29:C2:FF:FE:3C:5D:80
  Parent Port Number: 4
  Observed Parent Offset (log variance): N/A
  Observed Parent Clock Phase Change Rate: N/A

  Grandmaster Clock:
  Grandmaster Clock Identity: 0x0:35:1A:FF:FE:94:4F:0
  Grandmaster Clock Quality:
	Class: 248
	Accuracy: Unknown
	Offset (log variance): N/A
	Priority1: 1
	Priority2: 128

HSR RedBox as Doubly Attached TC (DATC) with P2P

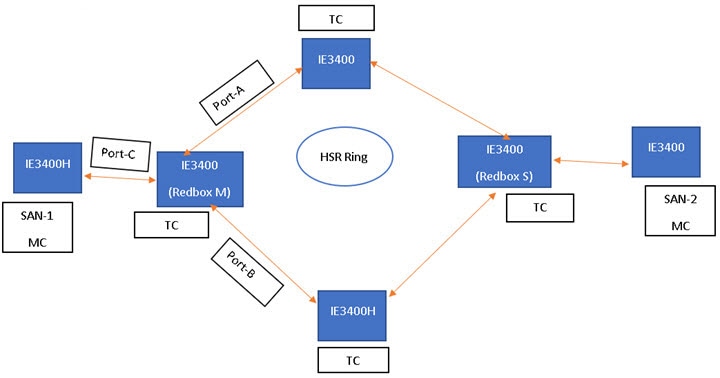

This section describes the operation of PTP over HSR using an example where RedBox M and RedBox S are configured to run in Power Profile as Transparent Clocks.

Assume for this example that SAN-1 is the GMC. All the clocks are configured to run Peer-to-Peer Delay measurement and the peer delay is regularly calculated and maintained on every link shown in the figure. RedBox M and RedBox S run BMCA even though it is not mandatory for a P2P TC to run BMCA. On RedBox M, the BMCA on redbox M determines the port to SAN-1 to be connected to the time source. RedBox M forwards all Sync and Follow_Up messages received on port C out of ports A and B.

On RedBox S, port A is determined to be time recipient and port B to be PASSIVE_SLAVE as described earlier.

Port A operates as follows: It uses the Sync and Follow_Up messages along with their correction field to calculate the delay and offset from time source and synchronize the local clock. (Unlike a E2E BC, it does not need to generate Delay_Req messages since all the link delays and residence times along the PTP path are accumulated in the correction field of the Follow_Up messages.) It also forwards the Sync and Follow_Up messages out of port C.

Port B operates as follows: Just like port A, it maintains the delay and offset from time source, but does not perform any operation on the local clock. Having all the synchronization information available enables it to seamlessly take over as the new time recipient in case port A loses communication with the GMC. Post-processing, it drops the Sync/Follow_Up messages since the copy of Sync/Follow_Up that arrives on port A is forwarded out of port C.

Configuration Example
SAN-1#conf t
Enter configuration commands, one per line.  End with CNTL/Z.
SAN-1(config)#ptp profile power
SAN-1(config)#ptp mode boundary pdelay-req
SAN-1(config)#ptp priority1 1
SAN-1(config)#end
SAN-2#conf t
Enter configuration commands, one per line.  End with CNTL/Z.
SAN-2(config)#ptp profile power
SAN-2(config)#ptp mode boundary pdelay-req
SAN-2(config)#end
REDBOX-M#conf t
Enter configuration commands, one per line.  End with CNTL/Z.
REDBOX-M(config)#ptp profile power
REDBOX-M(config)# ptp mode p2ptransparent
REDBOX-M(config)#end
REDBOX-S#conf t
Enter configuration commands, one per line.  End with CNTL/Z.
REDBOX-S(config)#ptp profile power
REDBOX-S(config)# ptp mode p2ptransparent
REDBOX-S(config)#end
DANH-TOP#conf t
Enter configuration commands, one per line.  End with CNTL/Z.
DANH-TOP(config)#ptp profile power
DANH-TOP(config)#ptp mode p2ptransparent
DANH-TOP(config)#end
DANH-BOTTOM#conf t
Enter configuration commands, one per line.  End with CNTL/Z.
DANH-BOTTOM(config)#ptp profile power
DANH-BOTTOM(config)#ptp mode p2ptransparent
DANH-BOTTOM(config)#end
SAN-1#sh ptp parent
 PTP PARENT PROPERTIES
  Parent Clock:
  Parent Clock Identity: 0x0:35:1A:FF:FE:94:4F:0
  Parent Port Number: 0
  Observed Parent Offset (log variance): N/A
  Observed Parent Clock Phase Change Rate: N/A

  Grandmaster Clock:
  Grandmaster Clock Identity: 0x0:35:1A:FF:FE:94:4F:0
  Grandmaster Clock Quality:
	Class: 248
	Accuracy: Unknown
	Offset (log variance): N/A
	Priority1: 1
	Priority2: 128
SAN-2#sh ptp parent
 PTP PARENT PROPERTIES
  Parent Clock:
  Parent Clock Identity: 0x0:35:1A:FF:FE:94:4F:0
  Parent Port Number: 3
  Observed Parent Offset (log variance): N/A
  Observed Parent Clock Phase Change Rate: N/A

  Grandmaster Clock:
  Grandmaster Clock Identity: 0x0:35:1A:FF:FE:94:4F:0
  Grandmaster Clock Quality:
	Class: 248
	Accuracy: Unknown
	Offset (log variance): N/A
	Priority1: 1
	Priority2: 128
REDBOX-M#sh ptp parent
 PTP PARENT PROPERTIES
  Parent Clock:
  Parent Clock Identity: 0x0:35:1A:FF:FE:94:4F:0
  Parent Port Number: 3
  Observed Parent Offset (log variance): N/A
  Observed Parent Clock Phase Change Rate: N/A

  Grandmaster Clock:
  Grandmaster Clock Identity: 0x0:35:1A:FF:FE:94:4F:0
  Grandmaster Clock Quality:
	Class: 248
	Accuracy: Unknown
	Offset (log variance): N/A
	Priority1: 1
	Priority2: 128
REDBOX-S#sh ptp parent
 PTP PARENT PROPERTIES
  Parent Clock:
  Parent Clock Identity: 0x0:35:1A:FF:FE:94:4F:0
  Parent Port Number: 3
  Observed Parent Offset (log variance): N/A
  Observed Parent Clock Phase Change Rate: N/A

  Grandmaster Clock:
  Grandmaster Clock Identity: 0x0:35:1A:FF:FE:94:4F:0
  Grandmaster Clock Quality:
	Class: 248
	Accuracy: Unknown
	Offset (log variance): N/A
	Priority1: 1
	Priority2: 128
DANH-TOP#sh ptp parent
 PTP PARENT PROPERTIES
  Parent Clock:
  Parent Clock Identity: 0x0:35:1A:FF:FE:94:4F:0
  Parent Port Number: 3
  Observed Parent Offset (log variance): N/A
  Observed Parent Clock Phase Change Rate: N/A

  Grandmaster Clock:
  Grandmaster Clock Identity: 0x0:35:1A:FF:FE:94:4F:0
  Grandmaster Clock Quality:
	Class: 248
	Accuracy: Unknown
	Offset (log variance): N/A
	Priority1: 1
	Priority2: 128
DANH-BOTTOM#sh ptp parent
 PTP PARENT PROPERTIES
  Parent Clock:
  Parent Clock Identity: 0x0:35:1A:FF:FE:94:4F:0
  Parent Port Number: 3
  Observed Parent Offset (log variance): N/A
  Observed Parent Clock Phase Change Rate: N/A

  Grandmaster Clock:
  Grandmaster Clock Identity: 0x0:35:1A:FF:FE:94:4F:0
  Grandmaster Clock Quality:
	Class: 248
	Accuracy: Unknown
	Offset (log variance): N/A
	Priority1: 1
	Priority2: 128

HSR Alarms

An HSR ring can generate the following two alarms:

  • Partial Ring Fault: This fault is generated by an HSR RedBox when one of its physical ring ports/links is down. Because the packets can be sent using the redundant path, this is considered as a partial fault. However, this fault still requires user intervention to restore the ring. This is a minor fault and cannot be associated with an external hardware alarm relay.

  • Full Ring Fault: This fault is generated by an HSR RedBox when both of its physical ring ports/links are down. This is a catastrophic failure and needs immediate attention. This is a major fault and can be associated with an external hardware alarm relay.

When an event that raises an alarm is generated, it can be associated with one or more of the following actions to notify the user:

  • Syslog: A syslog is generated when the Alarm is raised/cleared.

  • SNMP Notification: SNMP notification is sent when the alarm is raised/cleared.

  • Relay output: External relay contacts can be asserted/de-asserted in response to the alarm. Relays are activated by major faults only.

See Enabling HSR Alarms for steps to configure HSR alarms.

The following table lists the HSR events and their representations.

Event Number

Event Description

System Log (Level)

Alert/Alarm Log

Alarm LED and Output relay

1

Ring goes from UP to DOWN state.

2

2

Major Alarm/Assert

2

Ring goes from DOWN to UP state.

6

6

De-assert

3

One ring port goes DOWN, the other ring port and the ring itself is UP.

3

3

4

Both ring ports are UP again.

6

6

You can view currently active alarms using the show facility alarm status command. The following example shows alarm status for minor and major HSR alarms:

Switch#show facility-alarm status
Source          Severity    Description                      Relay   Time
Switch            MINOR    34 HSR ring is partially down        MAJ    Oct 24 2017 10:16:10
-------
Switch# show facility-alarm status
Source          Severity    Description                   Relay     Time
Switch            MAJOR    33 HSR ring is down               MAJ      Oct 24 2017 10:17:07

The following examples show the syslog entries that are generated for each HSR alarm event assertion and clear event (if configured):

  • Syslog generated on occurrence of Partial fault:

    Oct 24 11:07:13.952 IST: %HSR_ALARM-3-HSR_PARTIALFAULT: The HSR ring in now in PARTIAL FAULT state

  • Syslog generated when the Partial fault is cleared:

    Oct 24 11:07:38.032 IST: %HSR_ALARM-3-HSR_PARTIALFAULT: The HSR ring in now in PARTIAL FAULT state - event cleared

  • Syslog generated on occurrence of Full fault:

    Oct 24 11:07:38.036 IST: %HSR_ALARM-2-HSR_RINGFAULT: The HSR ring in now in FAULT state
  • Syslog generated when the Full fault is cleared:

    Oct 24 11:08:19.082 IST: %HSR_ALARM-2-HSR_RINGFAULT: The HSR ring in now in FAULT state - event cleared


HSR Uplink Redundancy Enhancement

The HSR Uplink Redundancy Enhancement feature allows for flexible designs that enable two separate interfaces to connect upstream from the HSR ring through two separate HSR RedBoxes. This ensures there is no single point of failure exiting the HSR ring. Examples of protocols that can leverage this feature to improve high availability include HSRP, VRRP and REP. Prior to this enhancement, if these protocols were utilized on redundant uplinks, undesirable results could occur, such as next-hop split-brain conditions or slow REP failover times.

The following diagram shows an example network with HSR and HSRP that allows uplink next-hop gateway redundancy out of the HSR ring.

To implement HSR Uplink Redundancy, ensure that the fpgamode-DualUplinkEnhancement feature is not disabled. This feature is required to support the connectivity to a dual router (HSRP in this case) on the distribution layer:

Switch#show hsr ring 1 detail | include fpgamode
 fpgamode-DualUplinkEnhancement: Enabled

If the output shows fpgamode-DualUplinkEnhancement,:Disabled issue the following command:

Switch# conf t
Enter configuration commands, one per line.  End with CNTL/Z.
Switch(config)# hsr-ring 1 fpgamode-DualUplinkEnhancement
Switch(config)# end

HSRP Configuration

The following example HSRP configuration applies to the two distribution switches Active & Standby in the above figure. In the following configuration, HSRP is configured in a Switch Virtual Interface (SVI).

Active# conf t
Enter configuration commands, one per line.  End with CNTL/Z.
Active(config)# interface vlan 10
Active(config-if)# ip address 30.30.30.2 255.255.255.0
Active(config-if)# standby 1 ip 30.30.30.1
Active(config-if)# standby 1 priority 120
Active(config-if)# end

Standby# conf t
Enter configuration commands, one per line.  End with CNTL/Z.
Standby(config)# interface Vlan10
Standby(config-if)# ip address 30.30.30.4 255.255.255.0
Standby(config-if)# standby 1 ip 30.30.30.1
Standby(config-if)# end

Active# show standby
Vlan10 - Group 1
  State is Active
    8 state changes, last state change 00:03:55
    Track object 1 (unknown)
  Virtual IP address is 30.30.30.1
  Active virtual MAC address is 0000.0c07.ac01 (MAC In Use)
    Local virtual MAC address is 0000.0c07.ac01 (v1 default)
  Hello time 200 msec, hold time 750 msec
    Next hello sent in 0.176 secs
  Preemption enabled, delay min 5 secs, reload 5 secs, sync 5 secs
  Active router is local
  Standby router is 30.30.30.4, priority 100 (expires in 0.656 sec)
  Priority 120 (configured 120)
  Group name is "hsrp-Vl10-1" (default)
  FLAGS: 0/1
Active# show standby brief
                     P indicates configured to preempt.
                     |
Interface   Grp  Pri P State   Active          Standby         Virtual IP
Vl10        1    120 P Active  local           30.30.30.4      30.30.30.1


Standby# show standby
Vlan10 - Group 1
  State is Standby
    13 state changes, last state change 00:04:17
    Track object 1 (unknown)
  Virtual IP address is 30.30.30.1
  Active virtual MAC address is 0000.0c07.ac01 (MAC Not In Use)
    Local virtual MAC address is 0000.0c07.ac01 (v1 default)
  Hello time 200 msec, hold time 750 msec
    Next hello sent in 0.064 secs
  Preemption enabled, delay min 5 secs, reload 5 secs, sync 5 secs
  Active router is 30.30.30.2, priority 120 (expires in 0.816 sec)
  Standby router is local
  Priority 100 (default 100)
  Group name is "hsrp-Vl10-1" (default)
  FLAGS: 0/1
Standby# show standby brief
                     P indicates configured to preempt.
                     |
Interface   Grp  Pri P State   Active          Standby         Virtual IP
Vl10        1    100 P Standby 30.30.30.2      local           30.30.30.1

Guidelines and Limitations

  • HSR-SAN and HSR-PRP are supported only on the following IE 3400 and IE 3400H Series switches:

    • Advanced System IE-3400-8P2S

    • Advanced System IE-3400-8T2S

    • All IE 3400H Series SKUs

    • For HSR-PRP, these expansion modules can host the PRP interface: IEM-3400-8T, IEM-3400-8S, and IEM-3400-8P

  • HSR-SAN (Single RedBox mode) and HSR-PRP (Dual RedBox mode) are the only HSR modes supported.

  • Only 1 HSR instance is supported. Note that the switch supports only 1 HSR or 1 PRP instance, so if a PRP instance has been created, no HSR instance can be created.

  • HSR ring 1 can only be configured as a pair of ports: G1/1 and G1/2 or G1/3 and G1/4. Using these port pairs, you can configure 1 HSR ring.

  • The HSR feature requires the Network Essential license.

  • The HSR feature is not enabled by default and you must explicitly configure the HSR rings.

  • HSR is disabled automatically if the required firmware image is not available on the system.

  • The recommended maximum number of nodes in the node table is 512. Nodes are all the DANH and VDAN devices that can be connected to the ring at same time. This number is not an absolute limit, but higher numbers of entries may increase the number of duplicate packets received by the end devices.

  • The maximum number of nodes in the HSR ring is 50.

  • HSR ring ports can only be configured in L2 mode.

  • HSR is supported on following port types:

    • 100 mbps, Full Duplex. Half duplex is not supported.

    • 1000 mbps, Full Duplex. Half duplex is not supported.

    • Both ports of one ring must be of same speed and type (that is, both can be SFPs or both can be copper)

  • The following protocols and features are are mutually exclusive with HSR on the same port:

    • PRP

    • EtherChannels

    • Link Aggregation Control Protocol (LACP)

    • Port Aggregation Protocol (PAgP)

    • Resilient Ethernet Protocol (REP)

  • The HSR feature does not work together with L2NAT.

  • MACsec, HSR, and PRP are not allowed together.

  • HSR supports an MTU size of up to 1998 bytes of Ethernet payload.

  • STP is not supported on the HSR ring. By default, all modes of Spanning Tree Protocol (STP) will be disabled on the ring ports.

  • PTP over HSR-SAN is supported on IE3400 Advanced FPGA SKUs and IE 3400H. PTP over HSR-SAN is not supported on IE3200 or IE3300.

  • Switched Port Analyzer (SPAN) and Remote SPAN (RSPAN) are not supported on HSR. That is, SPAN and RSPAN should not be used to monitor the traffic on an HSR ring. In addition, traffic that has been monitored using RSPAN should not be transferred over an HSR ring.

  • It is important for all interfaces in an HSR ring to have the same speed and duplex settings. It is recommended to apply those settings before configuring ring membership.

  • Once a port is part of ring, the port cannot be shut down.

    For example, if G1/3 and G1/4 are part of an HSR ring and you try to shut down G1/3 or G1/4, the operation will not be permitted:

    Switch(config)# interface range g1/3
    Switch(config-if-range)#shutdown
     %Interface GigabitEthernet1/3 is configured in a HSR ring shutdown not permitted!
    Switch(config-if-range)#

    You can perform a shutdown of the HSR ring. For example:

    Switch# conf t
    Switch(config)#int hs1
    Switch(config-if-range)#shut
  • VLAN configuration such as trunk and access mode must be the same on both the ports participating in the ring. For example, if G1/4 and G1/3 in an HSR ring are in trunk mode and you attempt to change the mode of one port to access, the ports in the ring will not be bundled:

    Switch(config)# interface range g1/3
    Switch(config-if-range)# switchport mode  access
    Jul 27 22:00:27.809 IST: %EC-5-CANNOT_BUNDLE2: Gi1/3 is not compatible with Gi1/4 and will be suspended (trunk mode of Gi1/3 is access, Gi1/4 is dynamic)

  • After an interface is added in the HSR ring, only the primary interface counters are updated. You should not need to configure and check the status of individual physical interfaces after they are added to the HSR ring.

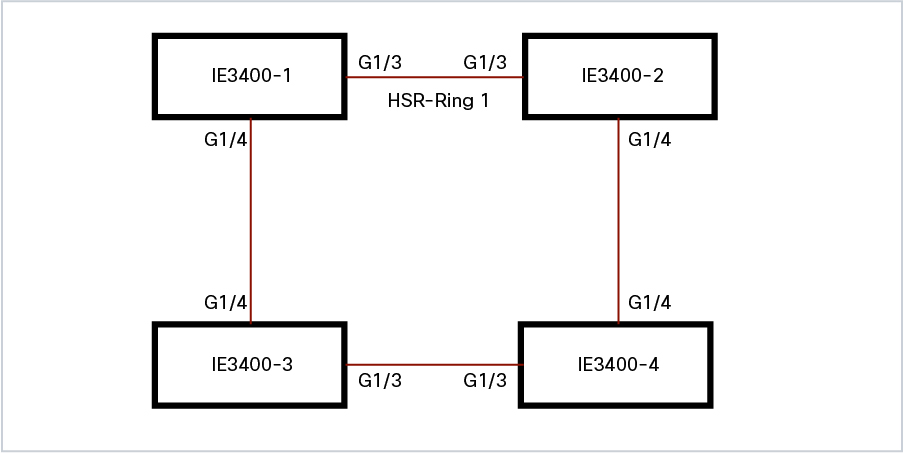

  • As soon as you configure an HSR ring on two ports of a switch, MAC flaps will be observed on other switches where the HSR configuration is yet to be applied. We recommend that you shut down the newly created HSR ring on the switch before configuring the ring on all switches, and then reenable them one by one as shown below. For example, if there are four switches in the ring, disable the HSR ring interfaces on each switch:

    Switch1(config)# interface range g1/1-2
    Switch1(config-if-range)# shutdown
    Switch1(config-if-range)# hsr-ring hs1
    Creating a HSR-ring interface hs1
    Switch1(config-if-range)# int hs1
    Switch1(config-if-range)# shutdown
    Switch1(config-if-range)# end

    After all four switches are configured with the ring, reenable the HSR ports on each switch:

    Switch1# conf t
    Enter configuration commands, one per line. End with CNTL/Z.
    Switch1(config)# int hs1
    Switch1(config-if-range)# no shutdown
    Switch1(config-if-range)# end
    Switch1#


    This prevents interim MAC flapping during HSR ring configuration in member switches.

  • When an individual HSR interface goes down, show interface status continues to show a status of UP for the link. This is because the port status is controlled by the HSR/PRP module. Use the show hsr channel command to confirm the status of the links, which indicates if a link is down. The following example shows the output for the show hsr ring command:

    Switch1# show hsr ring 1 detail
    HSR-ring: HS1
    Layer type = L2
     Operation Mode = mode-H
     Ports: 2       Maxports = 2
     Port state = hsr-ring is Inuse
     Protocol = Enabled  Redbox Mode = hsr-san
    Ports in the ring:
      1) Port: Gi1/3
       Logical slot/port = 1/3      Port state = Inuse
            Protocol = Enabled
      2) Port: Gi1/4
       Logical slot/port = 1/4      Port state = Not-Inuse (link down)
            Protocol = Enabled
    Ring Parameters:
     Redbox MacAddr: 34c0.f958.ee83
     Node Forget Time: 60000 ms
     Node Reboot Interval: 500 ms
     Entry Forget Time: 400 ms
     Proxy Node Forget Time: 60000 ms
     Supervision Frame COS option: 0
     Supervision Frame CFI option: 0
     Supervision Frame VLAN Tag option: Disabled
     Supervision Frame MacDa: 0x00
     Supervision Frame VLAN id: 0
     Supervision Frame Time: 3 ms
     Life Check Interval: 2000 ms
     Pause Time: 25 ms

HSR-PRP Dual RedBox mode

  • The 2 ports connected to the HSR ring must be Gi1/1 and Gi1/2, and the port connected to the PRP network can be any other port from the base module or expansion module. All remaining ports are available for normal use.

  • PRP configuration is not required on the port that connects to PRP LAN A or LAN B.

  • HSR ring members and the port connecting to PRP LAN A or LAN B should be in the same VLAN.

  • When HSR-PRP RedBox mode is disabled, the two fixed ports that were part of HSR-PRP are moved to the default configuration.

  • HSR Ring 1 is configured when HSR-PRP is enabled.

  • The CLI command hsr-prp-mode enable prp-lan-a | prp-lan-b to enable HSR-PRP works without the Net Id option and the default value is 1.

    For multiple PRP networks, you can use the Net Id option with a value of 1 through 6. The CLI command is hsr-prp-mode enable prp-lan-a | prp-lan-b <netid>.

  • Devices from LAN-A and LAN-B should not have direct connections. Connections should be through either Dual RedBox A or B or through PRP RedBox.

  • Devices should not be connected directly to both PRP networks (LAN A and LAN B) at the same time.

  • The maximum number of VDAN table and node table entries supported is 512 for HSR.

  • You can shut down an HSR ring interface but you cannot remove the HSR interface when HSR-PRP is configured.

  • HSR-PRP supported in both the default and redundancy FPGA profiles.

  • A RedBox configured as HSR-PRP LAN A must be connected to the PRP LAN A network, and a RedBox configured as HSR-PRP LAN B must be connected to the PRP LAN B network. If not, a warning message is displayed.

    All the non-HSR ports on the HSR-PRP RedBox are considered to be within the same LAN, LAN A or LAN B, according to the mode of configuration of the HSR-PRP RedBox.

  • MACSec is not supported in HSR-PRP.

  • PTP over HSR-PRP is not supported.

  • The show run command does not show hsr-ring 1 under interface configurations when HSR-PRP is enabled.

  • SAN devices between LAN-A and LAN-B are required to be isolated from each other. This means that the HSR-PRP dual RedBoxes and any of their connected devices cannot ping each other across the two isolated LANs.

  • The Syslog message "wrong LAN ID" is displayed based on the hardware statistics. If some other node in the PRP LAN is connected to the wrong LAN and it is sending the wrong LAN ID, this will cause the hardware to increment the statistics count as well.


    Note


    If there is a LAN ID mismatch, you are advised to check that the HSR-PRP RedBox has been configured and is connected to the same PRP network. For example, if the HSR-PRP RedBox is configured for HSR-PRP-LAN-A mode, the PRP port is connected to LAN-A.


  • Uplink redundancy through HSRP is not supported when HSR-PRP is enabled.

  • When HSR-PRP is configured, hsr-ring 1 is not displayed under the associated physical interfaces in the running configuration.

  • As with HSR-SAN, when you remove HSR-PRP, the corresponding associated physical interfaces will move to shutdown state.

  • When configuring or removing HSR-SAN or HSR-PRP, a warning message appears to notify you that the ports will move to shutdown state when HSR-PRP is disabled. The warning is followed by a prompt (yes/no) for you to confirm the port shutdown.

PTP over HSR

  • PTP over HSR is supported only for the PTP Power profile.

  • PTP over HSR does not support Hybrid clock mode. Only Boundary clock and transparent clock modes are supported.

  • We recommend that you have identical PTP configuration on the interfaces that are part of the same HSR ring to allow for seamless transitions between PASSIVE_SLAVE and SLAVE states.

Default Settings

Table 1. HSR Ring Parameters

Parameter

Description

Range

Default Value

entryForgetTime

Time for clearing an inactive entry from duplicate discard table.

0-65535

400 ms

fpgamode-DualUplinkEnhancement

Set FPGA register for source mac filtering.

enable or disable

enable

nodeForgetTime

Time to clear an inactive entry from the node table.

0-65535

60000 ms

nodeRebootInterval

Time after which the RedBox must start sending supervision frames after bootup.

0-65535

500 ms

pauseFrameTime

Time interval between HSR pause frames.

0-65535

25 ms

proxyNodeTableForgetTime

Time to clear an inactive entry from the proxy node table or vdan table.

0-65535

60000 ms

supervisionFrameLifeCheckInterval

Life check interval value for supervision frames.

0-65535

2000 ms

supervisionFrameOption

mac-da

The last bytes of the destination MAC address of supervision frames (01:15:4E:00:01:00). The last 00 is replaced by the value of this parameter.

1-255 MAC DA last eight bits option value

No default

vlan-cfi

Enable Canonical Format Indicator (CFI) for the VLAN tagged frame.

enable or disable

disable

vlan-cos

Class of Service (COS) value to be set in the VLAN tag of the Supervision frame.

0-7

0

vlan-id

The VLAN tag of the supervision frame.

0-4095

0

vlan-tagged

Set VLAN tagging option.

enable or disable

disable

supervisionFrameRedboxMacaddress

The RedBox MAC address in the supervision frames.

48-bit RedBox MAC address

The interface HSR ring MAC address

supervisionFrameTime

Time interval between supervision frames.

0-65535

3 ms

Configuring an HSR Ring

Follow these steps to configure an HSR ring:

Before you begin

  • See Guidelines and Limitations.

  • Ensure that the member interfaces of a HSR ring are not participating in any redundancy protocols such as FlexLinks, EtherChannel, REP, and so on before configuring a HSR ring.

Procedure


Step 1

Enter global configuration mode:

Switch# configure terminal

Step 2

(Optional) Globally enable CDP to provide information about HSR ring nodes:

Switch(config)# cdp run

Step 3

(Optional) Globally enable LLDP to provide information about HSR ring nodes:

Switch(config)# lldp run

Step 4

Enter interface configuration mode and disable PTP on the ports to be assigned to the HSR ring:

Switch(config)# interface range gigabitEthernet 1/1-2
Switch(config-if-range)# no ptp enable

Step 5

(Optional) Enable CDP on the ports to be assigned to the HSR ring:

Switch(config-if-range)#cdp enable

Step 6

(Optional) Enable LLDP on the ports to be assigned to the HSR ring:

Switch(config-if-range)#lldp transmit
Switch(config-if-range)#lldp receive

Step 7

Shut down the ports before configuring the HSR ring:

Switch(config-if-range)# shutdown

Step 8

Create the HSR ring interface and assign the ports to the HSR ring:

Switch(config)# interface range gigabitEthernet 1/1-2
Switch(config-if-range)# hsr-ring 1

Step 9

(Optional) If required, configure HSR ring optional parameters. See Default Settings for the parameter descriptions, ranges and default values.


Switch(config-if-range)# hsr 1 supervisionFrameLifeCheckInterval 10000

Step 10

Turn on the HSR interface:

Switch(config-if-range)# no shutdown
Switch(config-if)# end

Example

Switch# conf t
Enter configuration commands, one per line.  End with CNTL/Z.
Switch(config)# interface range gigabitEthernet 1/1-2
Switch(config-if-range)# no ptp enable
Switch(config-if-range)# shutdown
Switch(config-if-range)# hsr-ring 1
Switch(config-if-range)# hsr-ring 1 supervisionFrameLifeCheckInterval 10000
Switch(config-if-range)# no shutdown
Switch(config-if-range)# end

Configuring HSR-PRP

Follow these steps to enable HSR-PRP Redbox mode on the switch. Enabling HSR-PRP mode creates an HSR ring and bridges the the HSR ring to a PRP network.

Before you begin

Procedure


Step 1

Enter global configuration mode:

IE3400# configure terminal

Step 2

Enable HSR-PRP mode and select LAN A or LAN B and the optional PRP Net ID:

hsr-prp-mode enable {prp-lan-a | prp-lan-b} [1-6]
  • prp-lan-a: Redbox is connected to LAN A.

  • prp-lan-b: Redbox is connected to LAN B.

  • 1-6: PRP Net ID value from 1 to 6.

    The default is 1.

    Note



    Be sure to configure the same Net ID in Redbox A and B that is part of the same PRP network.

Example:

IE3400(config)#hsr-prp-mode enable prp-lan-a

To disable HSR-PRP Redbox mode, use the command no hsr-prp-mode enable .


Enabling HSR Alarms

To enable alarms for HSR, follow these steps:

Before you begin

Alarms and actions can be enabled/disabled at the facility level only. You cannot enable only partial faults or full faults; either all alarms for given facility are enabled or all are disabled.

See HSR Alarms for details about HSR alarms.

Procedure


Step 1

Enter global configuration mode:

Switch# configure terminal

Step 2

Enable the HSR alarm facility:

Switch(config)# alarm facility hsr enable

To disable HSR alarms, enter no alarm facility hsr enable .

Step 3

(Optional) Enable SNMP notification for HSR alarms:

Switch(config)# alarm facility hsr notifies

Step 4

(Optional) Associate HSR alarms with the Major Relay:

Switch(config)# alarm facility hsr relay major

Step 5

(Optional) Send HSR alarms to a syslog server:

Switch(config)# alarm facility hsr syslog

Step 6

(Optional) Enable logging of informational HSR alarm messages:

Switch(config)# logging alarm informational

Step 7

Exit global configuration mode:

Switch(config)# end

Step 8

Verify the configuration:

Switch# show facility-alarm status

Clearing All Node Table and VDAN Table Dynamic Entries

To clear all dynamic entries in the node table, enter

clear hsr node-table

To clear all dynamic entries in the VDAN table, enter

clear hsr vdan-table

Verifying Configuration

Command

Purpose

show hsr ring 1 [detail ]

Displays configuration details for the specified HSR ring.

show hsr statistics {egressPacketStatistics | ingressPacketStatistics | nodeTableStatistics | pauseFrameStatistics }

Displays statistics for HSR components.

Note



To clear HSR statistics information, enter the command clear hsr statistics .

show hsr node-table

Displays HSR node table.

show hsr vdan-table

Displays HSR Virtual Doubly Attached Node (VDAN) table.

Note



The VDAN table and Proxy node table are the same.

show cdp neighbors

Displays CDP neighbor information for an HSR ring.

show lldp neighbors

Displays LLDP neighbor information for an HSR ring.

show alarm settings | begin hsr

Display HSR alarm configuration.

show alarm facility status

Display HSR alarms, including partial or full ring faults.

Configuration Example

HSR-SAN

This example shows the configuration of an HSR ring (Ring 1) using G1/3 and G1/4 ports between four devices.

IE3400-1# conf t
Enter configuration commands, one per line.  End with CNTL/Z.
IE3400-1(config)# interface range g1/3-4
IE3400-1(config-if-range)# shutdown
IE3400-1(config-if-range)# hsr-ring 1
IE3400-1(config-if-range)# no shutdown
IE3400-1(config-if-range)# end
IE3400-1#
IE3400-2# conf t
Enter configuration commands, one per line.  End with CNTL/Z.
IE3400-2(config)# interface range g1/3-4
IE3400-2(config-if-range)# shutdown
IE3400-2(config-if-range)# hsr-ring 1
IE3400-2(config-if-range)# no shutdown
IE3400-2(config-if-range)# end
IE3400-2#
IE3400-3# conf t
Enter configuration commands, one per line.  End with CNTL/Z.
IE3400-3(config)# interface range g1/3-4
IE3400-3(config-if-range)# shutdown
IE3400-3(config-if-range)# hsr-ring 1
IE3400-3(config-if-range)# no shutdown
IE3400-3(config-if-range)# end
IE3400-3#
IE3400-4# conf t
Enter configuration commands, one per line.  End with CNTL/Z.
IE3400-4(config)# interface range g1/3-4
IE3400-4(config-if-range)# shutdown
IE3400-4(config-if-range)# hsr-ring 1
IE3400-4(config-if-range)# no shutdown
IE3400-4(config-if-range)# end
IE3400-4#
IE3400-1# sh hsr ring 1 detail
HSR-ring: HS1
------------
 Layer type = L2
 Operation Mode = mode-H
 Ports: 2       Maxports = 2
 Port state = hsr-ring is Inuse
 Protocol = Enabled  Redbox Mode = hsr-san
Ports in the ring:
  1) Port: Gi1/3
   Logical slot/port = 1/3      Port state = Inuse
        Protocol = Enabled
  2) Port: Gi1/4
   Logical slot/port = 1/4      Port state = Inuse
        Protocol = Enabled

Ring Parameters:
 Redbox MacAddr: f454.3365.8a84
 Node Forget Time: 60000 ms
 Node Reboot Interval: 500 ms
 Entry Forget Time: 400 ms
 Proxy Node Forget Time: 60000 ms
 Supervision Frame COS option: 0
 Supervision Frame CFI option: 0
 Supervision Frame VLAN Tag option: Disabled
 Supervision Frame MacDa: 0x00
 Supervision Frame VLAN id: 0
 Supervision Frame Time: 3 ms
 Life Check Interval: 2000 ms
 Pause Time: 25 ms

IE3400-2# show hsr ring 1 detail
HSR-ring: HS1
------------
 Layer type = L2
 Operation Mode = mode-H
 Ports: 2       Maxports = 2
 Port state = hsr-ring is Inuse
 Protocol = Enabled  Redbox Mode = hsr-san
Ports in the ring:
  1) Port: Gi1/3
   Logical slot/port = 1/3      Port state = Inuse
        Protocol = Enabled
  2) Port: Gi1/4
   Logical slot/port = 1/4      Port state = Inuse
        Protocol = Enabled

Ring Parameters:
 Redbox MacAddr: 34c0.f958.ee83
 Node Forget Time: 60000 ms
 Node Reboot Interval: 500 ms
 Entry Forget Time: 400 ms
 Proxy Node Forget Time: 60000 ms
 Supervision Frame COS option: 0
 Supervision Frame CFI option: 0
 Supervision Frame VLAN Tag option: Disabled
 Supervision Frame MacDa: 0x00
 Supervision Frame VLAN id: 0
 Supervision Frame Time: 3 ms
 Life Check Interval: 2000 ms
 Pause Time: 25 ms

IE3400-4# sh hsr ring 1 de
HSR-ring: HS1
------------
 Layer type = L2
 Operation Mode = mode-H
 Ports: 2       Maxports = 2
 Port state = hsr-ring is Inuse
 Protocol = Enabled  Redbox Mode = hsr-san
Ports in the ring:
  1) Port: Gi1/3
   Logical slot/port = 1/3      Port state = Inuse
        Protocol = Enabled
  2) Port: Gi1/4
   Logical slot/port = 1/4      Port state = Inuse
        Protocol = Enabled

Ring Parameters:
 Redbox MacAddr: f454.3312.5104
 Node Forget Time: 60000 ms
 Node Reboot Interval: 500 ms
 Entry Forget Time: 400 ms
 Proxy Node Forget Time: 60000 ms
 Supervision Frame COS option: 0
 Supervision Frame CFI option: 0
 Supervision Frame VLAN Tag option: Disabled
 Supervision Frame MacDa: 0x00
 Supervision Frame VLAN id: 0
 Supervision Frame Time: 3 ms
 Life Check Interval: 2000 ms
 Pause Time: 25 ms

IE3400-3# sh hsr ring 1 detail
HSR-ring: HS1
------------
 Layer type = L2
 Operation Mode = mode-H
 Ports: 2       Maxports = 2
 Port state = hsr-ring is Inuse
 Protocol = Enabled  Redbox Mode = hsr-san
Ports in the ring:
  1) Port: Gi1/3
   Logical slot/port = 1/3      Port state = Inuse
        Protocol = Enabled
  2) Port: Gi1/4
   Logical slot/port = 1/4      Port state = Inuse
        Protocol = Enabled

Ring Parameters:
 Redbox MacAddr: f454.335c.4684
 Node Forget Time: 60000 ms
 Node Reboot Interval: 500 ms
 Entry Forget Time: 400 ms
 Proxy Node Forget Time: 60000 ms
 Supervision Frame COS option: 0
 Supervision Frame CFI option: 0
 Supervision Frame VLAN Tag option: Disabled
 Supervision Frame MacDa: 0x00
 Supervision Frame VLAN id: 0
 Supervision Frame Time: 3 ms
 Life Check Interval: 2000 ms
 Pause Time: 25 ms

HSR-PRP

The following shows an example HSR-PRP configuration:

!
hsr-prp-mode enable prp-lan-a 1
!
interface HSR-ring1
switchport access vlan 80
switchport mode access
!
interface GigabitEthernet1/1
switchport access vlan 80
switchport mode access
!
interface GigabitEthernet1/2
switchport access vlan 80
switchport mode access
!

The following example shows output for show commands with HSR configured for HSR-PRP mode:

IE3400# show hsr ring 2 detail
HSR-ring: HS2
------------
Layer type = L2
Operation Mode = mode-H
Ports: 2       Maxports = 2
Port state = hsr-ring is Inuse
Protocol = Enabled  Redbox Mode = hsr-prp-lan-a  PathId = 1
Ports in the ring:
  1) Port: Gi1/1
   Logical slot/port = 1/1      Port state = Inuse
        Protocol = Enabled
  2) Port: Gi1/2
   Logical slot/port = 1/2      Port state = Inuse
        Protocol = Enabled

Ring Parameters:
Redbox MacAddr: 34c0.f958.e384
Node Forget Time: 60000 ms
Node Reboot Interval: 500 ms
Entry Forget Time: 400 ms
Proxy Node Forget Time: 60000 ms
Supervision Frame COS option: 0
Supervision Frame CFI option: 0
Supervision Frame VLAN Tag option: Disabled
Supervision Frame MacDa: 0x00
Supervision Frame VLAN id: 0
Supervision Frame Time: 3 ms
Life Check Interval: 2000 ms
Pause Time: 25 ms


IE3400#show hsr ?
  node-table  HSR Node Table
  ring        Ring information
  statistics  HSR Statistics information
  vdan-table  HSR VDAN Table

IE3400#show hsr node-table
HSR ring 1 Node Table
==================================
   Mac Address   Type    Dyn     TTL
---------------- -----   ---   -------
 ECCE.13EB.72A2  danh    Y     59
 ECCE.13EB.72A1  danh    Y     59
 A0E0.AF0E.0F01  danh    Y     59
 A0E0.AF0E.0F02  danh    Y     59
 E069.BAA3.2DE1  danh    Y     60
 E069.BAA3.2DE2  danh    Y     60
==================================
HSR ring 1 Total Entries: 6

IE3400#show hsr statistics ?
  egressPacketStatistics   Egress packet statistics
  ingressPacketStatistics  Ingress packet statistics
  nodeTableStatistics      Node table statistics
  pauseFrameStatistics     Pause frame statistics
  ptpPacketStatistics      PTP packet statistics
  wrongLanIdCount      Wrong LAN-ID packet statistics
IE3400#show hsr statistics ingressPacketStatistics
 HSR ring 1 INGRESS STATS:
   ingress pkt port A: 17298689
   ingress pkt port B: 18730898
   ingress crc port A: 0
   ingress crc port B: 0
   ingress danh pkt portAcpt: 1526824
   ingress danh pkt dscrd: 358095
   ingress supfrm rcv port A: 15645639
   ingress supfrm rcv port B: 16121959
   ingress overrun pkt port A: 0
   ingress overrun pkt port B: 0
   ingress byte port a: 1240088922
   ingress byte port b: 1502552754
ingress wrong lan id c: 0

IE3400#show hsr statistics egressPacketStatistics
 HSR ring 1 EGRESS STATS:
   duplicate packets: 4336811
   supervision frames: 4425419
   packets sent on port A: 18089179
   packets sent on port B: 19794169
   byte sent on port a: 1453432770
   byte sent on port b: 1572795833


IE3400#show hsr vdan-table
HSR ring 1 VDAN Table
============================
   Mac Address   Dyn   TTL
---------------- --- -------
 E069.BAA3.2D22   N     -
 E069.BAA3.2D21   N     -
============================
HSR ring 1 Total Entries: 2

IE3400#show hsr ring 1 ?
  detail   Detail information
  status   HSR-ring status
  summary  Summary per hsr ring

IE3400#show hsr ring 1 detail
HSR-ring: HS1
------------
 Layer type = L2
 Operation Mode = mode-H
 Ports: 2	Maxports = 2
 Port state = hsr-ring is In use
 Protocol = Enabled  Redbox Mode = prp-lan-b  PathId = 0
Ports in the ring:
  1) Port: Gi1/1
   Logical slot/port = 1/1	Port state = In use
	Protocol = Enabled
  2) Port: Gi1/2
   Logical slot/port = 1/2	Port state = In use
	Protocol = Enabled

Ring Parameters:
 Redbox MacAddr: e069.baa3.2d22
 Node Forget Time: 60000 ms
 Node Reboot Interval: 500 ms
 Entry Forget Time: 400 ms
 Proxy Node Forget Time: 60000 ms
 Supervision Frame COS option: 0
 Supervision Frame CFI option: 0
 Supervision Frame VLAN Tag option: Disabled
 Supervision Frame MacDa: 0x00
 Supervision Frame VLAN id: 0
 Supervision Frame Time: 3 ms
 Life Check Interval: 1600 ms
 Pause Time: 25 ms
 fpgamode-DualUplinkEnhancement: Enabled

IE3400#show hsr ring 1 ?
  detail   Detail information
  status   HSR-ring status
  summary  Summary per hsr ring

IE3400#show hsr ring 1 status
HSR-ring: HS1
------------
 Port state = hsr-ring is In use
 Protocol = Enabled  Redbox Mode = prp-lan-b  PathId = 0
IE3400#show hsr ring 1 summa
IE3400#show hsr ring 1 summary
Flags:  D - down        H - bundled in HSR-ring
        R - Layer3      S - Layer2
        U - in use      s - suspended

Number of hsr-rings in use: 1
Group   HSR-ring     Ports
------+-------------+----------------------------------------
1      HS1(SU)       Gi1/1(H), Gi1/2(H)

IE3400#

Feature History

Feature Name

Release

Feature Information

HSR-PRP (Dual RedBox Mode)

Cisco IOS XE 17.14.1

Initial support on IE 3400 and IE 3400H.

PTP over HSR-SAN

Cisco IOS XE 17.4.1

Initial support on IE 3400 and IE 3400H.

High-Availability Seamless Redundancy (HSR) - HSR-SAN (Single Redbox Mode)

Cisco IOS XE 17.3.1

Initial support on IE 3400 and IE 3400H.
