Technical Specifications

This appendix describes the technical specifications for the Nexus 7000 system and includes these sections:

Environmental Specifications for the Cisco Nexus 7000 Series Systems

lists the environmental specifications for the Cisco Nexus 7000 Series systems.

Table 1. Environmental Specifications for the Cisco Nexus 7000 Series Switches
Description Cisco Nexus 7004 Cisco Nexus 7009 Cisco Nexus 7010 Cisco Nexus 7018
Temperature Ambient operating 32 to 104ºF (0 to 40ºC)
Ambient nonoperating –40 to 158ºF (–40 to 70ºC)
Relative humidity Ambient (noncondensing) operating 5 to 90% (45 to 50% recommended)
Ambient (noncondensing) nonoperating and storage 5 to 95%
Altitude Operating –500 to 13,000 feet (–150 to 4,000 meters)
Storage –1,000 to 30,000 feet (–305 to 9,144 meters)
Noise Sound pressure levels
Without air filter 70 dBA 63.6 dBA 67.2 dBA 65.0 dBA
With air filter — — 70.2 dBA —
Sound power levels
Without air filter 83 dBA 72.5 dBA 78.9 dBA 74.2 dBA
With air filter — — 81.7 dBA —

Physical Specifications for the Cisco Nexus 7000 Series Chassis

The physical specifications differ for the Cisco Nexus 7000 Series chassis depending on the model that you are installing and the type of installation you are doing (you can front mount all models but you can optionally do a center mount of the Cisco Nexus 7004 and 7009 chassis). Table 1 lists the physical specifications for each model and installation type.

Table 2. Physical Specifications for Cisco Nexus 7000 Series Chassis

Chassis

Width

1

Front Depth

2

Rear Depth

3

Height

4

Cisco Nexus 7004 (all mounts)

17.3 inches (43.9 cm)

7 inches (17.8 cm)

24.0 inches (61.0 cm)

12.25 inches (31.1 cm) (7 RU)

Cisco Nexus 7009 (front mount)

17.3 inches (43.9 cm)

7 inches (17.8 cm)

24.0 inches (61.0 cm)

24.5 inches (62.2 cm) (14 RU)

Cisco Nexus 7009 (center mount)

17.3 inches (43.9 cm)

13 inches (33.0 cm)

18.0 inches (45.8 cm)

24.5 inches (62.2 cm) (14 RU)

Cisco Nexus 7010 (all mounts)

17.3 inches (43.9 cm)

7 inches (17.8 cm)

33.1 inches (84.1 cm)

36.75 inches (93.3 cm) (21.0 RU)

Cisco Nexus 7018 (all mounts

17.3 inches (43.9 cm)

7 inches (17.8 cm)

33.1 inches (84.1 cm)

43.75 inches (111.1 cm) (25.0 RU)

1 Width is also the minimal clearance required between the two vertical mounting rails inside the rack or cabinet.
2 Front depth is also the minimal clearance required between the front mounting rails and the inside of the front of the rack or cabinet. For all switches, this includes 7 inches (17.8 cm) of space for cabling. For the Cisco Nexus 7009 center-mounted chassis, this distance also includes 6 inches of the chassis which is offset to the front by the center-mount bracket.
3 Rear depth is also the clearance required between the front-mounting rails and the inside of the rear of the rack or cabinet. For front mounted switches, this is the same as the depth of the chassis. For a center-mounted Cisco Nexus 7009 switch, this is 6 inches (15.2 cm) less than the depth of the chassis, which is offset to the front.
4 Height is also the clearance required between the top of the bottom support bracket and the top of the chassis that you are installing. If you are installing another chassis above this chassis, its bottom-support brackets must be positioned above this clearance area.

The weights and quantities are listed in the following tables:

  • Cisco Nexus 7004 switch (see Table 2)
  • Cisco Nexus 7009 switch (see Table 3)
  • Cisco Nexus 7010 switch (see Table 4)
  • Cisco Nexus 7018 switch (see Table 5)

The weights in these tables do not include the rack or cabinet that holds the chassis or the interface and power cables. For those weights, see the documentation provided by the manufacturers of those components.

Table 3. Weights and Quantities for the Cisco Nexus 7004 Switch Components

Component

Weight per Unit

Quantity

Chassis

45.0 lb (20.0 kg)

1

Supervisor modules

—

1 or 2 (must be same model)

Supervisor 2 (N7K-SUP2)

10.4 lb (4.7 kg)

Supervisor 2 Enhanced (N7K-SUP2E)

11.7 lb (5.3 kg)

F2 I/O Modules

—

1 or 2(can mix I/O module types)

48-port 1- and 10-Gigabit Ethernet I/O module (N7K-F248XP-25 and N7K-F248XP-25E)

14.0 lb (6.4 kg)

48-port 1- and 10-GBASE-T I/O module (N7K-F248XT-25E)

14.0 lb (6.4 kg)

F3 I/O Modules

—

48-port 1- and 10-Gigabit Ethernet I/O module (N7K-F348XP-25)

15.0 lb (6.8 kg)

12-port, 40-Gigabit Ethernet I/O module (N7K-F312FQ-25)

15.0 lb (6.8 kg)

6-port, 100-Gigabit Ethernet I/O module (N7K-F306CK-25)

16.0 lb (7.3 kg)

M1 I/O Modules

—

48-port 10/100/1000 Ethernet I/O module (N7K-M148GT-11L)

14 lb (6.4 kg)

48-port 1-Gigabit Ethernet I/O module with XL option (N7K-M148GS-11L)

15.5 lb (7.0 kg)

32-port 10-Gigabit Ethernet I/O module with XL option (N7K-M132XP-12L)

17.0 lb (7.7 kg)

8-port 10-Gigabit Ethernet I/O module with XL option (N7K-M108X2-12L)

14.0 lb (6.4 kg)

M2 I/O Modules

—

24-port 10-Gigabit Ethernet I/O module with XL option (N7K-M224XP-23L)

16.5 lb (7.5 kg)

6-port 40-Gigabit Ethernet I/O module with XL option (N7K-M206FQ-23L)

16.5 lb (7.5 kg)

2-port 100-Gigabit Ethernet I/O module with XL option (N7K-M202CF-22L)

17.0 lb (7.7 kg)

M3 I/O Modules

—

48-port 1- and 10-Gigabit Ethernet I/O module with XL option (N7K-M348XP-25L)

12 lb (5.44 kg)

24-port 40-Gigabit Ethernet I/O module with XL option (N7K-M324FQ-25L)

12 lb (5.44 kg)

Service Modules

—

0 or 1

NAM (N7K-SM-NAM-K9)

17.9 lbs. (8.1 kg)

Fan tray (N7K-C7004-FAN)

25.0 lb (11.3 kg)

1

Power Supplies

—

1 to 4 (can mix power supply types)

3-kW AC power supply (N7K-AC-3KW)

11.0 lb (5.0 kg)

3-kW DC power supply (N7K-DC-3KW)

11.0 lb (5.0 kg)

3.5-kW HVAC/HVDC power supply (N7K-HV-3.5KW

11.0 lb (5.0 kg)

Optional Components

—

—

Front door kit (N7K-C7004-FD-MB)

—

0 or 1

Air filter (N7K-C7004-AFLT)

—

0 or 1

Table 4. Weights and Quantities for the Cisco Nexus 7009 Switch Components

Component

Weight per Unit

Quantity

Chassis

100 lb (45.0 kg)

1

Supervisor modules

—

1 or 2 (same type if using 2)

Supervisor 1 (N7K-SUP1)

9.9 lb (4.5 kg)

Supervisor 2 (N7K-SUP2)

10.4 lb (4.7 kg)

Supervisor 2 Enhanced (N7K-SUP2E)

11.7 lb (5.3 kg)

F1 I/O Modules

—

1 to 7(can mix I/O module types)

32-port 1- and 10-Gigabit Ethernet I/O module (N7K-F132XP-15)

14.0 lb (6.4 kg)

F2 I/O Modules

—

48-port 1- and 10-Gigabit Ethernet I/O module (N7K-F248XP-25 and N7K-F248XP-25E)

14.0 lb (6.4 kg)

48-port 1- and 10-GBASE-T I/O module (N7K-F248XT-25E)

14.0 lb (6.4 kg)

F3 I/O Modules

—

48-port 1- and 10-Gigabit Ethernet I/O module (N7K-F348XP-25)

15.0 lb (6.8 kg)

12-port, 40-Gigabit Ethernet I/O module (N7K-F312FQ-25)

15.0 lb (6.8 kg)

6-port, 100-Gigabit Ethernet I/O module (N7K-F306CK-25)

16.0 lb (7.3 kg)

M1 I/O Modules

—

48-port 10/100/1000 Ethernet I/O module (N7K-M148GT-11)

14 lb (6.4 kg)

48-port 10/100/1000 Ethernet I/O module (N7K-M148GT-11L)

14 lb (6.4 kg)

48-port 1-Gigabit Ethernet I/O module (N7K-M148GS-11)

15.5 lb (7.0 kg)

48-port 1-Gigabit Ethernet I/O module with XL option (N7K-M148GS-11L)

15.5 lb (7.0 kg)

32-port 10-Gigabit Ethernet I/O module (N7K-M132XP-12)

17.0 lb (7.7 kg)

32-port 10-Gigabit Ethernet I/O module with XL option (N7K-M132XP-12L)

17.0 lb (7.7 kg)

8-port 10-Gigabit Ethernet I/O module with XL option (N7K-M108X2-12L)

14.0 lb (6.4 kg)

M2 I/O Modules

—

24-port 10-Gigabit Ethernet I/O module with XL option (N7K-M224XP-23L)

16.5 lb (7.5 kg)

6-port 40-Gigabit Ethernet I/O module with XL option (N7K-M206FQ-23L)

16.5 lb (7.5 kg)

2-port 100-Gigabit Ethernet I/O module with XL option (N7K-M202CF-22L)

17.0 lb (7.7 kg)

M3 I/O Modules

—

48-port 1- and 10-Gigabit Ethernet I/O module with XL option (N7K-M348XP-25L)

12 lb (5.44 kg)

24-port 40-Gigabit Ethernet I/O module with XL option (N7K-M324FQ-25L)

12 lb (5.44 kg)

Service Modules

—

0 or 1

NAM (N7K-SM-NAM-K9)

17.9 lbs. (8.1 kg)

Fabric Modules

—

For F2 I/O, use 5.For F1, M1, and M2 I/O, use 3 to 5.

Fabric-2 module (N7K-C7009-FAB-2)

5 lb (2.27 kg)

Fan tray (N7K-C7009-FAN)

25.0 lb (11.3 kg)

1

Power Supplies

—

1 or 2 (can mix power supply types)

6-kW AC power supply unit (N7K-AC-6.0KW)

18 lb (8.2 kg)

7.5-kW AC power supply unit (N7K-AC-7.5KW-INT and N7K-AC-7.5KW-US)

26 lb (11.8 kg)

6-kW DC power supply unit (N7K-DC-6.0KW)

21 lb (9.5 kg)

DC Power Interface Unit

5 lb (2.3 kg)

0 to 2

Optional Components

—

—

Door and air frame (optional)

—

0 or 1

Table 5. Weights and Quantities for the Cisco Nexus 7010 Components

Component

Weight per Unit

Quantity

Chassis

200 lb (90.9 kg)

1

Supervisor Modules

—

1 or 2 (same type if using 2)

Supervisor 1 (N7K-SUP1)

9.9 lb (4.5 kg)

Supervisor 2 (N7K-SUP2)

10.4 lb (4.7 kg)

Supervisor 2 Enhanced (N7K-SUP2E)

11.7 lb (5.3 kg)

F1 I/O Modules

—

1 to 8 (can mix I/O module types)

32-port 1- and 10-Gigabit Ethernet I/O module (N7K-F132XP-15)

14.0 lb (6.4 kg)

F2 I/O Modules

—

48-port 1- and 10-Gigabit Ethernet I/O module (N7K-F248XP-25 and N7K-F248XP-25E)

14.0 lb (6.4 kg)

48-port 1- and 10-GBASE-T I/O module (N7K-F248XT-25E)

14.0 lb (6.4 kg)

F3 I/O Modules

—

48-port 1- and 10-Gigabit Ethernet I/O module (N7K-F348XP-25)

15.0 lb (6.8 kg)

12-port, 40-Gigabit Ethernet I/O module (N7K-F312FQ-25)

15.0 lb (6.8 kg)

6-port, 100-Gigabit Ethernet I/O module (N7K-F306CK-25)

16.0 lb (7.3 kg)

M1 I/O Modules

—

48-port 10/100/1000 Ethernet I/O module (N7K-M148GT-11)

14 lb (6.4 kg)

48-port 10/100/1000 Ethernet I/O module (N7K-M148GT-11L)

14 lb (6.4 kg)

48-port 1-Gigabit Ethernet I/O module (N7K-M148GS-11)

15.5 lb (7.0 kg)

48-port 1-Gigabit Ethernet I/O module with XL option (N7K-M148GS-11L)

15.5 lb (7.0 kg)

32-port 10-Gigabit Ethernet I/O module (N7K-M132XP-12)

17.0 lb (7.7 kg)

32-port 10-Gigabit Ethernet I/O module with XL option (N7K-M132XP-12L)

17.0 lb (7.7 kg)

8-port 10-Gigabit Ethernet I/O module with XL option (N7K-M108X2-12L)

14.0 lb (6.4 kg)

M2 I/O Modules

—

24-port 10-Gigabit Ethernet I/O module with XL option (N7K-M224XP-23L)

16.5 lb (7.5 kg)

6-port 40-Gigabit Ethernet I/O module with XL option (N7K-M206FQ-23L)

16.5 lb (7.5 kg)

2-port 100-Gigabit Ethernet I/O module with XL option (N7K-M202CF-22L)

17.0 lb (7.7 kg)

M3 I/O Modules

—

48-port 1- and 10-Gigabit Ethernet I/O module with XL option (N7K-M348XP-25L)

12 lb (5.44 kg)

24-port 40-Gigabit Ethernet I/O module with XL option (N7K-M324FQ-25L)

12 lb (5.44 kg)

Service Modules

—

0 or 1

NAM (N7K-SM-NAM-K9)

17.9 lbs. (8.1 kg)

Fabric Modules

—

For F2 I/O, use 5.For F1, M1, and M2 I/O, use 3 to 5.

Fabric-1 module (N7K-C7010-FAB-1)

4 lb (1.8 kg)

Fabric-2 module (N7K-C7010-FAB-2)

4 lb (1.8 kg)

Fan Trays

—

—

System fan tray (N7K-C7010-FAN-S)

20 lb (9.1 kg)

2

Fabric fan tray (N7K-C7010-FAN-F)

5 lb (2.3 kg)

2

Power Supplies

—

2 to 3 (can mix power supply types)

6-kW AC power supply unit (N7K-AC-6.0KW)

18 lb (8.2 kg)

7.5-kW AC power supply unit (N7K-AC-7.5KW-INT and N7K-AC-7.5KW-US)

26 lb (11.8 kg)

6-kW DC power supply unit (N7K-DC-6.0KW)

21 lb (9.5 kg)

DC Power Interface Unit

5 lb (2.3 kg)

0 to 2

Optional Components

—

—

Mid-frame doors and frame

—

0 or 1

Table 6. Weights and Quantities for the Cisco Nexus 7018 Components

Component

Weight per Unit

Quantity

Chassis

187 lb (85.0 kg)

1

Supervisor Modules

—

1 or 2 (same type if using 2)

Supervisor 1 (N7K-SUP1)

9.9 lb (4.5 kg)

Supervisor 2 (N7K-SUP2)

10.4 lb (4.7 kg)

Supervisor 2 Enhanced (N7K-SUP2E)

11.7 lb (5.3 kg)

F1 I/O Modules

—

1 to 8 (can mix I/O module types)

32-port 1- and 10-Gigabit Ethernet I/O module (N7K-F132XP-15)

14.0 lb (6.4 kg)

F2 I/O Modules

—

48-port 1- and 10-Gigabit Ethernet I/O module (N7K-F248XP-25 and N7K-F248XP-25E)

14.0 lb (6.4 kg)

48-port 1- and 10-GBASE-T I/O module (N7K-F248XT-25E)

14.0 lb (6.4 kg)

F3 I/O Modules

—

48-port 1- and 10-Gigabit Ethernet I/O module (N7K-F348XP-25)

15.0 lb (6.8 kg)

12-port, 40-Gigabit Ethernet I/O module (N7K-F312FQ-25)

15.0 lb (6.8 kg)

6-port, 100-Gigabit Ethernet I/O module (N7K-F306CK-25)

16.0 lb (7.3 kg)

M1 I/O Modules

—

48-port 10/100/1000 Ethernet I/O module (N7K-M148GT-11)

14 lb (6.4 kg)

48-port 10/100/1000 Ethernet I/O module (N7K-M148GT-11L)

14 lb (6.4 kg)

48-port 1-Gigabit Ethernet I/O module (N7K-M148GS-11)

15.5 lb (7.0 kg)

48-port 1-Gigabit Ethernet I/O module with XL option (N7K-M148GS-11L)

15.5 lb (7.0 kg)

32-port 10-Gigabit Ethernet I/O module (N7K-M132XP-12)

17.0 lb (7.7 kg)

32-port 10-Gigabit Ethernet I/O module with XL option (N7K-M132XP-12L)

17.0 lb (7.7 kg)

8-port 10-Gigabit Ethernet I/O module with XL option (N7K-M108X2-12L)

14.0 lb (6.4 kg)

M2 I/O Modules

—

24-port 10-Gigabit Ethernet I/O module with XL option (N7K-M224XP-23L)

16.5 lb (7.5 kg)

6-port 40-Gigabit Ethernet I/O module with XL option (N7K-M206FQ-23L)

16.5 lb (7.5 kg)

2-port 100-Gigabit Ethernet I/O module with XL option (N7K-M202CF-22L)

17.0 lb (7.7 kg)

M3 I/O Modules

—

48-port 1- and 10-Gigabit Ethernet I/O module with XL option (N7K-M348XP-25L)

12 lb (5.44 kg)

24-port 40-Gigabit Ethernet I/O module with XL option (N7K-M324FQ-25L)

12 lb (5.44 kg)

Service Modules

—

0 or 1

NAM (N7K-SM-NAM-K9)

17.9 lbs. (8.1 kg)

Fabric Modules

—

For F2 I/O, use 5.For F1, M1, and M2 I/O, use 3 to 5.

Fabric-1 module (N7K-C7018-FAB-1)

7.5 lb (3.4 kg)

Fabric-2 module (N7K-C7018-FAB-2)

7.5 lb (3.4 kg)

Fan tray (N7K-C7018-FAN)

25.8 lb (11.7 kg)

2

Power Supplies

—

6-kW AC power supply unit (N7K-AC-6.0KW)

18 lb (8.2 kg)

2 to 4 (can mix power supply types)

7.5-kW AC power supply unit (N7K-AC-7.5KW-INT and N7K-AC-7.5KW-US)

26 lb (11.8 kg)

6-kW DC power supply unit (N7K-DC-6.0KW)

21 lb (9.5 kg)

DC Power Interface Unit

5 lb (2.3 kg)

0 to 2

Optional Components

—

—

Front door (optional)

25 lb (11.3 kg)

0 or 1

Power Specifications for the Cisco Nexus 7000 Series Switches

The number of power supplies that a Cisco Nexus 7000 Series switch requires depends on the quantities and types of modules that you include in the switch chassis. the type of power supply unit that you are using, and the power redundancy mode that you are using.

The following topics explain how to calculate the switch power requirements and the amount of power available for each type of power supply configuration mode:

Power Requirements for Switch Components

To determine the power requirements of the Cisco Nexus 7000 Series switches, add the power requirements of each of its components. For each component, multiply the number of its modules by its maximum or typical power requirement. To find the quantities and power requirements for each Cisco Nexus 7000 Series switch, see the following tables:

Table 7. Power Requirements for the Cisco Nexus 7004 Switch

Component

Quantity

Maximum

Typical

Supervisor Modules

1 or 2 (same type is using 2)

—

—

Supervisor 2 (N7K-SUP2)

109 W

Supervisor 2 Enhanced (N7K-SUP2E)

147 W

F2 I/O Modules

1 or 2

—

—

48-port 1- and 10-Gigabit Ethernet I/O module (N7K-F248XP-25 and N7K-F248XP-25E)

450 W

400 W

48-port 1- and 10-GBASE-T I/O module (N7K-F248XT-25E)

550 W

420 W

F3 I/O Modules

—

—

48-port 1- and 10-Gigabit Ethernet I/O module (N7K-F348XP-25)

340 W

325 W

12-port, 40-Gigabit Ethernet I/O module (N7K-F312FQ-25)

340 W

310 W

6-port, 100-Gigabit Ethernet I/O module (N7K-F306CK-25)

400 W

325 W

M1 I/O Modules

—

—

48-port 10/100/1000 Ethernet I/O module with XL option (N7K-M148GT-11L)

400 W

358 W

48-port 1-Gigabit Ethernet I/O module with XL option (N7K-M148GS-11L)

400 W

358 W

32-port 10-Gigabit Ethernet I/O module with XL option (N7K-M132XP-12L)

750 W

611 W

8-port 10-Gigabit Ethernet I/O module with XL option (N7K-M108X2-12L)

650 W

520 W

M2 I/O Modules

—

—

24-port 10-Gigabit Ethernet I/O module with XL option (N7K-M224XP-23L)

795 W

720 W

6-port 40-Gigabit Ethernet I/O module with XL option (N7K-M206FQ-23L)

795 W

720 W

2-port 100-Gigabit Ethernet I/O module with XL option (N7K-M202CF-22L)

795 W

690 W

M3 I/O Modules

—

—

48-port 1-/10-Gigabit Ethernet I/O modules with XL option(N7K-M348XP-25L)

525 W

400 W

24-port 40-Gigabit Ethernet I/O modules with XL option(N7K-M324FQ-25L)

750 W

600 W

Fan Tray

1

650 W

185 W

Table 8. Power Requirements for the Cisco Nexus 7009 Switch

Component

Quantity

Maximum

Typical

Supervisor Modules

1 or 2 (same type if using 2)

—

—

Supervisor 1 (N7K-SUP1)

210 W

190 W

Supervisor 2 (N7K-SUP2)

300 W

109 W

Supervisor 2 Enhanced (N7K-SUP2E)

300 W

147 W

F1 I/O Modules

1 to 7

—

—

32-port 1- and 10-Gigabit Ethernet I/O module (N7K-F132XP-15)

385 W

283 W

F2 I/O Modules

—

—

48-port 1- and 10-Gigabit Ethernet I/O module (N7K-F248XP-25 and N7K-F248XP-25E)

450 W

400 W

48-port 1- and 10-GBASE-T I/O module (N7K-F248XT-25E)

550 W

420 W

F3 I/O Modules

—

—

48-port 1- and 10-Gigabit Ethernet I/O module (N7K-F348XP-25)

340 W

325 W

12-port, 40-Gigabit Ethernet I/O module (N7K-F312FQ-25)

340 W

310 W

6-port, 100-Gigabit Ethernet I/O module (N7K-F306CK-25)

400 W

325 W

M1 I/O Modules

—

—

48-port 10/100/1000 Ethernet I/O module (N7K-M148GT-11)

400 W

358 W

48-port 10/100/1000 Ethernet I/O module with XL option (N7K-M148GT-11L)

400 W

358 W

48-port 1-Gigabit Ethernet I/O module (N7K-M1148GS-11)

400 W

358 W

48-port 1-Gigabit Ethernet I/O module with XL option (N7K-M148GS-11L)

400 W

358 W

32-port 10-Gigabit Ethernet I/O module (N7K-M132XP-12)

750 W

611 W

32-port 10-Gigabit Ethernet I/O module with XL option (N7K-M132XP-12L)

750 W

611 W

8-port 10-Gigabit Ethernet I/O module with XL option (N7K-M108X2-12L)

650 W

520 W

M2 I/O Modules

—

—

24-port 10-Gigabit Ethernet I/O module with XL option (N7K-M224XP-23L)

795 W

720 W

6-port 40-Gigabit Ethernet I/O module with XL option (N7K-M206FQ-23L)

795 W

720 W

2-port 100-Gigabit Ethernet I/O module with XL option (N7K-M202CF-22L)

795 W

690 W

M3 I/O Modules

—

—

48-port 1-/10-Gigabit Ethernet I/O modules with XL option(N7K-M348XP-25L)

525 W

400 W

24-port 40-Gigabit Ethernet I/O modules with XL option(N7K-M324FQ-25L)

750 W

600 W

Fabric Modules

3 to 5

—

—

Fabric-2 module (N7K-C7009-FAB-2)

70 W

55 W

Fan Trays

—

—

—

All fan trays (total) (N7K-C7009-FAN)

650 W

190 W

Table 9. Power Requirements for the Cisco Nexus 7010 System Components

Component

Quantity

Maximum

Typical

Supervisor Modules

1 or 2 (same type if using 2)

—

—

Supervisor 1 (N7K-SUP1)

210 W

190 W

Supervisor 2 (N7K-SUP2)

300 W

109 W

Supervisor 2 Enhanced (N7K-SUP2E)

300 W

147 W

F1 I/O Modules

1 to 8 (can mix types)

—

—

32-port 1- and 10-Gigabit Ethernet I/O module (N7K-F132XP-15)

385 W

283 W

F2 I/O Modules

—

—

48-port 1- and 10-Gigabit Ethernet I/O module (N7K-F248XP-25 and N7K-F248XP-25E)

450 W

400 W

48-port 1- and 10-GBASE-T I/O module (N7K-F248XT-25E)

550 W

420 W

F3 I/O Modules

—

—

48-port 1- and 10-Gigabit Ethernet I/O module (N7K-F348XP-25)

340 W

325 W

12-port, 40-Gigabit Ethernet I/O module (N7K-F312FQ-25)

340 W

310 W

6-port, 100-Gigabit Ethernet I/O module (N7K-F306CK-25)

400 W

325 W

M1 I/O Modules

—

—

48-port 10/100/1000 Ethernet I/O module (N7K-M148GT-11)

400 W

358 W

48-port 10/100/1000 Ethernet I/O module with XL option (N7K-M148GT-11L)

400 W

358 W

48-port 1-Gigabit Ethernet I/O module (N7K-M1148GS-11)

400 W

358 W

48-port 1-Gigabit Ethernet I/O module with XL option (N7K-M148GS-11L)

400 W

358 W

32-port 10-Gigabit Ethernet I/O module (N7K-M132XP-12)

750 W

611 W

32-port 10-Gigabit Ethernet I/O module with XL option (N7K-M132XP-12L)

750 W

611 W

8-port 10-Gigabit Ethernet I/O module with XL option (N7K-M108X2-12L)

650 W

520 W

M2 I/O Modules

—

—

24-port 10-Gigabit Ethernet I/O module with XL option (N7K-M224XP-23L)

795 W

720 W

6-port 40-Gigabit Ethernet I/O module with XL option (N7K-M206FQ-23L)

795 W

720 W

2-port 100-Gigabit Ethernet I/O module with XL option (N7K-M202CF-22L)

795 W

690 W

M3 I/O Modules

—

—

48-port 1-/10-Gigabit Ethernet I/O modules with XL option(N7K-M348XP-25L)

525 W

400 W

24-port 40-Gigabit Ethernet I/O modules with XL option(N7K-M324FQ-25L)

750 W

600 W

Fabric Modules

3 to 5 (same type)

—

—

Fabric-1 module (N7K-C7010-FAB-1)

60 W

55 W

Fabric-2 module (N7K-C7010-FAB-2)

80 W

60W

Fan Trays (N7K-C7010-FAN-F and N7K-C7010-FAN-S)

—

—

—

All fan trays (total)

2184 W

300 W

Table 10. Power Requirements for the Cisco Nexus 7018 System Components

Component

Quantity

Maximum

Typical

Supervisor Modules

1 or 2 (same type if using 2)

—

—

Supervisor 1 (N7K-SUP1)

210 W

190 W

Supervisor 2 (N7K-SUP2)

300 W

109 W

Supervisor 2 Enhanced (N7K-SUP2E)

300 W

147 W

F1 I/O Modules

1 to 16 (can mix types)

—

—

32-port 1- and 10-Gigabit Ethernet I/O module (N7K-F132XP-15)

385 W

283 W

F2 I/O Modules

—

—

48-port 1- and 10-Gigabit Ethernet I/O module (N7K-F248XP-25 and N7K-F248XP-25E)

450 W

400 W

48-port 1- and 10-GBASE-T I/O module (N7K-F248XT-25E)

550 W

420 W

F3 I/O Modules

—

—

48-port 1- and 10-Gigabit Ethernet I/O module (N7K-F348XP-25)

340 W

325 W

12-port, 40-Gigabit Ethernet I/O module (N7K-F312FQ-25)

340 W

310 W

6-port, 100-Gigabit Ethernet I/O module (N7K-F306CK-25)

400 W

325 W

M1 I/O Modules

—

—

48-port 10/100/1000 Ethernet I/O module (N7K-M148GT-11)

400 W

358 W

48-port 10/100/1000 Ethernet I/O module with XL option (N7K-M148GT-11L)

400 W

358 W

48-port 1-Gigabit Ethernet I/O module (N7K-M1148GS-11)

400 W

358 W

48-port 1-Gigabit Ethernet I/O module with XL option (N7K-M148GS-11L)

400 W

358 W

32-port 10-Gigabit Ethernet I/O module (N7K-M132XP-12)

750 W

611 W

32-port 10-Gigabit Ethernet I/O module with XL option (N7K-M132XP-12L)

750 W

611 W

8-port 10-Gigabit Ethernet I/O module with XL option (N7K-M108X2-12L)

650 W

520 W

M2 I/O Modules

—

—

2-port 100-Gigabit Ethernet I/O module with XL option (N7K-M202CF-22L)

795 W

690 W

6-port 40-Gigabit Ethernet I/O module with XL option (N7K-M206FQ-23L)

795 W

720 W

24-port 10-Gigabit Ethernet I/O module with XL option (N7K-M224XP-23L)

795 W

720 W

M3 I/O Modules

—

—

48-port 1-/10-Gigabit Ethernet I/O modules with XL option(N7K-M348XP-25L)

525 W

400 W

24-port 40-Gigabit Ethernet I/O modules with XL option(N7K-M324FQ-25L)

750 W

600 W

Fabric Modules

3 to 5 (same type)

—

—

Fabric-1 module (N7K-C7018-FAB-1)

100 W

90 W

Fabric-2 module (N7K-C7018-FAB-2)

150 W

110 W

Fan Trays (N7K-C7018-FAN)

2

—

—

All fan trays (total)

1000 W

569 W

Power Supply Configuration Modes

You can configure one of the following power modes to either use the combined power provided by the installed power supplies or to provide power redundancy when there is a power loss:

  • Combined mode—Provides the maximum amount of available power by utilizing the combined power output from all installed power supplies for switch operations. This mode does not provide redundancy.
  • Power-supply redundancy mode—Allows you to replace a power supply during switch operations. All power supplies are active. The available power is calculated as the least amount of power available from all but one of the power supplies (N+1). The reserve power is the amount of power output by the power supply that can output the most power. For example, if three power supplies output 3 kW, 6 kW, and 6 kW, the available power is 9 kW (3 kW + 6 kW) and the reserve power is 6 kW.
  • Input source redundancy mode—Takes power from two electrical grids so that if one grid goes down, the other grid can provide the power needed by the switch. For the Cisco Nexus 7004 chassis, each grid powers half of the power supplies. For the Cisco Nexus 7009, 7010, and 7018 chassis, each grid powers half of each power supply (grid A is connected to the Input 1 receptacle on each power supply and grid B is connected to the Input 2 receptacle on each power supply). The available power is the amount of power output by the portions of the power supplies that are connected to the same grid. For example, if three power supplies are connected to a 110-V grid and a 220-V grid, each power supply outputs 1.2 kW for the 110-V grid and 3.0 kW for the 220-V grid. The available power would be 3.6 kW (1.2 kW + 1.2 kW + 1.2 kW) and the reserve power would be 9.0 kW (3.0 kW + 3.0 kW + 3.0 kW).
  • Full redundancy mode—Provides both power-supply redundancy and input-source redundancy. This mode allows you to replace a power supply without interrupting switch operations or continue powering the switch if one of two grids goes down. The available power is the lesser amount of output power for power supply redundancy or input source redundancy.

The amount of power available for use with your Cisco Nexus 7000 Series switch depends on the number of power supplies, input voltage used, and the power mode used. To determine the amount of available power for the power supplies, see the following tables:

  • For the 3-kW AC power supplies, see Table 1
  • For the 6-kW AC power supplies, see Table 3
  • For the 7.5-kW AC power supplies, see Table 4
  • For the 3-kW DC power supplies, see Table 5
  • For the 6-kW DC power supplies, see Table 7
  • For the 3.5-kW HVAC/HVDC power supplies, see Table 2 and Table 6
Table 11. Power Availability for 3-kW AC Power Supplies

Power Inputs

Combined Mode

Power Supply Redundancy Mode

Input Source Redundancy Mode

Full Redundancy Mode

Single input per power supply 5

220-V input

1 power supply

3000 W

—

—

—

2 power supplies

6000 W

3000 W

3000 W

3000 W

3 power supplies

9000 W

6000 W

—

—

4 power supplies

12,000 W

9000 W

6000 W

6000 W

110-V input

1 power supply

1450 W

—

—

—

2 power supplies

2900 W

1450 W

1450 W

1450 W

3 power supplies

4350 W

2900 W

—

—

4 power supplies

5800 W

4350 W

2900 W

2900 W

5 The Cisco Nexus 7004 uses up to four 3.0 kW AC power supplies.
Table 12. Power Availability for 3.5-kW Inputs (AC)

Power Inputs

Combined Mode

Power Supply Redundancy Mode

Input Source Redundancy Mode

Full Redundancy Mode

Single input per power supply

6

277-V input

1 power supply

3500 W

—

—

—

2 power supplies

7000 W

3500 W

3500 W

3500 W

3 power supplies

10,500 W

7000 W

—

—

4 power supplies

14,000 W

10,500 W

7000 W

7000 W

220/230-V input

1 power supply

3500 W

—

—

—

2 power supplies

7000 W

3500 W

3500 W

3500 W

3 power supplies

10,500 W

7000 W

—

—

4 power supplies

14,000 W

10,500 W

7000 W

7000 W

210-V input

1 power supply

3100 W

—

—

—

2 power supplies

6200 W

3100 W

3100 W

3100 W

3 power supplies

9300 W

6200 W

—

—

4 power supplies

12,400 W

9300 W

6200 W

6200 W

110-V input

1 power supply

1500 W

—

—

—

2 power supplies

3000 W

1500 W

1500 W

1500 W

3 power supplies

4500 W

3000 W

—

—

4 power supplies

6000 W

4500 W

3000 W

3000 W

6 The Cisco Nexus 7004 uses up to four 3.5 kW inputs.
Table 13. Power Availability for 6-kW AC Power Supply Units

Combined Mode

Power Supply Redundancy Mode

Input Source Redundancy Mode

Full Redundancy Mode

Dual inputs per power supply

220-V and 220-V inputs

1 power supply

6000 W

—

3000 W

—

2 power supplies

12,000 W

6000 W

6000 W

6000 W

3 power supplies

18,000 W

12,000 W

9000 W

9000 W

4 power supplies

7

24,000 W

18,000 W

12,000 W

12,000 W

220-V and 110-V inputs

1 power supply

4200 W

—

1200 W

—

2 power supplies

8400 W

4200 W

2400 W

2400 W

3 power supplies

12,600 W

8400 W

3600 W

3600 W

4 power supplies

16,800 W

12,600 W

4800 S

4800 W

110-V and 110-V inputs

1 power supply

2400 W

—

1200 W

—

2 power supplies

4800 W

2400 W

2400 W

2400 W

3 power supplies

7200 W

4800 W

3600 W

3600 W

4 power supplies

9600 W

7200 W

4800 W

4800 W

Single input per power supply

220-V input

1 power supply

3000 W

—

—

—

2 power supplies

6000 W

3000 W

—

—

3 power supplies

9000 W

6000 W

—

—

4 power supplies

12,000 W

9000 W

—

—

110-V input

1 power supply

1200 W

—

—

—

2 power supplies

2400 W

1200 W

—

—

3 power supplies

3600 W

2400 W

—

—

4 power supplies

4800 W

3600 W

—

—

7 The Cisco Nexus 7018 switch uses up to four 6-kW power supplies, the Cisco Nexus 7010 switch uses up to three 6-kW power supplies, and the Cisco Nexus 7009 uses up to two 6-kW power supplies.
Table 14. Power Availability for 7.5-kW AC Power Supplies

Combined Mode

Power Supply Redundancy Mode

Input Source Redundancy Mode

Full Redundancy Mode

Dual inputs per power supply

220-V and 220-V inputs

1 power supply

7500 W

—

3750 W

—

2 power supplies

15,000 W

7500 W

7500 W

7500 W

3 power supplies

22,500 W

15,000 W

11,250 W

11,250 W

4 power supplies

8

30,000 W

22,500 W

15,000 W

15,000 W

Single input per power supply

220-V input

1 power supply

3750 W

—

—

—

2 power supplies

7500 W

3750 W

—

—

3 power supplies

11,250 W

7500 W

—

—

4 power supplies

15,000 W

11,250 W

—

—

8 The Cisco Nexus 7018 switch uses up to four 7.5-kW power supplies, the Cisco Nexus 7010 switch uses up to three 7.5-kW power supplies, and the Cisco Nexus 7009 uses up to two 7.5-kW power supplies.
Table 15. Power Availability for 3.0-kW DC Power Supplies

Power Inputs

Combined Mode

Power Supply Redundancy Mode

Input Source Redundancy Mode

Full Redundancy Mode

Dual inputs per power supply

9

1 power supply

3,000 W

—

—

—

2 power supplies

6,000 W

3,000 W

3,000 W

3,000 W

3 power supplies

9,000 W

6,000 W

3,000 W

3,000 W

4 power supplies

12,000 W

9,000 W

6,000 W

6,000 W

9 The Cisco Nexus 7004 uses up to four 3.0 kW DC power supplies.
Table 16. Power Availability for 3.5-kW Inputs (DC)

Power Inputs

CombinedMode

Power SupplyRedundancyMode

Input SourceRedundancyMode

FullRedundancyMode

Dual inputs per power supply

10

380-V input

1 power supply

2 power supplies

3 power supplies

4 power supplies

3,500 W

7,000 W

10,500 W

14,000 W

—

3,500 W

7,000 W

10,500

—

3,500 W

3,500 W

7,000 W

—

3,500 W

3,500 W

7,000 W

220/240-V input

1 power supply

2 power supplies

3 power supplies

4 power supplies

3,500 W

7,000 W

10,500 W

14,000 W

—

3,500 W

7,000 W

10,500

—

3,500 W

3,500 W

7,000 W

—

3,500 W

3,500 W

7,000 W

210-V input

1 power supply

2 power supplies

3 power supplies

4 power supplies

3,100 W

6,200 W

9,300 W

12,400 W

—

3,100 W

6,200 W

9,300 W

—

3,100 W

3,100 W

6,200 W

—

3,100 W

3,100 W

6,200 W

10 The Cisco Nexus 7004 uses up to four 3.5 kW DC power supplies.
Table 17. Power Availability for 6.0-kW DC Power Supply Units

Power Inputs

Combined Mode

Power Supply Redundancy Mode

Input Source Redundancy Mode

Full Redundancy Mode

Dual inputs per power supply

1 power supply

2 power supplies 1

3 power supplies 1

4 power supplies 1

6,000 W

12,000 W

18,000 W

24,000 W

—

6,000 W

12,000 W

18,000 W

3,000 W

6,000 W

9,000 W

12,000 W

—

6,000 W

9,000 W

12,000 W

Single input per power supply

1 power supply

2 power supplies 1

3 power supplies 1

4 power supplies

11

3,000 W

6,000 W

9,000 W

12,000 W

—

3,000 W

6,000 W

9,000 W

—

—

—

—

—

—

—

—

11 The Cisco Nexus 7018 switch uses up to four 6-kW power supplies, the Cisco Nexus 7010 switch uses up to three 6-kW power supplies, and the Cisco Nexus 7009 uses up to two 6-kW power supplies.

Power Supply Cable Specifications

For power supply cable specifications, see the following tables:


Note

If you do not order the optional power cord with the system, you are responsible for selecting the appropriate power cord for the product. Using a non-compatible power cord with this product may result in electrical safety hazard. Orders delivered to Argentina, Brazil, and Japan must have the appropriate power cord ordered with the system.

Table 18. 3-kW and 6-kW AC Power Supply Power Cords

Locale

Power Cord Part Number

Cord Set Rating

Power Cord Reference Illustration

Australia and New Zealand

CAB-AC-16A-AUS

16A, 250 VAC

Peoples Republic of China

CAB-AC-16A-CH

16A, 250 VAC

Continental Europe

CAB-AC-2500W-EU

16A, 250 VAC

International

CAB-AC-2500W-INT

16A, 250 VAC

Israel

CAB-AC-2500W-ISRL

16A, 250 VAC

Japan and North America (non locking) 200-240 VAC operation

CAB-9K16A-US1

16A, 250 VAC

Japan and North America (locking) 200-240 VAC operation

CAB-AC-C6K-TWLK

16A, 250 VAC

Japan and North America 100-120 VAC operation

CAB-7513AC

16A, 250 VAC

Korea

CAB-9K16A-KOR

16A, 250 VAC

Power distribution unit (PDU)

CAB-C19-CBN

16A, 250 VAC

Switzerland

CAB-ACS-16

16A, 250 VAC

Figure 1. CAB-AC-16A-AUS Power Cord and Plugs for the 3-kW and 6-kW AC Power Supply Unit
Figure 2. CAB-AC-16A-CH Power Cord and Plugs for the 3-kW and 6-kW AC Power Supply Unit
Figure 3. CAB-AC-2500W-EU Power Cord and Plugs for the 3-kW and 6-kW AC Power Supply Unit
Figure 4. CAB-AC-2500W-INT Power Cord and Plugs for the 3-kW and 6-kW AC Power Supply Unit
Figure 5. CAB-AC-2500W-ISRL Power Cord and Plugs for the 3-kW and 6-kW AC Power Supply Unit
Figure 6. CAB-9K16A-US1 Power Cord and Plugs for the 3-kW and 6-kW AC Power Supply Unit
Figure 7. CAB-AC-C6K-TWLK Power Cord and Plugs for the 3-kW and 6-kW AC Power Supply Unit
Figure 8. CAB-7513AC Power Cord and Plugs for the 3-kW and 6-kW AC Power Supply Unit
Figure 9. CAB-9K16A-KOR Power Cord and Plugs for the 3-kW and 6-kW AC Power Supply Unit
Figure 10. CAB-C19-CBN Power Cord and Plugs for the 3-kW and 6-kW AC Power Supply Unit
Figure 11. CAB-ACS-16 Power Cord and Plugs for the 3-kW and 6-kW AC Power Supply Unit
Figure 12. CAB-AC-16A-AUS Power Cord and Plugs for the 3-kW and 6-kW AC Power Supply Unit
Table 19. 3.5-kW HVAC/HVDC Power Supply AC Power Cords

Locale

Power Supply Part Number

Cisco Part Number (CPN)

Length

Cord rating

Power cord reference illustration

Argentina

CAB-AC-16A-SG-AR

37-1649-01

14' 0" (4.26 m)

16A, 250 VAC

Australia and New Zealand

CAB-AC-16A-SG-AZ

37-1661-01

14' 0" (4.26 m)

16A, 250 VAC

Brazil

CAB-AC-16A-SG-BR

37-1650-01

14' 0" (4.26 m)

16A, 250 VAC

Peoples Republic of China

CAB-AC-16A-SG-CH

37-1655-01

14' 0" (4.26 m)

16A, 250 VAC

Continental Europe

CAB-AC-16A-SG-EU

37-1660-01

14' 0" (4.26 m)

16A, 250 VAC

India

CAB-AC-16A-SG-IND

37-1648-01

14' 0" (4.26 m)

16A, 250 VAC

International

CAB-AC-16A-SG-IN

37-1659-01

14' 0" (4.26 m)

16A, 250 VAC

Israel

CAB-AC-16A-SG-IS

37-1658-01

14' 0" (4.26 m)

16A, 250 VAC

Italy

CAB-AC-16A-SG-IT

37-1651-01

14' 0" (4.26 m)

16A, 250 VAC

North America (non locking) 110 VAC operation

CAB-AC-20A-SG-US

37-1662-01

14' 0" (4.26 m)

20A, 110 VAC

North America (locking) 125 VAC operation

CAB-AC-20A-SG-US1

37-1652-01

14' 0" (4.26 m)

20A, 125 VAC

North America (non locking) 200-240 VAC operation

CAB-AC-20A-SG-US2

37-1657-01

14' 0" (4.26 m)

20A, 250 VAC

North America (locking) 200-240 VAC operation

CAB-AC-20A-SG-US3

37-1656-01

14' 0" (4.26 m)

20A, 250 VAC

North America 277 VAC operation

CAB-AC-20A-SG-US4

37-1645-01

14' 0" (4.26 m)

20A, 277 VAC

North America Cabinet Jumper Power distribution unit (PDU)

CAB-AC-20A-SG-C20

37-1653-01

14' 0" (4.26 m)

20A, 250 VAC

South Africa

CAB-AC-16A-SG-SA

37-1647-01

14' 0" (4.26 m)

16A, 250 VAC

Korea

CAB-AC-16A-SG-SK

37-1646-01

14' 0" (4.26 m)

16A, 250 VAC

Switzerland

CAB-AC-16A-SG-SW

37-1654-01

14' 0" (4.26 m)

16A, 250 VAC

International, IEC/EU, Ring Terminal source plug

CAB-HV-25A-SG-IN2

37-1640-01

14' 0" (4.26 m)

20A, 300 VAC/500 VDC

International, IEC/EU

CAB-HV-25A-SG-IN3

37-100904-01

14' 0" (4.26 m)

20A, 300 VAC

North America, Ring Terminal source plug

CAB-HV-25A-SG-US2

37-1641-01

14' 0" (4.26 m)

20A, 300 VAC/500 VDC

North America

CAB-HV-25A-SG-US5

37-100903-01

14' 0" (4.26 m)

20A, 300 VAC

Figure 13. CAB-AC-16A-SG-AR Power Cord and Connectors for the 3.5-kW HCAC/HVDC Power Supply Unit
Figure 14. CAB-AC-16A-SG-AZ Power Cord and Connectors for the 3.5-kW HCAC/HVDC Power Supply Unit
Figure 15. CAB-AC-16A-SG-BR Power Cord and Connectors for the 3.5-kW HCAC/HVDC Power Supply Unit
Figure 16. CAB-AC-16A-SG-CH Power Cord and Connectors for the 3.5-kW HCAC/HVDC Power Supply Unit
Figure 17. CAB-AC-16A-SG-EU Power Cord and Connectors for the 3.5-kW HCAC/HVDC Power Supply Unit
Figure 18. CAB-AC-16A-SG-IND Power Cord and Connectors for the 3.5-kW HCAC/HVDC Power Supply Unit
Figure 19. CAB-AC-16A-SG-IN Power Cord and Connectors for the 3.5-kW HCAC/HVDC Power Supply Unit
Figure 20. CAB-AC-16A-SG-IS Power Cord and Connectors for the 3.5-kW HCAC/HVDC Power Supply Unit
Figure 21. CAB-AC-16A-SG-IT Power Cord and Connectors for the 3.5-kW HCAC/HVDC Power Supply Unit
Figure 22. CAB-AC-20A-SG-US Power Cord and Connectors for the 3.5-kW HCAC/HVDC Power Supply Unit
Figure 23. CAB-AC-20A-SG-US1 Power Cord and Connectors for the 3.5-kW HCAC/HVDC Power Supply Unit
Figure 24. CAB-AC-20A-SG-US2 Power Cord and Connectors for the 3.5-kW HCAC/HVDC Power Supply Unit
Figure 25. CAB-AC-20A-SG-US4 Power Cord and Connectors for the 3.5-kW HCAC/HVDC Power Supply Unit
Figure 26. CAB-AC-20A-SG-C20 Power Cord and Connectors for the 3.5-kW HCAC/HVDC Power Supply Unit
Figure 27. CAB-AC-16A-SG-SA Power Cord and Connectors for the 3.5-kW HCAC/HVDC Power Supply Unit
Figure 28. CAB-AC-16A-SG-SK Power Cord and Connectors for the 3.5-kW HCAC/HVDC Power Supply Unit
Figure 29. CAB-AC-16A-SG-SW Power Cord and Connectors for the 3.5-kW HCAC/HVDC Power Supply Unit
Figure 30. CAB-HV-25A-SG-IN1 Power Cord and Connectors for the 3.5-kW HCAC/HVDC Power Supply Unit
Figure 31. CAB-HV-25A-SG- IN3 Power Cord and Connectors for the 3.5-kW HVAC/HVDC Power Supply Unit
Figure 32. CAB-HV-25A-SG- US1 Power Cord and Connectors for the 3.5-kW HVAC/HVDC Power Supply Unit
Figure 33. CAB-HV-25A-SG-US2 Power Cord and Connectors for the 3.5-kW HVAC/HVDC Power Supply Unit
Figure 34. CAB-HV-25A-SG-US5 Power Cord and Connectors for the 3.5-kW HVAC/HVDC Power Supply Unit
Figure 35. CAB-AC-16A-SG-AZ Power Cord and Plugs for the 3.5-kW HVAC/HVDC Power Supply Unit
Figure 36. CAB-AC-16A-SG-BR Power Cord and Plugs for the 3.5-kW HVAC/HVDC Power Supply Unit
Figure 37. CAB-AC-16A-SG-CH Power Cord and Plugs for the 3.5-kW HVAC/HVDC Power Supply Unit
Figure 38. CAB-AC-16A-SG-EU Power Cord and Plugs for the 3.5-kW HVAC/HVDC Power Supply Unit
Figure 39. CAB-AC-16A-SG-IND Power Cord and Plugs for the 3.5-kW HVAC/HVDC Power Supply Unit
Figure 40. CAB-AC-16A-SG-IN Power Cord and Plugs for the 3.5-kW HVAC/HVDC Power Supply Unit
Figure 41. CAB-AC-16A-SG-IS Power Cord and Plugs for the 3.5-kW HVAC/HVDC Power Supply Unit
Figure 42. CAB-AC-16A-SG-IT Power Cord and Plugs for the 3.5-kW HVAC/HVDC Power Supply Unit
Figure 43. CAB-AC-20A-SG-US Power Cord and Plugs for the 3.5-kW HVAC/HVDC Power Supply Unit
Figure 44. CAB-AC-20A-SG-US1 Power Cord and Plugs for the 3.5-kW HVAC/HVDC Power Supply Unit
Figure 45. CAB-AC-20A-SG-US2 Power Cord and Plugs for the 3.5-kW HVAC/HVDC Power Supply Unit
Figure 46. CAB-AC-20A-SG-US3 Power Cord and Plugs for the 3.5-kW HVAC/HVDC Power Supply Unit
Figure 47. CAB-AC-20A-SG-US4 Power Cord and Plugs for the 3.5-kW HVAC/HVDC Power Supply Unit
Figure 48. CAB-AC-20A-SG-C20 Power Cord and Plugs for the 3.5-kW HVAC/HVDC Power Supply Unit
Figure 49. CAB-AC-16A-SG-SA Power Cord and Plugs for the 3.5-kW HVAC/HVDC Power Supply Unit
Figure 50. CAB-AC-16A-SG-SK Power Cord and Plugs for the 3.5-kW HVAC/HVDC Power Supply Unit
Figure 51. CAB-AC-16A-SG-SW Power Cord and Plugs for the 3.5-kW HVAC/HVDC Power Supply Unit
Figure 52. CAB-HV-25A-SG-IN2 Power Cord and Plugs for the 3.5-kW HVAC/HVDC Power Supply Unit
Figure 53. CAB-HV-25A-SG-IN3 Power Cord and Plugs for the 3.5-kW HVAC/HVDC Power Supply Unit
Figure 54. CAB-HV-25A-SG-US2 Power Cord and Plugs for the 3.5-kW HVAC/HVDC Power Supply Unit
Figure 55. CAB-HV-25A-SG-US5 Power Cord and Plugs for the 3.5-kW HVAC/HVDC Power Supply Unit
Table 20. 7.5-kW AC Power Supply Power Cord

Locale

Power Supply Part Number

Cord rating

Power cord reference illustration

Japan and North America

N7K-AC-7.5KW-US

30 A, 250 VAC

NEMA L6-30 Power Connector for the 7.5-kW AC Power Supply Unit

International

N7K-AC-7.5KW-INT

32 A, 250 VAC

IEC 603090 Power Connector for the 7.5-kW AC Power Supply Unit

Figure 56. NEMA L6-30 Power Connector for the 7.5-kW AC Power Supply Unit
Figure 57. IEC 603090 Power Connector for the 7.5-kW AC Power Supply Unit
Table 21. 3-kW DC Power Supply Power Cord

Locale

Part Number

Cord Ratings

Power Cord Comments

All

—12

45 A

6 AWG

12 Power cords used for the 3-kW DC power supply are supplied by the customer.
Table 22. 3.5-kW HVAC/HVDC Power Supply DC Power Cords

Locale

Part Number

Cisco Part Number (CPN)

Length

Cord Ratings

Power Cord Reference Illustration

North America

CAB-HV-25A-SG-US1

37-1643-01

14' 0" (4.26 m)

20 A, 400 VDC

Figure A-83

North America, Ring Terminal source plug

CAB-HV-25A-SG-US2

37-1641-01

14' 0" (4.26 m)

20 A, 300 VAC/500 VDC

Figure A-84

International

CAB-HV-25A-SG-IN1

37-1642-01

14' 0" (4.26 m)

20 A, 400 VDC

Figure A-85

International, Ring Terminal source plug

CAB-HV-25A-SG-IN2

37-1640-01

14' 0" (4.26 m)

20 A, 300 VAC/500 VDC

Figure A-86


Note
All cables will not be orderable at first customer shipment (FCS).
Figure 58. CAB-HV-25A-SG-US1 Power Cord and Plugs for the 3.5-kW HVAC/HVDC Power Supply
Figure 59. CAB-HV-25A-SG-US2 Power Cord and Plugs for the 3.5-kW HVAC/HVDC Power Supply
Figure 60. CAB-HV-25A-SG-IN1 Power Cord and Plugs for the 3.5-kW HVAC/HVDC Power Supply Unit
Figure 61. CAB-HV-25A-SG-IN2 Power Cord and Plugs for the 3.5-kW HVAC/HVDC Power Supply
Table 23. 6-kW DC Power Supply Power Cord

Locale

Part Number

Cord Rating

Power Cord Reference Illustration

All

N7K-DC-CAB

40 A, 48V-48V

Power Connector for the 6.0-kW DC Power Supply Unit

Figure 62. Power Connector for the 6.0-kW DC Power Supply Unit

Chassis Clearances

You must provide each Cisco Nexus 7000 Series switch with adequate clearance for installation, maintenance, cabling, and airflow. Installation clearance includes the cold aisle spacing required in front of the rack or cabinet to allow you to move the switch with a mechanical lift to its rack or cabinet. Maintenance clearance is the hot or cold aisle spacing required to replace supervisor, I/O, fabric, fan, and power supply modules. Cabling clearance provides the required space in front of the chassis (often within a cabinet) for cables to bend and connect to the chassis. Airflow clearance is typically the spacing on the left or right of the chassis for side-to-side airflow into and out of the chassis. If a chassis has front-to-back airflow, it uses the maintenance clearance for airflow instead of airflow clearance on the sides of the chassis.

This section includes the following topics:

Cisco Nexus 7004 Chassis Clearances

The Cisco Nexus 7004 chassis requires front clearance for cable management and maintenance, right side clearance for cooling air intake, and an unobstructed rear for exhausting air to the hot aisle behind the chassis. For the front, the cable management frames require 7.5 inches (19.1 cm) of clearance in front of the mounting rails and an additional 26 inches (66.0 cm) in front of the cable management frames or the cabinet door for maintenance. If you install the chassis with the optional center-mount bracket in place of the standard front-mount bracket, you must add 5.7 inches (14.4 cm) to the front clearance in front of the mounting rails on the rack. For cabinet installations, we recommend a right-side clearance of 11 inches (27.9 cm) between the switch and the inside of the cabinet. For rack installations, we recommend a right-side clearance of either 6 inches (15.2 cm) between racks or 11 inches (27.9 cm) between the chassis and a wall. The rear of the chassis must be unobstructed and open to the hot aisle in back of the switch for airflow exhaust. Clearances Required for the Cisco Nexus 7004 in a Four-Post Rack with Front-Mount Brackets shows the required clearances for a chassis in a four-post rack with a front-mount installation. Clearances Required for the Cisco Nexus 7004 in a Two-Post Rack with Front-Mount Brackets shows the required clearances for a chassis in a two-post rack with a front-mount installation. Clearances Required for the Cisco Nexus 7004 in a Two-Post Rack with Center-Mount Brackets shows the required clearances for chassis in a two-post rack with a center-mount installation.

Figure 63. Clearances Required for the Cisco Nexus 7004 in a Four-Post Rack with Front-Mount Brackets

1

Chassis

10

Chassis width

2

Cable management frames

11

Right side clearance recommended for cabinet installations:

  • Use 11 inches (27.9 cm).

3

Vertical rack-mount posts

12

Right side clearance recommended for open rack installations:

  • If next to another open rack, use 6 inches (15.2 cm) between racks.
  • If next to a wall, use 11 inches (27.9 cm) between the chassis and the wall.

4

Vertical rack-mount posts for neighboring rack

13

No rear clearance required but the rear must be open to the hot aisle to exhaust air

5

Inside of cabinet (no left side clearance required)

14

Airflow clearance required between the chassis and inside of cabinet (if a cabinet is used)

6

Air intake from cold aisle for power supplies

15

Chassis depth

7

Air intake from cold aisle for the supervisor and I/O modules

16

Clearance required between the front of the chassis and the inside of the cabinet (if used) or the edge of the cold aisle (if no cabinet) for the cable management frames and the optional front doors

8

Air exhaust to hot aisle for all modules and power supplies

17

Front service clearance required for installing the chassis and replacing the modules

9

No left side clearance required (no airflow on left side)

Figure 64. Clearances Required for the Cisco Nexus 7004 in a Two-Post Rack with Front-Mount Brackets

1

Cisco Nexus 7004 chassis

8

No left side clearance required (no airflow on left side)

2

Cable management frames

9

Chassis width.

3

Vertical rack-mount posts

10

Right side clearance recommended for open rack installations:

  • If next to another open rack, use 6 inches (15.2 cm) between racks.
  • If next to a wall, use 11 inches (27.9 cm) between the chassis and the wall.

4

Vertical rack-mount posts for neighboring racks

11

No rear clearance required but the rear must be open to the hot aisle to exhaust air

5

Air intake from cold aisle for power supplies

12

Chassis depth

6

Air intake from cold aisle for the supervisor and I/O modules

13

Clearance required between the front of the chassis and the inside of the cabinet for the cable management frames and the optional front door

7

Air exhaust to hot aisle for all modules and power supplies

14

Front clearance required for installing the chassis and replacing the modules

Figure 65. Clearances Required for the Cisco Nexus 7004 in a Two-Post Rack with Center-Mount Brackets

1

Cisco Nexus 7004 chassis

8

No left side clearance required (no airflow on left side)

2

Cable management frames

9

Chassis width

3

Vertical rack-mount posts

10

Right side clearance recommended for open rack installations:

  • If next to another open rack, use 6 inches (15.2 cm) between racks.
  • If next to a wall, use 11 inches (27.9 cm) between chassis and wall.

4

Vertical rack-mount posts for neighboring rack

11

No rear clearance required but the rear must be open to the hot aisle to exhaust air

5

Air intake from cold aisle for power supplies

12

Distance from front of vertical rack-mount posts to rear of chassis

6

Air intake from cold aisle for the supervisor and I/O modules

13

Clearance required between the front of the chassis and the inside of the chassis for the cable management frames and the optional front doors

7

Air exhaust to hot aisle for all modules and power supplies

14

Front service clearance required for installing the chassis and replacing the modules

Cisco Nexus 7009 Chassis Clearances

The Cisco Nexus 7009 chassis has different clearance requirements for installations with four-post racks or cabinets, two-post racks with front-mount brackets, and two-post racks with center-mount brackets.

For four-post rack or cabinet installations, the chassis requires the following clearances (see Clearances Required for a Front-Mounted Cisco Nexus 7009 Chassis in a Four-Post Rack):

  • Front clearance requires both of the following:
    • Cabling area of 7.5 inches (19.1 cm) between the front of the chassis and the inside surface of the cabinet or rack (this area can include the optional cable management frames)
    • Maintenance area of 24 inches (61.1 cm) between the front of the rack or cabinet and the next object in the cold aisle.

Note
You might need to increase the maintenance area to accommodate a wide mechanical lift used to move the chassis to or from the rack.
  • Rear clearance includes both of the following:
    • Cabling area of 7 inches (17.8 cm) between the rear of the chassis and the inside surface of the cabinet or rack
    • Maintenance area of 24 inches (61.1 cm) between the rear of the rack or cabinet and the next object in the hot aisle
  • Side clearance of 11 inches (27.9 cm) for air flow on each side of the chassis.
Figure 66. Clearances Required for a Front-Mounted Cisco Nexus 7009 Chassis in a Four-Post Rack

1

Cisco Nexus 7009 chassis

10

Left side clearance required with an unobstructed opening to the hot aisle to exhaust air

2

Cable management frames

11

Chassis width

3

Vertical rack-mount post

12

Side clearance recommended for cabinet installations:

  • use 11 inches (27.9 cm)

4

Vertical rack-mount post for neighboring rack

13

Side clearance recommended for open rack installations:

  • If next to another open rack, use 6 inches (15.2 cm).
  • If next to a wall, use 11 inches (27.9 cm).

5

Nearest object or inside of cabinet

14

Rear service clearance required to replace fan trays and fabric modules

6

Air intake from cold aisle for the power supplies

15

Airflow clearance required between the chassis rear and inside of cabinet (if used)

7

Air intake from cold aisle for the supervisor, fabric, and I/O modules

16

Chassis depth

8

Air exhaust to hot aisle for power supplies

17

Clearance required between the front of the chassis and the inside of the cabinet (if used) or edge of cold aisle (if no cabinet) for the cable management frames and the optional front doors

9

Air exhaust to hot aisle for the supervisor, fabric, and I/O modules

18

Front clearance required for installing the chassis and replacing the modules

For two-post rack installations with front-mount brackets, the chassis requires the following clearances (see Clearances Required for a Front-Mounted Cisco Nexus 7009 Chassis in a Two-Post Rack):

  • Front clearance requires both of the following:
    • Cabling area of 7.5 inches (19.1 cm) between the front of the chassis and the cold aisle (this area can include the optional cable management frames)
    • Maintenance area of 28 inches (71.1 cm) in front of the cabling area for installing the chassis and replacing modules

Note
You might need to increase the maintenance area to accommodate a wide mechanical lift used to move the chassis to or from the rack.
  • Rear clearance requires 26 inches (66.0 cm) behind the chassis for cable management and for replacing modules and power supplies
  • Side clearance recommendation depends on whether you use a rack or cabinet for the installation as follows:
    • For cabinet installations, we recommend that you use 11 inches (27.9 cm) for airflow on each side of the chassis.
    • For rack installations, we recommend 11 inches (27.9 cm) between the chassis and a wall or 6 inches (15.2 cm) between racks.
Figure 67. Clearances Required for a Front-Mounted Cisco Nexus 7009 Chassis in a Two-Post Rack

1

Cisco Nexus 7009 chassis

9

Side clearance required for open rack installations:

  • If next to another open rack, use 6 inches (15.2 cm).
  • If next to a wall, use 11 inches (27.9 cm).

2

Cable management frames

10

Chassis width

3

Vertical rack-mount post

11

Side clearance required for open rack installations:

  • If next to another open rack, use 6 inches (15.2 cm).
  • If next to a wall, use 11 inches (27.9 cm).

4

Vertical rack-mount post for neighboring rack

12

Rear service clearance required to replace fan trays and fabric modules

5

Air intake from cold aisle for the power supplies

13

Airflow clearance required between the chassis and inside of cabinet (if used)

6

Air intake from cold aisle for the supervisor, fabric, and I/O modules

14

Chassis depth

7

Air exhaust to hot aisle for power supplies

15

Clearance required between the front of the chassis and edge of cold aisle for the cable management frames and the optional front doors

8

Air exhaust to hot aisle for the supervisor, fabric, and I/O modules

16

Front clearance required for installing the chassis and replacing the modules

For two-post rack installations with center-mount brackets, the chassis requires the following clearances (see Clearances Required for a Center-Mounted Cisco Nexus 7009 Chassis in a Two-Post Rack):

  • Front clearance of 37 inches (94.0 cm) for both of the following:
    • Cabling area of 13.5 inches (34.3 cm) between the front of the posts (posts are 6 inches (15.2 cm) behind the front of the chassis)
    • Maintenance area of 26 inches (66.0 cm) in front of the cabling area for installing the chassis and replacing modules.

Note
You might need to increase the maintenance area to accommodate a wide mechanical lift used to move the chassis to or from the rack.
  • Rear clearance of 26 inches (66.0 cm) behind the chassis for cable management and for replacing the fan modules and power supplies.
  • Side clearance of 11 inches (27.9 cm) for airflow on each side of the chassis.
Figure 68. Clearances Required for a Center-Mounted Cisco Nexus 7009 Chassis in a Two-Post Rack

1

Cisco Nexus 7009 chassis

9

Right side clearance (for rack installations) recommended to input air from the cold aisle:

  • If next to another open rack, use 6 inches (15.2 cm).
  • If next to a wall, use 11 inches (27.9 cm).

2

Cable management frames

10

Chassis width

3

Vertical rack-mount posts

11

Right side clearance (for rack installations) recommended to input air from the cold aisle:

  • If next to another open rack, use 6 inches (15.2 cm).

If next to a wall, use 11 inches (27.9 cm).

4

Vertical rack-mount post for neighboring rack

12

Rear service clearance required to replace fan trays and fabric modules

5

Air intake from cold aisle for power supplies

13

Airflow clearance required between the chassis and inside of cabinet (if used)

6

Air intake from cold aisle for the supervisor, fabric, and I/O modules

14

Chassis depth

7

Air exhaust to hot aisle for the power supplies

15

Clearance required between the front of the chassis and the front of the cable management frames and the optional front doors

8

Air exhaust to hot aisle for the supervisor, fabric, and I/O modules

16

Front service clearance required for installing the chassis and replacing the modules

Cisco Nexus 7010 Chassis Clearances

The Cisco Nexus 7010 chassis requires the following clearances (see Clearances Required for the Cisco Nexus 7010 Switch):

  • Front clearance of 45.5 inches (115.6 cm) for both of the following:
    • Cabling area of 7.5 inches (19.1 cm) between the front of the chassis and the inside of the cabinet or front of the rack
    • Maintenance area of 38 inches (96.5 cm) of cold-aisle passageway in front of the rack or cabinet

Note
You might need to increase the maintenance area to accommodate a wide mechanical lift used to move the chassis to or from the rack.
  • Rear clearance of 35 inches (88.9 cm) for both of the following:
    • Airflow area of 5 inches (12.7 cm) inside of the cabinet or rack
    • Maintenance area of 30 inches (76.2 cm) of hot-aisle passageway behind the rack or cabinet
Figure 69. Clearances Required for the Cisco Nexus 7010 Switch

1

Cisco Nexus 7010 chassis

8

Chassis width

2

Cable management system

9

No right side clearance required (no airflow on right side)

3

Vertical rack-mount posts

10

Rear service clearance required to replace fan trays and fabric modules

4

Inside of cabinet (no side clearance required)

11

Airflow clearance required between the chassis and inside of cabinet (if used)

5

Air intake from cold aisle for all modules and power supplies

12

Chassis depth, which includes the fan tray handles at the rear of the chassis

6

Air exhaust to hot aisle for all modules and power supplies

13

Clearance required between the front of the chassis and the inside of the cabinet (if used) or edge of the cold aisle (if no cabinet) for the cable management frames and the optional front doors

7

No left side clearance required (no airflow on left side)

14

Front service clearance required for installing the chassis and replacing the modules

Cisco Nexus 7018 Chassis Clearances

The Cisco Nexus 7018 chassis requires the following clearances (see Clearances Required for the Cisco Nexus 7018 Switch):

  • Front clearance of 45 inches (114.3 cm) for both of the following:
    • Cabling area of 7.5 inches (19.1 cm) between the front of the chassis and the inside of the cabinet or front of the rack
    • Maintenance area of 38 inches (96.5 cm) between the front of the rack or cabinet and the next rack, cabinet, or wall in the cold aisle (additional area might be needed for a larger mechanical lift used to move the chassis)
  • Rear clearance of 35 inches (88.9 cm) for both of the following:
    • Airflow area of 5 inches (12.7 cm) inside a cabinet (if used)
    • Maintenance area of 30 inches (76.2 cm) of hot-aisle passageway behind the rack or cabinet
  • Side clearance recommendation depends on whether a cabinet or rack is used:
    • For cabinet installations, use 11 inches (27.9 cm) between the chassis and inside of the cabinet.
    • For rack installations, use either 11” (27.9 cm) between the chassis and a wall or 6” (15.2 cm) between racks.
Figure 70. Clearances Required for the Cisco Nexus 7018 Switch

1

Cisco Nexus 7018 chassis

11

Side clearance recommended for cabinet installations::

  • Use 11 inches (27.9 cm)

2

Cable management frames

12

Chassis width

3

Vertical rack-mount post

13

Side clearance recommended for cabinet installations::

  • Use 11 inches (27.9 cm)

4

Vertical rack-mount post for neighboring rack

14

Side clearance recommended for open rack installations:

  • If next to another open rack, use 6 inches (15.2 cm).

If next to a wall, use 11 inches (27.9 cm)

5

Nearest object or inside of cabinet (side clearance required for airflow)

15

Rear service clearance required to replace fan trays and fabric modules

6

Air intake from cold aisle for the power supplies

16

Airflow clearance required between the chassis and inside of cabinet (cabinet installations only)

7

Air intake from cold aisle for the supervisor, fabric, and I/O modules

17

Chassis depth

8

Air exhaust to hot aisle for the power supplies

18

Clearance required between the front of the chassis and the inside of the cabinet (cabinet installations) or edge of the cold aisle (rack installations) for the cable management frames and the optional front door

9

Air exhaust to hot aisle for the supervisor, fabric, and I/O modules

19

Front service clearance required for installing the chassis and replacing the modules

10

Side clearance recommended for open rack installations:

  • If next to another open rack, use 6 inches (15.2 cm).
  • If next to a wall, use 11 inches (27.9 cm).

Facility Cooling Requirements

The Cisco Nexus 7000 Series switches dissipate considerable power that generates much heat. The following is the heat dissipation requirement for these switches:

  • Cisco Nexus 7004 dissipates up to 9737 BTUs per hour
  • Cisco Nexus 7009 dissipates up to 28,101 BTUs per hour
  • Cisco Nexus 7010 dissipates up to 35,162 BTUs per hour
  • Cisco Nexus 7018 dissipates up to 51,195 BTUs per hour

Chassis Airflow

The Cisco Nexus 7000 Series switches are designed to work in a hot-aisle/cold-aisle environment using front-to-back, side-to-side, or side-to-back airflow. Each of these switches uses one of the following airflow directions:

  • The Cisco Nexus 7004 switch uses side-to-back airflow to cool its modules and front-to-back airflow to cool its power supplies as shown in Airflow for the Cisco Nexus 7004 Chassis. This switch requires right-side clearance for airflow into the chassis.
  • The Cisco Nexus 7009 switch uses side-to-side airflow to cool its modules and front-to-back airflow to cool its power supplies as shown in Airflow for the Cisco Nexus 7009 Chassis. This switch requires right- and left-side clearance for airflow into and out of the chassis.
  • The Cisco Nexus 7010 switch uses front-to-back airflow as shown in Airflow for the Cisco Nexus 7010 Chassis.
  • The Cisco Nexus 7018 switch uses side-to-side airflow to cool its modules and front-to-back airflow to cool its power supply units as shown in Airflow for the Cisco Nexus 7018 Chassis. This switch requires right- and left-side clearance for airflow into and out of the chassis.
Figure 71. Airflow for the Cisco Nexus 7004 Chassis

1

Right side-to-rear airflow for cooling supervisor and I/O modules

3

Exhaust out the rear to the hot aisle

2

Front-to-rear airflow for cooling power supplies

Figure 72. Airflow for the Cisco Nexus 7009 Chassis

need to insert 330517.jpg. this image is found in WEM and not in Astoria.

1

Airflow for cooling the supervisor modules, I/O modules, and fabric modules

2

Airflow for cooling the power supply units

Figure 73. Airflow for the Cisco Nexus 7010 Chassis

1

Airflow for cooling the supervisor and I/O modules

3

Airflow for cooling the power supply units

2

Airflow for cooling the fabric modules

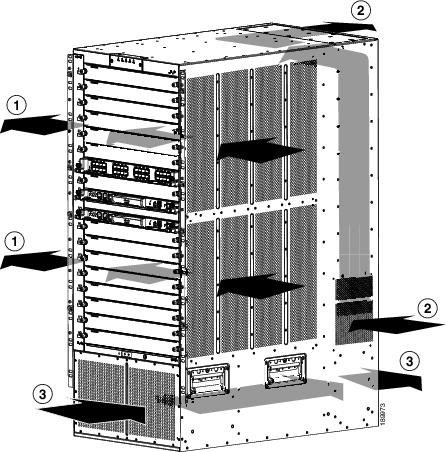

Figure 74. Airflow for the Cisco Nexus 7018 Chassis

1

Airflow for cooling the supervisor and I/O modules

3

Airflow for cooling the power supply units

2

Airflow for cooling the fabric modules

For the Cisco Nexus 7004 switch, you can route cables on the left or right side without interfering with coolant airflow, which goes in on the right side. Be sure to otherwise leave the right side unblocked so that cool air can flow from the cold aisle in the front to the chassis.

To allow for the Cisco Nexus 7009 and 7018 switches to take in air from the cold aisle and floor on the right side, you should route cables on the left front side of the switch. If necessary, you can route cables on the upper right front side of the chassis, which leaves the lower right side open to cooling air from the cold aisle in front of the chassis. By having the cables on the left side and leaving the left rear side unobstructed, the exhaust is directed to the hot aisle in back.

For the clearances required on each side of the switch, see the Chassis Clearances.
