Step 1

Enter the following URL in your browser, depending on which interface your computer is connected to.

Step 2

Log in with the username admin, and the default password Admin123.

Step 1

Accept the General Terms and change the admin password.

The Device Setup screen appears.

Note	The exact port configuration depends on your model.

Step 2

Configure network settings for the outside and management interfaces.

1. Outside Interface—Ethernet 1/1. You cannot select an alternative outside interface during initial device setup.

   Configure IPv4—If you need PPPoE, you can configure it after you complete the wizard.

   Configure IPv6

2. Management Interface—Sets parameters for the dedicated Management 1/1 interface. If you changed the IP address at the CLI, you will not see these settings because you already configured them.

   DNS Servers—The default is the OpenDNS public DNS servers.

   Firewall Hostname

3. Click Next.

Step 3

Configure the system time settings.

1. Time Zone

2. NTP Time Server

3. Click Next.

Step 4

Configure Smart Licensing.

1. Click Register device with Cisco Smart Software Manager.

2. Click the Cisco Smart Software Manager link.

3. Click Inventory.



4. On the General tab, click New Token.



5. On the Create Registration Token dialog box enter the following settings, and then click Create Token:



   • Description

   • Expire After—Cisco recommends 30 days.

   • Max. Number of Uses

   • Allow export-controlled functionality on the products registered with this token—Enables the export-compliance flag if you are in a country that allows for strong encryption. You must select this option now if you plan to use this functionality. If you enable this functionality later, you will need to re-register your device with a new product key and reload the device. If you do not see this option, your account does not support export-controlled functionality.

   The token is added to your inventory.

6. Click the arrow icon to the right of the token to open the Token dialog box so you can copy the token ID to your clipboard. Keep this token ready for later in the procedure when you need to register the Firewall Threat Defense.





7. In the Firewall Device Manager, paste the token into the token field.

8. Set the other options, and then click Finish

Step 5

Finish the setup wizard.

1. Click Standalone Device to use the Firewall Device Manager.

2. Click Configure Interfaces to go directly to the Interfaces page, Configure Policy to go to the Policies page, or Got It to go to the Device page.

   For interfaces or policy configuration, see Configure the Network Settings and Policy.

Step 6

Enable feature licenses.

1. From the Device page, click Smart License > > View Configuration.

2. Click the Enable/Disable control for each optional license.



3. Choose Resync Connection from the gear drop-down list to synchronize license information with Cisco Smart Software Manager.



Step 1

If you want to convert a switch port to a firewall interface, choose Device, and then click the link in the Interfaces summary.

1. Click the edit icon () for the switch port.

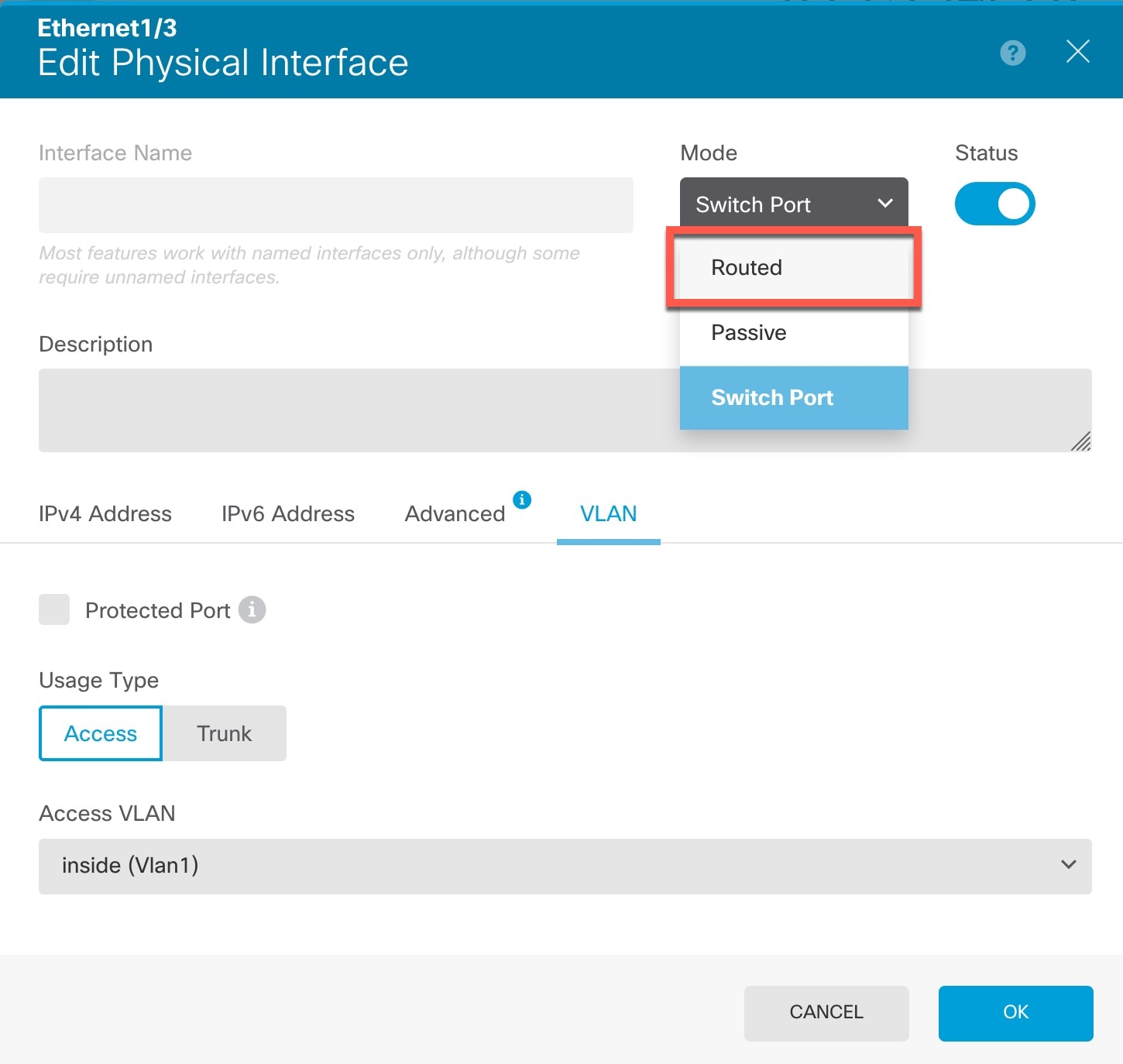

2. Change the mode from Switch Port to Routed.

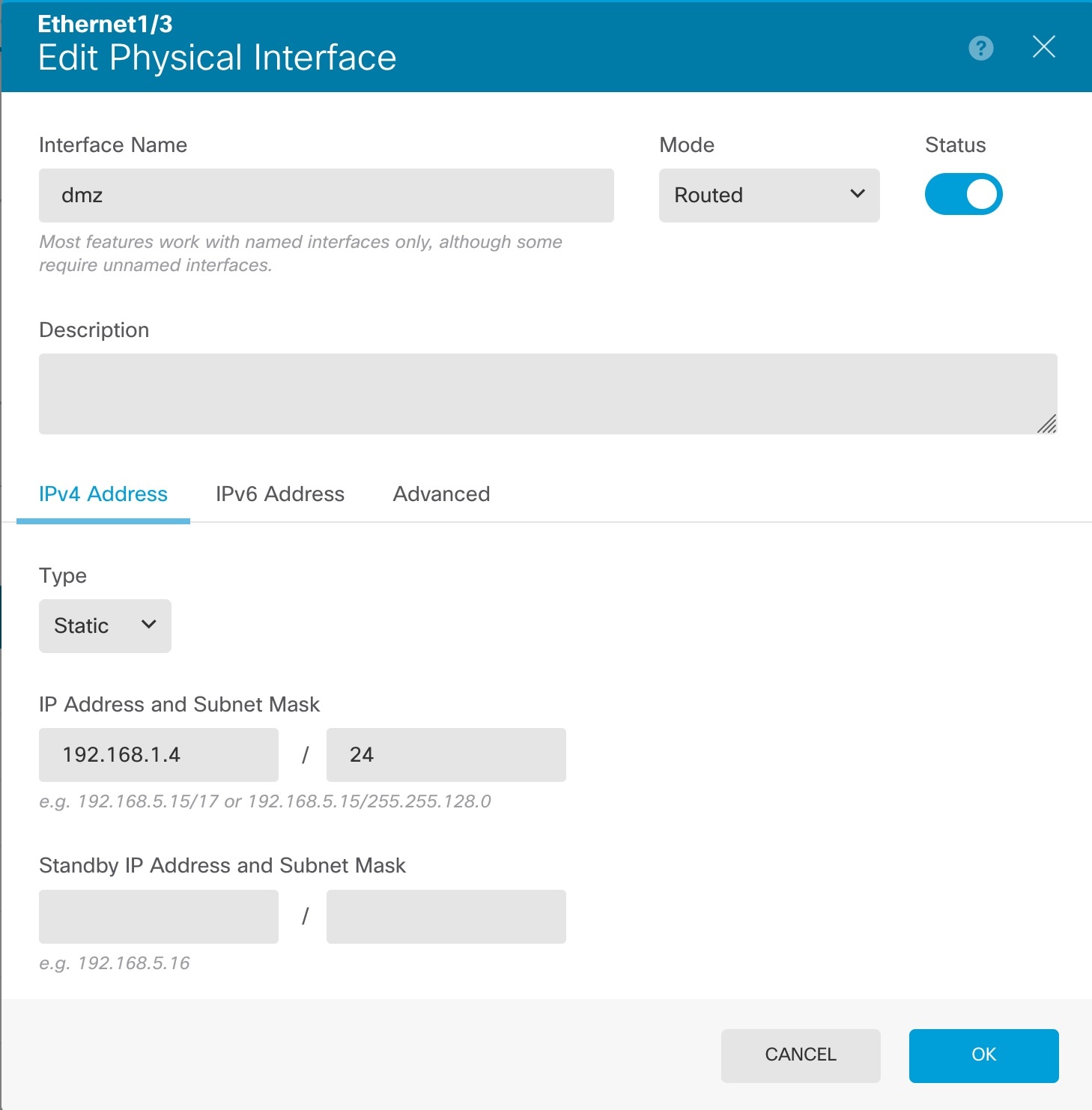

3. Set the name and IP address.



4. Click OK.

Step 2

If you configured new firewall interfaces, choose Objects, then select Security Zones.

Edit or create new zones as appropriate and assign the interface to the zone. Each interface must belong to a zone for which you configure policies.

The following example creates a new dmz_zone and then assigns the dmz interface to it.

Step 3

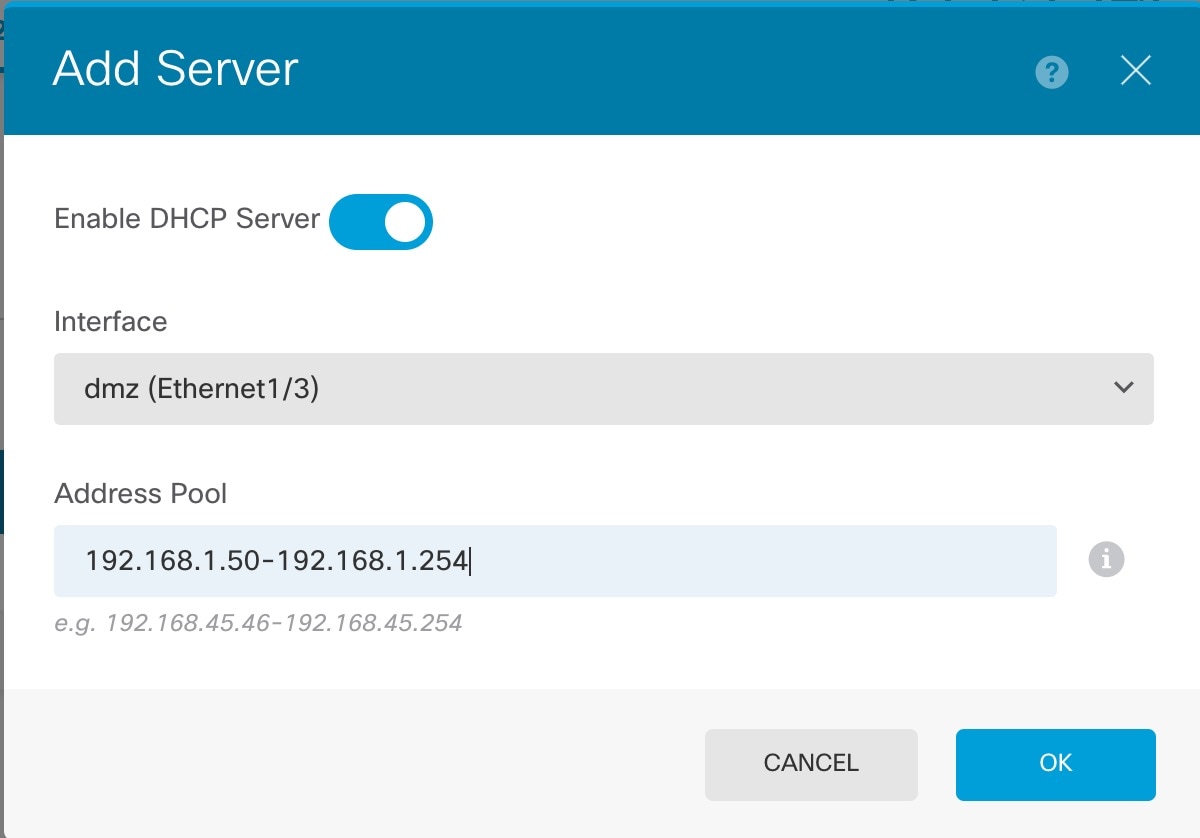

If you want internal clients to use DHCP to obtain an IP address from the device, choose Device > System Settings > DHCP Server, then select the DHCP Servers tab.

There is already a DHCP server configured for the inside interface.

Step 4

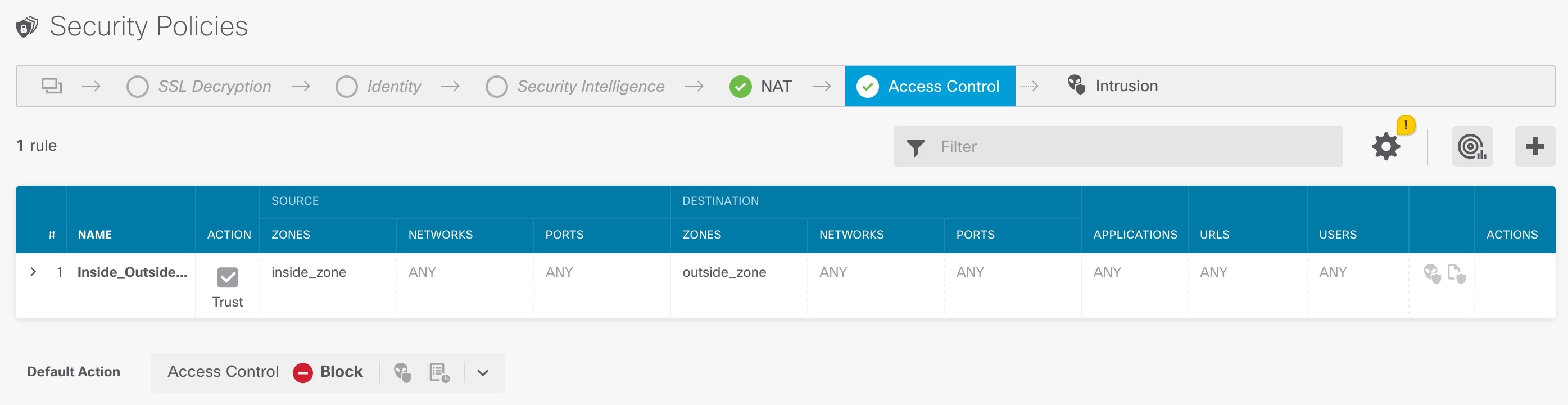

Choose Policies and configure the security policies for the network.

The device setup wizard enables traffic flow between the inside_zone and outside_zone using a Trust rule. A Trust rule does not apply an intrusion policy. To use intrusion, specify the Allow action for the rule. The policy also includes interface PAT for all interfaces when going to the outside interface.

However, if you have interfaces in different zones, you need access control rules to allow traffic to and from those zones.

In addition, you can configure other policies to provide additional services and fine-tune NAT and access rules to get the results that your organization requires. You can configure the following policies by clicking the policy type in the toolbar:

• SSL Decryption—If you want to inspect encrypted connections (such as HTTPS) for intrusions, malware, and so forth, you must decrypt the connections. Use the SSL decryption policy to determine which connections need to be decrypted. The system re-encrypts the connection after inspecting it.

• Identity—If you want to correlate network activity to individual users, or control network access based on user or user group membership, use the identity policy to determine the user associated with a given source IP address.

• Security Intelligence—(Requires the IPS license) Use the Security Intelligence policy to quickly drop connections from or to blacklisted IP addresses or URLs. By blacklisting known bad sites, you do not need to account for them in your access control policy. Cisco provides regularly updated feeds of known bad addresses and URLs so that the Security Intelligence blacklist updates dynamically. Using feeds, you do not need to edit the policy to add or remove items in the blacklist.

• NAT (Network Address Translation)—Use the NAT policy to convert internal IP addresses to externally routeable addresses.

• Access Control—Use the access control policy to determine which connections are allowed on the network. You can filter by security zone, IP address, protocol, port, application, URL, user or user group. You also apply intrusion and file (malware) policies using access control rules. Use this policy to implement URL filtering.

• Intrusion—Use the intrusion policies to inspect for known threats. Although you apply intrusion policies using access control rules, you can edit the intrusion policies to selectively enable or disable specific intrusion rules.

The following example shows how to allow traffic between the inside_zone and dmz_zone in the access control policy. In this example, no options are set on any of the other tabs except for Logging, where At End of Connection is selected.

Step 5

Choose Device, then click View Configuration in the Updates group and configure the update schedules for the system databases.

Step 6

Click the Deploy button in the menu, then click the Deploy Now button () to deploy your changes to the device.
