Manage Catalyst SD-WAN Security Objects and Security Profiles

An Introduction to Catalyst SD-WAN Security Objects and Security Profiles

Security objects and security profiles in Catalyst SD-WAN Manager are the foundational building blocks for defining and enforcing security NGFW policies. They ensure that your network is protected from threats while maintaining seamless connectivity and application performance.

Create new Catalyst SD-WAN Security Objects and Security Profiles

This section provides the steps to create new Catalyst SD-WAN objects and profiles using Security Cloud Control Firewall Management.

Procedure


Step 1

In the left pane, click Manage > Objects.

Step 2

Click the WAN Branch Edge tab.

Step 3

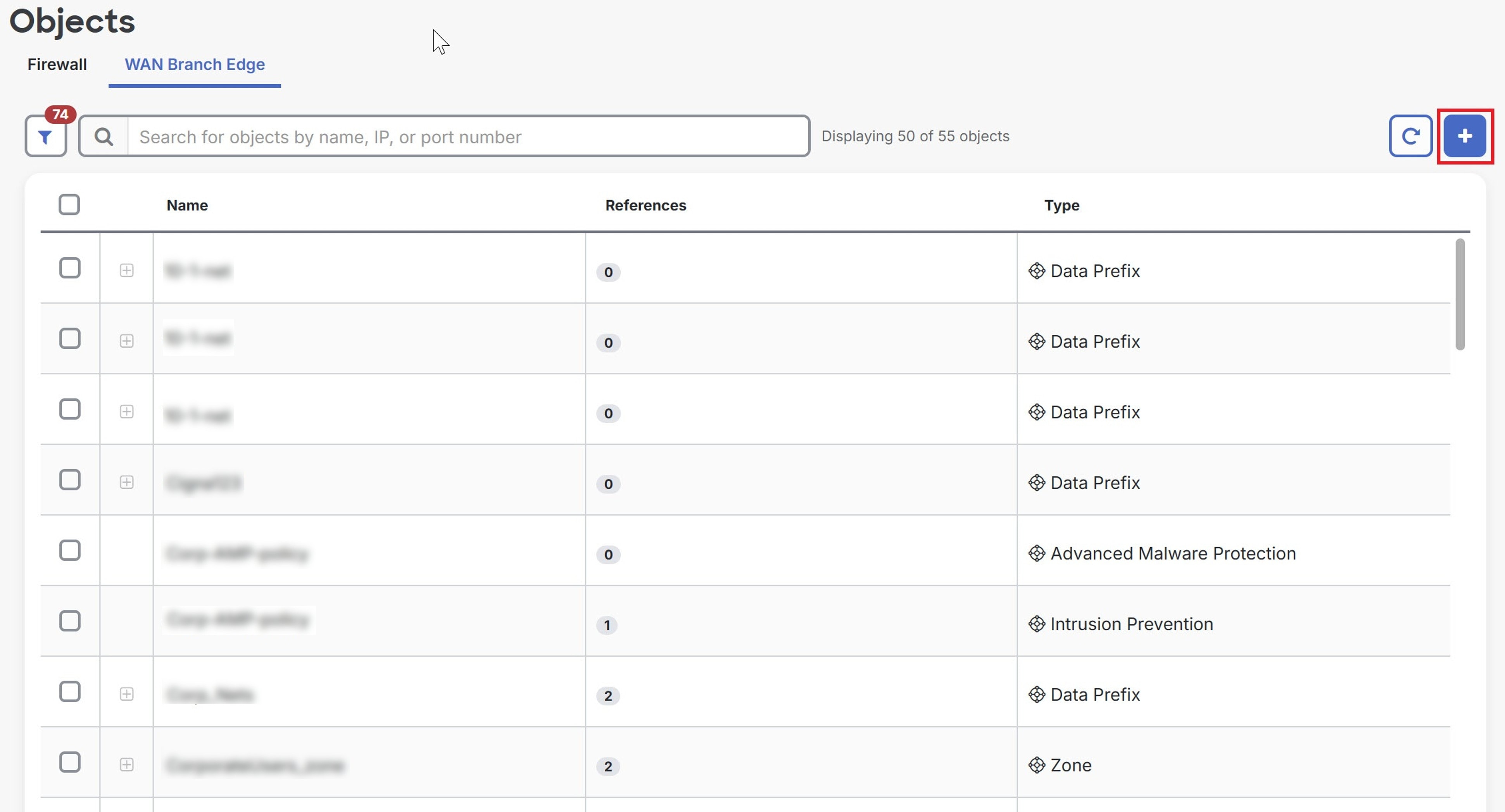

Click the Create Object () icon.

Step 4

Click the object or profile you want to create:

Objects:

Profiles:

Step 5

Click Save.


The objects are created in Security Cloud Control. To see the logs in Catalyst SD-WAN Manager, navigate to Monitor > Logs > Audit Logs .

SDWAN Application List

The application list object groups applications into a list for use in NGFW policies.

Table 1. Application

Field

Description

Object Name

Name of the application list.

Application List

A collection of specific applications grouped together for policy configuration. It allows administrators to define and manage traffic rules for multiple applications as a single entity. For example, "Webex," "Microsoft Teams," "Zoom," and so on.

Application Family

The Application Family groups applications based on their functional category, for example, "Web," "Instant Messaging," "Network Services," and so on.

The Selected items field shows the items that have been chosen.

SDWAN Data Prefixes

The data prefixes are specific IP address ranges or prefixes that are used to define and manage traffic routing policies within the SD-WAN fabric.

Table 2. SDWAN Data Prefixes

Field

Description

Object Name

Name of the data prefix list.

Data Prefix

The data prefix value.

SDWAN FQDN

The Fully Qualified Domain Name (FQDN) is intended to be used for matching standalone servers in data centers or a private cloud. When matching public URLs, the recommended match action is drop. If you use inspect for public URLs, you must define all related sub URLs and redirect URLs.

Table 3. Application

Field

Description

Object Name

Name of the FQDN object.

FQDN

The URL names separated by comma. For example, cisco.com.

SDWAN Geolocation

Allows you to configure firewall rules based on geographical locations rather than IP addresses.

Table 4. Geolocation

Field

Description

Object Name

Name of the geolocation object.

Geolocation

Select one or more geo locations from the drop-down list. For example, Africa, Antartic, Asia, Europe, and so on.

SDWAN Identity

Table 5. SDWAN Identity

Field

Description

Object Name

Name of the application list.

Users

The source of Users and User Groups is ISE AD, which is configured in Catalyst SD-WAN Manager.

User Groups

SDWAN Port Object

A configuration element used to define and manage port-related settings for devices within the SD-WAN fabric.

Table 6. Port Object

Field

Description

Object

Name of the port object.

Port

The port values separated by comma.

The range is 0 to 65535.

SDWAN Protocol Object

Within security policies, protocols can be selected from a predefined list (for example, TCP, UDP, ICMP) to define specific rules for traffic management and security enforcement.

Table 7. Protocol Object

Field

Description

Object Name

Name of the protocol object.

Protocol

Select one or more protocol names from the drop-down list. For example, snmp, tcp, udp, icmp, echo, telnet, and so on.

The Selected items field shows the items that have been chosen.

SDWAN Security Group Tag

If you use Cisco Identity Services Engine (ISE) to define and use security group tag (SGT) for classifying traffic in a Cisco TrustSec network, you can write access control rules that use SGT as matching criteria.

You cannot create or edit an SGT in Security Cloud Control. All SGTs must be created in ISE.

Table 8. Security Group Tag

Field

Description

Object Name

Name of the security group tag.

Security Group Tags

Select the security group tag.

The Selected items field shows the items that have been chosen.

SDWAN Signatures

The signature set blocks vulnerability with a Common Vulnerability Scoring System (CVSS) score that is greater than or equal to 9. It also blocks Common Vulnerabilities and Exposures (CVEs) published in the last two years and that have the rule categories: Malware CNC, Exploit Kits, SQL Injection or blocked list.

Table 9. Application

Field

Description

Object Name

Name of the object.

Signature

The signatures in the format Generator ID:Signature ID, separated with commas. For example, 1234:5678.

Range is 0 to 4294967295

SDWAN URL Allow List

The URL allow list object is used to define URLs that should be explicitly permitted through the SD-WAN's URL Filtering feature.

Here are some important points to note about these lists:

  • URLs that are allowed are not subjected to any category-based filtering.

  • If the same item is configured under both the allowed and blocked list, the traffic is allowed.

  • If the traffic does not match either the allowed or blocked lists, then it is subjected to category-based and reputation-based filtering.

Table 10. URL Allow List

Field

Description

Object Name

Name of the URL allow object.

URL Allow

The URLs to allow.

SDWAN URL Block List

The URL block list object is used to define URLs that should be denied through the SD-WAN's URL Filtering feature.

Table 11. URL Block List

Field

Description

Object Name

Name of the URL block object.

URL Allow

The URLs to block.

SDWAN Zone

Zones are used to define security boundaries for traffic control. Zones can be configured based on VPNs or Interfaces:

  • Zones can be created for specific VPNs, such as the Payment Processing Network, Corporate Users, or Local Internet for Guests. These zones allow you to apply security policies to traffic within or between VPNs.

  • Interfaces can also be assigned to zones. For example, Ethernet, GigabitEthernet, or other interface types can be grouped into zones. This allows for granular control of traffic between interfaces.

Table 12. Zone

Field

Description

Object Name

Name of the zone.

VPN

Choose to configure zones with zone type as VPN. Add the VPNs to the zones from the drop-down list. The options are:

  • Payment Processing Network

  • Corporate Users

  • Local Internet for Guests

  • Physical Security Devices

Interface

Choose to configure zones with zone type as Interface. Add the interfaces to the zones from the Add Interface drop-down list.

SDWAN Advanced Inspection Profile Policy

Apply a global Advanced Inspection Profile (AIP) at the device level. This ensures that all traffic matching the device's predefined rules is thoroughly inspected using the advanced inspection profile.

Table 13. Advanced Inspection Profile Policy

Field

Description

Object Name

Name of the advanced inspection profile.

Intrusion Prevention

Choose an intrusion prevention option from the drop-down list.

URL Filtering

Choose a URL filter from the drop-down list.

Advanced Malware Protection

Choose an advanced malware protection.

TLS Action

Choose the TLS action. The options are:

  • Decrypt

  • Pass Through

  • Do not Decrypt

SDWAN Advanced Malware Protection Policy

Note that for some advanced configurations, a Threat Grid Server configuration is required in Catalyst SD-WAN.

Table 14. Advanced Malware Protection Policy

Field

Description

Object Name

Name of the advanced malware protection policy name.

AMP Cloud Region

AMT Cloud Region refers to the Analytics, Management, and Telemetry (AMT) Cloud Region associated with the Cisco SD-WAN cloud architecture.

Alert Log Level

All syslog messages are associated with priority levels that indicate the severity of syslog messages to save.

File Analysis

Enables file analysis on the uploaded files.

TG Cloud Region

Choose a region. This refers to the geographical region where the Threat Grid (TG) cloud services are hosted.

File Types

Choose the file types that you want to be analyzed.

SDWAN Intrusion Prevention Policy

A security feature designed to detect and block known network attacks by leveraging predefined rules and signature.

Table 15. Intrusion Prevention Policy

Field

Description

Object Name

Name of the intrusion prevention policy.

Signature Set

Choose a signature set that defines the rules for evaluating traffic from the Signature Set drop-down list.

Inspection Mode

Choose the inspection mode.

Custom Signature Set:

Select one or more web categories from the drop-down list.

Custom signature must be enabled from Catalyst SD-WAN Manager under Administration > Settings > External Services > UTD Snort Subscribe Signature.

Signature Allow List

Select a signature allow list.

Alerts Log Level

Choose the alert log level.

This refers to the severity levels of logs generated by the system, which can be configured to control the granularity of information logged.

SDWAN TLS/SSL Decryption Policy

The TLS/SSL Decryption object refers to a feature or configuration that enables administrators to inspect and manage encrypted traffic passing through the network.


Note


Before creating a TLS/SSL Decryption object in Security Cloud Control, you need to configure certificate authority (CA) from Catalyst SD-WAN Manager under Configuration > Certificates > Certificate Authority.


Table 16. TLS/SSL Decryption Policy

Field

Description

Object Name

Name of the policy. The name can contain a maximum of 32 characters.

Server Certificate Checks

Expired Certificate

Defines what the policy should do if the server certificate has expired. The options are:

  • Drop: Drop traffic

  • Decrypt: Decrypt traffic

Untrusted Certificate

Defines what the policy should do if the server certificate is not trusted. The options are:

  • Drop: Drop traffic

  • Decrypt: Decrypt traffic

Certificate Revocation Status

Defines whether the Online Certificate Status Protocol (OCSP) should be used to check the revocation status of the server certificate. The options are Enabled or Disabled.

Unknown Revocation Status

Defines what the policy does, if the OCSP revocation status is unknown.
  • Drop: Drop traffic

  • Decrypt: Decrypt traffic

Unsupported Mode Checks

Unsupported Protocol Versions

Defines the unsupported protocol versions.

  • Drop: Drop the unsupported protocol versions.

  • Decrypt: Decrypt the unsupported protocol versions.

Unsupported Cipher Suites

Defines the unsupported cipher suites.

  • Drop: Drop the unsupported cipher suites.

  • Decrypt: Decrypt the unsupported cipher suites.

Failure Mode

Defines the failure mode. The options are close and open.

Certificate Bundle

Check the Use default CA certificate bundle checkbox to use the default CA.

Minimum TLS Version

Sets the minimum version of TLS that the proxy should support. The options are: TLS 1.0, TLS 1.1, TLS 1.2

Proxy Certificate Attributes

RSA Keypair Modules

Defines the Proxy Certificate RSA Key modules. The options are: 1024 bit RSA, 2048 bit RSA, 4096 bit RSA

EC Key Type

Defines the key type. The options are: P256, P384, P521

Certificate Lifetime (in Days)

Sets the lifetime of the proxy certificate, in days.

SDWAN TLS/SSL Profile Policy

The TLS/SSL Profile policy is used to manage encrypted traffic within a unified security policy. To create a TLS/SSL Profile Policy in Security Cloud Control, you need to first configure the Certificate Authority (CA) Certificate in Catalyst SD-WAN. This is a prerequisite for enabling the TLS proxy functionality.

Table 17. TLS/SSL Profile Policy

Field

Description

Object Name

Name of the TLS/SSL profile.

Categories to assign action

Set the categories between the actions—Decrypt, No Decrypt, and Pass Through URL Categories.

Alternatively, choose multiple categories and set the action.

Reputation

Enable reputation to choose the Decrypt Threshold.

Supports actions based on URL reputation levels.

Decrypt Domain List

Choose the decrypt domain list.

No Decrypt Domain List

Choose the no decrypt domain list.

Fail Decrypt

Enable the fail decrypt option, if decryption fails.

SDWAN URL Filtering Policy

A security feature that allows administrators to control access to websites based on categories, reputation, and custom lists.

Table 18. URL Filtering Policy

Field

Description

Object Name

Name of the URL filtering policy.

Web Category

Choose the web category. The options are Block and Allow. The websites are classified into categories.

Web Reputation

Choose the web reputation from the drop-down list.

The URLs are assigned a reputation score based on their risk level.

Allow URL List

Select an allow URL list.

Block URL List

Select a block URL list.

Block Page Server

Choose one of the options:

  • Block Page Content: Enter the default content header and content body.

  • Redirect URL: Enter the redirect URL.

The blocked users can be redirected to a custom page or shown a message.

Alerts and Logs

Choose the alert and log type:

  • Blocklist

  • Allowlist

  • Reputation/Category

Modify Catalyst SD-WAN Security Objects and Security Profiles

Use this procedure to modify the values associated with the Catalyst SD-WAN security objects and security profiles from the Security Cloud Control Firewall Management.

Procedure


Step 1

In the left pane, choose Administration > Integrations > Catalyst SD-WAN.

Step 2

In the left pane, click Manage > Objects.

Step 3

Click the WAN Branch Edge tab.

Step 4

Check the security object or profile you want to modify. You can use the filter to search an object.

Step 5

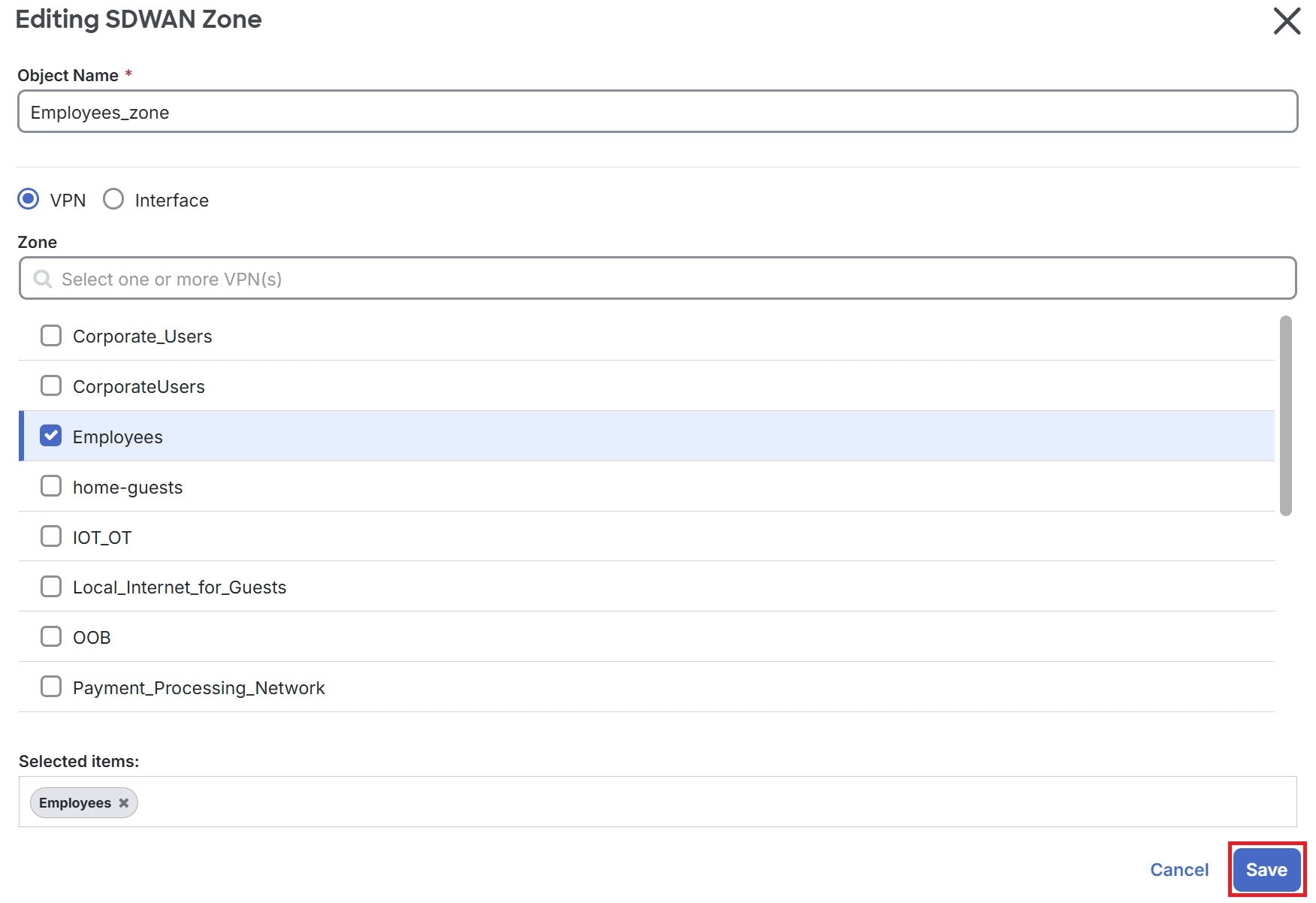

In the Actions pane on the right, click Edit.

Modify the configurations you want.

Step 6

Click Save to confirm.


Delete Catalyst SD-WAN Security Objects

You can delete one or multiple Catalyst SD-WAN security objects.

  • If the security object was synchronized with Catalyst SD-WAN Manager, its deletion will be reflected across both Security Cloud Control Firewall Management and Catalyst SD-WAN Manager to maintain consistency.

  • Any security policies or configurations referencing the deleted object do not get deleted automatically. You must remove the references manually from the security policies before deleting the object.

  • Delete actions are logged for audit purposes, ensuring traceability of changes. To view the logs:

    • In the Security Cloud Control application, choose Monitor > Events & Logs > Logs > Change Log.

    • In the Catalyst SD-WAN Manager application, choose Monitor > Logs > Audit Logs.

Before you begin

Make sure the Catalyst SD-WAN security objects you intend to delete are not being used or referenced in other objects, policies, or configurations.

Procedure


Step 1

In the left pane, choose Administration > Integrations > Catalyst SD-WAN.

Step 2

In the left pane, click Manage > Objects.

Step 3

Click the WAN Branch Edge tab.

Step 4

Check one or multiple security objects you want to delete.

Step 5

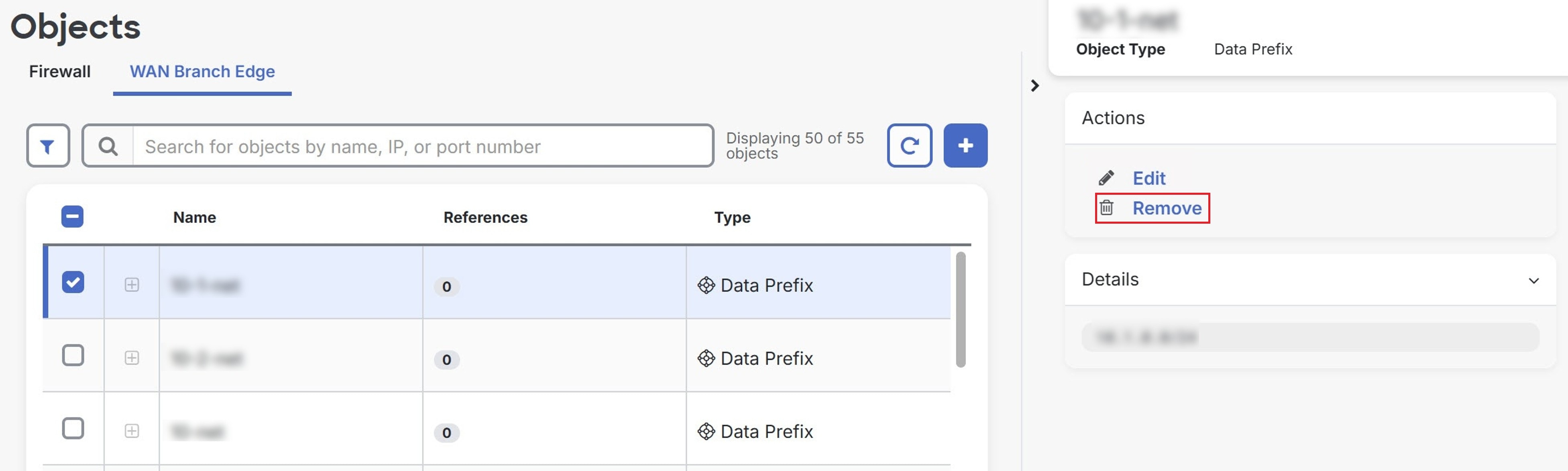

In the Actions pane on the right, click Remove.

Step 6

Click OK to confirm.


Selected Catalyst SD-WAN security objects are deleted. Delete actions are logged for audit purposes, ensuring traceability of changes.

To view the logs:

  • In the Security Cloud Control application, choose Monitor > Events & Logs > Logs > Change Log.

  • In the Catalyst SD-WAN Manager application, choose Monitor > Logs > Audit Logs.

Filter Catalyst SD-WAN Security Objects

The ability to filter and search for Catalyst SD-WAN security objects by Object Type and Profile Type allows users to efficiently locate, review, modify, and, when needed, delete these objects. Streamlining the management processes helps maintain optimal system performance.

Two filtering parameters used are Object Type and Profile Type.

  1. In the left pane, choose Manage > Objects.

  2. Click the WAN Branch Edge tab.

  3. Click the filter () icon and select for objects based on the object type or profile type.

You can use filters to search for the desired objects and further refine the results by typing the object name, IP address, or port number to narrow down the search within the results.
