Implementing the Dynamic Host Configuration Protocol
This module describes
the concepts and tasks you will use to configure Dynamic Host Configuration
Protocol (DHCP).
Note
For a complete description of the DHCP commands listed in this module, refer to the Cisco ASR 9000 Series Aggregation Services Router IP Addresses and Services Command Reference publication.
Feature History
for Implementing the Dynamic Host Configuration Protocol
Release
Modification
Release
3.7.2
This
feature was introduced .
Prerequisites for Configuring DHCP Relay Agent
The following prerequisites are required to configure a DHCP relay agent:
You must be in a user group associated with a task group that includes the proper task IDs. The command reference guides include
the task IDs required for each command. If you suspect user group assignment is preventing you from using a command, contact
your AAA administrator for assistance.
A configured and running DHCP client and DHCP server
Connectivity between the relay agent and DHCP server
Information About
DHCP Relay Agent
A DHCP relay agent is
a host that forwards DHCP packets between clients and servers that do not
reside on a shared physical subnet. Relay agent forwarding is distinct from the
normal forwarding of an IP router where IP datagrams are switched between
networks transparently.
DHCP clients use User
Datagram Protocol (UDP) broadcasts to send DHCPDISCOVER messages when they lack
information about the network to which they belong.
If a client is on a
network segment that does not include a server, a relay agent is needed on that
network segment to ensure that DHCP packets reach the servers on another
network segment. UDP broadcast packets are not forwarded, because most routers
are not configured to forward broadcast traffic. You can configure a DHCP relay
agent to forward DHCP packets to a remote server by configuring
a DHCP relay
profile and configure one or more helper addresses in it. You can
assign the profile to an interface or a VRF.

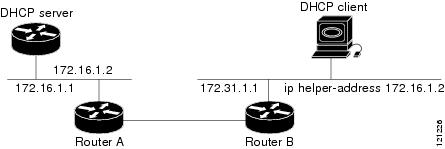

Forwarding UDP
Broadcasts to a DHCP Server Using a Helper Address demonstrates the process. The DHCP
client broadcasts a request for an IP address and additional configuration
parameters on its local LAN. Acting as a DHCP relay agent, Router B picks up
the broadcast, changes the destination address to the DHCP server's address and
sends the message out on another interface. The relay agent inserts the IP
address of the interface, on which the
DHCP client’s packets are received,
into the gateway address (giaddr) field of the DHCP packet, which
enables the DHCP server to determine which subnet should receive the offer and
identify the appropriate IP address range. The relay agent unicasts the
messages to the server address, in this case 172.16.1.2 (which is specified by
the helper address in the relay profile).
Figure 1. Forwarding UDP
Broadcasts to a DHCP Server Using a Helper Address
Limitations for DHCPv6 Relay Feature
These are the limitations for implementing DHCPv6 relay feature:
The multicast addresses are not supported. The helper-address command in DHCPv6 relay profile submode will only support global unicast IPv6 address as the helper address.
Only one relay is supported between client and server with an exception of Lightweight DHCPv6 Relay Agent (LRDA) being present
on the access side. That is, the Layer 3 relay packets are not supported.
Only interface-id and remote-id DHCPv6 option code are added by a relay agent while forwarding the packet to a DHCPv6 server.
Note
Configuring DHCPv6 option code is not supported in DHCPv6 relay profile submode.
Secure ARP
In standalone DHCP
sessions, the DHCP server adds an ARP entry when it assigns an IP address to a
client. However, in IP subscriber sessions, DHCP server does not add an ARP
entry. Although ARP establishes correspondences between network addresses, an
untrusted device can spoof IP an address not assigned to it posing a security
threat for IP subscriber sessions. You can enable the secure ARP feature and
allow DHCP to add an ARP cache entry when DHCP assigns an IP address to a
client. Secure ARP is disabled by default.
How to Configure and Enable DHCP Relay Agent
This section contains the following tasks:
Configuring and Enabling DHCP Relay Agent with DHCP MAC Address Verification
This section discusses how to configure and enable DHCP Relay Agent with DHCP MAC address verification.
Configuration
Example
Router# configure
Router(config)# dhcp ipv4
/* Configures DHCP for IPv4 and enters the DHCPv4 configuration submode. */
Router(config-dhcpv4)# profile client relay
/* Enables DHCP relay profile */
Router(config-dhcpv4)# client-mac-mismatch action drop
/* Enables MAC address verification. If MAC address in the DHCPv4 protocol header does not match the L2 header source MAC address in the DHCPv4 relay profile,
the frame is dropped */
Router(config-dhcpv4-relay-profile)# relay information option
/* Inserts the DHCP relay agent information option (option-82 field) in forwarded
BOOTREQUEST messages to a DHCP server. */
Router(config-dhcpv4-relay-profile)# relay information check
/* (Optional) Configures DHCP to check the validity of the relay agent information
option in forwarded BOOTREPLY messages. */
Router(config-dhcpv4-relay-profile)# relay information policy drop
/* (Optional) Configures the reforwarding policy for a DHCP relay agent;
that is, whether the relay agent will drop or keep (using the 'keep' keyword)
the relay information. */
Router(config-dhcpv4-relay-profile)# relay information option allow-untrusted
/* (Optional) Configures the DHCP IPv4 Relay not to discard BOOTREQUEST packets that have an existing
relay information option and the giaddr set to zero. */
Router(config-dhcpv4-relay-profile)# giaddr policy drop
/* Drops the packet that has an existing nonzero giaddr value. Use the 'replace' keyword
to replace the existing giaddr value with a value that it generates (the default behavior). */
Router(config-dhcpv4-relay-profile)# helper-address vrf vrf1 10.1.1.1
/* Forwards UDP broadcasts, including DHCP. */
Router(config-dhcpv4-relay-profile)# commit
Router(config-dhcpv4-relay-profile)# exit
Router(config-dhcpv4)# vrf vrf1 relay profile client
Router(config-dhcpv4)# commit
/* Configures DHCP Relay on a VRF and commits the entire configuration. */
Running Configuration
Confirm your configuration.
Router# show run
Thu May 11 09:00:57.839 IST
Building configuration...
!! IOS XR Configuration 0.0.0
!! Last configuration change at Thu May 11 09:00:54 2017 by annseque
!
dhcp ipv4
vrf vrf1 relay profile client
profile client relay
client-mac-match action drop
helper-address vrf vrf1 10.1.1.1
giaddr policy drop
relay information check
relay information option
relay information policy drop
relay information option allow-untrusted
!
!
DHCP MAC Address Verification
Use the following show command to check if DHCP MAC address is being verified on the router.
Router# show dhcp ipv4 relay statistics raw all
packet_drop_mac_mismatch : 0
The output validates that the DHCP MAC address of the packets is verified.
Configuring the DHCPv6 (Stateless) Relay Agent
Perform this task to specify a destination address to which client messages are forwarded and to enable Dynamic Host Configuration
Protocol (DHCP) for IPv6 relay service on the interface.
Configuration Example
To configure the DHCPv6 (stateless) relay agent, you must complete the following configurations:
Enable the DHCP IPv6 configuration mode.
Configure the DHCPv6 relay profile.
Configure helper addresses.
Specify the interface for the relay profile.
Configuration
/* Enter the global configuration mode, and then enter the DHCP IPv6 configuration mode */
Router# configure terminal
Router(config)# dhcp ipv6
Router(config-dhcpv6)# profile test relay
Router(config-dhcpv6-relay-profile)# helper-address vrf default 2001:1::1
Router(config-dhcpv6-relay-profile)# !
Router(config-dhcpv6-relay-profile)# interface TenGigE0/0/0/0 relay profile test
Router(config-dhcpv6)# !
Enabling DHCP Relay
Agent on an Interface
This task describes
how to enable the Cisco IOS XR DHCP relay agent on an interface.
Note
On Cisco IOS XR
software, the DHCP relay agent is disabled by default.
This task describes how to configure
the DHCP relay
agent information option processing capabilities.
A DHCP relay agent may receive a message from another DHCP relay agent that already
contains relay information. By default, the relay information from the previous relay
agent is replaced (using the replace option).
RP/0/RSP0/CPU0:router(config-dhcpv4-relay-profile)# relay information option
Enables the system to insert the DHCP relay agent information option (option-82
field) in forwarded BOOTREQUEST messages to a DHCP server.
This option is injected by the relay agent while forwarding
client-originated DHCP packets to the server. Servers recognizing this
option can use the information to implement IP address or other parameter
assignment policies. When replying, the DHCP server echoes the option back
to the relay agent. The relay agent removes the option before forwarding the
reply to the client.
The relay agent information is organized as a single DHCP option that
contains one or more suboptions. These options contain the information known
by the relay agent.
The supported suboptions are:
Remote ID
Circuit ID
Note
This function is disabled by default.
The port field of the default circuit-ID denotes the configured bundle-ID of the bundle. If circuit IDs require that bundles
be unique, and because the port field is 8 bits, the low-order 8 bits of configured bundle IDs must be unique. To achieve
this, configure bundle-IDs within the range from 0 to 255.
Step 5
relay information check
Example:
RP/0/RSP0/CPU0:router(config-dhcpv4-relay-profile)# relay information check
(Optional) Configures DHCP to check the
validity of
the relay agent
information option in forwarded BOOTREPLY messages. If an invalid message
is received, the relay agent drops the message.
If a valid message is received, the relay agent removes the relay agent
information option field and forwards the packet.
By default, DHCP does not check
the validity of the relay agent information
option
field in
DHCP reply packets, received from the DHCP server.
Note
Use the relay information check command to reenable this functionality
if the functionality has been disabled.
Step 6
relay information policy {drop |
keep}
Example:
RP/0/RSP0/CPU0:router(config)# dhcp relay information policy drop
(Optional) Configures the reforwarding policy for a DHCP relay agent; that is,
whether the relay agent will drop or keep the relay information.
By default, the DHCP relay agent replaces the
relay information option.
Step 7
relay information option allow-untrusted
Example:
RP/0/RSP0/CPU0:router(config-dhcpv4-relay-profile)# relay information option allow-untrusted
(Optional) Configures the DHCP IPv4 Relay not to discard BOOTREQUEST
packets that
have an existing relay information option and the giaddr set to zero.
Step 8
commit
Configuring Relay
Agent Giaddr Policy
This task describes
how to configure
the DHCP relay agent’s processing capabilities
for
received BOOTREQUEST packets
that already contain a nonzero giaddr attribute.
You have successfully configured multiple DHCPv4 relay helper addresses.
Configuring a DHCP
Proxy Profile
The DHCP proxy
performs all the functions of a relay and also provides some additional
functions. The DHCP proxy conceals DHCP server details from DHCP clients. The
DHCP proxy modifies the DHCP replies such that the client considers the proxy
to be the server. In this state, the client interacts with the proxy as if it
is the DHCP server.
This task describes
how to configure and enable the DHCP proxy profile.
SUMMARY STEPS
configure
dhcp
ipv4
profileprofile-nameproxy
helper-address
[vrfvrf-
name ]
address [
giaddr
gateway-address
]
The value of
the
address argument can be a specific DHCP server address or a
network address (if other DHCP servers are on the destination network segment).
Using the network address enables other servers to respond to DHCP requests.
For multiple
servers, configure one helper address for each server.
Step 5
commit
Configuring DHCPv6 Relay Binding Database Write to System Persistent Memory
Perform this task to configure the DHCPv6 relay binding database write to the system persistent memory. This helps to recover
the DHCPv6 relay binding table after a system reload. The file names used for a full persistent file write are dhcpv6_srpb_{nodeid}_odd and dhcpv6_srpb_{nodeid}_even. The nodeid is the actual node ID of the node where the file is written. The incremental file is named the same way as the full file,
with a _inc appended to it.
Note
With IOS XR Release 6.6.3, DHCPv6 client binding record format written to system persistent memory is changed. Due to this,
when you upgrade IOS XR Software from versions lower to 6.6.3 to version 6.6.3 or above, the DHCPv6 process fails to restore
the client bindings from the system persistent memory during router reload, and the router losses all the client bindings.
Configures the DHCPv6 relay binding table write to the system persistent memory and specifies the time interval at which the
full write and incremental file write are to be performed. The range, in minutes, for full-write-interval and incremental-write-interval is from 0 to 1440. The default value is 10 for full-write-interval and 1 for incremental-write-interval.
The DHCP mode should be set as relay.
Step 4
commit
Configuring DHCPv6 relay binding database write to system persistent memory: Example
DHCP server accepts
address assignment requests and renewals and assigns the IP addresses from
predefined groups of addresses contained within Distributed Address Pools
(DAPS). DHCP server can also be configured to supply additional information to
the requesting client such as
subnet mask,
domain-name, the IP address of the DNS server, the default router, and
other configuration parameters. DHCP server can accept broadcasts from locally
attached LAN segments or from DHCP requests that have been forwarded by other
DHCP relay agents within the network.
The DHCP proxy
performs all the functions of a relay and also provides some additional
functions. The DHCP proxy conceals DHCP server details from DHCP clients. The
DHCP proxy modifies the DHCP replies such that the client considers the proxy
to be the server. In this state, the client interacts with the proxy as if it
is the DHCP server.
DHCP IPv4 service
based mode selection
As part of DHCP IPv4
service based mode selection feature, a new mode called DHCP base is
introduced. If an interface is configured in the DHCP base mode, then the DHCP
selects either the DHCP proxy or the DHCP server mode to process the client
request by matching option 60 (class-identifier) value of the client request
with the configured value under the DHCP base profile.
For example:
dhcp ipv4
profile DHCP_BASE base
match option 60 41424344 profile DHCP_PROXY proxy
match option 60 41424355 profile DHCP_SERVER server
default profile DEFAULT_PROFILE server
relay information authenticate inserted
!
profile DHCP_PROXY proxy
helper-address vrf default 10.10.10.1 giaddr 0.0.0.0
!
profile DHCP_SERVER server
lease 1 0 0
pool IP_POOL
!
profile DEFAULT_PROFILE server
lease 1 0 0
pool IP_POOL
!
!
interface gigabitEthernet 0/0/0/0 base profile DHCP_BASE
The pool is
configured under server-profile-mode and server-profile-class-sub-mode. The
class-based pool selection is always given priority over profile pool
selection.
The DHCPv4 server profile
class sub-mode supports configuring DHCP options except few (0, 12, 50, 52, 53,
54, 58, 59, 61, 82, and 255 ).
Configuring DHCPv4
Server Profile
Perform this task to
configure the DHCPv4 Server.
SUMMARY STEPS
configure
dhcp ipv4
profileprofile-nameserver
bootfileboot-file-name
broadcast-flag policy
unicast-always
classclass-name
exit
default-router
address1
address2 ... address8
lease
{ infinite
| days minutes seconds}
limit lease
{ per-circuit-id
| per-interface| per-remote-id} value
netbios-name server
address1
address2 ... address8
RP/0/RSP0/CPU0:router(config-dhcpv4-server-class)# match option 60 hex abcd
RP/0/RSP0/CPU0:router(config-dhcpv4-server-class)#
The DHCP server
selects a pool from a class by matching options in the received DISCOVER packet
with the match option. If none of the classes match, then pools configured
under the profile mode are selected. The DHCP server requests DAPS to allocate
an address from that pool.
RP/0/RSP0/CPU0:router(config-dhcpv4-server-profile)# class Class_B
RP/0/RSP0/CPU0:router(config-dhcpv4-server-class)#
Creates and
enters the server profile class.
Step 10
pool
pool_name
Example:
RP/0/RSP0/CPU0:router(config-dhcpv4-server-class)# pool pool_B
RP/0/RSP0/CPU0:router(config-dhcpv4-server-class)#
Configures the
pool name.
Step 11
match vrf
vrf-name
Example:
RP/0/RSP0/CPU0:router(config-dhcpv4-server-class)# match vrf VRF1
RP/0/RSP0/CPU0:router(config-dhcpv4-server-class)#
The DHCP
server selects a pool from a class by matching the options in the received
DISCOVER packet with the match command. If none of the classes match, then
pools configured under the profile mode are selected. The DHCP server requests
DAPS to allocate an address from that pool.
Step 12
commit
Configuring a server profile DAPS with class match option
Perform this task to configure a server profile DAPS with class match option.
RP/0/RSP0/CPU0:router(config-dhcpv4-server-class)# match option 60 hex PXEClient_1
RP/0/RSP0/CPU0:router(config-dhcpv4-server-class)#
The DHCP server selects a pool from a class by matching the options in the received DISCOVER packet with the match option.
If none of the classes match, then pools configured under the profile mode will be selected. The DHCP server requests the
DAPS to allocate an address from that pool.
RP/0/RSP0/CPU0:router(config-dhcpv4-server-class)# match option 60 hex PXEClient_2
RP/0/RSP0/CPU0:router(config-dhcpv4-server-class)#
The DHCP server selects a pool from a class by matching the options in the received DISCOVER packet with the match option.
If none of the classes match, then pools configured under the profile mode will be selected. The DHCP server requests the
DAPS to allocate an address from that pool.
The Dynamic Host
Configuration Protocol (DHCP) client functionality enables the router
interfaces to dynamically acquire the IPv4 address using DHCP.
The DHCP provides
configuration parameters to Internet hosts. DHCP consists of two components:
a protocol to deliver
host-specific configuration parameters from a DHCP server to a host.
a mechanism to allocate
network addresses to hosts.
DHCP is built on a
client-server model, where designated DHCP server hosts allocate network
addresses, and deliver configuration parameters to dynamically configured
hosts.
A relay agent is
required if the client and server are not on the same Layer 2 network. The
relay agent usually runs on the router, and is required because the client
device does not know its own IP address initially. The agent sends out a Layer
2 broadcast to find a server that has this information. The router relays these
broadcasts to the DHCP server, and forwards the responses back to the correct
Layer 2 address so that the correct device gets the correct configuration
information.
DHCP has the ability
to allocate IP addresses only for a configurable period of time, called the
lease period. If the client is required to retain this IP address for a longer
period beyond the lease period, the lease period must be renewed before the IP
address expires. The client renews the lease based on configuration that was
sent from the server. The client unicasts a REQUEST message using the IP
address of the server. When a server receives the REQUEST message and responds
with an ACK message. The lease period of the client is extended by the lease
time configured in the ACK message.
Restrictions and
Limitations
DHCP client can be enabled
only on management interfaces.
Either DHCP or static IP can
be configured on an interface.
Enabling DHCP Client on an Interface
The DHCPv4 or DHCPv6 client can be enabled at an interface level. The DHCP component receives a notification when DHCPv4 or
DHCPv6 is enabled or disabled on an interface.
DHCPv6 Relay Agent Notification for Prefix Delegation
DHCPv6 relay agent notification for prefix delegation allows the
router working as a DHCPv6 relay agent to find prefix delegation
options by reviewing the contents of a DHCPv6 RELAY-REPLY packet
that is being relayed by the relay agent to the client. When the relay agent finds the prefix delegation option, the relay
agent extracts the information about the prefix being delegated and
inserts an IPv6 subscriber route matching the prefix delegation
information onto the relay agent. Future packets destined to that
prefix via relay are forwarded based on the information
contained in the prefix delegation. The IPv6 subscriber route remains in the routing table until the prefix delegation lease
time
expires or the relay agent receives a release packet from the
client releasing the prefix delegation.
The relay agent automatically does the subscriber route
management.
The IPv6 routes are added when the relay agent relays a
RELAY-REPLY packet, and the IPv6 routes are deleted when the prefix
delegation lease time expires or the relay agent receives a release
message. An IPv6 subscriber route in the routing table of the relay
agent can be updated when the prefix delegation lease time is
extended.
This feature leaves an IPv6 route on the routing table of
the relay agent. This registered IPv6 address allows unicast
reverse packet forwarding (uRPF) to work by allowing the router
doing the reverse lookup to confirm that the IPv6 address on the
relay agent is not malformed or spoofed. The IPv6 route in
the routing table of the relay agent can be redistributed to other
routing protocols to advertise the subnets to other nodes. When the client sends a DHCP_DECLINE message, the
routes are removed.
Configuring DHCPv6 Stateful Relay Agent for Prefix Delegation
Perform this task to configure Dynamic Host Configuration Protocol (DHCP) IPv6 relay agent notification for prefix delegation.
SUMMARY STEPS
configure
dhcp ipv6
profileprofile-nameproxy
helper-addressipv6-addressinterface type interface-path-id
The following example shows how to enable the DHCP relay agent on a VRF:
dhcp ipv4
vrf default relay profile client
!
Relay Agent Information Option Support: Example
The following example shows how to enable the relay agent and the insertion and removal
of the DHCP relay information option:
dhcp ipv4
profile client relay
relay information option
!
!
Relay Agent Giaddr Policy: Example
The following example shows how to configure relay agent giaddr policy:
dhcp ipv4
profile client relay
giaddr policy drop
!
!
Implementing DHCP Snooping
Prerequisites for Configuring DHCP Snooping
The following prerequisites are required
example shows how
to configure DHCP IPv4 snooping
relay agent broadcast flag policy:
You must be in a user group associated with a task group that includes the proper task IDs. The command reference guides include
the task IDs required for each command. If you suspect user group assignment is preventing you from using a command, contact
your AAA administrator for assistance.
A Cisco ASR 9000 Series Router running Cisco IOS XR software.
A configured and running DHCP client and DHCP server.
Information about DHCP Snooping
DHCP Snooping features are focused on the edge of the aggregation network. Security features are applied at the first point
of entry for subscribers. Relay agent information option information is used to identify the subscriber’s line, which is either
the DSL line to the subscriber’s home or the first port in the aggregation network.
The central concept for DHCP snooping is that of trusted and untrusted links. A trusted link is one providing secure access
for traffic on that link. On an untrusted link, subscriber identity and subscriber traffic cannot be determined. DHCP snooping
runs on untrusted links to provide subscriber identity. DHCP Snooping in an Aggregation Network shows an aggregation network. The link from the DSLAM to the aggregation network is untrusted and is the point of presence
for DHCP snooping. The links connecting the switches in the aggregation network and the link from the aggregation network
to the intelligent edge is considered trusted.
Note
Enabling both DHCP relay on a BVI and DHCP snooping in a bridge domain that has a BVI can result in duplicate DHCP messages
from the DHCP client to the DHCP server.

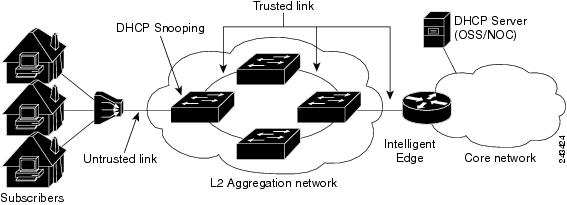

Figure 2. DHCP Snooping in an Aggregation Network
Trusted and Untrusted Ports
On trusted ports, DHCP BOOTREQUEST packets are forwarded by DHCP snooping. The client’s address lease is not tracked and the
client is not bound to the port. DHCP BOOTREPLY packets are forwarded.
When the first DHCP BOOTREQUEST packet from a client is received on an untrusted port, DHCP snooping binds the client to the
bridge port and tracks the clients’s address lease. When that address lease expires, the client is deleted from the database
and is unbound from the bridge port. Packets from this client received on this bridge port are processed and forwarded as
long as the binding exists. Packets that are received on another bridge port from this client are dropped while the binding
exists. DHCP snooping only forwards DHCP BOOTREPLY packets for this client on the bridge port that the client is bound to.
DHCP BOOTREPLY packets that are received on untrusted ports are not forwarded.
DHCP Snooping in a Bridge Domain
To enable DHCP snooping in a bridge domain, there must be at least two profiles, a trusted profile and an untrusted profile.
The untrusted profile is assigned to the client-facing ports, and the trusted profile is assigned to the server-facing ports.
In most cases, there are many client facing ports and few server-facing ports. The simplest example is two ports, a client-facing
port and a server-facing port, with an untrusted profile explicitly assigned to the client-facing port and a trusted profile
assigned to the server-facing port.
Assigning Profiles to a Bridge Domain
Because there are normally many client-facing ports and a small number of server-facing
ports, the operator assigns the untrusted profile to the bridge domain. This configuration
effectively assigns an untrusted profile to every port in the bridge domain. This action
saves the operator from explicitly assigning the untrusted profile to all of the
client-facing ports. Because there also must be server-facing ports that have trusted DHCP
snooping profiles, in order for DHCP snooping to function properly, this untrusted DHCP
snooping profile assignment is overridden to server-facing ports by specifically
configuring trusted DHCP snooping profiles on the server-facing ports. For ports in the
bridge domain that do not require DHCP snooping, all should have the
none profile assigned to them to disable DHCP snooping on
those ports.
Relay Information Options
You can configure a DHCP snooping profile to insert the relay information option (option
82) into DHCP client packets only when it is assigned to a client port. The
relay information option allow-untrusted command addresses what to do with DHCP client packets
when there is a null giaddr and a relay-information option already in the client packet
when it is received. This is a different condition than a DHCP snooping trusted/untrusted
port. The relay information option allow-untrusted command
determines how the DHCP snooping application handles untrusted relay information
options.
How to Configure DHCP Snooping
This section contains the following tasks:
Enabling DHCP Snooping in a Bridge Domain
The following configuration creates two ports, a client-facing port and a server-facing
port. In Step 1 through Step 8, an untrusted DHCP snooping profile is assigned to the
client bridge port and trusted DHCP snooping profile is assigned to the server bridge
port. In Step 9 through Step 18, an untrusted DHCP snooping profile is assigned to the
bridge domain and trusted DHCP snooping profiles are assigned to server bridge
ports.
Exits the l2vpn bridge group bridge-domain interface configuration submode.
Step 17
exit
Example:
RP/0/RSP0/CPU0:router(config-l2vpn-bg-bd)# exit
Exits the l2vpn bridge group bridge-domain configuration submode.
Step 18
commit
Disabling DHCP Snooping on a Specific Bridge Port
The following configuration enables DHCP to snoop packets on all bridge ports in the
bridge domain ISP1 except for bridge port GigabitEthernet 0/1/0/1 and GigabitEthernet
0/1/0/2. DHCP snooping is disabled on bridge port GigabitEthernet 0/1/0/1. Bridge port
GigabitEthernet 0/1/0/2 is the trusted port that connects to the server. In this
example, no additional features are enabled, so only DHCP snooping is running.
SUMMARY STEPS
configure
l2vpn
bridge groupgroup-name
bridge-domainbridge-domain-name
dhcp ipv4 snoop profileprofile-name
interfacetype interface-path-id
dhcp ipv4 none
interfacetype interface-path-id
dhcp ipv4 snoop profileprofile-name
exit
exit
commit
DETAILED STEPS
Command or Action
Purpose
Step 1
configure
Step 2
l2vpn
Example:
RP/0/RSP0/CPU0:router(config)# l2vpn
Enters l2vpn configuration submode.
Step 3
bridge groupgroup-name
Example:
RP/0/RSP0/CPU0:router(config-l2vpn)# bridge group GRP1
Creates a bridge group to contain bridge domains and enters l2vpn bridge group
configuration submode.
Attaches the trusted DHCP snooping profile to a port.
Step 10
exit
Example:
RP/0/RSP0/CPU0:router(config-l2vpn-bd-bg)# exit
Exits l2vpn bridge-domain bridge group interface configuration submode.
Step 11
exit
Example:
RP/0/RSP0/CPU0:router(config-l2vpn-bg)# exit
Exits l2vpn bridge-domain submode.
Step 12
commit
Using the Relay Information Option
This task shows how to use the relay information commands to insert the relay information
option (option 82) into DHCP client packets and forward DHCP packets with untrusted
relay information options.
The Cisco IOS-XR Dynamic Host Configuration Protocol (DHCP) application is responsible for maintaining the DHCP binding state
for the DHCP leases allocated to clients by the DHCP application. These binding states are learned by the DHCP application
(proxy/relay/snooping). DHCP clients expect to maintain a DHCP lease regardless of the events that occur to the DHCP application.
Note
From Release 6.2.2 onwards, 200K sessions are supported on a proxy or server running DHCPv6.
This feature enables the DHCP application to maintain bind state through the above events:
Process restart – Local checkpoint
RP failover – Hot standby RP through checkpoint
LC IMDR – Local checkpoint
LC OIR – Shadow table on RP
System restart – Bindings saved on local disk
Configuring DHCPv6 Proxy Binding Database Write to System Persistent Memory
Perform this task to configure the DHCPv6 binding database write to the system persistent memory. This helps to recover the
DHCPv6 binding table after a system reload. The file names used for a full persistent file write are dhcpv6_srpb_{nodeid}_odd and dhcpv6_srpb_{nodeid}_even. The nodeid is the actual node ID of the node where the file is written. The incremental file is named the same way as the full file,
with a _inc appended to it.
Note
From Release 6.2.2 onwards, 200K sessions are supported on a proxy or server running DHCPv6.
Configures the DHCPv6 binding table write to the system persistent memory and specifies the time interval at which the full
write and incremental file write are to be performed. The range, in minutes, for full-write-interval and incremental-write-interval is from 0 to 1440. The default value is 10 for full-write-interval and 1 for incremental-write-interval.
The DHCP mode should be set as proxy.
Step 4
commit
Configuring DHCP binding database write to system persistent memory: Example
The ASR9K router
supports the DHCP session MAC throttle feature. This feature limits the number
of DHCP client requests reaching the ASR9K, based on the MAC address of the
DHCP clients. This feature is supported for the DHCPv4 proxy, the DHCPv4
server, and the DHCPV6 proxy. The feature prevents a DHCP client from sending
multiple DISCOVER packets to the ASR9K router, within short periods of time.
This, in turn, prevents that client from impacting the session establishment of
other DHCP clients.
Note
From Release 6.2.2 onwards, 200K sessions are supported on a proxy or server running DHCPv6.
A unique throttle entry is
created in the system for each unique MAC address received on any interface
where the profile is attached.
To configure the DHCP session
MAC throttle feature, use the
sessions mac
throttle command in the respective DHCP profile configuration
mode.
Configuring DHCP
Session MAC Throttle: Example
dhcp ipv4
profile p1 server
sessions mac throttle 300 60 40
!
interface GigabitEthernet0/0/0/0 server profile p1
!
Geographical Redundancy By Using a Session Redundancy Group (SERG)
In large scale network implementations, it becomes essential to have redundancy between routers that share the same core network
(IP and MPLS), but are geographically apart. A redundancy thus achieved is known as geographical redundancy, and often consists
of a switchover (SO) from the active (primary) router to the standby (subordinate) router.
To achieve geographical redundancy for IPv6 Neighbor Discovery (ND) entries, or for DHCPv6 bindings, we use a Session Redundancy
Group (SERG). A SERG comprises of sessions mapped to the access interfaces on the active RP of the router. If a single SERG
is configured on the active RPs of the primary and subordinate routers, then the router hosting the primary SERG serves as
the primary, and the router hosting the subordinate SERG serves as the subordinate. This is illustrated in the following
figure.

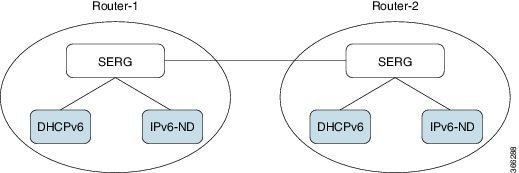

Figure 3. Geo Redundancy with a Single SERG
When multiple SERGs are configured on the active RPs, you could have both primary and subordinate SERGs on a single router.
This is illustrated in the following figure.

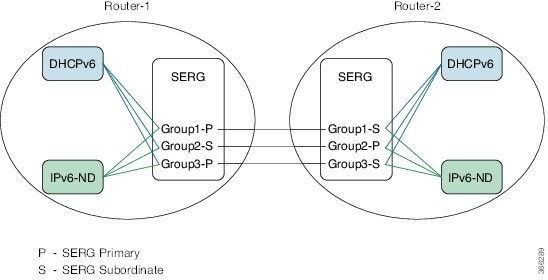

Figure 4. Geo Redundancy with Multiple SERGs
Each router has an inbuilt redundancy between the RPs. When the active RP fails, the session (s) is transferred to the standby
RP. This is known as a failover (FO).
The Session Redundancy Manager (SERM) runs on the active RP of both primary and subordinate routers. The SR clients running
on the routers interact with the Session Redundancy Infrastructure (Session Redundancy Agent (SRA) and the Session Redundancy
Library (SRL)).
The various components and their functions are briefly described as follows:
Session Redundancy Manager (SERM): The SERM runs as a separate process on the active RP and manages the SERG configuration. The SERM peers with other routers
that need to form a redundancy relationship, and establishes a point-to-multipoint communication channel to Session Redundancy
Agents (SRAs) on the RP.
Session Redundancy Agent (SRA): One or more SRAs run as a a separate process on the active RP and supported line cards. A SRA acts on the SERG configuration,
setting up operational context and database tables. The SRA implements the state machine for primary/subordinate selection
and role change and orchestrates it using the TCP channel and provided APIs.The SRA receives the session entries on the primary
router and updates its database prior to synchronizing with the database on the subordinate router. The SRA orchestrates the
session context setup on the subordinate router during the FO or SO. The SRA maintains a separate session database for each
session client configured in the SERG.
Note
The SRA works only on specific, defined keys, such as the IPv6 address, DHCPv6 client ID, and so on. Any undefined session
data is handled as opaque data by the SRA. The respective session components must provide their access library to the SRA
for handling any transformation or data retrieval.
Session Redundancy Library (SRL): The SRL is used by session components for communicating with the SRA. The SRL uses IPC semantics for communicating with
the SRA. SERG clients use an asychronous API for storing and retrieving the session state from the SRL.
You can configure object tracking for one or more access interfaces in the SERG to enable automatic switchovers when an interface
goes down. For more information on this configuration, see the BNG Command Reference Guide for Cisco ASR 9000 Series Routers.
Limitations for SERG
If the Address Cached in the primary router: When the device configured as a primary router loses connectivity with the device
configured as a subordinate router, the primary router continues to provide addresses assigned to the group. If one or more
subscribers restart, the previously assigned IP addresses remain in the cache until communication is restored between both
SERG entities. This situation could potentially exhaust the address pool if many subscribers frequently disconnect and reconnect,
if a few subscribers continuously flap, or if the clear subscribers command is used.
If a device is configured as a subordinate router: This device does not provide any address if the connectivity to the primary
device is lost. In case this device assumes the role of primary, for example, after a session-redundancy switchover group
was executed or for any other reason, there could be situations where address duplication occurs.
Guidelines for SERG
The connectivity between SERG devices should be stable, as communication occurs over a TCP session using port 4001. It is
good practice to prioritize this traffic.
In the event of a prolonged disconnection between devices configured for SERG, it is advisable to configure a peer removal
due to the caching mechanism. During the disconnection, addresses provided by the pool are tagged as local. Once the connection
is restored, they will be tagged as local and remote.
Configuring and Verifying Session Redundancy for DHCPv6 Clients
Use the following procedure to configure geo-redundancy through session redundancy for DHCPv6 clients.
In this example, we configure Router 1 as Primary and Router 2 as Subordinate.
On Routers R1 and R2, enter the global configuration mode and configure session redundancy by specifying Loopback 0 as the
source interface.
The hold timer values on Routers R1 and R2 must match for them to peer with each other.
Configure the session redundancy group by specifying the preferred role as Primary for Router R1 using the master keyword, and as subordinate for Router R2 using the slave keyword.
Router R1:
Router(config)# session redundancy group 1
Router(config-session-red-group)# preferred-role master
Router(config-session-red-group)# hold-timer 7
Router(config-session-red-group)# peer 2.2.2.2
Router(config-session-red-group)# revertive-timer 5 maximum 15
Router(config-session-red-group)# interface-list
Router(config-session-red-grp-intf)# interface GigabitEthernet0/1/0/0 id 1
Router R2:
Router(config)# session redundancy group 1
Router(config-session-red-group)# preferred-role slave
Router(config-session-red-group)# hold-timer 7
Router(config-session-red-group)# peer 1.1.1.1
Router(config-session-red-group)# revertive-timer 5 maximum 15
Router(config-session-red-group)# interface-list
Router(config-session-red-grp-intf)# interface GigabitEthernet0/1/0/0 id 1
Note
The hold timer, revertive timer, and interface ID values on Routers R1 and R2 must match for them to peer with each other.
Exit to the global configuration mode and commit your configuration on Routers R1 and R2.
Router(config)# commit
Confirm your configuration on Router R1.
Router# show running-config session-redundancy
...
session-redundancy
source-interface Loopback0
hold-timer 5
group 1
preferred-role master
hold-timer 7
peer 2.2.2.2
revertive-timer 5 maximum 15
interface-list
interface GigabitEthernet0/1/0/0 id 1
!
!
!
Confirm your configuration on Router R2.
Router# show running-config session-redundancy
...
session-redundancy
source-interface Loopback0
hold-timer 5
group 1
preferred-role slave
hold-timer 7
peer 1.1.1.1
revertive-timer 5 maximum 15
interface-list
interface GigabitEthernet0/1/0/0 id 1
!
!
!
Verify the session redundancy group on the routers by running the following show commands.
Router# show session-redundancy group
...
Session Redundancy Agent Group Summary
Flags : E - Enabled, D - Disabled, M - Preferred Master, S - Preferred Slave
H - Hot Mode, W - Warm Mode, T - Object Tracking Enabled
P/S : Peer Status
I - Initialize, Y - Retry, X - Cleanup, T - Connecting
L - Listening, R- Registered, C - Connected, E - Established
I/F Count: Interface Count
SS Count : Session Count
----------------------------------------------------------------------------------------------------------------------
Node Name | Group ID | Role | Flags | Peer Address | P/S | I/F Count | SS Count | Sync Pending
----------------------------------------------------------------------------------------------------------------------
0/1/CPU0 1 Master EMH- 2.2.2.2 E 1 0 0
----------------------------------------------------------------------------------------------------------------------
Session Summary Count(Master/Slave/Total): 0/0/0
Router# show session-redundancy group 1
...
Session Redundancy Group ID: 1
Description : <<not-configured>>
Status : Enabled
Init-Role : Master
Negotiated-Role : Master
Current-Role : Master
Hold Time : 7
Revert Time : 5
Tracking Status : Enabled
Core-Tracking : <<not-configured>>
Status : n/a
Access-Tracking : <<not-configured>>
Status : n/a
Peer:
IP-address : 2.2.2.2
Status : Established
Role(Init/Neg/Cur): Slave/Slave/Slave
Tracking Status : Up
Last Neg-Time : 2017 Mar 2 18:14:42
Last Up-Time : 2017 Mar 2 18:14:42
Last Down-Time : 2017 Mar 2 18:14:26
Switchover:
Last Switchover : 2017 Mar 2 18:14:42 Reason : Peer Up
Switchover Count : 1
Hold Time : Not-Running
Revert Time : Not-Running
Session Statistics:
Count : 0 Slave-Upd-Fail : 0
Pending Update : 0 Pending Delete : 0
Client:
IPv6ND : 0
DHCPv6 : 0
Interface Count : 1
GigabitEthernet0/1/0/0 Map-ID : 1
Router# show session-redundancy summary interface
...
Session Redundancy Interface Summary
Status: E - Exists, F - Forward Reference
-----------------------------------------------------------------------------
Interface Name | Status | Group ID | Map ID | Role
-----------------------------------------------------------------------------
GigabitEthernet0/1/0/0 E 1 1 Master
-----------------------------------------------------------------------------
Verify the SRG session information on the routers.
Router# show session-redundancy agent interface
...
Session Redundancy Agent Interface
Status : F - Forward Referenced, S - Stale, R - Registered,
A - CAPS Added, O - Resource Owned, P - EOMS Pending
C - Pending CAPS Remove, U - Pending Reg Disable
Err Stats: Enable - Disable - Caps Add - Caps Remove - Attr Updated
-----------------------------------------------------------------------------------------
Interface Name | ID | Group ID | Role | Status | Oper | Err Stats
-----------------------------------------------------------------------------------------
GigabitEthernet0/1/0/0 1 1 Master --RA---- ----- 0-0-0-0-0
---------------------------------------------------------------------------------------
Router# show session-redundancy agent statistics
...
Session Redundancy Agent Summary - Node 0/0/CPU0
Process State : ActiveSource Interface : Loopback0
VRF Name : default
IPv4 Address : 1.1.1.1
IPv6 Address : 192::2
Restart Client Sync In Progress : No
Client Init Sync TimeStamp : -
Restart Peer Sync In Progress : No
Peer Init Sync TimeStamp : -
Sync in Progress : No
Peer Action Timer : Not-Running
Retry Timer : Not-Running
Interface Status Statistics
Bound to group : 1
Non stale : 0
Pending caps remove : 0
Pending reg disable : 0
Pending other batch oper : 0
Sync in Progress : No
Client Statistics:
Status: U - Connection UP, S - Init-Sync Pending, E - Sync EOD Pending
--------------------------------------------------------------------------------
Comp | Status | Up Timestamp | Down Timestamp | Cleanup Timer
--------------------------------------------------------------------------------
SERGAGT --- - - 0
IPv6ND U-- 2017 Mar 2 18:14:25 - 0
DHCPv6 U-- 2017 Mar 2 18:14:25 - 0
--------------------------------------------------------------------------------
TxList Statistics: Ok Part-Write Clean
------------------------------------------------------------------------------------
Marker Encode : 4 0 4
Command Encode : 0 0 0
Negotiation Encode : 0 0 0
Client Statistics: Ok NotOk
-----------------------------------------------------------------------
Invalid Registration : 0
Invalid DeRegistration : 0
Connection Up Count : 2
Connection Down Count : 0
Message CallBack Count : 2
Message Received : 4 0
Command Message Received : 0 0
Session Message Received : 4 0
Peer Done : 2
Peer Statistics: Ok NotOk
-----------------------------------------------------------------------
Timer Handler : 0
Invalid Registration : 0
Invalid DeRegistration : 0
Message CallBack Count : 0 0
Command Connection Up : 0
Command Connection Down : 0
Session Connection Up : 0
Session Connection Down : 0
Peer Done : 0
-----------------------------------------------------------------------
Verify the DHCPv6 SR client information on the routers.
Router#show session-redundancy agent client dhcpv6
...
Session Redundancy Agent Client Statistics - Node 0/0/CPU0
Component - DHCPv6
Statistics: Ok NotOk
-------------------------------------------------------------------------------
Sent To Client:
Command
Start of Download - SOD : 1 0
End of Download - EOD : 1 0
End of Master Sync - EOMS : 0 0
Clear - All : 0 0
Clear - Selected : 0 0
Replay - All : 0 0
Replay - Selected : 0 0
Session : 0 0
Update : 0 0
Delete : 0
TxList Operation:
Encode - Complete Write : 0
Encode - Partial Write : 0
Cleanup CallBack : 0
Last Replay Count : 0
Received From Client:
Command
Start of Download - SOD - All : 1
Start of Download - SOD - Selected : 0
End of Download - EOD - All : 1
End of Download - EOD - Selected : 0
End of Master Sync - EOMS : 0
Clear - All : 0
Clear - Selected : 0
Replay - All : 0
Replay - Selected : 0
Session
Update : 0 0
Delete : 0 0
Negative Acknowledgement : 0 0
Client Activity Statistics:
Active : 1 0
Deactive : 0 0
Registration : 1 0
DeRegistration : 0
Connection Down : 0
Cleanup : 0
-------------------------------------------------------------------------------
Session Redundancy Agent Client Statistics - Node 0/1/CPU0
Component - DHCPv6
Statistics: Ok NotOk
-------------------------------------------------------------------------------
Sent To Client:
Command
Start of Download - SOD : 1 0
End of Download - EOD : 1 0
End of Master Sync - EOMS : 1 0
Clear - All : 0 0
Clear - Selected : 0 0
Replay - All : 0 0
Replay - Selected : 0 0
Session : 0 0
Update : 0 0
Delete : 0
TxList Operation:
Encode - Complete Write : 0
Encode - Partial Write : 0
Cleanup CallBack : 0
Last Replay Count : 0
Received From Client:
Command
Start of Download - SOD - All : 1
Start of Download - SOD - Selected : 0
End of Download - EOD - All : 1
End of Download - EOD - Selected : 0
End of Master Sync - EOMS : 0
Clear - All : 0
Clear - Selected : 0
Replay - All : 0
Replay - Selected : 0
Session
Update : 0 3
Delete : 0 2
Negative Acknowledgement : 0 0
Client Activity Statistics:
Active : 1 0
Deactive : 0 0
Registration : 1 0
DeRegistration : 0
Connection Down : 0
Cleanup : 0
-------------------------------------------------------------------------------
Session Redundancy Agent Client Statistics - Node 0/2/CPU0
Component - DHCPv6
Statistics: Ok NotOk
-------------------------------------------------------------------------------
Sent To Client:
Command
Start of Download - SOD : 1 0
End of Download - EOD : 1 0
End of Master Sync - EOMS : 0 0
Clear - All : 0 0
Clear - Selected : 0 0
Replay - All : 0 0
Replay - Selected : 0 0
Session : 0 0
Update : 0 0
Delete : 0
TxList Operation:
Encode - Complete Write : 0
Encode - Partial Write : 0
Cleanup CallBack : 0
Last Replay Count : 0
Received From Client:
Command
Start of Download - SOD - All : 1
Start of Download - SOD - Selected : 0
End of Download - EOD - All : 1
End of Download - EOD - Selected : 0
End of Master Sync - EOMS : 0
Clear - All : 0
Clear - Selected : 0
Replay - All : 0
Replay - Selected : 0
Session
Update : 0 0
Delete : 0 0
Negative Acknowledgement : 0 0
Client Activity Statistics:
Active : 1 0
Deactive : 0 0
Registration : 1 0
DeRegistration : 0
Connection Down : 0
Cleanup : 0
You have successfully configured and verified geo redundancy using session redundancy groups for DHCPv6 clients.
Managing Session Redundancy Groups
After you have configured and verified the session redundancy groups (SERGs), you can use the commands in this section to
trigger a manual switchover, trigger a manual synchronization, or clear sessions for all or a specific SERG.
Triggering a Manual Switchover
After you have configured SERGs on the primary and subordinate routers, if you want to remove/replace the primary router,
you can trigger a manual switchover from the primary to the subordinate by running the following commands.
Note
The following commands can be executed only on the primary router.
To trigger a redundancy switchover for all SERGs, run the following command.
To trigger a redundancy switchover for a specific SERG, run the following command.
RP/0/RSP0/CPU0:router# session redundancy switchover group 210
Triggering Manual Synchronization
If the sessions between the primary and subordinate routers are not getting synchronized, either because of some change in
the network topology, or some network latency, you can trigger synchronization manually by running the following commands.
Note
The following commands can be executed on either the Primary or the Subordinate router.
To trigger a redundancy synchronization for all SERGs, run the following command.
To trigger a redundancy synchronization for a specific SERG, run the following command.
RP/0/RSP0/CPU0:router# session redundancy synchronize group 210
Clearing Sessions in a SERG
If you want to clear the existing sessions on the primary and subordinate routers, either because of a switchover, or a change
in network topology, you can run the following commands.
Note
The following commands can be executed on either the primary or the subordinate router.
When issued on the subordinate, the session context is deleted from the router and a synchronization is requested with the
primary. If the router is in hot-standby mode, the sessions are deleted on the subordinate.
When issued on the primary, the session entries are deleted first on the primary and later on the subordinate. The SRA then
requests a fresh session from the SR client, which is eventually synchronized with the subordinate.
To clear sessions for all SERGs, run the following command.
RP/0/RSP0/CPU0:router# clear session-redundancy
To clear sessions for a specific SERG, run the following command.
RP/0/RSP0/CPU0:router# clear session-redundancy group 1
Configuring and Verifying Session Redundancy for IPv6 ND Clients
Use the following procedure to configure geo-redundancy through session redundancy for IPv6 ND clients.
In this example, we configure Router 1 as Primary and Router 2 as Subordinate.
On Routers R1 and R2, enter the global confiiguration mode and configure session redundancy by specifying Loopback 0 as the
source interface.
The hold timer values on Routers R1 and R2 must match for them to peer with each other.
Configure the session redundancy group by specifying the preferred role as Primary for Router R1 using the master keyword, and as subordinate for Router R2 using the slave keyword.
Router R1 :
RP/0/RSP0/CPU0:router(config)# session redundancy group 1RP/0/RSP0/CPU0:router(config-session-red-group)# preferred-role masterRP/0/RSP0/CPU0:router(config-session-red-group)# hold-timer 7RP/0/RSP0/CPU0:router(config-session-red-group)# peer 2.2.2.2RP/0/RSP0/CPU0:router(config-session-red-group)# revertive-timer 5 maximum 15RP/0/RSP0/CPU0:router(config-session-red-grp-intf)# interface GigabitEthernet0/1/0/0 id 1
Router R2:
RP/0/RSP0/CPU0:router(config)# session redundancy group 1RP/0/RSP0/CPU0:router(config-session-red-group)# preferred-role slaveRP/0/RSP0/CPU0:router(config-session-red-group)# hold-timer 7RP/0/RSP0/CPU0:router(config-session-red-group)# peer 1.1.1.1RP/0/RSP0/CPU0:router(config-session-red-group)# revertive-timer 5 maximum 15RP/0/RSP0/CPU0:router(config-session-red-grp-intf)# interface GigabitEthernet0/1/0/0 id 1
Note
The hold timer, revertive timer, and interface ID values on Routers R1 and R2 must match for them to peer with each other.
Exit to the global configuration mode and commit your configuration on Routers R1 and R2.
RP/0/RSP0/CPU0:router(config)# commit
Confirm your configuration on Router R1 (Primary).
RP/0/RSP0/CPU0:router# show running-config session-redundancy
...
session-redundancy
source-interface Loopback0
hold-timer 5
group 1
preferred-role master
hold-timer 7
peer 2.2.2.2
revertive-timer 5 maximum 15
interface GigabitEthernet0/1/0/0 id 1
!
!
!
Confirm your configuration on Router R2.
RP/0/RSP0/CPU0:router# show running-config session-redundancy
...
session-redundancy
source-interface Loopback0
hold-timer 5
group 1
preferred-role slave
hold-timer 7
peer 1.1.1.1
revertive-timer 5 maximum 15
interface GigabitEthernet0/1/0/0 id 1
!
!
!
Verify the session redundancy group on the routers by running the following show commands.
RP/0/RSP0/CPU0:router# show session-redundancy group
...
Session Redundancy Agent Group Summary
Flags : E - Enabled, D - Disabled, M - Preferred Master, S - Preferred Slave
H - Hot Mode, W - Warm Mode, T - Object Tracking Enabled
P/S : Peer Status
I - Initialize, Y - Retry, X - Cleanup, T - Connecting
L - Listening, R- Registered, C - Connected, E - Established
I/F Count: Interface Count
SS Count : Session Count
----------------------------------------------------------------------------------------------------------------------
Node Name | Group ID | Role | Flags | Peer Address | P/S | I/F Count | SS Count | Sync Pending
----------------------------------------------------------------------------------------------------------------------
0/1/CPU0 1 Master EMH- 2.2.2.2 E 1 0 0
----------------------------------------------------------------------------------------------------------------------
Session Summary Count(Master/Slave/Total): 0/0/0
RP/0/RSP0/CPU0:router# show session-redundancy group 1
...
Session Redundancy Group ID: 1
Description : <<not-configured>>
Status : Enabled
Init-Role : Master
Negotiated-Role : Master
Current-Role : Master
Hold Time : 7
Revert Time : 5
Tracking Status : Enabled
Core-Tracking : <<not-configured>>
Status : n/a
Access-Tracking : <<not-configured>>
Status : n/a
Peer:
IP-address : 2.2.2.2
Status : Established
Role(Init/Neg/Cur): Slave/Slave/Slave
Tracking Status : Up
Last Neg-Time : 2017 Mar 2 18:14:42
Last Up-Time : 2017 Mar 2 18:14:42
Last Down-Time : 2017 Mar 2 18:14:26
Switchover:
Last Switchover : 2017 Mar 2 18:14:42 Reason : Peer Up
Switchover Count : 1
Hold Time : Not-Running
Revert Time : Not-Running
Session Statistics:
Count : 0 Slave-Upd-Fail : 0
Pending Update : 0 Pending Delete : 0
Client:
IPv6ND : 0
DHCPv6 : 0
Interface Count : 1
GigabitEthernet0/1/0/0 Map-ID : 1
RP/0/RSP0/CPU0:router# show session-redundancy summary interface
...
Session Redundancy Interface Summary
Status: E - Exists, F - Forward Reference
-----------------------------------------------------------------------------
Interface Name | Status | Group ID | Map ID | Role
-----------------------------------------------------------------------------
GigabitEthernet0/1/0/0 E 1 1 Master
-----------------------------------------------------------------------------
Verify the SRG session information on the routers.
The Cisco
Technical Support website contains thousands of pages of searchable technical
content, including links to products, technologies, solutions, technical tips,
and tools. Registered Cisco.com users can log in from this page to access even
more content.
Feedback
