Use Cisco Optical Network Controller

Cisco Optical Network Controller offers different applications to manage and optimize your optical network. These applications provide a centralized interface for various tasks, such as visualizing network topology, provisioning circuits, monitoring performance, and troubleshooting issues. By leveraging these applications, you can gain greater visibility into your network, streamline operations, and ensure reliable service delivery.

  1. Topology

  2. Nodes

  3. Alien Import

  4. Inventory

  5. Service Manager

  6. Alarms

  7. Workspaces

  8. SWIMU

  9. PM History

  10. Logs

  11. Monitoring

  12. Links


Note


Timezone configuration has been added in Release 25.1.2. Cisco Optical Network Controller webUI now displays time in the configured timezone. Change the timezone using the CLI. The timestamps in the UI differ between Releases 25.1.1 and 25.1.2. See Update Timezone Configuration.


These steps describe how to use the common options across all these appplications.

Before you begin

Log in to Cisco Optical Network Controller

Procedure


Step 1

View the timestamp.

The timestamp appears on the top right corner of the screen in all the screens. It follows the UTC time zone. The current date is displayed along with the time.

Step 2

Click the Refresh button to refresh the status of the table content or topology in each of the application screens anytime.

Step 3

Click Show or hide columns icon to select any columns to be displayed or hidden from the table view anytime.

Step 4

Export the current table.

  1. Click Export to export the details of any table from any application screen to a spreadsheet file.

  2. Choose table view and click Export to download the current table with the filters enabled as an excel spreadsheet.

    Note



    When you export a table, the resulting spreadsheet contains all the columns of the table, not just the fields that you have selected from Show or hide columns dropdown.

Step 5

Export all data relevant to the current application.

  1. Click Export to export the details of any table from any application screen to a spreadsheet file.

  2. Choose All items.

    Note



    This label changes based on the app you are using. For example, All Nodes in the Nodes app, All Services in Service Manager, and so on.

  3. Click Generate to initiate file generation.

Step 6

Use the Sort option to sort the table values.

Step 7

Use the Filter option to filter the table content as per requirement in each application screen.


Topology

Topology displays the network along with the nodes and the associated network links on a map. You can toggle between the Light and Dark modes to view this screen. You can zoom in zoom out the entire screen to view the network and its components. You can select the OTS or OMS layers as options in the display. The OTS option is used to show all fiber span between all type of nodes, OLT or ILA. The OMS option is used to display only the ROADMs and the links between the ROADMs in the given network.

The Topology screen is an interactive screen which allows you to click on each node to fetch its information. The links between the nodes are the fiber links connecting each node. You can click on each fiber link to fetch its information when the OTS view is enabled. There can be multiple links connecting each node at any given point in time.

Default view: The topology view zooms on the world map to show all the nodes by default. If you have a specific set of nodes that you are interested in, zoom and pan the map to the view that you want, and click Lock default view button to make it your default view. The default view persists across reloads and logins on the same browser. The default view shows the world map if there are no nodes. The topology view across Cisco Optical Network Controller shows the default view.

On the top of this screen, there is a panel for displaying the different alarm types and the count of each type of alarm that are part of the network. The alarm types are color coded based on the types of severity as seen in the table below.

Table 1. Alarm Severity

Alarm Type

Description

RED

Critical alarms are displayed in red color.

ORANGE

Major alarms are displayed in orange color.

YELLOW

Minor alarms are displayed in yellow color.


Note


Alarm severity type for any warning will appear as Warning and for cleared alarms they severity is displayed as Cleared.



Note


  • In the Topology screen, the alarms reported at the top left are related to only those nodes that have the geo location defined. Due to this there can be a discrepancy between the alarms reported in the Topology and the Alarms screen related to these nodes.

  • In the Topology screen only the critical, major and minor count alarms are reported, unlike the Alarms screen which reports the warnings or cleared alarms.


You can get the node name along with the COSM site name it belongs to and its current state by hovering over each node in the Topology map anytime. Right click on any node in the map to select Resync, View in Node UI and View Alarms options.

Table 2. Topology Node Options

Options

Description

Resync

Resync starts the resync of the selected node.

View in Node UI

This option takes you to the COSM site from where you can view the node details.

View Alarms

This option opens the Alarms application in a new tab, from where you can view all the alarms details.

You can also view the information related to the different nodes, links, and the states of each node in the network at any point in time by clicking the Legends option. To select any node in the network, use the drop-down box to select the node.

The EDIT icon allows you to dynamically move any node to any geo location on the screen. You can click on the RESET or SAVE button to reset or save the network status that is being displayed in the Topology screen anytime. Use the CENTER icon to position the map in the center.

The disconnected nodes are displayed with a cross mark. To cross launch to other related pages use the options appearing when you right click from anywhere on the map. You can click on the REFRESH button to refresh the Topology screen with the current status anytime.

Use the Search nodes by name option to search for nodes in the topology network. This will fetch and locate the exact node in the map.

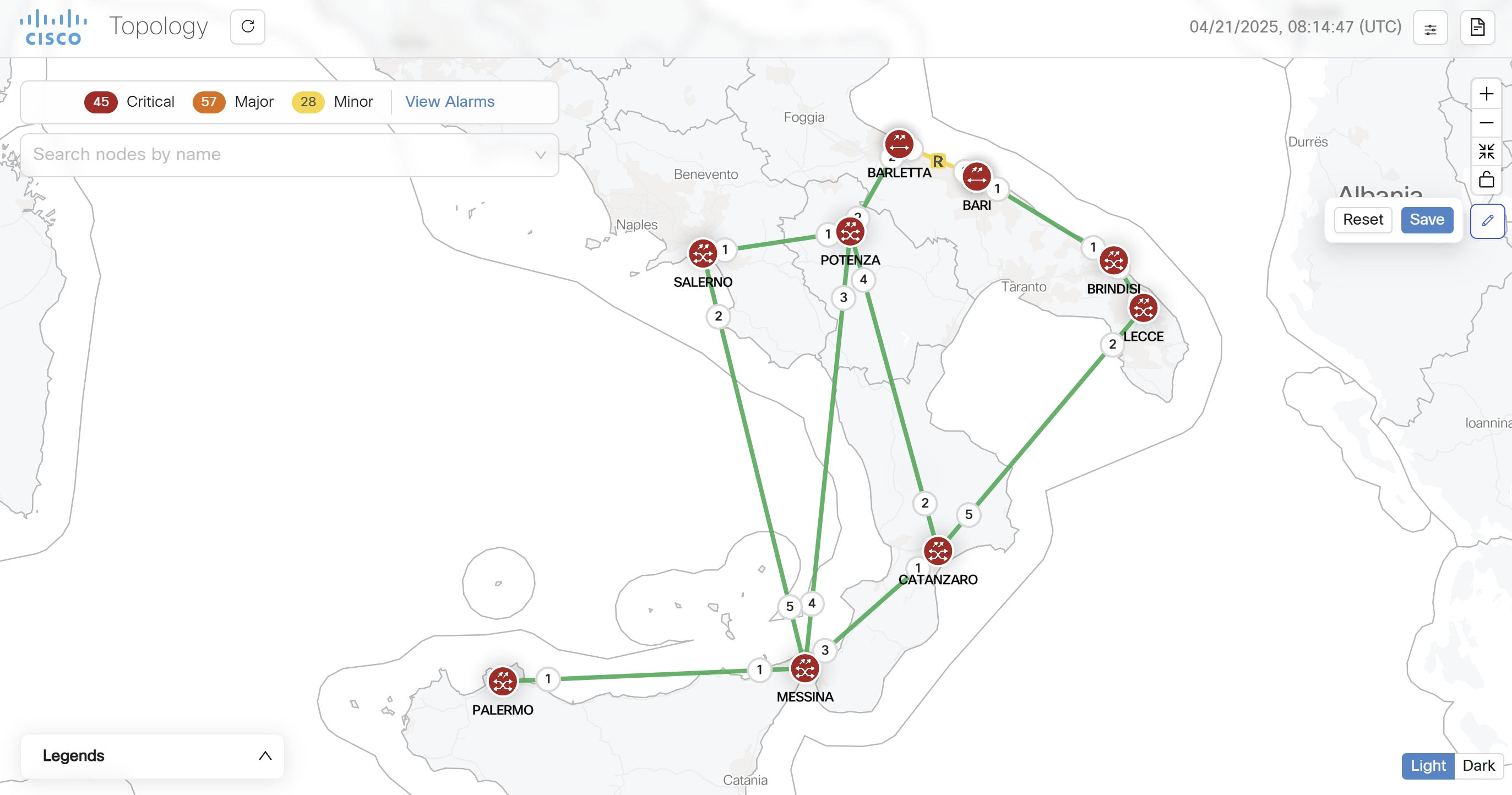

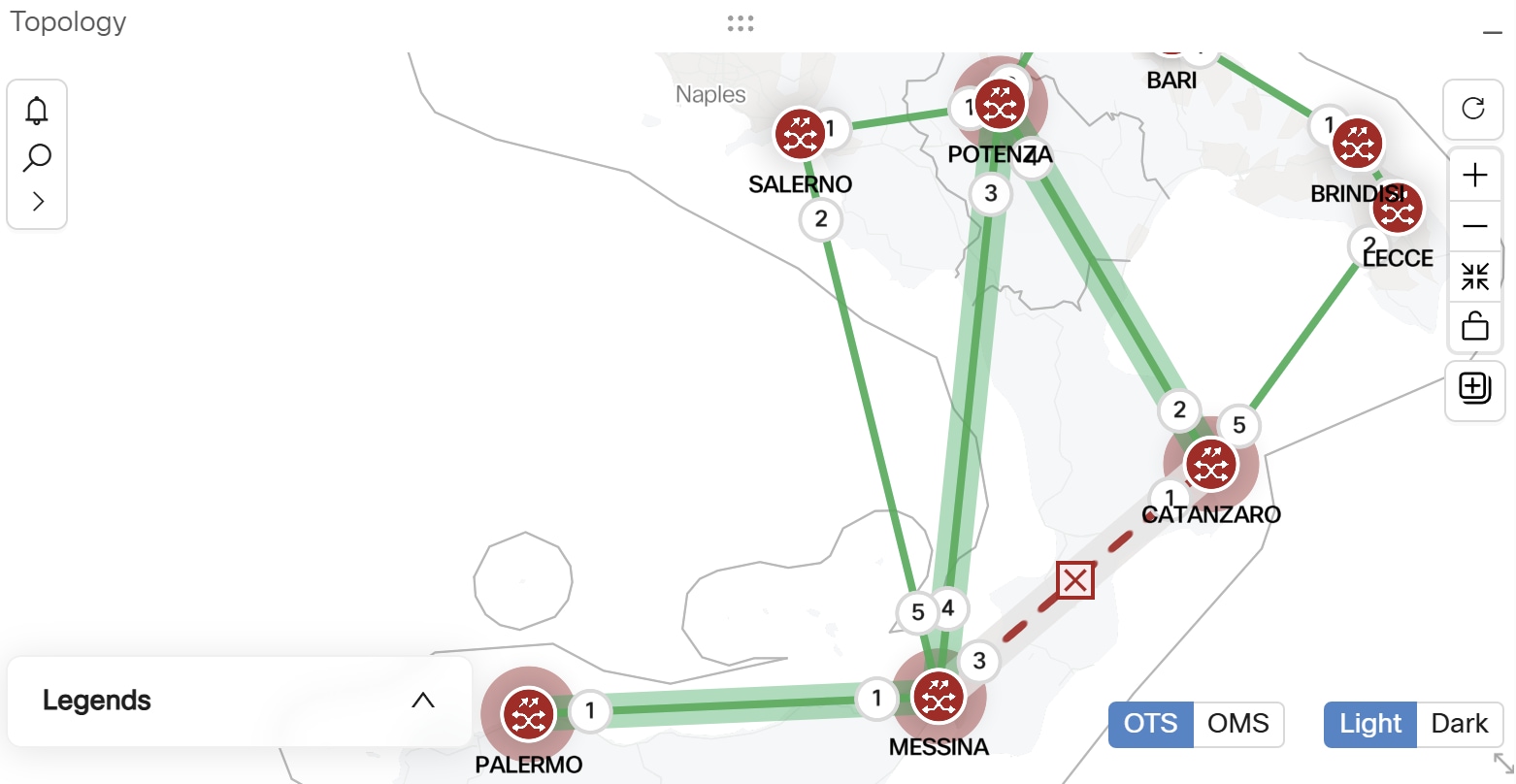

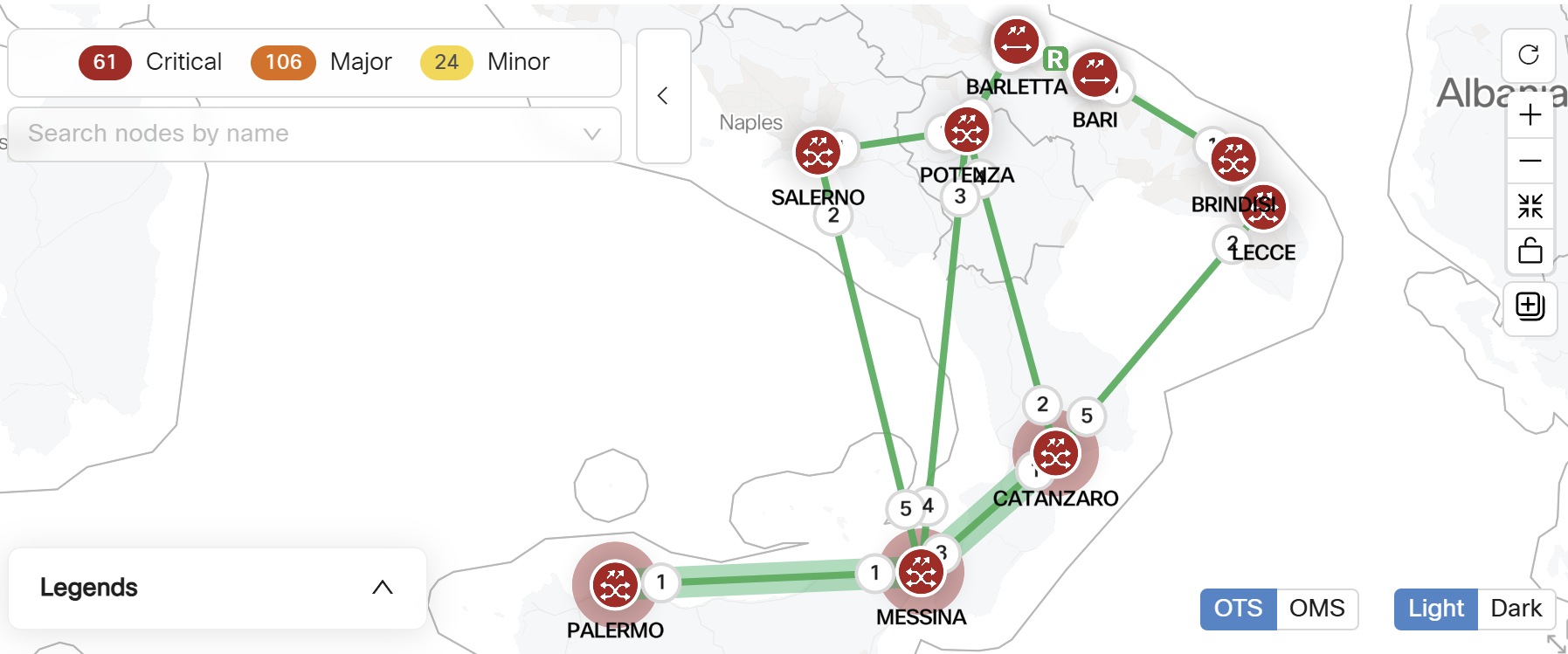

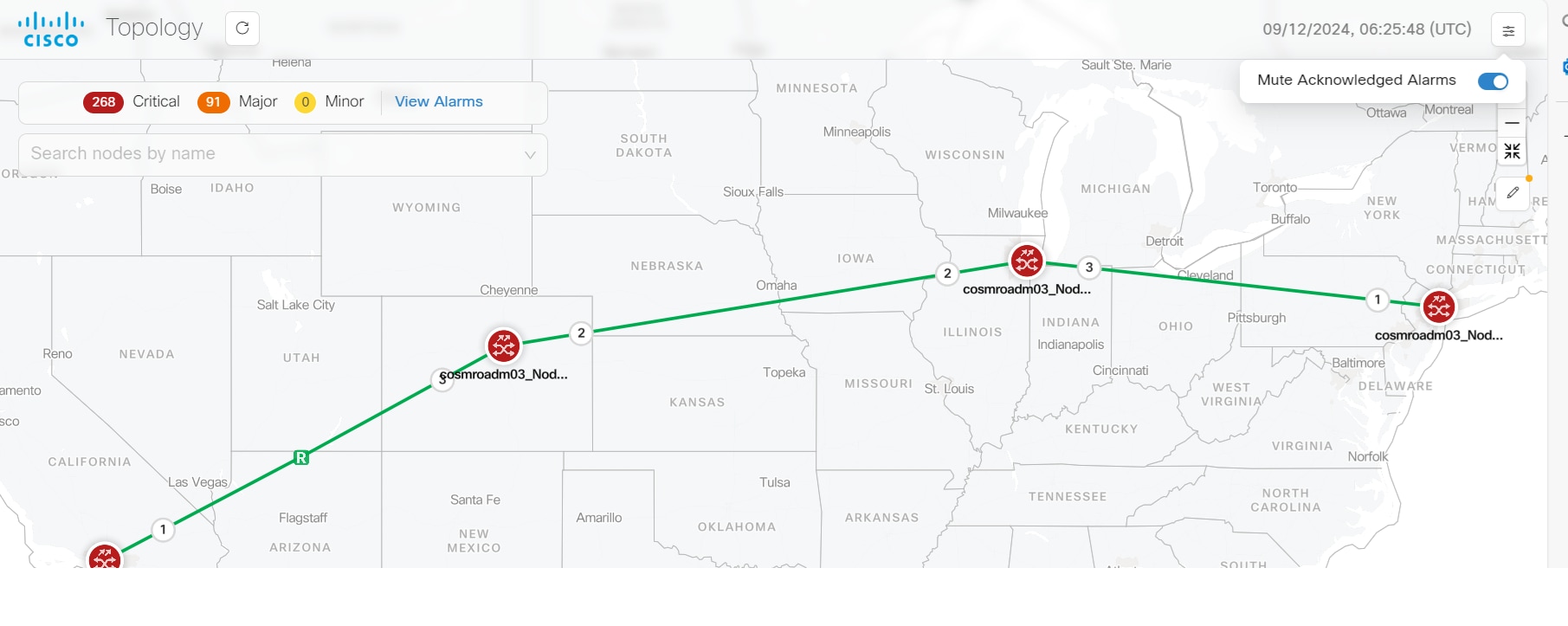

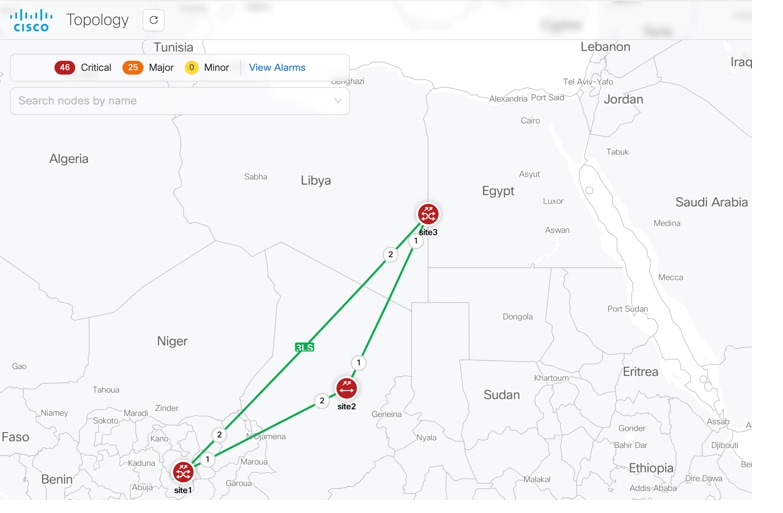

Figure 1. Topology Application
Screenshot of Topology application

Note


  • The links between each node in the network in the Topology map displays the degree numbers which can be right clicked to navigate to the particular Node UI. The 'R' in the link refers to Raman Amplified. This is not visible when you select the OMS layer option to view the map.

    Click Legends in the bottom of the Topology screen to view the various representations used in the map as shown below.

    • Nodes: The different nodes that are part of the network at any given time.

    • Links: The different links between nodes along with the amplifier and degree labels.

    • States: The different states like operational, critical alarms, link down and minor alarms.

  • In the Topology map if two nodes have the same geo location then they appear as a single node due to overlapping with each other which is a constraint.

  • If any node in the Topology screen does not have a geo location specified, the button in the upper right corner which is used to enter the geo location value displays an orange highlight or dot. This orange dot is used to represent that there is atleast one node which does not have any geo location specified. When you click this orange dot a pop-up menu appears displaying all such nodes that are lacking geo locations. Click the Edit icon and then select any node to move it to any desired location om the map. This will add the geo locations to the node. You can move the node and the Topology maps the geo location automatically for these node based on the location.

  • Once the geo location is selected, Cisco ONC displays a message to indicate that the Topology has been updated and to view the updated changes you must refresh the page by clicking the Refresh or Reload button.


From Cisco Optical Network Controller 24.3.1 release onwards, fiber information and span loss details are added newly to the Topology live PM tool tip. When you click on the fiber sapn link in the map, you will see the following details appearing in the tool tip information:

  • Fiber Type: The type of fiber link.

  • Length: The length of the fiber link.

  • Source Min Expected Spanloss: Source node's minimum expected span loss value.

  • Source Max Expected Spanloss: Source node's maximum expected span loss value.

  • Destination Min Expected Spanloss: Destination node's minimum expected span loss value.

  • Destination Max Expected Spanloss: Destination node's maximum expected span loss value.

  • Span Loss: Span loss table.


Note


On Topology tool tip information it is possible to add a description and save.

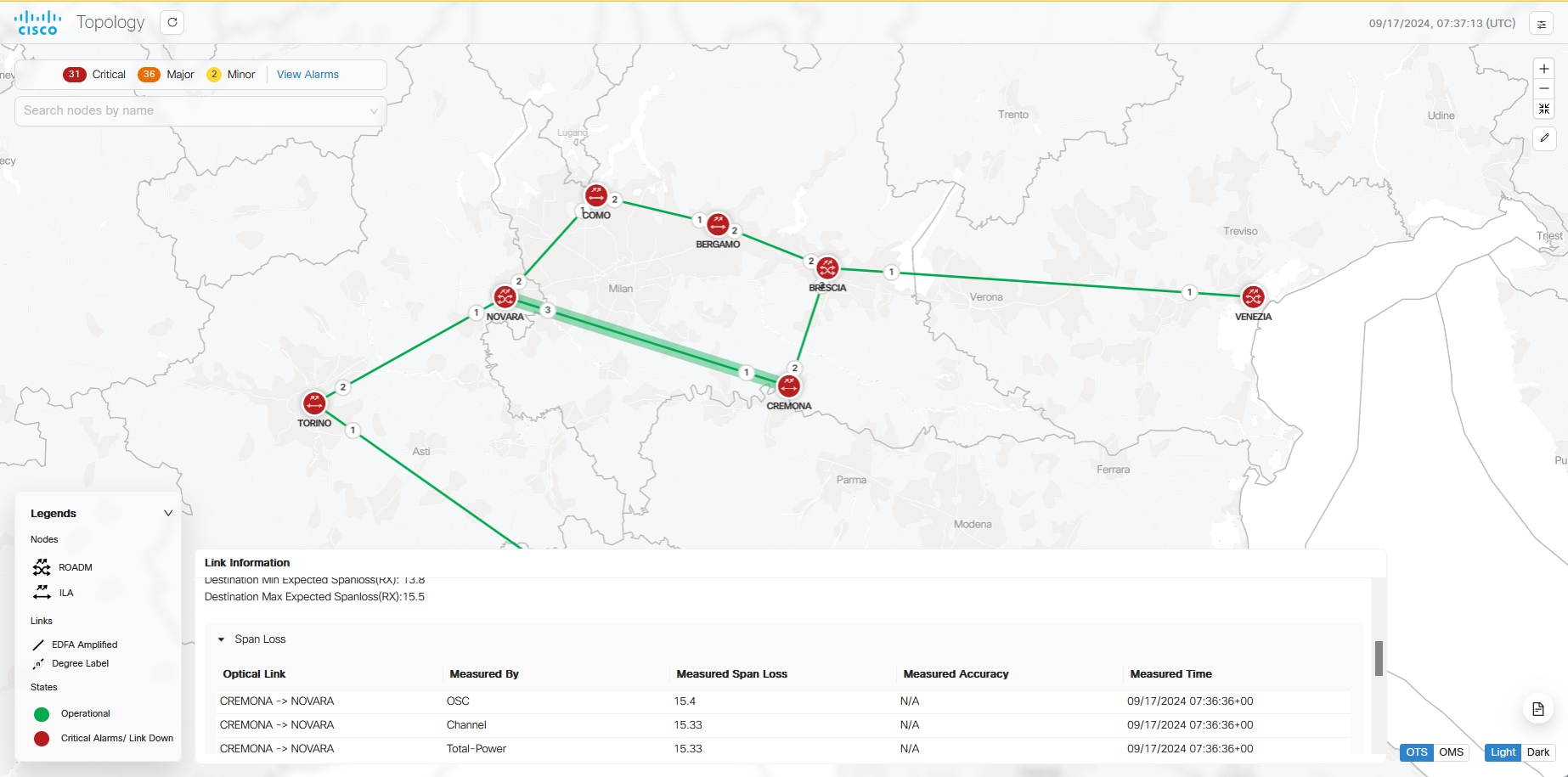

Figure 2. Topology Live PM
Screenshot of Topology Live PM
Figure 3. Tool Tip
Screenshot of Tool Tip

Troubleshooting in Topology

The most common problems encountered while using the Topology application is given below.

  • A pop-up message: Asking to reload the page appears in the following scenarios.

    • New node onboarded or deleted

    • Geo locations changed

  • In case the node, link or icons of the nodes are missing and not displayed in the Topology screen then refresh the page.

Nodes

A node refers to a device in the network. You can add a single node or a set of nodes in the form of a batch at any given point in time.

Use the Nodes screen to view the details of each node that is part of a service at any given point in time. The Nodes table displays the following details for each node:

  • Node Name: The name of the node. The node name provided by you must match the original node name used in Cisco Optical Site Manager. In case of any mismatch or discrepancy issues, the original node name in the network is used by Cisco Optical Network Controller.

  • Product Type: The type of product the node belongs to. For example: Cisco Optical Site Manager.

  • IP: Port (NETCONF): The IP address of each node along with the port number.

  • Site Location: The location of the site that each node belongs to. For example: ROADM_Site_Bengaluru_33

  • Geo Location: The geo location of each node in terms of the latitude and longitude values based on where exactly the node is situated in the world at any given time.


    Note


    • If the geo location values that are coming from Cisco Optical Site Manager in a pre-filled format has more than four digits, then the length of the go localtion value is truncated to only four digits.

    • Node names are synchronized between Cisco Optical Network Controller and the nodes it manages. During onboarding, node name provided in Cisco Optical Network Controller is pushed to the node if the node has a different name. Changes made on Cisco Optical Site Manager is reverted as Cisco Optical Network Controller pushes the original name to Cisco Optical Site Manager.

      During a onboard and resync operations, Cisco Optical Network Controller pushes the current node name to the node, ensuring consistency even if changes were missed while the device was offline.


  • Status: The status of each node within the network to know whether it is discovered or disconnected.

Use the information icon that appears along with each node in this table for viewing the additional details pertaining to each node. The tooltip contains these details:

  • Site Description

  • Message: Information about any error conditions

  • Created by: The user who added the node

  • Created Date

  • Modified Date

Figure 4. Nodes
Screenshot of Nodes

Use the sort or filter options to sort and filter values in the table. You can also cross launch to other supported pages using the links provided in this table.

Use the Actions button for synchronizing and configuring the network sync along with reconnecting the various nodes present in the network. There are four options available for this purpose.

  • ReSync: Used for resyncing any selected node in the network.

  • ReSync All: Used for resyncing all the nodes in the network.

  • Reconnect: Used to reconnect any or all the nodes.

  • Configure Network Sync: Used for Periodic Network Full Sync.

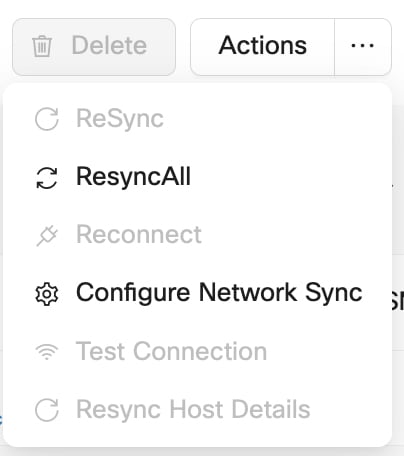

Figure 5. Actions
Screenshot of Actions

Note


  • Latitude and longitude values can be set in both Cisco Optical Site Manager and Cisco Optical Network Controller. The following scenarios are possible:

    • Geo location is set in both Cisco Optical Site Manager and Cisco Optical Network Controller: Cisco Optical Network Controller geo location is used.

    • Geo location is set only in Cisco Optical Site Manager: Cisco Optical Site Manager geo location is used .

    • Geo location is set only in Cisco Optical Network Controller: Cisco Optical Network Controller geo location is used.

    • Geo location is not set in either Cisco Optical Network Controller or Cisco Optical Site Manager: You will be prompted to add the node in Topology with the edit button.

      For all the cases mentioned above, Cisco Optical Network Controller latitude and longitude value has a higher priority over the Cisco Optical Site Manager latitude and longitude values during the onboarding process. In case the Cisco Optical Network Controller latitude and longitude values are not provided, only then the Cisco Optical Site Manager latitude and longitude values are used.

  • Even if the user updates the geo location in Cisco Optical Network Controller, it does not get updated in the Cisco Optical Site Manager device.

  • If the geo location values coming from Cisco Optical Site Manager have more than four digits, they are shortened to up to four digits only and displayed.


Add Nodes on Cisco Optical Network Controller

You can add a single node or a set of nodes in the form of a batch use the procedure given below.

Figure 6. Add New Node
Screenshot of New Node

Before you begin

To add nodes to Cisco Optical Network Controller:

  • Cisco Optical Site Manager must be installed on the node.

  • All COSM1K (NCS 1000 series) nodes must be added using port number 2022.

  • All COSM2K (NCS 2000 series) nodes must be added using port number 830.

  • You must create add only fully configured nodes. All passives and patchcords must already be created before you add a node.

Procedure


Step 1

Click Nodes in the left panel.

Step 2

Click New.

Step 3

Enter the device details necessary connect to the device as given in the table below.

Table 3. Add new node

Name

Description

Mandatory

Name Name of the new node you are adding

Yes

IP

IP address of the new node which you are adding.

Yes

Port

The port number of the new node which you are adding.

Yes

Protocol

The protocol used for the new node which you are adding.

Yes

Site Name

The name of the site to which the new node belongs.

Yes

Username

The username you want to set for accessing the new node.

Yes

Password

The password you want to set for accessing the new node.

Yes

Site Description

The description of the site to which the new node belongs.

No

Latitude

The Latitude co-ordinate value you which you want to assign for the new node to set its location.

No

Longitude

The Longitude co-ordinate value you which you want to assign for the new node to set its location.

No

Note

  • Ensure that you enter valid a username and password of the device to enable Cisco Optical Network Controller to connect to the device.

Step 4

Click Save.The new node or device is onboarded successfully and added to the Nodes table. Cisco Optical Network Controller validates the connection with the onboarded device.


Import Nodes on Cisco Optical Network Controller

Before you begin

For importing the node details from any spreadsheet into the table, use the procedure given below.

Procedure


Step 1

Click Nodes in the left panel.

Step 2

Click Import to import the table details from external files.

Step 3

Select the spreadsheet which has all the node details and click Open. The new nodes are onboarded and added to the Nodes table.

To add the details of the nodes in a bulk format use the Import nodes option.

Note



Click Download option to get the sample template of the bulk import file.

Figure 7. Import Nodes
Screenshot of Import nodes

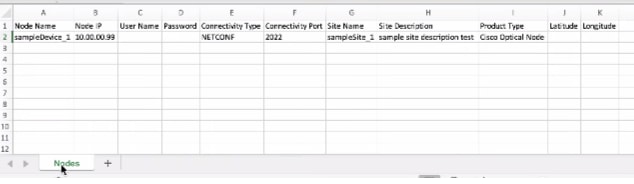

Screenshot of Bulk Import File

The sample bulk import template has the following fields which need to be filled before importing node details.

Table 4. Bulk Import File Template

Name

Description

Node Name

Name of the host node.

Node IP

The IP address of the node you are adding.

User Name

The username you want to set for accessing the new node.

Password

The password you want to set for accessing the new node.

Connectivity Type

The type of the protocol used for connecting the node.

Connectivity Port

The port number of the node.

Port number 2022 for NCS 1000 series nodes.

Port number 830 for NCS 2000 series nodes.

Site Name

The name of the site to which the new node belongs.

Site Description

The description of the site to which the new node belongs.

Product Type

Type of the node.

Latitude

The Latitude co-ordinate value you which you want to assign for the new node to set its location.

Longitude

The Longitude co-ordinate value you which you want to assign for the new node to set its location.

Cisco Optical Network Controller shows a messsage Import in progress during the import process.

Export Nodes on Cisco Optical Network Controller

Before you begin

For exporting the node details from the table use the procedure given below.

Procedure


Step 1

Click Nodes in the left panel.

Step 2

Click Export to export the details to a spreadsheet file.


Edit Nodes on Cisco Optical Network Controller

Before you begin

Use the Edit option for editing the node details, use the procedure given below.

Procedure


Step 1

Click Nodes in the left panel.

Step 2

Click EDIT after selecting the node from the table.

In the edit mode the Cisco Optical Site Manager (COSM) geo location latitude and longitude values appear as separate values which can also be modified as required. Once the onboarding of the node or device is complete you can edit any selected node and modify its credentials using the EDIT option.


Delete Nodes on Cisco Optical Network Controller

Before you begin

Use the Delete option to delete one or more nodes at any given time. Follow the procedure given below.

Procedure


Step 1

Click Nodes in the left panel.

Step 2

Select the node or nodes to be deleted.

Step 3

Click DELETE.

This will delete the selected node from the table.

Note


  • We recommend to wait at least two minutes after device discovery completes before deleting the device.

  • You cannot delete more than 5 nodes at a time.

  • If the circuits are active and flowing over the nodes or if the resync is in progress, then deletion of the node fails. In this case you will receive an error message for the Node Deletion Failure when the circuit is spanning through the node.

    For example: <Device A> cannot be deleted because circuit spanning across the device.

  • Do not perform delete operations and Geo-Redundancy Switchover simultaneously. Make sure there is no switchover taking place before you perform delete operations.


Troubleshooting in Nodes

The most common problems encountered while adding new nodes are given below.

  • Bulk import failure

    In this case you will get a text file describing the specific issues in the template.


    Note


    Cisco ONC does not allow deletion of a node which involved in the collection or resync process, or while it is a part of any circuit path


  • Nodes possible status

    Node Status Description User Action
    In Progress Cisco ONC is collecting information about the onboarded device. No action is needed, wait for the status to change.
    Resync Pending Cisco ONC has gone out of sync with device and is scheduled for a resync. Either wait for scheduled resync or start the resync manually.
    Resync In-progress Cisco ONC is re-collecting information about the onboarded devices. No action is needed, wait for the status to change.
    Disconnected Cisco ONC was unable to establish a session with COSM. Attempt re-connect or resync. If the problem still persists contact Cisco TAC.
    Discovery Completed All information has been collected from the device and it is ready for operations.

    Note



    It is recommended to wait for 60 secs once the device is turned to Discovery Completed state which ensures the device is ready for accepting requests.

  • Nodes connection status

    Connection State Description User Action
    Connected Cisco ONC has successfully established the session with the COSM device provided user/password information. No action is needed.
    Disconnected Cisco ONC was unable to establish session with COSM. Attempt re-connect or resync. If the problem still persists contact Cisco TAC.
    Waiting for connection Cisco ONC is attempting to establish connection with COSM. No action is needed.
    Resync_needed Cisco ONC has gone out of sync with device and is scheduled for a resync. Either wait for scheduled resync or start the resync manually.

    Resync Failed

    Cisco ONC was unable to resync after multiple retries.

    Attempt Resync. If problem still persists contact Cisco TAC.

    Discovery Failed

    Cisco ONC was not able to collect information from the device as it might have timed out or failed.

    Attempt Resync. If problem still persists contact Cisco TAC.

    Errored

    Cisco ONC was not able to collect information from the device even after 3 retries.

    Attempt Resync. If problem still persists contact Cisco TAC.

  • De-boarding of a node fails

    • Ensure no circuit is created involving this node.

    • Retry deleting the node after sometime.

    • In case the deletion fails even after you have retried it multiple times, contact Cisco TAC for further assistance.

Alien Import

Before you begin

To import and export the alien device data use the procedure given below.


Note


For more details on how to model an alien wavelength or transceiver, etc through Cisco Optical Network Planner (CONP) see CONP Manage Alien.

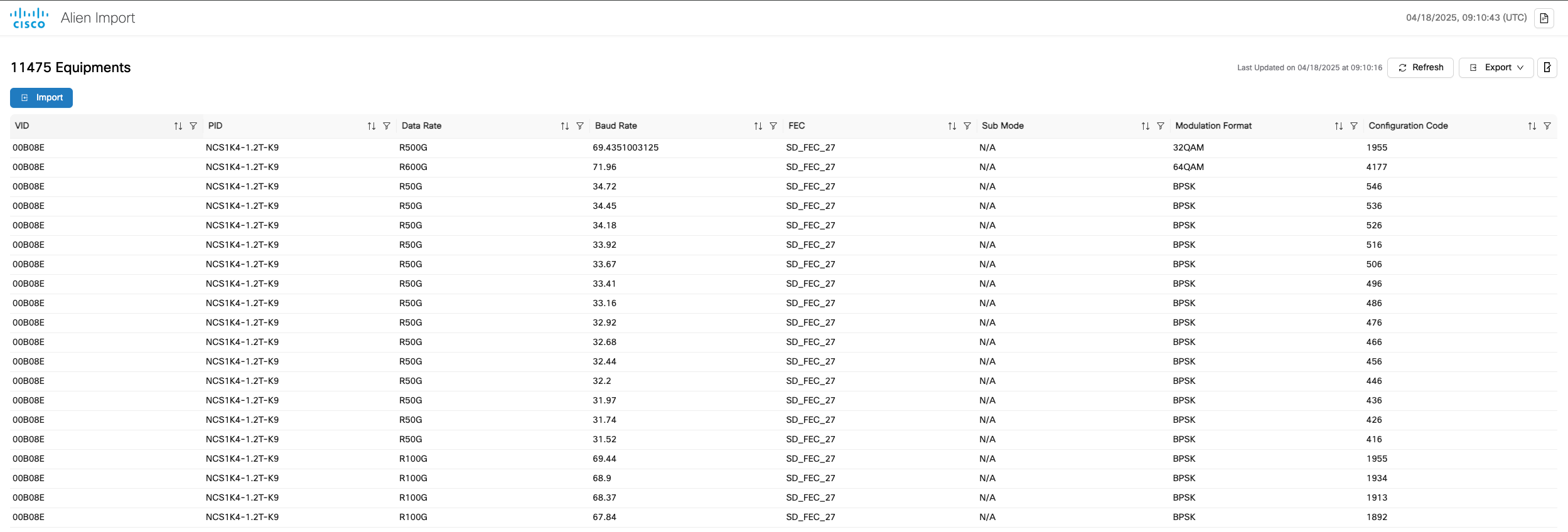

Figure 8. Alien Import
Screenshot of Alien Import

Procedure


Step 1

Click the Import icon on the top of the table.

Cisco Optical Network Controller imports and displays the information of all the alien devices from the XML file. After successful import, the alien device information is available for applications that use the Cisco Optical Network Controller TAPI and REST API.

Step 2

To export the alien device information in JSON or XML formats, click Export and choose the target format from the drop-down list.

Note



The XML file which is imported in Cisco ONC is generated by CONP and can have some third-party restrictions on it.

Step 3

Click the Refresh button to refresh the equipment status.

Step 4

Click on the Show or hide columns icon to select any columns to be displayed or hidden from the table view anytime.

Step 5

Use the page numbers and select the number of rows per page as required for the table display.

Step 6

Use the sort or filter options to sort and filter values in the table.


Network Inventory

Before you begin

This task describes how to view inventory details on Cisco Optical Network Controller. To view or export the inventory details, follow the procedure given below.

Figure 9. Network Inventory
Screenshot of Network Inventory

Procedure


Step 1

Click Network Inventory in the left panel.

Cisco Optical Network Controller displays the Inventory tab. This tab displays all the inventory at the selected site.

Step 2

Click the node that you want to view the details of.

There is an option for selecting cascading windows for each node to view the Common Cards and the Slot Cards.

Step 3

(Optional) To export inventory data into an excel file, click Export.

Step 4

Click the Refresh button to refresh the inventory status.

Step 5

Use the filter to search using Custom Search or Quick Search options.

Note



Custom Search: Use this option to filter the search based on any particular field from the table. By selecting from the drop down list, the rows that are specific to the selected field appear in the search result. You can custom search using any of these options: Admin State, Equipment Type, Software Revision, Equipment State, Actual Equipment Type, Serial No or Site Name.

Quick Search: Use this option to search based on any value or field by typing it in the search box to fetch the related rows from the table.


Service Manager

The Service Manager is an application within the Cisco Optical Network Controller that provides a centralized view and management of network services, particularly circuits. It enables users to visualize, provision, and monitor circuits, and perform actions such as editing and deleting them.

Supported Circuit Types

  • OCH-NC

  • OCH-Trail

  • OCH-CC

GMPLS Support

  • Supports OCH-CC with NCS1004 chassis with the following cards:

    • NCS1K4-1.2T-K9

    • NCS1K4-OTN-XP

    • NCS1K4-2-QDD-C-K9

    • NCS1K4-QXP-K9

  • Support OCH-CC with NCS1014 chassis with the following cards:

    • NCS1K4-QXP-K9

    • NCS1K14-2.4T-X-K9

  • Supports OCH-CC and OCH-TRAIL with the following NCS2K Transponder/Muxponder

    • NCS2K-400G-XP (with card mode: MXP)

    • 15454-M-10X10G-LC (with card mode: TXP-10G and MXP-10x10G)

    • NCS2K-200G-CK-C (with card mode TXP-100G and MXP-10x10G)

  • Supports OCH-NC with alien wavelength

Existing CPCE circuits

Existing circuits are circuits that are already existing on devices. The configuration of these circuits is done either outside of Cisco Optical Network Controller, using Site Manager or CLI. It can be configured through a different instance of Cisco Optical Network Controller as well which manages the same network. The existing circuit's service names have the following format: onc_<SourceNode-Name>_<Source-Port>_<DestinationNode-Name>_<Destination-Port>.

Resync services

  • You can select multiple services and use the resync option to resynchronize them.

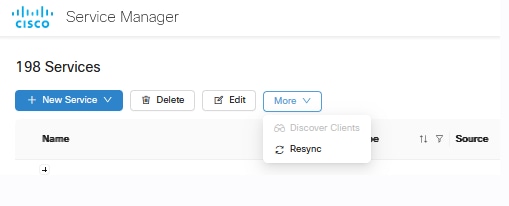

    Figure 10. Select multiple toggle
    screenshot of app
    Figure 11. Resync option for GMPLS circuits
    screenshot of app
  • Resyncing can resolve lifecycle state issues, for example, when the circuit is in PARTIAL, where clients are not discovered properly or are in an ambiguous state.

  • When multiple services are selected, the More button is replaced with a Resync button.

  • Resyncing a trail service also resyncs all its embedded OCH-CC services.

Service Manager table view toggles

  • Click Service on top toggle to toggle the Service on top mode on or off. When Service on top is enabled, the OCH-CC circuit is the main entry and its associated trail appears nested under it. When disabled, the trail becomes the main entry and the OCH-CC circuit is shown nested under it.

  • Click Select multiple toggle to toggle multiple selection in the table on or off.

    Figure 12. Service on top and Select multiple toggles
    screenshot of app

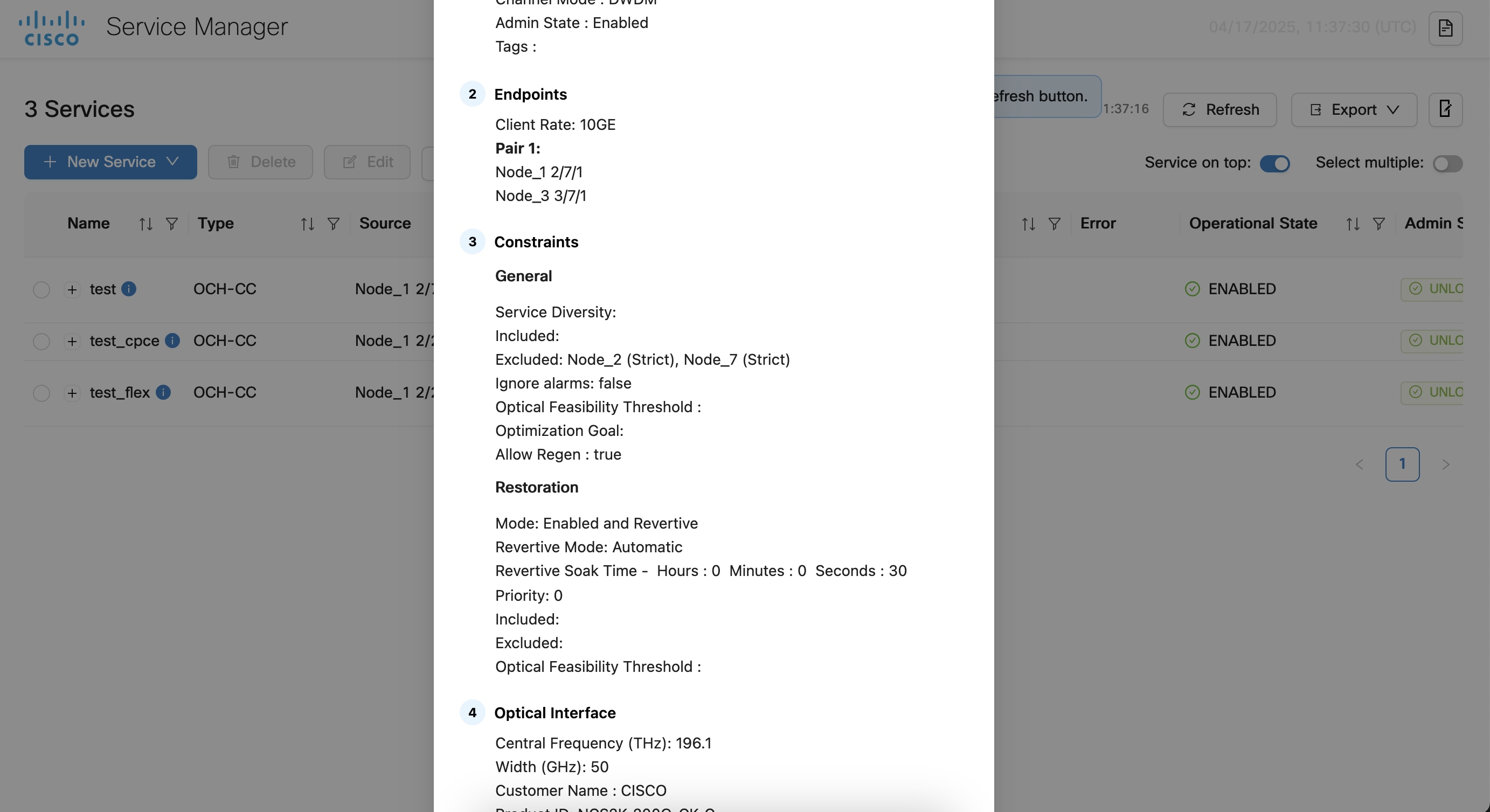

Service summary

Click i next to the name of a service to view the Summary information for a circuit. This includes all the parameters set during circuit creation or edit.

Figure 13. Service Manager
screenshot of links app

Service manager table fields

Column Values Description
Name Name of the service
Type OCH-NC Type of the service
OCH-Trail
OCH-CC
Source Source Node and Port
Destination Destination Node and Port
Control Plane GMPLS Control Plane Protocol
CPCE
Lifecycle State INSTALLED The circuit is fully provisioned and active in the network.
PLANNED The circuit configuration is defined but not yet provisioned on the network.
PENDING_REMOVAL The circuit is marked for deletion but the deletion process is not yet complete.
DELETION_IN_PROGRESS The circuit deletion process is in progress.
DELETION_FAILED The circuit deletion process failed to complete successfully.
PARTIAL The circuit is in a partially provisioned state, possibly due to missing or undiscovered components.
GMPLS_ACTIVE GMPLS circuit is successfully working, cross corrections are created, and path is available.
GMPLS_INACTIVE There is no valid path for creating the circuits due to frequency not available, inconsistent constraints, optical validation failure, etc.
GMPLS_HANDOVER The circuit is configured to be upgraded from non-GMPLS to GMPLS or GMPLS to non-GMPLS.
GMPLS_ACTIVATING GMPLS circuit activation is in progress
GMPLS_DEACTIVATING GMPLS circuit deactivation is in progress.
GMPLS_FAILED GMPLS circuit failed (i.e. link down, node down).
GMPLS_DEGRADED Circuit trail failed (i.e. PSM working or protected is down or fail).
GMPLS_RECOVERING Temporary reboot status at circuit restart.
GMPLS_REPAIRING Circuit repair is in progress (i.e. node IP changed)
GMPLS_RELEASING A downgrade from GMPLS to non-GMPLS circuit has been requested and the action is running.
GMPLS_REPAIR_NEEDED An IP address change is done on a node impacting the circuit, so the circuit must be repaired.

Note



Cisco Optical Network Controller does not support circuit repair in release 25.1.1.

GMPLS_SYNC_IN_PROGRESS GMPLS controller has acceptedthe configuration, Cisco Optical Network Controller is getting the updated data from the GMPLS controller. When a circuit is discovered in a node that is onboarded to CONC , the Lifecycle state continues in this state until CONC fetches the circuit information from the GMPLS controller.
Operational State ENABLED The circuit is active and functioning normally.
DISABLED The circuit is inactive and not functioning.
Admin State UNLOCKED The circuit is administratively enabled and available for use.
LOCKED The circuit is administratively disabled and unavailable for use.
Frequency (THz) Optical carrier frequency at which the circuit will operate within the DWDM spectrum.
Bandwidth (GHz) Bandwidth used by the circuit
Protection profile PROTECTED The circuit is configured with PSM protection to ensure service availability in case of failure.
UNPROTECTED The circuit is not configured with any protection mechanism, and may be subject to service disruption in case of failure.
Port Rate 10GE Data rate
40GE
100GE
400GE
OTU2
OTU2E
OTU4
OC192/ STM-64
FC16
FC32
Discovery Date Service discovery date
Restoration Type None No restoration is configured for the circuit.
Enabled Restoration is enabled for the circuit, and the network will automatically attempt to restore the circuit upon failure by calculating restoration path based on restoration constraints.
Restorable Alternate Restoration is enabled for the circuit, and the network will automatically attempt to restore the circuit upon failure by calculating restoration path based on restoration constraints and main path constraints alternatively.
Enabled and Revertive(Automatic) Restoration is enabled, and the circuit will automatically revert to the original (home) path after the failure is resolved and unverified alarms are manually cleared from COSM.
Enabled and Revertive(Manual) Restoration is enabled, and manual intervention is required to revert the circuit to the original (home) path after the failure is resolved.
Tags Tags attached to the Service during circuit provisioning.

Provision CPCE services

Use the following procedure to create and manage circuits.

  • The OCH-Trail must be in installed state before an OCH-CC circuit can be created.

  • When the corresponding trail is in planned state, no new OCH-CC circuits can be created.

  • The number of OCH-CC circuits that you can have per trail depends on the card mode configuration of the transponder card.

  • OCH-CC circuits inherit constraints from the parent trail.

  • Creating an OCH-CC circuit creates the associated OCH-Trail circuit automatically.

Before you begin

Table 5. Supported transponder cards and modes

Card

Modes Supported

NCS1K4-2-QDD-C-K9

MXP-SLICE: 200G, 300G, 400G trunk and 100G and OTU4 client

NCS1K4-QXP-K9

MXP-SLICE: 400G trunk with 400G and 100G client

NCS1K4-OTN-XP

MXP: 4x100G

TXP: 400G

400G trunk with 100G, 10G and OTU2 clients

NCS1K14-2.4T-X-K9

MXP-SLICE: 400G, 600G, 800G, 1T, 1.2T trunk with 100G and 400G clients

NCS1K4-1.2T-K9

MXP: 100G, 200G, 300G, 400G trunk with 100G and OTU4 client

MXP-SLICE: 2 trunks with 100G, 200G, 300G, 400G bandwidth and 100G and OTU4 client

Supports SD-FEC-27 and SD-FEC-15

NCS2K-400G-XP-LC

MXP: 400G trunk and 100G, 10G clients

FEC Modes: SD_FEC_15_DE_OFF, SD_FEC_15_DE_ON, SD_FEC_25_DE_OFF, SD_FEC_25_DE_ON

NCS2K-200G-CK-C

TXP-100G: 100G trunk and client

FEC Modes: HG_FEC_7, SD_FEC_20, SD_FEC_25_DE_OFF, SD_FEC_25_DE_ON

NCS2K-1.2T-MXP

TXPMXP: 400G Trunk and 100GE, 400GE, and OTU4 clients


Note


  • After changing the card mode for NCS1K4-1.2T-K9, resync the nodes from the Nodes page to ensure that the client ports are correctly displayed.

  • If you do not see the ports on your target nodes during endpoint selection, we recommend you perform a resync of the nodes before creating a new service.

  • If a new NCS 2000 chassis with a TXP present is added to a node already present in COSM, you must perform a resync of the node to see the endpoints during circuit provisioning.


Procedure


Step 1

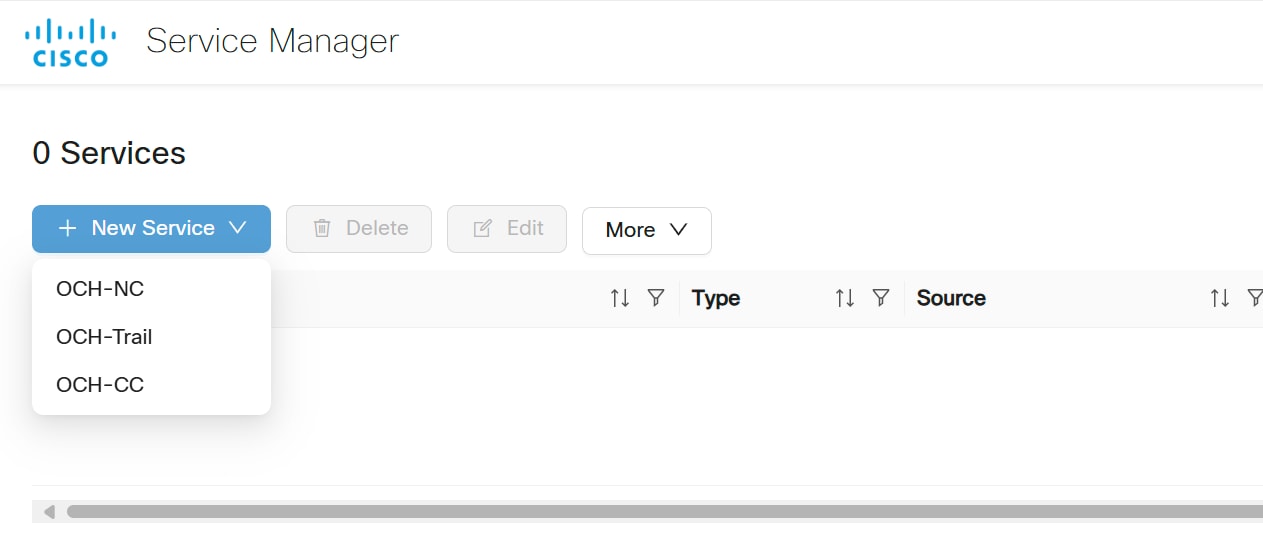

Click New Service and choose OCH-NC, OCH-Trail, or OCH-CC.

screenshot of links app

Step 2

Select OCH-NC, OCH-Trail, or OCH-CC.

Note


  • OCH-NC: An OCH-NC is a circuit established between add/drop ports on terminal OLTs (Optical Line Terminals) or ROADMs (Reconfigurable Optical Add-Drop Multiplexers). This type of circuit typically connects end-user equipment to the optical network.

  • OCH-Trail: An OCH-Trail is a circuit established between trunk ports of transponders or muxponders. This type of circuit typically transports aggregated traffic across the optical core network.

  • OCH-CC: An OCH-CC is a circuit established between cards within optical devices, such as transponders, muxponders, or ROADMs. This type of circuit facilitates internal cross-connections within the optical equipment.

Figure 14. Service Manager
screenshot of links app
Service Manager launches the new service wizard.

Step 3

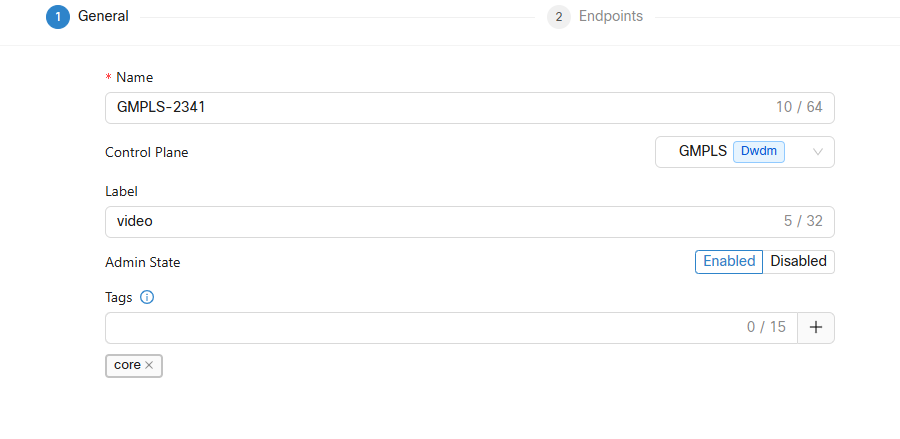

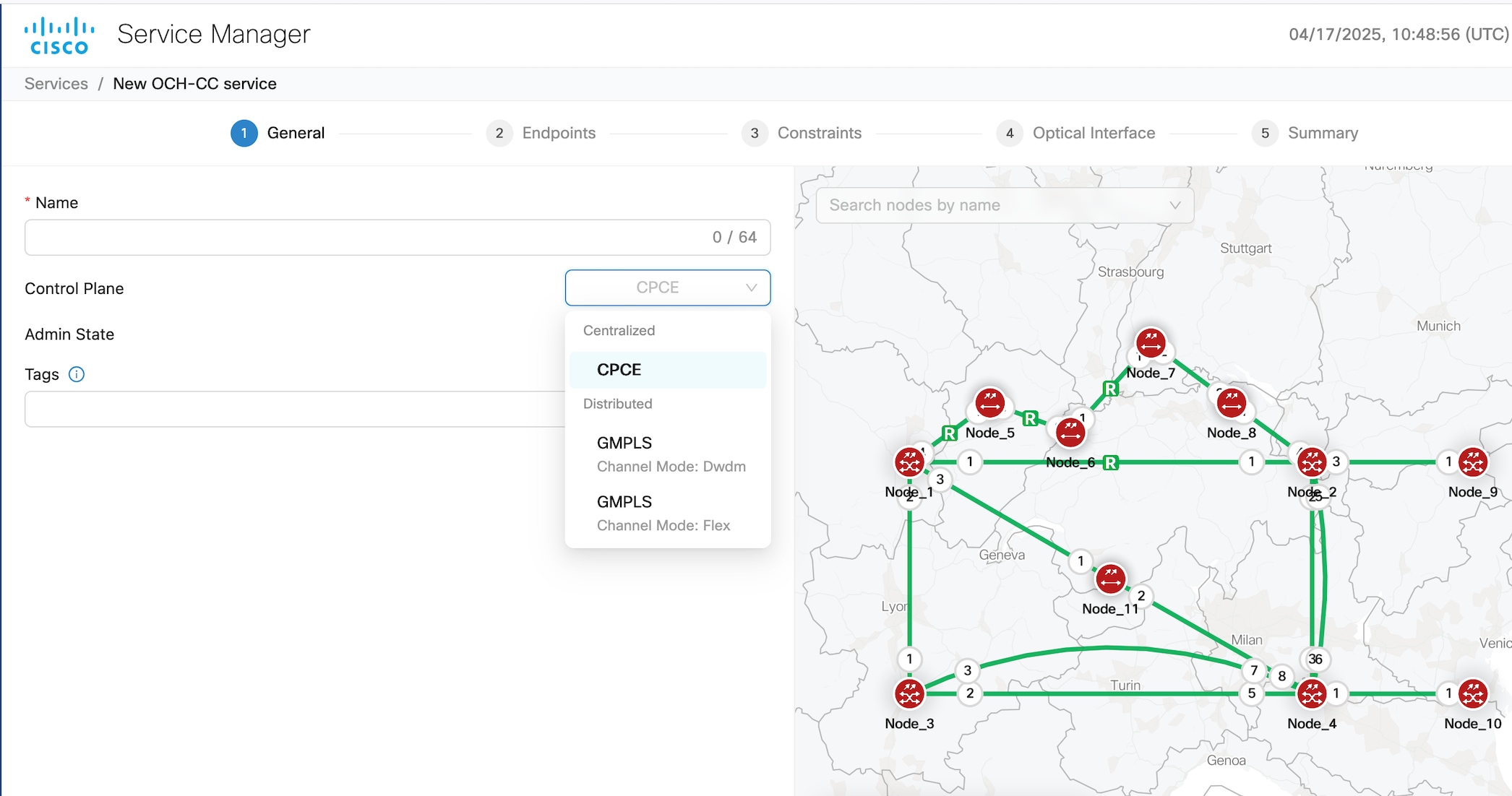

Enter the details in the General tab and click Next.

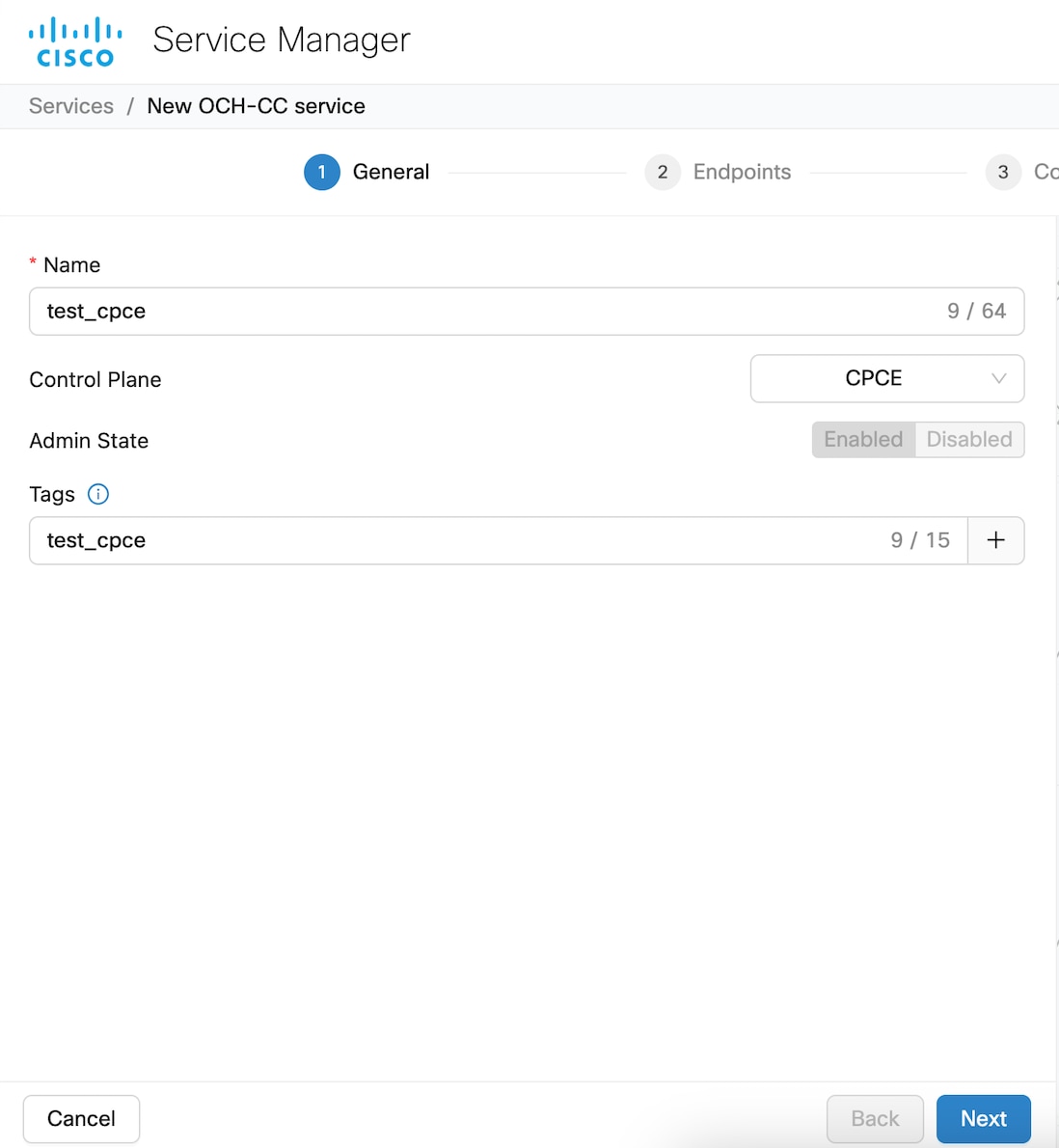

Figure 15. Service Manager
screenshot of links app
Table 6. General Parameters
Field Description Values/restrictions
Name The unique user defined name of the link. (Allowed characters are a-z, A-Z, 0-9 and _. <Space not allowed>).
Control Plane CPCE
Admin State only ENABLED is supported
Tags Tags can be attached to the Service for better management, to group them together

Note



Click + after entering a tag to add a tag. You can add multiple tags. if you click Next without clicking + the tag is not added to the service.

Step 4

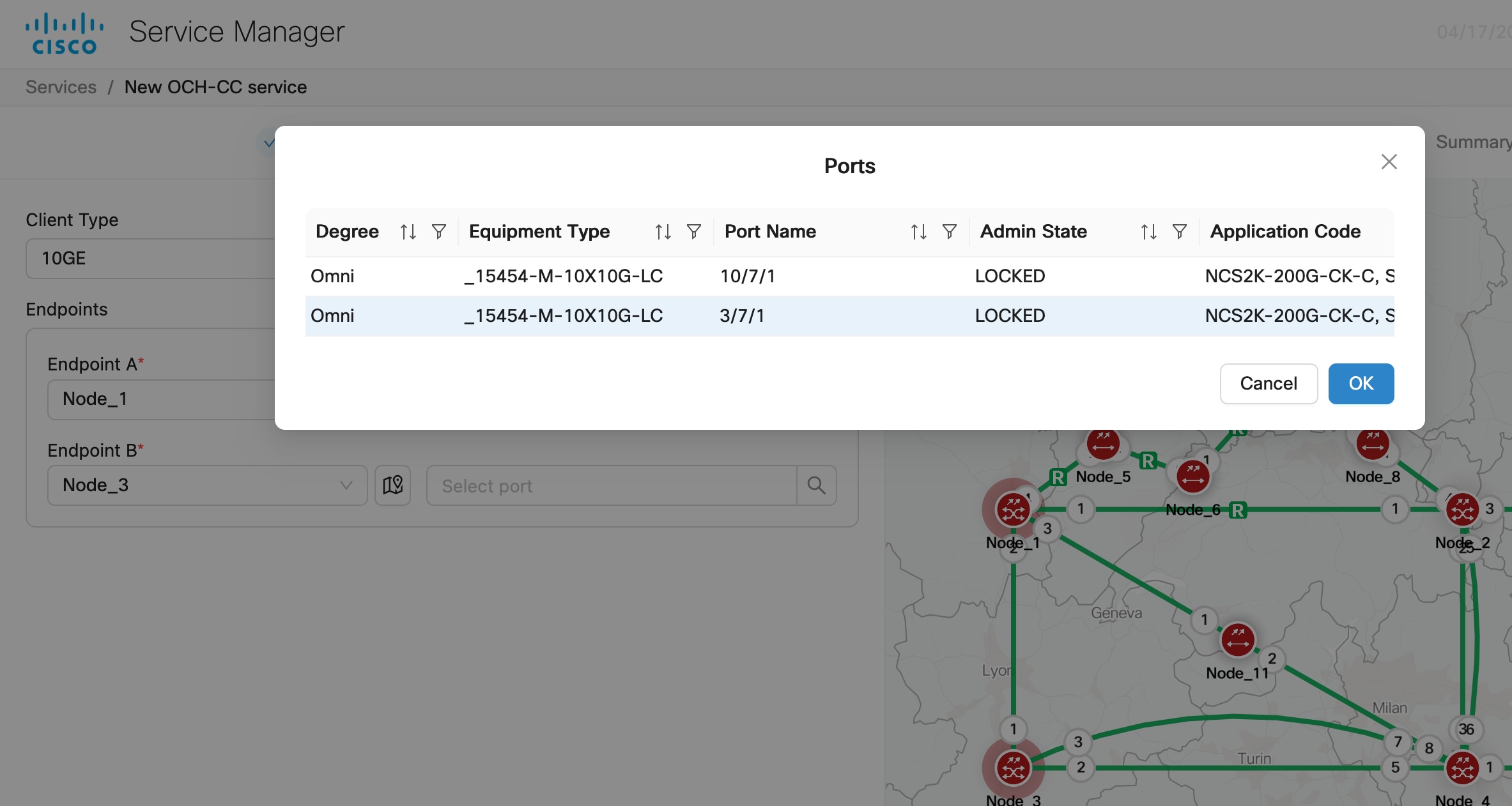

Choose a Carrier type and the endpoints of the circuit in the Endpoints tab, and click Next.

Figure 16. Service Manager
screenshot
Table 7. Endpoints Parameters
Field Description Values/restrictions
Carrier Type
Single Carrier Provision a service between 2 nodes with source and destination end points.
Multi-Carrier Provision a service between 2 nodes with multiple source and destination end points. Only for OCH-NC circuits
Endpoints
Endpoint A Node and port of first endpoint
Endpoint B Node and port of second endpoint

Note


  • Click and select any object from the map after clicking the map icon and that object's details gets added in the Endpoints automatically.

  • Click Add Endpoint to add additional endpoints to multicarrier services.

  • When you create a OCH-CC circuit for an existing trail, after selecting the first endpoint, the second endpoint is auto filled. The constraints and optical interface tabs are also skipped. You are taken directly to the summary tab. The preview option is not available.

Step 5

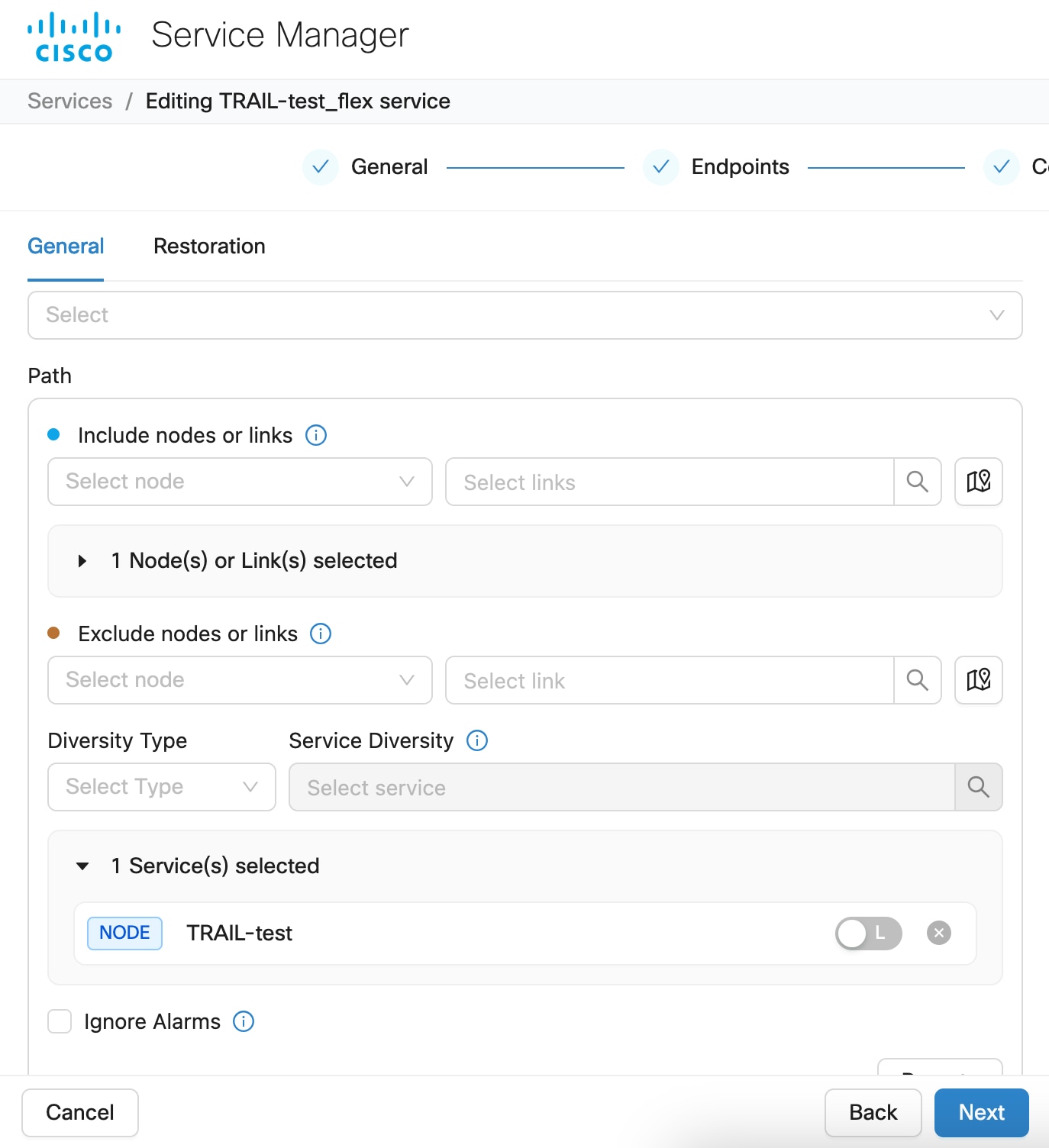

Choose the constraints in the Constraints tab, and click Next.

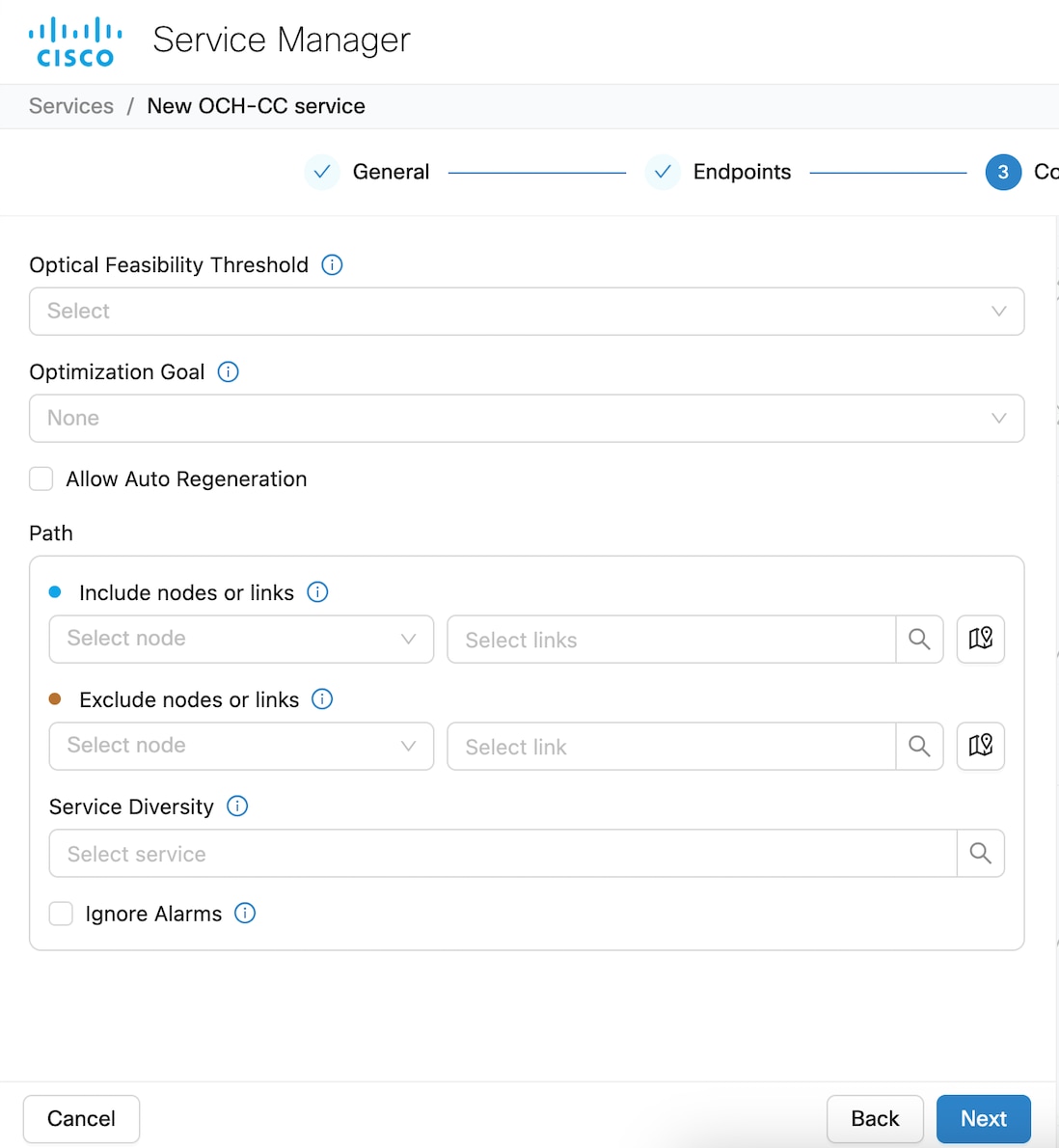

Figure 17. Service Manager
screenshot
Table 8. Constraint parameters
Field Description Values/restrictions
Optical Feasibility Threshold Indicates the optical feasibility of the link to ensure that the link is operational after provisioning. Select RED, GREEN, YELLOW or ORANGE. GREEN = mean value YELLOW = +1 sigma ORANGE = +2 sigma RED = +3 sigma
Optimization Goal Defines the mechanism for the control plane to compute optimum path depending on various criteria. LENGTH (Max): Computation criteria based on minimizing the path LENGTH HOPS(Max): Computation criteria based on minimizing the number of HOPS OSNR(Min): Computation criteria based on maximizing the OSNR
Allow Auto Regeneration Whether to allow auto regeneration
Path
Include nodes or links select list of nodes & links that has to be included by the control plane during path computation.
Exclude nodes or links select list of nodes & links that has to be excluded by the control plane during path computation.
Service Diversity Select one or more existing services from the dropdownfor the control plane to exclude the resources that the services use during path computation.
Ignore Alarms If true, Service manager ignores any alarms present on the path and continues to provision the service.

Note



Optical Feasibility Threshold assesses whether an optical channel is operational after provisioning based on its optical power and Optical Signal-to-Noise Ratio (OSNR). This assessment is represented by colors: RED, GREEN, YELLOW, or NONE.

Step 6

Choose the optical interface Parameters in the Optical Interface tab, and click Next.

Table 9. Optical interface parameters
Field Description
Wavelength
Central Frequency (THz) Choose a central frequency for the service.
Customer Name The Customer name
Product ID The product ID This is the Product ID of either the pluggable optics for the TXP card with pluggable trunk or the TXP card for the TXP card with fixed trunk.
FEC The FEC depending on the product, for example, CFEC or OFEC depending on the previous selection.
Data Rate The Data rate supported by the selected product.
Baud rate The Baud rate supported by the selected product.
Sub Mode is may appear depending on the other settings

Note


  • Click Reload application code to reload the list of the Application codes available for OCHNC provisioning for an Alien wavelength recently imported using Alien Import.

  • Click Reset to reset all the fields.

  • For OCH-trail,Optical Interface fields are auto populated and non-editable.

Clicking next takes you to the Summary tab.

Step 7

Click Preview in the Summary tab to the preview the circuit in the topology before it is created.

Step 8

Click Finish to create the circuit.

Step 9

Click OK once the circuit is provisioned successfully.

The newly provisioned circuit appears in the Service List table once the provisioning is complete. The Lifecycle State for the new circuit appears as PLANNED initially and later changes to INSTALLED.

Step 10

Select a service and click Edit to edit the circuit.

  1. Update the name.

  2. Click Save.

Step 11

Click Delete option to delete a selected service from the table.

Note



Delete each OCH-CC circuit associated with a service and then delete the OCH-Trail circuit.

Step 12

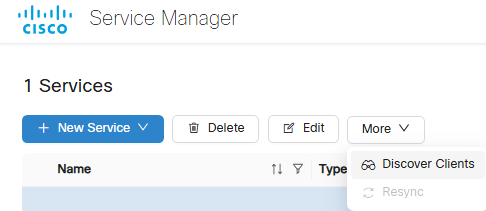

Select an OCH-Trail circuit and click More > Discover Clients to discover all OCH-CC circuits over the selected trail.

Figure 18. Service Manager
screenshot

Step 13

Click + icon after selecting any service to expand the service and view its carriers.

Carriers can be of either single or multiple service types. Multiple carriers can have the same Endpoints over different channels.

Step 14


Troubleshoot CPCE Services

The most common problems encountered while using the Service Manager application is given below.

Some PCE error codes which you might encounter while provisioning the service are given below.

  • [PCE-PR00003] - Failed for waves selector: [PCE-EXC00002] - Carrier 1 source wave (XXXXXXXX-XXXXX (XXXX.XX)) and Destination one (XXXXXXXX-XXXXX (XXXX.XX)) differs

  • [PCE-WAL00048] - Requested central frequency XXX,XXX is out of supported range

  • [PCE-WAL00026] - No free spectrum available to allocate MCH with central frequency XXX.XXX.

  • [PCE-PR00001] - No routes available

  • [PCE-WAL00026] - No free spectrum available to allocate MCH with central frequency XXX.XXX.x

  • [PCE-PR00026] - Include constraint [Site uuid] not matched

  • [PCE-PR00018] - Optical validation failed: ZONE_RED worse than ZONE_GREEN

  • [PCE-PR00004] - Failed to evaluate optical path: [PCE-OV00016] - [Fiberspan UUID]: Invalid fiberType: [null value]

The probable scenarios in which the services can go to the Pending Removal State due to configuration failures and recovery steps are given below:

Failure Scenario Cisco ONC Error Recovery Step
COSM Node gets disconnected as soon as a service is provisioned in CONC Config Failure

Delete the circuit and reprovision from the CONC.

COSM nodes are in sync state during CONC provisioning.

Config Failure

Check the COSM node and wait for synchronisation to complete.

NCS 1010 Devices under COSM Nodes are locked

Config Failure
  • Check COSM and unlock the NCS 1010 device.

  • Verify COSM synchronisation status to be completed.

COSM node Restart during provisioning Config Failure

Wait for CONC to re-establish the connection successfully after restart and its status moved to Discovery Completed in CONC.

Reload of the NCS 1010 device during provisioning from CONC

Config Failure
  • Wait for the reload to complete on NCS 1010 device.

  • Verify the synchronisation is complete on COSM Node.

  • Wait for CONC to reestablish the connection successfully with COSM Node and its status moved to Discovery Completed.

Stale entries present in NCS 1010 while no cross connects present on COSM Nodes Config Failure
  • Clear the NCS1010 stale entries.

  • Wait for COSM node to complete the synchronisation.

Xcons Present in COSM Node along with NCS 1010 Config Failure
  • Clear the XCONS on COSM and NCS 1010.

  • Wait for COSM node to complete the synchronisation and Discovery completed status.

Provision GMPLS services

Use the following procedure to create and manage circuits.

Before you begin

Table 10. Supported transponder cards and modes

Card

Modes Supported

NCS1K4-2-QDD-C-K9

MXP-SLICE: 200G, 300G, 400G trunk and 100G and OTU4 client

NCS1K4-QXP-K9

MXP-SLICE: 400G trunk with 400G and 100G client

NCS1K4-OTN-XP

MXP: 4x100G

TXP: 400G

400G trunk with 100G, 10G and OTU2 clients

NCS1K14-2.4T-X-K9

MXP-SLICE: 400G, 600G, 800G, 1T, 1.2T trunk with 100G and 400G clients

NCS1K4-1.2T-K9

MXP: 100G, 200G, 300G, 400G trunk with 100G and OTU4 client

MXP-SLICE: 2 trunks with 100G, 200G, 300G, 400G bandwidth and 100G and OTU4 client

Supports SD-FEC-27 and SD-FEC-15

NCS2K-400G-XP-LC

MXP: 400G trunk and 100g, 10G clients

FEC Modes: SD_FEC_15_DE_OFF, SD_FEC_15_DE_ON, SD_FEC_25_DE_OFF, SD_FEC_25_DE_ON

NCS2K-200G-CK-C

TXP-100G: 100G trunk and client

FEC Modes: HG_FEC_7, SD_FEC_20, SD_FEC_25_DE_OFF, SD_FEC_25_DE_ON

15454-M-10X10G-LC=

MXP 10x10G (with backplane connection to NCS2K-200G-CK-C) 100G trunk and 10G, OTU2, OTU2e, and OC192/STM64 clients


Note


Cisco Optical Network Controller supports OCH-CC circuits between client ports that have the same port number at both endpoints from release 25.1.1.


Procedure


Step 1

Click New Service and choose OCH-NC, OCH-Trail, or OCH-CC.

screenshot of links app

Step 2

Select OCH-NC, OCH-Trail, or OCH-CC.

  • OCH-NC: An OCH-NC is a circuit established between add/drop ports on terminal OLTs (Optical Line Terminals) or ROADMs (Reconfigurable Optical Add-Drop Multiplexers). This type of circuit typically connects end-user equipment to the optical network.

    Note



    You must create an LMP from COSM GMPLS > LMP panel before creating an OCH-NC circuit.

  • OCH-Trail: An OCH-Trail is a circuit established between trunk ports of transponders or muxponders. This type of circuit typically transports aggregated traffic across the optical core network.

  • OCH-CC: An OCH-CC is a circuit established between cards within optical devices, such as transponders, muxponders, or ROADMs. This type of circuit facilitates internal cross-connections within the optical equipment.

Service Manager launches the new service wizard.

Step 3

Enter the details in the General tab and click Next.

Figure 19. Service Manager
screenshot of links app
Table 11. General Parameters
Field Description Values/restrictions
Name The unique user defined name of the link. (Allowed characters are a-z, A-Z, 0-9 and _. <Space not allowed>).
Control Plane

GMPLS Dwdm or GMPLS Flex

Label

This label is assigned to the NCS 2000 cross-connects.

A label is autogenerated if the field is left blank.
Admin State The admin state of the service Enabled or Disabled
Tags Tags can be attached to the Service for better management, to group them together

Step 4

Choose a client type and the endpoints of the circuit in the Endpoints tab, and click Next.

Figure 20. Service Manager
screenshot
Table 12. Endpoints Parameters
Field Description Values/restrictions
Client Type Select the client type 10GE, 40GE, 100GE, 400GE, OTU2, OTU2E, OTU4, OC192/STM64
Endpoints
Endpoint A Node and port of first endpoint
Endpoint B Node and port of second endpoint

Note


  • Click and select any object from the map after clicking the map icon and that object's details gets added in the Endpoints automatically.

  • The port selection list shows the ports matching the client type selection.

Step 5

Choose the constraints in the Constraints > General tab, and click Next.

Figure 21. Service Manager
screenshot
Table 13. General constraints
Field Description Values/restrictions
Optical Feasibility Threshold Indicates the optical feasibility of the link to ensure that the link is operational after provisioning. Select RED, GREEN, YELLOW or ORANGE. GREEN = mean value YELLOW = +1 sigma ORANGE = +2 sigma RED = +3 sigma
Path
Include nodes or links select list of nodes & links that has to be included by the control plane during path computation.
Exclude nodes or links select list of nodes & links that has to be excluded by the control plane during path computation.

Diversity Type

Choose the type of service diversity

Node, link, or srlg

Service Diversity Select one or more existing services from the dropdownfor the control plane to exclude the resources that the services use during path computation.
Ignore Alarms If true, Service manager ignores unverified alarms present on the path and continues to provision the service.

Note



Optical Feasibility Threshold assesses whether an optical channel is operational after provisioning based on its optical power and Optical Signal-to-Noise Ratio (OSNR). This assessment is represented by colors: RED, GREEN, YELLOW, or NONE.

Step 6

Choose the constraints in the Constraints > Restoration tab, and click Next.

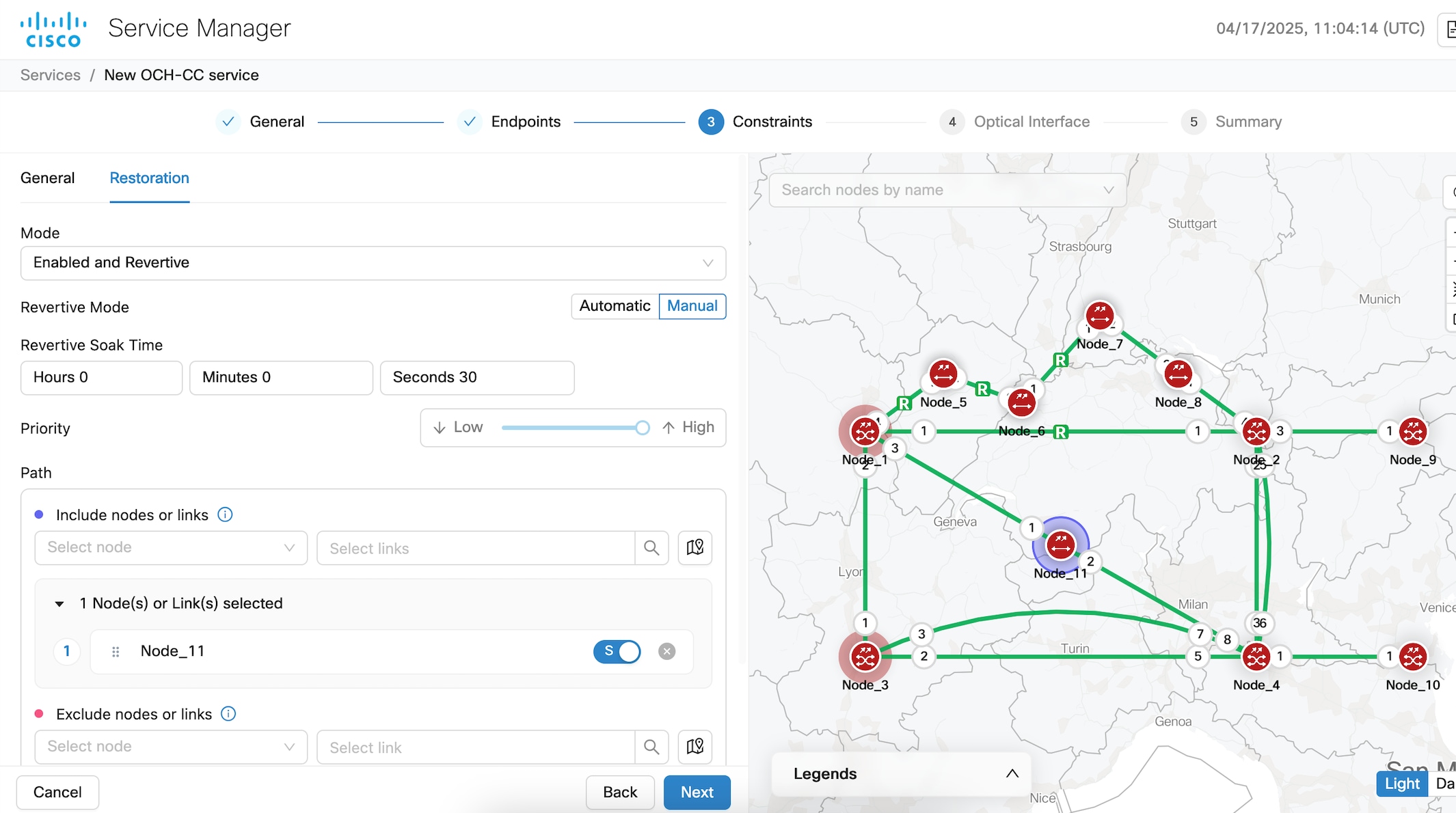

Figure 22. Service Manager
screenshot
Table 14. Restoration constraints
Field Description Values/restrictions
Mode

None, Enabled, Restorable Alternate, Enabled and Revertive

Revertive Mode Specifies if the revert to main path after it up after a restorationshould happen automatically or manually.

Automatic, Manual

Revertive Soak Time Specifies the setup time for the restoration path. This parameter is only applicable for automatic restoration. It is the time in Hours, Minutes and Seconds for the network to switch to the restored path.

Up to 23 hours 59 minutes and 59 seconds

Priority

7—0

0 is the highest priority.

Path
Include nodes or links select list of nodes & links that has to be included by the control plane during path computation.
Exclude nodes or links select list of nodes & links that has to be excluded by the control plane during path computation.
Optical Feasibility Threshold Indicates the optical feasibility of the link to ensure that the link is operational after provisioning.

Select RED, GREEN, YELLOW or ORANGE.

GREEN = mean value

YELLOW = +1 sigma

ORANGE = +2 sigma

RED = +3 sigma

Note



Optical Feasibility Threshold assesses whether an optical channel is operational after provisioning based on its optical power and Optical Signal-to-Noise Ratio (OSNR). This assessment is represented by colors: RED, GREEN, YELLOW, or NONE.

Step 7

Choose the optical interface Parameters in the Optical Interface tab, and click Next.

Table 15. Optical interface parameters
Field Description
Wavelength
Central Frequency (THz) Choose a central frequency for the service.

Width

Bandwidth used by the circuit

Customer Name The Customer name
Product ID The product ID This is the Product ID of either the pluggable optics for the TXP card with pluggable trunk or the TXP card for the TXP card with fixed trunk.
FEC The FEC depending on the product, for example, CFEC or OFEC depending on the previous selection.
Data Rate The Data rate supported by the selected product.
Baud rate The Baud rate supported by the selected product.
Sub Mode May appear depending on the other selections

Note


  • For OCH-trail,Optical Interface fields are auto populated and non-editable.

Clicking next takes you to the Summary tab.

Step 8

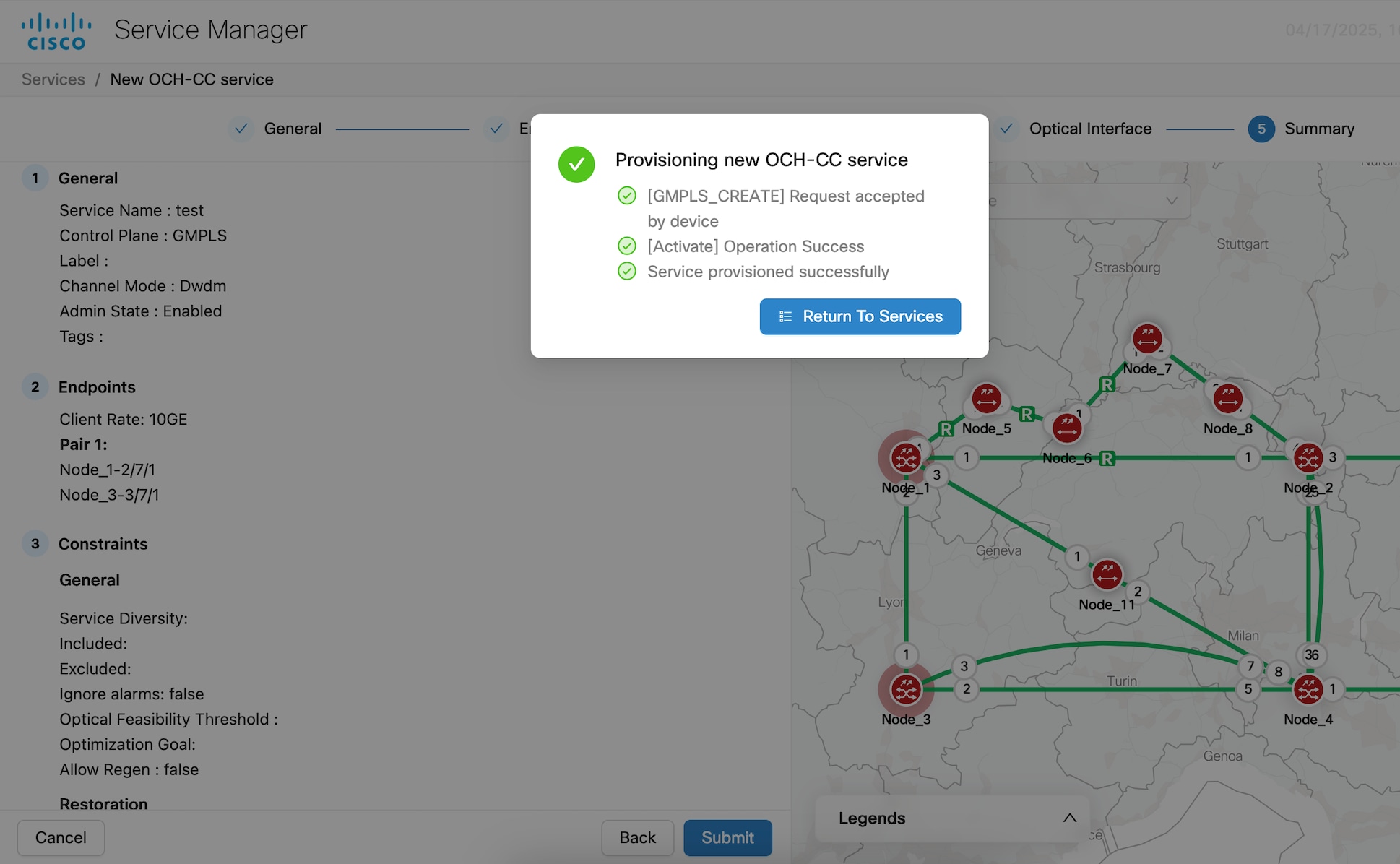

Click Finish to create the circuit.

Figure 23. Service Manager
screenshot

Step 9

Click Return To Services after the circuit is provisioned successfully.

The newly provisioned circuit appears in the Service List table once the provisioning is complete. The Lifecycle State for the new circuit appears as PLANNED initially and later changes to INSTALLED.

Step 10

Select a service and click Edit to edit the circuit.

  1. Go to Constraints > General and update the constraints. Click Reroute after updating contraints to reroute the circuit.

    A status pop-up appears showing the progress of the reroute process.
  2. Go to Constraints > Restoration and update the constraints.

  3. Click Upgrade Restored to make a restored circit path the main circuit path.

  4. Click Revert Restored to revert to the main path when Revertive mode is Manual.

    Clear unverified alarms from COSM before performing this step.

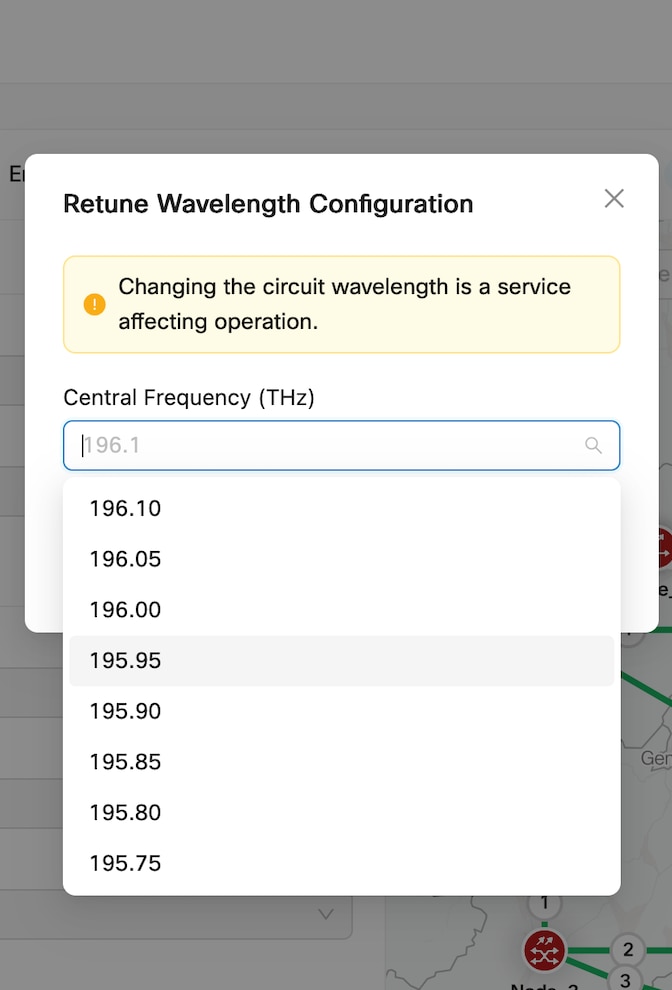

  5. Go to Optical Interface, change the wavelength parameters, and click Retune to change the wavelength.

    Figure 24. Service Manager
    screenshot

Note



These options are available only for GMPLS Trails and OCH-NC circuits.

For OCH-CC circuits you can edit only the name and Admin state.

Step 11

Click Delete to delete a selected service from the table.

The Lifecycle state changes to DELETION_IN_PROGRESS and then the service is removed from the service list when deletion is complete.

Note



The service may go to PARTIAL state during the deletion. This is a transient state before the circuit is deleted.

The status may change to DELETION_FAILED if the operation fails. Delete operation may fail in the following scenarios:

Table 16. Deletion failure scenarios

Reason

Troubleshooting

Cross connect was deleted outside Cisco Optical Network Controller

  • Retry deleting the service

  • Use the resync option in Service Manager and try again

  • Perform an full network resync and try again

  • Try deleting the service from Cisco Transport Controller

Node busy

Wait for any operations on the node to complete and retry

Node disconnected

Reestablish connectivity to the node

COSM lost connection to the subtended device

Reestablish COSM connectivity to the device and try again

Step 12

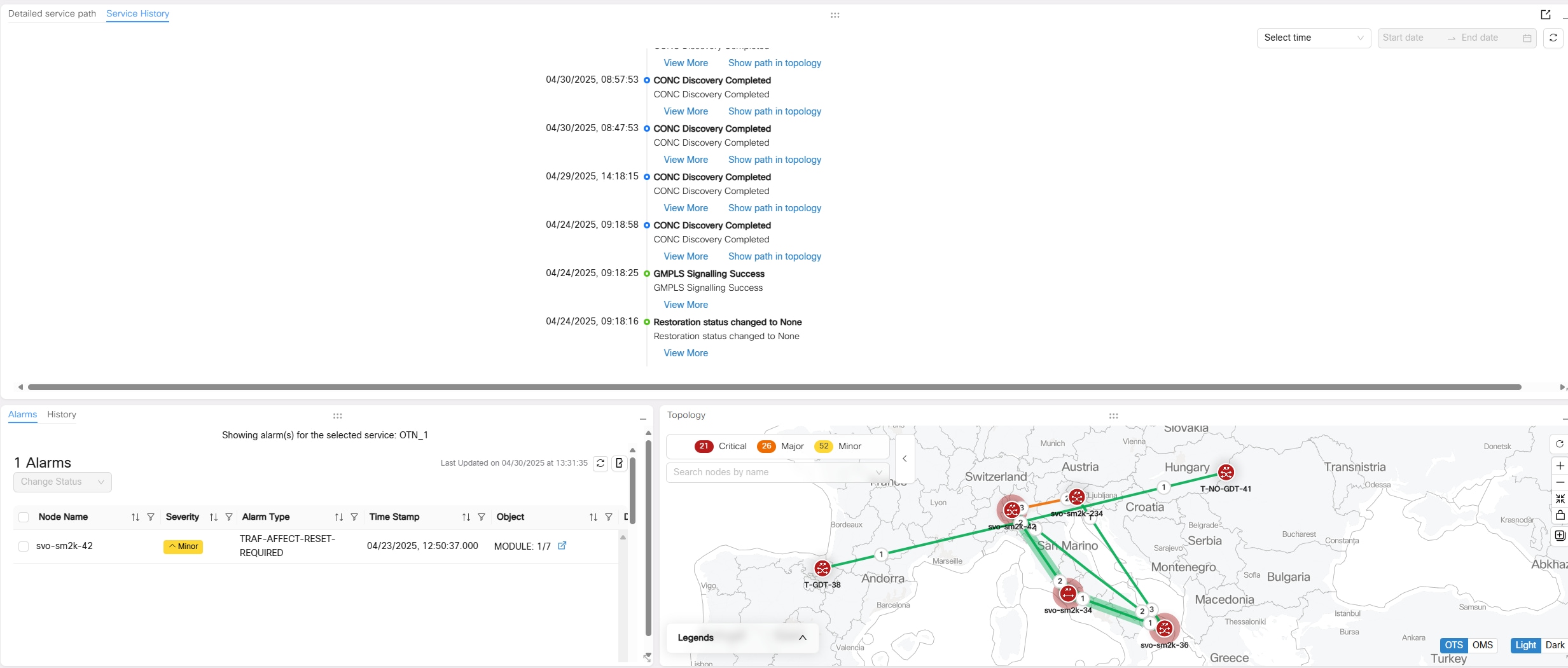

Click + icon after selecting any service to expand the service and view its carriers.

Carriers can be of either single or multiple service types. Multiple carriers can have the same Endpoints over different channels.


These are some errors you may come across when trying to provision a GMPLS circuit. Use the information to troubleshoot GMPLS errors.

Error Description
No wavelength available on path

The optical path in the node terminates on a port not matching the requested protection mode.

Reroute Failed

The requested action can not be executed as the selected circuit is already in rolled state

Optical Validation The partial path evaluated during route selection is outside the receiver OSNR threshold.
No client port available on trunk port

No available Client port matching the request constraints is found connected to the TXP Trunk port

No available optical path in node No wavelength is available on the optical path.

Alarms

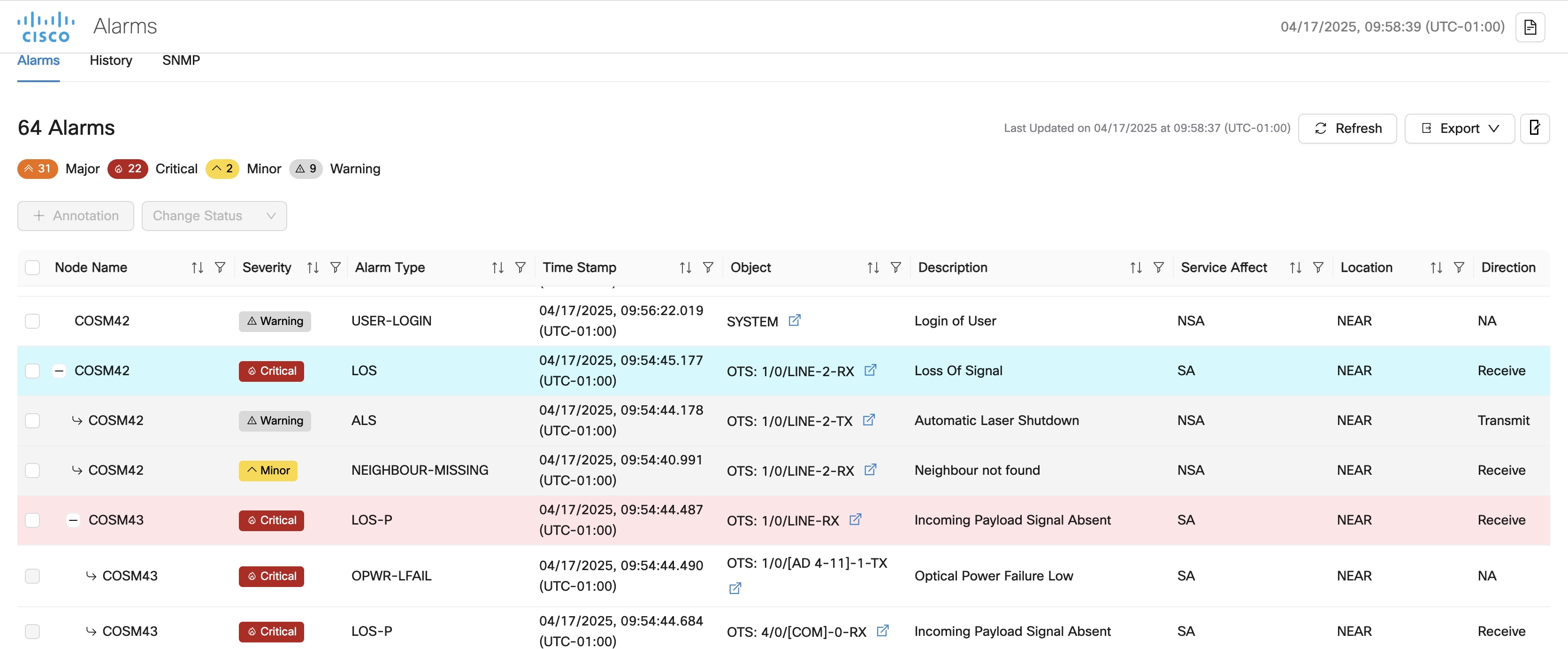

The Alarms screen displays all the alarm details for each node based on the severity level. You can view both the active alarms and the previously active alarms in this screen.

Figure 25. Alarms
Screenshot of Alarms

For viewing the active alarms using Alarms tab and the other for previous alarms using History tab.

Figure 26. Alarms History
Screenshot of Alarms History
Table 17. Alarm Table Fields
Field Name Description Example/Values
Node Name The name of the node where the alarm originated. Node identifier/name (e.g., NODE-001)
Severity The severity level of the alarm. Critical, Major, Minor, Warning, Cleared
Alarm Type The type of alarm. LOSP, NODE-DISCONNECT
Time Stamp The date and time when the alarm was raised. YYYY-MM-DD HH:MM:SS.SSS
Object The object associated with the alarm. NODE: Node_1, SYSTEM, CHASSIS: 5
Description A detailed description of the alarm. Text describing alarm details
Alarm Category The category of the alarm. See Alarm Categories. CONC_SYSTEM, SECURITY, EQUIPMENT
Service Affect Indicates whether the alarm is service affecting or non-service affecting. NSA, SA
Location The physical location of the affected equipment.
Direction The direction of the alarm. Receive,
User Tag User-defined tags for categorizing and filtering alarms.

Note


  • User tags propagate from parent to child components of a chassis by default. A user tag on a child component overrides the inherited tag from its parent.

  • User Tag information comes from Cisco Optical Site Manager. See User Tags.

  • User tags are not supported on system-level and device alarms.

  • User tags can apply CLLI (Common Language Location Identifier), a standardized 11-character code that uniquely identifies geographic locations and equipment for network sites, network support sites, and customer locations.

Custom tags/labels
User Notes User-added notes or comments related to the alarm. Free-form text
Acknowledge Indicates whether the alarm has been acknowledged. Acknowledged, Unacknowledged
UUID Unique Universal Identifier for the alarm. UUID string
Correlation Type The type of correlation applied to the alarm. Network Level, Node Level

Note


You can filter the alarms table based on the fields. You can filter alarms to show only network-level or node-level correlated alarms.


Procedure


Step 1

Click Alarms in the left panel.

Step 2

Select the Alarms tab to view the active alarms of each node.

Step 3

Select an alarm or multiple alarms and click Annotation to add user notes to any alarm

  1. Enter the user notes and click Add.

    Note



    You can add a user note to up to 500 alarms at once. You can add multiple notes to multiple alarms in the form of a list.

    This will send a notification for the alarm.

Step 4

Click Change Statusand choose an option from the dropdown list to acknowledge or unacknowledge alarms.

Step 5

Click History to view the inactive or previous alarms. The details of each alarm based on each node and alarm type are displayed in the form of a cascading list and tables. Use the Custom Date Range Custom Date Range drop down option to view the history alarms based on different dates or time periods.

Figure 27. Alarm History Expanded View
Screenshot of Alarm History Expanded View

Choose a time period for which you want to view the alarm history from the Select Time period drop down list, or choose a custom date range.

The history displays both cleared and active alarms for the selected circuit within the specified time range.

Note


  • The maximum time period is 3 months. If you select a time range more than 3 months using custom date range, Cisco Optical Network Controller throws an error.

  • Alarm history queries are rate limited. You can query up to 5 alarms history in a minute.

Step 6

Click any cross-launch icon available under the Object column for any node to cross-launch to the corresponding Cisco Optical Site Manager panel.

Step 7

Click Export to export the alarms details.

Note



You can export the table content to an excel file using the Table View option which has only the visible portion of the table appearing in the file or export the entire table content at once.

Step 8

Click Refresh button to refresh the alarms status.

Note



If you apply a filter and click the Refresh button, the status is refreshed as per the filter you have applied.

Step 9

Use the Filter option by clicking on the filter icon appearing in each column.

Note


  • The filter option allows you to search the alarm details based on the selected filter.

  • When you apply any filter in the Alarms screen, the Critical, Major, Minor and Warning counters they do not update their values as per the individual status of the alarms but only the count of each type of alarm.

Step 10

Use the Sort option by clicking on the sort icon appearing in each column.

Note



The sort option allows you to sort the alarm details based on the order you have selected.

Step 11

Click on Critical, Major, Minor, Warning, and Cleared alarm types to filter and display the alarms belonging to each type.

Step 12

Use the Acknowledge column in the table to view the acknowledged or unacknowledged alarms.

Note


  • To acknowledge or unacknowledge any particular alarm, select the node from the table and then click on Change Status. From the drop down, select Acknowledge or Unacknowledge option to acknowledge or unacknowledge the alarm of the selected node.

  • If an alarm is acknowledged, it appears with a green check mark in the table.

  • Acknowledged alarms also display the date and time-stamp details.

  • Up to 500 alarms can be acknowledged or unacknowledged at once.

Step 13

Use the User Notes column in the table to view the user notes added by any user.

Note


  • To add a user note, select the node and click on Annotation option. Enter the user note details and click on Add. The newly added user note appears in the User Notes column in the table.

  • Multiple user notes can be added to the same node or alarm.

  • If you click on the user notes icon in the User Notes column, it will display all the user notes added for the selected node or alarm.

Figure 28. User Notes
Screenshot of User Notes

Network Level Alarm Correlation

The Network Level Alarm Correlation (NLAC) in Cisco Optical Network Controller is designed to reduce alarm noise and improve troubleshooting efficiency by correlating related alarms and suppressing redundant ones. When a root cause alarm is identified at the network level, NLAC suppresses all subtending alarms associated with that root cause, providing a clearer view of the network's health and focusing operator attention on the most critical issues.


Note


  • The node or site level correlation is done by Cisco Optical Site Manager and the network level correlation is done by Cisco Optical Network Controller.

  • From Cisco Optical Network Controller release 25.1.1, NLAC works over a a single OMS domain. Alarm correlation does not cover alarms across multiple OMS domains.


Alarm Hierarchy Display

  • The alarm display presents a hierarchical view of correlated alarms.

  • The network level root cause alarm is displayed at the top level and is higlighted in blue color.

  • Subtending alarms are displayed as children of the root cause alarm, accessible by clicking a plus (+) icon.

  • Site-level correlated alarms are displayed at the second level of the hierarchy.

  • The site level root cause alarm is in the second level and is higlighted in red color.

  • Alarms correlated at the node level cannot be acknowledged or have user notes added in Cisco Optical Network Controller.

Figure 29. Alarms History
Screenshot of Alarms History

Alarm Correlation

Alarm correlation takes place at the network level and at the site level. Network level alarm correlation is performed by Cisco Optical Network Controller. Site level correlation is performed by COSM.

When a LOS alarm on Line is identified as the root cause, it suppresses the following alarms. This correlation is performed by Cisco Optical Network Controller. Site level correlation is independent of network level correlation. You can see site level root cause alarms and suppressed alarms without a network level root cause alarm.

Table 18. Alarms suppressed by LOS on line
Alarm Object Type
LOS-P LINE
LOS-P OSC
ALS LINE
PARTIAL-TOPOLOGY LINE
APC-BLOCKED LINE
NEIGHBOUR-MISSING LINE
LOS-O LINE
LOS-O OSC

Note


  • Alarms that are the root cause display the + icon next to them and when you click this icon it displays all the suppressed alarms.

  • Links and nodes that have the suppressed alarms are not included in the summary and list of alarms in Workspaces, Service Assurance and Topology.

  • A link with suppressed alarms does not consider a suppressed alarm as its highest severity alarm.

  • You cannot acknowledge alarms that Cisco Optical Site Manager correlates from Cisco Optical Network Controller

  • Filters on the alarm table do not work for supppressed alarms. You cannot see suppressed alarms when you use a filter.


Benefits of Using NLAC

The benefits of using NLAC are:

  • Reduced Alarm Noise: NLAC significantly reduces the number of alarms displayed, making it easier for operators to identify and address critical issues.

  • Quick Fault Isolation: Helps in quickly identifying and isolating the root cause of network issues.

  • Improved Network Reliability: By correlating alarms effectively, it enhances the overall reliability and performance of the network.

  • Simplified Troubleshooting: Makes it easier for network administrators to troubleshoot and resolve issues by providing clear alarm correlations.

Acknowledged Alarm Mute

It is now possible to mute low priority alarms and disable them from appearing in the Topology, Service Assurance, Network Monitoring, and Circuit Monitoring screens.

Purpose of Acknowledged Alarm Mute

By enabling the Mute Acknowledged Alarms toggle switch option to True, you can hide the acknowledged alarms and disable them from appearing in the Workspaces, Service Assurance and Topology summaries and alarms lists, even if they are available in the Alarms application.

Benefits of Using Acknowledged Alarm Mute Option

The acknowledged alarm mute option allows you to have only the selected alarms appearing in the screen, instead of the entire set of all the acknowledged alarms. This helps in reducing unwanted clutter on the screen. As all the unnecessary acknowledged alarms that you do not want to be displayed can be hidden using this option.

Muting the Acknowledged Alarms

To mute the alarms on the screen:

  1. Acknowledge the alarm from the Alarm screen.

  2. Toggle the Mute Acknowledged Alarms button to True.


Note


  • Once an alarm is acknowledged, and the toggle switch button is set to True, the alarm will no longer be visible in the Topology, Service Assurance, Network Monitoring, and Circuit Monitoring screens.

  • Node and link colors take the color of the highest severity unacknowledged alarms on each node and link.


Notifications for Acknowledged Alarm Mute

Whenever the alarms are acknowledged and muted, related notifications are sent on the screen. The scenarios for the notifications are as given:

  • Notifications are sent to inform all users of any toggle changes, prompting them to refresh their pages to see updates.

  • When an alarm is acknowledged and the Mute Acknowledged Alarms button is set to True, notifications are sent updating device and link summaries. This occurs only if 10 or fewer alarms are acknowledged.

  • Whenever a new alarm is raised, cleared or updated new notifications are sent. But when an alarm is cleared, its acknowledgement status is lost due to which you must reset it back again.

  • Acknowledged alarms are excluded from the Topology, Service Assurance, Network Monitoring and Circuit Monitoring applications when the Mute Acknowledged Alarms toggle switch is set to True.


    Note


    • A restriction is placed on the number of alarms that can be acknowledged at once. This is to ensure a single notification is sent, prompting users to refresh their pages.

    • When you select the circuit, the respective alarms in the circuit that are not acknowledged are displayed when the Mute Acknowledged Alarms is set to ON. In the Topology screen you will be able to view the count of such alarms. In the Circuit Monitoring screen you will be able to see these alarm details.

    • The Mute Acknowledged Alarms option can be used in the Network Monitoring application as well.

    • Only the admin user or the supervisor with admin access can mute the acknowledged alarms using the Mute Acknowledged Alarms toggle switch.


Figure 30. Mute Acknowledged Alarms in Topology
Screenshot of Mute Acknowledged Alarms in Topology

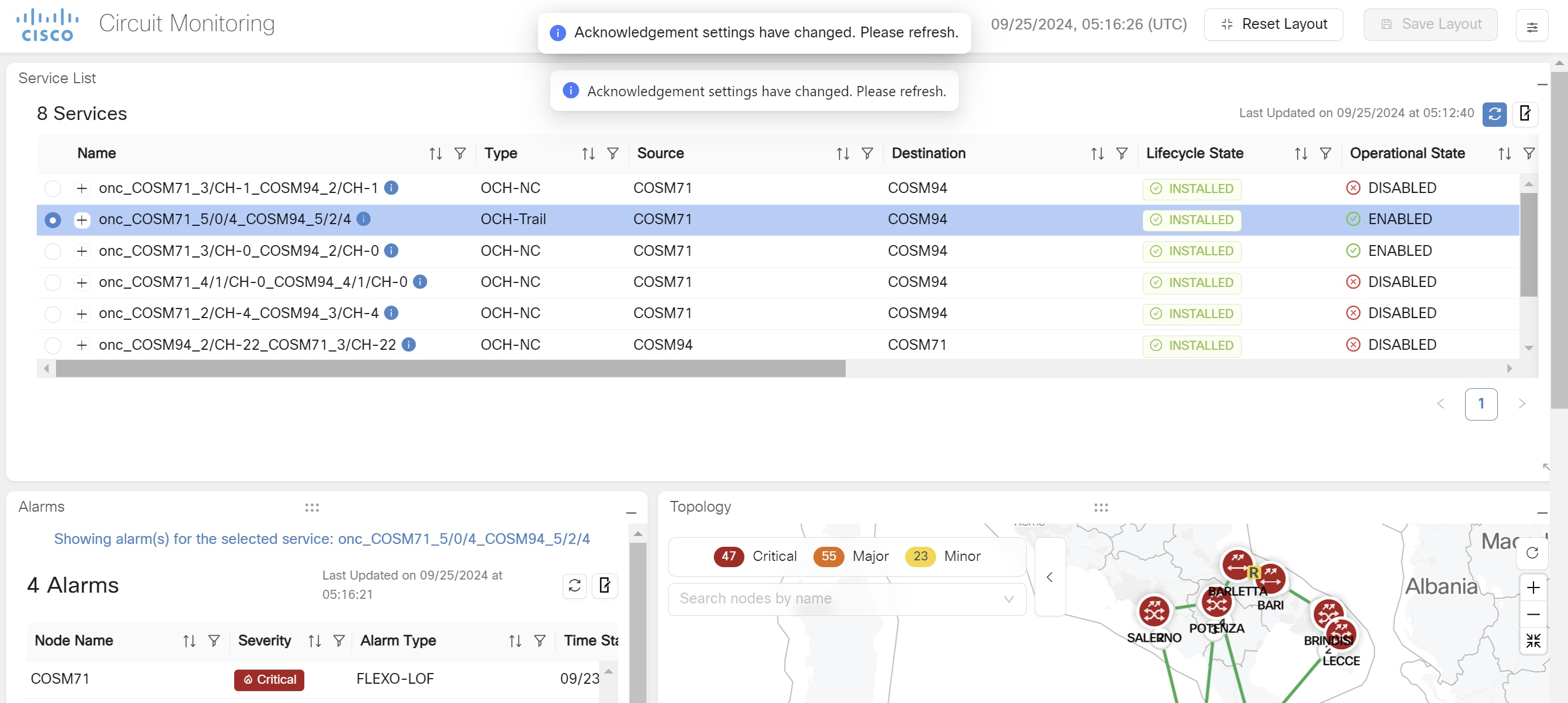

Figure 31. Mute Acknowledged Alarms in Circuit Monitoring
Screenshot of Mute Acknowledged Alarms in Circuit Monitoring

SNMP Traps and Alarm Filters

The SNMP tab under the alarms app, allows Cisco Optical Network Controller to send alarm traps to external SNMP managers. This enables integration with external monitoring systems and provides a mechanism for forwarding alarm information. Cisco Optical Network Controller supports both SNMP v2c and v3.

screenshot of ALarms app

Alarms and Events

An event is a distinct incident that occurs at a specific point in time, such as a port status change, or a device becoming unreachable. Events can indicate an error, failure, or exceptional condition in the network. Events can also indicate the clearing of those errors, failures, or conditions. Events have associated severities which you can be adjusted.

An alarm is a response to one or more related events. Only certain events generate alarms. Alarms have a state (cleared or not cleared) and a severity (Critical, Major, Minor, and so forth). An alarm inherits the severity of its most recent event. Alarms remain open until a clearing event is generated (or if the alarm is manually cleared).


Note


Cisco Optical Network Controller does not support notification replay. Hierarchical controllers miss notifications when Cisco Optical Network Controller is down or not reachable.


SNMP manager configuration

  • Supports configuration of up to four SNMP managers.

  • Supports both UDP and TCP protocols for trap transmission.

  • Allows configuration of SNMP v2c and v3 managers.

Alarm filtering

  • Provides detailed filter configuration options to control which alarms are sent to each SNMP manager.

  • Supports filtering by alarm severity (Critical, Major, Minor, Warning).

  • Supports filtering by alarm type (e.g., Cisco Optical Network Controller generated alarms, circuit alarms, device alarms, restoration alarms).

  • Allows exclusion of specific alarm types to avoid overwhelming OSS systems.

  • Provides separate filtering for transient (events) and non-transient (alarms) conditions.

Set the Edit Host Name

The host name is used to identify the Cisco Optical Network Controller server sending the SNMP traps.

Before you begin
  • There is a character limit of 25 characters for the host name.

  • Only alphanumeric characters, underscores, and hyphens are allowed in the host name. Spaces are not allowed.

  • If you do not set a host name, the default value CONC is used.

Procedure

Step 1

Click Set/Edit Host Name.

Step 2

Enter the desired hostname.

Step 3

Click Save.

Step 4

(Optional) Click View Engine id

Note



The Engine ID remains the same for all SNMP managers.

The Engine ID is displayed and can be copied for use in the receiver application.

Configure SNMP managers

The alarms and events are filtered based on the criteria set by user and converted to traps and sent to the trap server using the alarm model in CISCO-EPM-NOTIFICATION-MIB. For more information, see MIB Definition For Cisco Optical Network Controller.

Procedure

Step 1

Navigate to Alarms > SNMP.

Step 2

Create a New SNMP Manager.

  1. Enter the Server Name and IP Address.

    Cisco Optical Network Controller supports only IPv4.

  2. Enter the Port Number, and choose the SNMP Version.

  3. If you choose the SNMP Version as v2c, enter the Community settings as required.

    screenshot
  4. If you choose the SNMP Version as v3, enter the Username, Mode, Auth. Type, Auth. Password, Confirm Auth. Password, Privacy Type, Privacy Password, and Confirm Privacy Password.

    screenshot
  5. Choose the Notification Type, TCP or UDP.

  6. Choose the Trap Configuration, Send all traps or Set custom trap filters.

    If you choose custom trap filters follow3.c

Step 3

Configure alarm filters.

  1. Click Alarms > SNMP.

  2. Select a manager and click Set/Edit Filters.

    The custom trap filter configuration pop-up appears.screenshot
  3. Select the desired Severity levels and alarm types.

    Severity: Critical, Major, Minor, Warning, Cleared

    Type: Service-affecting, Non Service-affecting

  4. Choose the logical operator for the filter.

    If you choose AND, you get notifications for only the alarms that match both the severity selection and Type selection.

    If you choose OR, you get notifications for the alarms that match either the severity selection or type selection.

  5. Use the transfer list to exclude specific alarms. Use filters in the table to find the specific alarms you want to exclude.

  6. Click Apply.

    The custom trap filter for the SNMP manager is created.

  • If traps are not being received, verify the SNMP manager configuration, including the IP address, port, protocol, and security settings.

  • Check the alarm filters to ensure that the desired alarms are not being excluded.

  • Verify that the Cisco Optical Network Controllerserver has network connectivity to the SNMP manager.

Workspaces

Workspaces provide focused environments for specific monitoring and management tasks. They integrate data and functionality from multiple applications, presenting a unified view and streamlined workflow for users. This approach reduces the need to navigate between different applications, improving efficiency and user experience.

Types of Workspaces

  • Network Monitoring Workspace: Provides a comprehensive view of the network, including node status, alarms, and performance metrics.

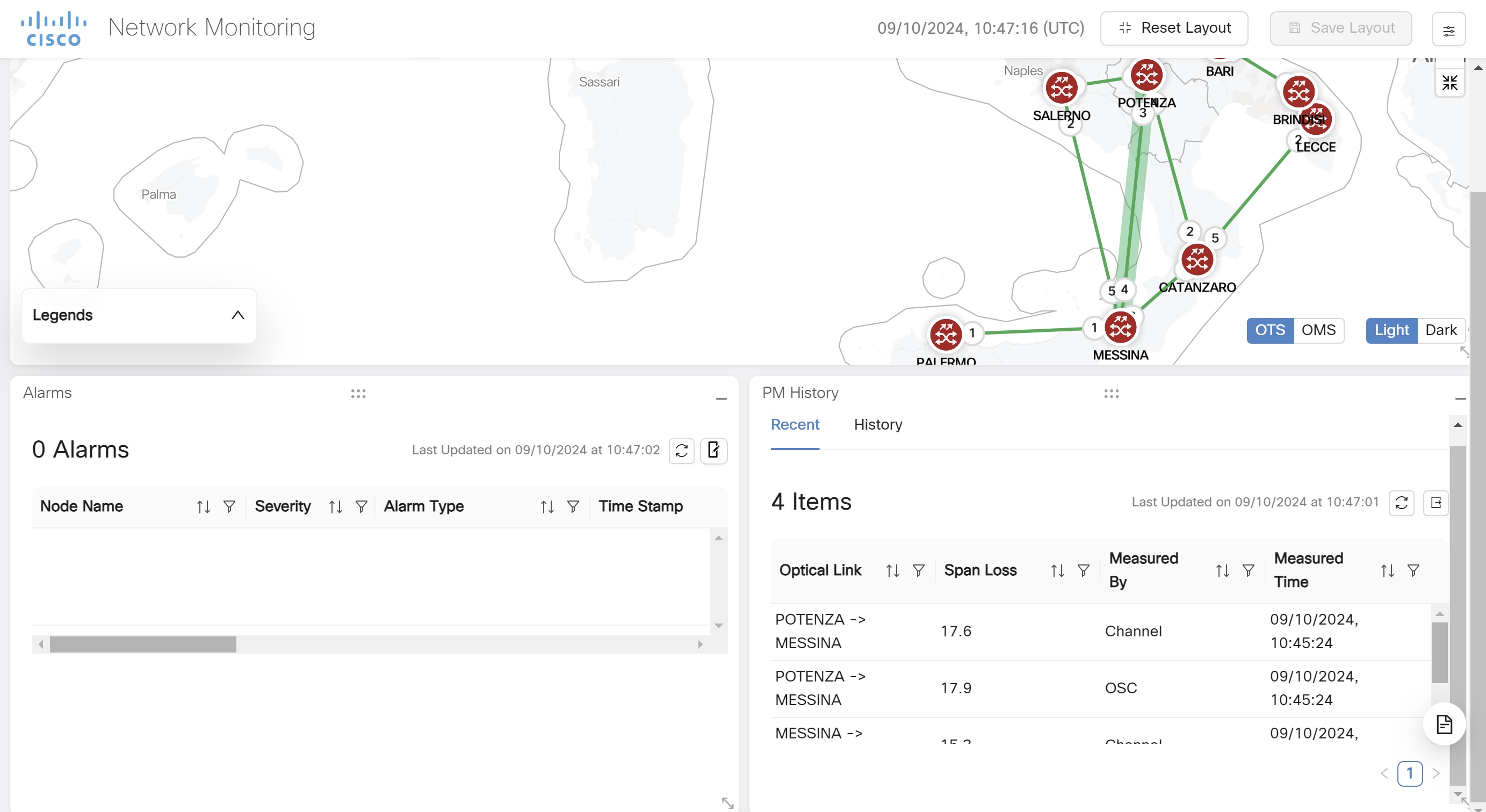

    Figure 32. Workspaces Network Monitoring
    Screenshot of Workspaces Network Monitoring

    Note


    In the network monitoring workspace, the alarm details are displayed based on the node or link which is selected from topology.

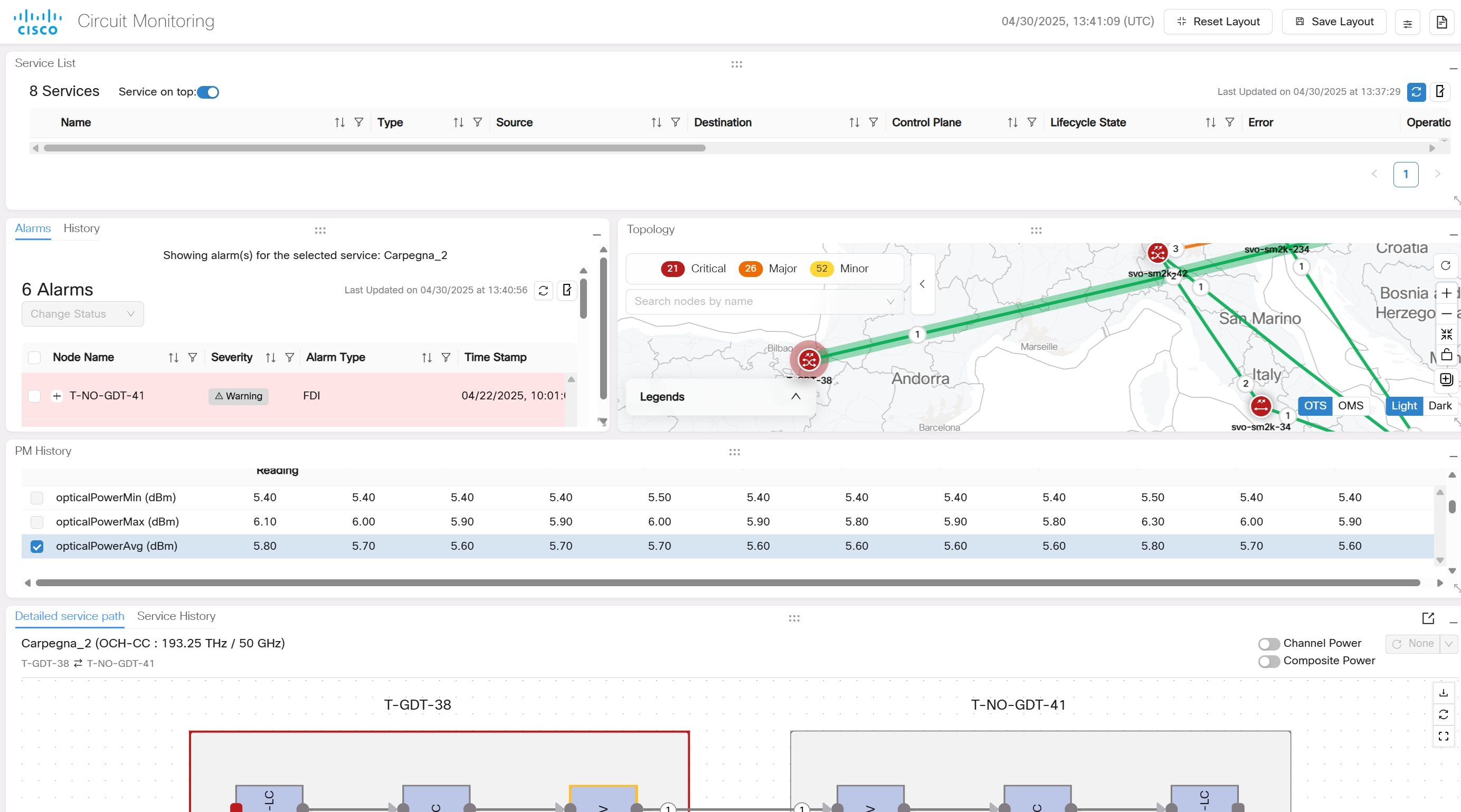

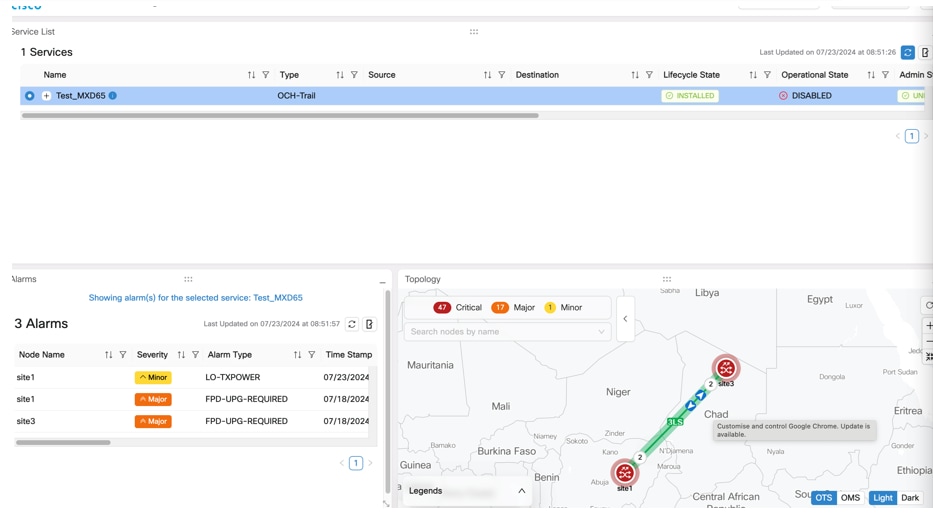

  • Circuit Monitoring Workspace: Focuses on individual circuits, displaying their path, associated alarms, and performance history.

    Figure 33. Circuit Monitoring
    Screenshot

    Note


    • In the Alarms screen above, select any alarm and right click followed by Show Affected service(s). This will display all the services related to the selected alarm in the services layout.

    • From release 24.3.1, PM tab is available in the Circuit Monitoring workflow application.

    • From release 25.1.1, you can select multiple links or nodes in the topology.

      1. Click Select node(s)/link(s)in topology.

      2. Use the OTS/OMS toggle to select the segment type.

      3. Click the nodes or links you want to select.

        You can select up to 20 entities at a time.

      4. Click Show services.

        The service list shows affected services for the selected nodes and links. The list shows the services that are with paths through all the selected nodes and links.

      5. Click Refresh data and reset the layout in Service List to reset the table to show all services.

    • From release 25.1.1, alarms history can be viewed for each circuit.

      1. Select a service from the service list.

      2. Click History in the Alarms tab.

      3. Choose a time period for which you want to view the alarm history from the Select Time period drop down list, or choose a custom date range.

        The history tab displays both cleared and active alarms for the selected circuit within the specified time range.

        • The maximum time period is 3 months. If you select a time range more than 3 months using custom date range, Cisco Optical Network Controller throws an error.

        • Alarm history queries are rate limited. You can query up to 5 alarms history every minute.

    • Detailed service path

      • Select a service from the service list to view its detailed service path.

      • Use the Channel Power and Composite Power toggles to enable and disable the power display for all ports in the detailed service path.

      • Hover over a port or equipment in the detailed service path to view a tooltip with additional information.

      • PM history

        • Select a service from the service list.

        • From detailed service path, right click a port and choose View PM history.

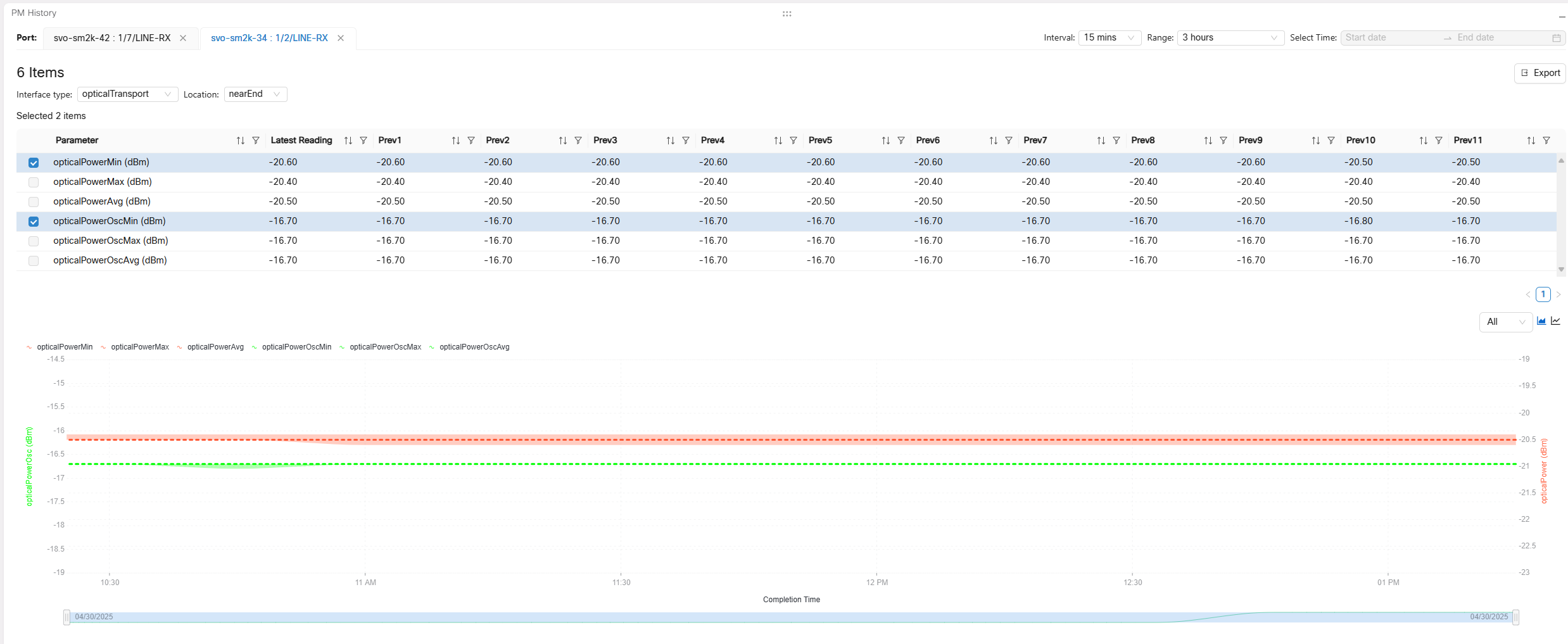

          Figure 34. PM History in Circuit Monitoring
          Screenshot
        • Interface type Selection: By default, only one interface type is used to generate the report for the selected port. However, if the port has multiple interface types, you can choose the interface type from the dropdown.

        • Location selection for up to two ports PM report: You can choose to view the nearEnd or farEnd PM history for the port.

        • You can view PM history for up to two ports at a time.

    • Service History

      • Select an OCH-CC or OCH-Trail service to get a timeline view of events and actions performed on a circuit.

        Figure 35. PM History in Circuit Monitoring
        Screenshot
      • Includes details such as the user who initiated the action, the timestamp, and the status of the operation.

      • Offers a "view more" option to display detailed diagnostic logs related to the event.

    • Visualise Circuit Restoration

      • Select a Service from the Service List to highlight the circuit in the topology.

        Figure 36. Topology in circuit monitoring workspace
        Screenshot
      • If the circuit has undergone restoration due to a fiber cut, topology shows the new path and the main path. The main path is represented by dotted lines.

        Figure 37. Topology in circuit monitoring workspace
        Screenshot
      • You can also see the service restoration and related events in Service History.

      • Restoration State column in the Service list also displays the restoration state of the service.


  • Link Monitoring Workspace: Focuses on individual links, displaying their alarms, performance history, topology, and associated circuits.

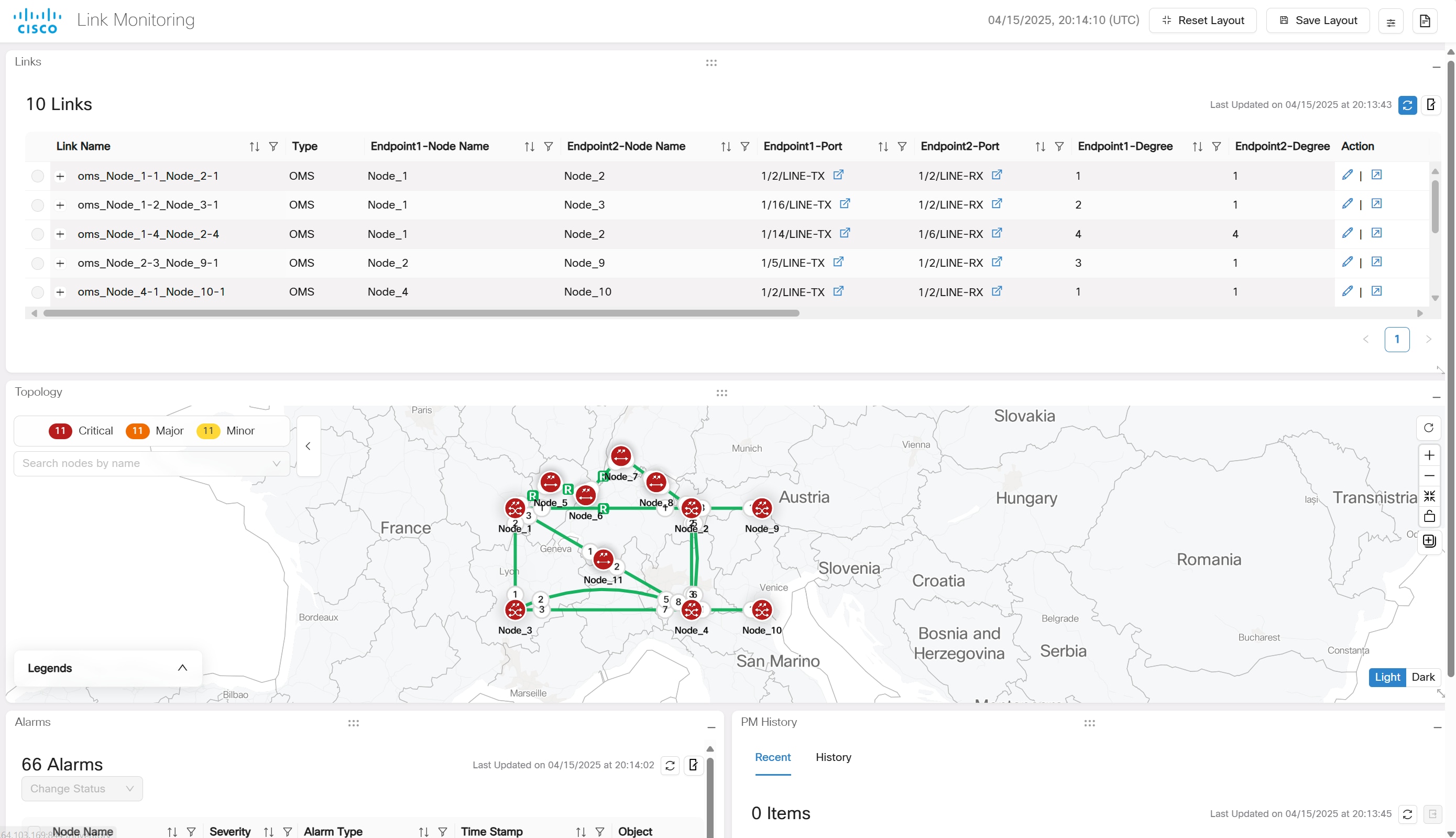

    Figure 38. Link Monitoring workspace
    Screenshot
    • In Links monitoring, Links table is primary.

    • By selecting the link, its related alarms, span loss and links in topology are filtered and highlighted​. The links table has a label above it specifying the current filter. For example, Showing Links for locationA 1/2/LINE-TX - locationB 1/2/LINE-RX.

      Your selection is bidirectional. The link you select from the Links list is highlighted in topology. The nodes and links you select in topology are filtered in the links list.

    • In links table, click edit link in the action column to edit link details.

    • You can cross launch circuit monitoring for circuits using a link by clicking View Circuit Monitring in the action column.

    • In links table only forward/reverse ots can be selected.

    • You can select multiple links or nodes in the topology.

      1. Click Select node(s)/link(s)in topology.

      2. Use the OTS/OMS toggle to select the segment type.

      3. Click the nodes or links you want to select.

        You can select up to 20 entities at a time. Multiple selection is available only for ots links.

      4. Click Show services.

        The service list shows affected services for the selected nodes and links. The list shows the services that are with paths through all the selected nodes and links.

      5. Click Refresh data and reset the layout in Service List to reset the table to show all services.


Note


From 25.1.1 release, you can acknowledge and unacknowledge alarms from the alarms tab in workspaces.


Procedure


Step 1

Click Workspaces in the left panel.

Step 2

Select the workspace and click Launch.

Step 3

Click Save Layout to save the layout at any given point in time.

Step 4

Click Reset Layout to revert to the default layout.

Step 5

Some of the other options that are available on these panels are mentioned below.

  • Hovering on the nodes displays the node name and the alarm severity.

  • Hovering on the equipment displays the equipment name, service state as enabled or disabled and the count of the severity of the alarms.

  • Hovering on the port which is displayed as a round icon on the panel displays the port name, service state, and the alarms severity counts.

  • Connectivity between each equipment is highlighted with arrows.

  • If you right click at the node level it will cross launch to the Nodal UI to verify OXC's.

  • If you right click at the equipment level it will cross launch to View Nodal UI: Equipment.

  • If you right click on any port it will cross launch to View Nodal UI: Port.

  • Connectivity between the nodes are represented with arrows.


Software Image Management and Upgrade

The Software Image Management and Upgrade (SWIMU) is a Cisco Optical Network Controller appliction which provides a centralized interface for managing and orchestrating software upgrades across Cisco Optical Site Manager managing NCS1K and NCS2K devices. It streamlines the upgrade process, offering tools for image distribution, software activation, and commit operations.

The SWIMU app also provides you the option to backup and restore the nodes and Cisco Optical Network Controller database.

Components of SWIMU

The SWIMU App is divided into these tabs:

  • Backup and Restore:

    • Node Backup and Restore: Manages node backups and restores, including on-demand backups, uploading images to nodes, and group management.

    • CONC Database Backup and Restore: Manages CONC database backups and restores, allowing administrators to schedule backups, trigger on-demand backups, edit backup configuration, download backup files, and restore from backups.

  • Upgrade Orchestrator:

    • Node Software Upgrade:

      • Software Image Distribution Groups: Create and manage groups for software image distribution.

      • Image Distribution Jobs: Schedule and monitor image distribution jobs to copy software images to nodes and subtended devices under those nodes.

      • Software Activation Groups: Create and manage groups for software activation.

      • Software Activation Jobs: Schedule and monitor software activation jobs to upgrade nodes and subtended devices .

Benefits of Using SWIMU

Using SWIMU you can backup the node configuration database and upload it to external or internal SFTP servers. Files can be distributed and saved to and from the Cisco Optical Site Manager devices while providing granularity to the underlying devices. It helps in:

  • Centralized Management: Provides a single interface for managing backups, restores, and upgrades.

  • Granular Control: Allows detailed configuration of nodes used while scheduling a backup job on top of a node.

  • Manage Tasks: It helps manage file storage, distribution, scheduling, and monitoring based tasks.

  • Efficiency: The distribution and scheduling prevent network overload and ensure efficient operations.

  • Flexibility: Supports ad hoc backups with detailed scheduling options.

  • Transparency: Allows to track the progress with notifications to keep users informed of task statuses.

  • Long-term Storage: Ensures backup files are stored for an extended period, with configurable storage options.


Note


Granularity happens at the node level but not at the device which is under the node level. Restore can be done at the device level through Cisco Optical Site Manager nodal UI using the cross-launch option in Cisco Optical Network Controller Nodes or SWIM applications.


SFTP Servers

There are two types of SFTP servers allowed for backup and restore purpose.

  • Internal SFTP server: It is the default SFTP server provided by Cisco Optical Network Controller itself which stores the backup DB in Cisco Optical Network Controller database.

  • External SFTP servers: You can configure for Cisco Optical Network Controller DB backup or restore as part of external server storage or upload.

Types of Backup

There are two types of backup:

Table 19. Backup Types
On-Demand Backup Scheduled Backup
Immediate Backup Regular Intervals
User-Initiated Automated Process

Formula for Calculating External Backup Storage Size

To calculate the storage size required for backup for external and internal SFTP servers use the given formula:

External SFTP Server Storage Formula

Backup Storage Size = (Network Total Devices x Size of Device x Requested Archive Period) / Backup Reoccurrence

Table 20. External SFTP Server Storage Formula Parameters

Parameter

Description

Network Total Devices

The number of onboarded devices.

Size of the Device

The size of an individual device.

Requested Archive Period

The duration for which the backup files are stored in days

Backup Reoccurrence

The frequency of the backup collection for devices in days.

Internal SFTP Server Storage Formula

Backup Storage Size = ((Number of Small Nodes * 4.7 MB) + (Number of Medium Nodes * 4.85 MB) + (Number of Large Nodes * 5.1 MB) + (Number of XL Nodes * 5.4 MB)) * 5

Table 21. Internal SFTP Server Storage Formula Parameters

Parameter

Description

Small Nodes

Small device - 4.6 MB /4.8 MB.

Medium Nodes

(4 degree ROADM or (2x1010-OLT, 1x1014 - device) ) - 4.8 MB / 4.9 MB

Large Nodes

(6-degree ROADM) - 5.1 MB

XL (8-degree ROADM) Nodes

5.4 MB


Note


Minimum allowed job interval is hourly.

For an hourly job over a period of 10 hours, file retention is 5 per node.

((Number of small nodes * 4.7 MB) + (Number of medium nodes * 4.85 MB) + (Number of Large nodes * 5.1 MB) + (Number of XL nodes * 5.4 MB)) * 5


Cleanup of Storage

The cleanup of the storage in SFTP servers will be done based on the memory threshold value set by the user during the configuration of the SFTP server. The minimum threshold value is 50 and this is specific to external SFTP servers only.

Configure SFTP server

The Software Image Management and Upgrade (SWIMU) app relies on SFTP (Secure File Transfer Protocol) servers for storing and retrieving software images and backups. You can configure up to two external SFTP servers in addition to the default local SFTP server.

Before you begin

Before configuring an external SFTP server, ensure the following requirements are met:

  • Write Permissions: The remote path folder must have write permissions enabled, allowing the external user to perform uploads.

  • SSH Version Compatibility: The SFTP server SSH version must be either 7.x or 8.x. Backups and uploads fail if the SSH version is incompatible.

  • Router Static Settings: Configure router static settings for each node separately. See Configure Static Route on Peer Devices for detailed instructions.

  • Time Synchronization: The Cisco Optical Network Controller VM time must be synchronized with the device backend time.

Procedure


Step 1

Click the Configure SFTP Server in the SWIMU app.

The SFTP Servers configuration screen is displayed.

Step 2

On the SFTP Servers configuration screen, click Add.

The Add SFTP Server screen is displayed.

Step 3

Enter the information:

  • SFTP Server Name: A descriptive name for the SFTP server.

  • IP Address: The IP address of the SFTP server.

  • Username: The username for accessing the SFTP server.

  • Password: The password for the specified username.

  • Remote Path: The directory path on the SFTP server where software images and backups will be stored.

  • Disk memory space utilisation threshold for file overwrite(%): The percentage of memory threshold allowed for each SFTP server. The minimum threshold value is 50. Anything exceeding the threshold will be cleaned up.

Step 4

Click Check Connectivity Status.

Verify that the status displays Connection Successfully Established before saving the configuration.

Connectivity status check creates the directory in the remote path if it does not already exist.

Step 5

Click Save.

Step 6

Select the target SFTP server and click Edit to modify SFTP server details.

  1. Modify the details.

  2. Click Check Connectivity Status.

  3. Click Save.

Note



Do not edit or delete an SFTP server while an active job is in progress using that server.

Step 7

Select the target SFTP server and click Delete to delete an SFTP server.


What to do next

After configuring the SFTP servers, allow a few seconds for the refresh process to complete. This delay is due to the SFTP server checking memory availability before connecting.

Backup and Restore Nodes

Node Backup and Restore enables administrators to create and manage backups of individual nodes in the network. This feature is crucial for disaster recovery and ensuring data integrity. It allows administrators to perform on-demand backups, upload images to nodes, and organize nodes into backup/restore groups.

Figure 39. Node Backup and Restore
screenshot of links app

Before you begin

  • For the backend upload to proceed you must configure the router static settings for each node separately. See Configure Static Route on Peer Devices for more details on how to configure the static routes of a node.

  • The Cisco Optical Network Controller time must be the same as the device time.

  • If a node backup fails, the NODE-BACKUP-FAILURE alarm is raised.

Procedure


Step 1

Create a nodes group

  1. Click Backup, Restore and Group Management > Manage Groups > Create Group

  2. Enter the Group Name and Description and click Save.

  3. Select the nodes from the Nodes table.

  4. Click Manage Groupsand click + next to the group name to add the nodes.

Note


  • You can also click and select any node from the Topology screen on the right and click the + icon appearing on top of the node and click Update. This will add these nodes to the group.

  • Before scheduling backup jobs, you need to create a node group using the Manage Groups option.

Step 2

Select a node and use options Upload to Node or create On-Demand Backup or Manage Groups and Remove from Groups by clicking each one of them.

  • Before restoring the nodes you can click on Upload to Node option for initiating file transfer of backup files from Cisco Optical Network Controller's internal or external storage. Cisco Optical Network Controller automatically selects files for that node, based on the file name.

  • You can cross launch to COSM nodal UI from any node in the Node table using the cross-launch option when you want to do the restoration.

  1. For scheduling the On-Demand Backup jobs. Click On-Demand Backup after selecting the nodes.

    This will schedule the on-demand jobs in the Backup -Jobs scheduler.

  2. Click Remove from Groups after selecting the nodes that you want to remove from the group.

Step 3

Click Jobs to view the job summary and scheduler panel.

  1. Click Schedule Backup to schedule backup jobs.

    Enter the Job Name, SFTP Server, Groups, Start Date Time, Recurrence, and Description and click Schedule.

    Note



    Recurrence option allows you to repeat the job scheduling based on Hourly/Daily/Weekly/Monthly intervals. The scheduling can be done using the current time + five minutes after the first occurrence.

  2. Click Edit to edit the schedule of the existing scheduled backup jobs.

  3. Click Delete to delete the selected job from the backup scheduled job list.

  4. Click Refresh to refresh the job scheduler table.

    Note



    You can track the status of each scheduled job in back up job list using the Status column in the table. The Status can be Not Started or In progress or Completed or Failed.

  • If a backup or restore job fails, review the error message in the Jobs section.

  • Ensure that the SFTP server is properly configured and accessible.

  • Verify that the node is online and reachable.


Backup and Restore Database

CONC Database Backup and Restore enables administrators to create and manage backups of the Cisco Optical Network Controller database. This feature is crucial for disaster recovery and ensuring data integrity. It allows administrators to schedule backups, trigger on-demand backups, edit backup configurations, download backup files, and restore from existing backups.

The CONC Database Backup and Restore tab contains these components:

  • Backup Table: Lists existing Cisco Optical Network Controller database backups with details such as:

    • Name: A unique identifier for the backup.

    • Creation Time (UTC): The date and time the backup was created.

    • File Size: The compressed and uncompressed size of the backup file.

    • Created By: The entity that initiated the backup (e.g., Controller system, internal).

    • Download Status: Indicates whether the backup has been downloaded.

    • Restore Status: Indicates whether a restore operation is in progress.

    • Type: Indicates the type of backup (delta or full).

      • Full backup is a complete backup of the entire Cisco Optical Network Controller database. It is taken every 7 days or after a fresh or new installation.

      • Delta backup is an incremental backup that captures only the changes (the difference) made to the Cisco Optical Network Controller database since the last full backup. Delta backups are taken daily at 12 AM by default, and this time and recurrence is modifiable. Hourly Recurrence can be every 6 or 12 hours and Daily recurrence can be 1, 2, or 3 days.

  • Action Buttons: Provides the following actions:

    • Edit configuration: Allows editing of backup settings or scheduling.

    • On-demand backup: Manually triggers a new database backup.

    • Download: Downloads a selected backup file to Cisco Optical Network Controller VM(disabled unless a backup is selected).

    • Restore: Restores the Cisco Optical Network Controller database from a selected backup (disabled unless a backup is selected).

  • Scheduling Information: Displays the next scheduled backup time.

Before you begin

  • The Cisco Optical Network Controller Database Backup and Restore feature relies on a properly configured SFTP server.

  • Ensure that the SFTP server has sufficient storage space for the backups.

  • If a backup fails, the BACKUP-FAILURE alarm is raised.

  • If the upload of a backup to the SFTP server fails, the UPLOAD-FAILURE alarm is raised.

Procedure


Step 1

Perform an On-demand backup.

  1. Navigate to Backup and Restore > CONC Database Backup and Restore.

    Figure 40. Node Backup and Restore
    screenshot
  2. Click On-demand backup and confirm by clicking OK.

    Note



    You can perform up to 10 On-demand backups per day.

A new database backup is created and the backups table is updated to show this new backup.

Step 2

Download the database

  1. Navigate to Backup and Restore > CONC Database Backup and Restore.

  2. Select the backup you want to download from the table.

  3. Click Download.

    Note



    Cisco Optical Network Controller does not allow manual deletion of backups. Backups older than the retention period are automatically deleted.

  4. Enter a prefix string to be part of the downloaded file name and click OK.

    This prefix allows you to easily identify a backup file.

  5. Access Cisco Optical Network Controller VM CLI using SSH.

  6. Go to the path /data/local-path-provisioner/pvc-*conc-database-backup* to view the downloaded file.

Step 3

Restore the database

  1. Navigate to Backup and Restore > CONC Database Backup and Restore.

  2. Select the backup you want to restore from the table.

  3. Click Restore and confirm the operation.

The Cisco Optical Network Controller database is restored from the selected backup.

Step 4

Edit the backup configuration

  1. Click Edit configuration.

  2. Choose your Preferred Backup Time (UTC) and Recurrence preferences.

  3. Choose Backup file retention time (weeks) and set Password to secure backup files.

    Cisco Optical Network Controller does not allow manual deletion of backups. Backups older than the retention period are automatically deleted.

  4. Enable the check box if you want to Copy the backup files to SFTP server and enter the SFTP Server details.

    • SFTP Server Name: A descriptive name for the SFTP server.

    • IP Address: The IP address of the SFTP server.

    • Username: The username for accessing the SFTP server.

    • Password: The password for the specified username.

    • Remote Path: The directory path on the SFTP server where software images and backups will be stored.

    • Disk memory space utilisation threshold for file overwrite(%): The percentage of memory threshold allowed for each SFTP server. The minimum threshold value is 50. Anything exceeding the threshold will be cleaned up.

  5. Click Apply.

Step 5

Upload a downloaded backup file bundle to another Cisco Optical Network Controller instance.

  1. Extract the downloaded backup bundle using the following command.

    tar -zvxf <downloaded_file_name>

    Note



    This step is not required if your backup file is copied from the external SFTP server.

    This command extracts all the required delta and full backup files.
  2. Run the following command to generate the decryption key using your password.

    printf "user_password" | od -A n -t x1 | tr -d ' \n' | awk '{printf "%-64s", $0}' | sed 's/ /0/g'

    Replace user_password with your actual password in the command.

    This command generates a 64-character key required for decryption.
  3. Decrypt the backup file using the generated key using the following command.

    openssl enc -d -aes-256-ecb -in <encrypted_backup_file_name.tar.gz> -out <decrypted_backup_file_name.tar.gz> -K <key>

    Replace the placeholders with actual file names and key.

    This command generates the decrypted backup file.
  4. Upload the decrypted backup file to the Cisco Optical Network Controller server using the following sedo command.

    sedo backup upload <decrypted_backup_file_name.tar.gz>

Orchestrate Upgrades

Use the upgrade Orchestrator to distribute images to the nodes and activate the images on the nodes.

Cisco Optical Network Controller uses Software Image Distribution Groups and Software Activation Groups to distribute images and upgrade nodes in bulk.

Before you begin

  • For the backend upload to proceed you must configure the router static settings for each node separately. See Configure Static Route on Peer Devices for more details on how to configure the static routes of a node.

  • The Cisco Optical Network Controller time must be the same as the device time.

  • You must download the golden ISO from software.cisco.com and place it in the external SFTP server.

  • Image Authenticity: Cisco Optical Network Controller does not validate the authenticity of the Golden ISO image. It is your responsibility to ensure the image is valid and trustworthy.

  • Number of Images: There is no set limit to the number of images that can be uploaded to the local SFTP server. We recommend you store up to 5 iso images in the local sftp server.

  • Software Image Distribution Groups and Software Activation Groups tables display the current software version only if CONC was used to upgrade the software in the node.

Procedure


Step 1

Upload ISO Images to the Local SFTP Server.

  1. Verify File Availability: To check if a file is available on the local SFTP server, use the following command:

    sedo object-store list onc-sw-iso
  2. Upload an ISO Image: To upload an ISO image to the local SFTP server, use the following command:

    sedo object-store put <file> <destination> [flags]
    • <file>: The path to the ISO image file on your local system.

    • <destination>: The destination path on the SFTP server, including the bucket name and desired file name.

    Example: sedo object-store put <image-name.giso> onc-sw-iso/<image-name.giso>

  3. Delete a File: To delete a file from the local SFTP server, use the following command:

    sedo object-store bucket delete onc-sw-iso/<file-name>
    • <file-name>: The name of the file to delete.

    Example: sedo object-store bucket delete onc-sw-iso/test.iso

Step 2

Create Image Distribution Groups.

  1. Navigate to the Upgrade Orchestrator tab and select Node Software Upgrade > Software Image Distribution Groups

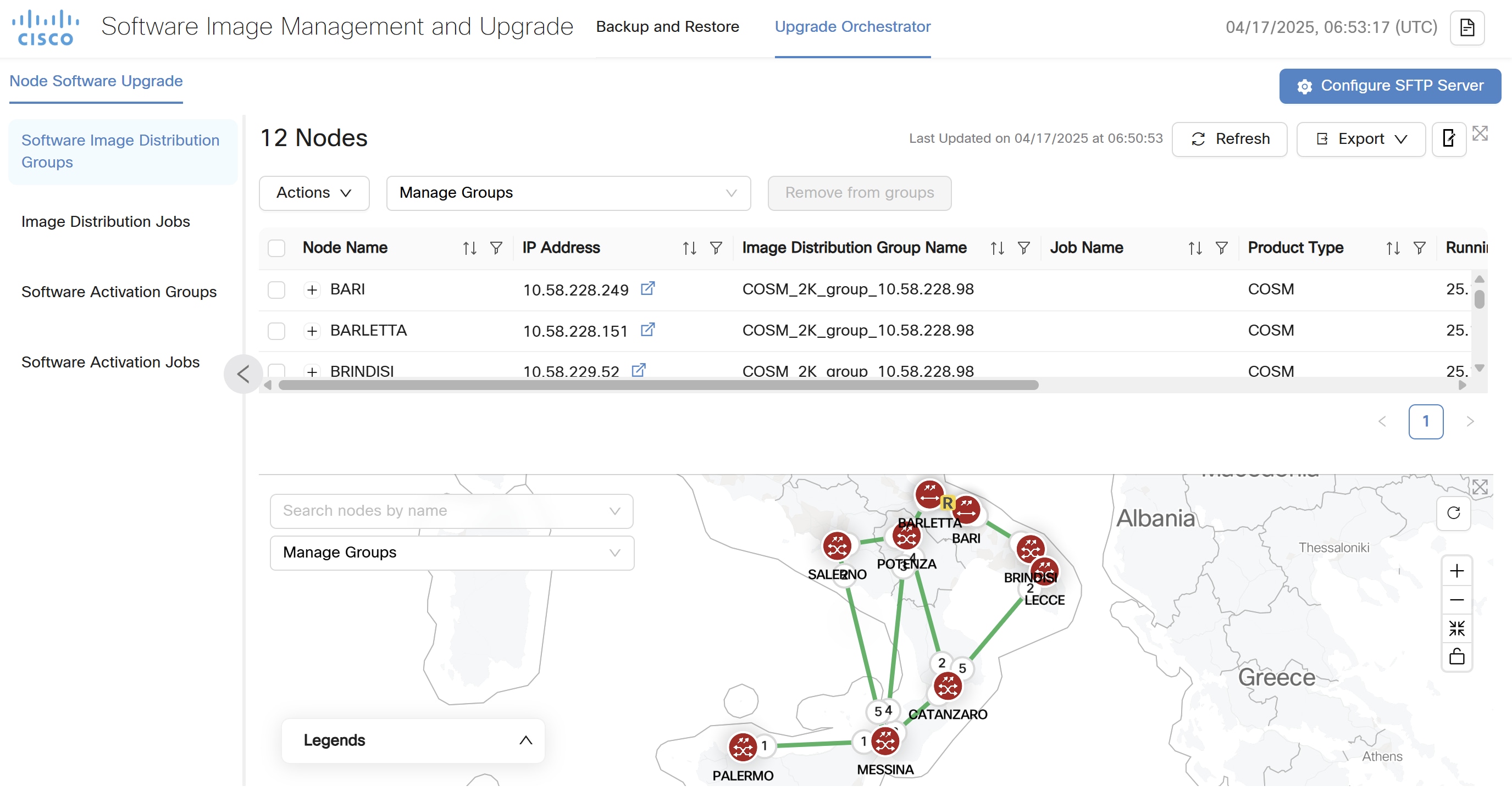

    Figure 41. Upgrade Orchestrator
    screenshot
  2. Click Actions and select Expand all to expand nodes in the table to view the subtended devices under the node.

  3. Click Manage Groups and select New Group.

    You can also Mange groups from the topology view in the Upgrade Orchestrator.

  4. Enter a Group Name and Description.

  5. Select the nodes to include in the group and click Manage Groups.

  6. Click the + icon next to a group name to add the nodes to the group.

  7. Select a node and click Remove from groups to remove the node from the group it is a member of.

Note



Groups for NCS 2000 nodes are autogenerated by Cisco Optical Network Controller.

You cannot edit NCS 2000 groups.

You cannot add NCS 2000 nodes to NCS 1000 groups.

Step 3

Create an Image Distribution Job.

  1. Navigate to the Upgrade Orchestrator tab and select Node Software Upgrade > Image Distribution Jobs

  2. Click Distribute Image.

  3. Select the nodes or groups you want to distribute the images to.

  4. Select an SFTP server from the dropdown list or give the details of the SFTP server.

  5. Select the ISO image file to distribute.

  6. Schedule the job to start immediately or later.

  7. Click Schedule and choose a later time or schedule the job to run immediately.

  8. Click the status for a device in the status column to view detailed status.

  9. Select a job and click Stop to stop the job in the nodes in which the job has not started.

    The job continues on the nodes on which it was in progress.

  10. Select a job and click Edit to make changes to the job.

    A job that is in progress cannot be edited.

  11. Select a job and click Delete to delete a job that has completed or failed.

Note



For NCS 2000 nodes, Image distribution takes place for all nodes in a group. You cannot select a subset of nodes to distribute images to.

If a job status is PARTIAL, it means the job succeeded for some of the nodes, but failed for other nodes in the group of devices that the job was initiated for.

If a job fails, fix the issues in the failure status and click Re-Run.

Step 4

Create Software Activation Groups.

  1. Navigate to the Upgrade Orchestrator tab and select Node Software Upgrade > Software Activation Groups

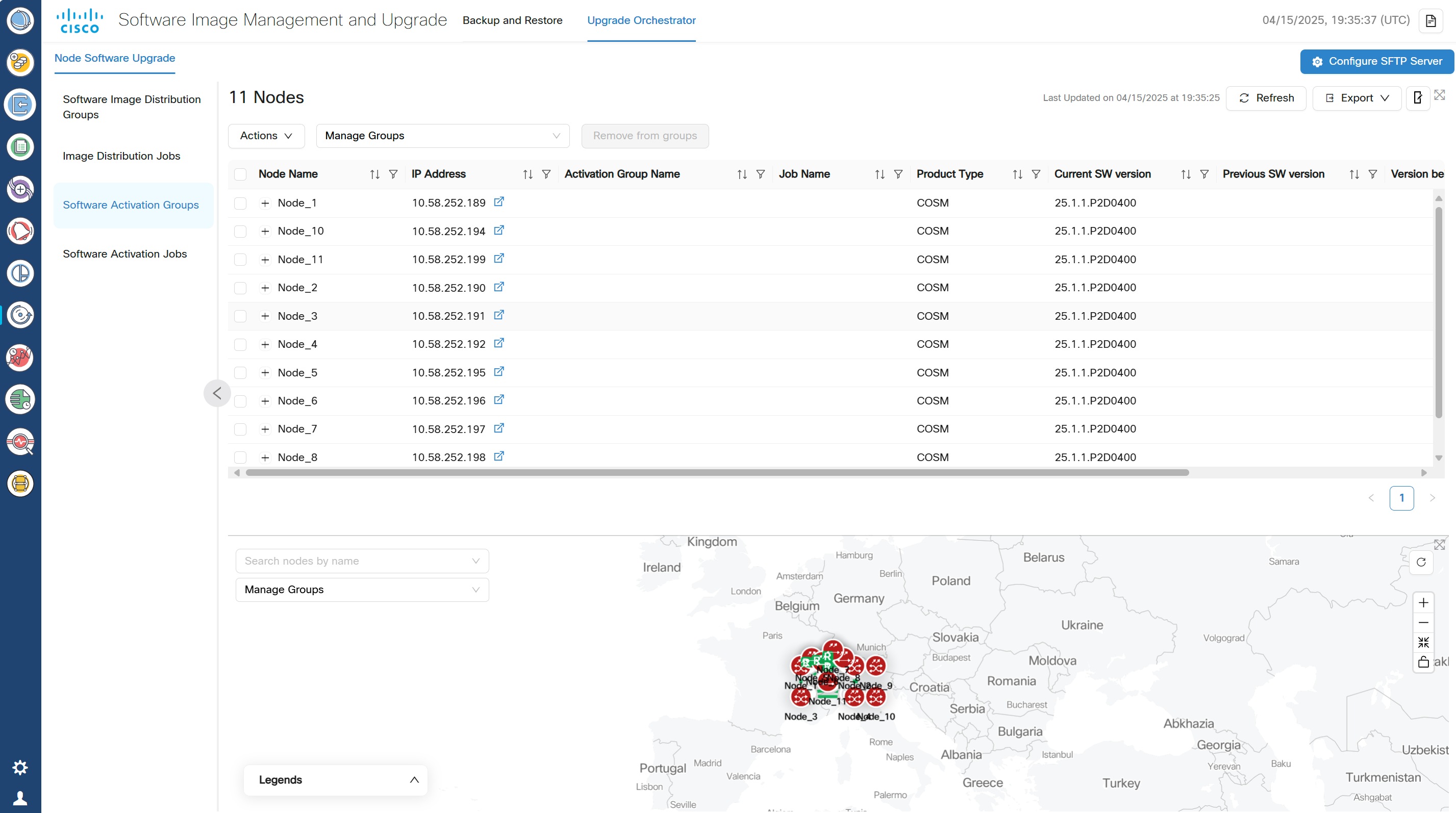

    Figure 42. Upgrade Orchestrator
    screenshot of links app

    You can also Mange groups from the topology view in the Upgrade Orchestrator.

  2. Click Actions and select Expand all to expand nodes in the table to view the individual devices.

  3. Click Manage Groups and select New Group.

  4. Enter a Group Name and Description.

  5. Select the nodes or individual devices to include in the group and click Manage Groups.

  6. Click the + icon next to a group name to add the nodes to the group.

  7. Select a node and click Remove from groups to remove the node from the group it is a member of.

Note



Groups for NCS 2000 nodes are autogenerated by Cisco Optical Network Controller.

You cannot edit NCS 2000 groups.

You cannot add NCS 2000 nodes to NCS 1000 groups.

Step 5

(Optional) Copy a group to Software Activation Groups from Software Image Distribution Groups.

  1. Click Software Image Distribution Groups > Manage Groups

  2. Click the copy button next to a group name.

  3. Click Software Activation Groups > Manage Groups

  4. Click Paste at the top right corner.

Step 6

Create a Software Activation Job.

  1. Navigate to the Upgrade Orchestrator tab and select Node Software Upgrade > Software Activation Jobs

  2. Click Activate Software.

  3. Select the target devices or groups.

  4. Choose the software package from the drop-down.

  5. Schedule the job to start immediately or later.

  6. Click Schedule and choose a later time or schedule the job to run immediately.

  7. Click the status for a device in the status column to view detailed status.

    Expand the jobs displayed in a hierarchical manner to find the device activation status for every node and respective subtended devices.

  8. Select a job and click Stop to stop the job in the nodes in which the job has not started.

    The job continues on the nodes on which it was in progress.

  9. Select a job and click Edit to make changes to the job.

    A job that is in progress cannot be edited.

  10. Select a job and click Delete to delete a job that has completed or failed.

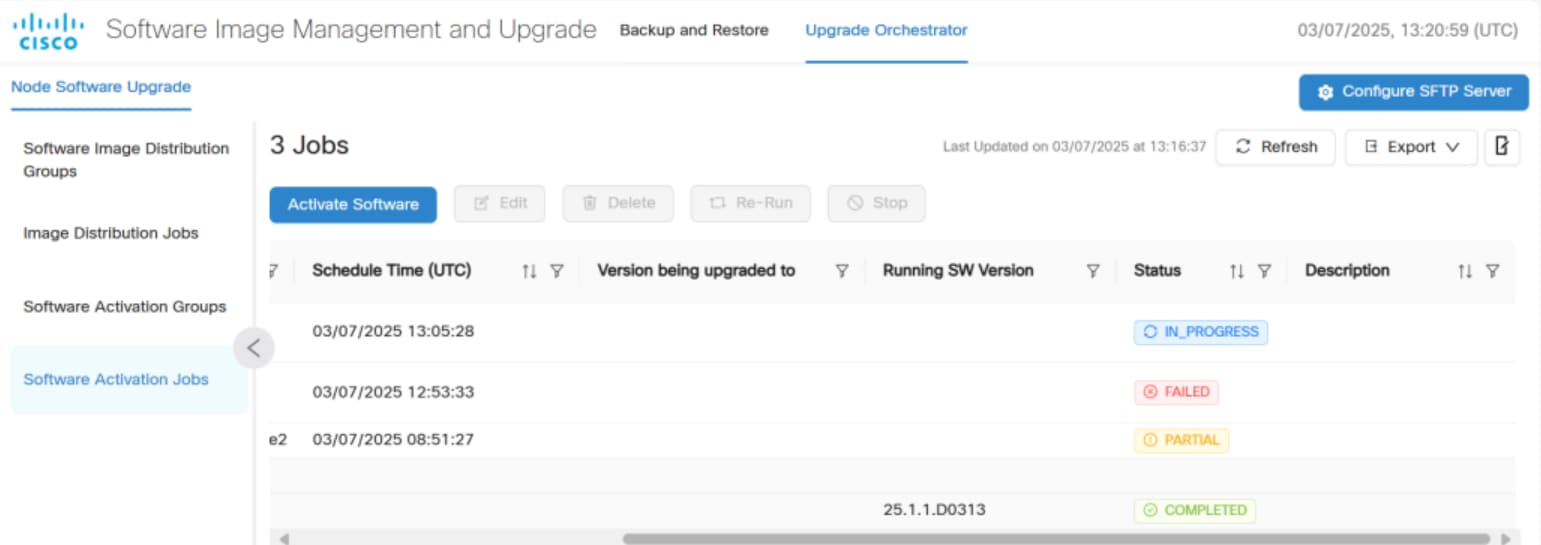

    Figure 43. Upgrade Orchestrator
    screenshot of links app

If a job status is PARTIAL, it means the job succeeded for some of the nodes, but failed for other nodes in the group of devices that the job was initiated for.

If a job fails, click Troubleshoot in the failure status to cross launch the site manager.

For NCS 2000 devices, the diagnostics page of site manager is launched. Use the logs to troubleshoot the failure.

For NCS 1000 devices, the devices tab is launched. Use the CLI to troubleshoot the failure.

Note



After troubleshooting the failure, click Re-Run.


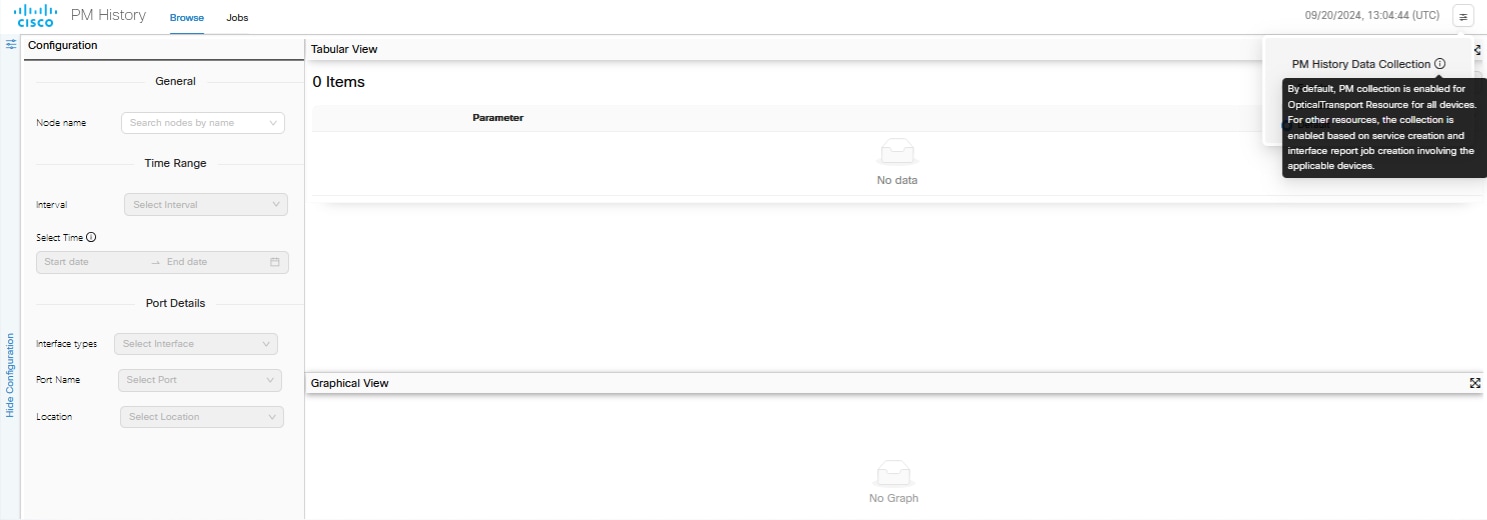

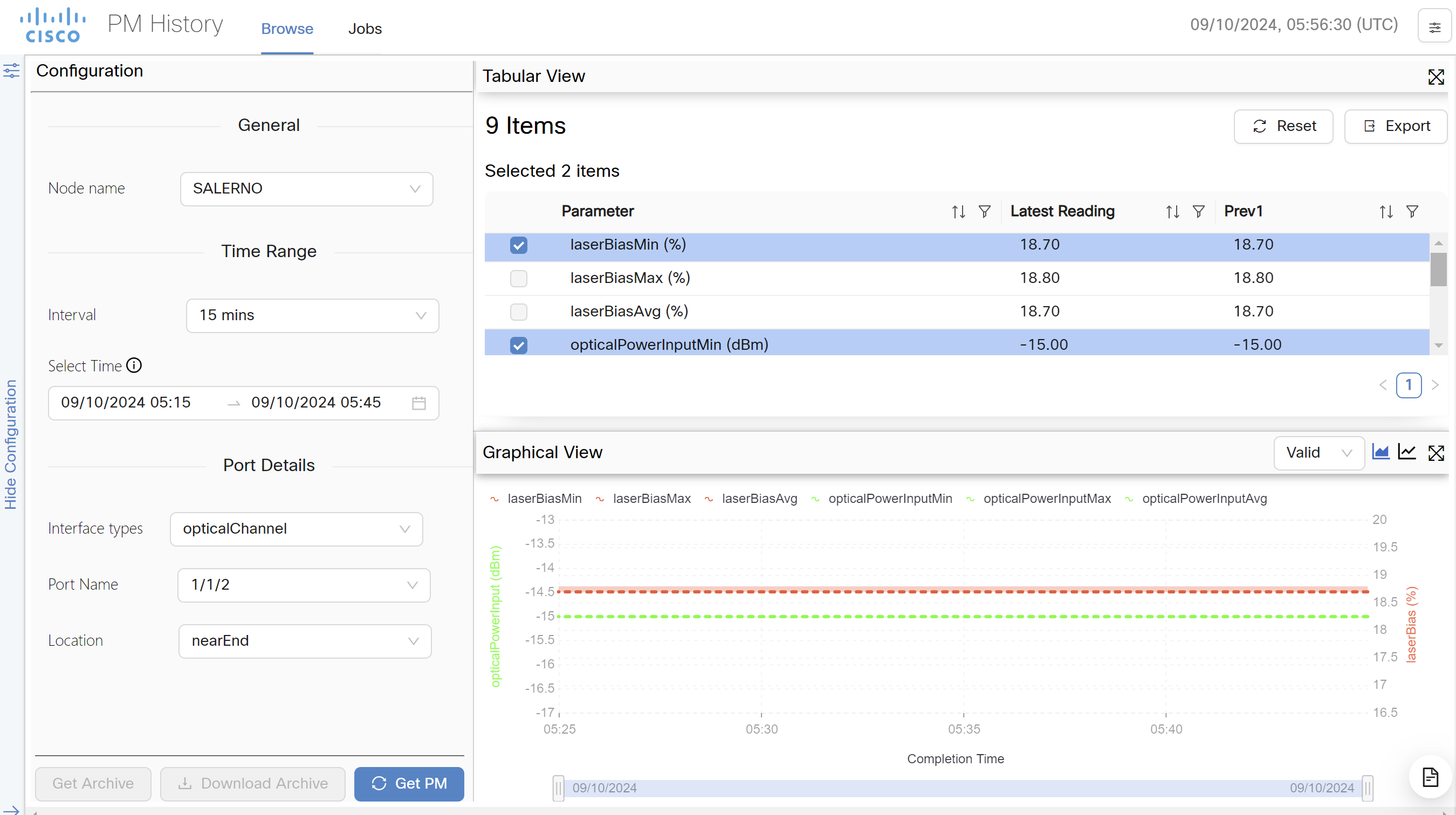

PM History

The Cisco Optical Network Controller 24.3.1 release includes a new application called PM History. The PM history application is made available in Network Monitoring workspace and it interacts with Topology for links. It is also available in the Service Monitoring workspace interacting with the Detailed Service Path if circuits are available.

Purpose of Implementing PM History Application

The PM History application allows you to view and generate PM history data reports for interfaces that are part of the nodes. For the sequential selection of each parameters in the order of nodes, interval, selected date time range, interface types, port name and locations.

Benefits of Using PM History

The benefits of using PM History are given in the table.

Table 22. Benefits of PM History

Benefit

Description

Enhanced Data Visibility

You can now view detailed PM History reports with customizable options.

Improved Network Monitoring

New portlets and enhanced dashboards provide better insights into network performance.

Extended Data Retention

Archiving allows for long-term data analysis and historical reporting.

Automated Reporting

The PM job scheduler automates the generation and distribution of historical PM reports and helps improve the overall efficiency.

User-Friendly Interface

The standalone PM application and enhanced workspaces offer a more intuitive and responsive user experience.

Time Range for Fetching Data

You can pick the start date or time and the end date or time based on the data stored in Cisco Optical Network Controller, for active and archive data by using the date-time input picker. The different time range options available for fetching the data are listed in the table.

Table 23. Time Range for Fetching Data

Time Range

Limit

PM Data Interval for 15 mins

Active data retention - 1 day + current day

Archive data retention - 3 days

PM Data Interval for 24 hours

Active data retention - 31 days + current day

Archive data retention - 93 days

Data Collection and Storage

PM data will be collected in 15 minutes and 24 hours time intervals from the onboarded COSM nodes and stored in a database. The data and activity logs are stored in the form of storage bins. The data is fetched based on what you choose as the start or end date and time values. Any data which is more than three months old is archived. Use the Get Archive option to get the archived PM History data.

Types of PM History Reports

You can download the archived data in the form of 15-minute or 24-hour granularity report type. The PM History reports are of two types based on the different granularity levels and time intervals.

Table 24. Types of PM History Report

Type of PM History Report

Description

15-Minute Granularity PM Report

  • Availability: Real-time reports are accessible for up to one + current day, from the time the report is generated.

  • Archiving: Data is archived and accessible for up to active ( current day - 2 ) up to (current day - 5).

    Overall data is available for 5 days.

24-Hour Granularity PM Report

  • Availability: Real-time reports are accessible for up to 31 days from the time the report is generated.

  • Archiving: Data is archived and accessible for up to 93 days from the time the report was first generated.


Note


  • For both 15-Minute or 24-Hour granularity PM report, you can use the horizonal scroll bar to adjust the dates as per your need. For 15-Minute granularity archive data is available for download from 3 to 5 days and for 24 hours granularity from 31 to 93 days.

  • If the date range falls on archive data then you will receive a message to indicate the user has chosen a time range which coincides with the archived data time range.


Figure 44. 15-Minute Granularity PM Report
Screenshot of 15-Minute Granularity PM Report
Figure 45. 24-Hour Granularity PM Report
Screenshot of 24-Hour Granularity PM Report

Data Representation

The PM history data is also represented in a graphical format.

PM Job Scheduler

The PM job scheduler manages the PM tasks as given:

  • PM history.

  • It generates one-time, daily, weekly, and monthly historical PM reports based on the job criteria and Cisco Optical Network Controller entities like circuits or services, links, and ports.


    Note


    • None: one time applicable for both 15 minutes and 24 hours.

    • Daily: is applicable only for 15 minutes.

    • Weekly and Monthly: are applicable only for 24 hours.


  • Reports are sent through email which is configured through SMTP server and which are not password protected.

PM History in Network Monitoring

The Network Monitoring workspace now includes a new tab for PM History span loss reports, featuring both graphical and table representations. The dashboard display updates based on selections made in the Topology application and the user selected time range.


Note


You must select the OTS link in the Topology application to view the spanloss values in the table.


Figure 46. PM History in Network Monitoring
Screenshot of PM History in Network Monitoring

PM History in Topology

In the Topology application, the PM history tab:

  • Interacts with the Topology application and its components.

  • Helps in viewing the span loss changes and information.

PM History in Circuit Monitoring

The Circuit Monitoring workspace will now feature a new dashboard in the detailed service path component, displaying PM History data. This new add-on dashboard has the Detailed Service Path component which displays the PM values based on selected port.

The historical data for a particular port from the Detailed Service Path can be seen for 15 minutes and 24 hours interval. You can also select the start and end date. PM values for ports are displayed in the tabular and graphical formats.


Note


  • Right click on the port on Detailed Service Path and use the option to launch PM History for that port. Also you can choose up to two ports.

  • PM and PM history is enabled only after circuits are created on a node.


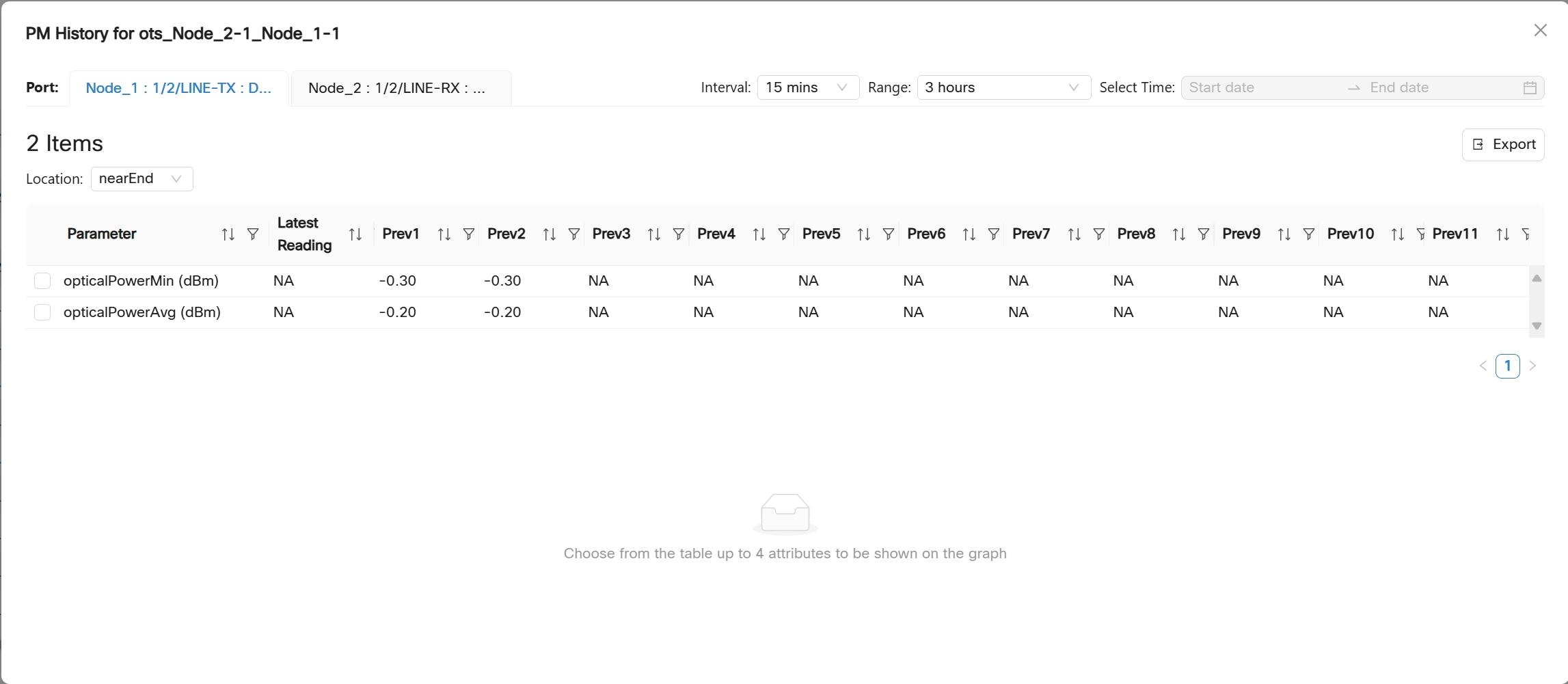

Figure 47. PM History in Circuit Monitoring
Screenshot of PM History in Circuit Monitoring

Service Endpoint PM History Report

The PM History application jobs dashboard report in service endpoint helps in:

  • Calculating and presenting total availability or outage time and percentage.

  • Exporting to Excel and scheduling job options if available.

Graphical Representation within PM History Application

The linear graph displays ALL/VALID/PARTIAL PM values. Also, the NA values do not have any representation in the graph.


Note


Partial is represented in yellow.


Figure 48. NA Values in Linear Graph
Screenshot of NA Values in Linear Graph

Accessing PM History Report

To access the PM History tab follow the steps:

Procedure


Step 1

Click PM History option from the left panel.

To browse or view the general PM History details follow the steps given:

  1. Click Browse tab.

  2. Enter Node name and Interval. time range.

  3. Select Time. Select Start date and End date.

  4. Enter Port Details followed by Interface types, Port Name and Location.

    Note


    • The browse tab will open the Configuration screen where you can fetch the general PM History details in the tabular and graphical forms. You can choose to show or hide the configuration to see the expanded graphical and tabular view.

    • You can enable, disable or select default values for PM History data collection using the PM History Data Collection option which appears on the top right corner of the PM History screen.

    • To know more details about the PM History Data Collection click on the i icon. There are three options available here which are Enable, Disable and Default.

      Figure 49. PM History Data Collection
      Screenshot of PM History Data Collection
      Figure 50. More Information about PM History Data Collection
      Screenshot of More Information about PM History Data Collection

To browse or view the job scheduling details follow the steps given:

  1. Click Jobs tab.

    This will display the Configuration and Summary tabs from where you can schedule jobs and use them for generating the reports.

Step 2

Click Configure SMTP in the Jobs screen. Enter the primary and secondary mail server details and click Save.

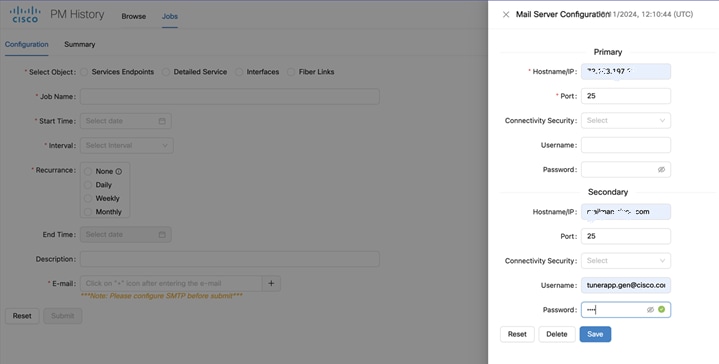

Figure 51. Configure SMTP
Screenshot of Configure SMTP

Step 3

Enter the job scheduling details and click Submit.

To schedule the jobs follow the steps given:
  1. Use Select Object from Services Endpoint for OCH-Trail circuit or Detailed Service for OCH CC, OCH NC and OCH-Trail circuits or Interfaces to select site, equipments, shelves, cards, ports and layers or Fiber Links.

    Note



    With Services Endpoint report, you can choose one or more than one services but with Detailed Service report, you can choose only one service.

  2. Enter Job Name.

  3. Enter Start Time.

  4. Enter Interval which can be 15 mins or 24 Hours.

  5. Enter Recurrence which can be either None, Daily, Weekly or Monthly.

  6. Enter End Time.

  7. Enter Description.

  8. Enter E-mail address.

Note



To configure Jobs, you need to configure the SMTP optionally. From the mail server configuration screen, you must enter the mandatory fields host name/IP, port and then save.

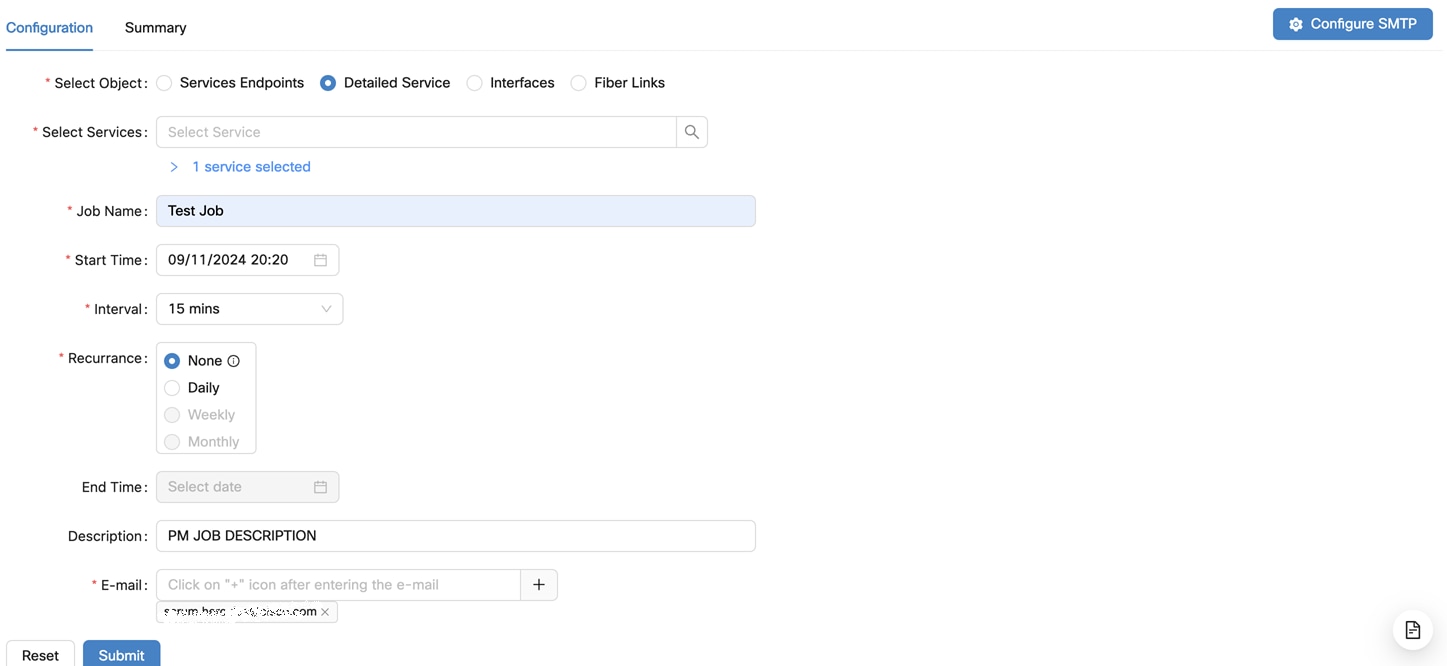

Figure 52. Jobs
Screenshot of Jobs

Note


  • To view the PM History values you must wait for a minimum of 15 minutes after onboarding.

  • For 15 minutes interval, you must wait for 20 minutes post on-boarding.

  • For 24 hours interval, you must wait for 15 mins past 12 A.M post on-boarding.


Logs

Cisco Optical Network Controller supports two sets of logs:

  • The Audit logs.

  • The developer or Debug logs.

Both these logs can be viewed online, using the Logs application's Audit and Debug tabs. These logs are archived every week on Monday around midnight by default. The archived logs are in the .tgz format. You can also schedule different day and time values as the archive scheduler time. These archives can be downloaded and deleted using the Archive tab.

Audit Logs

The Audit logs option helps in:

  • Auditing all the Cisco Optical Network Controller operations which include circuit operations, Cisco Optical Network Controller and COSM user login or logout procedures and traffic related operations that are done on COSM or node.

  • The logs can be used to learn about all the changes that have occurred as a result of external notifications that come from connected nodes.


    Note


    Audit logs are not added for configurations which are done on the devices before the device discovery.


Display Features

  • Pagination and filter options are available for Audit logs.

  • Filter option is set to All by default.

Categorization of Audit Logs

Audit logs are categorized into:

Table 25. Audit Logs Category

Category Field

Description

System

The events that are part of this category are:

  • Login.

  • Logout.

  • Create user.

  • Delete user.

  • CONC database backup and restore

Inventory

The events that are part of this category are:

  • Card create/delete/state update.

  • Physical port and logical port create/delete/state update.

  • Interfaces create/delete/state update.

  • Chassis create/delete.

  • IPC add and delete.

  • Degree add and delete.

  • Passive unit add/delete

  • Port Frequency

Node

The events that are part of this category are:

  • Device add/delete/resync/reconnect.

  • Device state for discovered and disconnected status.

  • Connection loss or reconnect audit logs status.

Service

The events that are part of this category are:

  • Circuit add/delete/edit/update or state change.

  • Link up and down.

Topology

The events of this category include the OMS and OTS interfaces.

Site_Audit

The events that are part of this category are:

  • COSM login/logout/login failed.

  • COSM devices version.

  • All COSM provisions, notifications which are traffic impacting and audited under site audit category.

  • COSM backup/Restore

Alarm

All the events related to Alarms.

Alien_Import

All the events related to Alien_Import.

SNMP

  • Add SNMP Manager

  • Delete SNMP Manager

  • Update SNMP Manager


Note


  • Only admin or internal users can view logs, collect techdump, download or delete archive files and schedule archive.

  • Only users with read-only permission and the supervisor users can view the archived files and collect techdump.

  • The user names are based on the type of user.

  • The User Name field is marked as [Unknown] for a few scenarios. For example: when the user login authentication fails, because of incorrect credentials you get this message: User failed while logging in due to invalid CSRF token.


Debug Logs

Under Debug logs, all the developer logs are displayed with filters and pagination. There is also an option to enable and disable debugging of all services. Also, similar to the Audit logs, the Debug logs have the logs active for up to seven days. After seven days these logs get archived, from where they can also be downloaded.


Note


Debug logs that are older than one month are cleared, as they are retained only for a month.


Retention and Archiving and Archive Logs

The Audit logs can be retained and saved as given.

  • Audit logs are retained for up to seven days which can be viewed online using the Logs application.

  • Logs beyond seven days are archived and kept in the Cisco Optical Network Controller storage. The Archive logs are maintained for three months and are deleted later.

  • The archived logs can be downloaded any time by using the Archive tab in the Logs application.

  • The Audit logs archiving can be scheduled weekly using the Audit log scheduler.

  • The active Audit logs are visible in the Audit log table for up to seven days after which they are moved to the Archive logs.

  • The archived logs can be retrieved anytime and are available in the archive tab. Archived logs which are more than three months old are deleted by Cisco Optical Network Controller by default.

  • You can download or delete the archived logs anytime. You can also suspend or resume archiving of logs anytime.

Archive Logs

The Archive logs allow you to schedule the logs. It consists of two schedulers:

  • Audit logs job scheduler: Refers to all the archived audit logs.

  • Debug logs job scheduler: Refers to all the archived developer logs.


    Note


    Techdump: It collects the data base (DB) snapshots for all the services. You can collect or download and also delete these logs from the table.



Note


  • The Archive logs are saved as tar zip files.

  • The Suspend and Modify options can be used to suspend, resume or modify the archived logs. The Modify option works on a weekly basis and you can also set any day as the value as per your requirement.

  • The archived audit logs are stored for up to three months where as the developer logs are stored for one month.

  • When one archive collection is proceeding, it is recommended to not change the scheduler time as otherwise it can lead to generation of multiple In Progress tasks.


Sedo Commands

For any issues with the logs, you can collect the techdump data and use the sedo command logs and report them.

The sedo commands are as given:

  1. Step 1:

    Use sedo diagnostics archive-logs /tmp/logs to collect all service 7 days logs. It collects logs and stores them in the /tmp/logs directory with the file name nxfos-logs-xxxxxxx.tar.gz.

  2. Step 2:

    Use the scp command to copy nxfos-logs-xxxxxxxx.tar.gz file to the local system.

Download of developer archive logs will time-out when logs are too huge, then it is recommended to use the sedo commands to download:

  1. Step 1:

    Use the command sedo object-store list onc-torch-service-dev-log-data-archives which lists all archived files under the developer logs.

    For example:
    Ex : root@abrageor-nxf:~# sedo object-store list onc-torch-service-dev-log-data-archives
    ┌─────────────────────────────┬──────────────┬───────────────────────────────┐
    │ OBJECT                      │ SIZE (BYTES) │ LAST MODIFIED                 │
    ├─────────────────────────────┼──────────────┼───────────────────────────────┤
    │ devlogs_2024-09-20T12_40_00 │     13606281 │ Fri, 20 Sep 2024 12:47:01 UTC │
    │ devlogs_2024-09-22T07_31_00 │    175939085 │ Sun, 22 Sep 2024 08:58:12 UTC │
    └─────────────────────────────┴──────────────┴───────────────────────────────┘

  2. Step 2:

    Use the command sedo object-store get onc-torch-service-dev-log-data-archives/devlogs_2024-09-20T12_40_00 to download from the current directory. devlogs_2024-09-20T12_40_00 is the file name list taken from the Step 1 output.

  3. Step 3:

    You can download the file to the local system.

Figure 53. Audit Logs
Screenshot of Audit Logs

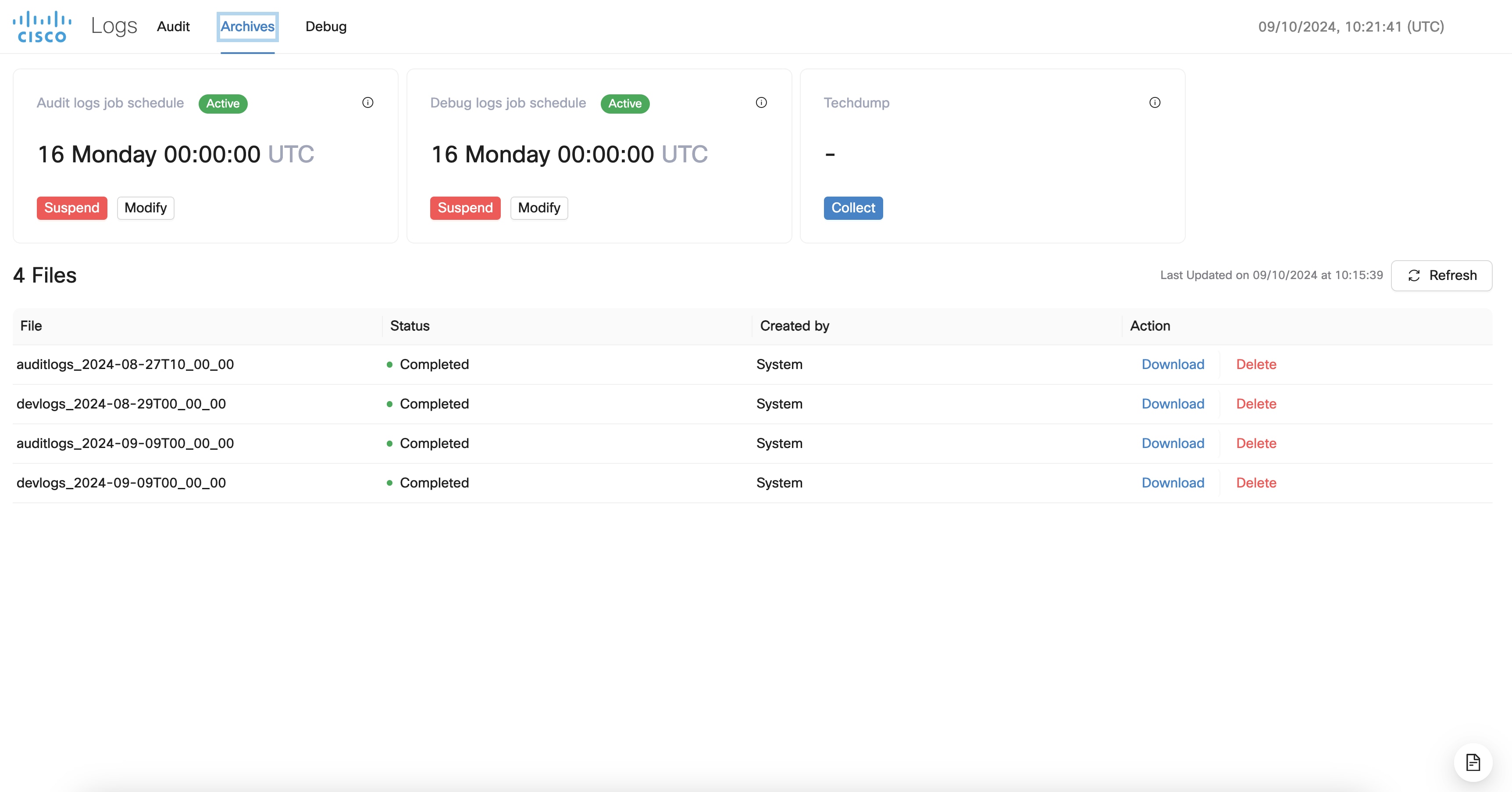

Figure 54. Archive Logs
Screenshot of Archive Logs

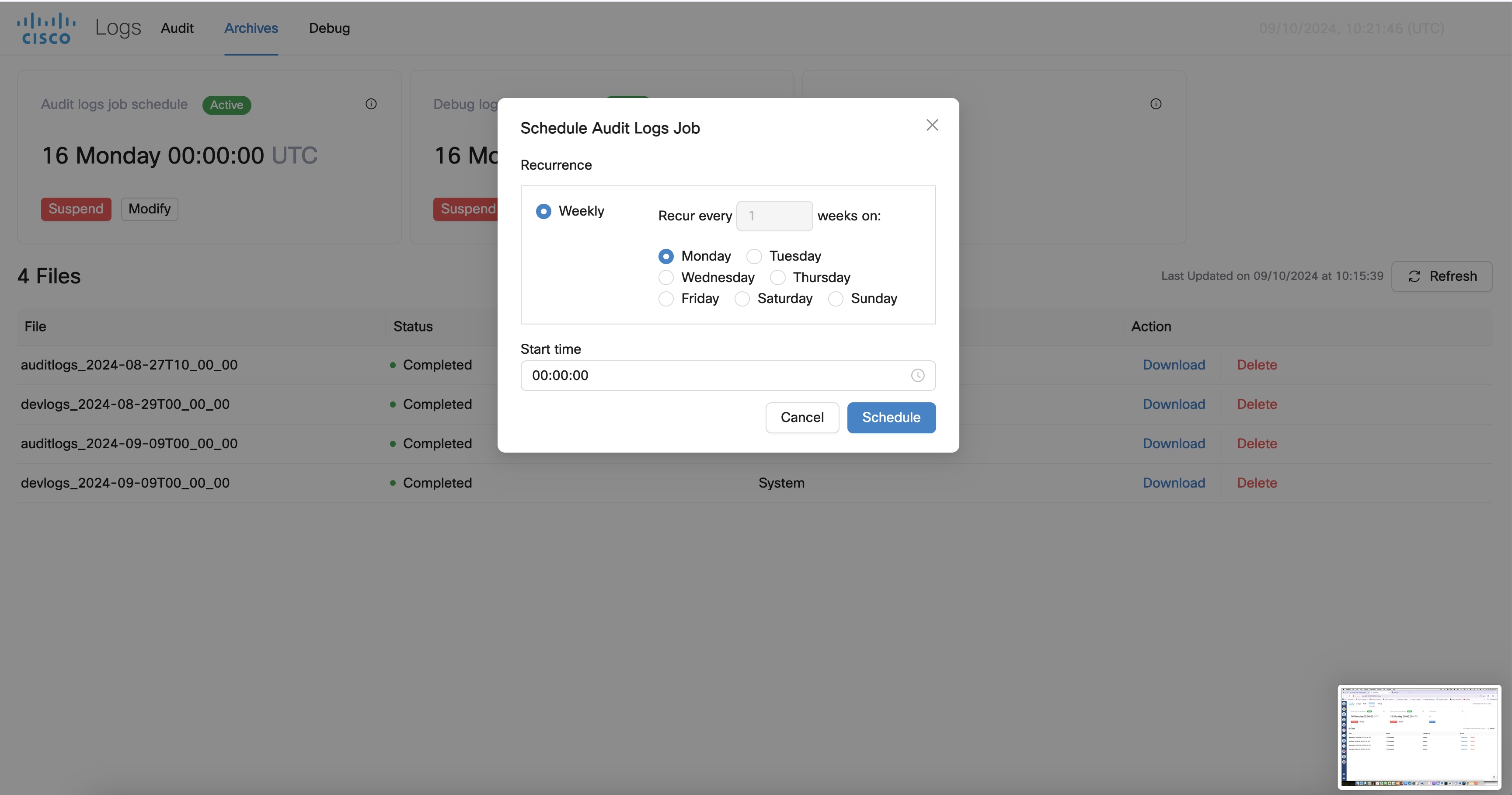

Figure 55. Scheduling Audit Logs Job
Screenshot of Scheduling Audit Logs Jobs

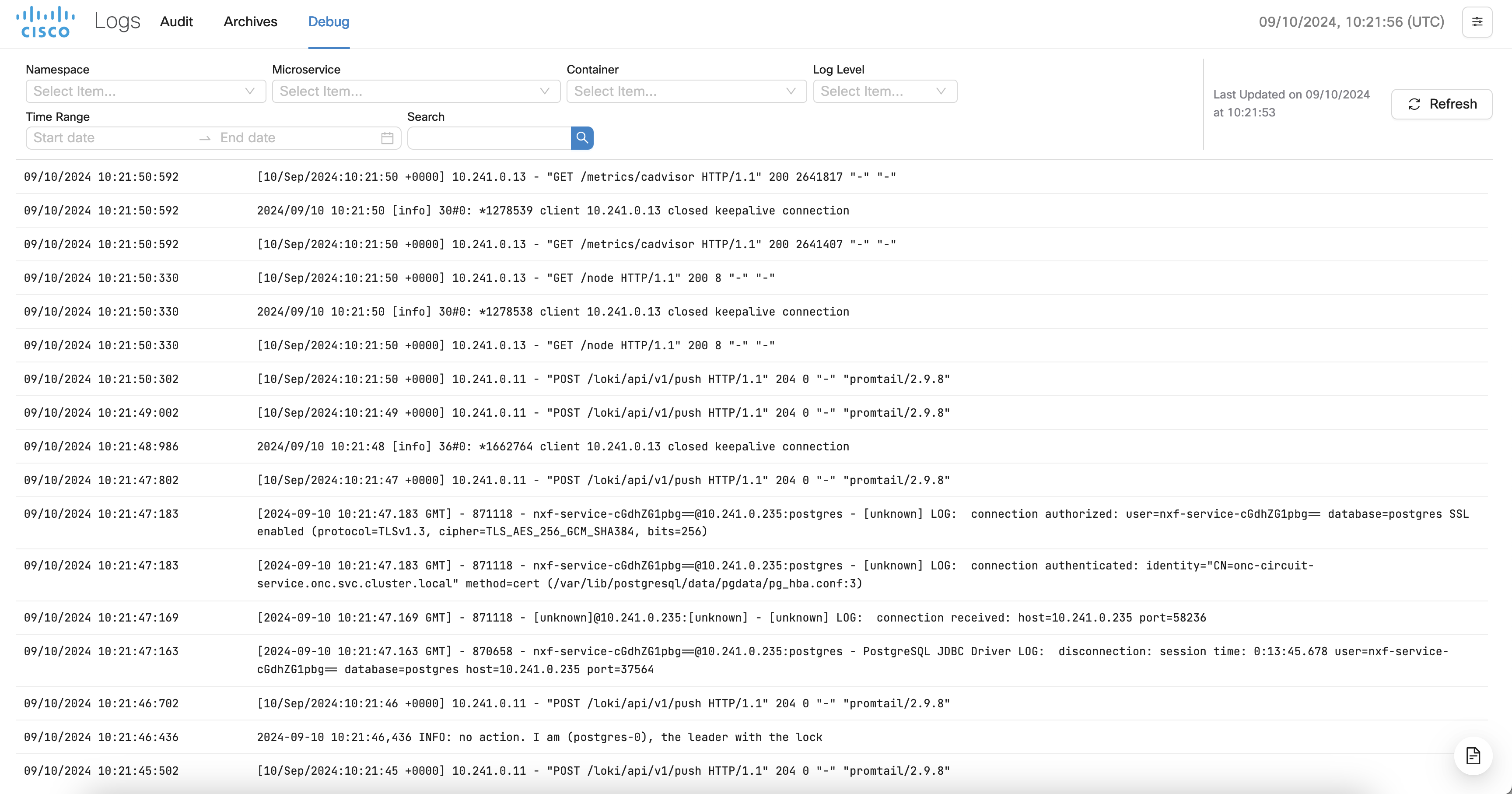

Figure 56. Debug Logs
Screenshot of Debug Logs

Benefits of Logs Enhancement

Log enhancements help in:

Table 26. Benefit of Log Enhancements

Benefit

Description

Organized Log Management

Clear categorization and sub tab structure for easy navigation.

Enhanced Usability

Pagination, filters, and export options improve user experience.

Efficient Retention

Automated scheduling and archiving ensure logs are retained and managed effectively.

User Access Control

Different permissions for admin or internal users and readonly or supervisor users enhance security and control.

Comprehensive Logging

Detailed logging for various operations ensures thorough tracking and auditing.

Accessing Logs

To access the Logs, tab follow the steps:

Procedure


Step 1

Click Logs from the left panel.

The Logs screen is displayed.

Step 2

Click Audit tab.

The Audit table is visible which has the following fields:

  • Time: The time of audit log creation.

  • Category: The category type of the audit log. It can be one of the following types based on your selection:

    • System

    • Node

    • Inventory

    • Topology

    • Service

    • Alarm

    • Alien_Import

    • Site_Audit

  • Identifier: The names of unique Cisco Optical Network Controller identifiers like circuit names or device names, circuit tags or degree names which can be used to filter the Audit log table.

  • Username: The user names based on type of user.

  • Client IP: The IP address of the device or node. It can also have the Cisco Optical Network Controller IP address used for login or also appear as blank.

  • Message: Messages are information pertaining to each log that are part of the Audit.

Step 3

Click Refresh to refresh the Audit log table content anytime.

Step 4

Click Export to export the entire Audit log table content to an *.xls file.

Step 5

Click Archives tab to view the archived data.

This will display the archives table along with the Audit logs job scheduler, Debug logs job scheduler and Techdump options.

For more information on each of these options you can click i the information icon, provided on top of each of these options.

Step 6

Click Debug tab to view the developer logs.

The Debug table has the following filter options which you can select:

  • Namespace

  • Microservice

  • Container

  • Log Level

  • Time Range

  • Search

There is also an Enable Detailed Logs option which allows you to fetch detailed log information from this table for debugging purpose. By default, this option is disabled and must be enabled only when required.


Monitoring

  • Detailed Node Resources: You can monitor the CPU, memory or disk consumption of the host.

  • Pod Monitoring: You can monitor the CPU, memory or disk consumption of the microservices within the kubernetes cluster.

Before you begin

Use this app to view the log messages and other related details.

Procedure


Click to view each option separately.


General Troubleshooting

These are some generic troubleshooting points to consider which are common across the different applications within Cisco ONC.

  • TAC case: In order to raise a TAC case, collect the sedo diagnostic logs with the command:
    sedo diagnostics archive-logs

    Collect it along with the Grafana view.

Unmanaged Equipment Support

Unmanaged devices are third party devices that can be included in the Cisco Optical Network Controller circuit trails connected to transponders.

Cisco Optical Network Controller supports the unmanaged device MXD65-ADVA-FSP-3000-METRO-DCI-OLS in:

  • Topology,

  • Service Assurance,

  • Network Monitoring Workspace and

  • Circuit Monitoring Workspace applications.


Note


  • The MXD65-ADVA-FSP-3000-METRO-DCI-OLS unmanaged device appears as 3LS in the circuit link.

  • In case a degree between the ADVA devices is deleted and recreated, then a resync of the COSM nodes is mandatory.

  • This is pre-provisioned equipment in COSM, the link status is not known since Cisco Optical Network Controller has no access to real HW.

  • Alarms and PM are supported only for NCS 1014 and TXP cards.

  • Power levels are reported only on the TXP card endpoint of the service, and not on the UME side.

  • There is no support for automatic degree detection. The neighbouring nodes have to be configured manually through NETCONF RPC.


Figure 60. Unmanaged Equipment Support in Topology
Screenshot of Unmanaged Equipment Support in Topology
Figure 61. Unmanaged Equipment Support in Service Assurance
Screenshot of Unmanaged Equipment Support in Service Assurance

PSM Fiber Protection

Protection Switching Module (PSM) is a Cisco Optical Network Controller feature that protects the Optical Multiplex Section (OMS) segment in the optical network. It ensures the continuity of signal transmission by automatically switching circuit paths in case of any fiber cut.


Note


  • PSM module is supported by Cisco Optical Network Controller only on the NCS 1001 chassis.

  • NCS 1001 is supported only if it is managed by a COSM instance running over a NCS 1014 chassis.


Configuration in PSM Circuits

PSM supports two-way configurations and can be manually configured. Out of the two paths one will be active and the other will be a standby path. Whenever the active path fails due to fiber cut then the standby path is used for receiving the signal. This is because both the active and standby paths are always used in the TX direction for transmitting the signal, but only one of them can be used to receive the signal at a time.


Note


PSM supports both automatic and manual path switching. Once you cross launch to COSM, there is also a manual switch option provided there for you to select any path and use it as the active path in the PSM circuit.


Benefits of PSM

The benefits of using PSM are:

  • Enhanced network reliability and protection through PSM fiber protection.

  • Improved network management and monitoring with clear visualization of active and standby paths in the circuits.

  • Flexibility in network design with support for various connection scenarios for PSM.

  • Comprehensive event logging and user-driven OAM for better operational control. See Configuration Guide for Cisco NCS 1001.

  • Being multiplexer-agnostic ensures compatibility with various network components.


Note


ILA sites are not supported in 24.3.1 release, refer to the P2P scenario.


Additional PSM Functions

PSM generates alarms and performs automatic path switching with minimal data loss. PSM is integral to circuit creation and can be deployed in any network segment for protection. Additionally, it includes features for monitoring channel power and composite power.

PSM Circuit in Service Manager

In the Service Manager application, the PSM circuit is created like any other circuit using the Provision Circuit option. Once the PSM circuit is installed and it appears in the Services screen it can be visualized in the Service Assurance and the Workspace applications.

Limitations of PSM Fiber Protection

  • Cisco Optical Network Controller does not support PSM Protection switching in optical circuits with NCS 1010 ILA modules between NCS 1010 OLT nodes.

  • Cisco Optical Network Controller does not support 3-way PSM Protection switching.

  • The W-RX and P-RX thresholds for the 1001 PSM must be set carefully based on the number of channels. If the number of channels is lower, a significant power drop from one channel going off may cause the PSM to switch, leading to traffic hits on other channels. See Configuration Guide for Cisco NCS 1001

  • Cisco Optical Network Controller does not display the Reason for switchover.

  • Cisco Optical Network Controller supports only configurations with amplifiers positioned after the PSM module. Fiber protection is not supported.

  • You must perform a resync if you onboard devices, add or modify IPCs, or add or remove degrees to the netwwork after onboarding the PSM.

  • If the same network is being managed by two separate active Cisco Optical Network Controller instances, the same connection service, either a discovered service in both instances, or a service provisioned in one and discovered in the other, must be deleted on both instances for all types of connection services.

PSM Circuit in Workspace Screen

To view the selected PSM circuit follow the steps:

Procedure


Step 1

Click Workspace option on the left panel.

Step 2

Click Circuit Monitoring.

Step 3

Select the PSM circuit.

This will display the PSM circuit on the Topology screen where you can see the active PSM circuit path displayed with a blue colored arrow.

Note


  • The Detailed Service Path displays all the equipments crossed by the circuit. The active path appears in blue and the standby path in grey color.

  • The blue arrows indicate the RX direction of the light for a given PSM.

Figure 62. PSM Circuit in Workspace
Screenshot of PSM Circuit in Workspace

Forwarding Syslogs

The syslog forwarding feature help in:

  • Storing logs from the client VMs in the server VM.

  • Allowing multiple client VMs to send logs to the same server VM.

  • Server installation is done only once.

  • The server's database stores all logs.

You need to run the commands from the client VMs to configure the server using the script provided.

Install Syslog on Server

To install syslog feature on the server run the CLI commands given in the example:

Create the rsyslog server using steps provided in below website
		https://www.makeuseof.com/set-up-linux-remote-logging-using-rsyslog/

To create the folder structure
		AUDIT logs here → /var/log/<host-ip>/audit.log
		ONC service logs here → /var/log/<host-ip>/service_logs/

Add the below lines in the rsyslog.conf file
		$ModLoad imudp
		$UDPServerRun 514

		Input (type="imudp" port="514" ruleset="rs1")

		template (name="ServLogLoc" type="string" string="/var/log/%FROMHOST-IP%/service_logs/%syslogtag%.log")
		template (name="AuditLogLoc" type="string" string="/var/log/%FROMHOST-IP%/audit.log")

		Ruleset (name="rs1") {
		:msg, contains, "audit" ?AuditLogLoc
		*.* ?ServLogLoc
		}

Restart syslog server using command,
		systemctl restart rsyslog

Check if rsyslog service is active and running using command,
		systemctl status rsyslog

Install Syslog on Client

To install syslog server forwarding in client run the CLI commands in the example:

sedo syslog server create <IP> <PROTOCOL> <IP> <PORT>
         IP is the address of the syslog server.
         Protocol to be used - udp or tcp.
         Port on which syslog server is listening to (default is 514)

To create a syslog query to forward the apllication logs of a particular Cisco Optical Network Controller app:



	sedo syslog query create '{namespace="onc", app="<app_name>", container="app"}' LOG_INFO LOG_USER <app_name> <IP>

Note


The query inside single quotes is Grafana Loki's logQL, it can be tweaked according to user needs


To list all syslog queries:


	sedo syslog query list

To list all syslog servers:


	sedo syslog server list

To delete a syslog query:


	sedo syslog query delete <QUERY_ID>

To delete a syslog server:


	sedo syslog server delete <IP>
