Cisco Edge Intelligence Local Manager

In Cisco Edge Intelligence Local Manager dashboard, we create pipelines to define the data progression.

Along with pipeline creation, the following features are available in the dashboard.

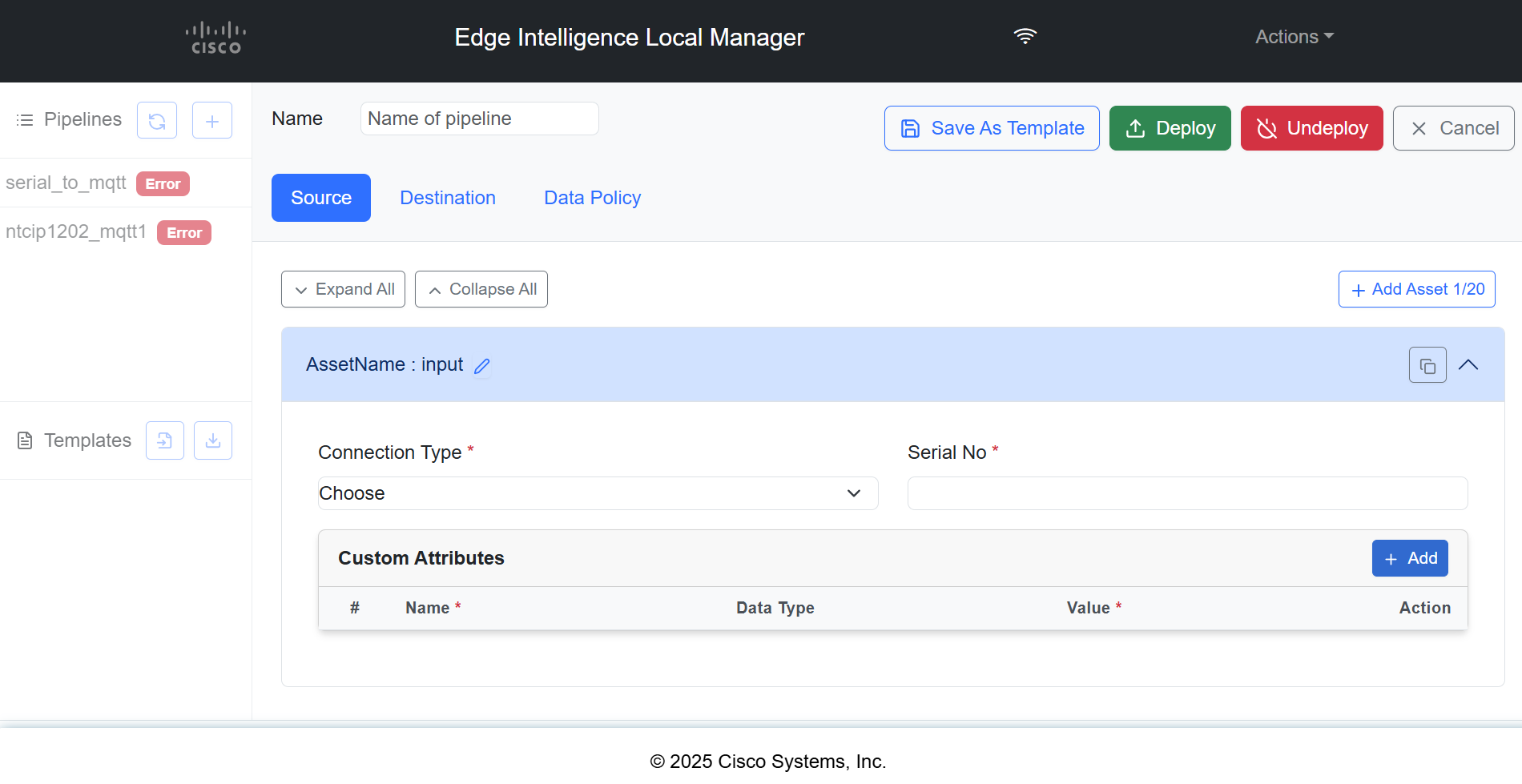

Figure 1. Cisco Edge Intelligence Local Manager dashboard
  1. Check Cisco Edge Intelligence connection status:

    Hover over the network connection icon (Wi-Fi icon) in the top banner to view whether Cisco Edge Intelligence is online or offline, and for agent details such as version and ID.

  2. Create and view deployed pipelines:

    • The pipelines area provides a quick view of the deployed pipelines and their respective statuses.

    • Click an existing pipeline to view its health status details, or to edit the pipeline's configurations.

    • To create a new pipeline, click the plus (+) icon.

  3. View, import, or export templates:

    The templates area displays all the templates that are available in the Cisco Edge Intelligence Local Manager.

    • Click the import icon to upload template files from your local system.

    • Click the download icon to download one or all the templates to your local system, in JSON format. You can then import the templates into other agents for deployment.

  4. Delete all pipelines:

    To delete all the pipelines in your Cisco Edge Intelligence Local Manager, choose Actions > Reset Links from the top banner.


    Caution


    Once deleted, a pipeline cannot be retrieved.


Templates are browser-specific and access is restricted to your user credentials. However, deployed pipelines do not have similar restrictions. Multiple users can check the health status of a pipeline and edit any existing pipeline configurations.

How to create pipelines

Creating a Cisco Edge Intelligence pipeline involves defining:

  1. One/multiple source asset type

  2. One data destination

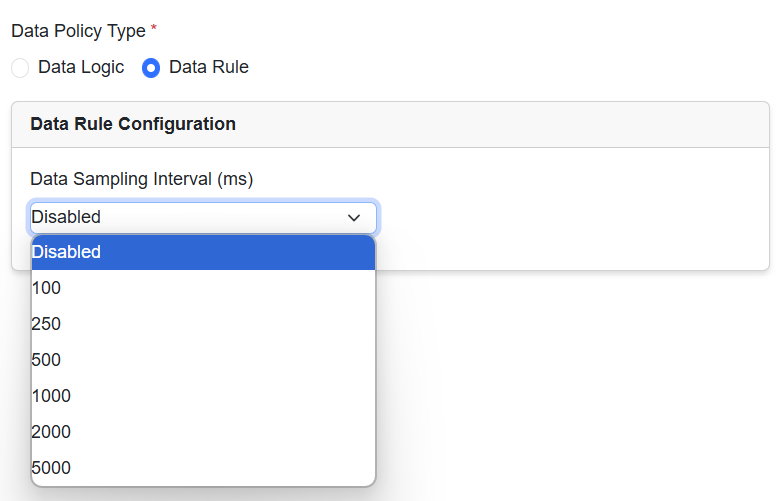

  3. A data transformation method, in the form of a data rule or a data logic

To create a pipeline in the Cisco Edge Intelligence Local Manager GUI, in the Pipelines area of the left pane, click the plus (+) sign button. At the top of the page, enter a name for the pipeline. Ensure that each pipeline name for the Cisco Edge Intelligence must be unique, in compliance with the following recommendations.

  • Do not use special characters for a pipeline name, as special characters are removed during internal processing. We recommend using the CamelCase naming convention.

    For example, use WaterSensorSalinityJ2345 instead of Water Sensor-Salinity_J2345.

  • Avoid ending a pipeline name with the letter s to indicate a plural form, as this name can cause internal naming conflicts.

    For example, use ColdStoragePlc instead of ColdStoragePlcs.

Data sources

Define assets or data source types based on the communication protocols they use. Each protocol then allows further configurations to define the data sources.

In the Source tab, these fields are the required for all type of connection types.

Field

Description

Asset Name

Click the pencil icon to enter a name for the asset. This name gives a significant value to the data logic.

Connection Type

From the drop-down list, choose one of the following protocols:
  • MQTT

  • Modbus – Serial

  • Modbus – TCP/IP

  • OPC-UA

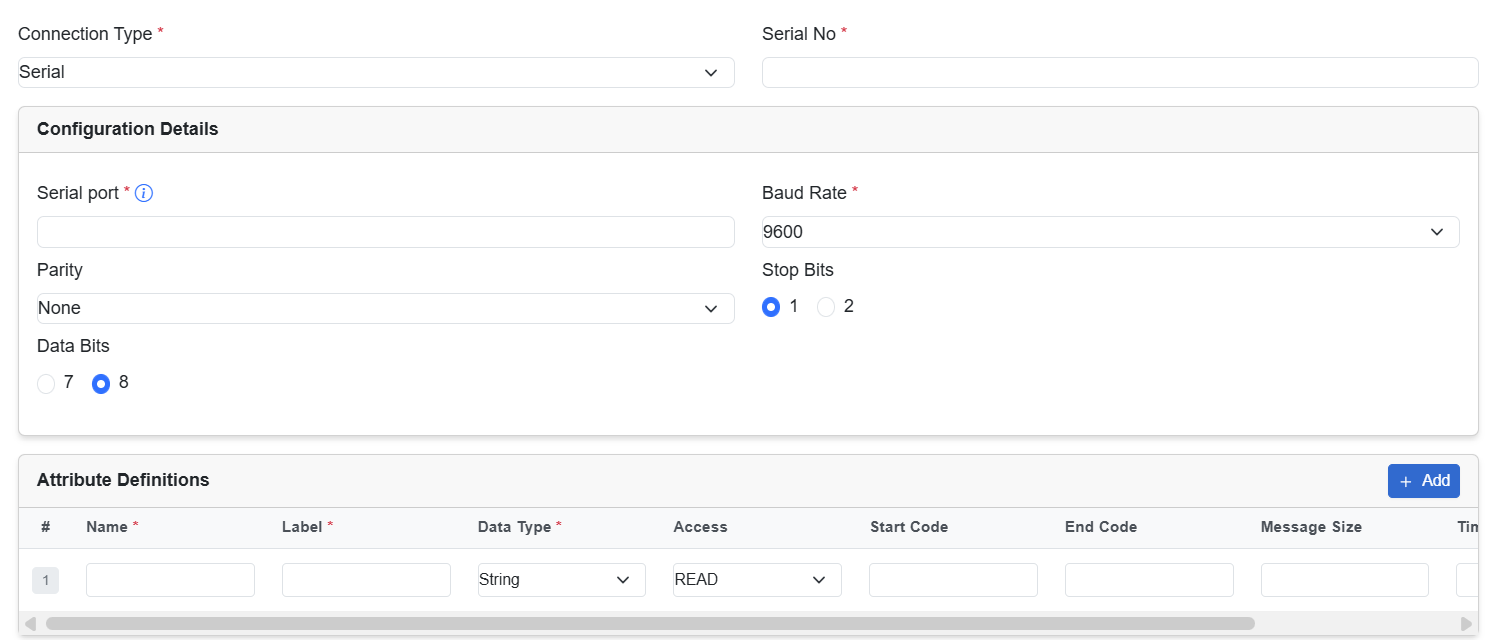

  • Serial

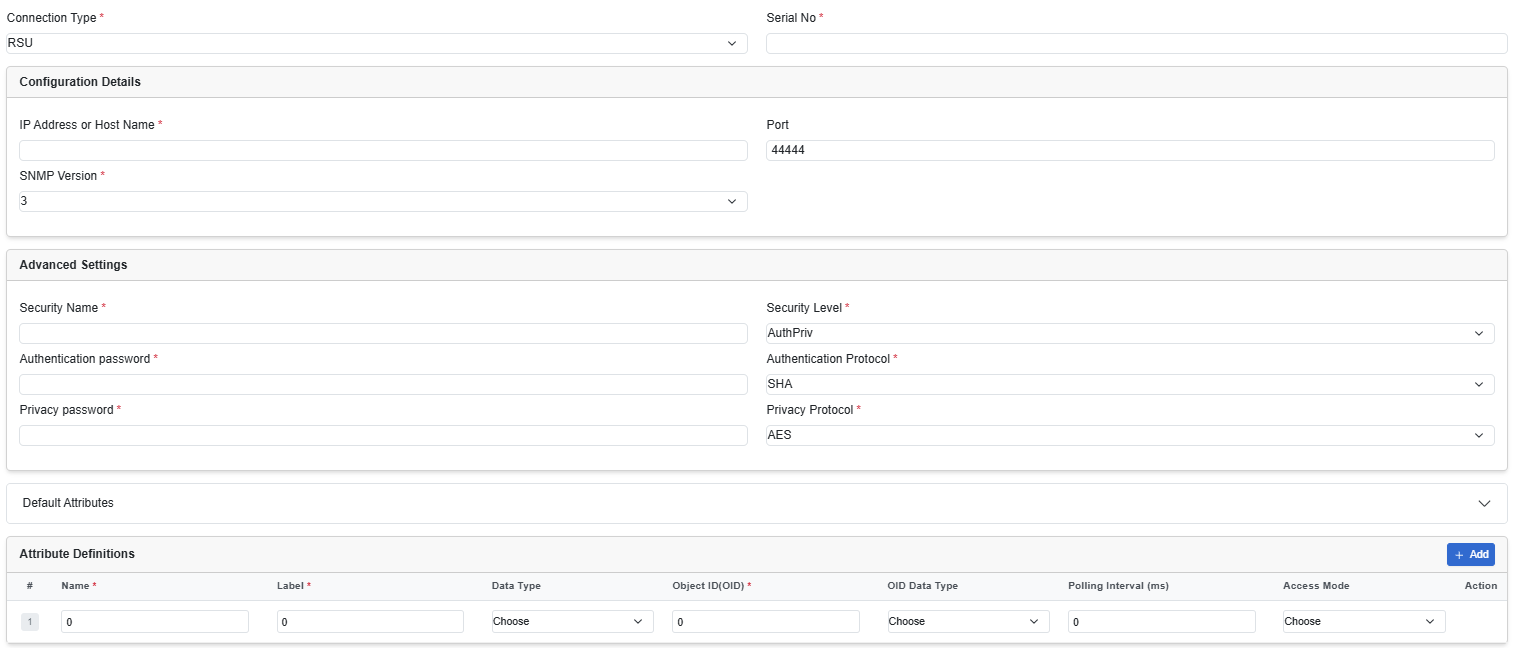

  • RSU

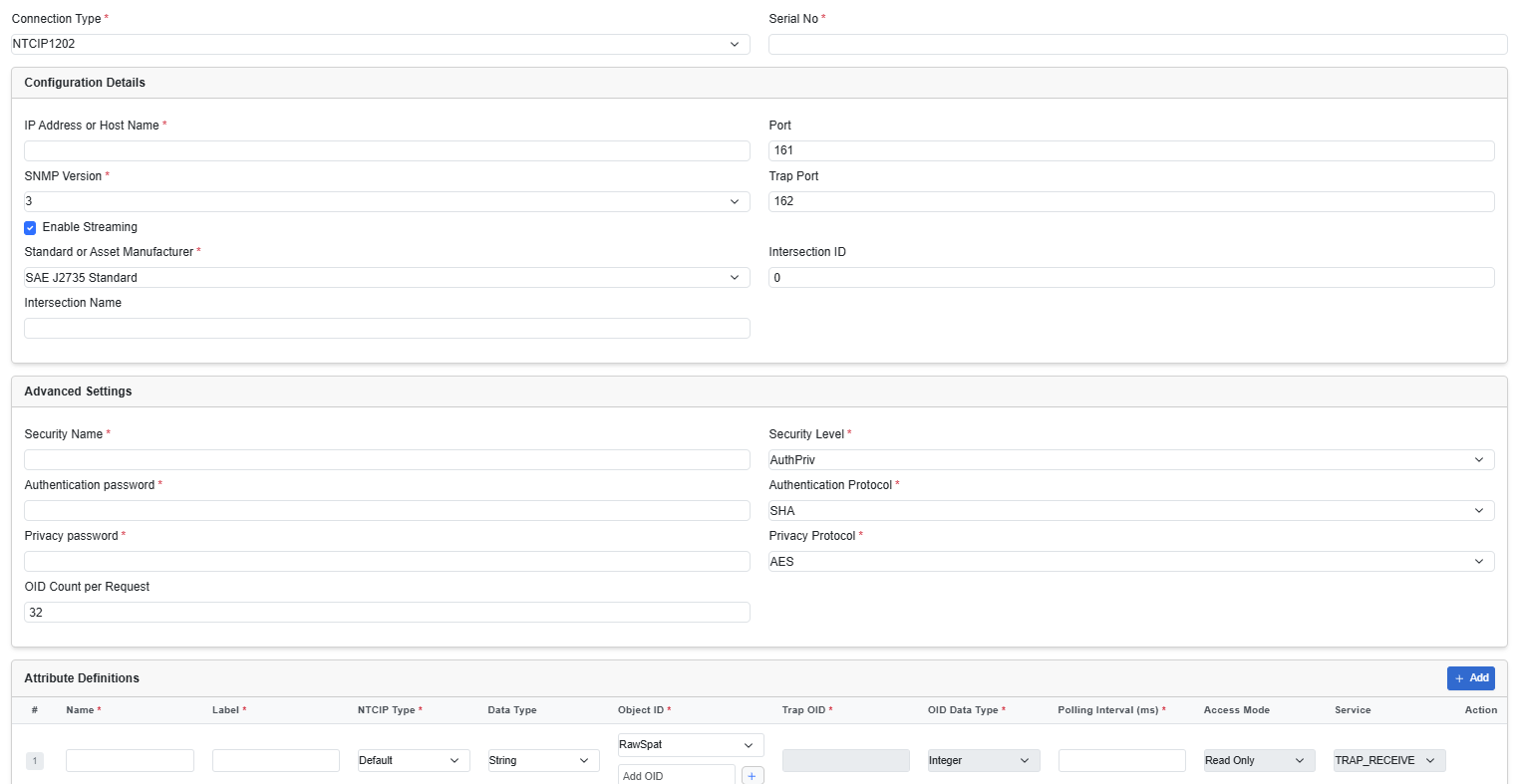

  • NTCIP1202

  • NTCIP1203

  • NTCIP1204

Serial Number

Enter a serial number for the chosen source type.

Custom Attribute Configuration

You can add custom attributes along with each asset type-specific attribute. Add the following details to configure the custom attribute:

  1. Name: Enter a name for the custom attribute.

  2. Data Type: From the drop-down list, select a data type, string, double, encrypted string, or file.

  3. Value: Enter a custom attribute value.

If the Data Type is selected as File:
  • There can be only one attribute type File for a given asset type.

  • The max size of the uploaded file should be 12 KB.

  • The file can be of any type - ASCII or binary.

  • If the asset is part of a data rule policy and the destination is configured to send the custom attribute to the northbound destination, the base64 equivalent of the file contents will be sent.

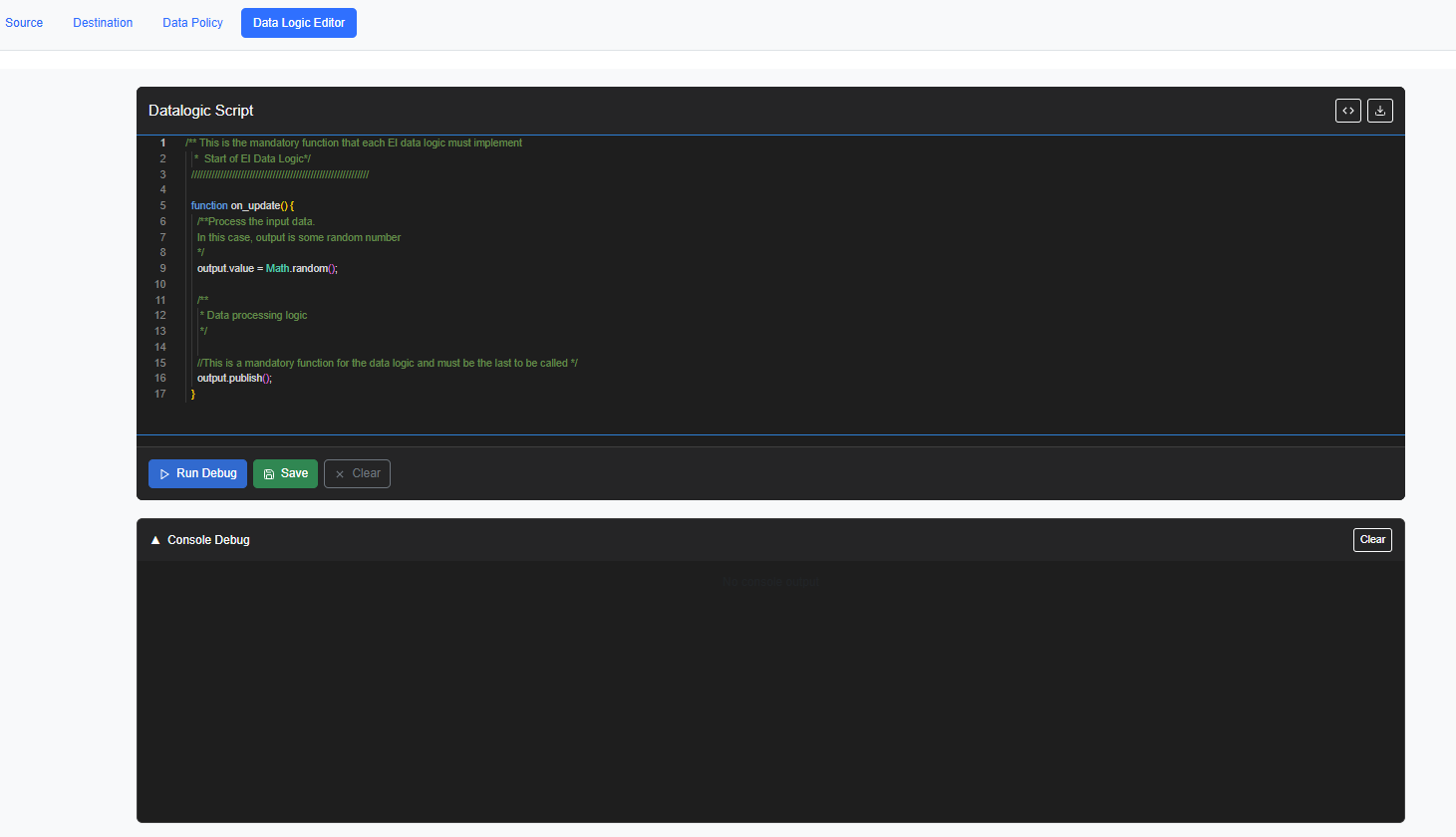

  • If the asset is part of a data logic policy, a custom attribute value is available in the data logic script as a byte array (UInt8Array), and it can be converted to the original format for access.

  • For example, if the custom attribute "reference_data" was of File type and the uploaded file was as ASCII file, the following code shows how to convert the value available as UInt8Array into ASCII text.

       function on_update() {

        ...
        var file_contents = new TextDecoder().decode(input.reference_data);            // Converts UInt8Array to ASCII
        ...
       }


Click Add to add more custom attributes to any asset configuration


Note


Cisco Edge Intelligence Local Manager have the provision to configure the multiple assets under a single pipeline. You can configure upto 20-assets type details and run the deployment.

If you want to duplicate an existing asset details with a different serial number, click copy-paste icon next to the asset name.


Configure MQTT asset type

The MQTT asset type enables and configures the Cisco Edge Intelligence MQTT Server. You can publish data to the EI Agent from an MQTT client on the following ports after deploying this to an EI Agent:

  • Port 8883 for TLS configurations

  • Port 1883 for non-TLS configurations

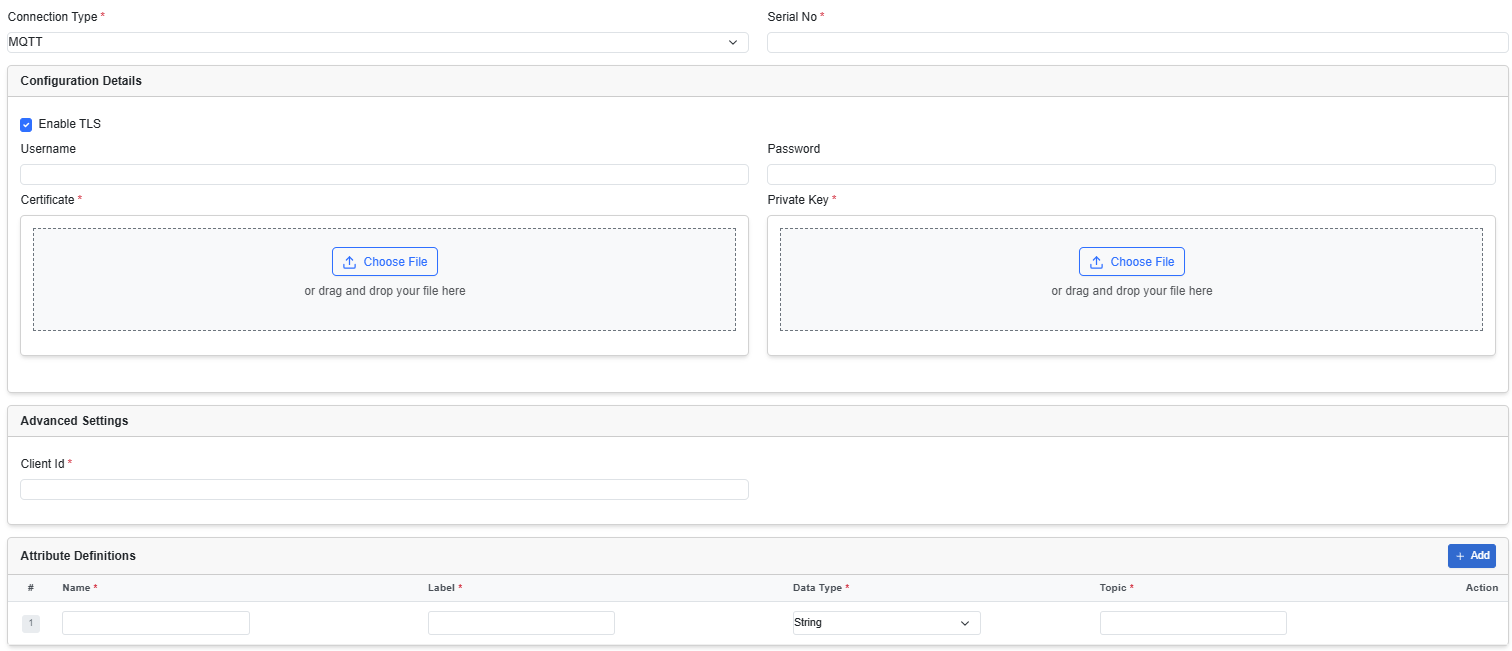

In the Source tab, from the Connection Type drop-down list, choose MQTT. Then, fill out the following fields.

Field

Description

Configuration Details

Enable TLS

Choose this checkbox to enable TLS.

When you choose to enable TLS, additional fields are displayed to allow the upload of certificate and private key files. The MQTT server that is deployed on the EI agent, uses these certificates and private keys to authenticate the MQTT clients connecting to it.

Username

Enter a username. The connecting MQTT Clients (sensors) will use this username for authentication at the MQTT Server which will be spawned on the EI Agent.

Password

Enter the Password. The connecting MQTT Clients (sensors) will use this password for authentication at the MQTT Server which will be spawned on the EI Agent.

Advanced Settings

Client ID

Add a client ID to publish data. (Topic-based device or sensor identity detection is not supported).

The client ID, specified in the MQTT client connection, differentiates various MQTT connections to Cisco Edge Intelligence.

Attribute Definitions

The data model explains how data is represented in the asset, and what MQTT topics the asset should be updated from. To define a data model, add the following details:

  1. Name: Enter a name for the data model

  2. Label: Enter a label for the data model

  3. Data Type: From the drop-down menu, select a measurement entity (string, integer, float, long, or boolean) for the MQTT topic.

  4. Topic: Enter the MQTT topic over which the measurement is sent by the transmitting MQTT client. For example, sensors/tempXY/temp.

Click Add to add more data model attributes to the configuration


Note


The MQTT topic used to publish sensor data and the data format should match the data model JSON file.


MQTT data model example:

{
    "apiVersion": 1.0,
    "connectionType": "MQTT",
    "fields": {
      "temperature": {
        "category": "TELEMETRY",
        "label": "Temperature",
        "description": "Outside temperature sensor XY | Temperature",
        "datatype": "Float",
        "topic": "sensors/tempXY/temp"
       },
       "humidity": {
         "category": "TELEMETRY",
         "label": "Humidity",
         "description": "Outside temperature sensor XY | Humidity",
         "datatype": "Float",
         "topic": "sensors/tempXY/hum"
       },
       "attr1": {
         "category": "ATTRIBUTE",
         "label": "Attribute 1",
         "datatype": "Float",
         "description": "My Attribute 1",
         "required": true,
         "defaultValue": 12.9
       },
       "attr2": {
         "category": "ATTRIBUTE",
         "label": "Attribute 2",
         "datatype": "String",
         "description": "My Attribute 2",
         "required": false,
         "defaultValue": null
       },
       "encrypted_attr3": {
         "category": "ATTRIBUTE",
         "label": "New Attribute",
         "datatype": "EncryptedString",
         "description": "My Attribute 3",
         "required": true,
         "defaultValue": null
       }
    }
}

MQTT topic and sensor data used by MQTT Client example:

MQTT Client Topic: sensors/tempXY/hum
MQTT Client Data: 50.0

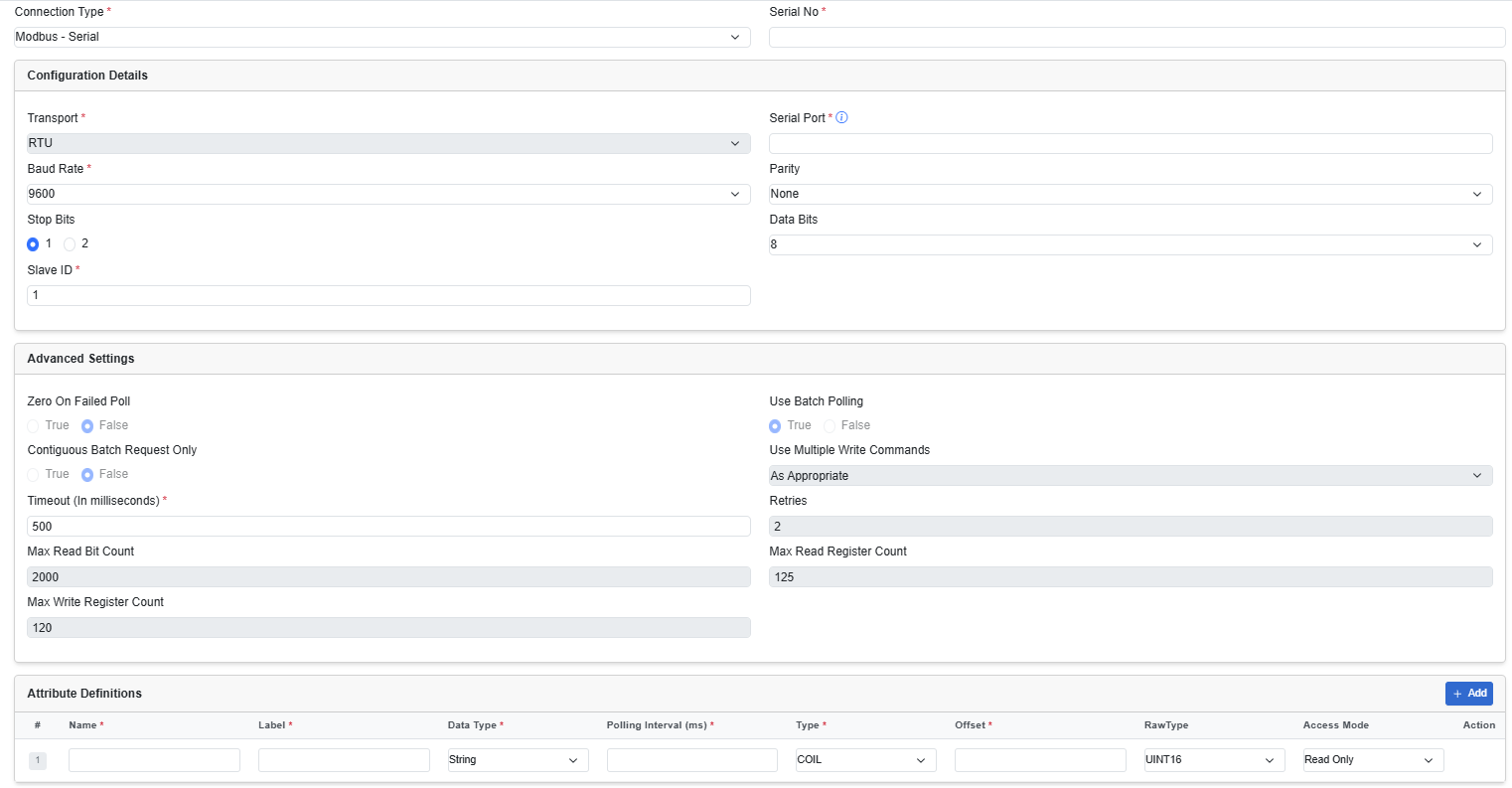

Configure Modbus-Serial asset type

From the Device Type drop-down list, choose MODBUS-Serial. Then enter the required details in the following fields.

Field

Description

Configuration Details

Transport

This field is not editable. It has a default value set for RTU.

Serial Port

Enter a port number. For example, /dev/ttyS0.

Baud Rate Enter a baud rate.
Parity From the drop-down list, choose None, Odd, or Even.
Stop Bits This value can be either 1 or 2. Choose the required radio button.
Data Bits From the drop-down list, choose a value 5–9.
Slave ID

This refers to the unique identifier assigned to a Modbus secondary device (such as a sensor or PLC) on a serial network. Modbus protocol requires each secondary device to have a unique ID (1–247) to distinguish it on a shared bus. This ID ensures that the Modbus primary (such as the Cisco EI agent) sends requests to the correct device and processes its responses.

Advanced Settings

Zero or Failed Poll The value if there is no response from the asset. This field is not editable.
Use Batch Polling To request batch responses from the asset. This field is not editable.
Contiguous Batch Request Only To request contiguous batch responses from the asset. This field is not editable.
Use Multiple Write Commands This field is not editable.
Timeout The time in which to receive the data before it is reset. The default value is 500.
Retries The number of times the server requests for retransmission of data. This field is not editable.
Max Read Bit Count The maximum number of bits that the server reads in one read request. This field is not editable.
Max Read Register Count The maximum number of registers that the server reads in one read request. This field is not editable.
Max Write Register Count The maximum number of registers that the server writes in one write request. This field is not editable.
Attribute Definitions A data model explains how data is represented in the asset. You can create a data model using a JSON file. Select one of the following:
  1. Name: Enter a name for the data model.

  2. Label: Enter a label value.

  3. Data Type: From the drop-down list, select a measurement entity (string, integer, float, long, or boolean) for the MODBUS serial data.

  4. Polling Interval (ms): Enter a value to define the fastest rate at which the server must test and debug.

  5. Type: From the drop-down list, choose a data type for industrial control of factory devices. The available choices are COIL, HOLDING, DISCRETE, and INPUT.

  6. Offset: Enter a value to reference a specific register within the function.

  7. RawType: From the drop-down list, choose the value type for storing binary data or byte strings.

  8. Access Mode: From the drop-down list, choose an access mode. The available choices are Read Only, Read & Write, and Write Only.

Click Add to add more data model attributes to the configuration

Modbus_serial data model example:

{
  "apiVersion": 1,
  "connectionType": "MODBUS_SERIAL",
  "fields": {
    "pressureInPascal": {
      "label": "MetrLabeModb1",
      "pollingInterval": 50,
      "offset": 12,
      "type": "HOLDING",
      "datatype": "Float",
      "rawType": "VARCHARSTRING",
      "description": "",
      "access": "Write"
    },
    "TemperatureInDegrees": {
      "label": "Temperature",
      "pollingInterval": 41,
      "offset": 56,
      "type": "DISCRETE",
      "datatype": "String",
      "rawType": "INT16",
      "description": "",
      "access": "ReadWrite"
    },
    "HumidityInDegrees": {
      "label": "Humidity",
      "pollingInterval": 20,
      "offset": 45,
      "type": "COIL",
      "datatype": "Int",
      "rawType": "FLOAT64",
      "description": "Humidity Value ",
      "access": "Read"
    }
  }
}

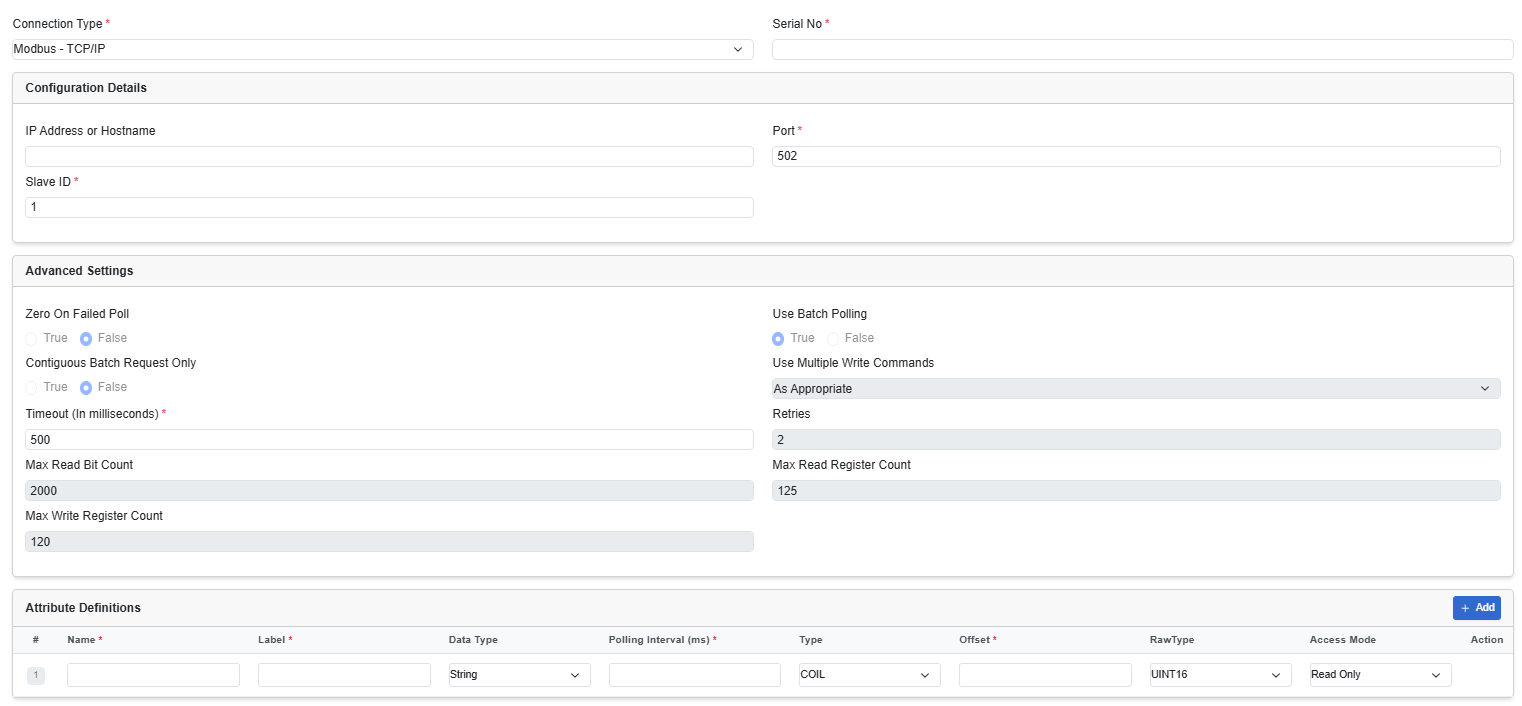

Adding Asset Types for Modbus TCP Connection Type

After you select the MODBUS-TCP/IP, complete the following additional fields by adding the details on it.

Field

Description

Configuration Details

IP Address or Host Name Enter an IP address or hostname.
Port Enter a port number.
Slave ID

This refers to the unique identifier assigned to a Modbus secondary device (such as a sensor or PLC) on a serial network. Modbus protocol requires each secondary device to have a unique ID (1–247) to distinguish it on a shared bus. This ID ensures that the Modbus primary (such as the Cisco EI agent) sends requests to the correct device and processes its responses.

Advanced Settings
Zero on Failed Poll The value if there is no response from the asset. This field is non-editable.
Use Batch Polling To request batch responses from the asset. This field is non-editable.
Contiguous Batch Request Only To request contiguous batch responses from the asset. This field is non-editable.
Use Multiple Write Commands This field is non-editable.
Timeout The time set to receive the data before it is reset. The default value is 500.
Retries The number of times the server requests for retransmission of data. This field is non-editable.
Max Read Bit Count The maximum number of bits that the server reads in one read request. This field is non-editable.
Max Read Register Count The maximum number of registers that the server reads in one read request. This field is non-editable.
Max Write Register Count The maximum number of registers that the server writes in one write request. This field is non-editable.
Attribute Definitions A data model explains how data is represented in the asset. You can create a data model using a JSON file. Enter the following details:
  1. Name: Enter a name for the data model.

  2. Label: Enter a label value.

  3. Data Type: From the drop-down menu, select a measurement entity (string, integer, float, long, or boolean) for the MODBUS-TCP/IP data.

  4. Polling Interval: Enter a value to define the fastest rate at which the server should test and debug.

  5. Type: From the drop-down menu, choose a data type for industrial control of factory devices. The available choices are COIL, HOLDING, DISCRETE, and INPUT.

  6. Offset: Enter a value to reference a specific register within the function.

  7. RawType: From the drop-down menu, choose the value type for storing binary data or byte strings.

  8. Access Mode: From the drop-down list, choose an access mode. The available choices are Read Only, Read & Write, and Write Only.

Click Add to add more data model attributes to the configuration

The following is an example of a data model for Modbus-TCP/IP source type.

{
  "apiVersion": 1,
  "connectionType": "MODBUS_TCP",
  "fields": {
    "desired_temp": {
      "label": "Desired Temperature",
      "datatype": "Int",
      "description": "WO",
      "rawType": "UINT16",
      "type": "HOLDING",
      "pollingInterval": 5000,
      "offset": 5,
      "category": "TELEMETRY",
      "access": "Write"
    },
    "temp_to_display": {
      "label": "Temperature to be displayed",
      "datatype": "Int",
      "description": "RW",
      "rawType": "UINT16",
      "type": "HOLDING",
      "pollingInterval": 5000,
      "offset": 100,
      "category": "TELEMETRY",
      "access": "ReadWrite"
    },
    "temp": {
      "label": "Current Temperature",
      "datatype": "Int",
      "description": "RO",
      "rawType": "UINT16",
      "type": "HOLDING",
      "pollingInterval": 5000,
      "offset": 1,
      "category": "TELEMETRY",
      "access": "Read"
    }
  }
}

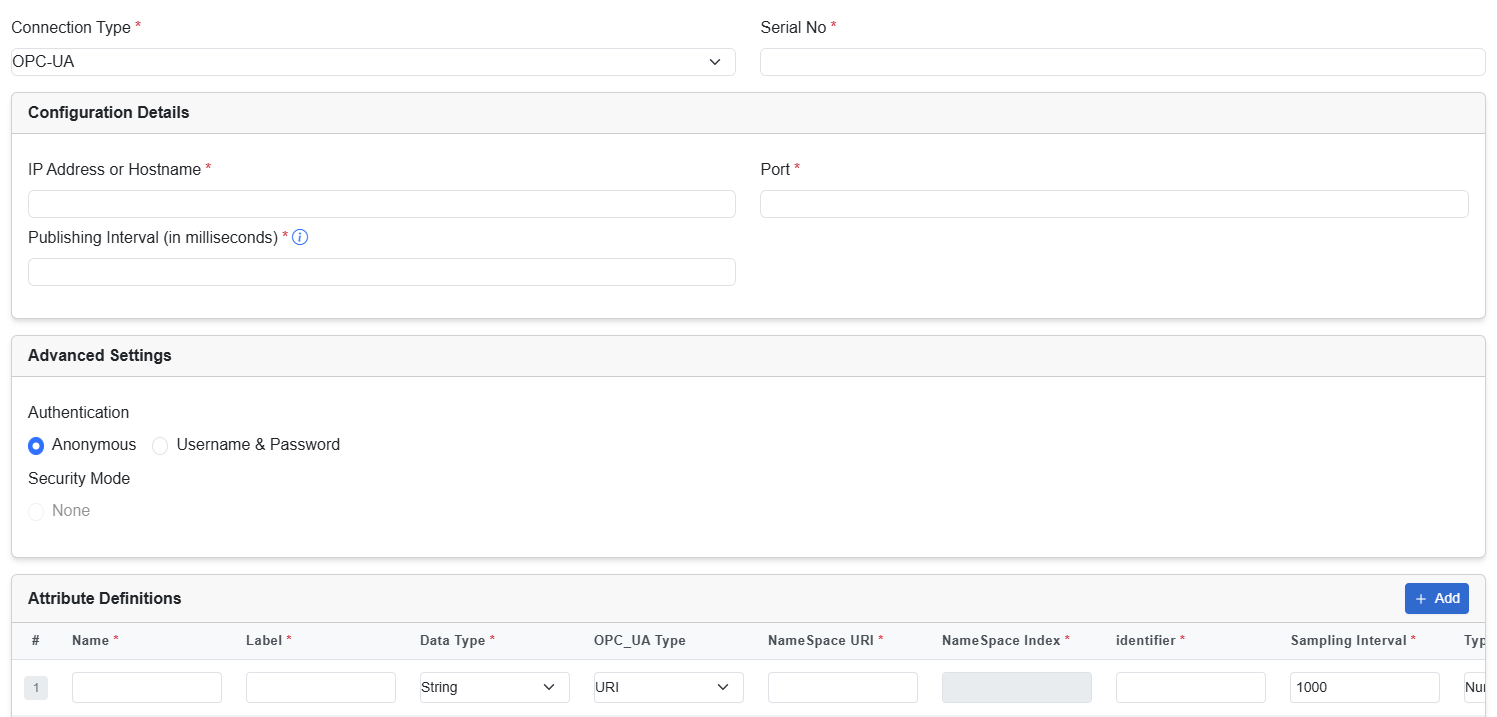

Configure OPC-UA asset type

After you select the asset type OPC-UA, enter the required details in the following fields:

Field

Description

Configuration Details
IP Address or Host Name Enter an IP address or hostname.
Port Enter a port number.
Publishing Interval This is the requested publishing frequency from the OPC-UA Server. The interval must be greater than or equal to 1000ms.

Note



The OPC-UA server publishing frequency is independent of the metric-specific sample interval. In case the sampling interval (in the following attribute table) of an individual metric is smaller than the publishing interval, the OPC-UA server queues up and send all the sampled values for a metric between the last publish and the current publish.

Advanced Settings
Authentication Choose an authentication type:
  • Anonymous: The OPC-UA client inside the EI Agent does not authenticate at the OPC-UA server. Use this authentication type if your OPC-UA server does not have authentication that is enabled for connecting clients.

  • Username & Password: Enter the username and password that the EI Agent must use to authenticate at the OPC-UA server.

Security Mode This field is non-editable. The default value is None.

Attribute Definitions

A data model explains how data is represented in the asset.

  1. Name: Enter a name for the data model.

  2. Label: Enter a label for the data model.

  3. Data Type: From the drop-down menu, select a measurement entity (string, integer, float, long, or boolean) for the OPC-UA data.

  4. OPC_UA Type: From the drop-down menu, choose URI or INDEX.

  5. NameSpace URI: Enter a value to identify the naming authority that defines the identifiers of Node IDs.

    Note



    This field is editable if you select URI under OPC_UA Type.

  6. NameSpace Index: Enter a value to identify the naming authority that defines the identifiers of Node IDs.

    Note



    This field is editable if you select INDEX under OPC_UA Type.

  7. Identifier: Enter a value that is unique across different naming authorities.

  8. Sampling Interval: Enter a value to indicate the fastest rate at which the server should sample its underlying source for data changes.

  9. Type: From the drop-down menu, choose the data type for the identifier. The available choices are Numeric and String.

Click Add to add more data model attributes to the configuration

The following is an example of a data model for OPC-UA source type.

{
  "apiVersion": 1,
  "connectionType": "OPC_UA",
  "fields": {
    "temperature": {
      "label": "Temperature",
      "description": "",
      "datatype": "Float",
      "nodeId": {
        "namespaceUri": "2",
        "identifier": "2",
        "type": "numeric"
      },
      "samplingInterval": 1000,
      "category": "TELEMETRY"
    }
  }
}

Configure Serial asset type

After you select the asset type Serial, enter the required details in the following fields.

Field

Description

Configuration Details
Serial Port Enter a port number. For example, /dev/ttyS0
Baud Rate From the drop-down menu, choose 9600, 19200 or you can add a new custom value on it.
Parity From the drop-down menu, choose None, Odd, or Even
Stop Bits Choose the radio button for 1 or 2.
Data Bits From the drop-down menu, choose 7 or 8.
Attribute Definitions A data model explains how data is represented in an asset.
  1. Name: Enter a name for the data model.

  2. Label: Enter a label for the data model.

  3. Data Type: From the drop-down menu, choose String or Binary. If you select Binary, the data is delivered in binary form 1.

    1. For a data logic policy, the data is delivered as a binary buffer in the data logic script in the on_update() function.

    2. For a data rule policy, the data is sent to the northbound destination in the base64 format.

  4. Access: From the drop-down menu, choose read, write, or read and write.

  5. Start Code: Enter the marker that indicates the start of a stream of bytes.

  6. End Code: Enter the marker that indicates the end of a stream of bytes.

  7. Message Size: This is the size, in bytes, between the start code and the end code.

  8. Timeout: Enter a time, in milliseconds, within which to receive data, before it is reset. This is enabled only for READ and READWRITE access modes. This field is mandatory only if the message size is configured.

Common errors and troubleshooting

Errors can easily occur when configuring a serial port. For example:

To troubleshoot a serial interface:

  • Make sure that serial port is configured in propagate mode at the IOS level. A current workaround is to use just the 0x prefix as the StartCode to specify an empty StartCode.

  • For testing interface options only:

    • Use a data model with a fixed message size of 1 byte and no start code.

    • Verify that there is some data that is coming in to ensure that the connection is working.

    • Once this is done, the actual data model can be defined.

Serial Connector data model

A serial connector asset type has a reduced data type.

The following combinations are allowed:

  • One read attribute

  • One read plus one write attribute

  • One read-write attribute

Read attribute allows the following configuration combinations:

  • Message Size and Timeout

  • StartCode and Message Size and an optional Timeout

  • StartCode and EndCode and an optional Timeout

Start-/End-Code prefix handling:

  • Prefix 0x allows to specify hex encoded binary data. For example, 0x1310 -> CR+LF)

  • Prefix allows to specify as-is

Serial data model example:

{
  "apiVersion": 1,
  "connectionType": "SERIAL",
  "fields": {
    "data_string1": {
      "label": "My Data String",
      "datatype": "String",
      "description":    "serial read attribute",
      "access": "READ"
      "startCode": "$",
      "endCode": "0x0a",
      "messageSize":""
    }
  }
}

RSU asset type settings

The RSU asset type supports a set of static attributes in addition to the regular configurable attributes. Static attributes are always available and not required to be configured.

  • The static attributes have a JSON string content and reflect incoming DSRC messages, except storeAndRepeatMessage and broadcastImmediately static attributes.

  • The storeAndRepeatMessage must be set as an array of message objects. All previous messages will be overwritten by the new array.

  • The current array of messages can be obtained by reading the attribute.

  • The basic configuration for this asset type includes the host, port, and SNMP version.

  • Advanced settings like community or authentication data must be set depending on the SNMP version.

In the Source tab, from the Device Type drop-down list, choose RSU. Then, fill the following fields.

Field

Description

Configuration Details

IP Address or Host Name Enter the IP address or hostname.
Port Enter the port number.
SNMP Version Select a version from the drop-down list from 1, 2c and 3.

3 is the most secure version.

Advanced Settings Complete these fields based on the selected SNMP Version.

Default Attributes

It shows the default attributes that are specific to RSU. Even if you will not add any additional attributes, it runs for the agents.

Attribute Definitions A data model explains how data is represented in an asset.
  1. Name: Enter a name for the data model.

  2. Label: Enter a label for the data model.

  3. Data Type: From the drop-down list, choose String, Integer, Float, Long, or Boolean.

  4. Object ID (OID): OID address is used to uniquely identify managed devices and their statuses.

  5. OID Data Type: OID is the data type for the object. String or Integer.

  6. Polling Interval (ms): This indicates the fastest rate at which the Server should test and debug. Select a unit from the up-down menu.

  7. Access Mode: From the drop-down list, choose read, write, or read and write.

Click Add to add more attributes to the asset configuration.

NTCIP1202, NTCIP1203, NTCIP1204 asset type settings

Cisco Edge Intelligence Local Manager supports three NTCIP devices. Use the Asset Type for the correct connection type.

  • NTCIP 1202—Actuate Signal Controller

  • NTCIP 1203—Dynamic Message Sign

  • NTCIP 1204—Road Weather Information System

The basic configuration for all these three asset types include the host, port, and SNMP version.

Advanced settings like community or authentication data must be set depending on the SNMP version.

Each NTCIP asset type supports a set of static attributes in addition to the regular configurable attributes.

Field

Description

Configuration Details
IP Address or Host Name Provide the IP address or Host Name.
SNMP Version Select a version from the drop-down list from 1, 2c and 3.

3 is the most secure version.

Port Provide a NTCIP connector port number.

Note



NTCIP1202 port number should never match Trap port number, and vice versa.

Trap Port (Applicable only for device type: NTCIP1202) Provide Trap port number.

Note



Trap port number should never match NTCIP1202 port number, and vice versa.

Enable Streaming

(Specific to device type: NTCIP1202)

Choose this checkbox to enable Streaming.

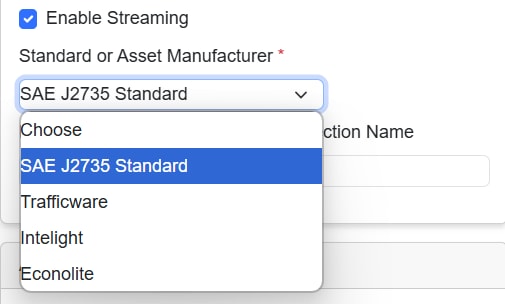

When you choose to enable Streaming, an additional field Standard or Asset Manufacturer protocol is displayed. NTCIP 1202 allows the streaming of data using standard and Asset manufactured protocols. The different protocols are:

Standard protocol:

  • SAE J2735 Standard

Asset manufactured protocols

  • Trafficware

  • Intelight

  • Econolite

Intersection ID (Specific to device type: NTCIP1202) Intersection ID is optional and depends on the user's specific use case. You can choose to configure this field if required for their particular scenario. For example, in traffic use cases, this information is mandatory.
Intersection Name (Specific to device type: NTCIP1202) Intersection Name is optional and depends on the user's specific use case. You can choose to configure this field if required for their particular scenario.
Advanced Settings The specific Advanced Setting details vary based on the SNMP Version. Provide the appropriate authentication information accordingly.
Attribute Definitions A data model explains how data is represented in an asset.
  1. Name: Enter a name for the data model.

  2. Label: Enter a label for the data model.

  3. NTCIP Type: From the drop-down list, choose Default or trap.

  4. Data Type: From the drop-down list, choose String, Integer, Float, Long, or Boolean.

  5. Object ID: From the drop-down list, choose RawSpat, NTCIP-1211 SRM, and SAE J2735 SRM. Bottom to that add OID. OID address is used to uniquely identify managed devices and their statuses.

    Note



    This field is applicable if you select Default under NTCIP Type.

  6. Trap OID: Enter an ID for Trap NTCIP type.

    Note



    This field is applicable if you select Trap under NTCIP Type.

  7. OID Data Type: OID is the data type for the object. String or Integer.

  8. Polling Interval (ms): It indicates the fastest rate at which the Server tests and debug. Select a unit from the up-down menu.

  9. Access Mode: From the drop-down list, choose read, write, or read and write.

    Note



    This field is applicable if you select Default under NTCIP Type.

  10. Service: From the drop-down list, choose TRAP_RECEIVE.

    Note



    This field is applicable if you select Trap under NTCIP Type.

Add data destinations

In the Destination tab, define where configured data policies must send data to.

The supported destinations are:

  • MQTT servers

  • AWS server

  • Azure IoT Hub

  • Splunk

From the Type drop-down list, choose the destination. Then, configure the connection settings for the chosen destination.

Before you configure a data destination in the pipeline, ensure that you have set up the servers or hubs. You must have the required identifying information ready to complete the destination configuration.

Table 1. Feature History Table

Feature

Release Information

Feature Description

Splunk destination

Release 2.2.x

Splunk is introduced as a new data server destination in this release.

Splunk integration serves as a new data server for configuring a pipeline in Cisco Edge Intelligence.

Add a Microsoft Azure IoT Hub destination

Procedure


In the Destination tab, from the Type drop-down list, choose AZURE IoT, and enter the required details in the following fields.

Field

Description

Azure IoT Connection Details
ID Scope Enter the ID Scope that is displayed in the Azure Device Provisioning Service Overview page.
CA Certificate Upload the intermediate CA Certificate file that you have configured in your Azure Device Provisioning Service.

Note



The status of this CA certificate in the Azure Provisioning Service must be marked as trusted, or device creation (and therefore metric sending) is not allowed by Azure.

CA Certificate Key Upload the unencrypted private certificate key file that belongs to the intermediate CA certificate that you uploaded. The private key must be in PKCS8 format, and must not include a passphrase.

To convert an existing key, use the command: openssl pkcs8 -topk8 -inform PEM -outform PEM -nocrypt -in azure-iot-test-only.intermediate.key.pem -out azure-iot-test-only.intermediate.pkcs8.pem

Advanced Settings
Device Provisioning Endpoint Enter the Global Device Endpoint value from the Azure IoT Hub Device Provisioning Service.
Enable MQTT over WebSockets Check this check box to enable the browser to leverage all MQTT features.

Data Rule Classification

From the drop-down list, choose DEVICE_PROPERTY or TELEMETRY.
Message Structure

Choose the required options in this area to customize the structure of the device-to-cloud message. You can choose Include asset attributes, Group asset attributes under property in the Asset Attributes section or choose Group telemetry data under property, Include Timestamps in the Telemetry Data section.

The data can be sent in a flat structure or can be grouped with a key. Customization does not apply if the chosen data policy is of the type Device Properties.


Add an MQTT Server destination

Procedure

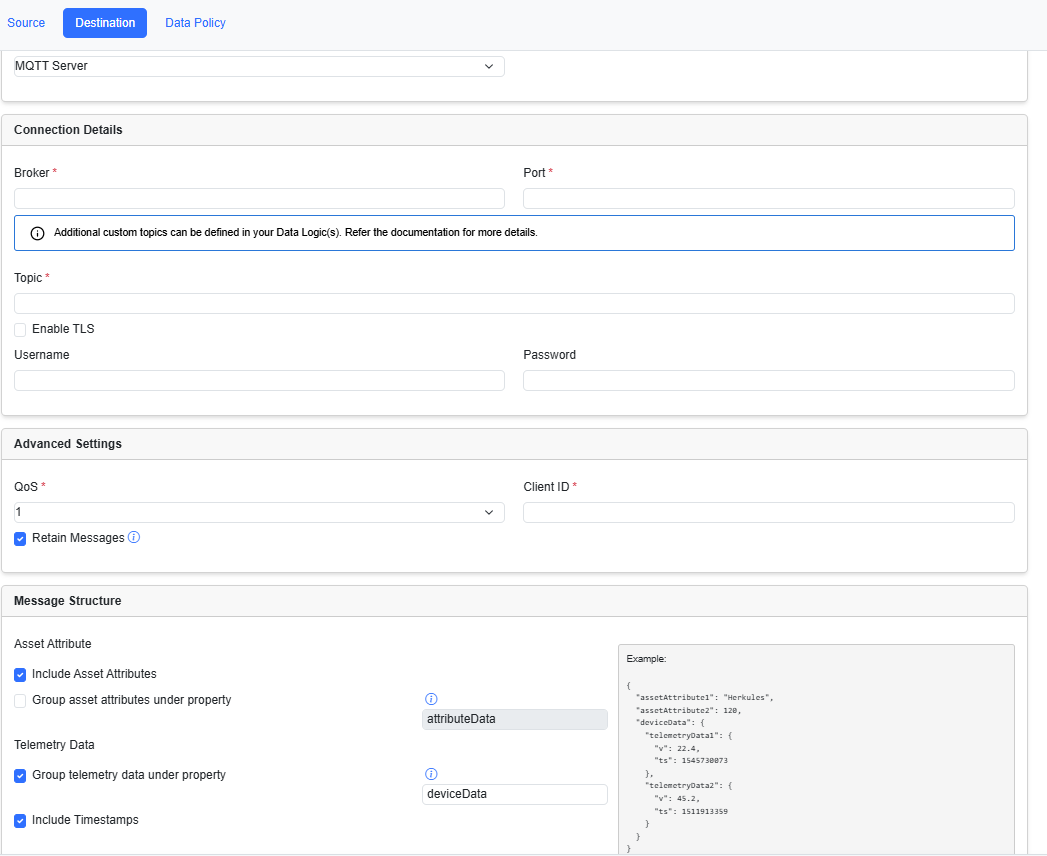

In the Destination tab, from the Type drop-down list, choose MQTT Server and enter the required details in the following fields.

Field

Description

Connection Details
Broker Enter the URL or IP address of your MQTT broker.
Port Enter the port number used by the broker.
Topic

Enter the topic to which device states and other data are published. For example,cisco/edge-intelligence/telemetry/%deviceSerialNumber%%deviceSerialNumber%. The example topic matches the device or asset instance serial number that is configured previously in the source tab.

Note



MQTT topic has a restricted number of characters that can be used in a topic name. For example, # or + cannot be part of a topic name.

Topic names are URL-encoded to ensure that they do not violate MQTT specifications. URL-encoding also allows northbound applications to decode a topic easily to get to the original contents.

Enable TLS Check the TLS check box to enable the protocol. When you choose TLS, the following fields are displayed:
  • Verify Peer: Check this checkbox to allow peer verification. When you select this option, the Certificate field is displayed where you can upload a CA certificate.

  • Enable X.509: Check this check box to use X.509 certificates. When you select this option, two fields are displayed where you can upload a CA certificate and a private key.

    Enabling the use of X.509 certificates allows you to turn on configure MQTT brokers (like Mosquitto) to require certificates for authentication. You can also use X.509 client certificates instead of usernames and passwords to ensure that only trusted assets are allowed to send data to a cloud MQTT broker.

Note


  • The private key must be PKCS8-compatible.

  • The generated certificate for each asset contains the CN - Serial Number of the asset.

  • X.509 certificates can be used with the username and password authentication method, or as the only authentication method.

Username Enter the username to connect to the MQTT destination broker.
Password Enter the password to connect to the MQTT destination broker.
Advanced Settings
QoS From the drop-down list, choose 0, 1, or 2.
Client ID Enter a Client ID.

The Client ID field is not URL-encoded because there are no restrictions in MQTT specifications about allowed characters.

Retain Messages Check this check-box to retain messages on the broker for new subscribers.
Message Structure

Choose the required options in this area to customize the structure of the device-to-cloud message. You can choose Include asset attributes, Group asset attributes under property in Asset Attributes section or choose Group telemetry data under property, Include Timestamps in Telemetry Data section.

The data can be sent in a flat structure or grouped with a key. Customization does not apply if the chosen data policy is of the type Device Properties.

Cloud to Network Device
Enable cloud to data logic commands

Use the cloud to data logic commands to send a command (with payload) from a cloud app to a data logic on an edge device. The data logic script parses the command.

This feature provides bi-directional communication between the cloud and edge, allowing the application to send a command and receive a response. For example, a cold storage unit connected to an edge device can send commands to:

  • Set the temperature on the cold storage unit

  • Initiate a defrost action on the cold storage unit

To enable cloud to data logic commands, enter the following topic values:
  1. Command Topic: Enter the syntax and variables in the format, cisco/edge-intelligence/commands/variable.

  2. Response Topic: The response topic must use the format cisco/edge-intelligence/responses/variable.

    Responses are optional. If a script doesn't send a response, nothing is published to the topic.


Add an AWS Server destination

Procedure


From the Destination tab, from the Type drop-down list, choose AWS and enter the required details in the following fields.

Field

Description

Connection Details
Broker Enter the URL or IP address of your AWS broker.

This info can be found from the AWS IoT Settings page

Port Enter 8883.
Topic Enter a topic to which device states and other data are published.
Enable TLS For AWS destinations, you must enable the TLS protocol. When you choose TLS, the following fields are displayed:
  • Verify Peer: Do not choose this option.

  • Enable X.509: Check this check box to use X.509 certificates. When you select this option, two fields are displayed where you can upload a CA certificate and a private key.

Username Do not enter any value in this field.
Password Do not enter any value in this field.
Advanced Settings
QoS From the drop-down list, choose 1.
Client ID Enter a Client ID.
Retain Messages

For AWS destination type, do not choose the Retain Messages option.

This option retains messages on the broker for new subscribers.

Message Structure Choose the required options in this area to customize the structure of the device-to-cloud message. You can choose to include asset attributes, include timestamps, group asset attributes, or group telemetry data in the device-to-cloud messages.

The data can be sent in a flat structure or can be grouped with a key. Customization does not apply if the chosen data policy is of the type Device Properties.

Cloud to Network Device
Enable cloud to data logic commands

Use the cloud to data logic commands to send a command (with payload) from a cloud app to a data logic on an edge device. The data logic script parses the command.

This feature provides bi-directional communication between the cloud and edge, allowing the application to send a command and receive a response. For example, a cold storage unit connected to an edge device can send commands to:

  • Set the temperature on the cold storage unit

  • Initiate a defrost action on the cold storage unit

To enable cloud to data logic commands, enter the following topic values:
  1. Command Topic: Enter the syntax and variables in the format, cisco/edge-intelligence/commands/variable.

  2. Response Topic: The response topic must use the format cisco/edge-intelligence/responses/variable.

    Responses are optional. If a script doesn't send a response, nothing is published to the topic.


Add a Splunk server destination

Splunk is a software platform designed to collect, analyze, and visualize machine-generated data in real time, delivering operational intelligence for IT operations, security, and business analytics. With the capability in Cisco Edge Intelligence to use Splunk as a destination, customers can seamlessly send their data to Splunk.


Note


When you choose Splunk as the destination type, set the data policy type to Data Logic. Data Rule policy type is not supported for this destination.


This procedure explains the fields and settings for the Splunk server destination.

Before you begin

Make sure that you have an active Splunk account with the HTTP Event Collector enabled.

Procedure


In the Destination tab, select Splunk from the Type drop-down list. Enter the required details in each field.

Table 1 lists the required configuration fields and settings for the Splunk server destination.

Field

Description

Connection Details
HEC URL Enter the complete URL for the HTTP Event Collector (HEC).
HEC token Enter the HEC token.

For more information about configuring the HEC token and other configuration details, see the HTTP Event Collector Guide.

Enable TLS For Splunk destinations, you must enable the TLS protocol. Enabling TLS displays these checkboxes.
  • Verify Server Certificate: This option enables certificate validation for secure connections.

  • Enable Mutual TLS (mTLS): This option allows the use of client certificates for authentication.

Verify Server Certificate

Select the checkbox to upload a CA Certificate Bundle, which verifies the indexer.

Enable Mutual TLS (mTLS)

Selecting this checkbox displays two fields for uploading a client certificate and client private key.

  • Client Certificate: Provide a PEM file containing the client certificate.

  • Client Private key: Provide a PEM file containing the decrypted private key associated with your client certificate.


How to configure single or batch payloads

Splunk data can be sent as a single payload or in batches. This approach is generally used for handling large volumes of data.

This sample snippet demonstrates how to send North Bound data to Splunk.

  • Using a single payload

    • function init() {
        logger.info("Starting initialization")

        // SSL setup can be added here if required
      }

      var counter = 100

      function on_update() {
        // Reserved for external update triggers
      }

      function on_time_trigger() {
        counter = counter + 1

        // Create a single event payload
        var payload = {
          event: {
            pressure: counter
          },
          host: "FCW22360076",
          source: "FCW22360076",
          sourcetype: "EI Agent"
          // Optional fields like index or timestamp can be added here
        }

        // Send the payload to output immediately
        publish("output", payload);
      }
  • Using a batch payload

    • function init() {
        logger.info("Starting initialization and setup")
        // SSL options can be added here if needed in future
      }

      // Message buffer to hold event data before sending
      var messageBuffer = []

      // Max number of events to buffer before sending
      const maxBufferSize = 2

      // Example counter for generating event values
      var counter = 100

      function on_update() {
        // Reserved for handling updates from external source
      }

      function on_time_trigger() {
        counter = counter + 1
        // non batch payload
        var payload = {
          "event": {
            "data": counter,
            "escaped_chars": "Line 1\\nLine 2\\tTabbed\\\"Quoted\\\"",
          },
          "host": "FCW22360076",
          "source": "FCW22360076",
          "sourcetype": "EI Agent",
          //"index": "ei-hec-index",
          // "time": new Date(trigger.timestamp).getTime() / 1000
        };
        //publish("output", payload);

        // batch payload
        for (var i = 0; i < 3; ++i) {
          messageBuffer.push(payload);
        }
        publish("output", messageBuffer);
        messageBuffer = [];
      }

About Data Policies

Data Policies define how data is sent from edge assets to a destination. There are two types of policies:

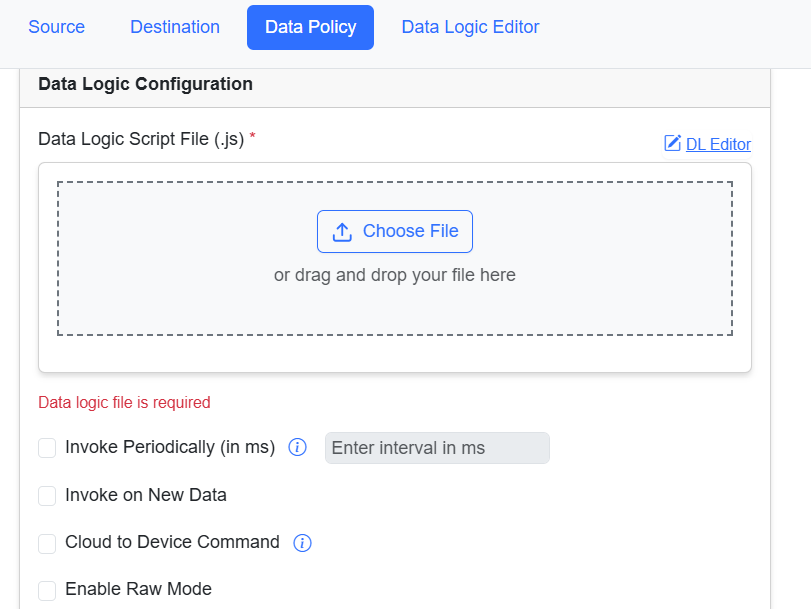

  • Data Logic: Data is transformed before being sent to a destination. Data Logic scripts are developed using Microsoft VS Code and embedded UI editor.

  • Data Rule: Data is sent from Assets to a destination without transformation.


Restriction


Make sure to configure Data Logic when you have configured multiple Source type. Proceeding only with Data Rule, will pop-up an error while deployment.


Table 2. Feature History Table

Feature

Release Information

Feature Description

HTTP supports in data logic script

Release 2.2.x

HTTP and HTTPS are new enhancement features in the data logic script that allows you to run various methods to fetch data from the source.

Get a device’s asset serial number from global device model

Release 2.2.x

Cisco Edge Intelligence data logic scripts now offer enhanced flexibility for accessing a device-specific attribute. You can retrieve asset serial number directly from the global device mode using the on_update() function.

function on_update() {
serial_number = input.asset_serial_number;
serial_number = globalThis[trigger.device_name].asset_serial_number;
}

Scripting engine tutorial

This is a basic user guide on how to implement scripts for Cisco Edge Intelligence. Internally, this feature is based on duktape 2.7.0 and supports the same subset as duktape. It conforms to ES5.0/ES5.1, with semantics updated from ES2015 or later when appropriate.

For additional information, refer to the these links:

High level flow for data logic scripts

A data pipeline can be configured to use data logic, such as JavaScript code, to transform data. It is important to understand when the user code is called and what information is accessible. Each data logic instance is called for every change to fields in the input data model. The user code can publish a value for consumption by an egress link or decide not to publish a value.

User code can create global objects that persist across invocations, which allows implementation of stateful transformations such as sliding averages, sliding medians, and histograms. Additionally, a script can be configured for customization and reuse in different data pipelines. For example, the same script can aggregate the last 30 values in one pipeline and 100 values in another. The count of values to aggregate is defined as a configuration parameter.

Required implementations

Each script must provide an on_update() function, which is called whenever a field in the input model changes. The function does not return a value. Set the desired outputs on the global output object. Outputs are published when output.publish() is called.

Built-in global objects

Output

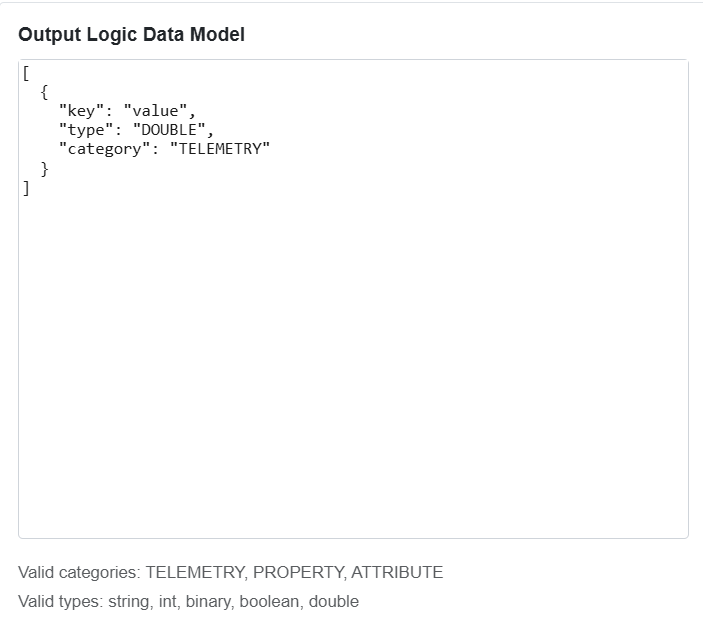

The output shall be used to set the desired output values. The names match the output model as specified in the VSCode plugin. For example, if the output model specifies a foo field, it has to be set with output.foo = ....

Just setting the output fields is not sufficient. To give the script implementer strict control over when and if to publish the changed output model, he must call output.publish() to explicitly publish the transformed value.

Input

The input is the representation of the input model. Input model fields are input object fields. On on_update() call, input contains the input model's last known values. They can simply be accessed with var x = input.foo.

Trigger

The trigger identifies the field name of the input model that has been changed. Be aware the simultaneous changes to multiple values of the input model are not possible and each change has to be handled on its own. This can be used to access the last changed value: var x = input[trigger.field_name]

Parameters

The parameters are configurable runtime options for each VSCode pipeline. These settings are to be used to configure the script depending on the pipeline. For example, a script with alerting capabilities has a different threshold per pipeline.

Built-in global functions

Optional initialization

It is optional to provide a init() function. If present, this function is called exactly once when the pipeline is incorporated. Instantiation occurs when the pipeline is first created or after each restart.

DSRC encode and DSRC decode

The global functions dsrc2016_encode and dsrc2016_decode are used to encode and decode messages to and from ASN.1 format.

Encode JSON strings to Uint8Array

/**
* @fn dsrc2016_encode(json_string)
* @brief function to encode provided input of json string into Uint8Array format
* @param json_string -> String (message contains json string format)
* @return Uint8Array -> Encoded message in byte array format
*/ dsrc2016_encode(json_string);

Decode Uint8Array to JSON string

/**
* @fn dsrc2016_decode(buffer)
* @brief function to decode provided input of byte array into json string
* @param buffer -> Encoded message in Uint8Array byte array format
* @return json_string -> String (message contains json string format)
*/
dsrc2016_decode(buffer);
BinaryUtils

The BinaryUtils is the representation of binary utility methods to operate on binary data. The following methods are part of the BinaryUtils object:

Table 3. Binary mask string

Descriptions

Example (Valid)

Example (Invalid)

Must start with the prefix 0b or 0B

0b1100

1100

Only the characters 0 and 1 are allowed in the Binary Mask String

0b1010

0b1020

The character _ is allowed as a separator to improve readability and can appear any number of times

0b11_00_11

0b11-00-11

Mask string length (excluding _)depends on API type (For example, mask16AndShiftRight expects exactly 16 0 or 1 digits)

0b_0000_1111_1111_0000

0b_00_1111_1111_0

(length≠16)

The digit 1 must always appear consecutively (all 1's are together, no 0's between them)

0b_0000_1111_0000_0000

0b_0010_0111_1110_0000

The mask string cannot consist entirely of 0 characters

0b_0000_0000_0000_0001

0b_0000_0000_0000_0000

Table 4. Hex mask string

Descriptions

Example (Valid)

Example (Invalid)

Must start with the prefix 0x or 0X

0xFF0F

FF0F

Allowed characters: 0-9, a-f, A-F

0x1A2B

0x1G2B

The character _ is allowed as a separator to improve readability and can appear any number of times

0xFF_FF_00_00

0xFF-FF-00-00

String mask length (excluding _) depends on API type (for example, mask32AndShiftRight expects 8 hex characters)

0xFFFF_FFFF

0xFFFF_FF

The mask must represent consecutive 1s in binary (no gaps between 1s in the bit pattern)

0x0000FFF0

0x0000F0F0

The mask string cannot consist entirely of 0 characters

0x00000001

0x00000000

Valid hex string:

  • 0x_00_FF_FF_00 => 32 Bit APIs

  • 0x_3F_FC => 16 Bit APIs

  • 0x_F_8_ => 8 Bit APIs

Invalid hex string:

  • 0x_00_F0_FF_00 => 32 Bit APIs because of non-consecutive 1 bit in mask

  • 0x_00_FF_FF => 16 Bit APIs because of invalid length

  • 0xFG => 8 Bit APIs because invalid character in mask

Functions

Results

mask8 ()

/**
* @fn mask8()
* @brief gets the number of bit value from the input byte position as according to mask
* @param mask -> String (Binary or Hex Mask string. Mask should always have 8
bits/1byte)
* @param byte_value -> Uint8 (Input Byte Value)
* @return 8 bit integer -> masked bits from byte_value
*/
/ BinaryUtils.mask8(mask, bytes_value);

mask16 ()

/**
* @fn mask16()
* @brief gets the number of bit value from the input buffer index as
according to Mask
* @param mask -> String (Binary or Hex Mask string. Mask
should always have 16
* bits/2bytes)
* @param buffer -> Uint8Array[] (Input buffer)
* @param buffer_index -> Integer (Start buffer index)
* @return Integer -> masked bits from input buffer
*/
BinaryUtils.mask16(mask, buffer, buffer_index);

mask32 ()

/**
* @fn mask32()
* @brief gets the number of bit value from the input buffer index as
according to Mask
* @param mask -> String (Binary or Hex Mask string. Mask
should always have 32
* bits/4bytes)
* @param buffer -> Uint8Array[] (Input buffer)
* @param buffer_index -> Integer (Start buffer index)
* @return Integer -> masked bits from input buffer
*/
BinaryUtils.mask32(mask, buffer, buffer_index);

mask8AndShiftRight ()

/**
* @fn mask8AndShiftRight()
* @brief gets the number of bit value from the input byte position as
according to Mask and right
* shift the value for all zero bits
* @param mask -> String (Binary or Hex Mask string. Mask
should always have 8 bits/1byte)
* @param byte_value -> Uint8 (Input Byte Value)
* @return 8 bit integer -> masked bits from byte_value after right shift
*/
BinaryUtils.mask8AndShiftRight(mask, bytes_value);

mask16AndShiftRight ()

/**
* @fn mask16AndShiftRight()
* @brief gets the number of bit value from the input buffer index as
according to Mask and right
* shift the value for all zero bits
* @param mask -> String (Binary or Hex Mask string. Mask
should always have 16
* bits/2bytes)
* @param buffer -> Uint8Array[] (Input buffer)
* @param buffer_index -> Integer (Start buffer index)
* @return Integer -> masked bits from input buffer after right shift
*/
BinaryUtils.mask16AndShiftRight(mask, buffer, buffer_index);

mask32AndShiftRight()

/**
* @fn mask32AndShiftRight()
* @brief gets the number of bit value from the input buffer index as
according to Mask and right
* shift the value for all zero bits
* @param mask -> String (Binary or Hex Mask string. Mask
should always have 32
* bits/4bytes)
* @param buffer -> Uint8Array[] (Input buffer)
* @param buffer_index -> Integer (Start buffer index)
* @return Integer -> masked bits from input buffer after right shift
*/
BinaryUtils.mask32AndShiftRight(mask, buffer, buffer_index);

mask8AndSet ()

/**
* @fn mask8AndSet()
* @brief returns the byte_value after setting the set_value into the input
byte as according to
* bits mentioned in the mask
* @param mask -> String (Binary or Hex Mask string. Mask
should always have 8 bits/1byte)
* @param byte_value -> Uint8 (Input Byte Value)
* @param set_value -> Integer (value to be set)
* @return 8 bit integer -> The byte_value after setting the set value into
it.
*/
BinaryUtils.mask8AndSet(mask, bytes_value, set_value);

mask16AndSet ()

/**
* @fn mask16AndSet()
* @brief sets the number of bits value into the input buffer from buffer
index as according to
* bits mentioned in the mask
* @param mask -> String (Binary or Hex Mask string. Mask
should always have 16
* bits/2bytes)
* @param buffer -> Uint8Array[] (Input buffer)
* @param buffer_index -> Integer (Start buffer index)
* @param set_value -> Integer (value to be set)
* @return updated input buffer
*/
BinaryUtils.mask16AndSet(mask, bytes_value, set_value);

mask32AndSet ()

/**
* @fn mask32AndSet()
* @brief sets the number of bits value into the input buffer from buffer
index as according to
* bits mentioned in the mask
* @param mask -> String (Binary or Hex Mask string. Mask
should always have 32
* bits/4bytes)
* @param buffer -> Uint8Array[] (Input buffer)
* @param buffer_index -> Integer (Start buffer index)
* @param set_value -> Integer (value to be set)
* @return updated input buffer
*/
BinaryUtils.mask32AndSet(mask, bytes_value, set_value);

crc16 ()

/**
* @fn crc16()
* @brief calculates the crc16 checksum on the input byte array
* @param algorithm -> Builtin Global Object [CRC16Algorithm.ARC,
CRC16Algorithm.XMODEM, CRC16Algorithm.MODBUS, CRC16Algorithm.USB,
CRC16Algorithm.CMS]
* @param buffer -> Uint8Array (Input buffer)
* @param start_index -> Integer [OPTIONAL] (Start index of input
buffer)
* @param length -> Integer [OPTIONAL] (length of input buffer
from start index)
* @return 16 bit integer -> crc16 checksum
*/
BinaryUtils.crc16(algorithm, buffer, start_index, length)

crc32 ()

/**
* @fn crc32()
* @brief calculates the crc32 checksum on the input byte array
* @param algorithm -> Builtin Global Object [CRC32Algorithm.AIXM]
* @param buffer -> Uint8Array (Input buffer)
* @param start_index -> Integer [OPTIONAL] (Start index of input
buffer)
* @param length -> Integer [OPTIONAL] (length of input buffer
from start index)
* @return 32 bit integer -> crc32 checksum
*/
BinaryUtils.crc32(algorithm, buffer, start_index, length)

base64_encode ()

* @fn base64_encode()
* @brief base64 encode the input byte array
* @param buffer -> Uint8Array (Input buffer)
* @return String -> base64 encoded string
*/
BinaryUtils.base64_encode(buffer);
/**
* @fn base64_decode()
* @brief decode the base64 encoded string
* @param encoded_data -> String (Input string)
* @return Uint8Array -> decoded array buffer
*/
BinaryUtils.base64_decode(encoded_data);
Few examples of on_update functions
  • Applying Bit Manipulation on Uint8Array using BinaryUtils object

    // Buffer Input (Uint8Array) -> 0x41 0x42 0x43 0x44 0x45 0x46 0x47 0x48
    0x49 0x4A
    function on_update() {
    // encoded_message -> QUJDREVGR0hJSg==
    output.encoded_message = BinaryUtils.base64_encode(buffer);

    // decoded_message -> "Cisco - Edge Intelligence"
    var decoded_buf =
    BinaryUtils.base64_decode("Q2lzY28gLSBFZGdlIEludGVsbGlnZW5jZQ==");
    output.decoded_message = String.fromCharCode.apply(null, new
    Uint8Array(decoded_buf));

    // crc16_checksum -> 3230
    output.crc16_checksum = BinaryUtils.crc16(CRC16Algorithm.ARC, buffer);

    // crc32_checksum -> 840854789
    output.crc32_checksum = BinaryUtils.crc32(CRC32Algorithm.AIXM, buffer);

    output.publish();
    }
  • Temperature conversion from Celsius to Fahrenheit

    function on_update() {
    var temp_celsius = input.temperature;
    var temp_fahrenheit = temp_celsius * (9 / 5) + 32;
    output.temperature = temp_fahrenheit;
    output.publish();
    }
  • This code snippet is responsible for processing incoming sensor data (like temperature or vibration), calculating a sliding average for that data, and then publishing the result.

    function FastSlidingAvg(window_size) {
    this.size = window_size;
    this.values = [];
    this.sum = 0;
    this.update = function (value) {
    if (this.values.length == this.size) {
    this.sum -= this.values[0];
    this.values.shift();
    }
    this.sum += value;
    this.values.push(value);
    };
    this.avg = function () {
    return this.sum / this.values.length;
    };
    }
    var acc = {};
    function init() {
    acc["temp"] = new FastSlidingAvg(parameters.window_size);
    acc["vibration"] = new FastSlidingAvg(parameters.window_size);
    output.temp = 0;
    output.vibration = 0;
    }
    function on_update() {
    var field_name = trigger.field_name;
    var value = input[field_name];
    acc[field_name].update(value);
    output[field_name] = acc[field_name].avg();
    output.publish();
    }
Logging

These scripts represent common logging methods which helps to emit the log messages. Using a global object named logger, you can emit log messages with these six different severity level APIs. They are used to record events, status, and errors within an application, with each method corresponding to a different log level or severity.

logger.trace(...)
logger.debug(...)
logger.info(...)
logger.warn(...)
logger.error(...)
logger.fatal(...)

Example:

logger.info("Calling script with:", my_value);
  • This is a log entry which indicates the exact date and time when the log event occurred. Each call accepts a variable number of arguments and will print them to a log message with the following pattern:

    2014-10-17T19:26:42.141Z INF: some text 123
    ^^^^^^^^^^^^^^^^^^^^^^^^ ^^^ ^^^^^^^^^ ^^^
    \Timestamp | \arg1 \arg2
    \LogLevel
  • Custom types must implement a toString() method to be displayed in log messages. For example:

    function MyType() {}
    MyType.prototype.toString = function () {
    return "This is MyType";
    };
    var my_type = new MyType();
    logger.info("MyType is:", my_type);

Applying Bit Manipulation get bit functions on Uint8Array using BinaryUtils object

Get bit functions are for reading/inspecting data (checking if a bit is 0 or 1).

  1. string_to_byte_array(str)

    • function string_to_byte_array(str) {
      var strLen=str.length;
      var buf = new Uint8Array(strLen);
      for (var i=0; i < strLen; i++) {
      buf[i] = str.charCodeAt(i);
      }
      return buf;
      }

  2. on_update()

    • Main function that processes input string data and applies various bit manipulation functions from the BinaryUtils object.

    • Steps inside on_update():

      • Convert input string to byte array using string_to_byte_array

      • Apply six different bit mask functions on the byte array:

        // Buffer Input (Uint8Array) -> //# 0x 4E 62 63 64 65 66
        function on_update() {
        var get_buf = string_to_byte_array(input.getbit_array_data);

        Code Fucntions

        Descriptions

        mask8: Applies an 8-bit mask to the first byte

        //function 1. mask8
        output.getbit_mask8 = BinaryUtils.mask8("0b1111_0000", get_buf[0]);

        mask8AndShiftRight: Applies an 8-bit mask and shifts right on the first byte

        //function 2. mask8AndShiftRight
        output.getbit_mask8AndShiftRight = BinaryUtils.mask8AndShiftRight(
        "0b11110000",
        get_buf[0]
        );

        mask16: Applies a 16-bit mask starting at offset 0

        //function 3. mask16
        output.getbit_mask16 = BinaryUtils.mask16(
        "0b0000_1111_1111_0000",
        get_buf,
        0
        );

        mask16AndShiftRight: Applies a 16-bit mask and shifts right starting at offset 0

        //function 4. mask16AndShiftRight
        output.getbit_mask16AndShiftRight = BinaryUtils.mask16AndShiftRight(
        "0b0000_1111_1111_0000",
        get_buf,
        0
        );

        mask32: Applies a 32-bit mask starting at offset 0

        //function 5. mask32
        output.getbit_mask32 = BinaryUtils.mask32(
        "0b0000_1111_1111_1111_1111_1111_1111_0000",
        get_buf,
        0
        );

        mask32AndShiftRight: Applies a 32-bit mask and shifts right starting at offset 0

        //function 6. mask32AndShiftRight
        output.getbit_mask32AndShiftRight = BinaryUtils.mask32AndShiftRight(
        "0b0000_1111_1111_1111_1111_1111_1111_0000",
        get_buf,
        0
        );
      • Publish the output after all manipulations

        output.publish();

Applying Bit Manipulation set bit functions on Uint8Array using BinaryUtils object

Set bit functions are for writing/modifying data (changing a bit to 1).

  1. string_to_byte_array(str)

    • function string_to_byte_array(str) {
      var strLen=str.length;
      var buf = new Uint8Array(strLen);
      for (var i=0; i < strLen; i++) {
      buf[i] = str.charCodeAt(i);
      }
      return buf;
      }

  2. on_update()

    • Main function that processes input string data and applies various bit manipulation functions from the BinaryUtils object.

    • Steps inside on_update():

      • Convert input string to byte array using string_to_byte_array

      • Apply six different bit mask functions on the byte array:

        // Buffer Input (Uint8Array) -> //# 0x 41 42 43 44 45 46 - "ABCDEF"
        function on_update() {
        var set_buf = string_to_byte_array(input.setbit_array_data);
        var dup_set_buf = set_buf;

        Code Fucntions

        Descriptions

        mask8AndSet

        //function 1. mask8AndSet ,output: 0x71 = 113
        output.setbit_mask8AndSet = BinaryUtils.mask8AndSet("0xF0", set_buf[0],
        7);

        mask16AndSet

        //function 2. mask16AndSet ,output: "aBCDEF"
        set_buf = dup_set_buf;
        BinaryUtils.mask16AndSet("0xFF00", set_buf, 0, 0x61);
        output.setbit_mask16AndSet = String.fromCharCode.apply(
        null,
        new Uint8Array(set_buf)
        );

        mask32AndSet

        //function 3. mask32AndSet ,output: "bCDDEF"
        set_buf = dup_set_buf;
        BinaryUtils.mask32AndSet("0x0F_FF_FF_F0", set_buf, 0, 0x243444);
        output.setbit_mask32AndSet = String.fromCharCode.apply(
        null,
        new Uint8Array(set_buf)
        );
      • Publish the output after all manipulations

        output.publish();

Currently, all levels are treated equally and either are all emitted or none.

  • A pipeline set to productive = true will never emit any log messages.

  • A pipelines set to productive = false will emit all messages.

All emitted messages are subject to quota handling.

Function mqtt_add_subscription api from data logic for MQTT destination

/**
* @fn mqtt_add_subscription()
* @brief it is to add the topic subscription for mqtt link the API should
be called from data
* logic init() function and its applicable only for mqtt link, the
API is a blocking * call and will block current thread for maximum
100ms
* @param topic: valid mqtt topic
* @param qos: its optional param allowed values (0,1 or 2) default value
is considered 0 if not * provided
* @return none on success
* @Error message for the invalid use
* 1. Wrong number of argument:
* Error message: Error executing JavaScript: TypeError:
mqtt_add_subscription(): wrong number of argument provide, expecting 1
(topic) or 2 arguments (topic,qos)
* 2. non-utf in topic:
* Error message: Error executing JavaScript: TypeError:
mqtt_add_subscription(): Topic is not UTF-8 string
* 3. invalid QOS
* Error message: Error executing JavaScript: RangeError:
mqtt_add_subscription(): QoS should be 0,1 or 2
* 4. commandPath topic not allowed
* Error message: Error executing JavaScript: SyntaxError:
mqtt_add_subscription(): topic 'commandPath' cannot be * subscribed from
data logic script
* 5. not supported destination
* Error message: Error executing JavaScript: TypeError:
mqtt_add_subscription(): api is only supported for mqtt destination
* 6. api mqtt_add_subscription() is allowed only in init()
* Error message: Error executing JavaScript: TypeError:
mqtt_add_subscription(): api is only allowed to be called from init()
*
*/
mqtt_add_subscription(topic,qos)

HTTP utilities

The global object http provides HTTP client functionality for making web requests from JavaScript. All HTTP methods are asynchronous and use error-first callbacks.

HTTP request methods
/**
* @fn http.get(url, [headers], callback)
* @brief Performs an HTTP GET request
*/
function handleGetResponse(err, res) {
if (err) {
logger.error("Request failed: " + err.message);
} else {
output.api_data = JSON.parse(res.body);
output.publish();
}
}

http.get("https://api.example.com/data", {"Accept": "application/json"},
handleGetResponse);

/**
* @fn http.post(url, body, [headers], callback)
* @brief Performs an HTTP POST request
*/
function handlePostResponse(err, res) {
if (err) {
logger.error("POST failed: " + err.message);
} else {
logger.info("Created: " + res.statusCode);
}
}

var data = {"name": "John", "age": 30};
http.post("https://api.example.com/users", data, {"Content-Type":
"application/json"}, handlePostResponse);

/**
* @fn http.put(url, body, [headers], callback)
* @brief Performs an HTTP PUT request (same parameters as POST)
*/

/**
* @fn http.delete(url, [headers], callback)
* @brief Performs an HTTP DELETE request (same parameters as GET)
*/
HTTP configuration
/**
* @fn http.setTimeout(milliseconds)
* @brief Sets the default timeout for HTTP requests
*/
http.setTimeout(30000); // 30 seconds

/**
* @fn http.setConnectionReuse(enabled)
* @brief Controls whether HTTP connections are reused or closed after each
request
*/
http.setConnectionReuse(false); // Disable for problematic servers

/**
* @fn http.getRequestCount()
* @brief Returns the current number of pending HTTP requests
*/
var pendingRequests = http.getRequestCount();
SSL configuration
/**
* @fn http.setSSLOptions(options)
* @brief Configures SSL/TLS options for HTTPS requests
*/
http.setSSLOptions({
verify: true, // Enable peer verification
verifyHostname: true, // Enable hostname verification
allowSelfSigned: false, // Allow self-signed certificates
caFile: "/path/to/ca.pem" // CA certificate file path or content
});

/**
* @fn http.setVerifyMode(verify)
* @brief Sets the SSL peer verification mode
*/
http.setVerifyMode(false); // Disable SSL verification for testing

/**
* @fn http.allowSelfSignedCertificates(allow)
* @brief Controls whether self-signed certificates are accepted
*/
http.allowSelfSignedCertificates(true); // Allow for development
Response object

The response object passed to callbacks contains:

  • statusCode (Number): HTTP status code

  • body (String): Response body

  • headers (Object): Response headers

Error handling

All HTTP methods use error-first callbacks. The error object contains:

  • message (String): Error description

  • code (String): Error code (if available)

HTTP usage example
function handleApiResponse(err, res) {
if (err) {
logger.error("HTTP error: " + err.message);
return;
}

if (res.statusCode === 200) {
var data = JSON.parse(res.body);
output.external_data = data;
output.publish();
} else {
logger.warn("HTTP status: " + res.statusCode);
}
}

function init() {
http.setTimeout(30000);
http.setConnectionReuse(true);
http.setVerifyMode(true);
}

function on_update() {
var apiUrl = "https://api.example.com/sensor/" + input.sensor_id;
http.get(apiUrl, {"Accept": "application/json"}, handleApiResponse);
}

Protobuf utilities

The protobuf module provides Protocol Buffer encoding and decoding functionality. Protocol Buffers (protobuf) is a language-neutral, platform-neutral extensible mechanism for serializing structured data. The module is accessed via require("protobuf").

Protobuf best practices
  1. Initialize in init(): Always initialize protobuf types in the init() function to avoid repeated parsing

  2. Memory Management: Store protobuf types in global objects to reuse across function calls

  3. Base64 Encoding: Proto files must be base64 encoded when embedded in JavaScript

Example: simple message encoding/decoding
var pb = new Object();
function init() {
var protobuf = require("protobuf");
// Base64 encoded proto file content for a simple message
// Original proto:
// syntax = "proto3";
// package simple;
// message SimpleMessage {
// string name = 1;
// int32 value = 2;
// }
var protofile =
"c3ludGF4ID0gInByb3RvMyI7CnBhY2thZ2Ugc2ltcGxlOwptZXNzYWdlIFNpbXBsZU1lc3NhZ2
UgewogIHN0cmluZyBuYW1lID0gMTsKICBpbnQzMiB2YWx1ZSA9IDI7Cn0=";
var root = protobuf.init([protofile]);
pb.SimpleMessage = root.lookupType("simple.SimpleMessage");
}

function on_update() {
// Create and encode a protobuf message
var msg = pb.SimpleMessage.create({
name: input.device_name,
value: input.sensor_reading
});
var encoded_buffer = pb.SimpleMessage.encode(msg).finish();
publish("output", encoded_buffer);

// Decode a protobuf message
var decoded_msg = pb.SimpleMessage.decode(encoded_buffer);
output.decoded_name = decoded_msg.name;
output.decoded_value = decoded_msg.value;
}

Create a Data Logic

Data logic is used to transform data from connected assets before it is delivered to a destination. Unlike Data Rules that send all the raw data for an Asset Type, Data Logic allows you to aggregate or average data, send only data that exceeds certain value, detect anomalies, and more.

Data Logic is developed and debugged using JavaScript in Microsoft Visual Studio (VS Code) and embedded UI editor. Scripts are synchronized to Cisco IoT where they can be deployed to EI Agents running on Edge Devices.

Procedure


Step 1

From the Data Policy tab, select Data Logic checkbox.

Note



Clicking upon Data Logic radio button the Data Logic Editor tab appears next to Data Policy.

Step 2

To add a data logic script, click Choose File to select precreated new script (example: LogicExample.js) from your local drive.

Step 3

To review or to create a new data logic script, click DL Editor.

  • Data logic functionalities where user can write his own transformation code to help to transform data from source to destination.

  • It helps to verify and validate the existing script file by clicking Run Debug.

  • You can write a new script and validate it.

Note



HTTP funtionality is introduced on data logic script. Data logic editor supports HTTP CRUD (create, retrive, update and delete) opeartion. To know various supported HTTP features, refer to HTTP and HTTPS protocols in data logic scripts.

Step 4

After you upload a script file, the new download and delete icon appears. It helps to check/validate what uploaded from other agents. Another user can also check an existing pipeline and can download it.

Step 5

From the following run-time options, select when the script will be run.

  • Invoke Periodically (in ms): when you tick the checkbox, it enables the ms interval. Enter the interval time, in ms. For example, if you enter 500, the Data Logic script will be called every 500 ms. Enable this option if needed.

  • Invoke on New Data: The script is called when data changes.

  • Cloud to Device Command: This function is called when you receive a command from the cloud.

  • Enable Raw Mode: A default output JSON data model is automatically created when a Data Logic script is created.

  • (Optional) In the Output Logic Data Model, you can modify the default format of the Output Data Logic Model script (in JSON) and specify the output model with custom names.

    Valid categories: TELEMETRY, PROPERTY, ATTRIBUTE

    Valid types: string, int, binary, boolean, double


HTTP and HTTPS protocols in data logic scripts

The data logic editor supports HTTP and HTTPS protocols. For these protocols, you can use the CRUD operations, configure SSL settings, timeout settings, and cancel requests.

Cisco devices use the following ports by default:

protocol

Device port

HTTP

80

HTTPS

443

If a device uses the default ports for HTTP and HTTPS communications, the configurations in the data logic script are automatically applied to the port. If a device uses a different port for these protocols, additional configurations may be required.

Secure the HTTP and HTTPS communications by using one of these TLS configurations.

  • Trusted Certificate Authority (CA)

  • Self-signed certificates

  • Self-signed CA

  • Mutual TLS (mTLS) using client certificate and key

  • Use the API ( setSslOptions ) to configure the root certificate, client certificate, and client key

Method Signature Sample Snippet

GET

/**

HTTP GET: Fetch all items
Signature: http.get(url:
string, headers: object,
callback: function)
Example: Get list of all
items

Expected: 200 OK with
array of items
*/


function
getAllItemsCallback(err,
status, body, headers) {
if (err) {
logger.error("[GET ALL]
Error:", err.message);
} else {
logger.info("[GET ALL]
Success:", status,
body);
}
}

http.get(

"http://localhost:3000/a
pi/data",
{ "Accept":
"application/json" },
getAllItemsCallback
);

POST

/*** HTTP POST: Create new
item* Signature:
http.post(url: string,
body: object|string,
headers: object, callback:
function)* Example: Create new
item with name "Item
Three"
* Expected: 201 Created
*/

function
createItemCallback(err,
status, body, headers) {
if (err) {
logger.error("[POST]
Error:", err.message);
} else {
logger.info("[POST]
Success:", status,
body);
}
}
http.post(

"http://localhost:3000/a
pi/data",
{ name: "Item Three"
},
{ "Content-Type":
"application/json" },
createItemCallback
);

DELETE

/**
* HTTP DELETE: Delete
item by ID
* Signature:
http.delete(url: string,
callback: function)
* Example: Delete item
with ID 2
* Expected: 200 OK or 404
Not Found
*/
function
deleteItemCallback(err,
status, body, headers) {
if (err) {
logger.error("
[DELETE] Error:",
err.message);
} else {
logger.info("[DELETE]
Success:", status, body);
}
}
http.delete("http://local
host:3000/api/data/2",
deleteItemCallback);

PUT

/**
* HTTP PUT: Update item
by ID
* Signature:
http.put(url: string,
body: object|string,
headers: object, callback:
function)
* Example: Update item ID
1 to have a new name
* Expected: 200 OK or 404
Not Found
*/
function
updateItemCallback(err,
status, body, headers) {
if (err) {
logger.error("[PUT]
Error:", err.message);
} else {
logger.info("[PUT]
Success:", status,
body);
}
}
http.put(

"http://localhost:3000/a
pi/data/1",
{ name: "Updated Item
One" },
{ "Content-Type":
"application/json" },
updateItemCallback
);

SSL Options

/**
* SSL Configuration
Example (optional)
* Signature:
http.setSSLOptions(options
: object)
* Example: Enable selfsigned
certificate support
* Use this before calling
HTTPS endpoints
*/
http.setSSLOptions({
verify: true,
verifyHostname: true,
//
allowSelfSigned: true,
//
});

SSL options with Certificates

Certificates and keys can also be provided via the customAttribute file options. These values can be integrated into the data logic. Before being passed to setSslOptions , the certificate files must be base64- encoded, as demonstrated in the provided example.


function
decodeFileContent(fileAt
tribute) {
// File attributes
come as binary data,
need to decode to string
var decoder = new
TextDecoder();
return
decoder.decode(fileAttri
bute);
}

var caCert =
decodeFileContent(input.
ca_certificate);
var clientCert =
decodeFileContent(input.
client_certificate);
var clientKey =
decodeFileContent(input.
client_key);
var sslOptions = {
verify: true,
caFile: caCert, //
root certificate
verifyHostname:
false,
certFile:
clientCert, // client
certificate
keyFile: clientKey
// client / private key
};

var
sslConfigured =
http.setSSLOptions(sslOp
tions);

Timeout

/**

Timeout Configuration

Signature:
http.setTimeout(timeoutMs:
number)

Example: Set timeout to
2000 ms
*/
http.setTimeout(2000); //
Set timeout for all
requests to 2 seconds
MIN_TIMEOUT =1000; // 1 second
MAX_TIMEOUT =300000; // 5 minutes
DEFAULT_TIMEOUT = 8000; // 8 seconds

Connection Reuse

/*

http.setConnectionReuse(enabled
: boolean): boolean

Controls whether HTTP
connections are reused (pooled)
or closed after each request.

✅ Parameters
enabled (boolean):

true: Enables connection reuse
(default behavior)

false: Disables connection
reuse — HTTP connection will be
closed after each request

🔁 Returns
true on success

false if setting failed (e.g.,
unsupported in the current
environment)*/
 function init() {


  http.setConnectionReuse(true); // by dfault its true mentioned this .

}
Known Limitations
  • Avoid using http.get/post/delete/put within the init() call to prevent unexpected delays during initialization.

  • When making API calls that handle large payloads, particularly for CRUD operations, refrain from logging the full response due to the logging buffer's size limit.

  • Configure SSL options during the init call to ensure secure communication is established from the start.

  • Be aware that the maximum payload size is limited to 1MB.

Create a Data Rule

Data rules define the flow of data, from connected assets to data destinations, without transformation.

Procedure


Step 1

From the Data Policy tab, select Data Rule checkbox.

Step 2

To configure the Data Rule, select a data from Data Sampling Inerval (ms) drop-down list.


Deploy or undeploy pipelines

When deployed, a pipeline runs on the Cisco network device where the EI agent is installed.

Procedure


Step 1

To deploy a pipeline:

  1. Create a pipeline.

  2. Click Deploy.

The deployed pipeline is listed in the Pipelines area of the Cisco Edge Intelligence page.

Step 2

To undeploy a pipeline, in the Pipeline section, select a pipeline and click Undeploy.

When you undeploy a pipeline, it is entirely removed from Cisco Edge Intelligence. If you wish to retain a copy of the configuration, save the pipeline configuration as a template before you undeploy the pipeline.


View health status

To track the health status of an EI agent, select a pipeline from the list of pipelines.

Procedure


Step 1

From the left pane, click any Pipeline for which you want to view the details.

Step 2

Click Health Status tab. A combined list log of pipeline overview, source status, and destination status appears for the EI agent.

Step 3

Click on any status tab to preview each log report.

Column Header Description
Health Status Displays the overall health of the data pipeline, indicating errors in source or destination connections.
Pipeline Status Shows the current status of the data pipeline. For example, Error and so on.
Source Status Indicates the connection status (online or offline) of the source asset.
Destination Status Reflects the status (online or offline) of the data destination.
