Configuring SIP DTMF Features
First Published: October 24, 2001
Last Updated: April 18, 2010
This chapter describes the following SIP features that support dual-tone multifrequency (DTMF) signaling:
•RFC 2833 DTMF Media Termination Point (MTP) Passthrough
•DTMF Events Through SIP Signaling
•DTMF Relay for SIP Calls Using Named Telephone Events
•SIP INFO Method for DTMF Tone Generation
•SIP NOTIFY-Based Out-of-Band DTMF Relay Support
•SIP KPML-Based Out-of-Band DTMF Relay Support
•SIP Support for Asymmetric SDP
Feature History for the RFC 2833 DTMF MTP Passthrough
|
|
12.4(11)T |
This feature was introduced. |
Feature History
|
|
12.2(11)T |
This feature was introduced. |
for DTMF Events Through SIP Signaling
Feature History
|
|
12.2(2)XB |
This feature was introduced. |
12.2(2)XB1 |
This feature was implemented on an additional platform. |
12.2(8)T |
This feature was integrated into this release. |
12.2(11)T |
This feature was implemented on additional platforms. |
for DTMF Relay for SIP Calls Using NTE
Feature History
|
|
12.2(11)T |
This feature was introduced. |
for SIP INFO Method for DTMF Tone Generation
Feature History
|
|
12.3(4)T |
This feature was introduced. |
for SIP NOTIFY-Based Out-of-Band DTMF Relay Support
Feature History
|
|
12.4(9)T |
This feature was introduced. |
for SIP KPML-Based Out-of-Band DTMF Relay Support
Feature History for the SIP Support for Asymmetric SDP
|
|
12.4(15)T |
This feature was introduced. |
Finding Feature Information
Use Cisco Feature Navigator to find information about platform support and Cisco IOS and Catalyst OS software image support. To access Cisco Feature Navigator, go to http://www.cisco.com/go/cfn. An account on Cisco.com is not required.
Contents
•Restrictions for SIP DTMF
•Prerequisites for SIP DTMF
•Information About SIP DTMF
•How to Configure SIP DTMF Features
•Configuration Examples for SIP DTMF Features
•Additional References
Restrictions for SIP DTMF
RFC 2833 DTMF MTP Passthrough Feature
•The RFC 2833 DTMF MTP Passthrough feature adds support for passing Dual-Tone Multifrequency (DTMF) tones transparently between Session Initiation Protocol (SIP) endpoints that require either transcoding or use of the RSVP Agent feature. If the T38 Fax Relay feature is also configured on this IP network, configure the voice gateways to use a payload type other than PT97 or PT98 for fax relay negotiation, or depending on whether the SIP endpoints support different payload types, configure Cisco Unified CME to use a payload type other than PT97 or PT98 for DTMF.
DTMF Events Through SIP Signaling Feature
•The DTMF Events Through SIP Signaling feature adds support for sending telephone-event notifications via SIP NOTIFY messages from a SIP gateway. The events for which notifications are sent out are DTMF events from the local Plain Old Telephone Service (POTS) interface on the gateway. Notifications are not sent for DTMF events received in the Real-Time Transport Protocol (RTP) stream from the recipient user agent.
DTMF Relay for SIP Calls Using NTEs Feature
•The SIP NTE DTMF relay feature is available only for SIP calls on Cisco VoIP gateways. The SIP NTE DTMF relay feature supports only hookflash relay and does not support hookflash generation for advanced features such as call waiting and conferencing.
SIP INFO Method for DTMF Tone Generation Feature
•Minimum signal duration is 100 ms. If a request is received with a duration less than 100 ms, the minimum duration of 100 ms is used by default.
•Maximum signal duration is 5000 ms. If a request is received with a duration longer than 5000 ms, the maximum duration of 5000 ms is used by default.
•If no duration parameter is included in a request, the gateway defaults to a signal duration of 250 ms.
SIP NOTIFY-Based Out-of-Band DTMF Relay Support Feature
•To support Skinny Client Control Protocol (SCCP) IP phones, originating and terminating SIP gateways can use NOTIFY-based out-of-band DTMF relay. NOTIFY-based out-of-band DTMF relay is a Cisco proprietary function.
•You can configure support only on a SIP VoIP dial peer.
SIP KPML-Based Out-of-Band DTMF Relay Support Feature
•For incoming dial peers, if you configure multiple DTMF negotiation methods, the first value you configure takes precedence, then the second, and then the third.
•For incoming dial peers, the first out-of-band negotiation method takes precedence over other DTMF negotiation methods, except when the dtmf-relay rtp-nte command has precedence; in this case, the dtmf-relay sip-kpml command takes precedence over other out-of-band negotiation methods.
•For incoming dial peers, if both the dtmf-relay rtp-nte and dtmf-relay sip-kpml commands and notification mechanisms are enabled and negotiated, the gateway relies on RFC 2833 notification to receive digits and a SUBSCRIBE for KPML is not initiated.
•SIP KPML support complies to the IEFT draft "draft-ietf-sipping-kpml-04.txt" with the following limitations:
–The SIP gateway always initiates SUBSCRIBE in the context of an established INVITE dialog. The gateway supports receiving SUBSCRIBE in the context of an established INVITE dialog, as well as out-of-call context requests with a leg parameter in the Event header. If the request code does not match an existing INVITE dialog, the gateway sends a NOTIFY with KPML status-code 481 and sets Subscription-State to terminated.
–The gateway does not support the Globally Routable User Agent (GRUU) requirement. The Contact header in the INVITE/200 OK message is generated locally from the gateway's contact information.
–The gateway always initiates persistent subscriptions, but the gateway receives and processes persistent and one-shot subscriptions.
–The gateway supports only single-digit reporting. There is no need for inter-digit timer support. The only regular expressions supported are those which match a single digit. For example:
<regex>x</regex>—Matches any digit 0 through 9
<regex>1</regex>—Matches digit 1
<regex>[x#*ABCD]</regex>—Matches to any digit 0 through 9, # (the pound sign), * (an asterisk), or A, B, C, or D
<regex>[24]</regex>—Matches digits 2 or 4
<regex>[2-9]</regex>—Matches on any digit 2 through 9
<regex>[^2-9]</regex>—Matches digits 0 or 1
–The gateway does not support long key presses, which are detected and reported as a single digit press.
–Digit suppression is not supported (pre tag for suppressing inband digits).
–Individual stream selection is not supported. A SUBSCRIBE request for KPML applies to all audio streams in the dialog (stream element and reverse are not supported).
•You can configure support only on a SIP VoIP dial peer.
•In Cisco Unified Border Element (Cisco UBE), RTP-NTE to RTP-NTE DTMF interworking is not supported when you use High Density Voice Network Module (NM-HDV) for transcoding.
Prerequisites for SIP DTMF
DTMF Relay for SIP Calls Using NTEs Feature
•Ensure that you have a working VoIP network using SIP on Cisco gateways.
Information About SIP DTMF
To configure SIP DTMF support, you should understand the following concepts:
•RFC 2833 DTMF MTP Passthrough
•DTMF Events Through SIP Signaling
•DTMF Relay for SIP Calls Using NTEs
•SIP INFO Method for DTMF Tone Generation
•SIP NOTIFY-Based Out-of-Band DTMF Relay
•SIP KPML-Based Out-of-Band DTMF Relay
•SIP Support for Asymmetric SDP
RFC 2833 DTMF MTP Passthrough
The RFC 2833 DTMF Media Termination Point (MTP) Passthrough feature passes DTMF tones transparently between Session Initiation Protocol (SIP) endpoints that require either transcoding or use of the RSVP Agent feature. (An RSVP agent is a Cisco IOS-based Resource Reservation Protocol [RSVP] proxy server that registers with the call manager—Cisco Unified CallManager or Cisco Unified CallManager Express—as a media-termination point or a transcoder device.)
The MTP or transcoding module on a gateway detects RFC 2833 (DTMF) packets from an IP endpoint. You can configure whether it should do either or both of the following:
•Generate and send an out-of-band signal event to the call manager
•Pass the packets through to the other IP endpoint (default)
You can configure this instruction from the call manager, from the gateway, or both. The gateway can itself contain a call manager with an MTP or transcoder, or it can connect to another gateway that contains a call manager with an MTP or transcoder. Configuration on the call manager takes precedence over configuration on the gateway.
DTMF Events Through SIP Signaling
The DTMF Events Through SIP Signaling feature provides the following benefits:
•Provides DTMF event notification for SIP messages.
•Provides the capability of receiving hookflash event notification through the SIP NOTIFY method.
•Enables third-party call control, or other signaling mechanisms, to provide enhanced services, such as calling card and messaging services.
•Allows the user to communicate with the application outside of the media connection.
The DTMF Events Through SIP Signaling feature allows telephone event notifications to be sent through SIP NOTIFY messages, using the SIP SUBSCRIBE/NOTIFY method as defined in the Internet Engineering Task Force (IETF) draft, SIP-Specific Event Notification. The feature also supports sending DTMF notifications based on the IETF draft, draft-mahy-sip-signaled-digits-01.txt, Signaled Telephony Events in the Session Initiation Protocol (SIP).
DTMF Dialing
DTMF dialing consists of simultaneous voice-band tones generated when a button is pressed on a telephone. The use of DTMF signaling for this feature enables support for advanced telephony services. Currently there are a number of application servers and service creation platforms that do not support media connections. To provide value-added services to the network, these servers and platforms need to be aware of signaling events from a specific participant in the call. Once the server or platform is aware of the DTMF events that are being signaled, it can use third-party call control, or other signaling mechanisms, to provide enhanced services. Examples of the types of services and platforms that are supported by this feature are various voice web browser services, Centrex switches or business service platforms, calling card services, and unified message servers. All of these applications require a method for the user to communicate with the application outside of the media connection. The DTMF Events Through SIP Signaling feature provides this signaling capability.
This feature is related to the SIP INFO Method for DTMF Tone Generation feature, which adds support for out-of-band DTMF tone generation using the SIP INFO method. Together the two features provide a mechanism to both send and receive DTMF digits along the signaling path.
NOTIFY Messages
The SIP event notification mechanism uses NOTIFY messages to signal when certain telephony events take place. In order to send DTMF signals through NOTIFY messages, the gateway notifies the subscriber when DTMF digits are signaled by the originator. The notification contains a message body with a SIP response status line.
The following sample message shows a NOTIFY message from the Notifier letting the Subscriber know that the subscription is completed. The combination of the From, To, and Call-ID headers identifies the call leg. The Events header specifies the event type being signaled, and the Content-Type specifies the Internet media type. The Content-Length header indicates the number of octets in the message body.
NOTIFY sip:subscriber@example1.com SIP/2.0
Via: SIP/2.0/UDP example2.com:5060
From: Notifier <sip:notifier@example2.com>;tag=5678-EFGH
To: Subscriber <sip:subscriber@example1.com>;tag=1234-ABCD
Call-ID: 12345@example2.com
Contact: Notifier <sip:notifier@example2.com>
Events: telephone-event;rate=1000
Content-Type: audio/telephone-event
DTMF Relay for SIP Calls Using NTEs
Feature benefits include the following:
•Reliable DTMF digit relay between Cisco VoIP gateways when low-bandwidth codecs are used
•Ability to communicate with SIP phone software that uses NTE packets to indicate DTMF digits
The SIP NTE DTMF relay feature is used for the following applications:
•Reliable DTMF Relay
•SIP IP Phone Support
Note This feature is implemented only for SIP calls on VoIP gateways.
Reliable DTMF Relay
The SIP NTE DTMF relay feature provides reliable digit relay between Cisco VoIP gateways when a low-bandwidth codec is used. Using NTE to relay DTMF tones provides a standardized means of transporting DTMF tones in Real-Time Transport Protocol (RTP) packets according to section 3 of RFC 2833, RTP Payload for DTMF Digits, Telephony Tones and Telephony Signals, developed by the Internet Engineering Task Force (IETF) Audio/Video Transport (AVT) working group. RFC 2833 defines formats of NTE RTP packets used to transport DTMF digits, hookflash, and other telephony events between two peer endpoints.
DTMF tones are generated when a button on a touch-tone phone is pressed. When the tone is generated, it is compressed, transported to the other party, and decompressed. If a low-bandwidth codec, such as a G.729 or G.723 is used without a DTMF relay method, the tone may be distorted during compression and decompression.
With the SIP NTE DTMF relay feature, the endpoints perform per-call negotiation of the DTMF relay method. They also negotiate to determine the payload type value for the NTE RTP packets.
In a SIP call, the gateway forms a Session Description Protocol (SDP) message that indicates the following:
•If NTE will be used
•Which events will be sent using NTE
•NTE payload type value
The SIP NTE DTMF relay feature can relay hookflash events in the RTP stream using NTP packets.
Note The SIP NTE DTMF relay feature does not support hookflash generation for advanced features such as call waiting and conferencing.
SIP IP Phone Support
The SIP NTE DTMF relay feature adds SIP phone support. When SIP IP phones are running software that does not have the capability to generate DTMF tones, the phones use NTE packets to indicate DTMF digits. With the SIP NTE DTMF relay feature, Cisco VoIP gateways can communicate with SIP phones that use NTE packets to indicate DTMF digits. The Cisco VoIP gateways can relay the digits to other endpoints.
SIP INFO Method for DTMF Tone Generation
This section describes the SIP INFO Method for DTMF Tone Generation feature, which uses the SIP INFO method to generate dual-tone multifrequency (DTMF) tones on the telephony call leg. SIP methods or request message types, request a specific action be taken by another user agent or proxy server. The SIP INFO message is sent along the signaling path of the call. With the feature, upon receipt of a SIP INFO message with DTMF relay content, the gateway generates the specified DTMF tone on the telephony end of the call.
The SIP INFO Method for DTMF Tone Generation feature is always enabled, and is invoked when a SIP INFO message is received with DTMF relay content. This feature is related to the SIP NOTIFY-Basec Out-of-Band DTMF Relay Support feature, which provides the ability for an application to be notified about DTMF events using SIP NOTIFY messages. Together, the two features provide a mechanism to both send and receive DTMF digits along the signaling path.
Note For information on sending DTMF event notification using SIP NOTIFY messages, see the "DTMF Events Through SIP Signaling" section.
SIP INFO Messages
The SIP INFO method is used by a user agent to send call signaling information to another user agent with which it has an established media session. The following example shows a SIP INFO message with DTMF content:
INFO sip:2143302100@172.17.2.33 SIP/2.0
Via: SIP/2.0/UDP 172.80.2.100:5060
From: <sip:9724401003@172.80.2.100>;tag=43
To: <sip:2143302100@172.17.2.33>;tag=9753.0207
Call-ID: 984072_15401962@172.80.2.100
Content-Type: application/dtmf-relay
This sample message shows a SIP INFO message received by the gateway with specifics about the DTMF tone to be generated. The combination of the From, To, and Call-ID headers identifies the call leg. The signal and duration headers specify the digit, in this case 1, and duration, 160 milliseconds in the example, for DTMF tone play.
SIP NOTIFY-Based Out-of-Band DTMF Relay
SCCP IP phones do not support in-band DTMF digits; they are capable of sending only out-of-band DTMF digits. To support SCCP devices, originating and terminating SIP gateways can use Cisco proprietary NOTIFY-based out-of-band DTMF relay. In addition, NOTIFY-based out-of-band DTMF relay can also be used by analog phones attached to analog voice ports (FXS) on the router.
NOTIFY-based out-of-band DTMF relay sends messages bidirectionally between the originating and terminating gateways for a DTMF event during a call. If multiple DTMF relay mechanisms are enabled on a SIP dial peer and are negotiated successfully, NOTIFY-based out-of-band DTMF relay takes precedence.
The originating gateway sends an Invite message with a SIP Call-Info header to indicate the use of NOTIFY-based out-of-band DTMF relay. The terminating gateway acknowledges the message with an 18x or 200 Response message, also using the Call-Info header. The Call-Info header for NOTIFY-based out-of-band relay appears as follows:
Call-Info: <sip: address>; method="NOTIFY;Event=telephone-event;Duration=msec"
Note Duration is the interval between NOTIFY messages sent for a single digit and is set by means of the notify telephone-event command.
First, the NOTIFY-based out-of-band DTMF relay mechanism is negotiated by the SIP Invite and 18x/200 Response messages. Then, when a DTMF event occurs, the gateway sends a SIP NOTIFY message for that event. In response, the gateway expects to receive a 200 OK message.
The NOTIFY-based out-of-band DTMF relay mechanism is similar to the DTMF message format described in RFC 2833. NOTIFY-based out-of-band DTMF relay consists of 4 bytes in a binary encoded format. The message format is shown in Figure 74; field descriptions are listed in Table 43.
Figure 74 Message Format of NOTIFY-Based Out-of-Band DTMF Relay
Table 43 Fields in NOTIFY-based out-of-band DTMF relay Message
|
|
event |
The DTMF event that is between 0-9, A, B, C, D, #, * and flash. |
E |
E signifies the end bit. If E is set to a value of 1, the NOTIFY message contains the end of the DTMF event. Thus, the duration parameter in this final NOTIFY message measures the complete duration of the event. |
R |
Reserved. |
unused |
In RFC 2833, unused corresponds to the volume field, but is not used in NOTIFY-based out-of-band DTMF relay. |
duration |
Duration of this DTMF event, in milliseconds. |
Sending NOTIFY Messages
As soon as the DTMF event is recognized, the gateway sends out an initial NOTIFY message for this event with the duration negotiated in the Invite's Call-Info header. For the initial NOTIFY message, the end bit is set to zero. Afterward, one of the following actions can occur:
•If the duration of the DTMF event is less than the negotiated duration, the originating gateway sends an end NOTIFY message for this event with the duration field containing the exact duration of the event and the end bit set to 1.
•If the duration of the DTMF event is greater than the negotiated duration, the originating gateway sends another NOTIFY message for this event after the initial timer runs out. The updated NOTIFY message has a duration of twice the negotiated duration. The end bit is set to 0 because the event is not yet over. If the event lasts beyond the duration specified in the first updated NOTIFY message, another updated NOTIFY message is sent with three times the negotiated duration.
•If the duration of the DTMF event is exactly the negotiated duration, either of the above two actions occurs, depending on whether the end of the DTMF event occurred before or after the timer ran out.
For example, if the negotiated duration is 600 ms, as soon as a DTMF event occurs, the initial NOTIFY message is sent with duration as 600 ms. Then a timer starts for this duration.
•If the DTMF event lasts only 300 ms, the timer stops and an end NOTIFY message is sent with the duration as 300 ms.
•If the DTMF event lasts longer than 600 ms (1000 ms), when the timer expires an updated NOTIFY message is sent with the duration as 1200 ms and the timer restarts. When the DTMF event ends, an end NOTIFY message is sent with the duration set to 1000 ms.
Every DTMF event corresponds to at least two NOTIFYs: an initial NOTIFY message and an end NOTIFY message. There might also be some update NOTIFYs involved, if the total duration of the event is greater than the negotiated max-duration interval. Because DTMF events generally last for less than 1000 ms, setting the duration using notify telephone-event command to more than 1000 ms reduces the total number of NOTIFY messages sent. The default value of notify telephone-event command is 2000 ms.
Receiving NOTIFY Messages
Once a NOTIFY message is received by the terminating gateway, the DTMF tone plays and a timer is set for the value in the duration field. Afterward, one of the following actions can occur:
•If an end NOTIFY message for a DTMF event is received, the tone stops.
•If an update is received, the timer is updated according to the duration field.
•If an update or end NOTIFY message is not received before the timer expires, the tone stops and all subsequent NOTIFY messages for the same DTMF event or DTMF digit are ignored until an end NOTIFY message is received.
•If a NOTIFY message for a different DTMF event is received before an end NOTIFY message for the current DTMF event is received (which is an unlikely case), the current tone stops and the new tone plays. This is an unlikely case because for every DTMF event there needs to be an end NOTIFY message, and unless this is successfully sent and a 200 OK is received, the gateway cannot send other NOTIFY messages.
Note In-band tones are not passed while NOTIFY-based out-of-band DTMF relay is used as the DTMF relay method.
Two commands allow you to enable or disable NOTIFY-based out-of-band DTMF relay on a dial peer. The functionality is advertised to the other end using Invite messages if it is enabled by the commands, and must be configured on both the originating and terminating SIP gateways. A third command allows you to verify DTMF relay status.
•dtmf-relay (VoIP)
•notify telephone-event
•show sip-ua status
SIP KPML-Based Out-of-Band DTMF Relay
KPML support is required on SIP gateways for non-conferencing calls, and for interoperability between SIP products and SIP phones. If you configure KPML on the dial peer, the gateway sends INVITE messages with "kpml" in the Allow-Events header. Currently, all configured DTMF methods are recognized and sent in the outgoing INVITE. If you configure rtp-nte (RFC 2833), sip-notify, and sip-kpml, the outgoing INVITE contains a call-info header, an Allow-Events header with KPML, and an sdp with rtp-nte payload.
DTMF negotiation is performed based on the matching inbound dial-peer configuration. The gateway negotiates to either just cisco-rtp, just rtp-nte, rtp-nte + kpml, just kpml, or just sip-notify. If you configure more than one out-of-band DTMF method, preference goes from highest to lowest in the order they were configured. Whichever DTMF negotiation method you configure first takes precedence.
A gateway negotiates both rtp-nte and KPML if both are supported and advertised in the incoming INVITE. However, in this case, the gateway relies on the rtp-nte DTMF method to receive digits and a SUBSCRIBE for KPML is not initiated, however the gateway still accepts SUBSCRIBEs for KPML. This prevents double-digit reporting problems at the gateway.

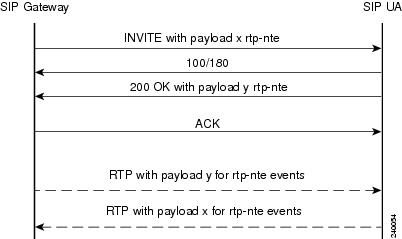

The following example shows the INVITE and SUBSCRIBE sequence for KPML.
INVITE sip:8888@172.18.193.250:5060 SIP/2.0
Via: SIP/2.0/UDP 172.18.193.251:5060;branch=z9hG4bKC1ECC
From: <sip:172.18.193.251>;tag=EA330-F6
To: <sip:8888@172.18.193.250>
Date: Fri, 01 Mar 2002 00:15:59 GMT
Call-ID: 57633F68-2BE011D6-8013D46B-B4F9B5F6@172.18.193.251
Supported: 100rel,timer,resource-priority,replaces
Cisco-Guid: 1424162198-736104918-2148455531-3036263926
User-Agent: Cisco-SIPGateway/IOS-12.x
Allow: INVITE, OPTIONS, BYE, CANCEL, ACK, PRACK, UPDATE, REFER, SUBSCRIBE, NOTIFY, INFO,
REGISTER
Contact: <sip:172.18.193.251:5060>
Allow-Events: kpml, telephone-event
Content-Type: application/sdp
Content-Disposition: session;handling=required
o=CiscoSystemsSIP-GW-UserAgent 1438 8538 IN IP4 172.18.193.251
m=audio 17576 RTP/AVP 0 19
//-1/xxxxxxxxxxxx/SIP/Msg/ccsipDisplayMsg:
SIP/2.0 183 Session Progress
Via: SIP/2.0/UDP 172.18.193.251:5060;branch=z9hG4bKC1ECC
From: <sip:172.18.193.251>;tag=EA330-F6
To: <sip:8888@172.18.193.250>;tag=39497C-2EA
Date: Fri, 01 Mar 2002 01:02:34 GMT
Call-ID: 57633F68-2BE011D6-8013D46B-B4F9B5F6@172.18.193.251
Server: Cisco-SIPGateway/IOS-12.x
Allow: INVITE, OPTIONS, BYE, CANCEL, ACK, PRACK, UPDATE, REFER, SUBSCRIBE, NOTIFY, INFO,
REGISTER
Allow-Events: kpml, telephone-event
Contact: <sip:8888@172.18.193.250:5060>
Content-Type: application/sdp
Content-Disposition: session;handling=required
o=CiscoSystemsSIP-GW-UserAgent 9384 6237 IN IP4 172.18.193.250
m=audio 17468 RTP/AVP 0 19
//-1/xxxxxxxxxxxx/SIP/Msg/ccsipDisplayMsg:
Via: SIP/2.0/UDP 172.18.193.251:5060;branch=z9hG4bKC1ECC
From: <sip:172.18.193.251>;tag=EA330-F6
To: <sip:8888@172.18.193.250>;tag=39497C-2EA
Date: Fri, 01 Mar 2002 01:02:38 GMT
Call-ID: 57633F68-2BE011D6-8013D46B-B4F9B5F6@172.18.193.251
Server: Cisco-SIPGateway/IOS-12.x
Allow: INVITE, OPTIONS, BYE, CANCEL, ACK, PRACK, UPDATE, REFER, SUBSCRIBE, NOTIFY, INFO,
REGISTER
Allow-Events: kpml, telephone-event
Contact: <sip:8888@172.18.193.250:5060>
Content-Type: application/sdp
Content-Disposition: session;handling=required
o=CiscoSystemsSIP-GW-UserAgent 9384 6237 IN IP4 172.18.193.250
m=audio 17468 RTP/AVP 0 19
//-1/xxxxxxxxxxxx/SIP/Msg/ccsipDisplayMsg:
ACK sip:8888@172.18.193.250:5060 SIP/2.0
Via: SIP/2.0/UDP 172.18.193.251:5060;branch=z9hG4bKEB8B
From: <sip:172.18.193.251>;tag=EA330-F6
To: <sip:8888@172.18.193.250>;tag=39497C-2EA
Date: Fri, 01 Mar 2002 00:16:00 GMT
Call-ID: 57633F68-2BE011D6-8013D46B-B4F9B5F6@172.18.193.251
Allow-Events: kpml, telephone-event
//-1/xxxxxxxxxxxx/SIP/Msg/ccsipDisplayMsg:
SUBSCRIBE sip:8888@172.18.193.250:5060 SIP/2.0
Via: SIP/2.0/UDP 172.18.193.251:5060;branch=z9hG4bKFF36
From: <sip:172.18.193.251>;tag=EA330-F6
To: <sip:8888@172.18.193.250>;tag=39497C-2EA
Call-ID: 57633F68-2BE011D6-8013D46B-B4F9B5F6@172.18.193.251
Date: Fri, 01 Mar 2002 00:16:15 GMT
User-Agent: Cisco-SIPGateway/IOS-12.x
Contact: <sip:172.18.193.251:5060>
Content-Type: application/kpml-request+xml
<?xml version="1.0" encoding="UTF-8"?><kpml-request
xmlns="urn:ietf:params:xml:ns:kpml-request"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="urn:ietf:params:xml:ns:kpml-request kpml-request.xsd"
version="1.0"><pattern persist="persist"><regex
tag="dtmf">[x*#ABCD]</regex></pattern></kpml-request>
//-1/xxxxxxxxxxxx/SIP/Msg/ccsipDisplayMsg:
SUBSCRIBE sip:172.18.193.251:5060 SIP/2.0
Via: SIP/2.0/UDP 172.18.193.250:5060;branch=z9hG4bK5FE3
From: <sip:8888@172.18.193.250>;tag=39497C-2EA
To: <sip:172.18.193.251>;tag=EA330-F6
Call-ID: 57633F68-2BE011D6-8013D46B-B4F9B5F6@172.18.193.251
Date: Fri, 01 Mar 2002 01:02:46 GMT
User-Agent: Cisco-SIPGateway/IOS-12.x
Contact: <sip:172.18.193.250:5060>
Content-Type: application/kpml-request+xml
//-1/xxxxxxxxxxxx/SIP/Msg/ccsipDisplayMsg:
Via: SIP/2.0/UDP 172.18.193.251:5060;branch=z9hG4bKFF36
From: <sip:172.18.193.251>;tag=EA330-F6
To: <sip:8888@172.18.193.250>;tag=39497C-2EA
Date: Fri, 01 Mar 2002 01:02:51 GMT
Call-ID: 57633F68-2BE011D6-8013D46B-B4F9B5F6@172.18.193.251
Contact: <sip:172.18.193.250:5060>
//-1/xxxxxxxxxxxx/SIP/Msg/ccsipDisplayMsg:
Via: SIP/2.0/UDP 172.18.193.250:5060;branch=z9hG4bK5FE3
From: <sip:8888@172.18.193.250>;tag=39497C-2EA
To: <sip:172.18.193.251>;tag=EA330-F6
Date: Fri, 01 Mar 2002 00:16:24 GMT
Call-ID: 57633F68-2BE011D6-8013D46B-B4F9B5F6@172.18.193.251
Contact: <sip:172.18.193.251:5060>
//-1/xxxxxxxxxxxx/SIP/Msg/ccsipDisplayMsg:
NOTIFY sip:172.18.193.250:5060 SIP/2.0
Via: SIP/2.0/UDP 172.18.193.251:5060;branch=z9hG4bK101EA4
From: <sip:172.18.193.251>;tag=EA330-F6
To: <sip:8888@172.18.193.250>;tag=39497C-2EA
Call-ID: 57633F68-2BE011D6-8013D46B-B4F9B5F6@172.18.193.251
Date: Fri, 01 Mar 2002 00:16:24 GMT
User-Agent: Cisco-SIPGateway/IOS-12.x
Subscription-State: active
Contact: <sip:172.18.193.251:5060>
//-1/xxxxxxxxxxxx/SIP/Msg/ccsipDisplayMsg:
NOTIFY sip:172.18.193.251:5060 SIP/2.0
Via: SIP/2.0/UDP 172.18.193.250:5060;branch=z9hG4bK6111
From: <sip:8888@172.18.193.250>;tag=39497C-2EA
To: <sip:172.18.193.251>;tag=EA330-F6
Call-ID: 57633F68-2BE011D6-8013D46B-B4F9B5F6@172.18.193.251
Date: Fri, 01 Mar 2002 01:02:51 GMT
User-Agent: Cisco-SIPGateway/IOS-12.x
Subscription-State: active
Contact: <sip:172.18.193.250:5060>
//-1/xxxxxxxxxxxx/SIP/Msg/ccsipDisplayMsg:
Via: SIP/2.0/UDP 172.18.193.250:5060;branch=z9hG4bK6111
From: <sip:8888@172.18.193.250>;tag=39497C-2EA
To: <sip:172.18.193.251>;tag=EA330-F6
Date: Fri, 01 Mar 2002 00:16:32 GMT
Call-ID: 57633F68-2BE011D6-8013D46B-B4F9B5F6@172.18.193.251
//-1/xxxxxxxxxxxx/SIP/Msg/ccsipDisplayMsg:
NOTIFY sip:172.18.193.250:5060 SIP/2.0
Via: SIP/2.0/UDP 172.18.193.251:5060;branch=z9hG4bK1117DE
From: <sip:172.18.193.251>;tag=EA330-F6
To: <sip:8888@172.18.193.250>;tag=39497C-2EA
Call-ID: 57633F68-2BE011D6-8013D46B-B4F9B5F6@172.18.193.251
Date: Fri, 01 Mar 2002 00:37:33 GMT
User-Agent: Cisco-SIPGateway/IOS-12.x
Subscription-State: active
Contact: <sip:172.18.193.251:5060>
Content-Type: application/kpml-response+xml
<?xml version="1.0" encoding="UTF-8"?><kpml-response version="1.0" code="200" text="OK"
digits="1" tag="dtmf"/>
/-1/xxxxxxxxxxxx/SIP/Msg/ccsipDisplayMsg:
Via: SIP/2.0/UDP 172.18.193.251:5060;branch=z9hG4bK1117DE
From: <sip:172.18.193.251>;tag=EA330-F6
To: <sip:8888@172.18.193.250>;tag=39497C-2EA
Date: Fri, 01 Mar 2002 01:24:08 GMT
Call-ID: 57633F68-2BE011D6-8013D46B-B4F9B5F6@172.18.193.251
...
SIP Support for Asymmetric SDP
The SIP Support for Asymmetric SDP feature allows a SIP gateway to receive an offer or answer with a different payload than it prefers, and treat the payloads as asymmetric, as long as both the payloads are not in use. The gateway interprets the payload that it receives and generates RTP packets for DTMF events and dynamic codecs. The gateway expects to receive the DTMF events and dynamic codec payload value it originally sent in the request/response message. In this way, the gateway advertises its preferred payload in the answer to the offer that it receives.
For delayed media cases, if the gateway receives an INVITE message with no SDP, the corresponding response or offer carries the preferred payload in the SDP. The gateway expects that the remote end will use the payload offered in RTP packets that it receives. The gateway uses the payload type received in the answer in all the RTP packets that it generates, as long as this payload is not in use.
The following sections describe the behavior of a Universal Agent Client (UAC) and Universal Agent Server (UAS) gateway for asymmetric payload handling:
•UAC Behavior for Asymmetric DTMF Payloads
•UAS Behavior for Asymmetric DTMF Payloads
•UAC Behavior for Asymmetric Dynamic Codec Payloads
•UAS Behavior for Asymmetric Dynamic Codec Payloads
UAC Behavior for Asymmetric DTMF Payloads
When a UAC gateway originates an INVITE message, it advertises the preferred DTMF relay payload and method. However, when the gateway receives an 18x/2xx response with a different DTMF payload, the gateway first checks if the associated DTMF relay method can successfully negotiate with it. If negotiation is successful, the gateway checks if the new payload is available for use. If it is available, the gateway uses the received payload in all RTP (RFC 2833) events packets it generates. At the same time, the gateway expects the remote end to send packets with the preferred payload that the gateway advertised in its original request.
If the gateway is unable to use the new payload that the remote end requests in the answer, then DTMF relay negotiation fails for the requested DTMF relay method.
Figure 75 summarizes the call behavior for a Universal Access Controller (UAC) when using asymmetric DTMF payloads.
Figure 75
UAC Behavior for Asymmetric DTMF Payloads
UAS Behavior for Asymmetric DTMF Payloads
When a gateway receives an INVITE message that has a preferred DTMF relay method and payload, and the requested DTMF relay is negotiated successfully, the gateway checks if the requested DTMF payload is available for use. If it is available, the gateway checks if you configured a preferred payload at the matching dial peer.
If you did not configure a preferred payload, the gateway uses its default value for that particular DTMF relay method. If the preferred payload is different from the one in the original request, the payload in the original request is used in all RTP (RFC 2833) events packets that the gateway generates. The gateway responds with the preferred payload in the SDP in the response to the original request. The gateway expects the remote end to send packets with the preferred payload that the gateway advertised in its response.
When the gateway receives a delayed media request, the gateway offers the preferred DTMF relay and payload in its response. If the remote end responds with the same DTMF relay and different payload, this new payload is used to generate RTP RFC 2833 events packets. The gateway expects the remote end to send packets with the preferred payload that the gateway advertised in its response.
Figure 76 summarizes the call behavior for a Universal Access Server (UAS) when using asymmetric DTMF payloads.
Figure 76
UAS Behavior for Asymmetric DTMF Payloads
UAC Behavior for Asymmetric Dynamic Codec Payloads
When the gateway originates an INVITE message, the gateway advertises the preferred dynamic codec. However, when the gateway receive an 18x/2xx response with a different dynamic payload, the gateway first checks whether the new payload, in the answer SDP message, is being used for the same dynamic codec that was advertised. If the new payload is the same codec, and if the dynamic payload is available for use, the received payload is used in all RTP dynamic codec packets that are generated by the gateway. At the same time, the gateway expects the remote end to send packets with the preferred payload that the gateway advertised in its original request.
If the gateway is unable to use the new payload that the remote end requests in the answer, then codec negotiation for that particular dynamic codec fails.
Figure 77 summarizes the call behavior for a UAC when using asymmetric dynamic codec payloads.
Figure 77
UAC Behavior for Asymmetric Dynamic Codec Payloads
UAS Behavior for Asymmetric Dynamic Codec Payloads
When a gateway receives an INVITE message which has a dynamic codec and payload, and the requested dynamic codec and payload is negotiated successfully, the gateway uses the same payload in its response to the INVITE message. The gateway cannot generate a different dynamic payload in a response message.
Beginning with Cisco IOS Release 12.4(15)T, when a gateway receives a delayed media request, you can configure the gateway to offer the preferred dynamic codec and payload in its response. If the remote end responds with the same dynamic codec and a different payload, this new payload is used to generate the codec RTP packets. The gateway expects the remote end to send packets with the preferred payload that the gateway advertised in its response.
Figure 78 summarizes the call behavior for UAS when using asymmetric dynamic codec payloads.
Figure 78
UAS Behavior for Asymmetric Dynamic Codec Payloads
How to Configure SIP DTMF Features
This section contains the following procedures:
•Configuring Passthrough on a Gateway that Connects to an MTP or Transcoder Gateway
•Configuring DTMF Events Through SIP Signaling
•Configuring DTMF Relay for SIP Calls Using NTEs
•Configuring SIP INFO Method for DTMF Tone Generation
•Configuring SIP NOTIFY-Based Out-of-Band DTMF Relay
•Configuring SIP KPML-Based Out-of-Band DTMF Relay
•Verifying SIP DTMF Support
•Configuring SIP Support for SDP
•Troubleshooting Tips
Note•Before you perform a procedure, familiarize yourself with the following information:
–"Restrictions for SIP DTMF" section
–"Prerequisites for SIP DTMF" section
•For help with a procedure, see the verification and troubleshooting sections listed above.
Configuring Passthrough on a Gateway that Connects to an MTP or Transcoder Gateway
To configure RFC 2833 DTMF MTP Passthrough on a gateway that does not itself contain an MTP or transcoder but connects to another gateway that does, perform the following steps.
SUMMARY STEPS
1. enable
2. configure terminal
3. dial-peer voice tag voip
4. dtmf-relay rtp-nte
5. exit
DETAILED STEPS
|
|
|
Step 1 |
enable
Router> enable |
Enables privileged EXEC mode. •Enter your password if prompted. |
Step 2 |
configure terminal
Router# configure terminal |
Enters global configuration mode. |
Step 3 |
dial-peer voice tag voip
Router(config)# dial-peer voice 103 voip |
Enters dial-peer configuration mode for the specified VoIP dial peer. |
Step 4 |
dtmf-relay rtp-nte
Router(config-dial-peer-voice)# dtmf-relay rtp-nte |
Specifies that the gateway should relay DTMF tones between telephony interfaces and an IP network by using RTP with the Named Telephone Event (NTE) payload type. |
Step 5 |
exit
Router(config-dial-peer-voice)# exit |
Exits the current configuration mode. |
Note If you plan to employ both this feature and Cisco Fax Relay—both of which use the same default payload type (96 or 97)—in the same RTP session, you may need to configure the gateway that negotiates fax relay to use a different payload type.
To configure a gateway to use a different payload type, use the rtp payload-type command as in the following example:
Router(config-dial-peer)# rtp payload-type nte 105
Configuring DTMF Events Through SIP Signaling
To configure the DTMF Events Through SIP Signaling feature, perform the following steps.
SUMMARY STEPS
1. enable
2. configure terminal
3. sip-ua
4. timers notify number
5. retry notify number
6. exit
DETAILED STEPS
|
|
|
Step 1 |
enable
Router> enable |
Enters privileged EXEC mode or any other security level set by a system administrator. •Enter your password if prompted. |
Step 2 |
configure terminal
Router# configure terminal |
Enters global configuration mode. |
Step 3 |
sip-ua
Router(config)# sip-ua |
Enters SIP user-agent configuration mode. |
Step 4 |
timers notify number
Router(config-sip-ua)# timers notify 100 |
Sets the amount of time that the user agent waits before retransmitting the Notify message. The argument is as follows: •number—Time, in ms, to wait before retransmitting. Range: 100 to 1000. Default: 500. |
Step 5 |
retry notify number
Router(config-sip-ua)# retry notify 6 |
Sets the number of times that the Notify message is retransmitted to the user agent that initiated the transfer or Refer request. The argument is as follows: •number—Number of retries. Range: 1 to 10. Default: 10. |
Step 6 |
exit
Router(config-sip-ua)# exit |
Exits the current mode. |
Configuring DTMF Relay for SIP Calls Using NTEs
This section includes the following procedures:
•Configure DTMF Relay for SIP Calls Using NTEs
•Configuring Passthrough on a Gateway that Connects to an MTP or Transcoder Gateway
Configure DTMF Relay for SIP Calls Using NTEs
To configure the DTMF Relay for SIP Calls Using NTEs feature, perform the following steps.
SUMMARY STEPS
1. enable
2. configure terminal
3. dial-peer voice number voip
4. session protocol sipv2
5. dtmf-relay rtp-nte
6. rtp payload-type nte number comfort-noise [13 | 19]
7. exit
DETAILED STEPS
|
|
|
Step 1 |
enable
Router> enable |
Enters privileged EXEC mode or any other security level set by a system administrator. •Enter your password if prompted. |
Step 2 |
configure terminal
Router# configure terminal |
Enters global configuration mode. |
Step 3 |
dial-peer voice number voip
Router(config)# dial-peer voice 10 voip |
Enters dial-peer VoIP configuration mode for the specified dial peer. |
Step 4 |
session protocol sipv2
Router(config-dial-peer)# session protocol sipv2 |
Specifies a session protocol for calls between local and remote routers using the packet network. The keyword is as follows: •sipv2—Dial peer uses the IETF SIP. Use this keyword with the SIP option. |
Step 5 |
dtmf-relay rtp-nte
Router(config-dial-peer)# dtmf-relay rtp-nte |
Specifies how an H.323 or SIP gateway relays DTMF tones between telephone interfaces and an IP network. The keyword is as follows: •rtp-nte—Forwards tones by using RTP with the NTE payload type. |
Step 6 |
rtp payload-type nte number comfort-noise [13 | 19]
Router(config-dial-peer)# rtp payload-type nte 100 comfort-noise 13 |
Identifies the payload type of a RTP packet. Keywords and arguments are as follows: •nte number—Named telephone event (NTE). Range: 96 to 127. Default: 101. •comfort-noise—RTP payload type of comfort noise. If you are connected to a gateway that complies with the RTP Payload for Comfort Noise July 2001 draft, use 13. If you are connected to an older Cisco gateway that uses DSPware before version 3.4.32, use 19. |
Step 7 |
exit
Router(config-dial-peer)# exit |
Exits the current mode. |
Configuring SIP INFO Method for DTMF Tone Generation
You cannot configure, enable, or disable this feature. You can display SIP statistics, including SIP INFO method statistics, by using the show sip-ua statistics and show sip-ua status commands in privileged EXEC mode. See the following fields for SIP INFO method statistics:
•OkInfo 0/0, under SIP Response Statistics, Success, displays the number of successful responses to an INFO request.
•Info 0/0, under SIP Total Traffic Statistics, displays the number of INFO messages received and sent by the gateway.
Note•To see sample output of these show commands, see the "Configuring Passthrough on a Gateway that Connects to an MTP or Transcoder Gateway" section.
•To reset the counters for the sip-ua statistics command, use the clear sip-ua statistics command.
Configuring SIP NOTIFY-Based Out-of-Band DTMF Relay
To configure the SIP NOTIFY-Basec Out-of-Band DTMF Relay feature, perform the following steps.
Note Cisco proprietary NOTIFY-based out-of-band DTMF relay adds support for devices that do not support in-band DTMF. This configuration must be done on both originating and terminating gateways. With this configuration, DTMF tones are forwarded by using SIP NOTIFY messages in SIP Invites or 18x or 200 Response messages.
SUMMARY STEPS
1. enable
2. configure terminal
3. dial-peer voice tag voip
4. dtmf-relay sip-notify
5. exit
6. sip-ua
7. notify telephone-event max-duration time
8. exit
DETAILED STEPS
|
|
|
Step 1 |
enable
Router> enable |
Enters privileged EXEC mode or any other security level set by a system administrator. •Enter your password if prompted. |
Step 2 |
configure terminal
Router# configure terminal |
Enters global configuration mode. |
Step 3 |
dial-peer voice tag voip
Router(config)# dial-peer voice 29 voip |
Enters dial-peer configuration mode for the designated dial peer. |
Step 4 |
dtmf-relay sip-notify
Router(config-dial-peer)# dtmf-relay sip-notify |
Forwards DTMF tones using SIP NOTIFY messages. |
Step 5 |
exit
Router(config-dial-peer)# exit |
Exits the current mode. |
Step 6 |
sip-ua
Router (config)# sip-ua |
Enters SIP user-agent configuration mode. |
Step 7 |
notify telephone-event max-duration time
Router(config-sip-ua)# notify telephone-event max-duration 2000 |
Sets the maximum time interval allowed between two consecutive NOTIFY messages for a single DTMF event. Keyword and argument are as follows: •max-duration time—Time, in ms, between consecutive NOTIFY messages for a single DTMF event. Range: 500 to 3000. Default: 2000. |
Step 8 |
exit
Router(config-sip-ua)# exit |
Exits the current mode. |
Configuring SIP KPML-Based Out-of-Band DTMF Relay
To configure the SIP KPML Out-of-Band DTMF Relay feature, perform the following steps.
SUMMARY STEPS
1. enable
2. configure terminal
3. dial-peer voice tag voip
4. dtmf-relay sip-kpml
5. exit
DETAILED STEPS
|
|
|
Step 1 |
enable
Router> enable |
Enters privileged EXEC mode or any other security level set by a system administrator. •Enter your password if prompted. |
Step 2 |
configure terminal
Router# configure terminal |
Enters global configuration mode. |
Step 3 |
dial-peer voice tag voip
Router(config)# dial-peer voice 29 voip |
Enters dial-peer configuration mode for the designated dial peer. |
Step 4 |
dtmf-relay sip-kpml
Router(config-dial-peer)# dtmf-relay sip-kpml |
Forwards DTMF tones using SIP KPML messages. |
Step 5 |
exit
Router(config-dial-peer)# exit |
Exits the current mode. |
Verifying SIP DTMF Support
To verify SIP DTMF support, perform the following steps as appropriate (commands are listed in alphabetical order).
SUMMARY STEPS
1. show running-config
2. show sip-ua retry
3. show sip-ua statistics
4. show sip-ua status
5. show sip-ua timers
6. show voip rtp connections
7. show sip-ua calls
DETAILED STEPS
Step 1 show running-config
Use this command to show dial-peer configurations.
The following sample output shows that the dtmf-relay sip-notify command is configured in dial peer 123:
Router# show running-config
destination-pattern [12]...
session target ipv4:10.8.17.42
The following sample output shows that DTMF relay and NTE are configured on the dial peer.
Router# show running-config
dial-peer voice 1000 pots
destination-pattern 4961234
dial-peer voice 2000 voip
destination-pattern 4965678
session target ipv4:192.0.2.34
! RTP payload type value = 101 (default)
dial-peer voice 3000 voip
destination-pattern 2021010101
session target ipv4:192.0.2.34
! RTP payload type value = 110 (user assigned)
Step 2 show sip-ua retry
Use this command to display SIP retry statistics.
Router# show sip-ua retry
invite retry count = 6 response retry count = 1
bye retry count = 1 cancel retry count = 1
prack retry count = 10 comet retry count = 10
reliable 1xx count = 6 notify retry count = 10
Step 3 show sip-ua statistics
Use this command to display response, traffic, and retry SIP statistics.
Tip To reset counters for the show sip-ua statistics display, use the clear sip-ua statistics command.
Router# show sip-ua statistics
SIP Response Statistics (Inbound/Outbound)
Forwarded 0/0, Queued 0/0,
OkCancel 1/0, OkOptions 0/0,
OkPrack 2/0, OkPreconditionMet 0/0,
OkNotify 1/0, 202Accepted 0/1
Redirection (Inbound only):
MultipleChoice 0, MovedPermanently 0,
MovedTemporarily 0, SeeOther 0,
UseProxy 0, AlternateService 0
BadRequest 0/0, Unauthorized 0/0,
PaymentRequired 0/0, Forbidden 0/0,
NotFound 0/0, MethodNotAllowed 0/0,
NotAcceptable 0/0, ProxyAuthReqd 0/0,
ReqTimeout 0/0, Conflict 0/0, Gone 0/0,
LengthRequired 0/0, ReqEntityTooLarge 0/0,
ReqURITooLarge 0/0, UnsupportedMediaType 0/0,
BadExtension 0/0, TempNotAvailable 0/0,
CallLegNonExistent 0/0, LoopDetected 0/0,
TooManyHops 0/0, AddrIncomplete 0/0,
Ambiguous 0/0, BusyHere 0/0
RequestCancel 1/0, NotAcceptableMedia 0/0
InternalError 0/1, NotImplemented 0/0,
BadGateway 0/0, ServiceUnavail 0/0,
GatewayTimeout 0/0, BadSipVer 0/0,
BusyEverywhere 0/0, Decline 0/0,
NotExistAnywhere 0/0, NotAcceptable 0/0
SIP Total Traffic Statistics (Inbound/Outbound) /* Traffic Statistics
Invite 3/2, Ack 3/2, Bye 1/0,
Retry Statistics /* Retry Statistics
Invite 0, Bye 0, Cancel 0, Response 0,
Prack 0, Comet 0, Reliable1xx 0, Notify 0
Following is sample output verifying configuration of the SIP INFO Method for DTMF Tone Generation feature
Router# show sip-ua statistics
SIP Response Statistics (Inbound/Outbound)
Forwarded 0/0, Queued 0/0,
OkCancel 0/0, OkOptions 0/0,
OkPrack 0/0, OkPreconditionMet 0/0
OkSubscibe 0/0, OkNotify 0/0,
OkInfo 0/0, 202Accepted 0/0
Redirection (Inbound only):
MultipleChoice 0, MovedPermanently 0,
MovedTemporarily 0, SeeOther 0,
UseProxy 0, AlternateService 0
BadRequest 0/0, Unauthorized 0/0,
PaymentRequired 0/0, Forbidden 0/0,
NotFound 0/0, MethodNotAllowed 0/0,
NotAcceptable 0/0, ProxyAuthReqd 0/0,
ReqTimeout 0/0, Conflict 0/0, Gone 0/0,
LengthRequired 0/0, ReqEntityTooLarge 0/0,
ReqURITooLarge 0/0, UnsupportedMediaType 0/0,
BadExtension 0/0, TempNotAvailable 0/0,
CallLegNonExistent 0/0, LoopDetected 0/0,
TooManyHops 0/0, AddrIncomplete 0/0,
Ambiguous 0/0, BusyHere 0/0,
InternalError 0/0, NotImplemented 0/0,
BadGateway 0/0, ServiceUnavail 0/0,
GatewayTimeout 0/0, BadSipVer 0/0
BusyEverywhere 0/0, Decline 0/0,
NotExistAnywhere 0/0, NotAcceptable 0/0
SIP Total Traffic Statistics (Inbound/Outbound)
Invite 0/0, Ack 0/0, Bye 0/0,
Subscribe 0/0, Notify 0/0,
Invite 0, Bye 0, Cancel 0, Response 0, Notify 0
Step 4 show sip-ua status
Use this command to display status for the SIP user agent.
Router# show sip-ua status
SIP User Agent for UDP : ENABLED
SIP User Agent for TCP : ENABLED
SIP User Agent bind status(signaling): DISABLED
SIP User Agent bind status(media): DISABLED
SIP DNS SRV version: 2 (rfc 2782)
SDP application configuration:
Version line (v=) required
Session name line (s=) required
Timespec line (t=) required
Media supported: audio image
Network types supported: IN
Address types supported: IP4
Transport types supported: RTP/AVP udptl
The following sample output shows that the time interval between consecutive NOTIFY messages for a telephone event is the default of 2000 ms:
Router# show sip-ua status
SIP User Agent for UDP : ENABLED
SIP User Agent for TCP : ENABLED
SIP User Agent bind status(signaling): DISABLED
SIP User Agent bind status(media): DISABLED
SIP early-media for 180 responses with SDP: ENABLED
SIP DNS SRV version: 2 (rfc 2782)
NAT Settings for the SIP-UA
Check media source packets: DISABLED
Maximum duration for a telephone-event in NOTIFYs: 2000 ms
SIP support for ISDN SUSPEND/RESUME: ENABLED
Redirection (3xx) message handling: ENABLED
SDP application configuration:
Version line (v=) required
Timespec line (t=) required
Media supported: audio image
Network types supported: IN
Address types supported: IP4
Transport types supported: RTP/AVP udptl
The following sample output shows configuration of the SIP INFO Method for DTMF Tone Generation feature.
Router# show sip-ua status
SIP User Agent for UDP : ENABLED
SIP User Agent for TCP : ENABLED
SIP User Agent bind status(signaling): DISABLED
SIP User Agent bind status(media): DISABLED
SIP DNS SRV version: 2 (rfc 2782)
SDP application configuration:
Version line (v=) required
Session name line (s=) required
Timespec line (t=) required
Media supported: audio image
Network types supported: IN
Address types supported: IP4
Transport types supported: RTP/AVP udptl
Step 5 show sip-ua timers
Use this command to display the current settings for SIP user-agent timers.
Router# show sip-ua timers
SIP UA Timer Values (millisecs)
trying 500, expires 300000, connect 500, disconnect 500
comet 500, prack 500, rel1xx 500, notify 500
Step 6 show voip rtp connections
Use this command to show local and remote Calling ID and IP address and port information.
Step 7 show sip-ua calls
Use this command to ensure the DTMF method is SIP-KPML.
The following sample output shows that the DTMF method is SIP-KPML.
router# show sip-ua calls
SIP Call ID : 57633F68-2BE011D6-8013D46B-B4F9B5F6@172.18.193.251
State of the call : STATE_ACTIVE (7)
Substate of the call : SUBSTATE_NONE (0)
Bit Flags : 0xD44018 0x100 0x0
Source IP Address (Sig ): 192.0.2.1
Destn SIP Req Addr:Port : 192.0.2.2:5060
Destn SIP Resp Addr:Port: 192.0.2.3:5060
Destination Name : 192.0.2.4.250
Number of Media Streams : 1
Number of Active Streams: 1
Media Mode : flow-through
State of the stream : STREAM_ACTIVE
Stream Type : voice-only (0)
Negotiated Codec : g711ulaw (160 bytes)
Negotiated Dtmf-relay : sip-kpml
Dtmf-relay Payload Type : 0
Media Source IP Addr:Port: 192.0.2.5:17576
Media Dest IP Addr:Port : 192.0.2.6:17468
Orig Media Dest IP Addr:Port : 0.0.0.0:0
Number of SIP User Agent Client(UAC) calls: 1
Number of SIP User Agent Server(UAS) calls: 0
Configuring SIP Support for SDP
This section describes the procedures for configuring and associating the SIP Support for Asymmetric SDP feature. These procedures include the following:
•How to Configure a SIP Support for Asymmetric SDP Globally for a Gateway
•How to Configure SIP Support for Asymmetric SDP on a Dial Peer
How to Configure a SIP Support for Asymmetric SDP Globally for a Gateway
To configure an asymmetric payload globally on a SIP network, follow these steps:
SUMMARY STEPS
1. enable
2. configure terminal
3. voice service {pots | voatm | vofr | voip}
4. sip
5. asymmetric payload [dtmf | dynamic-codecs | full]
6. exit
|
|
|
Step 1 |
enable
Router> enable |
Enables privileged EXEC mode. •Enter your password if prompted. |
Step 2 |
configure terminal
Router# configure terminal |
Enters global configuration mode. |
Step 3 |
voice service {pots | voatm | vofr | voip}
Router(config)# voice service voip |
Enters voice-service voip configuration mode. |
Step 4 |
sip
Router(conf-voi-ser)# sip |
Enters SIP parameters mode. |
Step 5 |
asymmetric payload [dtmf | dynamic-codecs | full]
Router(conf-ser-sip)# asymmetric payload dtmf |
Enables the gateway to send and receive DTMF and dynamic codec RTP packets with different payloads. In this example, the asymmetric payload is configured for DTMF. |
Step 6 |
exit
Router (conf-ser-sip)# exit |
Exits the current mode. |
DETAILED STEPS
How to Configure SIP Support for Asymmetric SDP on a Dial Peer
To configure an asymmetric payload on a dial peer, follow these steps:
SUMMARY STEPS
1. enable
2. configure terminal
3. dial-peer voice tag {pots | vofr | voip}
4. voice-class sip
5. asymmetric payload [dtmf | dynamic-codecs | full]
6. exit
|
|
|
Step 1 |
enable
Router> enable |
Enables privileged EXEC mode. •Enter your password if prompted. |
Step 2 |
configure terminal
Router# configure terminal |
Enters global configuration mode. |
Step 3 |
dial-peer voice tag {pots | vofr | voip}
Router(config)# dialpeer voice 111 voip |
Enters dial-peer voip configuration mode. |
Step 4 |
voice-class sip
Router(conf-dial-peer)# voice-class sip |
Enters SIP parameters mode. |
Step 5 |
asymmetric payload [dtmf | dynamic-codecs | full]
Router(conf-dial-peer)# asymmetric payload dynamic-codecs |
Enables the gateway to send and receive DTMF and dynamic codec RTP packets with different payloads. |
Step 6 |
exit
Router (conf-ser-sip)# exit |
Exits the current mode. |
DETAILED STEPS
Troubleshooting Tips
Note For general troubleshooting tips and a list of important debug commands, see the "Basic Troubleshooting Procedures" section on page 1.
•To enable debugging for RTP named event packets, use the debug voip rtp command.
•To enable KPML debugs, use the debug kpml command.
•To enable SIP debugs, use the debug ccsip command.
•Collect debugs while the call is being established and during digit presses.
•If an established call is not sending digits though KPML, use the show sip-ua calls command to ensure SIP-KPML is included in the negotiation process.
Configuration Examples for SIP DTMF Features
This section provides the following configuration examples:
•DTMF Relay for SIP Calls Using NTEs: Examples
•SIP NOTIFY-Based Out-of-Band DTMF Relay: Example
•SIP KPML-Based Out-of-Band DTMF Relay: Example
•RFC 2833 DTMF MTP Passthrough: Example
•SIP Support for Asymmetric SDP: Example
DTMF Relay for SIP Calls Using NTEs: Examples
DTMF Relay using RTP-NTE
The following is an example of DTMF relay using RTP-NTE:
Router(config)# dial-peer voice 62 voip
Router(config-dial-peer)# session protocol sipv2
Router(config-dial-peer)# dtmf-relay rtp-nte
RTP Using Payload Type NTE
The following is an example of RTP Using Payload Type NTE with the default value of 101:
Router(config)# dial-peer voice 62 voip
Router(config-dial-peer)# rtp payload-type nte 101
SIP NOTIFY-Based Out-of-Band DTMF Relay: Example
Current configuration : 3394 bytes
service timestamps debug uptime
service timestamps log uptime
no service password-encryption
redirect contact order best-match
network 192.0.2.0 255.255.255.0
voice call carrier capacity active
codec preference 2 g711ulaw
no voice hpi capture buffer
no voice hpi capture destination
fax interface-type fax-mail
mta receive maximum-recipients 0
ip address 192.0.2.4 255.255.0.0
interface FastEthernet0/0
ip address 192.0.2.5 255.255.255.0
h323-gateway voip interface
h323-gateway voip id vespa2 ipaddr 192.0.2.6
ip default-gateway 192.0.2.9
ip route 0.0.0.0 0.0.0.0 192.0.2.10
tftp-server flash:SEPDEFAULT.cnf
tftp-server flash:P005B302.bin
call application global default.new
destination-pattern [12]...
session target ipv4:10.8.17.42
registrar dns:myhost3.example.com expires 3600
registrar ipv4:192.0.2.11 expires 3600 secondary
SIP KPML-Based Out-of-Band DTMF Relay: Example
router(config-dial-peer)# dtmf
router(config-dial-peer)# dtmf-relay ?
cisco-rtp Cisco Proprietary RTP
h245-alphanumeric DTMF Relay via H245 Alphanumeric IE
h245-signal DTMF Relay via H245 Signal IE
rtp-nte RTP Named Telephone Event RFC 2833
sip-kpml DTMF Relay via KPML over SIP SUBCRIBE/NOTIFY
sip-notify DTMF Relay via SIP NOTIFY messages
router(config-dial-peer)# dtmf-relay sip-kpml
router(config-dial-peer)# end
%SYS-5-CONFIG_I: Configured from console by console
Building configuration...Current configuration : 2430 bytes
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
logging buffered 5000000 debugging
ip name-server 192.0.2.21
ip name-server 192.0.2.22
codec preference 1 g711ulaw
codec preference 2 g729r8
codec preference 3 g729br8
codec preference 4 g711alaw
codec preference 5 g726r16
codec preference 6 g726r24
codec preference 7 g726r32
codec preference 8 g723ar53
codec preference 9 g723ar63
id ip 192.0.2.168 mask 0.0.0.0
interface FastEthernet0/0
ip address 192.0.2.1 255.255.255.0
interface FastEthernet0/1
ip default-gateway 192.0.2.200
ip route 0.0.0.0 0.0.0.0 192.0.2.1
ip route 0.0.0.0 0.0.0.0 192.0.2.225
dial-peer voice 9999 voip
session target ipv4:192.0.2.228
dial-peer voice 5555555 voip
destination-pattern 5555555
session target ipv4:192.0.2.230
destination-pattern 36601
session target ipv4:192.0.2.235
session target ipv4:192.0.2.140
session target ipv4:192.0.2.200
RFC 2833 DTMF MTP Passthrough: Example
The following example shows a sample configuration of the RFC 2833 DTMF MTP Passthrough feature on a SIP gateway.
dial-peer voice 1000 voip
session target ipv4:10.120.70.10
incoming called-number .T
SIP Support for Asymmetric SDP: Example
This section contains the following configuration examples:
•Configuring SIP Support for Asymmetric SDP Globally on a Gateway: Example
•Configuring SIP Support for Asymmetric SDP on a Dial Peer: Example
Configuring SIP Support for Asymmetric SDP Globally on a Gateway: Example
The following example shows how to configure asymmetric SDP globally on a gateway:
gateway# configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
gateway(config)# voice service voip
gateway(conf-voi-serv)# sip
gateway(conf-serv-sip)# asymmetric payload dtmf
Configuring SIP Support for Asymmetric SDP on a Dial Peer: Example
The following examples shows how to configure asymmetric SDP on a dial peer:
gateway# configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
gateway(config)# dial-peer voice 111 voip
gateway(conf-dial-peer)# voice-class sip
gateway(conf-dial-peer)# asymmetric payload dtmf
Additional References
The following sections provide references related to the SIP DTMF features.
Related Documents
Standards
|
|
No new or modified standards are supported, and support for existing standards has not been modified. |
— |
MIBs
|
|
No new or modified MIBs are supported, and support for existing MIBs has not been modified. |
To locate and download MIBs for selected platforms, Cisco IOS releases, and feature sets, use Cisco MIB Locator found at the following URL: http://www.cisco.com/go/mibs |
RFCs
|
|
RFC 2833 |
RTP Payload for DTMF Digits, Telephony Tones and Telephony Signals |
Technical Assistance
|
|
The Cisco Support website provides extensive online resources, including documentation and tools for troubleshooting and resolving technical issues with Cisco products and technologies. To receive security and technical information about your products, you can subscribe to various services, such as the Product Alert Tool (accessed from Field Notices), the Cisco Technical Services Newsletter, and Really Simple Syndication (RSS) Feeds. Access to most tools on the Cisco Support website requires a Cisco.com user ID and password. |
http://www.cisco.com/cisco/web/support/index.html |
Cisco and the Cisco Logo are trademarks of Cisco Systems, Inc. and/or its affiliates in the U.S. and other countries. A listing of Cisco's trademarks can be found at www.cisco.com/go/trademarks. Third party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other company. (1005R)
Any Internet Protocol (IP) addresses and phone numbers used in this document are not intended to be actual addresses and phone numbers. Any examples, command display output, network topology diagrams, and other figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses or phone numbers in illustrative content is unintentional and coincidental.
© 2001-2010 Cisco Systems, Inc. All rights reserved.
