Troubleshoot PBR in ACI

Introduction

This document describes how to troubleshoot Application Centric Infrastructure (ACI) environments with Policy-Based Redirect (PBR) in a single pod fabric.

Prerequisites

Requirements

For this article, it is recommended that you have general knowledge of these topics:

• ACI concepts: Access Policies, Endpoint Learning, Contracts and L3out

Components Used

This troubleshooting exercise was made on ACI version 6.0(8f) using second generation Nexus switches N9K-C93180YC-EX and N9K-C93240YC-FX2.

The information in this document was created from the devices in a specific lab environment. All of the devices used in this document started with a cleared (default) configuration. If your network is live, ensure that you understand the potential impact of any command.

Abbreviations

• BD: Bridge domain
• EPG: Endpoint group
• Class ID: Tag that identifies an EPG
• PBR node: L4-L7 device that is used for a PBR destination
• Consumer connector: PBR node interface facing the consumer side
• Provider connector: PBR node interface facing the provider side

PBR History

Design Considerations

• PBR works with both physical and virtual appliances
• PBR can be used between L3Out EPG and EPGs, between EPGs, and between L3Out EPGs. PBR is not supported if L2Out EPG is part of the contract
• PBR is supported in Cisco ACI Multi-Pod, Multi-Site, and Remote Leaf environments.
• The Cisco ACI fabric must be the gateway for the servers and for the PBR node
• The L4-L7 device must be deployed in go-to mode (routed mode)
• PBR node is not supported on FEX switches
• A dedicated Bridge domain is needed for PBR node

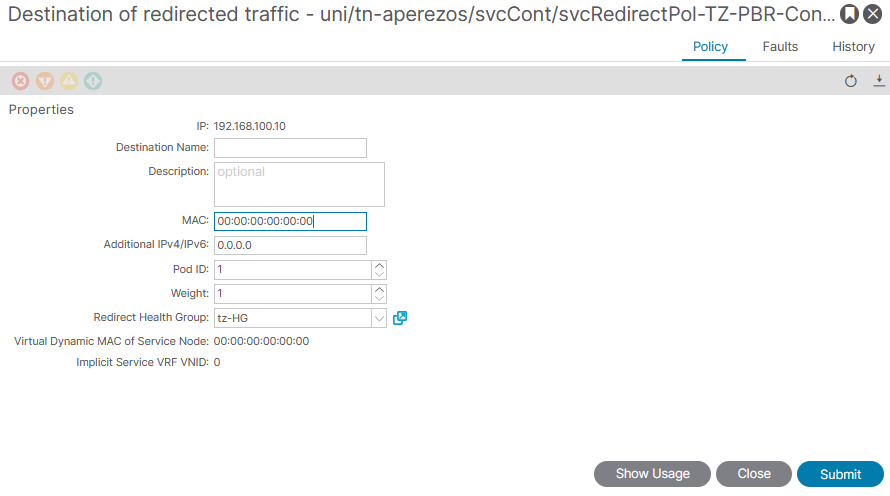

• Dynamic MAC address for the PBR node is now supported using health groups.
• It’s recommended to enable GARP-based detection on the PBR node bridge domain
• Common default filter that includes ARP, ethernet traffic, and other non-IP traffic must not be used for PBR
• The PBR node can be between VRF instances or within one of the VRF instances. For this topology, PBR node is not supported to be on a third VRF, has to be configured in either the consumer or the provider VRF

Background Information

Deeper explanations of ELAM and Ftriage can be found in the CiscoLive On-Demand library in session BRKDCN-3900b.

Additionally, all configuration guidelines can be found in the white paper Cisco Application Centric Infrastructure Policy-Based Redirect Service Graph Design White Paper.

Scenario: Single VRF in a Single Pod Fabric

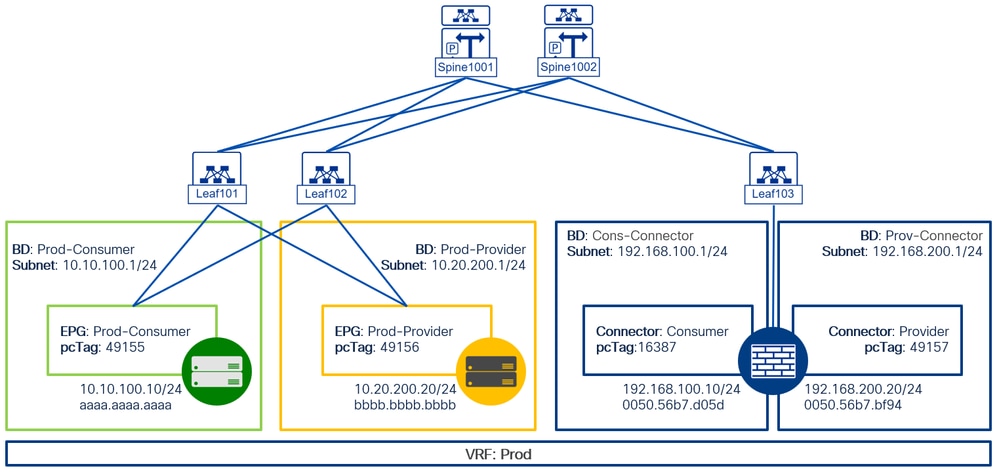

Network Diagram

Physical Topology:

Troubleshooting

Step 1: Faults

ACI generates a fault when there is an issue with the configuration or policy interactions. Specific faults have been identified for the PBR rendering process in the event of failure:

F1690: Configuration is invalid due to:

• ID allocation failure

This fault signifies that the encapsulated VLAN for the service node is unavailable. For instance, there could be no dynamic VLAN available in the VLAN pool associated with the Virtual Machine Manager (VMM) domain utilized by the Logical Device.

Resolution: Verify the VLAN pool within the domain employed by the Logical Device. If the Logical Device interface is within a physical domain, also inspect the encapsulated VLAN configuration. These settings can be found under Tenant > Services > L4-L7 > Devices and Fabric > Access Policies > Pools > VLAN.

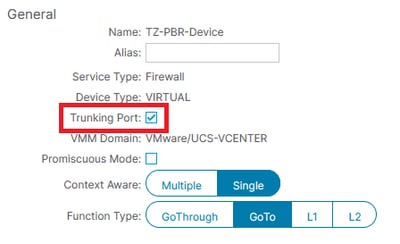

Conversely, if the Logical Device interface resides within a virtual domain and connects to your ESXi hosts via a trunk interface, ensure that the trunking port option is enabled.

• No device context found for LDev

This fault indicates that the Logical Device is not locatable for Service Graph rendering. For instance, there could be no Device Selection Policy that matches the contract associated with the Service Graph.

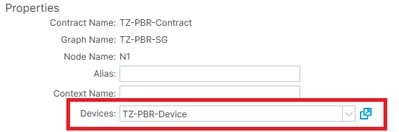

Resolution: Verify that a Device Selection Policy is defined. The Device Selection Policy specifies selection criteria for a service device and its connectors, based on the contract name, Service Graph name, and node name within the Service Graph. This can be found under Tenant > Services > L4-L7 > Device Selection Policy.

Note: When you deploy a Service Graph template, ACI pre-selects the bridge domain for the source EPG. You must change this bridge domain for the PBR consumer connector. The same applies for provider connector.

• No BD found

This fault indicates that the Bridge Domain (BD) for the service node cannot be located. For example, the BD is not specified in the Device Selection Policy.

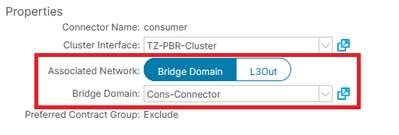

Resolution: Ensure that the BD is specified in the Device Selection Policy and that the connector name is correct. This configuration is located under Tenant > Services > L4-L7 > Devices Selection Policy > [ Contract + SG ] > [ Consumer | Provider ].

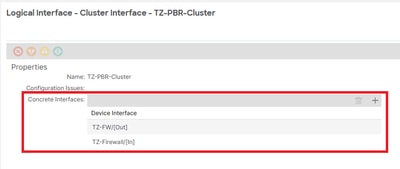

• LIf has no relation to CIf and LIf has an invalid CIf
• No cluster interface found

These faults indicate that the device has no relationship with the cluster interfaces.

Resolution: Ensure that the Layer 4 to Layer 7 (L4-L7) device configuration includes a specified concrete interface selector. This configuration is located under Tenant > Services > L4-L7 > Devices > [ Device ] > Cluster Interfaces.

• Invalid service redirect policy

This fault signifies that the PBR policy has not been applied despite the redirection being activated on the service function within the Service Graph.

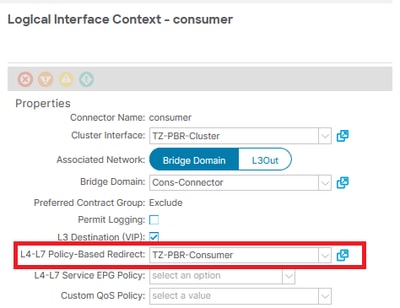

Resolution: Ensure that the PBR policy is configured within the Device Selection Policy settings. This configuration is located under Tenant > Services > L4-L7 > Devices Selection Policy > [ Contract + SG ] > [ Consumer | Provider ].

F0759: graph-rendering-failure - "Service graph for tenant < tenant > could not be instantiated. Function node < node > configuration is invalid."

The service graph for the specified tenant could not be instantiated due to an invalid configuration of the function node name.

This error suggests that there are configuration issues related to the aforementioned conditions.

Furthermore, during initial deployments, this fault can temporarily arise and then be promptly resolved. This occurs due to the rendering process that the ACI undergoes to deploy all policies.

Resolution: Investigate any additional faults that have been reported and resolve them accordingly.

F0764: configuration-failed - "L4-L7 Devices configuration < device > for tenant < tenant > is invalid."

The service graph for the specified tenant could not be instantiated due to an invalid configuration of the PBR Device policy.

This error suggests that there are configuration issues related to the aforementioned conditions.

Resolution: Investigate any additional faults that have been reported and resolve them accordingly.

F0772: configuration-failed - "LIf configuration < cluster > for L4-L7 Devices < device > for tenant < tenant > is invalid."

The service graph for the specified tenant could not be instantiated due to an invalid configuration of the PBR Device Cluster interface selection.

This error suggests that there are configuration issues related to the aforementioned conditions.

Resolution: Investigate any additional faults that have been reported and resolve them accordingly.

Step 2: Source and Destination Endpoint learning

Ensure that your source and destination endpoints are recognized within the fabric, which necessitates basic configuration:

• A Virtual Routing and Forwarding (VRF) object.
• A Bridge Domain (BD) object with Unicast Routing enabled. While enabling IP Data Plane learning is considered best practice, it is not mandatory.
• An Endpoint Group (EPG) object, applicable to both virtual and physical domains.
• Access Policies: Verify that your access policy configuration chain is complete and that no faults are reported on the EPG.

To confirm endpoint learning on the correct EPG and interface, execute this command on the leaf were the endpoint is learned, also known as compute leaf:

show system internal epm endpoint [ ip | mac ] [ x.x.x.x | eeee.eeee.eeee ]

Leaf101# show system internal epm endpoint ip 10.10.100.10

MAC : aaaa.aaaa.aaaa ::: Num IPs : 1
IP# 0 : 10.10.100.10 ::: IP# 0 flags : ::: l3-sw-hit: No
Vlan id : 57 ::: Vlan vnid : 10865 ::: VRF name : TZ:Prod
BD vnid : 16056291 ::: VRF vnid : 2162692
Phy If : 0x16000008 ::: Tunnel If : 0
Interface : port-channel9
Flags : 0x80004c05 ::: sclass : 49155 ::: Ref count : 5
EP Create Timestamp : 02/18/2025 15:00:18.767228
EP Update Timestamp : 02/18/2025 15:04:57.908343
EP Flags : local|VPC|IP|MAC|sclass|timer|

::::


Leaf101#

This command allows you to identify the pcTag (sclass) associated with the EPG where the endpoint is classified, as well as retrieve the interface, VRF scope, and MAC address information.

If you do not know the location of your source or destination endpoint, you can always assist yourself with this command on the APIC:

show endpoint [ ip | mac ] [ x.x.x.x | eeee.eeee.eeee ]

APIC# show endpoint ip 10.10.100.10
Legends:
(P):Primary VLAN
(S):Secondary VLAN


Dynamic Endpoints:
Tenant : TZ
Application : TZ
AEPg : Prod-Consumer

End Point MAC     IP Address                               Source       Node       Interface                      Encap           Multicast Address Create TS
----------------- ---------------------------------------- ------------ ---------- ------------------------------ --------------- ---------------   --------------------
AA:AA:AA:AA:AA:AA 10.10.100.10                             learned,vmm  101 102    vpc VPC-ESX-169                vlan-2673       not-applicable    2025-02-18T15:16:40.
                                                                                                                                                    565-06:00
Total Dynamic Endpoints: 1
Total Static Endpoints: 0
APIC#

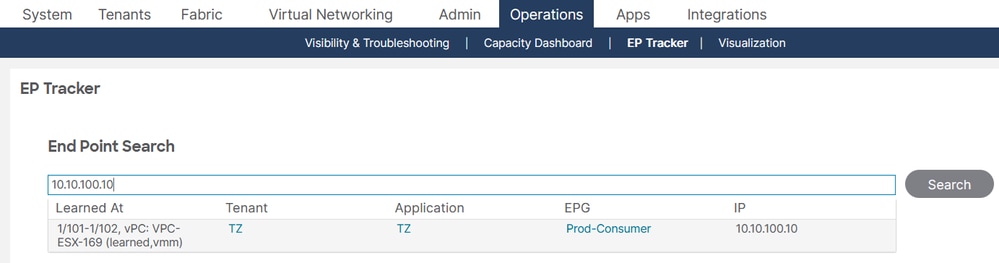

In the GUI, the EP Tracker feature can be accessed navigating to Operations > EP Tracker for endpoint monitoring and management.

With the information gathered from source and destination endpoints, you can now focus on PBR policy deployment.

Step 3: Redirect Contract

PBR is integrated within the Service Graph framework. Consequently, a Service Graph template must be deployed and configured on both the source and destination switches in accordance with a contract. Utilizing the pcTags information collected in the previous step, you can ascertain whether an Endpoint Group (EPG) is being redirected to a Service Graph group by executing this command.

show zoning-rule scope [ vrf_scope ]

In the zoning rules, these rules must be considered:

1. Source EPG to Destination EPG with an associated redirect group
2. Source PBR-node shadow EPG to Source EPG
3. Destination EPG to Source EPG with an associated redirect group. This group can be identical to or different from the previous configuration.
4. Destination PBR-node shadow EPG to Destination EPG

Leaf101# show zoning-rule scope 2162692
+---------+--------+--------+----------+----------------+---------+---------+------+------------------+----------------------+
| Rule ID | SrcEPG | DstEPG | FilterID |       Dir      |  operSt |  Scope  | Name |      Action      |       Priority       |
+---------+--------+--------+----------+----------------+---------+---------+------+------------------+----------------------+
|   4565  |  49155 |  49156 |  default |     bi-dir     | enabled | 2162692 |      | redir(destgrp-8) |    src_dst_any(9)    |
|   4565  |  49156 |  49155 |  default | uni-dir-ignore | enabled | 2162692 |      | redir(destgrp-9) |    src_dst_any(9)    |
|   4973  |  16387 |  49155 |  default |     uni-dir    | enabled | 2162692 |      |      permit      |    src_dst_any(9)    |
|   4564  |  49157 |  49156 |  default |     uni-dir    | enabled | 2162692 |      |      permit      |    src_dst_any(9)    |
+---------+--------+--------+----------+----------------+---------+---------+------+------------------+----------------------+
Leaf101#

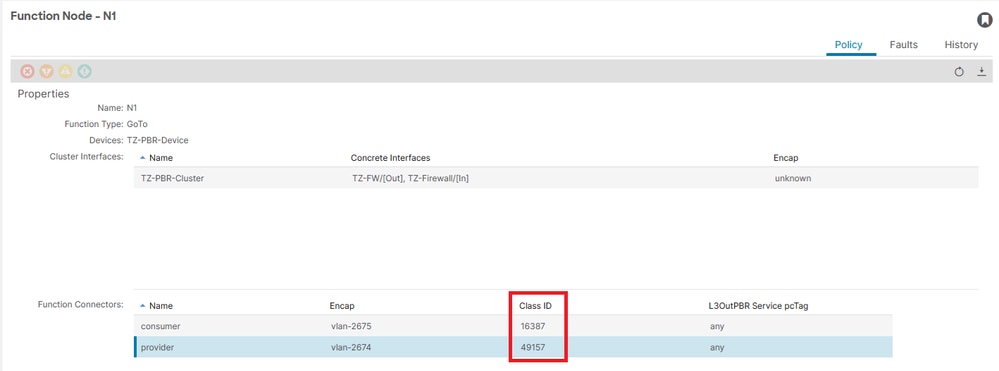

To verify the pcTag of the Shadow EPGs created during the Policy-Based Routing (PBR) deployment process, navigate to Tenants > [ TENANT_NAME ] > Services > L4-L7 > Deployed Graph Instance > [ SG_NAME ] > Function Node - N1.

• Contract parser

The script correlates zoning rules, filters, statistics, and EPG names. You can safely execute this script directly on an ACI leaf or APIC. When run on the APIC, it collects concrete objects across all leaf switches, which can take several minutes for large policy deployments.

Starting with ACI version 3.2, the contract_parser is bundled within the image and available on the leaf. Simply enter contract_parser.py from the iBash shell.

Leaf101# contract_parser.py --sepg 49155
Key:
[prio:RuleId] [vrf:{str}] action protocol src-epg [src-l4] dst-epg [dst-l4] [flags][contract:{str}] [hit=count]

[7:4999] [vrf:TZ:Prod] log,redir ip tn-TZ/ap-TZ/epg-Prod-Consumer(49155) tn-TZ/ap-TZ/epg-Prod-Provideer(49156) [contract:uni/tn-TZ/brc-TZ-PBR-Contract] [hit=81]
                                 destgrp-8 vrf:TZ:Prod ip:192.168.100.10 mac:00:50:56:B7:D0:5D bd:uni/tn-TZ/BD-Cons-Connector
Leaf101#

This command provides details such as the contract action, source and destination EPGs, the contract name in use, and hit count.

Step 4: Redirection Group

Having identified the redirect group based on the contract applied to the zoning rules, the next step is to determine the IP and MAC addresses of the device(s) targeted for redirection. To assist with this, execute the command:

show service redir info group [ destgrp_ID ]

Leaf101# show service redir info group 8
===============================================================================================================================================================
LEGEND
TL: Threshold(Low) | TH: Threshold(High) | HP: HashProfile | HG: HealthGrp | BAC: Backup-Dest | TRA: Tracking | RES: Resiliency | W: Weight
===============================================================================================================================================================
GrpID Name      destination                           HG-name        BAC W   operSt  operStQual   TL  TH  HP  TRA RES
===== ====      ===========                           ============== === === ======= ============ === === === === ===
8     destgrp-8 dest-[192.168.100.10]-[vxlan-2162692] Not attached   N   1   enabled no-oper-grp  0   0   sym no  no
Leaf101#
Leaf101# show service redir info group 9
===============================================================================================================================================================
LEGEND
TL: Threshold(Low) | TH: Threshold(High) | HP: HashProfile | HG: HealthGrp | BAC: Backup-Dest | TRA: Tracking | RES: Resiliency | W: Weight
===============================================================================================================================================================
GrpID Name      destination                           HG-name        BAC W   operSt  operStQual   TL  TH  HP  TRA RES
===== ====      ===========                           ============== === === ======= ============ === === === === ===
9     destgrp-9 dest-[192.168.200.20]-[vxlan-2162692] Not attached   N   1   enabled no-oper-grp  0   0   sym no  no
Leaf101#

This command enables us to determine the operational status (OperSt) of our redirection group, the IP address configured in the L4-L7 PBR section, and the VNID of the VRF associated with the PBR-node bridge domains. You now need to determine the configured MAC address:

show service redir info destinations ip [ PBR-node IP ] vnid [ VRF_VNID ]

Leaf101# show service redir info destination ip 192.168.100.10 vnid 2162692
===============================================================================================================================================================
LEGEND
TL: Threshold(Low) | TH: Threshold(High) | HP: HashProfile | HG: HealthGrp | BAC: Backup-Dest | TRA: Tracking | RES: Resiliency | W: Weight
===============================================================================================================================================================
Name                                  bdVnid         vMac              vrf     operSt  operStQual   HG-name
====                                  ======         ====              ====    =====   =========    =======
dest-[192.168.100.10]-[vxlan-2162692] vxlan-15826939 00:50:56:B7:D0:5D TZ:Prod enabled no-oper-dest Not attached
Leaf101#
Leaf101# show service redir info destination ip 192.168.200.20 vnid 2162692
===============================================================================================================================================================
LEGEND
TL: Threshold(Low) | TH: Threshold(High) | HP: HashProfile | HG: HealthGrp | BAC: Backup-Dest | TRA: Tracking | RES: Resiliency | W: Weight
===============================================================================================================================================================
Name                                  bdVnid         vMac              vrf     operSt  operStQual   HG-name
====                                  ======         ====              ====    =====   =========    =======
dest-[192.168.200.20]-[vxlan-2162692] vxlan-16646036 00:50:56:B7:BF:94 TZ:Prod enabled no-oper-dest Not attached
Leaf101#

In addition to the previously mentioned details, this command provides valuable insights, including the VRF name, BD VNID, and the configured MAC address of the PBR-node.

Note: It is important to note that both the IP and MAC addresses are user-configured at this stage, which means that typographical errors can occur during the L4-L7 Policy-Based Routing definition.

Step 5: PBR-node not receiving any traffic.

A prevalent issue encountered with PBR forwarding is the absence of traffic reaching the PBR node. A frequent cause of this issue is an incorrectly specified MAC address within the L4-L7 Policy-Based Routing configuration.

To verify the accuracy of the MAC address configured in the L4-L7 Policy-Based Routing, execute the previously utilized command from Step 2. This command can be executed on the leaf switch designated as the service leaf, where the node is expected to be learned.

show system internal epm endpoint [ ip | mac ] [ x.x.x.x | eeee.eeee.eeee ]

Leaf103# show system internal epm endpoint ip 192.168.100.10

MAC : 0050.56b7.d05d ::: Num IPs : 1
IP# 0 : 192.168.100.10 ::: IP# 0 flags : ::: l3-sw-hit: Yes ::: flags2 : dp-lrn-dis
Vlan id : 71 ::: Vlan vnid : 10867 ::: VRF name : TZ:Prod
BD vnid : 15826939 ::: VRF vnid : 2162692
Phy If : 0x16000008 ::: Tunnel If : 0
Interface : port-channel19
Flags : 0x80004c25 ::: sclass : 16387 ::: Ref count : 5
EP Create Timestamp : 02/19/2025 12:07:44.065032
EP Update Timestamp : 02/19/2025 15:27:03.400086
EP Flags : local|vPC|peer-aged|IP|MAC|sclass|timer|

::::


Leaf103#

•••••

Leaf103# show system internal epm endpoint ip 192.168.200.20

MAC : 0050.56b7.bf94 ::: Num IPs : 1
IP# 0 : 192.168.200.20 ::: IP# 0 flags : ::: l3-sw-hit: Yes ::: flags2 : dp-lrn-dis
Vlan id : 60 ::: Vlan vnid : 10866 ::: VRF name : TZ:Prod
BD vnid : 16646036 ::: VRF vnid : 2162692
Phy If : 0x16000008 ::: Tunnel If : 0
Interface : port-channel19
Flags : 0x80004c25 ::: sclass : 49157 ::: Ref count : 5
EP Create Timestamp : 02/19/2025 13:51:03.377942
EP Update Timestamp : 02/19/2025 15:28:34.151877
EP Flags : local|vPC|peer-aged|IP|MAC|sclass|timer|

::::


Leaf103#

Verify that the MAC address recorded in the EPM table matches the one configured in the service redirection group. Even minor typographical errors must be corrected to ensure proper traffic routing to the PBR node destination.

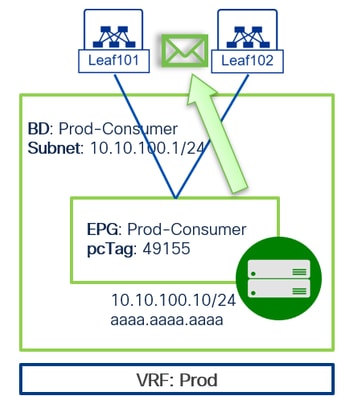

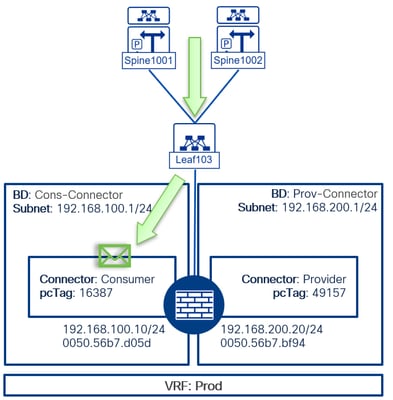

Step 6: Traffic Flow.

• FTRIAGE

A CLI tool for the APIC designed to automate the configuration and interpretation of ELAM processes end-to-end. The tool allows users to specify a particular flow and the leaf switch where the flow originates. It sequentially executes ELAMs on each node to analyze the forwarding path of the flow. This tool is especially beneficial in complex topologies where the packet path is not easily discernible.

APIC # ftriage -user admin route -sip 10.10.100.10 -dip 10.20.200.20 -ii LEAF:101,102
Starting ftriage
Log file name for the current run is: ftlog_2025-02-25-10-26-05-108.txt
2025-02-25 10:26:05,116 INFO /controller/bin/ftriage -user admin route -sip 10.10.100.10 -dip 10.20.200.20 -ii LEAF:101,102
Request password info for username: admin
Password:
2025-02-25 10:26:31,759 INFO ftriage: main:2505 Invoking ftriage with username: admin
2025-02-25 10:26:34,188 INFO ftriage: main:1546 Enable Async parellel ELAM with 2 nodes
2025-02-25 10:26:57,927 INFO ftriage: fcls:2510 LEAF101: Valid ELAM for asic:0 slice:0 srcid:64 pktid:1913
2025-02-25 10:26:59,120 INFO ftriage: fcls:2863 LEAF101: Signal ELAM found for Async lookup
2025-02-25 10:27:00,620 INFO ftriage: main:1317 L3 packet Seen on LEAF101 Ingress: Eth1/45 (Po9) Egress: Eth1/52 Vnid: 2673
2025-02-25 10:27:00,632 INFO ftriage: main:1372 LEAF101: Incoming Packet captured with [SIP:10.10.100.10, DIP:10.20.200.20]
•••
2025-02-25 10:27:08,665 INFO ftriage: main:480 Ingress BD(s) TZ:Prod-Consumer
2025-02-25 10:27:08,666 INFO ftriage: main:491 Ingress Ctx: TZ:Prod Vnid: 2162692
•••
2025-02-25 10:27:45,337 INFO ftriage: pktrec:367 LEAF101: traffic is redirected
•••
2025-02-25 10:28:10,701 INFO ftriage: unicast:1550 LEAF101: traffic is redirected to vnid:15826939 mac:00:50:56:B7:D0:5D via tenant:TZ graph:TZ-PBR-SG contract: TZ-PBR-Contract
•••
2025-02-25 10:28:20,339 INFO ftriage: main:975 Found peer-node SPINE1001 and IF: Eth1/1 in candidate list
•••
2025-02-25 10:28:39,471 INFO ftriage: main:1366 SPINE1001: Incoming Packet captured with Outer [SIP:10.2.200.64, DIP:10.2.64.97] .... Inner [SIP:10.10.100.10, DIP:10.20.200.20]
2025-02-25 10:28:39,472 INFO ftriage: main:1408 SPINE1001: Outgoing packet's Vnid: 15826939
2025-02-25 10:28:58,469 INFO ftriage: fib:524 SPINE1001: Proxy in spine
•••
2025-02-25 10:29:07,898 INFO ftriage: main:975 Found peer-node LEAF103. and IF: Eth1/50 in candidate list
•••
2025-02-25 10:29:35,331 INFO ftriage: main:1366 LEAF103: Incoming Packet captured with Outer [SIP:10.2.200.64, DIP:10.2.200.64] .... Inner [SIP:10.10.100.10, DIP:10.20.200.20]
•••
2025-02-25 10:29:50,277 INFO ftriage: ep:128 LEAF103: pbr traffic with dmac: 00:50:56:B7:D0:5D
2025-02-25 10:30:07,374 INFO ftriage: main:800 Computed egress encap string vlan-2676
2025-02-25 10:30:13,326 INFO ftriage: main:535 Egress Ctx TZ:Prod
2025-02-25 10:30:13,326 INFO ftriage: main:536 Egress BD(s): TZ:Cons-Connector
•••
2025-02-25 10:30:18,812 INFO ftriage: misc:908 LEAF103: caller unicast:581 EP if(Po19) same as egr if(Po19)
2025-02-25 10:30:18,812 INFO ftriage: misc:910 LEAF103: L3 packet caller unicast:668 getting bridged in SUG
2025-02-25 10:30:18,813 INFO ftriage: main:1822 dbg_sub_nexthop function returned values on node LEAF103 done True, nxt_nifs None, nxt_dbg_f_n , nxt_inst , eg_ifs Eth1/45, Vnid: 2676
2025-02-25 10:30:19,378 INFO ftriage: acigraph:794 : Ftriage Completed with hunch: matching service device not found
APIC #

• ELAM:

The Embedded Logic Analyzer Module (ELAM) is a diagnostic tool that enables users to establish specific conditions in hardware to capture the initial packet or frame meeting those criteria. When a capture is successful, the ELAM status is indicated as triggered. Upon triggering, the ELAM is disabled, allowing for a data dump to be collected, which facilitates the analysis of the numerous forwarding decisions executed by the ASIC of the switch for that packet or frame. ELAM operates at the ASIC level, ensuring that it does not affect the CPU or other resources of the switch.

Structure of the command syntax. This structure was collected from the book Troubleshoot ACI Intra-Fabric Forwarding Tools

vsh_lc                                       [This command enters the line card shell where ELAMs are run]
debug platform internal <asic> elam asic 0   [refer to the ASICs table]

Set conditions to trigger

trigger reset                                           [ensures no existing triggers are running]
trigger init in-select <number> out-select <number>     [determines what information about a packet is displayed and which conditions can be set]
set outer/inner                                         [sets conditions]
start                                                   [starts the trigger]
status                                                  [checks if a packet is captured]

Generate the dump containing the packet analysis.

ereport             [display detailed forwarding decision for the packet]

• Traffic flow

It is crucial to comprehend the traffic flow across all the devices in question. The Ftriage tool provides an excellent summary of this flow. However, for a detailed step-by-step validation and to gain deeper insights into the packet reception process, you can execute Embedded Logic Analyzer Module (ELAM) at each point within the network topology.

1. Ingress traffic occurs at the compute leaf where the source server is learned. In this specific scenario, as the source is positioned behind a vPC interface, ELAM must be configured on the vPC peers. This is necessary because the physical interface selected by the hashing algorithm is indeterminate.

LEAF101# vsh_lc
module-1# debug platform internal tah elam asic 0
module-1(DBG-elam)# trigger reset
module-1(DBG-elam)# trigger init in-select 6 out-select 1
module-1(DBG-elam-insel6)# reset
module-1(DBG-elam-insel6)# set outer ipv4 src_ip 10.10.100.10 dst_ip 10.20.200.20
module-1(DBG-elam-insel6)# start
module-1(DBG-elam-insel6)# status
ELAM STATUS
===========
Asic 0 Slice 0 Status Triggered
Asic 0 Slice 1 Status Armed

module-1(DBG-elam-insel6)# ereport
======================================================================================================
Trigger/Basic Information
======================================================================================================
•••
Incoming Interface : 0x40( 0x40 ) >>> Eth1/45
•••

-------------------------------------------------------------------------------------------------------
Outer L2 Header
-------------------------------------------------------------------------------------------------------
Destination MAC : 0022.BDF8.19FF >>> Bridge-domain MAC address
Source MAC : AAAA.AAAA.AAAA
802.1Q tag is valid : yes( 0x1 )
CoS : 0( 0x0 )
Access Encap VLAN : 2673( 0xA71 )

-------------------------------------------------------------------------------------------------------
Outer L3 Header
-------------------------------------------------------------------------------------------------------
L3 Type : IPv4
IP Version : 4
DSCP : 0
IP Packet Length : 84 ( = IP header(28 bytes) + IP payload )
Don't Fragment Bit : set
TTL : 64
IP Protocol Number : ICMP
IP CheckSum : 6465( 0x1941 )
Destination IP : 10.20.200.20
Source IP : 10.10.100.10

-------------------------------------------------------------------------------------------------------
Contract Lookup Key
-------------------------------------------------------------------------------------------------------
IP Protocol : ICMP( 0x1 )
L4 Src Port : 2048( 0x800 )
L4 Dst Port : 7345( 0x1CB1 )
sclass (src pcTag) : 49155( 0xC003 ) >>> Prod-Consumer EPG
dclass (dst pcTag) : 49156( 0xC004 ) >>> Prod-Provider EPG
src pcTag is from local table : yes  >>> EPGs are known locally
derived from a local table on this node by the lookup of src IP or MAC
Unknown Unicast / Flood Packet : no
If yes, Contract is not applied here because it is flooded

-------------------------------------------------------------------------------------------------------
Sideband Information
-------------------------------------------------------------------------------------------------------
ovector : 176( 0xB0 ) >>> Eth1/52
Ovec in "show plat int hal l2 port gpd"
Opcode : OPCODE_UC

-------------------------------------------------------------------------------------------------------
sug_luc_latch_results_vec.luc3_0.service_redir: 0x1 >>> Service Redir 0x1 = PBR was applied
------------------------------------------------------------------------------------------------------

Based on the information provided, it is evident that the packet is being redirected via Policy-Based Routing (PBR), as the service_redir option is enabled. Additionally, you retrieve the sclass and dclass values. In this particular scenario, the switch recognizes the dclass. However, if the destination endpoint is not present in the EPM table, the dclass value defaults to 1.

Furthermore, the ingress interface is determined by the SRCID, and the egress interface is identified by the vector values. These values can be translated into a front port by executing this command at the vsh_lc level:

show platform internal hal l2 port gpd

2. The subsequent step in the flow involves reaching the spine switch to map the destination MAC address to the PBR node. Since the traffic is encapsulated in VXLAN headers, executing ELAM on a spine or remote leaf requires using in-select 14 to properly decode the encapsulation.

SPINE1001# vsh_lc
module-1# debug platform internal roc elam asic 0
module-1(DBG-elam)# trigger reset
module-1(DBG-elam)# trigger init in-select 14 out-selec 0
module-1(DBG-elam-insel14)# reset
module-1(DBG-elam-insel14)# set inner ipv4 src_ip 10.10.100.10 dst_ip 10.20.200.20
module-1(DBG-elam-insel14)# start
module-1(DBG-elam-insel14)# status
ELAM STATUS
===========
Asic 0 Slice 0 Status Armed
Asic 0 Slice 1 Status Armed
Asic 0 Slice 2 Status Triggered
Asic 0 Slice 3 Status Armed

module-1(DBG-elam-insel14)# ereport

======================================================================================================
Trigger/Basic Information
======================================================================================================
Incoming Interface : 0x48( 0x48 )  >>> Eth1/1
( Slice Source ID(Ss) in "show plat int hal l2 port gpd" )
Packet from vPC peer LEAF : yes
Packet from tunnel (remote leaf/avs) : yes

-------------------------------------------------------------------------------------------------------
Outer L2 Header
-------------------------------------------------------------------------------------------------------
Destination MAC : 000D.0D0D.0D0D
Source MAC : 000C.0C0C.0C0C

-------------------------------------------------------------------------------------------------------
Inner L2 Header
-------------------------------------------------------------------------------------------------------
Inner Destination MAC : 0050.56B7.D05D >>> Firewall MAC
Source MAC : AAAA.AAAA.AAAA

-------------------------------------------------------------------------------------------------------
Outer L3 Header
-------------------------------------------------------------------------------------------------------
L3 Type : IPv4
DSCP : 0
Don't Fragment Bit : 0x0
TTL : 32
IP Protocol Number : UDP
Destination IP : 10.2.64.97
Source IP : 10.2.200.64

-------------------------------------------------------------------------------------------------------
Inner L3 Header
-------------------------------------------------------------------------------------------------------
L3 Type : IPv4
DSCP : 0
Don't Fragment Bit : 0x1
TTL : 63
IP Protocol Number : ICMP
Destination IP : 10.20.200.20
Source IP : 10.10.100.10

-------------------------------------------------------------------------------------------------------
Outer L4 Header
-------------------------------------------------------------------------------------------------------
L4 Type : iVxLAN
Don't Learn Bit : 1
Src Policy Applied Bit : 1
Dst Policy Applied Bit : 1
sclass (src pcTag) : 0xc003 >>> pcTag 49155 (Prod-Consumer)
VRF or BD VNID : 15826939( 0xF17FFB ) >>> BD: Prod-Consumer

-------------------------------------------------------------------------------------------------------
Sideband Information
-------------------------------------------------------------------------------------------------------
Opcode : OPCODE_UC

-------------------------------------------------------------------------------------------------------
bky_elam_out_sidebnd_no_spare_vec.ovector_idx: 0x1F0 >>> Eth1/10
-------------------------------------------------------------------------------------------------------

From the previous output, it is evident that the destination MAC address is rewritten to the MAC address of the firewall. Subsequently, a COOP lookup is performed to identify the destination publisher of the MAC, and the packet is then forwarded to the corresponding interface of the switch.

You can simulate this lookup on the spine by executing this command, utilizing the Bridge Domain VNID and the MAC address of the firewall:

SPINE1001# show coop internal info repo ep key 15826939 0050.56B7.D05D | egrep "Tunnel|EP" | head -n 3
EP bd vnid : 15826939
EP mac : 00:50:56:B7:D0:5D
Tunnel nh : 10.2.200.66
SPINE1001#

3. Traffic reaches the service leaf where the MAC address of the firewall is recognized and subsequently forwarded to the PBR node.

MXS2-LF101# vsh_lc
module-1# debug platform internal tah elam asic 0
module-1(DBG-elam)# trigger reset
module-1(DBG-elam)# trigger init in-select 14 out-select 1
module-1(DBG-elam-insel14)# reset
module-1(DBG-elam-insel14)# set inner ipv4 src_ip 10.10.100.10 dst_ip 10.20.200.20
module-1(DBG-elam-insel14)# start
module-1(DBG-elam-insel14)# status

ELAM STATUS
===========
Asic 0 Slice 0 Status Armed
Asic 0 Slice 1 Status Triggered

module-1(DBG-elam-insel14)# ereport

======================================================================================================
Trigger/Basic Information
======================================================================================================
Incoming Interface : 0x0( 0x0 ) >>> Eth1/17
( Slice Source ID(Ss) in "show plat int hal l2 port gpd" )
Packet from vPC peer LEAF : yes
Packet from tunnel (remote leaf/avs) : yes

-------------------------------------------------------------------------------------------------------
Outer L2 Header
-------------------------------------------------------------------------------------------------------
Destination MAC : 000D.0D0D.0D0D
Source MAC : 000C.0C0C.0C0C

-------------------------------------------------------------------------------------------------------
Inner L2 Header
-------------------------------------------------------------------------------------------------------
Inner Destination MAC : 0050.56B7.D05D >>> Firewall MAC
Source MAC : AAAA.AAAA.AAAA

-------------------------------------------------------------------------------------------------------
Outer L3 Header
-------------------------------------------------------------------------------------------------------
L3 Type : IPv4
DSCP : 0
Don't Fragment Bit : 0x0
TTL : 32
IP Protocol Number : UDP
Destination IP : 10.2.200.66
Source IP : 10.2.200.64

-------------------------------------------------------------------------------------------------------
Inner L3 Header
-------------------------------------------------------------------------------------------------------
L3 Type : IPv4
DSCP : 0
Don't Fragment Bit : 0x1
TTL : 63
IP Protocol Number : ICMP
Destination IP : 10.20.200.20
Source IP : 10.10.100.10

-------------------------------------------------------------------------------------------------------
Outer L4 Header
-------------------------------------------------------------------------------------------------------
L4 Type : iVxLAN
Don't Learn Bit : 1
Src Policy Applied Bit : 1
Dst Policy Applied Bit : 1
sclass (src pcTag) : 0xc003 >>> pcTag 49155 (Prod-Consumer)
VRF or BD VNID : 15826939( 0xF17FFB ) >>> BD: Prod-Consumer

-------------------------------------------------------------------------------------------------------
Contract Lookup Key
-------------------------------------------------------------------------------------------------------
IP Protocol : ICMP( 0x1 )
L4 Src Port : 2048( 0x800 )
L4 Dst Port : 50664( 0xC5E8 )
sclass (src pcTag) : 49155( 0xC003 ) >>> Prod-Consumer EPG
dclass (dst pcTag) : 16387( 0x4003 ) >>> Consumer connector EPG
src pcTag is from local table : no
derived from group-id in iVxLAN header of incoming packet
Unknown Unicast / Flood Packet : no
If yes, Contract is not applied here because it is flooded

-------------------------------------------------------------------------------------------------------
Sideband Information
-------------------------------------------------------------------------------------------------------
ovector : 64( 0x40 ) >>> Eth1/45
Ovec in "show plat int hal l2 port gpd"
Opcode : OPCODE_UC

4. For the packer being returned by the PBR node, first, this one has to make its own diligence and have the VRF, interface or VLAN changed. The packet is then going to be forwarded back to ACI on the Provider connector:

LEAF103# vsh_lc
module-1# debug platform internal tah elam asic 0
module-1(DBG-elam)# trigger reset
module-1(DBG-elam)# trigger init in-select 6 out-select 1
module-1(DBG-elam-insel6)# reset
module-1(DBG-elam-insel6)# set outer ipv4 src_ip 10.10.100.10 dst_ip 10.20.200.20
module-1(DBG-elam-insel6)# set outer l2 src_mac 0050.56b7.bf94
module-1(DBG-elam-insel6)# start
module-1(DBG-elam-insel6)# stat
ELAM STATUS
===========
Asic 0 Slice 0 Status Triggered
Asic 0 Slice 1 Status Armed

module-1(DBG-elam-insel6)# ereport

======================================================================================================
Trigger/Basic Information
======================================================================================================
•••
Incoming Interface : 0x40( 0x40 ) >>> Eth1/45
•••

-------------------------------------------------------------------------------------------------------
Outer L2 Header
-------------------------------------------------------------------------------------------------------
Destination MAC : 0022.BDF8.19FF
Source MAC : 0050.56B7.BF94
802.1Q tag is valid : yes( 0x1 )
CoS : 0( 0x0 )
Access Encap VLAN : 2006( 0x7D6 )

-------------------------------------------------------------------------------------------------------
Outer L3 Header
-------------------------------------------------------------------------------------------------------
L3 Type : IPv4
IP Version : 4
DSCP : 0
IP Packet Length : 84 ( = IP header(28 bytes) + IP payload )
Don't Fragment Bit : set
TTL : 62
IP Protocol Number : ICMP
IP CheckSum : 46178( 0xB462 )
Destination IP : 10.20.200.20
Source IP : 10.10.100.10

-------------------------------------------------------------------------------------------------------
Contract Lookup Key
-------------------------------------------------------------------------------------------------------
IP Protocol : ICMP( 0x1 )
L4 Src Port : 2048( 0x800 )
L4 Dst Port : 37489( 0x9271 )
sclass (src pcTag) : 49157( 0xC005 ) >>> Provider connector EPG
dclass (dst pcTag) : 49156( 0xC004 ) >>> Prod-Provider EPG
src pcTag is from local table : yes
derived from a local table on this node by the lookup of src IP or MAC
Unknown Unicast / Flood Packet : no
If yes, Contract is not applied here because it is flooded

-------------------------------------------------------------------------------------------------------
Sideband Information
-------------------------------------------------------------------------------------------------------
ovector : 176( 0xB0 )  >>> Eth1/52
Ovec in "show plat int hal l2 port gpd"
Opcode : OPCODE_UC

-------------------------------------------------------------------------------------------------------
sug_luc_latch_results_vec.luc3_0.service_redir: 0x0
-------------------------------------------------------------------------------------------------------

5.   The remaining network traffic adheres to the established steps mentioned so far, wherein packets return to the spine switches to determine the ultimate server destination, based on the coop lookup. Subsequently, packets are directed to the compute leaf switch that has the local learning flag and disseminated this information to the COOP table on the spines. The ELAM execution for steps 2 and steps 3 are consistent for the distribution of the packet towards its final destination. It is essential to validate these the destination EPG pcTag and the egress interface to ensure accurate delivery.

IP SLA

IP SLA is utilized to assess the operational status and performance of network paths. It aids in ensuring that traffic is routed efficiently according to the defined policies, based on real-time network conditions. In ACI, PBR leverages IP SLA to make informed routing decisions. If the IP SLA metrics indicate that a path is under performing, PBR can reroute traffic through alternate paths that meet the required performance criteria.

Starting on version 5.2(1) you can enable Dynamic MAC tracking for IP SLA, this is useful for scenarios where a PBR-nodes fails over and changes the MAC address for the same IP address, in static deployments, a change in the Policy-Based Redirect policy needs to be done every time the PBR-node changes its MAC address to continue sending traffic. With IP SLA, the MAC address used in this policy relays to the probe response. Different probes can be used to determine if the PBR node is healthy or not, at the moment of this writing, these include: ICMP, TCP, L2Ping and HTTP.

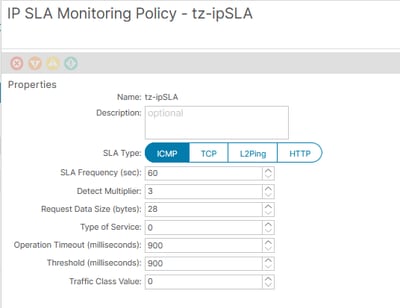

The general configuration of an IP SLA policy must look like:

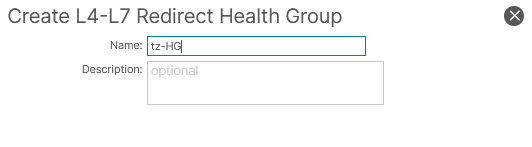

The IP SLA policy has to be mapped to the PBR-node IP by means of a Health Group.

If IP SLA to dynamically discover the MAC address is used, this field cannot be empty, but set to all 0s:

Once a Health Group associates with the PBR-node IP via the L3 Destination in the L4-L7 Policy Based Redirect policy, set thresholds to define IP SLA behavior upon unreachability. Specify a minimum number of active L3 Destinations required to maintain redirection. If the count of live PBR nodes falls under or exceeds the threshold percentage, the entire group is affected by the Threshold Down Action selected, stopping redistribution. This approach supports bypassing the PBR-node during troubleshooting without impacting traffic flow.

Health Groups bind together all the IPs defined in L3 Destinations of a single L4-L7 Policy Base Redirect policy or multiple L4-L7 Policy Base Redirect policies so long the same Health Group policy is used.

Leaf101# show service redir info health-group aperezos::tz-HG
===============================================================================================================================================================
LEGEND
TL: Threshold(Low) | TH: Threshold(High) | HP: HashProfile | HG: HealthGrp | BAC: Backup-Dest | TRA: Tracking | RES: Resiliency | W: Weight
===============================================================================================================================================================
HG-Name HG-OperSt HG-Dest HG-Dest-OperSt
======= ========= ======= ==============
aperezos::tz-HG enabled dest-[192.168.100.10]-[vxlan-2162692]] up
                        dest-[192.168.200.20]-[vxlan-2162692]] up
Leaf1011#

Related Information

• Cisco Application Centric Infrastructure Policy-Based Redirect Service Graph Design White Paper
• ACI Layer 4-7 Policy-Based Redirect (PBR) Deep Dive and Tips (Cisco Live Presentation)
• Troubleshoot IP SLA on Multipod PBR
