Cisco Virtual Office-Advanced Layered Security Deployment Guide [Cisco Virtual Office]

This deployment guide provides detailed design and implementation information for deployment of Advanced Layered Security features with the Cisco Virtual Office.

Please refer to the Cisco Virtual Office overview (http://www.cisco.com/go/cvo) for more information about the solution, its architecture, and all of its components.

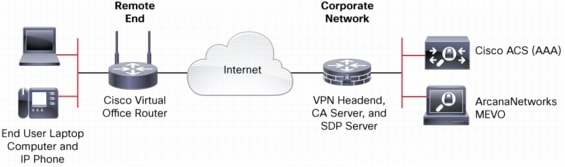

Introduction

This guide assumes basic knowledge about the Cisco Virtual Office deployment solution and basic Layered Security features. For more information about the Cisco Virtual Office VPN deployment solution, please refer to the Cisco Virtual Office Deployment Guide at http://www.cisco.com/en/US/solutions/collateral/ns340/ns517/ns430/ns855/deployment_guide_c22-493157.html.

Following are the major features included in this guide:

• Zone-Based Policy Firewall (ZFW)

• User Group Firewall (UGFW)

• Object Group Access Control List (OGACL)

Zone-Based Policy Firewall

Zone-Based Policy Firewall (ZFW) is a new alternative way to configure and deploy firewall policies. This new configuration model offers intuitive policies for multiple-interface routers, increased granularity and flexibility of firewall policy application, and a default deny-all policy that prohibits traffic between firewall security zones until an explicit policy is applied to allow desirable traffic.

In Zone-Based Policy Firewall, multiple security zones are defined. Each zone has different network privileges. Each router interface is configured to be part of one of the zones. The traffic flow is unrestricted between interfaces belonging to same zone, but traffic flow between two different zones is blocked unless an access policy is defined between them. In traditional firewall, the policies are applied on the interface itself, whereas in zone-based firewall they are applied between the zones (Figure 1).

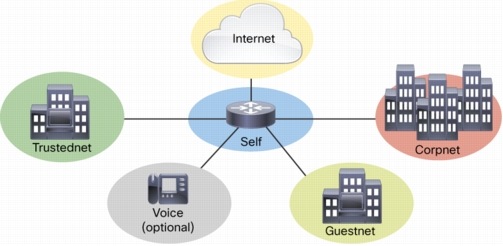

Figure 1. Zones in a Typical Cisco Virtual Office Deployment

The Zone-Based Policy Firewall configuration is done using Cisco Policy Language. Following are the basic design steps to take before finalizing the firewall configuration:

• Identify zones: Identify interfaces that should have the same access privileges and group them in zones.

• Identify zone pairs: Identify all the zone pairs between which traffic flow needs to be allowed. If a zone pair is not defined, traffic will not be allowed between them by default.

• Create traffic policy: Identify the traffic restrictions between each identified zone pair and define them as Cisco Policy Language policies.

• Finally, attach the policy to a zone pair.

Primarily three Cisco Policy Language constructs are used for defining a Zone-Based Policy Firewall policy:

• Class-map: To specify interesting traffic through "match" conditions

• Policy-map: To associate actions with the traffic specified by the class map.

• Parameter-map: Any operating parameters needed for the actions of class or policy mapping

For more details about Zone-Based Policy Firewall, refer to the "Zone-Based Policy Firewall Design Guide" (Reference 3).

Four network zones are defined on a Cisco Virtual Office spoke router:

• Corpnet: Zone connecting to corporate network, tunnel interface on Cisco Virtual Office

• Internet: Zone connecting to Internet connection

• Trustednet: Zone where the IP devices at home are connected; this zone needs to have corporate access

• Guestnet: Zone where other nonemployee devices are connected; this zone has no corporate access

Apart from the user-defined zones, there is also a hidden zone named "self", which is defined for the traffic consumed by the router itself. So if the router needs to be made accessible from any other zones, you must define a policy between that zone and the self zone.

Following are the important zone pairs and the traffic policies between them:

• Trustednet to Internet: Enable Context-Based Access Control (CBAC) so that the return traffic is permitted.

• Trustednet to corpnet: All traffic is allowed to the corporate network.

• Trustednet to guestnet: Enable CBAC. From the perspective of the trustednet, the guestnet has the same Internet privileges.

• Corpnet to trustednet: All traffic is allowed.

• Internet to trustednet: Allow only restricted traffic (such as VPN, management network, etc.); CBAC permits the return traffic corresponding to the trustednet-to-Internet traffic.

• Guestnet to Internet: Enable CBAC, so that return traffic is allowed in the reverse direction.

• Self to Internet: Allow all traffic.

• Internet to self: Allow only restricted traffic (such as VPN, management network, etc.).

All other zone pairs not listed assume the default policy of not allowing any traffic between them.

Some ZFW Design Considerations

Following are some of the design considerations to keep in mind while designing a ZFW policy:

• If no policy is defined, traffic between any two security zones is dropped.

• If no policy is defined, traffic between any zone and the self zone is permitted (except in some cases; refer to the next bullet). This setup helps to maintain the network access to the router while ZFW polices are applied to the router, so you should define a strict access policy between security zones and the self zone -- especially between untrusted zones and the self zone.

• Sometimes the router-originated traffic is configured to use the IP address of a different interface than the outgoing interface as the source IP address of the traffic. In that case the outgoing traffic follows the zone-to-zone policy between the zones where both interfaces belong to instead of self-zone policy. Incoming traffic destined to the router still follows the zone-to-self zone policy, even if the destination IP address is different from the address of the incoming interface.

• Application firewall inspection between the self zone and the security zone is not as comprehensive as the zone-to-zone inspection.

• For more design considerations, refer to the "Zone-Based Policy Firewall Design and Application Guide" (Reference 3).

Zone-Based Firewall Configuration

! Traffic class definitions

class-map type inspect match-any inspect_protocols

match protocol dns

match protocol smtp extended

match protocol rtsp

match protocol tftp

match protocol h323

match protocol skinny

match protocol sip

match protocol sip-tls

match protocol realmedia

match protocol streamworks

match protocol tcp

match protocol udp

match protocol icmp

class-map type inspect match-any edge_fw

match access-group name fw_acl

match access-group name fw_mgmt_acl

class-map type inspect match-any mgmt_traffic

match access-group name mgmt_acl

class-map type inspect match-any outbound_traffic

match access-group name outbound_acl

! Policy definitions

! Do CBAC inspect on the matching traffic going to Internet. Drop the

! un-matched traffic

policy-map type inspect trusted2net_policy

class type inspect inspect_protocols

inspect

class class-default

drop

! This policy permits all traffic

policy-map type inspect pass_all_policy

class class-default

pass

! In this example trusted to guest policy is same as trusted to Internet

policy-map type inspect trusted2guest_policy

class type inspect inspect_protocols

inspect

class class-default

drop

! This policy permits only essential traffic (VPN/management etc.)

! to the router. Everything else is blocked from entering the router.

policy-map type inspect net2self_policy

class type inspect edge_fw

pass

class class-default

drop

! Traffic originating from the router towards internet is allowed.

! First ones matches the outbound VPN and other essential traffic.

! Second class matches the management traffic. Everything else

! is dropped.

policy-map type inspect self2net_policy

class type inspect outbound_traffic

pass

class type inspect mgmt_traffic

pass

class class-default

drop

! Security zone definitions

zone security corpnet

description Corporate net

zone security internet

description ISP network.

zone security trustednet

description Home VPN network

zone security guestnet

description Home Guest network

! Zone pairs and policies between them

zone-pair security trusted2internet source trustednet destination internet

description Traffic from trusted network to Internet

service-policy type inspect trusted2net_policy

zone-pair security trusted2corp source trustednet destination corpnet

description traffic from trusted network to corporate

service-policy type inspect pass_all_policy

zone-pair security trusted2guest source trustednet destination guestnet

description traffic from trusted network to guest

service-policy type inspect trusted2guest_policy

zone-pair security internet2self source internet destination self

description Traffic from Internet to Router

service-policy type inspect net2self_policy

zone-pair security corp2trusted source corpnet destination trustednet

description traffic from corporate to trusted home network

service-policy type inspect pass_all_policy

! corp2guest blocked

zone-pair security guest2internet source guestnet destination internet

description Traffic from guest to Internet

service-policy type inspect trusted2net_policy

! guest2trusted blocked

zone-pair security self2internet source self destination internet

service-policy type inspect self2net_policy

! Access Lists

ip access-list extended fw_acl

permit esp any any

permit udp any any eq isakmp

permit udp any eq isakmp any

permit udp any eq non500-isakmp any

permit udp any any eq 848

permit udp host <public ntp server1> eq ntp any

permit udp host <public ntp server2> eq ntp any

permit tcp <subnet from which ssh is allowed> any eq 22

permit udp any any eq bootpc

permit icmp any any

deny ip any any

ip access-list extended fw_mgmt_acl

remark ---- traffic from mgmt network to the spoke

permit ip <management subnet> host 10.32.227.161

ip access-list extended mgmt_acl

remark ---- traffic to management subnet

permit ip host 10.32.227.161 <management subnet>

ip access-list extended outbound_acl

permit esp any any

permit udp any any eq isakmp

permit udp any eq isakmp any

permit udp any any eq non500-isakmp

permit udp any eq non500-isakmp any

permit udp any any eq ntp

permit tcp any eq 22 any

permit tcp any eq telnet any

permit udp any any eq bootps

permit icmp any any

deny ip any any

interface Tunnel13

description - DMVPN interface connecting to corporate

zone-member security corpnet

interface FastEthernet0

description - outside interface connecting to ISP

zone-member security internet

interface BVI1

description - inside interface/trusted network

zone-member security trustednet

interface BVI2

description - guest network

zone-member security guestnet

Table 1 lists ZFW diagnostics and sample outputs.

Table 1. ZFW Diagnostics and Sample Outputs

show zone security	Shows zones, descriptions, and interfaces zones are applied to
show zone-pair security	Shows zone pairs and service policy associated with each zone pair
show zone-pair security source <source security name> destination <destination security name>	Shows zone pair specified, description, and service policy associated with the zone pair
show policy-map type inspect zone-pair <zone-pair name>	Shows traffic matched or dropped between zone pairs, service policies, and class map used, and inspects statistics
show policy-map type inspect <policy-map name>	Shows class maps applied to policy map and actions

Router#show zone security

zone self

Description: System defined zone

zone corpnet

Description: Corp. net

Member Interfaces:

Tunnel10

Tunnel11

Tunnel12

Tunnel13

Tunnel14

zone internet

Description: ISP network.

Member Interfaces:

FastEthernet4

zone trustednet

Description: Home VPN network

Member Interfaces:

Vlan10

zone guestnet

Description: Home Spouse&Kids network

Member Interfaces:

Vlan20

Router#show zone-pair security

Zone-pair name home2internet

Description: Traffic from home to Internet

Source-Zone trustednet Destination-Zone internet

service-policy trustednet2net_policy

Zone-pair name trustednet2corpnet

Description: traffic from trusted net to corporation

Source-Zone trustednet Destination-Zone corpnet

service-policy trustednet2corpnet_policy

Zone-pair name trustednet2guestnet

Description: traffic from home to guest

Source-Zone trustednet Destination-Zone guestnet

service-policy trustednet2guest_policy

Router#show zone-pair security source trustednet destination internet

Zone-pair name trustednet2internet

Description: Traffic from trustednet to Internet

Source-Zone trustednet Destination-Zone internet

service-policy trustednet2net_policy

Router#show policy-map type inspect zone-pair trustednet2corpnet

policy exists on zp trustednet2corpnet

Zone-pair: trustednet2corpnet

Service-policy inspect : trustednet2corpnet_policy

Class-map: phone-cmap (match-any)

Match: protocol sip

0 packets, 0 bytes

30 second rate 0 bps

Match: protocol skinny

200 packets, 4736 bytes

30 second rate 0 bps

Inspect

Packet inspection statistics [process switch:fast switch]

tcp packets: [55716:0]

udp packets: [676:0]

Session creations since subsystem startup or last reset 185

Current session counts (estab/half-open/terminating) [0:0:0]

Maxever session counts (estab/half-open/terminating) [4:1:1]

Last session created 2w2d

Last statistic reset never

Last session creation rate 0

Maxever session creation rate 2

Last half-open session total 0

Class-map: engineer-http-cmap (match-all)

Match: user-group group-engineer

Pass

7000 packets, 952951 bytes

Class-map: class-default (match-any)

Match: any

Drop

5647 packets, 228182 bytes

Router#show policy-map type inspect trustednet2corpnet_policy

Policy Map type inspect trustednet2corpnet_policy

Class phone-cmap

Inspect

Class engineer-http-cmap

Pass

Class class-default

Drop

User Group Firewall

User Group Firewall is a mechanism to authenticate each user and provide access privileges based on the type of user being authenticated. The authentication is done by a RADIUS server. The user initially has limited or no access to the protected network. When the user is authenticated, access privileges are established for the IP address from which the user is accessing the network. The access privileges depend on which user group the user belongs to on the RADIUS server. (Refer to Figure 2 for the work flow.)

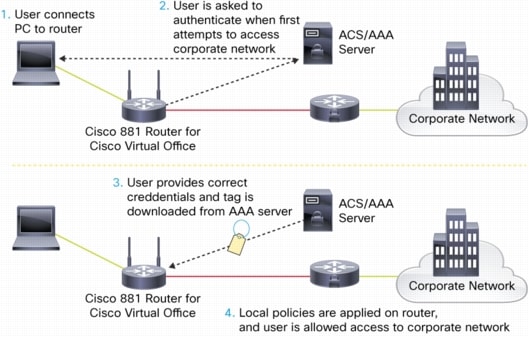

Figure 2. UGFW Work Flow

The authentication process begins when you make an HTTP request to the protected network. If the IP address of that device is not already authenticated, the HTPP request is intercepted by the router and replaced with a webpage querying for username and password. You must enter the assigned username and password. The credentials are then forwarded to a RADIUS server for validation.

After you are authenticated by the RADIUS server, a user tag is downloaded from the server. The tag is configured on a RADIUS server, which corresponds to the group you belong to. The router then installs the corresponding access policy that matches the downloaded tag. An access policy must be defined on the router for each possible tag.

This local policy configuration allows flexibility so that users in different locations may have different access controls for the same tag. (For example, a user accessing from a remote-access node may be given less access compared to the same user authenticating from an enterprise location.) An end host can also be part of multiple user groups, so that different tags can be downloaded, providing various levels of access.

You need to configure an intercept access control list (ACL) as part of the UGFW configuration. This ACL defines what traffic needs to be authenticated. The UGFW feature works only with Zone-Based Policy Firewall. The user tags are configured as traffic classification rules.

On the client side, you are prompted to authenticate by entering a username and password combination (refer to Figure 3). (Your user credentials must first be added to the authentication, authorization, and accounting [AAA] server.

Note: This procedure is similar to Cisco Authentication Proxy except that a tag is downloaded from the server. From the user side, authentication steps are the same as those for Authentication Proxy. The user setup in the AAA server is also configured similarly. Please refer http://www.cisco.com/en/US/docs/ios/12_1/security/configuration/guide/scdauthp.html for a more detailed explanation of Authentication Proxy.)

After a user is authenticated, traffic from that user will start matching the tag and will follow the traffic rules configured for it. When the end user is associated with the user group, inspection is enabled for all traffic and protocols coming from that source.

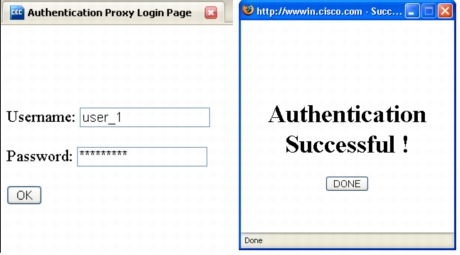

Figure 3. Authentication Prompt and Success Screen After a User Successfully Authenticates. Clicking "Done" After Successful Authentication Allows Access to the Corporate Network.

Server-Side Configuration

A tag that associates a user to a user group must first be configured on an AAA server. The tag name is specified as a vendor-specific Attribute-Value (AV) pair. Cisco Virtual Office uses Cisco Secure Access Control Server (ACS) v4.1. In this version of Cisco Secure ACS, the AV pair is configured under the Cisco IOS® Software or Cisco PIX® 6.0 RADIUS Attributes section after the group has been created on the server. Please refer to the Cisco Secure Access Control Server Deployment guide for Cisco Virtual Office for more detailed ACS configuration and deployment documentation http://www.cisco.com/en/US/prod/collateral/iosswrel/ps6537/ps6586/ps6660/ps6807/deployment_guide_c07_458687_ns855_Networking_Solutions_White_Paper.html.

In this case, the Cisco AV pairs are specified in the format tag-name=<name of tag> followed by the privilege level for the tag: priv-lvl=<privilege level>. Figure 4 shows a screenshot of the Cisco ACS page where the AV pairs are configured. This tag must match the tag configured locally on the router for successful authentication. If the tag matches, the user will be associated with that user group.

Figure 4. Cisco Secure ACS Configuration for UGFW

Spoke Router Configuration

On the Cisco Virtual Office setup, the zone pairs to which UGFWs are applied are the trustednet-to-corpnet zone pair. (Refer to Figure 1 for a zone-pair diagram). In this zone pair, when the user's PC downloads the tag from the AAA and is associated with a user group, all traffic is allowed from trustednet to corpnet. If authentication fails, then traffic is dropped from the trustednet to the corpnet. Return traffic from corpnet to trustednet is allowed to pass by default.

User Group Firewall Sample Configuration

Following is the configuration for User Group Firewall on the Cisco Virtual Office spoke router.

On the spoke router, apply the following:

! Enable ip http server to allow access to the RADIUS server

ip http server

! Configure AAA parameters. This AAA should also have the user group tag

! configured on it.

aaa group server radius authproxy

server-private <server ip addr> auth-port 1812 acct-port 1813 key 7 <key>

ip radius source-interface Vlan10

aaa authentication login default local group authproxy

aaa authorization auth-proxy default group authproxy

! Specify which tag to match. Tag must match the one configured on AAA.

! In this case, the tag name is `engineer' so `engineer' is also

! configured as the tag name on the AAA server.

class-map type control tag match-all engineer-class

match tag engineer

! Configure policy attributes for the user group. The user group in this

! case is called `group-engineer.' Once the user authenticates, he/she

! will be considered part of the user group `group-engineer.'

identity policy engineer-policy

user-group group-engineer

! Tie the tag name with the policy it should be associated with. Here,

! the tag `engineer' defined in `engineer-class' will be associated with

! user group named `group-engineer.' Policies for `group-engineer' will

! be applied once the tag is downloaded.

policy-map type control tag ugfw-tag-policy

class type control tag engineer-class

identity policy engineer-policy

! Specify interesting traffic to match on. In this case, it is based on

! membership of source ip address in the user-group

class-map type inspect match-all engineer-http-cmap

match user-group group-engineer

! Define zones that must require user authentication before access

zone security trustednet

description zone where the IP devices at home are connected which needs to have corporate access

zone security corpnet

description zone connecting to corporate network, tunnel interface on CVO

! Policy map to inspect traffic between trustednet and corpnet zones

policy-map type inspect trustednet2corpnet_policy

class type inspect engineer-http-cmap

pass

class class-default

drop

!Configure zone-pair and apply the policy-map

zone-pair security trustednet2corpnet source trustednet destination corpnet

description traffic from trustednet to corpnet

service-policy type inspect trustednet2corpnet_policy

! Configure the intercept ACL

ip access-list extended auth_proxy_acl

remark --- Auth-Proxy ACL -----------

! Deny lines are used to bypass auth-proxy

deny tcp any host 10.10.200.1 eq www

! Auth-proxy will intercept http access matching the below permit lines

permit tcp any 10.10.30.0 0.0.255 eq www

...

! Map the tag-name to a template on the spoke router and

! associate it with an authentication method. auth_proxy_acl is

! the intercept ACL.

ip admission name auth-http proxy http inactivity-time 60 list auth_proxy_acl service-policy type tag ugfw-tag-policy

! Apply ip admission rule to the source zone member interface

interface Vlan10

ip admission auth-http

Note: Matches on user groups allow traffic of all protocol types. If further restriction is desired, add additional matches but make sure the class map is inspecting on a "match-all" criterion. For example, if only TCP traffic is allowed, configuration should be:

class-map type inspect match-all engineer-http-cmap

match user-group group-engineer

match protocol tcp

Note: Configuring the following does not restrict traffic to just TCP traffic because the user group matches on all protocol types:

class-map type inspect match-any engineer-http-cmap

match user-group group-engineer

match protocol tcp

IP Phone Bypassing

IP phones must be bypassed because they cannot be authenticated with Authentication Proxy.

One method to bypass IP phones is to create a separate VLAN for the voice traffic. Creating a voice VLAN also allows you to apply different policies specifically for the IP phones that are separate from the policies for allowing the user's PC to access the corporate network.

! Configure auth-proxy exemption for Cisco IP phone

identity profile auth-proxy

device authorize type cisco ip phone policy ip-phone

identity policy ip-phone

user-group cisco-phone

! Define policy attributes to be enforced for the IP phone

identity policy ip-phone

user-group cisco-phone

! Define the match criteria for phone traffic.

class-map type inspect match-any ip-phone

match protocol sip

match protocol skinny

match protocol dns

match protocol https

match protocol http

! Define policy to inspect traffic coming from the ip phone to the

! corpnet

policy-map type inspect ip_phone_policy

class type inspect ip-phone

inspect

class class-default

drop

! Define security zone for the ip phone

zone security ipphone

description ipphone

! Configure a separate vlan for the IP phone and apply the proper zone to

! the vlan

interface Vlan30

description voice vlan

ip unnumbered Vlan10

zone-member security ipphone

no autostate

! Configure voice vlan on interface(s)

interface FastEthernet1

switchport voice vlan 30

! Configure zone-pair and apply the policy-map for traffic between the ip

! phone and corpnet

zone-pair security ipphone-corpnet source ipphone destination corpnet

service-policy type inspect ip_phone_policy

zone-pair security corpnet-ipphone source corpnet destination ipphone

service-policy type inspect ip_phone_policy

! Add ip admission for the phone. This will match the user group

! cisco-phone as configured above.

ip admission name ip-phone proxy http inactivity-time 60

Note: After applying the configuration, you may have to reset the phone and wait a few minutes before the phone registers with the Cisco Unified Communications Manager and comes up again.

An alternative method is to create a class map to allow the protocols needed to establish the voice communication sessions to pass and add it to the policy for allowing traffic from the trustednet to the corpnet. The voice traffic policy must be defined and matched first (before other traffic) in this case.

! Configure auth-proxy exemption for Cisco IP phone

identity profile auth-proxy

device authorize type cisco ip phone policy ip-phone

identity policy ip-phone

user-group cisco-phone

! Define policy attributes to be enforced for the IP phone

identity policy ip-phone

user-group cisco-phone

! Define the match criteria for phone traffic. Here it is sip and

! skinny.

class-map type inspect match-any phone-cmap

match protocol sip

match protocol skinny

! Define the policy to inspect traffic between trustednet and corpnet.

! Make sure to inspect the phone traffic first.

policy-map type inspect trustednet2corpnet_policy

class type inspect phone-cmap

inspect

class type inspect engineer-http-cmap

pass

class class-default

drop

! Define policy to inspect traffic coming back from the corpnet to the

! trustednet

policy-map type inspect corp2trustednet_policy

class type inspect phone-cmap

inspect

class class-default

pass

!Configure zone-pair and apply the policy-map

zone-pair security trustednet2corpnet source trustednet destination corpnet

service-policy type inspect trustednet2corpnet_policy

zone-pair security corpnet2trustednet source corpnet destination trustednet

service-policy type inspect corpnet2trustednet_policy

! Add ip admission for the phone. This will match the user group

! cisco-phone as configured above.

ip admission name ip-phone proxy http inactivity-time 60

Table 2 lists UGFW diagnostics and sample outputs.

Table 2. UGFW Diagnostics and Sample Outputs

show user-group	Shows user groups and IP address of device associated with each user group
show user-group count	Shows number of user groups and number of members in each group
show epm session ip <ip address>	Shows tag downloaded by each device (determined by IP address) and the policy applied to the device

Router#show user-group

Usergroup : cisco-phone

------------------------------------------------------------------------

User Name Type Interface Learn Age (min)

------------------------------------------------------------------------

10.32.229.156 IPv4 Vlan10 Dynamic 0

Usergroup : group-engineer

------------------------------------------------------------------------

User Name Type Interface Learn Age (min)

------------------------------------------------------------------------

10.32.229.154 IPv4 Vlan10 Dynamic 0

Router#show user-group count

Total Usergroup : 2

-----------------------------------------------------------

User Group Members

-----------------------------------------------------------

cisco-phone 1

group-engineer 1

Router#show epm session ip 10.32.229.156

Admission feature : Authproxy

Identity Policy : ip-phone

Router#show epm session ip 10.32.229.154

Admission feature : Authproxy

Tag Received : engineer

Policy map used : ugfw-tag-policy

Class map matched : engineer-class

Object Group-Based ACLs

Object group-based ACLs (OGACLs) are used for configuring and managing large ACLs. This feature allows you to classify users, devices, or applications into groups, so you can apply policies based on a group classification. This feature allows for separation of ownership of different components, a reduction in configuration size, and improved ACL management and readability. Because OGACLs are an abstraction of standard Cisco IOS ACLs, you can use OGACLs where most traditional ACLs are used. However, OGACLs are not currently supported in cryptography map traffic selector ACLs.

There are two types of object groups: network object groups and service object groups. Network object groups define a group of hosts or subnet addresses, and service object groups define a group of services such as protocols and ports.

The syntax to configure OGACLs is similar to that of standard ACLs, but you can replace addresses, ports, and protocols with object group names that you define:

ip access-list extended <acl_nam>

[permit | deny] object-group <service_obj_grp_name> object-group <source_obj_grp> object-group <dest_obj_grp>

You must first configure the necessary service or network object groups.

Service object group configuration:

object-group service <service_obj_group_name>

[protocol | port]

Network object group configuration:

object-group network <network_name>

[{host <host_addr> | <net_addr> <netmask> | group-object <nested_net_og>]

For the network object group, configuring a network with a mask requires use of the network mask, not the wildcard mask used in traditional ACLs. OGACLs are applied to an interface the same way that traditional ACLs are.

Because network and service object groups are separated, OGACLs are easier to edit than traditional ACLs. For example, in traditional ACLs, adding a permit statement to another host requires an additional line in the ACL configuration. With OGACLs, you can simply add the host to the appropriate network object group. The OGACL permit statements can be left as is.

Object Group-Based ACL Configuration

The following shows a sample configuration of OGACLs. The traditional ACL configuration is also included afterward for comparison.

! OGACL Auth-Proxy Inbound ACL

ip access-list extended auth_proxy_inbound_acl

permit object-group auth_proxy_inbound_acl_service any any

permit ip any object-group auth_proxy_inbound_acl_ip_host

permit object-group auth_proxy_inbound_acl_ports any any

deny ip any object-group auth_proxy_inbound_acl_deny_networks

object-group service auth_proxy_inbound_acl_service

tcp eq domain

udp eq bootps

udp eq domain

object-group network auth_proxy_inbound_acl_ip_host

host 10.70.168.189

host 10.102.6.248

object-group service auth_proxy_inbound_acl_ports

udp range 2326 2340

udp range 5060 5061

udp eq 5445

udp range 24576 24656

tcp range 1719 1720

udp eq tftp

tcp range 5060 5061

tcp eq 2000

tcp eq 2443

udp range 16384 32767

object-group network auth_proxy_inbound_acl_deny_networks

10.68.0.0 255.252.0.0

10.16.0.0 255.240.0.0

10.107.0.0 255.255.0.0

interface BVI1

ip access-group auth_proxy_inbound_acl in

....................................................................................

! Traditional Auth-Proxy Inbound ACL used for comparison

ip access-list extended auth_proxy_inbound_acl

permit tcp any any eq domain

permit udp any any eq bootps

permit udp any any eq domain

permit ip any host 10.70.168.189

permit ip any host 10.102.6.248

permit udp any any range 2326 2340

permit udp any any range 5060 5061

permit udp any any eq 5445

permit udp any any range 24576 24656

permit tcp any any range 1719 1720

permit udp any any eq tftp

permit tcp any any range 5060 5061

permit tcp any any eq 2000

permit tcp any any eq 2443

permit udp any any range 16384 32767

deny ip any 10.68.0.0 0.3.255.255

deny ip any 10.16.0.0 0.15.255.255

deny ip any 10.107.0.0 0.0.255.255

interface BVI1

ip access-group auth_proxy_inbound_acl in

Table 3 lists OGACL diagnostics and sample outputs.

Table 3. OGACL Diagnostics and Sample Outputs

show object-group	Shows all network and service groups configured
show object-group <obj_group_name>	Shows members of the object group specified
show ip access-lists	Shows all traditional and object group-based ACLs and matches
