This solution overview explains how the Cisco® SpeechView (speech-to-text) feature of the Cisco Unity® Connection unified messaging solution handles security for voice message transcriptions. You will learn about:
• Security during message transport
• Security measures in effect with the third-party external transcription service
You do not need any prior knowledge of Cisco SpeechView or the Cisco Unity Connection unified messaging solution to understand the security discussion in this paper.
Cisco SpeechView Introduction
Cisco SpeechView converts voice messages to text and delivers the text version of the voice message to your email inbox, allowing you to read your voice messages and take immediate action. The application is a feature of the Cisco Unity Connection unified messaging solution, so the original audio version of each voice message remains available to you anywhere, anytime with Cisco Unity Connection. Cisco SpeechView transcribes and sends voice messages within minutes of being left in your Cisco Unity Connection voice mailbox - you do not need to learn any commands or take special action to receive text versions of your voice messages.
Accurate voicemail transcription services generally require human intervention to transcribe complex voice messages because even the most powerful computers cannot accurately decipher the intricacies in the way we speak to each other in our everyday language. Therefore, many organizations seeking voicemail transcription are faced with a choice: use an automated service or use human assistance to improve accuracy. Often, transcription services involve sending voice messages to a third-party service, causing security concerns within most organizations around the measures in place that secure the message during transport to and from the service and protection of the message content during transcription.
Cisco SpeechView solves these challenges and removes the trade-offs that organizations must make with typical voicemail transcription services. Cisco has partnered with a third-party external transcription service, SpinVox Ltd. (a subsidiary of Nuance Communications, Inc.), to provide accurate, secure transcriptions of voice messages left in Cisco Unity Connection voice mailboxes, which are then delivered to your email inbox. Easy to use and secure, Cisco SpeechView improves responsiveness.
Cisco SpeechView benefits include:
• You can learn who called and what they said at a glance
• You do not need to dial in to retrieve messages, or take notes on the message content
• You have nothing new to learn - your experience is the same as for regular email messages
• Messages delivered in both audio and text formats allow you to decide the best way to manage them
• You can prioritize and sort both voice and email messages from a single email inbox
Cisco SpeechView security features follow:
• All data that is transmitted, processed, and stored is encrypted
• Security measures that comply with ISO Certification and data protection and privacy protocols are applied at the physical, network, and application layers
• User data is kept anonymous
The next sections provide details about how Cisco and SpinVox partner to provide security throughout the entire message transcription process.
Initial Service Registration

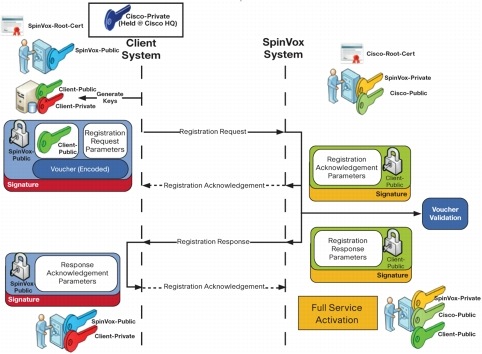

When Cisco SpeechView is initially configured, the Cisco Unity Connection server registers with SpinVox. Figure 1 illustrates the following process:
1. The Cisco Unity Connection server generates the Client-Private and Client-Public keys.
a. Cisco and root certifications are 2048-bit RSA.g.
b. SpinVox and Client keys are 1024-bit RSA.
c. Client keys may be refreshed periodically by reregistering through the Cisco Unity Connection Administration GUI.
2. The Client-Public key, registration request, and voucher are packaged in a signed Secure/Multipurpose Internet Mail Extensions (S/MIME) message and delivered to SpinVox. Refer to the "Outbound Request" section of this document for an example of the registration request.
3. SpinVox acknowledges the message and validates the voucher.
4. When the voucher is validated by SpinVox, a registration response is sent back to the Cisco Unity Connection server. Refer to the "Inbound Response" section of this document for an example of the registration response.
5. When the Cisco Unity Connection server receives the response, the Cisco SpeechView feature is active and ready to begin transmission of messages to SpinVox.
After successfully registering with SpinVox, the Cisco Unity Connection users configured for the SpeechView feature will begin to receive voice message transcriptions. All message flow to and from SpinVox uses S/MIME. The process follows:
1. A Cisco Unity Connection user receives a voice message.
2. Cisco Unity Connection packages the message and encrypts it using the SpinVox-Public key, and signs it with the Client-Private key. The following is an example of the encrypted message sent by Cisco Unity Connection to SpinVox:
4. When the message is returned to the Cisco Unity Connection server, it is deleted from SpinVox's databases within 48 hours.
A message arriving at SpinVox is flagged for automated transcription, and the following steps occur in the transcription:
1. Audio is processed and transcription is performed by the machine.
2. Transcription is written to the SpinVox database.
3. The message is returned to the Cisco Unity Connection server.
4. Data is deleted from the SpinVox database within 48 hours. The data is kept for 48 hours to allow time for troubleshooting, if necessary.
Agent Security information
Numerous security policies are in place to govern the transcription process at SpinVox:
• Audio stays on the central processing system
• Facilities undergo a rigorous selection process and are subject to regular security audits
• Nuance and SpinVox personnel:
– Are screened, tested, and vetted
– Undergo security, privacy, and compliance training
– Sign nondisclosure and confidentiality agreements with SpinVox
• PC hardware at quality-control facilities:
– Is hardened as per generally accepted industry best practices
– Has only essential programs and services enabled
– Has working files flushed after use
– Has Cut, Copy, and Paste functions disabled
– Has controlled Internet access
The security measures in place for the Cisco SpeechView solution should satisfy any organization's concerns about sending voice messages outside of the company firewall in order to use a third-party external transcription service. Cisco has worked closely with SpinVox to help ensure that security is a priority throughout every step of the transcription process. As a result, Cisco SpeechView offers our Cisco Unity Connection customers an accurate, secure, and easy-to-use speech-to-text solution.
