It's been some time since administrators focused their security attention primarily on servers and hosts in the network. At that time administrators didn't use much more than a firewall and a few access lists to secure an entire network. Over the last several years, the infrastructure has also become a direct target, and on many occasions, an attack on the network is a byproduct of a worm or virus. Infected hosts generate substantial traffic either by scanning other hosts in the network, proliferating malware, and/or being the target of an attack or potentially being in the path of the attack. In order to protect the infrastructure, especially the core and distribution portions of the network, other mechanisms can be used to minimize the effects on these critical business-enabling components, namely, your Cisco® Catalyst® 6500 Series Switches.
This paper describes three methods that can be employed to help protect your infrastructure: control-plane policing (CoPP), hardware rate limiting (HWRL), and access-control lists (ACLs). The operation of each function and configuration examples of each of these methods will be explained in detail, so you will have an understanding of how to successfully implement these valuable features.
Through the use of a controlled test environment, several attack situations were created that placed the network infrastructure in jeopardy. The effects on the network were captured and, using the methods previously described, these attacks were mitigated and the condition of the network was captured. Configuration examples will be used to show how an unprotected infrastructure behaves. The appropriate configurations that mitigate the attack will then be shown.
Finally, a baseline recommendation will be provided as a starting point from which you can begin implementation of control plane protection in your network.
Overview
The performance of the switch is limited by what can be processed in purpose-built hardware application-specific integrated circuits (ASICs) and what can be processed on the switch central processing unit (CPU) by software. Data plane and control plane performance are terms used to describe these performance metrics, respectively. Although the Cisco Catalyst 6500 Supervisor 32 and Supervisor 720 have tremendous capability integrated directly into the hardware, there are specific data types that can only be processed by the switch control plane. Examples of data that can only be processed by the control plane include routing control protocol, Bridge Protocol data unit (BPDU), Cisco Discovery Protocol, Internet Control Message Protocol (ICMP), or packets with IP options, traffic destined to an IP address of the switch, and management traffic. When too much traffic is redirected to the switch control plane, the CPU can become overwhelmed, resulting in the control plane's inability to perform all required tasks. This condition may not only effect this individual chassis, but other devices within the network. To minimize the effects on control plane performance, a combination of CoPP, hardware rate limiters, and ACLs can be used to reduce the flow of control plane bound traffic, thus keeping the performance of the control plane from being compromised.
The objective of this paper is to present best practices to protect the Cisco Catalyst 6500 control plane against either malicious or inadvertent attacks and/or misconfigurations or component failures. These best practices offer a comprehensive approach for control plane protection through the use of CoPP, HWRL, and ACLs. This document will explain the functionality of CoPP, HWRL, and the use of ACLs to reduce overall traffic loads destined to the control plane and mitigate attacks that could compromise the operational integrity of the switch control plane.
Technical Introduction to CoPP
The control plane of the Cisco Catalyst 6500 is operated and serviced by two discrete CPUs: the route processor and the switch processor. The route processor is primarily responsible for Layer 3 control plane functions, while the switch processor is responsible for Layer 2 control plane functions. The route processor and switch processor have other responsibilities as well. For example, the route processor is the default CPU for managing the CLI for typical administration operations, while the switch processor is responsible for programming the hardware tables with routing information, quality of service (QoS), security ACLs, and more. The switch control plane is a very important component that is critical in maintaining ongoing switch operations. If the control plane is overwhelmed, then it can have a direct effect on the operational integrity of the switch. Examples of the effect such a situation can have include:
• Control plane packet queue overruns leading to packet drops for control plane bound traffic
• Control plane protocols such as routing protocols dropping neighbors causing reconvergence in the network
• Loss of line protocol keep-alive messages
• Slow down in the ability to update hardware tables with up to date state information
• Exhaustion of control plane resources like memory and packet buffers
• Unresponsive CLI for telnet and console sessions
CoPP provides a mechanism in which QoS policies can be applied to traffic destined for the control plane of the Cisco Catalyst 6500. This facility can protect the operational integrity of the control plane to help ensure a stable and reliable operating environment for the control plane to work with. When implementing CoPP, the modular QoS command-line interface (MQC) is used to configure a service policy, which is then used to apply these policies to the control plane.

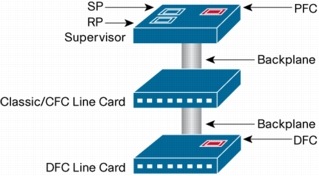

CoPP is implemented in hardware and/or software depending on the configuration. The hardware function for CoPP is distributed across the policy feature card (PFC) on the supervisor and individual line cards that have a distributed forwarding card (DFC). The supervisor controls the hardware policing from "classic" line cards (for example, WS-X61xx line cards) and line cards with a centralized forwarding card (CFC) (for example, WS-X67xx line cards). When CoPP is employed in hardware, there is no effect to the performance of the switch overall or the switch control plane. The software component of CoPP is handled by the route processor on the supervisor and has the potential to affect the CPU. The following diagram shows where the hardware and software components for CoPP are implemented (relevant hardware components are highlighted in red).
Figure 1.
A CoPP policy can limit a number of different packet types that are forwarded to the control plane. Traffic destined for the switch CPU includes:
• Packets that require an initial lookup (first packet in a flow: FIB miss)
• Packets that have don't support hardware switching/routing
Not all of the traffic types defined above can be handled by the hardware CoPP component and thus can still have an effect on control plane performance. More details on this are covered later in the document.
Let's look at an example of how to configure and apply a CoPP policy on the switch. The first step in configuring CoPP requires QoS to be globally enabled on the switch. Enabling QoS on the switch requires the "mls qos" command to be applied, as shown in the following example:
Switch(config)#mls qos
The next step requires building an ACL to match interesting traffic (control plane bound traffic that needs to be limited). For the purposes of this example, a match on SNMP traffic from host 10.1.0.254, telnet and SSH from 10.1.0.3, and Network Time Protocol (NTP) from 10.200.200.200 is used as shown in the following ACL block:
Switch(config-ext-nacl)#permit udp host 10.1.0.254 any eq snmp
Switch(config-ext-nacl)#permit tcp host 10.1.0.3 any eq telnet
Switch(config-ext-nacl)#permit tcp host 10.1.0.3 any eq 22
Switch(config-ext-nacl)#permit udp host 10.200.200.200 any eq ntp
Following the creation of the ACL, a class map should be constructed that uses the previously created ACL to match traffic; an example of this is shown below:
Switch(config-cmap)#match access-group name Management_Good_ACL
Finally, a policy map should be created that includes the class map information and specifies how the traffic will be handled. In this example, 6Mb/s of management traffic is allowed to pass through to the CPU (the conform action), and traffic that exceeds this limit will be dropped (the exceed action):
Switch(config)#policy-map CoPP_Policy
Switch(config-pmap)#class Management_Good_Class
Switch(config-pmap-c)#police 6000000 conform-action transmit exceed-action drop
That completes the configuration of a CoPP policy on a switch. The actual policy that an administrator would apply is going to be dependent on the type and volume of control plane traffic that a given switch is required to process.
CoPP Limitations
To successfully implement CoPP, a thorough understanding of its limitations is required. As noted earlier, some traffic is controlled by the hardware CoPP component, and this has no effect on performance. Other traffic, however, is controlled by the software CoPP component, and this can have a significant effect on performance. The following is a list of control plane bound traffic that is not controlled or rate limited by the hardware CoPP component:
• Non-IP traffic
• Interior Gateway Protocol (IGP) routing protocols because of their use of multicast
• Packets destined to an IP address that is locally terminated on the Cisco Catalyst 6500
• Network management traffic
• ICMP or traffic with IP options set
• Layer 2 traffic, including Cisco Discovery Protocol, Spanning Tree Protocol, Virtual LAN (VLAN) Trunking Protocol (VTP), and others
• Egress QoS and CoPP cannot be configured at the same time with a PFC3A, otherwise CoPP is performed in software
• CoPP is not enabled in hardware unless multilayer switching (MLS) QoS is enabled globally with the "mls qos" command. In case the "mls qos" configuration is not entered, CoPP will only work in software, therefore lacking any hardware benefit.
The following list is composed of functions that are not controlled by either hardware or software CoPP:
• Multicast and broadcast traffic
• ARP policies
• Support non-IP classes except for the default non-IP class (post SXE release only). ACLs can be used instead to drop non-IP traffic, and the default non-IP CoPP class can be used to limit to non-IP traffic that reaches the route processor CPU
• ACLs with the "log" keyword
• CoPP will ignore a class that does not have a corresponding policing action
• No support for MAC ACLs
There are some other caveats that must also be taken into consideration when formulating a control plane protection policy. These include:
• CoPP does not permit multiple match criteria Pre- 12.2(18)SXE release
• Egress CoPP is not supported
• CoPP is disabled when egress policy is present with PFC3A
• Packets with an invalid version number need to be rate limited with a VLAN ACL (VACL) with MAC access list.
• Currently CoPP can only be used on packets for which the input ACL logic or the FIB has decided the route processor as the packet's final destination. This implies that CoPP cannot currently be applied on packets for which the egress processing (for example, egress ACL) determines the route processor as final destination.
• QoS ternary content-addressable memory (TCAM) resources are used for CoPP
• Selective packet discard may drop packets in software input interface queue after the CoPP software logic can take effect; for example, CoPP happens at interrupt level, and then process level interface queues may drop traffic
• Hardware CoPP is only supported in PFC3x based systems
• SNMP does not provide and insight into CoPP traffic statistics
• With TTL=1/maximum transmission unit (MTU) failure rate limit enabled, Layer 2 multicast bridging will not function for PFC3a based systems
• Traffic will be double policed if it hits two hardware rate limiters
• Layer 2 rate limiters not supported in truncated mode
• No hardware rate limiter counters available. Note that global TTL failure and MTU failure counters are available on PFC3B and PFC3BXL.
• IP options rate limiters only on PFC3B and 3BXL
• Hardware rate limiters per forwarding engines (aggregate for Layer 2 rate limiting)
• When using CoPP, it is strongly recommended to disable the "Cisco Express Forwarding receive" rate limiter.
• When combining CoPP and HWRL, HWRL always takes precedence over CoPP; for example, if HWRL is applied in hardware, CoPP for the same traffic can only be applied in software. The exception is for HWRL that is applied after packet rewrite in hardware (for example, only TTL=1 and MTU failure so far) since control packets are excluded from this HWRL logic. In general, control plane packets hitting the bridge adjacency are not affected by TTL and MTU rate limiting.
• If the TCAM is exhausted due to a large QoS configuration, CoPP will be performed in software
• Hardware CoPP will be disabled when using the following three commands:
mls rate-limit unicast cef receive
mls rate-limit unicast cef glean
mls rate-limit unicast acl input

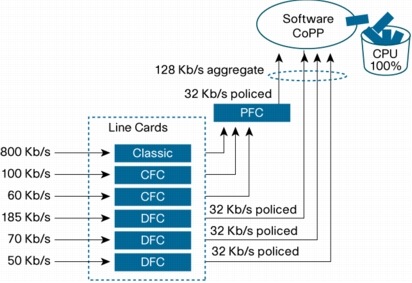

Another situation that might overwhelm the CPU occurs even when "interesting" traffic matches the hardware rate limiters. This condition exists in the following case where DFCs are installed in the chassis. The configuration example below shows a 32Kb/s police action defined for interesting traffic:
Switch(config-pmap-c)#police 32000 conform-action transmit exceed-action drop
The switch processor will program the PFC and each DFC installed in the chassis with the same QoS policing policy. As shown in the diagram below, there are 6 traffic streams entering the switch. An 80Kb/s stream to a "classic" card, a 100Kb/s and 60Kb/s stream entering the cards with CFCs, and 3 traffic streams at 185Kb/s, 70Kb/s, and 50Kb/s entering individual line cards with DFCs. The current Cisco Catalyst 6500 hardware does not provide a distributed policing functionality, that being one that synchronizes the policed packet count across the PFC and DFCs. The PFC and each DFC maintain their own individual policed count for traffic that matches the global policing policy. In our example, since there is no distributed hardware policer, the PFC on the supervisor polices traffic to 32Kb/s from the "classic" and CFC line cards, and each line card with a DFC will also police to 32Kb/s. Consequently the cumulative volume of "matched" traffic that is forwarded to the control plane is 128Kb/s, which exceeds the original stated policy of 32Kb/s. The software CoPP component now has to process this traffic and rate limit it down to 32Kb/s. Since the software CoPP functionality is run on the route processor, if overwhelmed, it can potentially drive the CPU to 100%, affecting the performance of other control plane processes, disrupting or even halting the operation of the CPU.
Figure 2.
Technical Introduction to HWRL
In addition to supporting CoPP as a means to rate limit traffic bound to the control plane, the Supervisor 720 and Supervisor 32 have a second (complementary) technology that can also be used to rate limit traffic destined to the control plane. This capability is provided by hardware rate limiters. This facility uses specific hardware registers maintained on the forwarding engine to keep a count of specific control plane traffic. A total of 10 registers can be used by all of the hardware rate limiters available for configuration. Unlike CoPP, which uses an ACL to match traffic that is to be rate limited, each hardware rate limiter matches on only one specific control plane traffic data type.
There are two categories of hardware rate limiter that are implemented on the PFC and DFC based line cards. They are Layer 2/Layer 3 hardware rate limiters and protocol rate limiters. The first category is designed to rate limit specific Layer 2 and Layer 3 traffic, while the second category is designed to rate limit a specific set of protocol traffic. One of the primary advantages of a hardware rate limiter is that it has the ability to police multicast traffic in hardware, consequently minimizing the burden of software CoPP on the CPU.
Layer 2 and Layer 3 Hardware Rate Limiters
There are a total of eight Layer 3 hardware rate limiters, and four Layer 2 hardware rate limiters. When all 10 hardware rate limiter registers are used, no additional rate limiters can be configured unless a previous rate limiter is removed.
The following hardware rate limiters can be configured:
Hardware Rate Limiter
Hardware Rate Limiter Description
Input, Output, and VACL-log ACL Bridged Unicast Packets
All hardware rate limiters share the same register and are used when ACL features are not supported in hardware, if the packet is non-IP, or if the "log" keyword is used on the ACL.
Packets that fail the hardware uRPF check are sent to the route processor for additional processing.
IP Unicast Errors
This limits packets sent to the route processor if they fail the checksum or length calculations.
FIB Unicast Receive
Limits packets destined for an IP address that is local to the switch.
VACL Unicast Log
When configuring VACLs with the "log" feature, logging information is sent to the route processor. This feature can be used to minimize the effect on the route processor.
Forwarding Information Base (FIB) Unicast Glean
Limits packets to the route processor that require the route processor to send a ARP request to a host on a connected subnet.
Layer 3 Unicast Security Features
Limits authentication-proxy, IPSec, and inspection packets to the route processor.
TTL failure Unicast and Multicast
Limits packets to the route processor that fail the TTL check.
MTU failure Unicast and Multicast
Limits packets to the route processor that fail the MTU check.
Layer 2 protocol data unit (PDU)
Limits BPDU, Dynamic Trunking Protocol (DTP), Port Aggregation Protocol (PAgP), Cisco Discovery Protocol, Spanning Tree Protocol, and VTP packets to the route processor.
Layer 2 Protocol Tunneling
Limits frames with a destination MAC address of 01-00-0C-CD-CD-D0 destined for the route processor, these include PDU, VTP, and Spanning Tree Protocol. This feature cannot be used when fabric and nonfabric enabled cards are in the same chassis.
Layer 2 Multicast Internet Group Messaging Protocol (IGMP) Snooping
Limits IGMP packets to the route processor. This feature cannot be used when fabric and nonfabric enabled cards are in the same chassis.
IPv4 Multicast
Limits multicast packets to the route processor that match one of the following parameters:
• FIB-miss - packets that do not have a FIB entry (new flows).
• Partially switched flows - multicast flows that are both hardware and software switched.
• Directly connected - limits flows from connected sources.
IPv6 Multicast
Limits multicast packets to the route processor that match one of the following parameters:
• Connected
• Default-Drop
• Route-Control
• Secondary-Drop
• SG
• Starg-Bridge
• Starg-M-Bridge
Layer 2 and Layer 3 hardware rate limiters are implemented using the following command structure:
Switch(config)#mls rate-limit ?
all Rate Limiting for both Unicast and Multicast packets
layer2 layer2 protocol cases
multicast Rate limiting for Multicast packets
unicast Rate limiting for Unicast packets
To view the current usage of rate limiters, the following command can be used:
Switch#show mls rate-limit usage
Rate Limiter Type Packets/s Burst
--------------------- --------- -----
Layer3 Rate Limiters:
RL# 0: Free - - -
RL# 1: Used
UCAST IP OPTION 10 1
RL# 2: Used
TTL FAILURE 500 10
RL# 3: Used
ACL BRIDGED IN 500 10
ACL BRIDGED OUT 500 10
RL# 4: Used
CEF GLEAN 1000 10
RL# 5: Used
IP RPF FAILURE 500 10
ICMP UNREAC. NO-ROUTE 500 10
ICMP UNREAC. ACL-DROP 500 10
IP ERRORS 500 10
RL# 6: Used
ACL VACL LOG 2000 1
RL# 7: Used
MCAST DFLT ADJ 10000 10
RL# 8: Rsvd for capture - - -
Layer2 Rate Limiters:
RL# 9: Reserved
RL#10: Reserved
MCAST PARTIAL SC 10000 10
RL#11: Used
LAYER_2 PDU 1000 100
RL#12: Used
MCAST IGMP 5000 10
Protocol Rate Limiters
Protocol hardware rate limiters are the second category of hardware rate limiters provided on the Cisco Catalyst 6500. They can be configured to police Layer 3 routing protocols and/or ARP traffic. These protocol rate limiters have configurable parameters that include the ability to rate limit traffic that passes through the switch using the "pass-through" option. They also have the ability to specify the police rate in bits/second (bps), configure the burst rate, and rewrite the precedence value.
Traffic that matches the following criteria can be configured as part of the protocol rate limiting policy (note that these are contained in the acronym table at the end of the document):
• Intermediate System-to-Intermediate System (ISIS)
While CoPP and HWRL offer a comprehensive way to control the rate of traffic destined for the control plane, there are still some traffic classes that can best be limited by the use of ACLs, which provide a means to either permit or deny packets that match particular criteria. There are three types of ACLs that are supported by the Cisco Catalyst 6500. These three types of ACLs are:
• Router ACL (RACL): This is the traditional form of ACL that most people are familiar with and is standard on many Cisco routers running Cisco IOS® Software. This form of ACL is applied to a routed interface and is used to permit or deny the movement of traffic being Layer 3 subnets.
• VLAN ACL (VACL): This is a form of ACL that is applied to a VLAN or Switched Virtual interface (as opposed to a "routed" Layer 3 interface). The VACL can match on either IPv4 packets or MAC frames. It has one major benefit over an RACL and that is that it can limit the movement of traffic that is bridged within the VLAN. This is a capability that an RACL does not have. The VACL is applied twice, once to traffic entering the VLAN and once to traffic leaving the VLAN.
• Port ACL (PACL): The PACL is similar in operation and use to a VACL; however, a PACL can only be applied to Layer 2 (switch port) interfaces matching either IPv4 packets or MAC frames. Unlike a VACL, the PACL is applied only on ingress traffic entering the switch port.

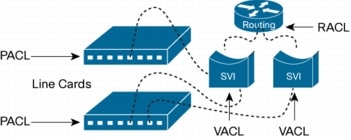

The following diagram provides a pictorial overview of the differences between each of these ACL types and the order in which they are processed.
Figure 3.
The use of ACLs will permit or deny traffic at the port (PACL), through a VLAN (VACL), or through the Switched Virtual Interface (SVI) using an RACL. One or all three of these ACL types can be used on the switch at the same time. Since ACLs can permit or deny traffic in hardware, they help to augment switch security. For example, if a protocol rate limiter is used to limit BGP traffic, what happens if some nefarious individual floods the network with TCP port 179 traffic? If you guessed that other BGP sessions would be affected, you are correct. In order to mitigate these types of attacks, an ACL could be created that would only permit traffic from specific neighbors.
The following ACL is an example of how this type of BGP attack could be mitigated. The following two lines show an ACL that is used to permit BGP traffic to the local device, and any BGP traffic from another host will simply be dropped:
The next two lines take the above ACL and use a PACL to apply this policy to port FA1/1:
interface FastEthernet1/1
ip access-group BGP_Neighbor in
Unless BGP packets are generated from 10.10.10.10, they will be dropped by the hardware ACL, consequently eliminating the effect on the CPU.
Troubleshooting the Control Plane Load
Sometimes an installed CoPP policy will fail to control CPU load and some control plane traffic might slip through adding load to the control plane. One of the more interesting aspects in troubleshooting this situation is determining what traffic is actually being sent to the CPU. Monitoring the CPU utilization is one mechanism to determine how busy the processor is, but unfortunately it doesn't provide information regarding what traffic is causing the spike. Fortunately, there is a method to determine exactly what traffic is being sent to the CPU, and that is through the use of a Switched Port Analyzer (SPAN) session. SPAN provides a way to replicate (take a copy) traffic and forward that copy to an attached sniffer or probe.

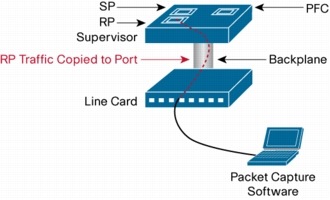

As part of a SPAN session, traffic that is processed by the route processor CPU can be captured and a copy sent to an attached analyzer or probe. The following example shows exactly this scenario of how to replicate traffic that is being set to the CPU and send it to port Gi1/4 (to which a sniffer or analyzer would be attached).
Figure 4.
monitor session 1 type local
source cpu rp
destination interface Gi1/4
This configuration creates a SPAN (monitor) session and will copy traffic from the source (route processor CPU) and forward this copy to a destination port identified as Gigabit Ethernet port 1/4.
By connecting a protocol analyzer (for example, Wireshark) to port Gi1/4, you will be able to quickly determine what traffic is being sent to the CPU and modify your policies accordingly.

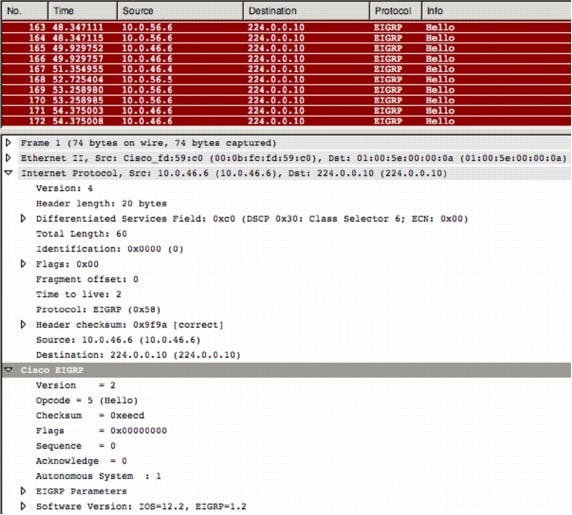

The following screen capture shows an example of captured EIGRP hello messages being sent from 10.0.56.6. It is with detailed information like this that can be invaluable in troubleshooting CoPP and HWRL. Even more so, this type of information can be used to quickly find the traffic volumes for different types of control plan data and from this an administrator can identify traffic types whose volumes might be cause for overloading the control plane. From this point the relevant CoPP and HWRL policies can be implemented to mitigate the switch CPU from being overwhelmed.
Figure 5.
Another important aspect to consider when troubleshooting CoPP is to monitor the hardware resources that are used to hold the CoPP policies. A CoPP policy uses hardware QoS TCAM resources. Typically there should be plenty of TCAM space available to hold these policies. However, should a switch be configured with a heavy set of QoS policies, there is likelihood of potential resource depletion. It is thus important to make sure that there is no resource overrun. The Cisco IOS Software "show tcam counts" command can be used to verify the TCAM utilization, and an example of this command output is shown in the following example.
Dist-5#show tcam counts
Used Free Percent Used Reserved
---- ---- ------------ --------
Labels:(in) 3 4093 0
Labels:(eg) 2 4094 0
ACL_TCAM
--------
Masks: 77 4019 1 72
Entries: 48 32720 0 576
QOS_TCAM
--------
Masks: 22 4074 0 18
Entries: 23 32745 0 144
LOU: 0 128 0
ANDOR: 0 16 0
ORAND: 0 16 0
ADJ: 3 2045 0
To understand each of these resources noted in the above table, let's quickly look at an ACL set and explain where and how these resources are consumed.
access-list 101 permit ip 10.1.1.0 0.0.0.255 host 192.168.1.10
access-list 102 permit ip 10.3.0.0 0.0.255.255 host 192.168.100.40
In this group of access lists the following TCAM resources would be used:
• A total of 5 QoS_TCAM entries (there are 5 lines above)
• A total of two labels are used (label 101 and 102)
• A total of three masks are used (host, 0.0.0.255 and 0.0.255.255)
• A total of 1 LOU is used (with the neq "not equal" operand in the second last entry)
Control Plane Protection Scenarios
There are several mechanisms that can be used to help protect against network attacks, including CoPP, rate limiting, and ACLs. Each method addresses specific needs, but when used in combination, provide a holistic approach to protecting the network infrastructure. Caution must be used to discriminate between good and bad traffic, or the attempt to control "bad" traffic may effect legitimate traffic. The following configuration guidelines will help to set an appropriate baseline.

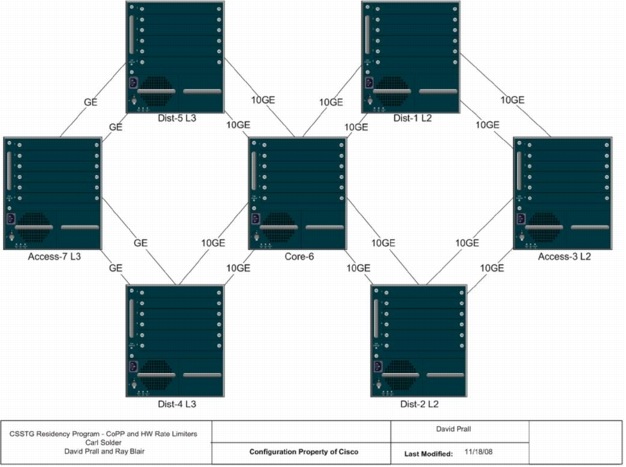

The following network diagram was used as a test-bed for the following situations.
Test 1 - SNMP
Test 2 - Telnet
Test 3 - HSRP
Test 4 - Targeted Services
Figure 6. Control Plane Protection Test Bed Network Diagram
Table 1. Tested code versions and devices
Device
Supervisor
Code Version
Dist-1
VS-S720-10G
12.2(33)SXH3a
Dist-2
VS-S720-10G
12.2(33)SXH3a
Access-3
VS-S720-10G
12.2(33)SXH3a
Dist-4
VS-S720-10G
12.2(33)SXI
Dist-5
VS-S720-10G
12.2(33)SXH3a
Core-6
WS-SUP720-3BXL
12.2(33)SXH3a
Access-7
WS-SUP32P-GE
12.2(18)ZY1
Test 1: SNMP
Objective: The objective of the following test is to overwhelm the Core-6 switch with SNMP packets targeted at the loop-back interface. This is a common occurrence in networks today. Many times, network administrators will implement new network monitoring tools and perform an operation called a "Management Information Base (MIB) walk." This process starts at the top of the MIB tree and reads the values of each MIB until it reaches the end. This process can be very processor intensive, especially if it is being run continuously.
Description: This test will simulate the "MIB walk" condition. A total of 1Gb/s of SNMP packets are generated from the Spirent Test Center connected to switch Access-3 port T3/3 and destined to the loop-back interface of Core-6.
The following output shows the CPU effect without any mechanisms to control the traffic flows; as you can see from the processor utilization, the switch CPU is overloaded and is very busy:
Core-6# show processes cpu sorted | exclude 0.00%__0.00%__0.00%
CPU utilization for five seconds: 99%/82%; one minute: 44%; five minutes: 11%
PID Runtime(ms) Invoked uSecs 5Sec 1Min 5Min TTY Process
146 954908 582631 1638 12.31% 6.35% 1.60% 0 IP Input
For the second portion of the test, an ACL (access-class) was created and applied to the community strings as shown below:
snmp-server community public RO 1
snmp-server community private RW 1
access-list 1 permit 10.0.0.254
access-list 1 deny any
You may expect that this would eliminate the problem. Even though the nefariously generated traffic didn't match the management ACL, that traffic was still redirected to the control plane, which negatively affected the CPU just as before:
Core-6#show processor cpu sor | e 0.00%__0.00%__0.00%
CPU utilization for five seconds: 92%/72%; one minute: 8%; five minutes: 2%
PID Runtime(ms) Invoked uSecs 5Sec 1Min 5Min TTY Process
146 551196 171011 3223 14.39% 1.15% 0.23% 0 IP Input
43 33216 1400 23725 0.00% 0.04% 0.00% 0 Per-minute Jobs
3 140112 102627 1365 0.00% 0.35% 0.13% 0 Exec
In order to protect the CPU, other mechanisms must be deployed, and for the purposes of this test a CoPP policy is applied. In this case, an ACL is created to match all SNMP traffic. A best practice approach would be to match only specific devices that should have SNMP access. This is for example only.
access-list 100 permit udp any any eq snmp
A class map is then defined that matches the previously created ACL.
class-map match-all CoPP_Class
match access-group 100
A policy map is defined that matches the class map and polices traffic to a specific rate. In the event SNMP traffic exceeded the defined parameters, it will be dropped.
policy-map CoPP_Policy
class CoPP_Class
police 64000 conform-action transmit exceed-action drop
Finally, the service policy must be applied to the control plane interface.
control-plane
service-policy input CoPP_Policy
With the same amount of traffic being generated, the CPU is at a much more manageable level.
Core-6# show processes cpu sorted | exclude 0.00%__0.00%__0.00%
CPU utilization for five seconds: 0%/0%; one minute: 1%; five minutes: 2%
PID Runtime(ms) Invoked uSecs 5Sec 1Min 5Min TTY Process
292 37460 320322 116 0.00% 0.02% 0.03% 0 Port manager per
As shown by the output below, the control plane policy map is dropping traffic in hardware, which has minimal (if any) effect on the CPU.
Core-6#show policy-map control-plane
Control Plane Interface
Service-policy input: CoPP_Policy
Hardware Counters:
class-map: CoPP_Class (match-all)
Match: access-group 100
police :
64000 bps 2000 limit 2000 extended limit
Earl in slot 1 :
0 bytes
5 minute offered rate 0 bps
aggregate-forwarded 0 bytes action: transmit
exceeded 0 bytes action: drop
aggregate-forward 0 bps exceed 0 bps
Earl in slot 2 :
246053248 bytes
5 minute offered rate 344381584 bps
aggregate-forwarded 85888 bytes action: transmit
exceeded 245967360 bytes action: drop
aggregate-forward 64000 bps exceed 187619936 bps
Software Counters:
Class-map: CoPP_Class (match-all)
670 packets, 83080 bytes
5 minute offered rate 6000 bps, drop rate 0 bps
Match: access-group 100
police:
cir 64000 bps, bc 2000 bytes
conformed 1131 packets, 140244 bytes; actions:
transmit
exceeded 1 packets, 124 bytes; actions:
drop
conformed 6000 bps, exceed 0 bps
Class-map: class-default (match-any)
113 packets, 15430 bytes
5 minute offered rate 1000 bps, drop rate 0 bps
Match: any
113 packets, 15430 bytes
5 minute rate 1000 bps
In order to see the what's happening on the hardware, use the command "show mls qos ip." Since QoS is implemented in hardware, one can see that module 2 has taken the appropriate action to protect the control plane.
Test 1 Summary: As seen in this example, you can see the tremendous benefit that CoPP offers beyond the simple application of an ACL. The ability to limit the amount of SNMP traffic that "hits" the CPU can be constrained to a value that will not overwhelm the processor.
Test 2: Telnet
Objective: Multiple administrator sessions initiated via telnet have the potential to affect the control plane. The objective of this test is to overwhelm the CPU with telnet traffic generated a 1Gb/s and through the use of CoPP to protect the CPU.
Description: Telnet packets are generated from Spirent Test Center connected to switch Access-3 port T3/3 destined to the loop-back interface of Core-6.
As shown from the output below, telnet traffic is overwhelming the CPU.
Core-6# show processes cpu sorted | exclude 0.00%__0.00%__0.00%
CPU utilization for five seconds: 99%/33%; one minute: 30%; five minutes: 20%
PID Runtime(ms) Invoked uSecs 5Sec 1Min 5Min TTY Process
146 1235200 761605 1621 64.98% 18.88% 5.94% 0 IP Input
The implementation of a CoPP policy for management traffic can mitigate the attack. The following example of a CoPP ACL is used to protect the Cisco Catalyst 6500 and provides a much better example for a best practice. Permitting traffic from the specific host(s) where traffic is allowed to come from is a much better approach. The class default is also configured in this example. Any traffic not matching one of the preconfigured policies will be controlled by the default-class. In this case, traffic not matching the CoPP policy will be policed according to the configuration below.
class-map match-any Management_Good_Class
match access-group name Management_Good_ACL
ip access-list extended Management_Good_ACL
permit udp host 10.1.0.254 any eq snmp
permit tcp host 10.1.0.3 any eq telnet
policy-map CoPP_Policy
class Management_Good_Class
police cir 6000000 bc 60000 be 60000
conform-action transmit
exceed-action drop
class class-default
police cir 500000 bc 5000 be 5000 conform-action transmit exceed-action drop violate-action drop
control-plane
service-policy input CoPP_Policy
!
With the CoPP in effect, the CPU reflects the change with very low utilization.
CPU utilization for five seconds: 2%/1%; one minute: 8%; five minutes: 21%
PID Runtime(ms) Invoked uSecs 5Sec 1Min 5Min TTY Process
146 1285284 774074 1660 1.03% 4.77% 10.00% 0 IP Input
For administrative purposes, the policy map indicates how the traffic has been controlled. This provides a great management tool to show the effectiveness of the applied policy. Notice that the traffic being dropped is performed in hardware from the default policy (class default).
Summary: Creating ACLs that permit valid management traffic initially, then limiting "other" traffic in the class default is much better and easier than attempting to match unknown traffic flows.
Test 3: HSRP
Objective: The objective of this test is to generate a high volume of multicast traffic targeted at the HSRP. An ACL will be used to protect the CPU against the multicast attack.
Description: HSRP crafted frames are sent from the Spirent Test Center sent to the multicast address of 224.0.0.2 connected to the switch Access-3 port T3/3.
The CPU on the Dist-2 switch is at 100%.
Dist-2# show processes cpu sorted | exclude 0.00%__0.00%__0.00%
CPU utilization for five seconds: 100%; one minute: 100%; five minutes: 94%
PID TID 5secUtil 1minUtil 5minUtil
16407 6 89.5% 88.2% 80.1%
16407 3 1.9% 1.1% 0.6%
16407 19 1.3% 1.2% 0.6%
16429 9 1.2% 1.3% 2.3%
16407 10 1.1% 0.9% 0.4%
HSRP adjacency changes are occurring due to the high volume of crafted traffic.
Dist-2#
3d04h: %HSRP-5-STATECHANGE: Vlan2 Grp 1 state Speak -> Standby
3d04h: %HSRP-5-STATECHANGE: Vlan2 Grp 1 state Standby -> Active
3d04h: %HSRP-5-STATECHANGE: Vlan2 Grp 1 state Active -> Speak
3d04h: %HSRP-5-STATECHANGE: Vlan2 Grp 1 state Speak -> Standby
3d04h: %HSRP-5-STATECHANGE: Vlan2 Grp 1 state Standby -> Active
3d04h: %HSRP-5-STATECHANGE: Vlan2 Grp 1 state Active -> Speak
3d04h: %HSRP-5-STATECHANGE: Vlan2 Grp 1 state Speak -> Standby
3d04h: %HSRP-5-STATECHANGE: Vlan2 Grp 1 state Standby -> Active
3d04h: %HSRP-5-STATECHANGE: Vlan2 Grp 1 state Active -> Speak
After configuring and applying an interface ACL to protect HSRP by only allowing the specific neighbor;
20 deny udp any host 224.0.0.2 eq 1985 (3354 matches)
30 permit ip any any (148 matches)
The CPU is now operating at a reasonable load.
Dist-2# show processes cpu sorted | exclude 0.00%__0.00%__0.00%
Load for five secs: 0%/0%; one minute: 5%; five minutes: 6%
Time source is hardware calendar, *00:57:49.095 UTC Wed Nov 19 2008
CPU utilization for five seconds: 3%; one minute: 59%; five minutes: 87%
PID TID 5secUtil 1minUtil 5minUtil
1 1 96.6% 41.1% 13.2%
16407 7 1.6% 1.1% 0.8%
16407 11 0.7% 0.7% 0.2%
16407 4 0.5% 1.7% 1.3%
16407 16 0.2% 1.1% 0.4%
16429 4 0.1% 0.3% 0.3%
You may be wondering why a control plane policy was not used. If a CoPP policy is created to protect against the HSRP attack instead of an ACL, the software process of CoPP will drive up the CPU, consequently making it unusable. You are in a "catch 22" situation, and the only way to mitigate the problem is using an ACL. The following output describes what happens when software CoPP is implemented.
Software Counters:
Class-map: Local_Traffic_Class (match-any)
4726693 packets, 7058933214 bytes
5 minute offered rate 78796000 bps, drop rate 77979000 bps
Summary: As seen from the previous example, a simple access list is the best solution to resolve this type of attack.
Test 4: Targeted Services
Objective: The objective of this test is to generate a high volume of multicast traffic targeted at the following critical services: spanning tree (Spanning Tree Protocol), DTP, PAgP. MLS rate limiting will be used to protect the CPU against the multicast attack.
Description: Layer 2 packet generation from Spirent Test Center sent to multicast MAC address of 01:00:0C:CC:CC:CC connected to the switch Access-3 port T3/3. These packets represent BPDUs, DTP, PAgP, Cisco Discovery Protocol, Spanning Tree Protocol, Unidirectional Link Detection (UDLD), and VTP packets.
Using PAgP on the distribution to access switches causes the CPU utilization on the switch to spike and disable the port channel. The undesirable side effect of this causes a loop in the network, consequently effecting the distribution and access switches.
Access-3#show etherchannel summary
Load for five secs: 99%/87%; one minute: 99%; five minutes: 85%
Time source is hardware calendar, *17:07:16.078 UTC Fri Nov 21 2008
Flags: D - down P - bundled in port-channel
I - stand-alone s - suspended
H - Hot-standby (LACP only)
R - Layer3 S - Layer2
U - in use N - not in use, no aggregation
f - failed to allocate aggregator
M - not in use, no aggregation due to minimum links not met
m - not in use, port not aggregated due to minimum links not met
To mitigate the attack, the port channels were reconfigured to "ON" and UDLD was used to prevent a unidirectional fiber connection. The result was that UDLD was affected and disabled a single port, but a spanning-tree loop was not created and the CPU of the switch remained low.
Access-3#show etherchannel summary
Load for five secs: 0%/0%; one minute: 1%; five minutes: 1%
Time source is hardware calendar, *17:52:39.842 UTC Fri Nov 21 2008
Flags: D - down P - bundled in port-channel
I - stand-alone s - suspended
H - Hot-standby (LACP only)
R - Layer3 S - Layer2
U - in use N - not in use, no aggregation
f - failed to allocate aggregator
M - not in use, no aggregation due to minimum links not met
m - not in use, port not aggregated due to minimum links not met
Summary: Protecting the Cisco Catalyst 6500 is all about using the right tool for the right job. CoPP, HWRL, ACLs, or other techniques can be used to make sure that your network remains functional under extreme conditions.
Recommended Baseline Configuration for Control Plane Protection
Ultimately any CoPP based policy is going to be based on the specific traffic profile that is present on a given network. However, this document will lay out a baseline configuration that can be used as a starting point for implementing a control plane protection policy. This configuration is set out below, and from this configuration, it can be refined to suit the needs of the respective network where it is implemented.
In our examples we will be using these addresses:
Cisco Catalyst 6500 Loopback used for Management = 10.0.0.1
Management Station IP Address = 10.1.1.2
TACACS+ Server IP Address = 10.1.1.3
NTP Server IP Address = 10.1.1.4
Network Management Subnet = 10.1.1.0/24
Using an ACL Reverse Mask = 10.1.1.0 0.0.0.255
Network Administrators VPN Address Range = 10.0.20.0/24
Using an ACL Reverse Mask = 10.0.20.0 0.0.0.255
The baseline configuration is set out below.
conf t
! mls qos must be enabled for Control Plane Policing to Function
mls qos
ip access-list extended acl-CoPP-SNMP
remark allow snmp to the management loopback
permit udp host 10.1.1.2 host 10.0.0.1 eq snmp
remark auto discovery will mean that management has to be reachable via any interface
permit udp host 10.1.1.2 any eq snmp
ip access-list extended acl-CoPP-TerminalSession
remark Will allow terminal sessions only from specific known locations
permit tcp 10.0.0.0 0.0.0.255 eq bgp host 10.0.0.1 established
remark If running eBGP you will need to add the neighbors as well
ip access-list extended acl-CoPP-ReturnTraffic
remark used to allow for traffic returning from TACACS+ servers
remark recommendation is to use specific host addresses in order to limit exposure
permit tcp host 10.1.1.3 eq tacacs any established
remark allow ntp packets
permit udp host 10.1.1.4 eq ntp any
permit udp host 10.1.1.4 any eq ntp
ip access-list extended acl-CoPP-GenericSSH
remark will allow ssh access from anywhere to any interface
permit tcp any any eq 22
ip access-list extended acl-CoPP-LocalManagement
remark all responses to device originated traceroute
permit icmp any any ttl-exceeded
permit icmp any any port-unreachable
remark all responses to device originated pings
permit icmp any any echo-reply
remark allow pings to the device
permit icmp any any echo
ip access-list extended acl-CoPP-Unwanted
remark place permits here for traffic that you do not want reaching the control plane
remark traffic in this acl will be dropped by the policy map
permit udp any any range 135 137
class-map class-CoPP-SNMP
match access-group name acl-CoPP-SNMP
class-map class-CoPP-TerminalSession
match access-group name acl-CoPP-TerminalSession
class-map class-CoPP-RoutingProtocol
match access-group name acl-CoPP-RoutingProtocol
class-map class-CoPP-ReturnTraffic
match access-group name acl-CoPP-ReturnTraffic
class-map class-CoPP-GenericSSH
match access-group name acl-CoPP-GenericSSH
class-map class-CoPP-LocalManagement
match access-group name acl-CoPP-LocalManagement
class-map class-CoPP-Unwanted
match access-group name acl-CoPP-Unwanted
policy-map policy-CoPP
! the order of the class-maps is very important here.
! we need to keep the routing protocol up so that everything is reachable
! we need to keep the AAA server reachable so that terminal session can be established
! the police rates are very generic, it is very important that you baseline your own network
! to determine what rate of traffic is absolutely required in order to function properly
! if you police certain applications at too low of a rate, the application will not deliver the information
! required. If you police at too high a rate, then you've opened your device up to an avenue of attack.
! remember this is all traffic that will hit the CPU, and impact overall capabilities to forward traffic.
class class-CoPP-RoutingProtocol
police 512000 conform-action transmit exceed-action drop
class class-CoPP-ReturnTraffic
police 64000 conform-action transmit exceed-action drop
class class-CoPP-TerminalSession
police 64000 conform-action transmit exceed-action drop
class class-CoPP-SNMP
police 32000 conform-action transmit exceed-action drop
class class-CoPP-GenericSSH
police 32000 conform-action transmit exceed-action drop
class class-CoPP-LocalManagement
police 64000 conform-action transmit exceed-action drop
class class-CoPP-Unwanted
police 32000 conform-action drop exceed-action drop
class class-default
! Generic class for everything else, let's give it some bandwidth just incase it does belong
! The 6500 can't match against multicast traffic, therefore our IGP will fall into here
! If using ISIS, you will need to create another class prior to this one to rate-limit IP Traffic
! and use class-default as the catch all for non-IP Traffic
! Tested with 2500 routes, both EIGRP and OSPF. EIGRP required 384k, while OSPF required 512K.
! Tested with 5000 routes. EIGRP required 1024k, while OSPF required 1152k.
! We still need to leave headroom for other applications that don't fit into other buckets
police 1024000 conform-action transmit exceed-action drop
control-plane
service-policy input policy-CoPP
end
Going beyond CoPP on its own, we can use the "mls qos protocol police" command to rate limit specific traffic to a known rate. The "mls qos protocol" command will police the traffic at Layer 2 as it is input to the Cisco Catalyst 6500. Therefore, in a large Layer 2 network, with Layer 3 edge interfaces, should the closest link fail between the Layer 3 devices and should the routing protocol traverse the Layer 2 network these commands will still be functional.
conf t
! So to support 2500 routes, we can rate-limit EIGRP to 384K.
! This will happen prior to the control-plane policy. Therefore leaving headroom for
! other protocols in the class-default
mls qos protocol eigrp police 384000
! We can also rate-limit arp traffic
! This will only make it so that the already known information is available under spanning-tree loops
! end systems will not be able to find each other as the arp rate-limit won't allow them to
! arp for unknown addresses, so other tools such as UDLD and proper network documentation
! still need to be used
mls qos protocol arp police 2048000
end
Switch Configurations Used In Baseline Tests
All of the tests, configurations, and recommendations documented in this paper were derived from a switch test setup in the Campus Switching Systems Technology Group (CSSTG) Technical Marketing Engineering lab in San Jose, California. The setup used is shown in the following diagram and associated configurations.
Figure 7.
Configuration for Dist-1
upgrade fpd auto
version 12.2
service timestamps debug uptime
service timestamps log uptime
service counters max age 5
!
hostname Dist-1
!
boot-start-marker
boot system flash disk0:s72033-ipservices_wan-mz.122-33.SXH3a.bin
