Cisco Catalyst 4500 Series Switches

Table Of Contents

Release Notes for the
Catalyst 4500 Series Switch,
Cisco IOS Releases 12.2(53)SG

Contents

Cisco IOS Software Packaging for the Cisco Catalyst 4500 Series

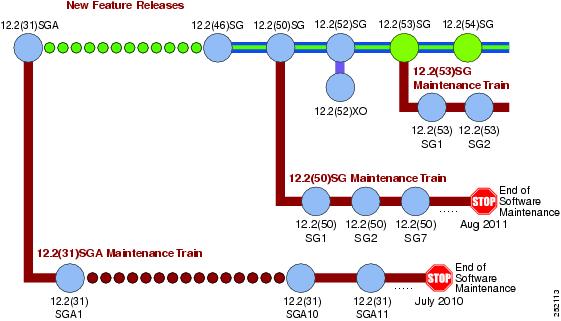

Catalyst 4500 Series Switch Cisco IOS Release Strategy

Cisco IOS Software Migration Guide

Summary of Migration Plan

System Requirements

Supported Hardware on Catalyst 4500 Series Switch

Supported Hardware on Catalyst 4500 E-Series Switch

Supported Features on the Catalyst 4500 Series Switch

Following Features are Supported only on the Supervisor Engine 6-E

Unsupported Features

New and Changed Information

New Hardware Features in Release 12.2(53)SG

New Software Features in Release 12.2(53)SG

New Hardware Features in Release 12.2(52)XO

New Software Features in Release 12.2(52)XO

New Hardware Features in Release 12.2(52)SG

New Software Features in Release 12.2(52)SG

New Hardware Features in Release 12.2(50)SG3

New Software Features in Release 12.2(50)SG3

New Hardware Features in Release 12.2(50)SG2

New Software Features in Release 12.2(50)SG2

New Hardware Features in Release 12.2(50)SG1

New Software Features in Release 12.2(50)SG1

New Hardware Features in Release 12.2(50)SG

New Software Features in Release 12.2(50)SG

New Hardware Features in Release 12.2(46)SG

New Software Features in Release 12.2(46)SG

New Hardware Features in Release 12.2(44)SG

New Software Features in Release 12.2(44)SG

New Hardware Features in Release 12.2(40)SG

New Software Features in Release 12.2(40)SG

New Hardware Features in Release 12.2(37)SG

New Software Features in Release 12.2(37)SG

New Hardware Features in Release 12.2(31)SGA

New Software Features in Release 12.2(31)SGA

New Hardware Features in Release 12.2(31)SG

New Software Features in Release 12.2(31)SG

New Hardware Features in Release 12.2(25)SG

New Software Features in Release 12.2(25)SG

New Hardware Features in Release 12.2(25)EWA

New Software Features in Release 12.2(25)EWA

New Hardware Features in Release 12.2(25)EW

New Software Features in Release 12.2(25)EW

New Hardware Features in Release 12.2(20)EWA

New Software Features in Release 12.2(20)EWA

New Hardware Features in Release 12.2(20)EW

New Software Features in Release 12.2(20)EW

New Hardware Features in Release 12.2(18)EW

New Software Features in Release 12.2(18)EW

New Hardware Features in Release 12.1(20)EW

New Software Features in Release 12.1(20)EW

New Hardware Features in Release 12.1(19)EW

New Software Features in Release 12.1(19)EW

New Hardware Features in Release 12.1(13)EW

New Software Features in Release 12.1(13)EW

New Hardware Features in Release 12.1(12c)EW

New Software Features in Release 12.1(12c)EW

New Hardware Features in Release 12.1(11b)EW

New Software Features in Release 12.1(11b)EW

New Hardware Features in Release 12.1(8a)EW

New Software Features in Release 12.1(8a)EW

Upgrading the System Software

Guidelines for Upgrading the ROMMON

Upgrading the Supervisor Engine ROMMON from the Console

Upgrading the Supervisor Engine ROMMON Remotely Using Telnet

Upgrading the Cisco IOS Software

Limitations and Restrictions

All Supervisor Engines

For Supervisor Engines II+Plus through V-10GE

For Supervisor Engine 6-E and 6L-E

Caveats

Open Caveats for Cisco IOS Release 12.2(53)SG

Resolved Caveats in Cisco IOS Release 12.2(53)SG

Open Caveats for Cisco IOS Release 12.2(52)XO

Resolved Caveats in Cisco IOS Release 12.2(52)XO

Open Caveats for Cisco IOS Release 12.2(52)SG

Resolved Caveats in Cisco IOS Release 12.2(52)SG

Open Caveats for Cisco IOS Release 12.2(50)SG5

Resolved Caveats in Cisco IOS Release 12.2(50)SG5

Open Caveats for Cisco IOS Release 12.2(50)SG4

Resolved Caveats in Cisco IOS Release 12.2(50)SG4

Open Caveats for Cisco IOS Release 12.2(50)SG3

Resolved Caveats in Cisco IOS Release 12.2(50)SG3

Open Caveats for Cisco IOS Release 12.2(50)SG2

Resolved Caveats in Cisco IOS Release 12.2(50)SG2

Open Caveats for Cisco IOS Release 12.2(50)SG1

Resolved Caveats in Cisco IOS Release 12.2(50)SG1

Open Caveats in Cisco IOS Release 12.2(50)SG

Resolved Caveats in Cisco IOS Release 12.2(50)SG

Open Caveats in Cisco IOS Release 12.2(46)SG

Resolved Caveats in Cisco IOS Release 12.2(46)SG

Open Caveats in Cisco IOS Release 12.2(44)SG1

Resolved Caveats in Cisco IOS Release 12.2(44)SG1

Open Caveats in Cisco IOS Release 12.2(44)SG

Resolved Caveats in Cisco IOS Release 12.2(44)SG

Open Caveats in Cisco IOS Release 12.2(40)SG

Resolved Caveats in Cisco IOS Release 12.2(40)SG

Open Caveats in Cisco IOS Release 12.2(37)SG1

Resolved Caveats in Cisco IOS Release 12.2(37)SG1

Open Caveats in Cisco IOS Release 12.2(37)SG

Resolved Caveats in Cisco IOS Release 12.2(37)SG

Open Caveats in Cisco IOS Release 12.2(31)SGA10

Resolved Caveats in Cisco IOS Release 12.2(31)SGA10

Open Caveats in Cisco IOS Release 12.2(31)SGA9

Resolved Caveats in Cisco IOS Release 12.2(31)SGA9

Open Caveats in Cisco IOS Release 12.2(31)SGA8

Resolved Caveats in Cisco IOS Release 12.2(31)SGA8

Open Caveats in Cisco IOS Release 12.2(31)SGA7

Resolved Caveats in Cisco IOS Release 12.2(31)SGA7

Open Caveats in Cisco IOS Release 12.2(31)SGA6

Resolved Caveats in Cisco IOS Release 12.2(31)SGA6

Open Caveats in Cisco IOS Release 12.2(31)SGA5

Resolved Caveats in Cisco IOS Release 12.2(31)SGA5

Open Caveats in Cisco IOS Release 12.2(31)SGA4

Resolved Caveats in Cisco IOS Release 12.2(31)SGA4

Open Caveats in Cisco IOS Release 12.2(31)SGA3

Resolved Caveats in Cisco IOS Release 12.2(31)SGA3

Open Caveats in Cisco IOS Release 12.2(31)SGA2

Resolved Caveats in Cisco IOS Release 12.2(31)SGA2

Open Caveats in Cisco IOS Release 12.2(31)SGA1

Resolved Caveats in Cisco IOS Release 12.2(31)SGA1

Open Caveats in Cisco IOS Release 12.2(31)SGA

Resolved Caveats in Cisco IOS Release 12.2(31)SGA

Open Caveats in Cisco IOS Release 12.2(31)SG3

Resolved Caveats in Cisco IOS Release 12.2(31)SG3

Open Caveats in Cisco IOS Release 12.2(31)SG2

Resolved Caveats in Cisco IOS Release 12.2(31)SG2

Open Caveats in Cisco IOS Release 12.2(31)SG1

Resolved Caveats in Cisco IOS Release 12.2(31)SG1

Open Caveats in Cisco IOS Release 12.2(31)SG

Resolved Caveats in Cisco IOS Release 12.2(31)SG

Open Caveats in Cisco IOS Release 12.2(25)SG4

Resolved Caveats in Cisco IOS Release 12.2(25)SG4

Open Caveats in Cisco IOS Release 12.2(25)SG3

Resolved Caveats in Cisco IOS Release 12.2(25)SG3

Open Caveats in Cisco IOS Release 12.2(25)SG2

Resolved Caveats in Cisco IOS Release 12.2(25)SG2

Open Caveats in Cisco IOS Release 12.2(25)SG1

Resolved Caveats in Cisco IOS Release 12.2(25)SG1

Open Caveats in Cisco IOS Release 12.2(25)SG

Resolved Caveats in Cisco IOS Release 12.2(25)SG

Open Caveats in Cisco IOS Release 12.2(25)EWA14

Resolved Caveats in Cisco IOS Release 12.2(25)EWA14

Open Caveats in Cisco IOS Release 12.2(25)EWA13

Resolved Caveats in Cisco IOS Release 12.2(25)EWA13

Open Caveats in Cisco IOS Release 12.2(25)EWA12

Resolved Caveats in Cisco IOS Release 12.2(25)EWA12

Open Caveats in Cisco IOS Release 12.2(25)EWA11

Resolved Caveats in Cisco IOS Release 12.2(25)EWA11

Open Caveats in Cisco IOS Release 12.2(25)EWA10

Resolved Caveats in Cisco IOS Release 12.2(25)EWA10

Open Caveats in Cisco IOS Release 12.2(25)EWA9

Resolved Caveats in Cisco IOS Release 12.2(25)EWA9

Open Caveats in Cisco IOS Release 12.2(25)EWA8

Resolved Caveats in Cisco IOS Release 12.2(25)EWA8

Open Caveats in Cisco IOS Release 12.2(25)EWA7

Resolved Caveats in Cisco IOS Release 12.2(25)EWA7

Open Caveats in Cisco IOS Release 12.2(25)EWA6

Resolved Caveats in Cisco IOS Release 12.2(25)EWA6

Open Caveats in Cisco IOS Release 12.2(25)EWA5

Resolved Caveats in Cisco IOS Release 12.2(25)EWA5

Open Caveats in Cisco IOS Release 12.2(25)EWA4

Resolved Caveats in Cisco IOS Release 12.2(25)EWA4

Open Caveats in Cisco IOS Release 12.2(25)EWA3

Resolved Caveats in Cisco IOS Release 12.2(25)EWA3

Open Caveats in Cisco IOS Release 12.2(25)EWA2

Resolved Caveats in Cisco IOS Release 12.2(25)EWA2

Open Caveats in Cisco IOS Release 12.2(25)EWA1

Resolved Caveats in Cisco IOS Release 12.2(25)EWA1

Open Caveats in Cisco IOS Release 12.2(25)EWA

Resolved Caveats in Cisco IOS Release 12.2(25)EWA

Open Caveats in Cisco IOS Release 12.2(25)EW

Resolved Caveats in Cisco IOS Release 12.2(25)EW

Open Caveats in Cisco IOS Release 12.2(20)EWA4

Resolved Caveats in Cisco IOS Release 12.2(20)EWA4

Open Caveats in Cisco IOS Release 12.2(20)EWA3

Resolved Caveats in Cisco IOS Release 12.2(20)EWA3

Open Caveats in Cisco IOS Release 12.2(20)EWA2

Resolved Caveats in Cisco IOS Release 12.2(20)EWA2

Open Caveats in Cisco IOS Release 12.2(20)EWA1

Resolved Caveats in Cisco IOS Release 12.2(20)EWA1

Open Caveats in Cisco IOS Release 12.2(20)EWA

Resolved Caveats in Cisco IOS Release 12.2(20)EWA

Open Caveats in Cisco IOS Release 12.2(20)EW4

Resolved Caveats in Cisco IOS Release 12.2(20)EW4

Open Caveats in Cisco IOS Release 12.2(20)EW3

Resolved Caveats in Cisco IOS Release 12.2(20)EW3

Open Caveats in Cisco IOS Release 12.2(20)EW2

Resolved Caveats in Cisco IOS Release 12.2(20)EW2

Open Caveats in Cisco IOS Release 12.2(20)EW1

Resolved Caveats in Cisco IOS Release 12.2(20)EW1

Open Caveats in Cisco IOS Release 12.2(20)EW

Resolved Caveats in Cisco IOS Release 12.2(20)EW

Open Caveats in Cisco IOS Release 12.2(18)EW7

Resolved Caveats in Cisco IOS Release 12.2(18)EW7

Open Caveats in Cisco IOS Release 12.2(18)EW6

Resolved Caveats in Cisco IOS Release 12.2(18)EW6

Open Caveats in Cisco IOS Release 12.2(18)EW5

Resolved Caveats in Cisco IOS Release 12.2(18)EW5

Open Caveats in Cisco IOS Release 12.2(18)EW4

Resolved Caveats in Cisco IOS Release 12.2(18)EW4

Open Caveats in Cisco IOS Release 12.2(18)EW3

Resolved Caveats in Cisco IOS Release 12.2(18)EW3

Open Caveats in Cisco IOS Release 12.2(18)EW2

Resolved Caveats in Cisco IOS Release 12.2(18)EW2

Open Caveats in Cisco IOS Release 12.2(18)EW1

Resolved Caveats in Cisco IOS Release 12.2(18)EW1

Open Caveats in Cisco IOS Release 12.2(18)EW

Resolved Caveats in Cisco IOS Release 12.2(18)EW

Open Caveats in Cisco IOS Release 12.1(20)EW4

Resolved Caveats in Cisco IOS Release 12.1(20)EW4

Open Caveats in Cisco IOS Release 12.1(20)EW3

Resolved Caveats in Cisco IOS Release 12.1(20)EW3

Open Caveats in Cisco IOS Release 12.1(20)EW1

Resolved Caveats in Cisco IOS Release 12.1(20)EW1

Open Caveats in Cisco IOS Release 12.1(20)EW

Resolved Caveats in Cisco IOS Release 12.1(20)EW

Open Caveats in Cisco IOS Release 12.1(19)EW3

Resolved Caveats in Cisco IOS Release 12.1(19)EW3

Open Caveats in Cisco IOS Release 12.1(19)EW2

Resolved Caveats in Cisco IOS Release 12.1(19)EW2

Open Caveats in Cisco IOS Release 12.1(19)EW1

Resolved Caveats in Cisco IOS Release 12.1(19)EW1

Open Caveats in Cisco IOS Release 12.1(19)EW

Resolved Caveats in Cisco IOS Release 12.1(19)EW

Open Caveats in Cisco IOS Release 12.1(13)EW4

Resolved Caveats in Cisco IOS Release 12.1(13)EW4

Open Caveats in Cisco IOS Release 12.1(13)EW3

Resolved Caveats in Cisco IOS Release 12.1(13)EW3

Open Caveats in Cisco IOS Release 12.1(13)EW2

Resolved Caveats in Cisco IOS Release 12.1(13)EW2

Open Caveats in Cisco IOS Release 12.1(13)EW1

Resolved Caveats in Cisco IOS Release 12.1(13)EW1

Open Caveats in Cisco IOS Release 12.1(13)EW

Resolved Caveats in Cisco IOS Release 12.1(13)EW

Open Caveats in Cisco IOS Release 12.1(12c)EW4

Resolved Caveats in Cisco IOS Release 12.1(12c)EW4

Open Caveats in Cisco IOS Release 12.1(12c)EW3

Resolved Caveats in Cisco IOS Release 12.1(12c)EW3

Open Caveats in Cisco IOS Release 12.1(12c)EW2

Resolved Caveats in Cisco IOS Release 12.1(12c)EW2

Open Caveats in Cisco IOS Release 12.1(12c)EW1

Resolved Caveats in Cisco IOS Release 12.1(12c)EW1

Open Caveats in Cisco IOS Release 12.1(12c)EW

Resolved Caveats in Cisco IOS Release 12.1(12c)EW

Open Caveats in Cisco IOS Release 12.1(11b)EW1

Resolved Caveats in Cisco IOS Release 12.1(11b)EW1

Open Caveats in Cisco IOS Release 12.1(11b)EW

Resolved Caveats in Cisco IOS Release 12.1(11b)EW

Open Caveats in Cisco IOS Release 12.1(8a)EW1

Resolved Caveats in Cisco IOS Release 12.1(8a)EW1

Open Caveats in Cisco IOS Release 12.1(8a)EW

Resolved Caveats in Cisco IOS Release 12.1(8a)EW

Troubleshooting

Netbooting from the ROMMON

Troubleshooting at the System Level

Troubleshooting Modules

Troubleshooting MIBs

Related Documentation

Hardware Documents

Software Documentation

Cisco IOS Documentation

Notices

OpenSSL/Open SSL Project

License Issues

Obtaining Documentation and Submitting a Service Request

Release Notes for the
Catalyst 4500 Series Switch,
Cisco IOS Releases 12.2(53)SG

---

Current Release
12.2(53)SG—July 22, 2009

Previous Releases
12.2(52)XO, 12.2(52)SG, 12.2(50)SG5, 12.2(50)SG4, 12.2(50)SG3, 12.2(50)SG2, 12.2(50)SG1, 12.2(50)SG, 12.2(46)SG, 12.2(44)SG1, 12.2(44)SG, 12.2(40)SG, 12.2(37)SG1, 12.2(37)SG, 12.2(31)SGA10, 12.2(31)SGA9, 12.2(31)SGA8, 12.2(31)SGA7, 12.2(31)SGA6, 12.2(31)SGA5, 12.2(31)SGA4, 12.2(31)SGA3, 12.2(31)SGA2, 12.2(31)SGA1, 12.2(31)SGA, 12.2(31)SG3, 12.2(31)SG2, 12.2(31)SG1, 12.2(31)SG, 12.2(25)SG4, 12.2(25)SG3, 12.2(25)SG2, 12.2(25)SG1, 12.2(25)SG, 12.2(25)EWA14, 12.2(25)EWA13, 12.2(25)EWA12, 12.2(25)EWA11, 12.2(25)EWA10, 12.2(25)EWA9, 12.2(25)EWA8, 12.2(25)EWA7, 12.2(25)EWA6, 12.2(25)EWA5, 12.2(25)EWA4, 12.2(25)EWA3, 12.2(25)EWA2, 12.2(25)EWA1, 12.2(25)EW, 12.2(20)EWA4, 12.2(20)EWA3, 12.2(20)EWA2, 12.2(20)EWA1, 12.2(20)EWA, 12.2(20)EW4, 12.2(20)EW3, 12.2(20)EW2, 12.2(20)EW1, 12.2(20)EW, 12.2(18)EW7, 12.2(18)EW6, 12.2(18)EW5, 12.2(18)EW4, 12.2(18)EW3, 12.2(18)EW2, 12.2(18)EW1, 12.2(18)EW, 12.1(20)EW4, 12.1(20)EW3, 12.1(20)EW1, 12.1(20)EW, 12.1(19)EW3, 12.1(19)EW2, 12.1(19)EW1, 12.1(19)EW, 12.1(13)EW4, 12.1(13)EW3, 12.1(13)EW1, 12.1(13)EW, 12.1(12c)EW4, 12.1(12c)EW3, 12.1(12c)EW1, 12.1(12c)EW, 12.1(11b)EW1, 12.1(11b)EW, 12.1(8a)EW1, 12.1(8a)EW

These release notes describe the features, modifications, and caveats for the Cisco IOS software on the Catalyst 4500 series switch. The most current software release is Cisco IOS Release 12.2(53)SG.

Support for Cisco IOS Software Release 12.2(53)SG, the default image, follows the standard Cisco Systems® support policy, available at
http://www.cisco.com/en/US/products/products_end-of-life_policy.html

---

Note Although their Release Notes are unique, the 4 platforms (Catalyst 4500, Catalyst 4900,
Catalyst ME 4900, and Catalyst 4900M) use the same Software Configuration Guide, Command Reference Guide, and System Message Guide. Refer to this location:

http://www.cisco.com/go/cat4500/docs

---

Contents

This publication consists of these sections:

•Cisco IOS Software Packaging for the Cisco Catalyst 4500 Series

•Orderable Product Numbers:

•Catalyst 4500 Series Switch Cisco IOS Release Strategy

•System Requirements

•New and Changed Information

•Upgrading the System Software

•Limitations and Restrictions

•Caveats

•Troubleshooting

•Related Documentation

•Notices

•Obtaining Documentation and Submitting a Service Request

Cisco IOS Software Packaging for the Cisco Catalyst 4500 Series

A new Cisco IOS Software package for Cisco Catalyst 4500 Series Switches was introduced in Cisco IOS Software Release 12.2(25)SG. It is a new foundation for features and functionality and provides consistency across all Cisco Catalyst switches. The new Cisco IOS Software release train is designated as 12.2SG.

Prior Cisco Catalyst 4500 Series IOS Software images for the Cisco Catalyst 4500 Series Switches, formerly known as Basic Layer 3 and Enhanced Layer 3, now map to IP Base and Enterprise Services, respectively. All currently shipping Cisco Catalyst 4500 software features based on Cisco IOS Software are supported in the IP Base image of Release 12.2(53)SG, with a few exceptions.

The IP Base image does not support enhanced routing features such as NSF/SSO, BGP, EIGRP, EIGRPv6, OSPF, OSPFv3, IS-IS, Internetwork Packet Exchange (IPX), AppleTalk, VRF-lite, and Policy-Based Routing (PBR). The IP Base image supports EIGRP-Stub for limited routing on Supervisor Engines II-Plus, II-Plus-TS, II-Plus-10GE, IV, V, V-10GE, and 6-E.

The Enterprise Services image supports all Cisco Catalyst 4500 Series software features based on Cisco IOS Software, including enhanced routing. Customers planning to enable BGP for Supervisor Engine IV, V, or V-10GE will no longer need to purchase a separate BGP license (FR-IRC4) because BGP is included in the Enterprise Services package.

Cisco IOS Release 12.2(46)SG1 introduced a new LAN Base software and an IP upgrade image. These complement the existing IP Base and Enterprise Services images. The LAN base image is supported on the Supervisor Engine II-Plus-10GE and Supervisor Engine 6L-E starting with
Cisco IOS Release 12.2(52)XO. LAN Base image is primarily focused on customer access and Layer 2 requirements and therefore many of the IP Base features are not required. The IP upgrade image is available if at a later date you require some of those features.

Figure 1 illustrates feature support within the 3 packages: LAN Base, IP Base, and Enterprise Services. This is not a detailed list.

Please visit Feature Navigator for full package details: http://tools.cisco.com/ITDIT/CFN/.

Figure 1 Feature Support by Package

Table 1 contrasts feature support on the LAN Base vs IP Base images.

---

Note You can purchase a special license to enable the 10 Gigabit uplinks in the LAN Base image without moving to IP Base.

---

---

Note By default all the Features are supported on Enterprise Services image.

---

Table 1 LAN Base/IP Base Image Support

Feature	LAN Base	IP Base
10G Uplink Use	12.2(46)SG1 (with license)	Yes
802.1p prioritization	12.2(46)SG1	Yes
802.1p/802.1q	12.2(46)SG1	Yes
802.1w/802.1s	12.2(46)SG1	Yes
802.1X (w/ Guest VLAN and VLAN Assignment)	12.2(50)SG	Yes
802.1X and MAB with ACL assignment	12.2(50)SG	Yes
802.1X (Auth-Fail VLAN, Critical Auth, Accounting)	12.2(50)SG	Yes
802.1X Wake on LAN	12.2(50)SG	Yes
802.1X Web-Auth	12.2(50)SG	Yes
802.1X with Multiple authenticated, multi-host	12.2(50)SG	Yes
802.1X w/ MDA	12.2(50)SG	Yes
802.1X w/ Open Access	12.2(50)SG	Yes
802.3ad LACP	12.2(46)SG1	Yes
802.3x - Flow Control	12.2(46)SG1	Yes
ACL Logging	12.2(46)SG1	Yes
All Mibs (EBAY MiBs a priority)	12.2(52)SG	Yes
Auto QoS	12.2(53)SG	Yes
Auto-MDIX	12.2(46)SG1	Yes
Auto-Voice VLAN (part of Auto QoS)	No support	Yes
BOOTP	12.2(46)SG1	Yes
Bootup GOLD	No support	Yes
Broadcast Suppression	12.2(46)SG1	Yes
CDP/CDPv2	12.2(46)SG1	Yes
Community PVLAN support	No support	Yes
Config File	12.2(46)SG1	Yes
Console Access	12.2(46)SG1	Yes
Control Plane Policing	12.2(46)SG1	Yes
Copy Command	12.2(46)SG1	Yes
CoS to DSCP Map	Yes	Yes
Debug Commands	12.2(46)SG1	Yes
Device Management	12.2(46)SG1	Yes
DHCP Server	12.2(46)SG1	Yes
DHCP Snooping	12.2(46)SG1	Yes
Diagnostics Tools	12.2(46)SG1	Yes
Downloading Software	12.2(46)SG1	Yes
DSCP to CoS Map	12.2(46)SG1	Yes
DSCP to egress queue mapping	12.2(46)SG1	Yes
Dynamic ARP inspection	12.2(46)SG1	Yes
EEM and EOT integration	12.2(46)SG1	No
EIGRP Stub	No support	Yes
EnergyWise 1.0	12.2(53)SG	Yes
EPoE	12.2(53)SG	Yes
Event Log	12.2(46)SG1	Yes
Factory Default Settings	12.2(46)SG1	Yes
File Management	12.2(46)SG1	Yes
Flex Link	12.2(53)SG	Yes
GLBP	No support	Yes
HSRP/VRRP	No support	Yes
HSRP v2 IPV41	No support	Yes
HSRP v2 IPV62	No support	Yes
ID 4.0 Voice Vlan assignment	12.2(46)SG1	Yes
ID4.1 Filter ID and per use ACL	12.2(46)SG1	Yes
IGMP	12.2(46)SG1	Yes
IGMP Snooping	12.2(46)SG1	Yes
Ingress Policing	12.2(46)SG1	Yes
Interface Access (Telnet, Console/Serial, Web)	12.2(46)SG1	Yes
IP Source Guard	12.2(46)SG1	Yes
IP Multicast	No support	Yes
IPV6 reformation	NA	Yes
IPV6 MLD snooping V1 and V2	12.2(53)SG	Yes
ISL Trunk	12.2(46)SG1	Yes
ISSU	No support	Yes
Jumbo Frames	12.2(46)SG1	Yes
Layer 2 Debug	12.2(46)SG1	Yes
Layer 2 PT and QinQ	No support	Yes
Layer 2 Traceroute	12.2(46)SG1	Yes
LLDP/LLDP-MED	12.2(52)SG	Yes
Local Web Auth	12.2(52)SG	Yes
MAB (MAC Authentication Bypass)	12.2(50)SG	Yes
MAC Address Filtering	12.2(50)SG	Yes
MAC Based Access List	12.2(50)SG	Yes
Management IPV6 port	12.2(52)SG	Yes
MLD Snooping	12.2(53)SG	Yes
Multicast Filtering	12.2(46)SG1	Yes
Multihop SXP (CTS)	No support	12.2(52SG
No. of QoS Filters No. of Security ACE	Yes (4K entries)	Yes
OSPF for Routed Access	No support	Yes
PAgP	12.2(46)SG1	Yes
Passwords Password clear protection	12.2(46)SG1	Yes
PIM SM/DM	No support	Yes
PoE (up to 15.4W only)	12.2(46)SG1	Yes
PoE+ Ready	Yes	Yes
Port Monitoring (interface Stats)	12.2(46)SG1	Yes
Port Security	12.2(46)SG1	Yes; only 1024 MACs
Post Status	12.2(46)SG1	Yes
PVST+	12.2(53)SG	Yes
Q-in-Q	No support	Yes
RACL (DSCP based)	12.2(46)SG1	Yes
RADIUS/TACACS+ (AAA)	12.2(46)SG1	Yes
RMON	12.2(46)SG1	Yes
Routing - RIP, Static	12.2(46)SG1	Yes
RPR	12.2(46)SG1	Yes
RPVST+	12.2(53)SG	Yes
RSPAN	12.2(46)SG1	Yes
Smart Call Home	No support	Yes
Smartports (Role based MACRO)	12/2(53)SG	Yes
SNMP (including SNMv3)	12.2(46)SG1	Yes
Source port Filtering (Private VLAN)	12.2(46)SG1	Yes
SPAN (# of sessions) - Port Mirroring	12.2(46)SG1 (2 sessions)	Yes (8 bidirectional sessions)
SSHv2/Secure Copy, FTP, SSL, Syslog, Sys Information	12.2(46)SG1	Yes
Storm Control	12.2(46)SG1	Yes
TDR	12.2(53)SG	Yes
Time Protocols (SNTP, TimeP)	12.2(46)SG1	Yes
Time-based ACL	12.2(46)SG1	Yes
Traffic Mirroring (SPAN)	12.2(46)SG1	Yes
Trusted Boundary (LLDP & CDP Based)	12.2(46)SG1	Yes
UDLD	12.2(46)SG1	Yes
VACL and PACL	12.2(46)SG1	Yes
Voice VLAN	12.2(46)SG1	Yes
VRRP	No support	Yes
VTP	12.2(46)SG1	Yes
WCCP	No support	Yes

1 Supported on all supervisor engines. 2 Supported only for Catalyst 4900M and Supervisor Engines 6-E/6L-E.

Orderable Product Numbers:

•S45ES-12253SG - Cisco IOS Software for the Cisco Catalyst 4500 Series Supervisor Engines IV, V, and V-10GE (Enterprise Services image with Border Gateway Protocol [BGP] support, without Crypto)

•S45IPBK9-12253SG - Cisco IOS Software for the Cisco Catalyst 4500 Series Supervisor Engines II-Plus, II-Plus-TS, II-Plus-10GE, IV, V, and V-10GE (IP Base image with Triple Data Encryption Standard [3DES])

•S45IPB-12253SG - Cisco IOS Software for the Cisco Catalyst 4500 Series Supervisor Engines II-Plus, II-Plus-TS, II-Plus-10GE, IV, V, and V-10GE (IP Base image without Crypto)

•S45ESK9-12253SG - Cisco IOS Software for the Cisco Catalyst 4500 Series Supervisor Engines IV, V, and V-10GE (Enterprise Services image with 3DES and BGP support)

•S45LB-12253SG - Cisco IOS Software for the Cisco Catalyst 4500 Series Supervisor Engine II-Plus-10GE (LAN Base image)

•S45LBK9-12253SG - Cisco IOS Software for the Cisco Catalyst 4500 Series Supervisor Engine II-Plus-10GE (LAN Base image with 3DES)

•S45IPBU-12253SG - Cisco IOS Software for the Cisco Catalyst 4500 Series Supervisor Engine II-Plus-10GE (IP Base Upgrade image)

•S45IPBUK9-12253SG - Cisco IOS Software for the Cisco Catalyst 4500 Series Supervisor Engine II-Plus-10GE (IP Base Upgrade image with 3DES)

•S45EES-12253SG - Cisco IOS Software for the Cisco Catalyst 4500 Series Supervisor Engine 6-E (Enterprise Services image)

•S45EESK9-12253SG - Cisco IOS Software for the Cisco Catalyst 4500 Series Supervisor Engine 6-E (Enterprise Services image with 3DES)

•S45EIPB-12253SG - Cisco IOS Software for the Cisco Catalyst 4500 Supervisor Engine 6-E and 6L-E (IP Base image)

•S45EIPBK9-12253SG - Cisco IOS Software for the Cisco Catalyst 4500 Series Supervisor Engine 6-E and 6L-E (IP Base image with 3DES)

•S45ELB-12253SG - Cisco IOS Software for the Cisco Catalyst 4500 Series Supervisor Engine 6L-E (LAN Base image)

•S45ELBK9-12253SG - Cisco IOS Software for the Cisco Catalyst 4500 Series Supervisor Engine 6L-E (LAN Base image with 3DES)

•S45EIPBU-12253SG - Cisco IOS Software for the Cisco Catalyst 4500 Series Supervisor Engine 6L-E (IP Base Upgrade image)

•S45EIPBUK9-12253SG - Cisco IOS Software for the Cisco Catalyst 4500 Series Supervisor Engine 6L-E (IP Base Upgrade image with 3DES)

•S45ELB-12252X0 - Cisco IOS software for the Catalyst 4500 Sup 6L-E (LAN Base, without crypto

•S45ELBK9- 12252X0 Cisco IOS software for the Catalyst 4500 Sup 6L-E (LAN Base image with Triple Data Encryption Standard(3DES))

•S45EIPB-12252X0 Cisco IOS software for the Catalyst 4500 Sup 6L-E (IP Base image without Crypto)

•S45EIPBK9-12252X0 Cisco IOS software for the Catalyst 4500 Sup 6L-E (IP Base image with Triple Data Encryption Standard(3DES))

•S45EIPBU-12252X0 Cisco IOS software for the Catalyst 4500 Sup 6L-E (IP upgrade image without Crypto)

•S45EIPBUK9-12252X0 Cisco IOS software for the Catalyst 4500 Sup 6L-E (IP upgrade image with Triple Data Encryption Standard(3DES))

•S45IPB-12252SG-Cisco IOS software for the Catalyst 4500 Series Supervisor Engines II-Plus, II-Plus-TS, II-Plus-10GE, IV, V, and V-10GE (IP Base image, without Crypto) (cat4500-ipbase-mz)

•S45IPBK9-12252SG-Cisco IOS software for the Catalyst 4500 Series Supervisor Engines II-Plus, II-Plus-TS, II-Plus-10GE, IV, V, and V-10GE (IP Base image with Triple Data Encryption Standard (3DES)) (cat4500-ipbasek9-mz)

•S45ES-12252SG-Cisco IOS software for the Catalyst 4500 Series Supervisor Engines IV, V, and V-10GE (Enterprise Services image with BGP support, without Crypto) (cat4500-entservices-mz)

•S45ESK9-12252SG-Cisco IOS software for the Catalyst 4500 Series Supervisor Engines IV, V, and V-10GE (Enterprise Services image with 3DES and BGP support) (cat4500-entservicesk9-mz)

•S45EIPB-12252SG-Cisco IOS software for the Catalyst 4500 Series Supervisor Engine 6-E (IP Base Image)

•S45EIPBK9-12252SG-Cisco IOS software for the Catalyst 4500 Series Supervisor Engine 6-E (IP Base Image with 3DES) (cat4500-ipbasek9-mz)

•S45EES-12252SG-Cisco IOS software for the Catalyst 4500 Series Supervisor Engine 6-E (Enterprise Services image) (cat4500-ipbasek9-mz)

•S45EESK9-12252SG-Cisco IOS software for the Catalyst 4500 Series Supervisor Engine 6-E (Enterprise Services image) (cat4500-ipbasek9-mz)

•S45IPB-12250SG—Cisco IOS software for the Catalyst 4500 Series Supervisor Engines II-Plus, II-Plus-TS, II-Plus-10GE, IV, V, and V-10GE (IP Base image, without Crypto) (cat4500-ipbase-mz)

•S45IPBK9-12250SG—Cisco IOS software for the Catalyst 4500 Series Supervisor Engines II-Plus, II-Plus-TS, II-Plus-10GE, IV, V, and V-10GE (IP Base image with Triple Data Encryption Standard (3DES)) (cat4500-ipbasek9-mz)

•S45ES-12250SG—Cisco IOS software for the Catalyst 4500 Series Supervisor Engines IV, V, and V-10GE (Enterprise Services image with BGP support, without Crypto) (cat4500-entservices-mz)

•S45ESK9-12250SG—Cisco IOS software for the Catalyst 4500 Series Supervisor Engines IV, V, and V-10GE (Enterprise Services image with 3DES and BGP support) (cat4500-entservicesk9-mz)

•S45EIPB-12250SG—Cisco IOS software for the Catalyst 4500 Series Supervisor Engine 6-E (IP Base Image)

•S45EIPBK9-12250SG—Cisco IOS software for the Catalyst 4500 Series Supervisor Engine 6-E (IP Base Image with 3DES) (cat4500-ipbasek9-mz)

•S45EES-12250SG—Cisco IOS software for the Catalyst 4500 Series Supervisor Engine 6-E (Enterprise Services image) (cat4500-ipbasek9-mz)

•S45EESK9-12250SG—Cisco IOS software for the Catalyst 4500 Series Supervisor Engine 6-E (Enterprise Services image) (cat4500-ipbasek9-mz)

•S45IPB-12246SG—Cisco IOS software for the Catalyst 4500 Series Supervisor Engines II-Plus, II-Plus-TS, II-Plus-10GE, IV, V, and V-10GE (IP Base image, without Crypto) (cat4500-ipbase-mz)

•S45IPBK9-12246SG—Cisco IOS software for the Catalyst 4500 Series Supervisor Engines II-Plus, II-Plus-TS, II-Plus-10GE, IV, V, and V-10GE (IP Base image with Triple Data Encryption Standard (3DES)) (cat4500-ipbasek9-mz)

•S45ES-12246SG—Cisco IOS software for the Catalyst 4500 Series Supervisor Engines IV, V, and V-10GE (Enterprise Services image with BGP support, without Crypto) (cat4500-entservices-mz)

•S45ESK9-12246SG—Cisco IOS software for the Catalyst 4500 Series Supervisor Engines IV, V, and V-10GE (Enterprise Services image with 3DES and BGP support) (cat4500-entservicesk9-mz)

•S45EIPB-12246SG—Cisco IOS software for the Catalyst 4500 Series Supervisor Engine 6-E (IP Base Image)

•S45IPBK9-12246SG—Cisco IOS software for the Catalyst 4500 Series Supervisor Engine 6-E (IP Base Image with 3DES) (cat4500-ipbasek9-mz)

•S45EES-12246SG—Cisco IOS software for the Catalyst 4500 Series Supervisor Engine 6-E (Enterprise Services image) (cat4500-ipbasek9-mz)

•S45EESK9-12246SG—Cisco IOS software for the Catalyst 4500 Series Supervisor Engine 6-E (Enterprise Services image) (cat4500-ipbasek9-mz)

•S45IPB-12244SG—Cisco IOS software for the Catalyst 4500 Series Supervisor Engines II-Plus, II-Plus-TS, II-Plus-10GE, IV, V, and V-10GE (IP Base image, without Crypto) (cat4500-ipbase-mz)

•S45IPBK9-12244SG—Cisco IOS software for the Catalyst 4500 Series Supervisor Engines II-Plus, II-Plus-TS, II-Plus-10GE, IV, V, and V-10GE (IP Base image with Triple Data Encryption Standard (3DES)) (cat4500-ipbasek9-mz)

•S45ES-12244SG—Cisco IOS software for the Catalyst 4500 Series Supervisor Engines IV, V, and V-10GE (Enterprise Services image with BGP support, without Crypto) (cat4500-entservices-mz)

•S45ESK9-12244SG—Cisco IOS software for the Catalyst 4500 Series Supervisor Engines IV, V, and V-10GE (Enterprise Services image with 3DES and BGP support) (cat4500-entservicesk9-mz)

•S45EIPB-12244SG—Cisco IOS software for the Catalyst 4500 Series Supervisor Engine 6-E (IP Base Image)

•S45IPBK9-12244SG—Cisco IOS software for the Catalyst 4500 Series Supervisor Engine 6-E (IP Base Image with 3DES) (cat4500-ipbasek9-mz)

•S45EES-12244SG—Cisco IOS software for the Catalyst 4500 Series Supervisor Engine 6-E (Enterprise Services image) (cat4500-ipbasek9-mz)

•S45EESK9-12244SG—Cisco IOS software for the Catalyst 4500 Series Supervisor Engine 6-E (Enterprise Services image) (cat4500-ipbasek9-mz)

•S45IPB-12240SG—Cisco IOS software for the Catalyst 4500 Series Supervisor Engines II-Plus, II-Plus-TS, II-Plus-10GE, IV, V, and V-10GE (IP Base image, without Crypto) (cat4500-ipbase-mz)

•S45IPBK9-12240SG—Cisco IOS software for the Catalyst 4500 Series Supervisor Engines II-Plus, II-Plus-TS, II-Plus-10GE, IV, V, and V-10GE (IP Base image with Triple Data Encryption Standard (3DES)) (cat4500-ipbasek9-mz)

•S45ES-12240SG—Cisco IOS software for the Catalyst 4500 Series Supervisor Engines IV, V, and V-10GE (Enterprise Services image with BGP support, without Crypto) (cat4500-entservices-mz)

•S45ESK9-12240SG—Cisco IOS software for the Catalyst 4500 Series Supervisor Engines IV, V, and V-10GE (Enterprise Services image with 3DES and BGP support) (cat4500-entservicesk9-mz)

•S45EIPB-12240SG—Cisco IOS software for the Catalyst 4500 Series Supervisor Engine 6-E (IP Base Image)

•S45IPBK9-12240SG—Cisco IOS software for the Catalyst 4500 Series Supervisor Engine 6-E (IP Base Image with 3DES) (cat4500-ipbasek9-mz)

•S45EES-12240SG—Cisco IOS software for the Catalyst 4500 Series Supervisor Engine 6-E (Enterprise Services image) (cat4500e-entservices-mz)

•S45EESK9-12240SG—Cisco IOS software for the Catalyst 4500 Series Supervisor Engine 6-E (Enterprise Services with 3DES image) (cat4500-entservicesk9-mz)

•S45IPB-12237SG—Cisco IOS software for the Catalyst 4500 Series Supervisor Engines II-Plus, II-Plus-TS, II-Plus-10GE, IV, V, and V-10GE (IP Base image) (cat4500-ipbase-mz)

•S45IPBK9-12237SG—Cisco IOS software for the Catalyst 4500 Series Supervisor Engines II-Plus, II-Plus-TS, II-Plus-10GE, IV, V, and V-10GE (IP Base image with Triple Data Encryption Standard (3DES)) (cat4500-ipbasek9-mz)

•S45ES-12237SG—Cisco IOS software for the Catalyst 4500 Series Supervisor Engines IV, V, and V-10GE (Enterprise Services image with BGP support) (cat4500-entservices-mz)

•S45ESK9-12237SG—Cisco IOS software for the Catalyst 4500 Series Supervisor Engines IV, V, and V-10GE (Enterprise Services image with 3DES and BGP support) (cat4500-entservicesk9-mz)

•S45IPB-12231SGA—Cisco IOS software for the Catalyst 4500 Series Supervisor Engines II-Plus, II-Plus-TS, II-Plus-10GE, IV, V, and V-10GE (IP Base image) (cat4500-ipbase-mz)

•S45IPBK9-12231SGA—Cisco IOS software for the Catalyst 4500 Series Supervisor Engines II-Plus, II-Plus-TS, II-Plus-10GE, IV, V, and V-10GE (IP Base image with Triple Data Encryption Standard (3DES)) (cat4500-ipbasek9-mz)

•S45ES-12231SGA—Cisco IOS software for the Catalyst 4500 Series Supervisor Engines IV, V, and V-10GE (Enterprise Services image with BGP support) (cat4500-entservices-mz)

•S45ESK9-12231SGA—Cisco IOS software for the Catalyst 4500 Series Supervisor Engines IV, V, and V-10GE (Enterprise Services image with 3DES and BGP support) (cat4500-entservicesk9-mz)

•S45IPB-12231SG—Cisco IOS software for the Catalyst 4500 Series Supervisor Engines II-Plus, II-Plus-TS, II-Plus-10GE, IV, V, and V-10GE (IP Base image) (cat4500-ipbase-mz)

•S45IPBK9-12231SG—Cisco IOS software for the Catalyst 4500 Series Supervisor Engines II-Plus, II-Plus-TS, II-Plus-10GE, IV, V, and V-10GE (IP Base image with Triple Data Encryption Standard (3DES)) (cat4500-ipbasek9-mz)

•S45ES-12231SG—Cisco IOS software for the Catalyst 4500 Series Supervisor Engines IV, V, and V-10GE (Enterprise Services image with BGP support) (cat4500-entservices-mz)

•S45ESK9-12231SG—Cisco IOS software for the Catalyst 4500 Series Supervisor Engines IV, V, and V-10GE (Enterprise Services image with 3DES and BGP support) (cat4500-entservicesk9-mz)

•S45IPB-12225SG—Cisco IOS software for the Catalyst 4500 Series Supervisor Engines II-Plus, II-Plus-TS, II+10GE, IV, V, and V-10GE (IP Base image) (cat4500-ipbase-mz)

•S45IPBK9-12225SG—Cisco IOS software for the Catalyst 4500 Series Supervisor Engines II-Plus, II-Plus-TS, IV, V, and V-10GE (IP Base image with Triple Data Encryption Standard (3DES)) (cat4500-ipbasek9-mz)

•S45ES-12225SG—Cisco IOS software for the Catalyst 4500 Series Supervisor Engines IV, V, and V-10GE (Enterprise Services image with BGP support) (cat4500-entservices-mz)

•S45ESK9-12225SG—Cisco IOS software for the Catalyst 4500 Series Supervisor Engines IV, V, and V-10GE (Enterprise Services image with 3DES and BGP support) (cat4500-entservicesk9-mz)

•S4KL3-12225EWA—Cisco IOS software for the Catalyst 4500 series switch, basic Layer 3 and voice software image (RIPv1, RIPv2, Static Routes, AppleTalk, and IPX Software Routing, Release 12.2(25)EWA (cat4000-i9s-mz.122-25.EWA)

---

Note We recommend that you load 12.2(31)SGA8.

---

•S4KL3E-12225EWA—Cisco IOS software for the Catalyst 4500 series switch, enhanced Layer 3 and voice software image including OSPF, IS-IS, and EIGRP, Release 12.2(25)EWA (cat4000-i5s-mz.122-25.EWA)

•S4KL3K9-12225EWA—Cisco IOS software for the Catalyst 4500 series switch, with 3DES strong encryption, basic Layer 3 and voice software image (SSHv1, SSHv2, RIPv1, RIPv2, static routes, AppleTalk, and IPX), Release 12.2(25)EWA (cat4000-i9k9s-mz.122-25.EWA)

•S4KL3EK9-12225EWA—Cisco IOS software for the Catalyst 4500 series switch, with 3DES strong encryption, enhanced Layer 3 and voice software image including (OSPF, IS-IS, IGRP, and EIGRP), Release 12.2(25)EWA (cat4000-i5k9s-mz.122-25.EWA)

•S4KL3-12220EWA—Cisco IOS software for the Catalyst 4500 series switch, basic Layer 3 and voice software image (RIPv1, RIPv2, Static Routes, AppleTalk, and IPX Software Routing, Release 12.2(20)EWA (cat4000-i9s-mz.122-20.EWA)

•S4KL3E-12220EWA—Cisco IOS software for the Catalyst 4500 series switch, enhanced Layer 3 and voice software image including OSPF, IS-IS, and EIGRP, Release 12.2(20)EWA (cat4000-i5s-mz.122-20.EWA)

•S4KL3K9-12220EWA—Cisco IOS software for the Catalyst 4500 series switch, with 3DES strong encryption, basic Layer 3 and voice software image (SSHv1, SSHv2, RIPv1, RIPv2, static routes, AppleTalk, and IPX), Release 12.2(20)EWA (cat4000-i9k9s-mz.122-20.EWA)

•S4KL3EK9-12220EWA—Cisco IOS software for the Catalyst 4500 series switch, with 3DES strong encryption, enhanced Layer 3 and voice software image including (OSPF, IS-IS, IGRP, and EIGRP), Release 12.2(20)EWA (cat4000-i5k9s-mz.122-20.EWA)

•S4KL3-12220EW—Cisco IOS software for the Catalyst 4500 series switch, basic Layer 3 and voice software image (RIPv1, RIPv2, Static Routes, AppleTalk, and IPX), Release Software Routing, Release 12.2(20)EW (cat4000-i9s-mz.122-20.EW)

•S4KL3E-12220EW—Cisco IOS software for the Catalyst 4500 series switch, enhanced Layer 3 and voice software image including OSPF, IS-IS, and EIGRP, Release 12.2(20)EW (cat4000-i5s-mz.122-20.EW)

•S4KL3K91-12220EW—Cisco IOS software for the Catalyst 4500 series switch, with 3DES strong encryption, basic Layer 3 and voice software image (SSHv1, SSHv2, RIPv1, RIPv2, static routes, AppleTalk, and IPX), Release 12.2(20)EW (cat4000-i9k91s-mz.122-20.EW)

•S4KL3EK91-12220EW—Cisco IOS software for the Catalyst 4500 series switch, with 3DES strong encryption, enhanced Layer 3 and voice software image including (OSPF, IS-IS, and EIGRP), Release 12.2(20)EW (cat4000-i5k91s-mz.122-20.EW)

•S4KL3-12218EW—Cisco IOS software for the Catalyst 4500 series switch, basic Layer 3 and voice software image (RIPv1, RIPv2, Static Routes, AppleTalk, and IPX), Release Software Routing, Release 12.2(18)EW (cat4000-i9s-mz.122-18.EW)

•S4KL3E-12218EW—Cisco IOS software for the Catalyst 4500 series switch, enhanced Layer 3 and voice software image including OSPF, IS-IS, and EIGRP, Release 12.2(18)EW (cat4000-i5s-mz.122-18.EW)

•S4KL3K91-12218EW—Cisco IOS software for the Catalyst 4500 series switch, with 3DES strong encryption, basic Layer 3 and voice software image (SSHv1, SSHv2, RIPv1, RIPv2, static routes, AppleTalk, and IPX), Release 12.2(18)EW (cat4000-i9k91s-mz.122-18.EW)

•S4KL3EK91-12218EW—Cisco IOS software for the Catalyst 4500 series switch, with 3DES strong encryption, enhanced Layer 3 and voice software image including (OSPF, IS-IS, and EIGRP), Release 12.2(18)EW (cat4000-i5k91s-mz.122-18.EW)

•S4KL3-12120EW—Cisco IOS software for the Catalyst 4500 series switch, basic Layer 3 and voice software image (RIPv1, RIPv2, Static Routes, AppleTalk, and IPX), Release Software Routing, Release 12.1(20)EW (cat4000-i9s-mz.121-20.EW)

•S4KL3E-12120EW—Cisco IOS software for the Catalyst 4500 series switch, Supervisor Engines III and IV, enhanced Layer 3 and voice software image including OSPF, IS-IS, IGRP, and EIGRP, Release 12.1(20)EW (cat4000-i5s-mz.121-20.EW)

•S4KL3K2-12120EW—Cisco IOS software for the Catalyst 4500 series switch, with 3DES strong encryption, basic Layer 3 and voice software image (SSHv1, SSHv2, RIPv1, RIPv2, static routes, AppleTalk, and IPX), Release 12.1(20)EW (cat4000-i9k2s-mz.121-20.EW)

•S4KL3EK2-12120EW—Cisco IOS software for the Catalyst 4500 series switch, Supervisor Engines III and IV with 3DES strong encryption, enhanced Layer 3 and voice software image including (OSPF, IS-IS, IGRP, and EIGRP), Release 12.1(20)EW (cat4000-i5k2s-mz.121-20.EW)

•S4KL3-12119EW—Cisco IOS software for the Catalyst 4500 series switch, basic Layer 3 and voice software image (RIPv1, RIPv2, Static Routes, AppleTalk, and IPX), Release Software Routing, Release 12.1(19)EW (cat4000-i9s-mz.121-19.EW)

•S4KL3E-12119EW—Cisco IOS software for the Catalyst 4500 series switch, Supervisor Engines III and IV, enhanced Layer 3 and voice software image including OSPF, IS-IS, IGRP, and EIGRP, Release 12.1(19)EW (cat4000-i5s-mz.121-19.EW)

•S4KL3K2-12119EW—Cisco IOS software for the Catalyst 4500 series switch with 3DES strong encryption, basic Layer 3 and voice software image (SSHv1, SSHv2, RIPv1, RIPv2, static routes, AppleTalk, and IPX), Release 12.1(19)EW (cat4000-i9k2s-mz.121-19.EW)

•S4KL3EK2-12119EW—Cisco IOS software for the Catalyst 4500 series switch, Supervisor Engines III and IV with 3DES strong encryption, enhanced Layer 3 and voice software image including (OSPF, IS-IS, IGRP, and EIGRP), Release 12.1(19)EW (cat4000-i5k2s-mz.121-19.EW)

•S4KL3-12113EW—Cisco IOS software for the Catalyst 4500 series switch, Supervisor Engines III and IV, basic Layer 3 and voice software image (RIP, Static Routes, AppleTalk and IPX), Release 12.1(13)EW

•S4KL3E-12113EW—Cisco IOS software for the Catalyst 4500 series switch, Supervisor Engines III and IV, enhanced Layer 3 and voice software image including OSPF, IGRP, EIGRP, and IS-IS, Release 12.1(13)EW

•S4KL3K2-12113EW—Cisco IOS software for the Catalyst 4500 series switch, Supervisor Engines III and IV with 3DES strong encryption, basic Layer 3 and voice software image (SSHv1, RIP, static routes, AppleTalk and IPX), Release 12.1(13)EW

•S4KL3EK2-12113EW—Cisco IOS software for the Catalyst 4500 series switch, Supervisor Engines III and IV with 3DES strong encryption, enhanced Layer 3 and voice software image including OSPF, IGRP, EIGRP, and IS-IS, Release 12.1(13)EW

•S4KL3-12112EW—Cisco IOS software for the Catalyst 4500 series switch, Supervisor Engines III and IV, basic Layer 3 software image (RIP, Static Routes, AppleTalk and IPX), Release 12.1(12c)EW

•S4KL3E-12112EW—Cisco IOS software for the Catalyst 4500 series switch, Supervisor Engines III and IV, enhanced Layer 3 software image including OSPF, IGRP and EIGRP, Release 12.1(12c)EW

•S4KL3-12111EW—Cisco IOS software for the Catalyst 4500 series switch, basic Layer 3 software image (RIP, static routes), Release 12.1(11b)EW

•S4KL3E-12111EW—Cisco IOS software for the Catalyst 4500 series switch, enhanced Layer 3 software image including OSPF, IGRP and EIGRP, Release 12.1(11b)EW1

•S4KL3-12108EW—Cisco IOS software for the Catalyst 4500 series switch, basic Layer 3 software image (RIP, static routes), Release 12.1(8a)EW

•S4KL3E-12108EW—Cisco IOS software for the Catalyst 4500 series switch, enhanced Layer 3 software image including OSPF, IGRP and EIGRP, Release 12.1(8a)EW1

Catalyst 4500 Series Switch Cisco IOS Release Strategy

Cisco IOS Release 12.2SG train offers the latest features for the Catalyst 4500 Series supervisor engines. Customers with Catalyst 4500 Series supervisor engines who need the latest hardware support and software features should migrate to Cisco IOS Release 12.2(53)SG.

---

Note As part of the Cisco IOS Reformation effort, Cisco IOS Releases 12.2EW and 12.2SG are the same release train with a name change.

---

Catalyst 4500 Series has three maintenance trains. The Cisco IOS Release 12.2(31)SGA train is the longest living train. Currently, the Cisco IOS Release 12.2(31)SGA8 is the recommended release for customers who require a release with a maintenance train.The Cisco IOS Release 12.2(53)SG is the latest maintenance train and includes the most recent features including support for the WS-X45-Sup6L-E supervisor engine and OSPF for routed Access.

For more information on the Catalyst 4500 series switches, visit the following URL:

http://www.cisco.com/go/cat4500/docs

Cisco IOS Software Migration Guide

Figure 2 displays the two active, 12.2(31)SGA and 12.2(50)SG, and newly introduced 12.2(53)SG extended maintenance trains.

Figure 2 Software Release Strategy for the Catalyst 4500 Series Switch

Summary of Migration Plan

•Customers requiring the latest Cisco Catalyst 4500 Series hardware and software features should migrate to Cisco IOS Software Release 12.2(53)SG. It is also the basis for the latest maintenance train.

•Cisco IOS Software Release 12.2(31)SGA and 12.2(50)SG will continue offering maintenance releases. The latest release from the 12.2(31)SGA maintenance train is 12.2(31)SGA10. The latest release from the 12.2(50)SG maintenance train is 12.2(50)SG4

System Requirements

This section describes the system requirements:

•Supported Hardware on Catalyst 4500 Series Switch

•Supported Features on the Catalyst 4500 Series Switch

•Unsupported Features

Supported Hardware on Catalyst 4500 Series Switch

Table 2 lists the hardware supported on the Catalyst 4500 Series Switch.

Table 2 Supported Hardware

Product Number (append with "=" for spares)	Product Description	Software Release
		Minimum	Recommended
Supervisor Engines
WS-X4013+=	Catalyst 4500 series switch Supervisor Engine II-Plus Note This engine is supported only on 3, 6, and 7 slot chassis (not on 10-slot chassis).	12.1(19)EW	12.2(50)SG5
WS-X4013+TS	Catalyst 4500 series switch Supervisor Engine II-Plus-TS Note This engine is supported only on 3 slot chassis.	12.2(20)EWA	12.2(50)SG5
WS-X4013+10GE	Catalyst 4500 series switch Supervisor Engine II-Plus-10GE Note This engine is supported only on 3, 6, and 7 slot chassis (not on 10-slot chassis).	12.2(25)SG	12.2(50)SG5
WS-X4515=	Catalyst 4500 series switch Supervisor Engine IV	12.1(12c)EW	12.2(50)SG5
WS-X4515/2=	Catalyst 4507R series switch Redundant Supervisor Engine IV	12.1(12c)EW	12.2(50)SG5
WS-X4516=	Catalyst 4500 series switch Supervisor Engine V	12.2(18)EW	12.2(50)SG5
WS-X4516/2=	Catalyst 4507R series switch Redundant Supervisor Engine V	12.2(18)EW	12.2(50)SG5
WS-X4516-10GE=	Catalyst 4500 series switch Supervisor Engine V-10GE	12.2(25)EW	12.2(50)SG5
WS-X45-Sup6-E	Catalyst 4500 E-series switch Supervisor Engine 6-E Note This engine is supported on legacy and E-series chassis.	12.2(40)SG	12.2(50)SG5
WS-X45-Sup6L-E	Catalyst 4500 E-series switch Supervisor Engine 6L-E Note This engine is supported on legacy and E-series 3,6, and 7 slot chassis.	12.2(52)XO	12.2(53)SG
Gigabit Ethernet Switching Modules
WS-X4302-GB	2-port 1000BASE-X (GBIC) Gigabit Ethernet module	12.1(19)EW	12.2(31)SGA8
WS-X4306-GB	6-port 1000BASE-X (GBIC) Gigabit Ethernet switching module	12.1(8a)EW	12.2(31)SGA8
WS-X4418-GB	18-port 1000BASE-X (GBIC) Gigabit Ethernet server switching module	12.1(8a)EW	12.2(31)SGA8
WS-X4412-2GB-T	12-port 1000BASE-T Gigabit Ethernet and 2-GBIC ports switching module	12.1(8a)EW	12.2(31)SGA8
WS-X4424-GB-RJ45	24-port 10/100/1000BASE-T Gigabit Ethernet RJ-45 switching module	12.1(8a)EW	12.2(31)SGA8
WS-X4448-GB-LX	48-port 1000BASE-LX (small form-factor pluggable) Gigabit Ethernet fiber optic interface switching module	12.1(8a)EW	12.2(31)SGA8
WS-X4448-GB-RJ45	48-port 10/100/1000BASE-T Gigabit Ethernet switching module	12.1(8a)EW	12.2(31)SGA8
WS-X4448-GB-SFP	48-port 1000BASE-X (small form-factor pluggable) module	12.2(20)EW	12.2(31)SGA8
WS-X4506-GB-T	6-port Alternately-Wired 10/100/1000BASE-T Catalyst 4500 series Power over Ethernet (PoE) 802.3af or 1000BASE-X SFP	12.2(20)EWA	12.2(31)SGA8
WS-X4524-GB-RJ45V	24-port 10/100/1000BASE-T RJ-45 Catalyst 4500 series PoE 802.3af	12.2(18)EW	12.2(31)SGA8
WS-X4548-GB-RJ45	48-port 10/100/1000BASE-T Gigabit Ethernet module	12.1(19)EW	12.2(31)SGA8
WS-X4548-GB-RJ45V	48-port 10/100/1000BASE-T RJ-45 Catalyst 4500 series PoE 802.3af	12.2(18)EW	12.2(31)SGA8
WS-X4548-RJ45V+	48-port 10/100/1000 Premium PoE line card	12.2(50)SG	12.2(50)SG
WS-X4624-SFP-E	Non-blocking 24-port 1000BASEX (small form factor pluggable) module	12.2(44)SG	12.2(44)SG
WS-X4648-RJ45V-E	48 port 10/100/1000 Mb with 2 to 1 oversubscription	12.2(40)SG	12.2(44)SG
WS-X4648-RJ45V+E	48 port 10/100/1000 Mb with 2 to 1 oversubscription	12.2(40)SG	12.2(44)SG
Fast Ethernet Switching Modules
WS-X4124-FX-MT	24-port 100BASE-FX Fast Ethernet MT-RJ multimode fiber switching module	12.1(8a)EW	12.2(31)SGA8
WS-X4148-FX-MT	48-port 100BASE-FX Fast Ethernet MT-RJ multimode fiber switching module	12.1(8a)EW	12.2(31)SGA8
WS-X4148-FE-LX-MT	48-port 100BASE-LX10 Fast Ethernet MT-RJ single-mode fiber switching module	12.1(13)EW	12.2(31)SGA8
WS-X4148-FE-BD-LC	48-port 100BASE-BX10-D module	12.2(18)EW	12.2(31)SGA8
WS-X4248-FE-SFP	48-port 100BASE-X SFP switching module	12.2(25)SG	12.2(31)SGA8
WS-U4504-FX-MT	4-port 100BASE-FX (MT-RF) uplink daughter card	12.1(8a)EW	12.2(31)SGA8
Ethernet/Fast Ethernet (10/100) Switching Modules
WS-X4124-RJ45	24-port 10/100 RJ-45 module	12.2(20)EW	12.2(31)SGA8
WS-X4148-RJ	48-port 10/100 RJ-45 switching module	12.1(8a)EW	12.2(31)SGA8
WS-X4148-RJ21	48-port 10/100 4xRJ-21 (telco connector) switching module	12.1(8a)EW	12.2(31)SGA8
WS-X4148-RJ45V	48-port Pre-standard PoE 10/100BASE-T switching module	12.1(8a)EW for data support 12.1(11b)EW for data and inline power support	12.2(31)SGA8
WS-X4224-RJ45V	24-port 10/100BASE-TX RJ-45 Cisco Catalyst 4500 series PoE 802.3af	12.2(20)EW	12.2(31)SGA8
WS-X4232-GB-RJ	32-port 10/100 Fast Ethernet RJ-45, plus 2-port 1000BASE-X (GBIC) Gigabit Ethernet switching module	12.1(8a)EW	12.2(31)SGA8
WS-X4248-RJ45V	48-port 10/100BASE-T RJ-45 Cisco Catalyst 4500 series PoE 802.3af	12.2(18)EW	12.2(31)SGA8
WS-X4248-RJ21V	48-port 10/100 Fast Ethernet RJ-21 Cisco Catalyst 4500 series PoE 802.3af telco	12.2(18)EW	12.2(31)SGA8
WS-X4232-RJ-XX	32-port 10/100 Fast Ethernet RJ-45 modular uplink switching module	12.1(8a)EW	12.2(25)EWA8
Small Form-Factor Pluggable 100 Megabit Ethernet Modules
GLC-FE-100FX	100BASE-FX, 1310 nm wavelength, 2 km over MMF	12.2(25)SG	12.2(31)SGA8
GLC-FE-100LX	100BASE-LX, 1310 nm wavelength, 10 km over SMF	12.2(25)SG	12.2(31)SGA8
GLC-FE-100BX-D	100BASE-BX10-D, 1550 nm TX/1310 nm RX wavelength	12.2(25)SG	12.2(31)SGA8
GLC-FE-100BX-U	100BASE-BX10-U, 1310 nm TX/1550 nm RX wavelength	12.2(25)SG	12.2(31)SGA8
Small Form-Factor Pluggable Gigabit Ethernet Modules
GLC-BX-D	1000BASE-BX10-D small form-factor pluggable module For DOM support, see Table 6.	12.2(20)EWA	12.2(31)SGA8
GLC-BX-U	1000BASE-BX10-U small form-factor pluggable module For DOM support, see Table 6.bv	12.2(20)EWA	12.2(31)SGA8
GLC-SX-MM	1000BASE-SX small form-factor pluggable module	12.2(20)EW	12.2(31)SGA8
GLC-LH-SM	1000BASE-LX/LH small form-factor pluggable module	12.2(20)EW	12.2(31)SGA8
GLC-ZX-SM	1000BASE-ZX small form-factor pluggable module	12.2(20)EW	12.2(31)SGA8
GLC-T	1000BASE-T small form-factor pluggable module	12.2(20)EW	12.2(31)SGA8
CWDM-SFP-xxxx	CWDM small form-factor pluggable module (See Table 3 for a list of supported wavelengths.) For DOM support, see Table 6.	12.2(20)EW	12.2(31)SGA8

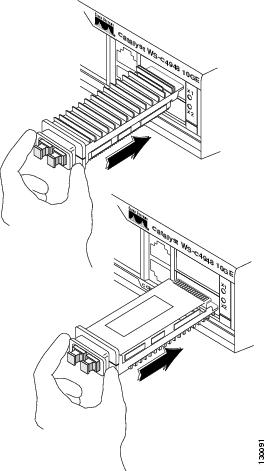

10 Gigabit Ethernet X2 Pluggable Modules
X2-10GB-LR	10GBASE-LR X2 transceiver module for SMF, 1310-nm wavelength, SC duplex connector	12.2(25)EW	12.2(31)SGA8
X2-10GB-ER	10GBASE-ER X2 transceiver module for SMF, 1550-nm wavelength, SC duplex connector	12.2(25)EWA	12.2(31)SGA8
X2-10GB-CX4	10GBASE-CX4 X2 transceiver module for CX4 cable, copper, Infiniband 4X connector	12.2(25)EWA	12.2(31)SGA8
X2-10GB-LX4	10GBASE-LX4 X2 transceiver module for MMF, 1310-nm wavelength, SC duplex connector	12.2(25)EWA	12.2(31)SGA8
X2-10GB-LRM	10GBASE-LRM X2 transceiver module for MMF, 1310-nm wavelength, SC duplex connector	12.2(31)SGA	12.2(31)SGA
X2-10GB-SR	10GBASE-SR X2 transceiver module for MMF, 850-nm wavelength, SC duplex connector	12.2(25)EWA	12.2(31)SGA8
X2-10GB-ZR	10GBASE-ZR X2 transceiver module for SMF, 1550 nm wavelength up to 80 km. DOM is not supported.	12.2(50)SG	12.2(50)SG
X2-10GB-DWDM	10GBASE-ZR X2 transceiver module for SMF, 32 nontunable ITU 100-GHz wavelengths up to 80 km are supported. DOM is supported. Dual SC/PC connectors are supported.	12.2(50)SG	12.2(50)SG
CVR-X2-SFP10G	Hot-swappable input/output (I/O) converter module that fits into a 10-Gigabit Ethernet X2 slot on a switch or line card module. Hosts one 10-Gigabit Ethernet SFP+ transceiver module.	12.2(50)SG	12.2(50)SG
SFP+ Modules
SFP-10G-SR	Cisco 10GBASE-SR SFP+ Module for MMF	12.2(50)SG3	12.2(50)SG4
Gigabit Interface Converter
WS-G5483=	1000BASE-T GBIC	12.1(13)EW	12.2(31)SGA8
WS-G5484	1000BASE-SX short wavelength GBIC (multimode only)	12.1(8a)EW	12.2(31)SGA8
WS-G5486	1000BASE-LX/LH long-haul GBIC (single mode or multimode)	12.1(8a)EW	12.2(31)SGA8
WS-G5487	1000BASE-ZX extended reach GBIC (single-handed)	12.1(8a)EW	12.2(31)SGA8
CWDM-GBIC-xxxx	CWDM gigabit interface converter (See Table 3 for a list of supported wavelengths.)	12.1(12c)EW	12.2(31)SGA8
DWDM-GBIC-xx.yy	Dense Wavelength-Division Multiplexing ITU 100-Ghz grid 15xx.yy nm GBIC. For DOM support, see Table 6.	12.1(19)EW	12.2(31)SGA8
WDM-GBIC-REC	Receive-only 1000BASE-WDM GBIC	12.1(19)EW	12.2(31)SGA8
Other Modules
MEM-C4K-FLD64M	Catalyst 4500 series switch CompactFlash, 64 MB Option	12.1(8a)EW	12.2(31)SGA8
MEM-C4K-FLD128M	Catalyst 4500 series switch CompactFlash, 128 MB Option	12.1(8a)EW	12.2(31)SGA8
WS-F4531	Catalyst 4500 series switch NetFlow Services Card on Catalyst 4500 series switch Supervisor Engines IV and V	12.1(13)EW	12.2(31)SGA8
WS-X4590=	Catalyst 4500 series switch Fabric Redundancy Modules	12.2(18)EW	12.2(31)SGA8
PWR-C45-1000AC	Catalyst 4500 series switch 1000 Watt AC power supply for chassis 4503, 4506, and 4507R (data only)	12.1(12c)EW	12.2(31)SGA8
PWR-C45-1400DC	Catalyst 4500 series switch 1400 Watt DC triple input power supply (data-only)	12.2(25)EW	12.2(31)SGA8
PWR-C45-1400DC-P	Catalyst 4500 series switch 1400 Watt DC power supply with integrated PEM	12.1(19)EW	12.2(31)SGA8
PWR-C45-1400AC	Catalyst 4500 series switch 1400 Watt AC power supply (data-only)	12.1(12c)EW	12.2(31)SGA8
PWR-C45-1300ACV	Catalyst 4500 series switch 1300 Watt AC power supply with integrated voice for chassis 4503, 4506, and 4507R	12.1(12c)EW	12.2(31)SGA8
PWR-C45-2800ACV	Catalyst 4500 series switch 2800 Watt AC power supply with integrated voice (data and PoE) for chassis 4503, 4506, and 4507R	12.1(12c)EW	12.2(31)SGA8
PWR-C45-4200ACV	Catalyst 4500 series switch 4200 Watt AC dual input power supply with integrated voice (data and PoE)	12.2(25)EWA5	12.2(31)SGA8
WS-P4502-1PSU	Catalyst 4500 series switch auxiliary power shelf (25-slot), including one PWR-4502	12.1(19)EW	12.2(31)SGA8
PWR-4502	Catalyst 4500 series switch auxiliary power shelf redundant power supply	12.1(19)EW	12.2(31)SGA8
PWR-C45-6000ACV	Catalyst 4500 Series Switch 6000 W AC power supply	12.2(53)SG	12.2(53)SG

Table 3 briefly describes the supported CWDM wavelengths in the Catalyst 4500 Classic Series Switch.

Table 3 CWDM GBIC and SFP Supported Wavelengths for the Catalyst 4500 Classic Series Switch

Product Number (append with "=" for spares)	Product Description	Software Release
		Minimum	Recommended
CWDM-GBIC (or SFP) -1470	Longwave 1470 nm laser single-mode	12.1(12c)EW	12.2(31)SGA8
CWDM-GBIC (or SFP) -1490	Longwave 1490 nm laser single-mode	12.1(12c)EW	12.2(31)SGA8
CWDM-GBIC (or SFP) -1510	Longwave 1510 nm laser single-mode	12.1(12c)EW	12.2(31)SGA8
CWDM-GBIC (or SFP) -1530	Longwave 1530 nm laser single-mode	12.1(12c)EW	12.2(31)SGA8
CWDM-GBIC (or SFP) -1550	Longwave 1550 nm laser single-mode	12.1(12c)EW	12.2(31)SGA8
CWDM-GBIC (or SFP) -1570	Longwave 1570 nm laser single-mode	12.1(12c)EW	12.2(31)SGA8
CWDM-GBIC (or SFP) -1590	Longwave 1590 nm laser single-mode	12.1(12c)EW	12.2(31)SGA8
CWDM-GBIC (or SFP) -1610	Longwave 1610 nm laser single-mode	12.1(12c)EW	12.2(31)SGA8

Table 4 briefly describes the four chassis in the Catalyst 4500 Series Switch. For the chassis listed in the table, refer to Table 5 for software release information.

Table 4 Chassis Description for the Catalyst 4500 Series Switch

Product Number (append with "=" for spares)	Description of Modular Chassis
WS-C4503	Catalyst 4503 chassis includes these components: •3 slots •Fan tray •Supports Supervisor Engine 6L-E, Supervisor Engine 6-E, Supervisor Engine V-10GE, Supervisor Engine V, Supervisor Engine IV, Supervisor Engine III, Supervisor Engine II-Plus-10GE, Supervisor Engine II-Plus-TS, Supervisor Engine II-Plus, and Supervisor Engine II
WS-C4506	Catalyst 4506 chassis includes these components: •6 slots •Fan tray •Supports Supervisor Engine 6L-E, Supervisor Engine 6-E, Supervisor Engine V-10GE, Supervisor Engine V, Supervisor Engine IV, Supervisor Engine III, Supervisor Engine II-Plus-10GE, Supervisor Engine II-Plus, and Supervisor Engine II
WS-C4507R	Catalyst 4507R chassis includes these components: •7 slots •Fan tray •Supports Supervisor Engine 6L-E, Supervisor Engine 6-E, Supervisor Engine V-10GE, Supervisor Engine V, Supervisor Engine IV, Supervisor Engine II-Plus-10GE, and Supervisor Engine II-Plus
WS-C4510R	Catalyst 4510R chassis includes these components: •10 slots; slot 10 accepts only the Catalyst 4500 series 2-port Gigabit Ethernet line card (WS-X4302-GB with Supervisor Engine V) Note The Supervisor Engine V-10GE does not have this restriction. •Fan tray •Supports Supervisor Engine 6-E, Supervisor Engine V-10GE and Supervisor Engine V

Table 5 lists the software release information for the Catalyst 4500 Series Switch supervisor engines.

Table 5 Supervisor Engine Support on the Catalyst 4500 Series Switch

Supervisor Engine	Software Release
	Minimum	Recommended
Supervisor Engine II-Plus	12.1(19)EW	12.2(50)SG5
Supervisor Engine II-Plus-TS	12.2(20)EWA	12.2(50)SG5
Supervisor Engine II-Plus-10GE	12.2(25)SG	12.2(25)SG5
Supervisor Engine IV	12.1(12c)EW	12.2(50)SG5
Supervisor Engine V	12.2(18)EW	12.2(50)SG5
Supervisor Engine V-10GE	12.2(25)EW	12.2(50)SG5
Supervisor Engine 6-E	12.2(40)SG	12.2(50)SG5
Supervisor Engine 6L-E	12.2(52)XO	12.2(53)SG

Table 6 DOM Support on the Catalyst 4500 Series Switch

Transceiver Module	Support in Software Since...
DWDM-X2-xx	12.2(50)SG
GLC-BX-D	12.2(20)EWA
GLC-BX-U	12.2(20)EWA
DWDM-GBIC-xx	12.1(19)EW
CWDM- SFP-xx	12.2(20)EWA

Supported Hardware on Catalyst 4500 E-Series Switch

In addition to the classic line cards and supervisor engines, Cisco IOS Software Release 12.2(52)SG supports the next-generation high-performance E-Series Supervisor Engine 6-E with CenterFlex technology and E-Series line cards and chassis. A brief list of primary E-Series hardware supported by Cisco IOS Software Release 12.2.(52)SG is shown in Table 7

Table 7 Supported E-Series Hardware

Product Number	Description
WS-C4503-E	Cisco Catalyst 4500 E-Series 3-Slot Chassis •Fan tray •No Power Supply
WS-C4506-E	Cisco Catalyst 4500 E-Series 6-Slot Chassis •Fan tray •No Power Supply
WS-C4507R-E	Cisco Catalyst 4500 E-Series 7-Slot Chassis •Fan tray •No Power Supply •Redundant supervisor engine capability
WS-C4510R-E	Cisco Catalyst 4500 E-Series 10-Slot Chassis •Fan tray •No Power Supply •Redundant supervisor engine capability •You cannot place a linecard with a backplane traffic capacity exceeding 6Gbps in slots 8, 9 and 10 of a Catalyst 4510R-E chassis when used with a Supervisor Engine 6-E.
WS-X45-Sup6-E	Cisco Catalyst 4500 E-Series Sup 6-E, 2x10GE(X2) w/ TwinGig
WS-X45-Sup6L-E	Cisco Catalyst 4500 E-Series Sup 6L-E
WS-X4624-SFP-E	Cisco Catalyst 4500 E-series 24-Port 1000BaseX (small form factor pluggable) module
WS-X4648-RJ45V-E	Cisco Catalyst 4500 E-Series 48-Port PoE 802.3af 10/100/1000(RJ45)
WS-X4648-RJ45V+E	Cisco Catalyst 4500 E-Series 48-Port Premium PoE 10/100/1000
WS-X4606-X2-E	Cisco Catalyst 4500 E-Series 6-Port 10GbE (X2) w/ TwinGig
WS-X4648-RJ45-E	Cisco Catalyst 4500 E-Series 48-Port 10/100/1000(RJ45)

Table 8 outlines the chassis and supervisor engine compatibility.
(M=Minimum release, R=Recommended release)

Table 8 Chassis and Supervisor Compatiblity

Chassis	Sup II+	Sup II+TS	Sup II+10G	Sup IV	Sup V	Sup V-10GE	Sup 6-E	Sup 6L-E
WS-C4503-E	M: 12.2(31)SGA6 R: 12.2(31)SGA8	M: 12.2(31)SGA6 R: 12.2(31)SGA8	M: 12.2(31)SGA6 R: 12.2(31)SGA8	M: 12.2(31)SGA6 R: 12.2(31)SGA8	M: 12.2(31)SGA6 R: 12.2(31)SGA8	M: 12.2(31)SGA6 R: 12.2(31)SGA8	M: 12.2(40)SG R: 12.2(44)SG	M: 12.2(52)XO R: 12.2(52)XO
WS-C4506-E	M: 12.2(31)SGA6 R: 12.2(31)SGA8		M: 12.2(31)SGA6 R: 12.2(31)SGA8	M: 12.2(31)SGA6 R: 12.2(31)SGA8	M: 12.2(31)SGA6 R: 12.2(31)SGA8	M: 12.2(31)SGA6 R: 12.2(31)SGA8	M: 12.2(40)SG R: 12.2(44)SG	M: 12.2(52)XO R: 12.2(52)XO
WS-C4507R-E	M: 12.2(31)SGA6 R: 12.2(31)SGA8		M: 12.2(31)SGA6 R: 12.2(31)SGA8	M: 12.2(31)SGA6 R: 12.2(31)SGA8	M: 12.2(31)SGA6 R: 12.2(31)SGA8	M: 12.2(31)SGA6 R: 12.2(31)SGA8	M: 12.2(40)SG R: 12.2(44)SG	M: 12.2(52)XO R: 12.2(52)XO
WS-C4510R-E					M: 12.2(31)SGA6 R: 12.2(31)SGA8	M: 12.2(31)SGA6 R: 12.2(31)SGA8	M: 12.2(40)SG R: 12.2(44)SG

Supported Features on the Catalyst 4500 Series Switch

Table 9 lists the Cisco IOS software features for the Catalyst 4500 Series Switch.

Table 9 Cisco IOS Software Feature Set for the Catalyst 4500 Series and E-Series Switch

Layer 2 Switching Features

Storm Control

Storm Control: Per-Port Multicast Suppression (Sup 6-E only)

Multicast Storm Control1

IP Source Guard

IP Source Guard for Static Hosts

PVRST+

Layer 2 protocol tunneling

Layer 2 transparent bridging2

Layer 2 MAC3 learning, aging, and switching by software

Unicast MAC address filtering

VMPS4 Client

Layer 2 hardware forwarding up to 102 Mpps

Layer 2 Control Policing (Not supported on Sup 6-E nd Sup 6L-E)

Layer 2 switch ports and VLAN trunks

Spanning-Tree Protocol (IEEE 802.1D) per VLAN

802.1s and 802.1w

Layer 2 traceroute

Unidirectional Ethernet port

Per-VLAN spanning tree (PVST) and PVST+

Spanning-tree root guard

Spanning-tree Loop guard and PortFast BPDU Filtering

Support for 9216 byte frames

Port security on PVLANs

Private VLANs

Private VLAN DHCP snooping

Private VLAN promiscuous trunk

Private VLAN trunks5

Community PVLANs

ISL6 -based VLAN encapsulation (excluding blocking ports on WS-X4418-GB and WS-X4412-2GB-T)7

IEEE 802.1Q-based VLAN encapsulation

Multiple VLAN access port

VLAN Trunking Protocol (VTP) and VTP domains

VTP v3

Support for 4096 VLANs per switch

Unidirectional link detection (UDLD) and aggressive UDLD

SNMP V3 support for Bridge-MIB with VLAN indexing

Resilient Ethernet Protocol

Ethernet CFM

Ethernet OAM Protocol

Layer 3 Routing, Switching, and Forwarding

802.1Q Tunneling (Q in Q)8

Pragmatic General Multicast

ANCP Client9

PIM-SSM mapping

Bidiectional PIM10

Auto RP Listener

IP and IP multicast routing and switching between Ethernet ports

IP Multicast Load Splitting (Equal Cost Multipath (ECMP) using S, G and Next-hop)

Static IP routing

Classless routing11

PBR12

Dynamic Buffer Limiting

Selective Dynamic Buffer Limiting

QoS-based forwarding based on IP precedence

Trusted boundary

Cisco Modular QoS Command-Line Interface (Sup 6-E only)

Auto QoS

Match CoS for non-IPV4 traffic

IPv6 Forwarding in Hardware (Sup 6-E and Sup 6L-E only)

CoS Mutation

CEF13 load balancing

uRPF14 (Sup 6-E only)

Hardware-based IP CEF routing at 48 Mpps

Up to 128,000 IP routes

Up to 32,000 IP host entries (Layer 3 adjacencies)

Up to 16,000 IP multicast route entries

Multicast flooding suppression for STP changes

Software routing of IPX, AppleTalk, and IPv6.

IGMPv1, IGMPv2, and IGMPv3 (Full Support)

IGMP Querier

VRF-lite

Multicast VRF-lite15

VRF-aware IP services

Route Leaking16

IP Unnumbered

SVI Autostate Exclude

Supported Protocols

IS-IS17

DTP18

RIP19 and RIP II

EIGRP20

EIGRP IPv6 (Sup 6-E only)

OSPF21

OSPF for Routed Access (Supervisor Engine 6-E and Supervisor Engine 6L-E)

BGP422

BGP route-map Continue

BGP Neighbor Policy

MBGP23

MSDP24

ICMP25 Router Discovery Protocol

PIM26 —sparse and dense mode

Static routes

Classless interdomain routing (CIDR)

DVMRP27

SSM

NTP28

WCCP version 2 Layer 2 Redirection

VRRP29

SCP30

GLBP31

EtherChannel Features

Cisco EtherChannel technology - 10/100/1000 Mbps, 10 Gbps

Load balancing for routed traffic, based on source and destination IP addresses

Load sharing for bridged traffic based on MAC addresses

ISL on all EtherChannels

IEEE 802.1Q on all EtherChannels

Bundling of up to eight Ethernet ports

Up to 64 active Ethernet port channels

Trunk Port Security over EtherChannel

Additional Protocols and Features

SPAN CPU port mirroring

SPAN packet-type filtering

SPAN destination in-packets option

SPAN ACL filtering

RSPAN

Enhanced VLAN statistics

Netflow version 8

NetFlow Statistics Collection

NetFlow Statistics Export Version 1 and Version 5

NetFlow Bridged IP Flow

Secondary addressing

Bootstrap protocol (BOOTP)

Authentication, authorization, and accounting using TACACS+ and RADIUS protocol

Cisco Discovery Protocol (CDP)

CDP 2nd Port Status TLV

FlexLink and MAC Address-Table Move Update

802.1ab Link Layer Discovery Protocol (LLDP)

802.1ab LLDP Media Discovery (LLDP-MED)

Network Mobility Services Protocol

Selecting Mode of Capturing Control Packets (Not supported on Sup 6-E)

Sticky port security

Trunk port security

Voice VLAN Sticky port security

Cisco Group Management Protocol (CGMP) server support

HSRP32 over Ethernet, EtherChannels - 10/100/1000Mbps, 10 Gbps

HSRP v2 for IPv4

HSRP v2 for IPv6

IGMP snooping version1, version 2, and version 3 (Full Support)

IGMP filtering

Port Aggregation Protocol (PagP)

802.3ad LACP

SSH version 1 and version 233

Inline power preallocation

show interface capabilities command

IfIndex persistence

UDLR34

Enhanced SNMP MIB support

SNMP35 version 1, version 2, and version 3

SNMP version 3 (with encryption)

IPv6 Multicast Listener Discovery Snooping (Sup 6-E and 6L-E only)

Option 82 Enhancement

DHCP server and relay-agent

DHCP snooping

DHCP client autoconfiguration

DHCP Option 82 Pass Through

DHCP Relay Agent for IPv6 36

802.1X port-based authentication

802.1X with port security

802.1X accounting

802.1X with voice VLAN ID

802.1X private VLAN assignment

802.1X private guest VLAN

802.1X RADIUS-supplied session timeout

802.1X authentication failure VLAN

802.1X MAC Authentication Bypass

802.1X Inaccessible Authentication Bypass

802.1X Unidirectional Controlled Port

802.1X Multi Domain Authentication (MDA)

802.1X MDA with Voice Assignment

Flexible Authentication Sequencing

Multi-Authentication

Open Authentication

Web Authentication

Local Web Authentication (EPM syslog and Common session ID)

PPPoE Intermediate Agent37

Cisco NAC38 Layer 2 802.1X

Port flood blocking

Router standard and extended ACLs 39 on all ports with no performance penalty

Identity ACL Policy Enforcement40

Extended IPX ACL

VLAN ACL

PACL41

Time-based ACL

Downloadable ACLs

Control Plane Policing

Two-Rate Three-Color Policing (Sup 6-E only)

Local Proxy ARP

Dynamic ARP Inspection on PVLANs

Dynamic ARP Inspection

Dynamic Multi-Protocol Ternary Content Addressable Memory (Sup 6-E only)

Per-port QoS42 rate-limiting and shaping

Per-port Per-VLAN QoS

Per-VLAN CTI

ARP QoS (Sup 6-E only)

Inline power support for Cisco IP phones

PoE43

Energy Wise

Enhanced Power over Ethernet Support (Supervisor Engine 6-E only)

Power redundancy

RPR44

SSO45

SSO Aware HSRP

SSO support for routed ports

Non-stop Forwarding Awareness

Non-stop Forwarding Awareness for EIGRP-stub in IP base for all supervisor engines

Non-stop Forwarding with Stateful Switchover

ISSU46

MAC Address Notification

Combined Mode Power Resiliency

SmartPort macros

Forced 10/100 Auto Negotiation

802.1s standards compliance

IS-IS MIB

OSPF and EIGRP Fast Convergence47

Time Domain Reflectometry

CNA48

CLI to turn off Auto MDIX49

Logging redirection

Service-Aware Resource Allocation (Sup 6-E only)

TwinGig Converter Module (Sup 6-E nd 6L-E only)

FAT File System (Sup 6-E only)

High Availability: 2+2 10GE or 4+4 1GE active uplinks (Sup 6-E only)

EEM50

EEM with ISSU

VSS client with PagP+

IP/SLA51

Embedded management52

MAC notify MIB (Sup 6-E only)

Eight configurable queues per port (Sup 6-E only)

X2 Link Debounce Timer

IP SLA

Enhanced Object Tracking subfeatures: •HSRP with EOT •VRRP with EOT •GLBP with EOT •IP SLA with EOT •Reliable Backup Static Routing with EOT

Management port

Management Port Features with IPv6

Inactivity Timer

OBFL53

boot config command

Crashdump enhancement

Unicast MAC filtering

Smart Call Home

DHCPv6 Ethernet Remote ID option

DHCPv6 Relay - Persistent Interface ID option DHCPv6 Relay Agent notification for Prefix Delegation

PIM SSM Mapping

VRF lite NSF support with routing protocols OSPF/EIGRP/BG

PIM Accept Register - Rogue Multicast Server Protection54

Configuration Rollback

Archiving crashfile information

1 Requires the Catalyst 4500 series switch Supervisor Engine V 2 Hardware-based transparent bridging within a VLAN 3 MAC = Media Access Control 4 VMPS = VLAN Management Policy Server 5 Only Supervisr Engine 6-E 6 ISL = Inter-Switch Link 7 Ports 3 thru 18 on the WS-X4418-GB and ports 1 thru 12 on the WS-X4412-2GB 8 Requires the Catalyst 4500 series switch Supervisor Engine V 9 not supported on E-Series Supervisor Engine 6-E 10 Only Supervisr Engine 6-E 11 The ip classless command is not supported as classless routing is enabled by default. 12 PBR = policy-based routing 13 CEF = Cisco Express Forwarding 14 uRPF = Unicast Reverse Path Forwarding 15 Only Supervisr Engine 6-E 16 Route Leaking from a global routing table into a VRF and Route Leaking from a VRF into a global routing table 17 IS-IS = Intermediate System to Intermediate System 18 DTP = Dynamic Trunking Protocol 19 RIP = Routing Information Protocol 20 EIGRP = Enhanced Interior Gateway Routing Protocol 21 OSPF = Open Shortest Path First 22 BGP4 = Border Gateway Protocol 4 23 MBGP = Multicast Border Gateway Protocol 24 MSDP = Multicast Source Discovery Protocol 25 ICMP = Internet Control Message Protocol 26 PIM = Protocol Independent Multicast 27 DVMRP = Distance Vector Multicast Routing Protocol 28 NTP = Network Time Protocol 29 VRRP = Virtual Router Redundancy Protocol 30 SCP = Secure Copy Protocol 31 GLBP = Gateway Load Balancing Protocol 32 HSRP = Hot Standby Router Protocol 33 SSH = Secure Shell Protocol 34 UDLR = Unidirectional Link Routing 35 SNMP = Simple Network Management Protocol 36 only Sup 6-E and 6L-E 37 not supported on E-Series Supervisor Engine 6-E 38 NAC = Network Admission Control 39 ACLs = Access Control Lists 40 filter-ID and per-user ACL 41 PACL = Port Access Control List 42 QoS = Quality of Service 43 PoE = Power over Ethernet 44 RPR = Supervisor engine redundancy 45 SSO = Stateful switchover (includes Stateful IGMP Snooping and Stateful DHCP Snooping) 46 ISSU = In Service Software Upgrade Process 47 The Catalyst 4500 series switch supports Fast Hellos, ISPF, and LSA Throttling. 48 CNA = Cisco Network Assistant; Minimum CNA release that supports Releases 12.2(25)EW is 1.0(2). Minimum CNA release that supports Release 12.2(20)EWA is 1.0(1). 49 On supported linecards: WS-X4124-RJ45, WS-X4148-RJ (and WS-X4232-GB-RJ) with hardware revision 3.0 or higher 50 EEM = Embedded Event anager 51 Includes HTTPS-HTTP with SSL 3.0, CEF-MIB, Embedded Syslog Manage, ... 52 Includes SNMP over IPv6, SYSLOG, HTTP over IPv6. 53 OBFL = On Board Failure Logging; Supverisor Engine 6-E only 54 The route-map keyword is not supported.

Following Features are Supported only on the Supervisor Engine 6-E

With Cisco IOS Release 12.2(52)SG, the following features are available only with
Supervisor Engine 6-E and Catalyst 4900M:

•IPv6

–IPv6 Addressing Architecture

–CDP IPv6 Address Family

–DNS resolver for AAAA over an IPv4 transport

–DNS resolver for AAAA over an IPv6 transport

–Extended ACL

–Hop-by-Hop option header

–ICMP Rate Limiting

–ICMPv6

–ICMPv6 Redirect

–IPv6 over IEEE 802.1Q

–ISATAP (supported in software only)

–Loopback

–MLD Snooping (supported in software on non E-series switches; supported in hardware on Catalyst 4900M and Supervisor Engine 6-E/6L-E)

–MLDv1/v2

–MTU Path Discovery for IPv6

–OSPFv3

–RIPng

–EIGRPv6

–BGPv4

•FAT filesystem

•PIM (SM, DM, SDM)

•QoS

–Two Rate three Color Policing

–Table map support for marking

–Class based queuing actions (shaping/bandwidth/queue-limit/dbl/strict priority)

•Voltage Margining CLI

•QoS for IPv6

•ARP QoS

Unsupported Features

For all Supervisor Engines (II-Plus thru 6-E), the following features are not supported in Cisco IOS Release 12.2(52)SG for the Catalyst 4500 series switches:

•The following ACL types:

–Standard Xerox Network System (XNS) access list

–Extended XNS access list

–DECnet access list

–Protocol type-code access list

•ADSL and Dial access for IPv6

•AppleTalk EIGRP (use native AppleTalk routing instead)

•Bridge groups

•Cisco IOS software IPX ACLs:

–<1200-1299> IPX summary address access list

•Cisco IOS software-based transparent bridging (also called "fallback bridging")

•Connectionless (CLNS) routing; including IS-IS routing for CLNS. IS-IS is supported for IP routing only.

•DLSw (data-link switching)

•IGRP (use EIGRP instead)

•isis network point-to-point command

•Kerberos support for access control

•Lock and key

•NAT-PT for IPv6

•NetFlow per-VRF

•PBR with Multiple Tracking Options

•QoS for IPv6 (QoS for IPv6 traffic) (only applies to Supervisor Engines II thru V-10GE)

•Reflexive ACLs

•Routing IPv6 over an MPLS network

•Two-way community VLANs in private VLANs

•WCCP version 1

•CFM CoS

•PBR with EOT

New and Changed Information

These sections describe the new and changed information for the Catalyst 4500 series switch running Cisco IOS software:

•New Hardware Features in Release 12.2(53)SG

•New Software Features in Release 12.2(53)SG

•New Hardware Features in Release 12.2(52)XO

•New Software Features in Release 12.2(52)XO

•New Hardware Features in Release 12.2(52)SG

•New Software Features in Release 12.2(52)SG

•New Hardware Features in Release 12.2(50)SG1

•New Software Features in Release 12.2(50)SG1

•New Hardware Features in Release 12.2(50)SG

•New Software Features in Release 12.2(50)SG

•New Hardware Features in Release 12.2(46)SG

•New Software Features in Release 12.2(46)SG

•New Hardware Features in Release 12.2(44)SG

•New Software Features in Release 12.2(44)SG

•New Hardware Features in Release 12.2(40)SG

•New Software Features in Release 12.2(40)SG

•New Hardware Features in Release 12.2(37)SG

•New Software Features in Release 12.2(37)SG

•New Hardware Features in Release 12.2(31)SG

•New Software Features in Release 12.2(31)SG

•New Hardware Features in Release 12.2(25)SG

•New Software Features in Release 12.2(25)SG

•New Hardware Features in Release 12.2(25)EWA

•New Software Features in Release 12.2(25)EWA

•New Hardware Features in Release 12.2(25)EW

•New Software Features in Release 12.2(25)EW

•New Hardware Features in Release 12.2(20)EWA

•New Software Features in Release 12.2(20)EWA

•New Hardware Features in Release 12.2(20)EW

•New Software Features in Release 12.2(20)EW

•New Hardware Features in Release 12.2(18)EW

•New Software Features in Release 12.2(18)EW

•New Hardware Features in Release 12.1(20)EW

•New Software Features in Release 12.1(20)EW

•New Hardware Features in Release 12.1(19)EW

•New Software Features in Release 12.1(19)EW

•New Hardware Features in Release 12.1(13)EW

•New Software Features in Release 12.1(13)EW

•New Hardware Features in Release 12.1(12c)EW

•New Software Features in Release 12.1(12c)EW

•New Hardware Features in Release 12.1(11b)EW

•New Software Features in Release 12.1(11b)EW

•New Hardware Features in Release 12.1(8a)EW

•New Software Features in Release 12.1(8a)EW

New Hardware Features in Release 12.2(53)SG

Release 12.2(53)SG does not provide any new hardware for the Catalyst 4500 series switch. However, it does integrate Supervisor Engine 6L-E, introduced in 12.2(52)XO.

New Software Features in Release 12.2(53)SG

Release 12.2(53)SG provides the following Cisco IOS software features for the Catalyst 4500 series switch:

•IP Multicast Load Splitting (Equal Cost Multipath (ECMP) using S, G and Next-hop)

•OSPF for Routed Access (Supervisor Engine 6-E and Supervisor Engine 6L-E)

OSPF for Routed Access is designed specifically to enable customers to extend Layer 3 routing capabilities to the access or Wiring Closet.

---

Note OSPF for Routed Access supports only one OSPFv2 and one OSPFv3 instance with a maximum number of 200 dynamically learned routes.

---

With the typical topology (hub and spoke) in a campus environment, where the wiring closets (spokes) are connected to the distribution switch (hub) forwarding all nonlocal traffic to the distribution layer, the wiring closet switch need not hold a complete routing table. A best practice design, where the distribution switch sends a default route to the wiring closet switch to reach inter-area and external routes (OSPF stub or totally stub area configuration) should be used when OSPF for Routed Access is used in the wiring closet.

Refer to the following link for more details:

http://www.cisco.com/en/US/docs/solutions/Enterprise/Campus/routed-ex.html

With Cisco IOS Release 12.2(53)SG, the IP Base image supports OSPF for routed access. The Enterprise Services image is required if you need multiple OSPFv2 and OSPFv3 instances without route restrictions. Additionally, Enterprise Services is required to enable the VRF-lite feature.

New Hardware Features in Release 12.2(52)XO

Release 12.2(52)XO provides the following new hardware for the Catalyst 4500 series switch:

•WS-X45-Sup6L-E, Catalyst 4500 E-series switch Supervisor Engine 6L-E

•PWR-C45-6000ACV, Catalyst 4500 series switch 6000 Watt AC power supply

---

Note Only supported on 3, 6, and 7 slot chassis and IP LAN and IP BASE images

---

New Software Features in Release 12.2(52)XO

---

Note This release is equivalent in functionality to 12.2(52)SG, but adds support for the new Sup6L-E supervisor. The only supervisor engine it supports is Sup6L-E; for all other supervisor engines, use 12.2(52)SG instead.

---

Release 12.2(52)XO provides the following Cisco IOS software features for the Catalyst 4500 series switch:

•EnergyWise

•Switch and IP Phone interaction for security features

–Port Security

–DHCP Snooping

–Dynamic ARP Inspection

–BPDU Guard

•Network Mobility Services Protocol

•Identity ACL Policy Enforcement Enhancement

–Filter-ID

–Per-user ACL

•Smart Call Home*

•Management Port Features with IPv6

•Local WebAuth Enhancement

•MDA with Voice Assignment

•HSRP v2 for IPv4

•HSRP v2 or IPv6

•DHCPv6 Enhancements

–DHCPv6 Ethernet Remote ID option

–DHCPv6 Relay - Persistent Interface ID option DHCPv6 Relay Agent notification for Prefix Delegation

•PIM SSM Mapping

•VRF lite NSF support with routing protocols OSPF/EIGRP/BGP

•Supported MIBs

–Cisco Enhanced Image MIB

–Cisco HSRP extension MIB

–CISCO-CALLHOME-MIB.my

–EnergyWise MIB

–POE MIB

–POE ext MIB

–Entity-Diag-MIB

–Bridge MIB

On Supervisor Engine 6L-E

•Community PVLAN support

•Ethertype Classification

•QinQ

•PPPoE IA (or Intermediate Agent)

New Hardware Features in Release 12.2(52)SG

Release 12.2(52)SG provides the following new hardware for the Catalyst 4500 series switch:

•PWR-C45-6000ACV, Catalyst 4500 series switch 6000 Watt AC power supply'

New Software Features in Release 12.2(52)SG

Release 12.2(52)SG provides the following Cisco IOS software features for the Catalyst 4500 series switch:

All Supervisor Engines

•EnergyWise

•Switch and IP Phone interaction for security features

–Port Security

–DHCP Snooping

–Dynamic ARP Inspection

–BPDU Guard

•Network Mobility Services Protocol

•Identity ACL Policy Enforcement Enhancement

–Filter-ID

–Per-user ACL

•Smart Call Home*

•Management Port Features with IPv6

•Local WebAuth Enhancement

•MDA with Voice Assignment

•HSRP v2 for IPv4

•HSRP v2 or IPv6

•DHCPv6 Enhancements

–DHCPv6 Ethernet Remote ID option

–DHCPv6 Relay - Persistent Interface ID option DHCPv6 Relay Agent notification for Prefix Delegation

•SSM Mapping

•PIM Accept Register - Rogue Multicast Server Protection (route-map option is not supported)

•VRF lite NSF support with routing protocols OSPF/EIGRP/BGP

•Supported MIBs

–Cisco Enhanced Image MIB

–Cisco HSRP extension MIB

–CISCO-CALLHOME-MIB.my

–EnergyWise MIB

–POE MIB

–POE ext MIB

–Entity-Diag-MIB

–Bridge MIB

On Supervisor Engine 6-E

•Community PVLAN support

•Ethertype Classification

•PBR

•QinQ

•PPPoE IA (or Intermediate Agent)

New Hardware Features in Release 12.2(50)SG3

Release 12.2(50)SG3 provides the following hardware for the Catalyst 4500 series switch:

•CVR-X2-SFP10G

Hot-swappable input/output (I/O) converter module that fits into a 10-Gigabit Ethernet X2 slot on a switch or line card module. Hosts one 10-Gigabit Ethernet SFP+ transceiver module.

•SFP-10G-SR, Cisco 10GBASE-SR SFP+ Module for MMF

New Software Features in Release 12.2(50)SG3

Release 12.2(50)SG3 provides no new features for the Catalyst 4500 series switch.

New Hardware Features in Release 12.2(50)SG2

Release 12.2(50)SG2 provides no new hardware for the Catalyst 4500 series switch.

New Software Features in Release 12.2(50)SG2

Release 12.2(50)SG2 provides no new features for the Catalyst 4500 series switch.

New Hardware Features in Release 12.2(50)SG1

Release 12.2(50)SG1 provides no new hardware for the Catalyst 4500 series switch.

New Software Features in Release 12.2(50)SG1

Release 12.2(50)SG1 provides the following Cisco IOS software features for the Catalyst 4500 series switch:

•EEM version 2

New Hardware Features in Release 12.2(50)SG

---

Note In addition to the classic line cards and supervisor engines, Cisco IOS Software Release 12.2(50)SG supports the next-generation high-performance E-Series Supervisor Engine 6-E with CenterFlex technology and E-Series line cards and chassis.

---

Release 12.2(50)SG provides the following new hardware for the Catalyst 4500 series switch:

•X2-10GB-ZR optical module

•X2-10GB-DWDM optical module

•Classic Series 48-port 10/100/1000 Premium PoE line card

New Software Features in Release 12.2(50)SG

Release 12.2(50)SG provides the following Cisco IOS software features for the Catalyst 4500 series switch:

---

Note The following chapter references are for the Catalyst 4500 Series Switch Cisco IOS Software Configuration Guide.

---

---

Note The implementation for multiple spanning tree (MST) changed from the previous release. Multiple STP (MSTP) complies with the IEEE 802.1s standard. Previous MSTP implementations were based on a draft of the IEEE 802.1s standard.

---

•IGMP Querier ("Configuring IGMP Snooping" chapter)

•OSPF and EIGRP fast convergence and protection (Refer to the Cisco IOS Release 12.4 documentation)

•CDP 2nd Port Status TLV (no configuration required on the switch)

---

Note The link up/down information in the CDP Second Port Status TLV (added by the Cisco IP Phones Host Movement Detection enhancement) allows the switch to de-authenticate devices which were previously authenticated. The phone must have firmware release 8.1(1) or later to generate this CDP TLV.

---

•ANCP Client (not supported on E-Series Supervisor Engine 6-E; "Configuring ANCP Client" chapter)

•boot config command (Refer to the Cisco IOS Release 12.2 documentation)

•Archiving Crashinfo Files ("Configuring Command-Line Interfaces" chapter)

•Boot Configuration/Crash Dump (refer to the Cisco IOS Release 12.2 documentation)

•Downloadable ACLs ("Configuring Network Security with ACLs" chapter)

•Ethernet Management Port (Refer to the "Configuring Interfaces" chapter)

•Flexible Authentication Sequencing ("Configuring 802.1X" chapter)

•Inactivity Timer ("Configuring 802.1X" chapter)

•Multi-Authentication ("Configuring 802.1X" chapter)

•Open Authentication ("Configuring 802.1X" chapter)

•PPPoE Intermediate Agent (not supported on E-Series Supervisor Engine 6-E; "PPPoE Circuit-Id Tag Processing" chapter)

•VRF-aware IP services ("Configuring VRF-Lite" chapter)

•VTP version 3 ("Configuring VLANs, VTP, and VMPS" chapter)

•Web Authentication ("Configuring Web Authentication" chapter)

•Configuration Rollback

On Supervisor Engine 6-E

•Bidirectional PIM ("Configuring IP Multicast" chapter)

•Control Plane Policing ("Configuring CPP" chapter)

•DHCP Relay Agent for IPv6 (refer to Cisco IOS Release 12.2 mainline documentation)

•Multicast VRF-lite ("Configuring VRF-Lite" chapter)

•On Board Failure Logging (refer to the Cisco IOS Release 12.2 documentation)

•Private VLAN trunks ("Configuring Private VLANs" chapter)

•SVI Auto State Exclude ("Configuring Layer 3 Interfaces" chapter)

•Unicast MAC filtering ("Configuring Network Security with ACLs" chapter)

New Hardware Features in Release 12.2(46)SG

---

Note In addition to the classic line cards and supervisor engines, Cisco IOS Software Release 12.2(46)SG supports the next-generation high-performance E-Series Supervisor Engine 6-E with CenterFlex technology and E-Series line cards and chassis.

---

Release 12.2(46)SG provides the following new hardware for the Catalyst 4500 series switch:

•20 W PoE linecard

New Software Features in Release 12.2(46)SG

Release 12.2(46)SG provides the following Cisco IOS software features for the Catalyst 4500 series switch:

---

Note The following chapter references are for the Catalyst 4500 Series Switch Cisco IOS Software Configuration Guide.

---

On Supervisor Engine 6-E

•802.1X Enhancements (Refer to the "Configuring 802.1X" chapter)

–802.1X Guest VLAN

–802.1X Critical Authentication

–Wake on LAN

–Radius Accounting

–Radius Supplied Timeout

•ARP QoS (Refer to the "Configuring QoS" chapter)

•Per-VLAN CTI (Refer to the "Configuring QoS" chapter)

•Catalyst 4900M switch support for Layer 3 features

•RSPAN (Refer to the "Configuring SPAN and RSPAN" chapter)

On all the Supervisor Engines (II-Plus thru 6-E)

•FlexLink and FlexLink+ with MAC Address-Table Move Update (Refer to the "Configuring FlexLink" chapter)

•LLDP-MED: location TLV and MIB (Refer to the "Configuring LLDP and LLDP-MED" chapter)

•Auto-MDIX Disable (Refer to the "Configuring Interfaces" chapter)

•Enhanced Object Tracking (EOT) (Refer to the Cisco IOS Release 12.2 documentation)

–HSRP with EOT

–VRRP with EOT

–GLBP with EOT

–IP SLA with EOT

–Reliable Backup Static Routing with EOT

•CFM 802.1ag (Refer to the "Configuring Ethernet CFM and OAM" chapter)

•E-OAM 802.3ah (Refer to the "Configuring Ethernet CFM and OAM" chapter)

---

Note The implementation for multiple spanning tree (MST) changed from the previous release. Multiple STP (MSTP) complies with the IEEE 802.1s standard. Previous MSTP implementations were based on a draft of the IEEE 802.1s standard.

---

New Hardware Features in Release 12.2(44)SG

---

Note In addition to the classic line cards and supervisor engines, Cisco IOS Software Release 12.2(44)SG supports the next-generation high-performance E-Series Supervisor Engine 6-E with CenterFlex technology and E-Series line cards and chassis.

---

Release 12.2(44)SG provides the following new hardware for the Catalyst 4500 series switch:

•WS-X4624-SFP-E

New Software Features in Release 12.2(44)SG

Release 12.2(44)SG provides the following Cisco IOS software features for the Catalyst 4500 series switch:

---

Note The following chapter references are for the Catalyst 4500 Series Switch Cisco IOS Software Configuration Guide.

---

On Supervisor Engine 6-E

•High availability on Supervisor Engine 6-E (SSO/NSF) (Refer to the "Configuring NSF on SSO" chapter)

•High availability on Supervisor Engine 6-E (ISSU) (Refer to the "Configuring ISSU" chapter)

•Embedded management (Refer to the Cisco IOS Release 12.4 documentation)

•MAC notify MIB (Refer to the Cisco IOS Release 12.4 documentation)

•IPv4_BGP, IPv6_BGP (Refer to the Cisco IOS Release 12.4 documentation)

•802.1X Dynamic VLAN Assignment (Refer to the "Configuring 802.1X" chapter)

•802.1X MAC Authentication Bypass (Refer to the "Configuring 802.1X" chapter)

•802.1X with VVID/PVID (Refer to the "Configuring 802.1X" chapter)

•High availability, 2+2 10GE or 4+4 1GE active uplinks (Refer to the "Configuring Interfaces" chapter)

•Enhanced Power over Ethernet Support ((Refer to the "Configuring Power over Ethernet" chapter)

•Eight configurable queues per port (Refer to the "Configuring QoS" chapter)

On all the Supervisor Engines (II-Plus thru 6-E)

•EEM with ISSU

For details, refer to the EEM Home Page:
http://www.cisco.com/en/US/products/ps6815/products_ios_protocol_group_home.html

•ESM

For details, refer to the ESM Home Page:
http://www.cisco.com/en/US/docs/ios/12_3t/12_3t2/feature/guide/gt_esm.html

•VSS client with PagP+

After configuring VSS dual-active on a Catalyst 6500 switches, the Catalyst 4500 series switch can detect VSS dual-active with PagP+ support.

•IP SLA (Refer to the Cisco IOS Release 12.2 documentation)

•802.1ab LLDP and 802.1ab LLDP-MED (Refer to the "Configuring LLDP and LLDP-MED" chapter)

•X2 Link Debounce Timer (Refer to the "Configuring Interfaces" chapter)

•Resilient Ethernet Protocol (REP) (Refer to the "Configuring REP" chapter)

---

Note The implementation for multiple spanning tree (MST) changed from the previous release. Multiple STP (MSTP) complies with the IEEE 802.1s standard. Previous MSTP implementations were based on a draft of the IEEE 802.1s standard.

---

New Hardware Features in Release 12.2(40)SG

---

Note In addition to the classic line cards and supervisor engines, Cisco IOS Software Release 12.2(40)SG supports the next-generation high-performance E-Series Supervisor Engine 6-E with CenterFlex technology and E-Series line cards and chassis.

---

A brief list of primary E-Series hardware supported by Cisco IOS Release 12.2(40)SG includes the following:

•WS-C4503-E - Cisco Catalyst 4500 E-Series 3-Slot Chassis, fan, no power supply

•WS-C4506-E - Cisco Catalyst 4500 E-Series 6-Slot Chassis, fan, no power supply

•WS-C4507R-E - Cisco Catalyst 4500 E-Series 7-Slot Chassis, fan, no power supply, redundant supervisor capability

•WS-C4510R-E - Cisco Catalyst 4500 E-Series 10-Slot Chassis, fan, no power supply, redundant supervisor capability

•WS-X45-Sup6-E - Cisco Catalyst 4500 E-Series Sup 6-E, 2x10GE(X2) w/ TwinGig

•WS-X4648-RJ45V-E - Cisco Catalyst 4500 E-Series 48-Port PoE 802.3af 10/100/1000(RJ45)

•WS-X4648-RJ45V+E - Cisco Catalyst 4500 E-Series 48-Port Premium PoE 10/100/1000

•WS-X4606-X2-E - Cisco Catalyst 4500 E-Series 6-Port 10GbE (X2)

New Software Features in Release 12.2(40)SG

Release 12.2(40)SG provides the following Cisco IOS software features for the Catalyst 4500 series switch:

---

Note The following chapter references are for the Catalyst 4500 Series Switch Cisco IOS Software Configuration Guide.

---

Only available on Supervisor Engine 6-E

•Dynamic Multi-Protocol Ternary Content Addressable Memory (Configuring Network Security with ACLs" chapter)

•Service-Aware Resource Allocation (Refer to the Cisco IOS Release 12.4 documentation)

•Unicast Reverse Path Forwarding ("Configuring Unicast Reverse Path Forwarding" chapter)

•IPv6 Forwarding in Hardware (Refer to the Cisco IOS Release 12.4 documentation)

•Enhanced Interior Gateway Routing Protocol IPv6 Support (Refer to the Cisco IOS Release 12.4 documentation)

•IPv6 Multicast Listener Discovery Snooping ("Configuring MLD Snooping" chapter)

•TwinGig Converter Module ("Configuring Interfaces" chapter)

•Robust and Flexible File Management System (FAT File System) (Refer to the Cisco IOS Release 12.4 documentation)

•Storm Control: Per-Port Multicast Suppression ("Configuring Storm Control" chapter)

•Cisco Modular QoS Command-Line Interface ("Configuring QoS" chapter)

•Two-Rate Three-Color Policing

Only available on Supervisor Engines II-Plus thru V-10GE

•Selecting Mode of Capturing Control Packets (Configuring Network Security with ACLs" chapter)

•Layer 2 Control Policing ("Configuring QoS" chapter)

Available on all Supervisor Engines (II-Plus thru 6-E)

•Gateway Load Balancing Protocol (Refer to the Cisco IOS Release 12.4 documentation)

•Option 82 Enhancement ("Configuring DHCP Snooping, IP Source Guard, and IPSG for Static Hosts" chapter)

---

Note The implementation for multiple spanning tree (MST) changed from the previous release. Multiple STP (MSTP) complies with the IEEE 802.1s standard. Previous MSTP implementations were based on a draft of the IEEE 802.1s standard.

---

New Hardware Features in Release 12.2(37)SG

---

Note The Catalyst 4006 chassis is no longer supported in Cisco IOS Release 12.2(37)SG.

---

Release 12.2(37)SG provides the following new hardware for the Catalyst 4500 series switch:

•WS-C4503-E

•WS-C4506-E

New Software Features in Release 12.2(37)SG

Release 12.2(37)SG provides the following Cisco IOS software features for the Catalyst 4500 series switch:

---

Note The following chapter references are for the Catalyst 4500 Series Switch Cisco IOS Software Configuration Guide.

---

•Multi Domain Authentication ("Configuring 802.1X Port-Based Authentication" chapter)

•Selective Dynamic Buffer Limiting ("Configuring QoS" chapter)

•SVI Autostate Exclude ("Configuring Layer 3 Interface" chapter)

•IP Source Guard for Static Hosts ("Configuring DHCP Snooping, IP Source Guard, and IPSG for Static Hosts" chapter)

•BGP route-map Continue Support for Outbound Policy

For details, locate the feature entry in the Feature Information Table located toward the end of the "Connecting to a Service Provider Using External BGP" module

•Auto RP Listener (Refer to the Cisco IOS Release 12.4 documentation)

•Logging Redirection ("Configuring Cisco NSF with SSO Supervisor Engine Redundancy" chapter and the "Catalyst 4500 Series Switch System Error Message Guide")

---

Note The implementation for multiple spanning tree (MST) changed from the previous release. Multiple STP (MSTP) complies with the IEEE 802.1s standard. Previous MSTP implementations were based on a draft of the IEEE 802.1s standard.

---

New Hardware Features in Release 12.2(31)SGA

---

Note Cisco IOS Release 12.2(31)SGA is the first IOS release supporting the ME-X4924-10GE.

---

Following hardware was supported:

•X2-10GB-LRM

New Software Features in Release 12.2(31)SGA

Release 12.2(31)SGA provides the following Cisco IOS software features for the Catalyst 4500 series switch:

---

Note The following chapter references are for the Catalyst 4500 Series Switch Cisco IOS Software Configuration Guide.

---

•In Service Software Upgrade ("Configuring the Cisco IOS In Service Software Upgrade" chapter)

•Trunk Port Security over EtherChannel ("Configuring Port Security and Configuring EtherChannel" chapters)

•Match CoS for Non-IPv4 Traffic ("Configuring QoS" chapter)

•CoS Mutation ("Configuring QoS" chapter)

•QinQ Tunneling and Protocol Tunneling ("Configuring 802.1Q and Layer 2 Protocol Tunneling" chapter)

•IP Unnumbered ("Configuring IP Unnunmbered Support" chapter)

•CLI to turn off Auto-MDIX CLI on supported linecards (WS-X4124-RJ45, WS-X4148-RJ (and WS-X4232-GB-RJ) with hardware revision 3.0 or higher) ("Configuring Layer 3 Interfaces" chapter)

---

Note The implementation for multiple spanning tree (MST) changed from the previous release. Multiple STP (MSTP) complies with the IEEE 802.1s standard. Previous MSTP implementations were based on a draft of the IEEE 802.1s standard.

---

New Hardware Features in Release 12.2(31)SG

Release 12.2(31)SG provides the following new hardware for the Catalyst 4500 series switch:

•None

New Software Features in Release 12.2(31)SG

Release 12.2(31)SG provides the following Cisco IOS software features for the Catalyst 4500 series switch:

---

Note The following chapter references are for the Catalyst 4500 Series Switch Cisco IOS Software Configuration Guide.

---

•Non-Stop Forwarding with Stateful Switchover (NSF/SSO) ("Configuring Cisco NSF with SSO Supervisor Engine Redundancy" chapter)

•SSO Aware HSRP ("Configuring Cisco NSF with SSO Supervisor Engine Redundancy" chapter)

•Control Plane Policing ("Configuring Control Plane Policing" chapter)

•WCCP version 2 Layer 2 Redirection ("Configuring WCCPv2 Services" chapter)

•MAC Authentication Bypass ("Configuring 802.1X Port-Based Authentication" chapter)

•802.1X Inaccessible Authentication Bypass ("Configuring 802.1X Port-Based Authentication" chapter)

•802.1X Unidirectional Controlled Port ("Configuring 802.1X Port-Based Authentication" chapter)

•Private VLAN Promiscuous Trunk ("Configuring Private VLANs" chapter)

•MAC Address Notification ("Administering the Switch" chapter)

•Voice VLAN Sticky Port Security ("Configuring Port Security" chapter)

•Combined Mode Power Resiliency ("Environmental Monitoring and Power Management" chapter)

•Virtual Router Redundancy Protocol (VRRP) (Refer to the Cisco IOS Release 12.3 documentation)

•Secure Copy Protocol (SCP) (Refer to the Cisco IOS Release 12.3 documentation

---

Note The implementation for multiple spanning tree (MST) changed from the previous release. Multiple STP (MSTP) complies with the IEEE 802.1s standard. Previous MSTP implementations were based on a draft of the IEEE 802.1s standard.

---

New Hardware Features in Release 12.2(25)SG

Release 12.2(25)SG provides the following new hardware for the Catalyst 4500 series switch:

•WS-X4013+10GE—Catalyst 4500 series switch Supervisor Engine II-Plus-10GE

•WS-X4248-FE-SFP—Catalyst 4500 series switch 48-port 100BASE-X SFP module

•GLC-FE-100FX—100Mbit SFP, 100BASE-FX, 1310 nm wavelength, 2 km over MMF

•GLC-FE-100LX—100Mbit SFP, 100BASE-FX, 1310 nm wavelength, 10 km over MMF

•GLC-FE-100BX-D—100Mbit SFP, 100BASE-BX-D, 1550 nm TX/1310 nm RX wavelength, 10km over single-strand SMF

•GLC-FE-100BX-U—100Mbit SFP, 100BASE-BX-U, 1310 nm TX/1550 nm RX wavelength, 10km over single-strand SMF

New Software Features in Release 12.2(25)SG

---

Note The following chapter references are for the Catalyst 4500 Series Switch Cisco IOS Software Configuration Guide.

---

Release 12.2(25)SG provides the following Cisco IOS software features for the Catalyst 4500 series switch:

•Cisco Catalyst 4500 Series Supervisor Engine V-10GE Uplink Enhancement for simultaneous use of 10-Gigabit Ethernet and the Gigabit Ethernet SFP interfaces. (The Catalyst 4510R requires optional configuration. See the "Configuring Interfaces" chapter.)

---

Note On a Catalyst 4510R series switch, if you enable both the 10-Gigabit Ethernet and the Gigabit Ethernet SFP uplink ports, you must re-boot the switch. On the Catalyst 4503, 4506, and 4507R series switches, this capability is automatically enabled.

---

•Simultaneous provisioning of X2 pluggable modules and SFP uplinks on the Supervisor Engine II-Plus-10GE (WS-X4013+10GE).

•IEEE 802.1S Standards Compliance (Refer to the Cisco IOS Release 12.3 documentation)

•802.1X Authentication Failure VLAN ("Understanding and Configuring 802.1X Port-Based Authentication" chapter)

•HTTPS (Refer to the Cisco IOS Release 12.3 documentation)

•Interface Link and Trunk Status Logging Event Enhancement ("Configuring Interfaces" chapter)

•IS-IS MIB (Refer to the Cisco IOS Release 12.3 documentation

•Microflow Policing Full Flow Match ("Configuring QoS" and Configuring Netflow" chapters)

•POST enhancement for Supervisor Engine V-10GE ("Diagnostics on the Catalyst 4500 Series Switch")

•OSPF Fast Convergence. Catalyst 4500 series switch will support Fast Hellos, ISPF, and LSA Throttling.

•Time Domain Reflectometry ("Checking Port Status and Connectivity" chapter)

•SNMP V3 support for Bridge-MIB with VLAN indexing

---

Note The implementation for multiple spanning tree (MST) changed from the previous release. Multiple STP (MSTP) complies with the IEEE 802.1s standard. Previous MSTP implementations were based on a draft of the IEEE 802.1s standard.

---

New Hardware Features in Release 12.2(25)EWA

Release 12.2(25)EWA provides the following new hardware for the Catalyst 4500 series switch:

•WS-X4948-10GE—Catalyst 4948 48-Port 10/100/1000 + 2 10GE in a 1 RU with dual, redundant AC/DC power

---

Caution If you plan to insert X2 transceivers in the Cisco Catalyst 4948-10GE, you should ensure that the Catalyst 4500 series switch and the X2 back interfaces are properly oriented during the OIR (Online insertion and removal) of the transceivers. The top transceiver (port tengig1/49) should be inserted with heatsink facing up. The bottom transceiver (port tengig1/50) should be plugged in with heatsink facing down, CLEI (Common Language Equipment Identifiers) label facing up. (See Figure 3.). When inserted correctly, the TX/RX of the bottom transceiver would look reversed. For more details refer to the
Catalyst 4900 Installation Guide, at the URL:

http://www.cisco.com/en/US/docs/switches/lan/catalyst4900/installation/guide/01intro.html

---

•PWR-C45-4200ACV—Catalyst 4500 series switch 4200 Watt AC dual input power supply with integrated voice (data and PoE)

Figure 3 Cavities of X2 Transceivers on the Catalyst 4948-10GE

New Software Features in Release 12.2(25)EWA

Release 12.2(25)EWA provides the following Cisco IOS software features for the Catalyst 4500 series switch:

---

Note The following chapter references are for the Catalyst 4500 Series Switch Cisco IOS Software Configuration Guide.

---

•Per-Port Per-VLAN QoS ("Configuring QoS and Per-Port Per-VLAN QoS" chapter)

•Trunk-Port Security ("Configuring Port Security and Trunk Port Security" chapter)

•NetFlow Bridged IP Flow ("Configuring NetFlow Statistics Collection" chapter)

•802.1X Private VLAN Assignment ("Understanding and Configuring 802.1X Port-Based Authentication" chapter)

•802.1X Private Guest VLAN ("Understanding and Configuring 802.1X Port-Based Authentication" chapter)

•802.1X Radius-Supplied Session Timeout ("Understanding and Configuring 802.1X Port-Based Authentication" chapter)

•DHCP Option 82 Pass Through ("Configuring DHCP Snooping and IP Source Guard" chapter)

•Time-based ACL

New Hardware Features in Release 12.2(25)EW

---

Note This release is deferred to 12.2(25)EWA2.

---

Release 12.2(25)EW provides the following new hardware for the Catalyst 4500 series switch:

•WS-X4516-10GE—Catalyst 4500 series switch Supervisor Engine V-10GE

•PWR- C45-1400DC SP—Catalyst 4500 series switch 1400 DC triple input power supply (data-only)

New Software Features in Release 12.2(25)EW

---

Note This release is deferred to 12.2(25)EWA2.

---

Release 12.2(25)EW provides the following Cisco IOS software features for the Catalyst 4500 series switch:

---

Note The following chapter references are for the Catalyst 4500 Series Switch Cisco IOS Software Configuration Guide.

---

•Enhanced NetFlow support on the Catalyst 4500 series switch Supervisor Engine V-10GE

•10-Gigabit Ethernet support on the Catalyst 4500 series switch Supervisor Engine V-10GE

New Hardware Features in Release 12.2(20)EWA

Release 12.2(20)EWA provides the following new hardware for the Catalyst 4500 series switch:

•WS-X4013+TS—Catalyst 4500 series switch Supervisor Engine II-Plus-TS

•WS-X4506-GB-T—Catalyst 4500 series 6-Port Alternatively-Wired 10/100/1000 Power over Ethernet (PoE) or 1000BASE-X SFP module

•WS-X4948—Catalyst 4948 48-Port 10/100/1000 + 4 SFP in a 1 RU with dual, redundant AC/DC power

New Software Features in Release 12.2(20)EWA

Release 12.2(20)EWA provides the following Cisco IOS software features for the Catalyst 4500 series switch:

---

Note The following chapter references are for the Catalyst 4500 Series Switch Cisco IOS Software Configuration Guide.

---

•Non-Stop Forwarding Awareness ("Configuring Supervisor Engine Redundancy Using RPR and SSO" chapter)

•Stateful Switchover ("Configuring Supervisor Engine Redundancy Using RPR and SSO" chapter)

•802.1X with Voice VLAN ID ("Understanding and Configuring 802.1X Port-Based Authentication" chapter)

•Forced 10/100 Auto Negotiation ("Configuring Interfaces" chapter)

•PIM SSM for IGMPv2 using DNS or static mapping (IOS standard documentation)

New Hardware Features in Release 12.2(20)EW

Release 12.2(20)EW provides the following new hardware for the Catalyst 4500 series switch:

•WS-X4124-RJ45—Catalyst 4500 series 24-port 10/100(RJ-45) module

•WS-X4224-RJ45V—Catalyst 4500 series Power over Ethernet (PoE) 10/100-Mbps, 24-port (RJ-45) 802.3af

•WS-X4448-GB-SFP—Catalyst 4500 series 48-Port 1000BASE-X SFP module

•WS-X4524-GB-RJ45V—Catalyst 4500 series Power over Ethernet (PoE) 10/100/1000-Mbps, 24-port (RJ-45) 802.3af

New Software Features in Release 12.2(20)EW

Release 12.2(20)EW provides the following Cisco IOS software features for the Catalyst 4500 series switch:

---

Note The following chapter references are for the Catalyst 4500 Series Switch Cisco IOS Software Configuration Guide.

---

•Community PVLAN ("Configuring Private VLANs" chapter)

•SPAN ACL Filtering ("Configuring SPAN and RSPAN" chapter)

•DHCP Client Autoconfiguration ("Configuring the Switch for the First Time" chapter)

•Software-based IPv6

For information on the IPv6 feature, refer to the following URL:

http://www.cisco.com/en/US/technologies/collateral/tk648/tk872/tk373/technologies_white_paper_09186a00802219bc.html

For limitations of IPv6 support on the Catalyst 4500 series switch, refer to the "Unsupported Features" section.

New Hardware Features in Release 12.2(18)EW

Release 12.2(18)EW provides the following new hardware for the Catalyst 4500 series switch:

•WS-X4516—Catalyst 4500 series switch Supervisor Engine V

•WS-C4510R—Catalyst 4500 series switch chassis with 10 slots (supports Supervisor Engine V only)

•WS-X4148-FE-BD-LC—Catalyst 4500 series switch 48-port 100BASE-BX10-D module

•WS-X4248-RJ45V—Catalyst 4500 series switch Power over Ethernet (PoE) 10/100-Mbps, 48 port (RJ-45)

• WS-X4248-RJ21V—Catalyst 4500 series switch Power over Ethernet (PoE) 10/100-Mbps, 48 port telco (4xRJ-21)

• WS-X4548-GB-RJ45V—Catalyst 4500 series switch Power over Ethernet (PoE) 48-port 10/100/1000-Mbps (RJ-45)

New Software Features in Release 12.2(18)EW

Release 12.2(18)EW provides the following Cisco IOS software features for the Catalyst 4500 series switch:

---

Note The following chapter references are for the Catalyst 4500 Series Switch Cisco IOS Software Configuration Guide.

---

•802.1Q Tunneling (Q in Q) ("Configuring 802.1Q and Layer 2 Protocol Tunneling" chapter)

•Layer 2 Protocol Tunneling ("Configuring 802.1Q and Layer 2 Protocol Tunneling" chapter)

•Storm Control ("Configuring Port-Based Traffic Control" chapter)

•Sticky Port Security ("Configuring Port Security" chapter)

•802.1X with Port Security ("Understanding and Configuring 802.1X Port-Based Authentication" chapter)

•802.1X Accounting ("Understanding and Configuring 802.1X Port-Based Authentication" chapter)

•SmartPort Macros ("Configuring SmartPort Macros" chapter)

•Chassis and Inline Power Management ("Environmental Monitoring and Power Management" chapter)

New Hardware Features in Release 12.1(20)EW

There are no new hardware features in Release 12.1(20)EW.

New Software Features in Release 12.1(20)EW

Release 12.1(20)EW provides the following Cisco IOS features for the Catalyst 4500 series switch:

---

Note The following chapter references are for the Catalyst 4500 Series Switch Cisco IOS Software Configuration Guide.

---

•Internet Group Management Protocol (IGMP) v3 snooping enhancements ("Configuring IGMP Snooping and Filtering" chapter)

•Virtual Routing Forwarding-lite ("Configuring VRF-lite" chapter)

•Remote Switched Port ANalyzer ("Configuring SPAN and RSPAN" chapter)

•Pragmatic General Multicast (PGM)

•Port Security on PVLAN ports

•Dynamic ARP Inspection on PVLAN ports

•Authentication, authorization, and accounting using TACACS+ and RADIUS protocol

•Internetwork Packet Exchange (IPX)/AppleTalk access control lists (ACLs)

–<1000-1099> IPX SAP access list

–<800-899> IPX standard access list

–<900-999> IPX extended access list

•Transceiver Optical Monitoring

•Enhanced Simple Network Management Protocol (SNMP) Management Information Base (MIB) support

---

Note The following chapter references are for the Catalyst 4500 Series Switch Cisco IOS Software Configuration Guide.

---

New Hardware Features in Release 12.1(19)EW

Release 12.1(19)EW provides the following new hardware for the Catalyst 4500 series switch:

•WS-X4013+—Catalyst 4500 series Supervisor Engine II-Plus

•WS-X4548-GB-RJ45—Catalyst 4500 series 48-port 10/100/1000 RJ-45 line card

•WS-X4302-GB—Catalyst 4500 series 2-port Gigabit Ethernet line card

•DWDM-GBIC-xx.yy—Cisco DWDM GBICs

•WDM-GBIC-REC—Cisco receive-only 1000BASE-WDM GBIC

New Software Features in Release 12.1(19)EW

Release 12.1(19)EW provides the following Cisco IOS software features for the Catalyst 4500 series switch:

---

Note The following chapter references are for the Catalyst 4500 Series Switch Cisco IOS Software Configuration Guide.

---

•Storm Control ("Configuring Port-Based Traffic Control" chapter)

•Per-VLAN Rapid Spanning Tree ("Understanding and Configuring STP" chapter)

•Trusted boundary ("Configuring QoS" chapter)

•Auto QoS ("Configuring QoS" chapter)

•Secure access with Secure Shell Protocol (SSHv2)

•show interface capabilities command ("Configuring Port-Based Traffic Control" chapter)

•NetFlow version 8 ("Configuring NetFlow Statistics Collection" chapter)

•Port ACL ("Configuring Network Security with ACLs" chapter)

•Dynamic ARP Inspection ("Understanding and Configuring Dynamic ARP Inspection" chapter)

•IP source guard ("Configuring DHCP Snooping and IP Source Guard" chapter)

---

Note For any network deployment of Dynamic ARP Inspection, IP Source Guard and the DHCP snooping features, it is essential that you read the white paper "Catalyst 4500 Security Services Best Practices" at the URL:

http://www.cisco.com/en/US/products/hw/switches/ps700/products_white_paper09186a00801b49a4.shtml

---

•CPU port sniffing ("Configuring SPAN" chapter)

•Packet type filtering ("Configuring SPAN" chapter)

•Ingress packets ("Configuring SPAN" chapter)

•Port flood blocking ("Port Unicast and Multicast Flood Blocking" chapter)

•802.1X with VLAN assignment ("Configuring 802.1X Port-Based Authentication" chapter)

•802.1X with guest VLAN ("Configuring 802.1X Port-Based Authentication" chapter)

•IGMP version 3 ("Configuring IGMP Snooping and Filtering" chapter)

•Unidirectional link routing ("Configuring Unidirectional Link Routing" chapter in the Cisco IP and IP Routing Configuration Guide)

•Inline power preallocation ("Environmental Monitoring and Power Management" chapter)

•IPX performance enhancements

The delivery latency for IPX packet forwarding has been significantly improved. For lock-step based protocols with single or small packet window sizes, this results in an increased throughput rate and better responsiveness.

---

Note The chapter references are for the Catalyst 4500 Series Switch Cisco IOS Software Configuration Guide.

---

New Hardware Features in Release 12.1(13)EW

Release 12.1(13)EW provides the following new hardware for the Catalyst 4500 series switch:

•WS-F4531—Catalyst 4500 Series NetFlow Services Card

•WS-G5483—Cisco 1000BASE-T GBIC

•WS-X4604-GWY—Cisco Catalyst 4000 Access Gateway Module

•WS-X4148-FE-LX-MT—48-port 100BASE-LX10 Fast Ethernet switching module

New Software Features in Release 12.1(13)EW

Release 12.1(13)EW provides the following Cisco IOS software features for the Catalyst 4500 series switch:

•The new Layer 2 features are as follows:

---

Note The following chapter references are for the Catalyst 4500 Series Switch Cisco IOS Software Configuration Guide

---

–VLAN Management Policy Server (VMPS) client ("Configuring Dynamic VLAN Membership" chapter)

–Support for 9216 byte frames ("Configuring Interfaces" chapter)

–Unicast MAC filtering ("Configuring Network Security with ACLs" chapter)

–Layer 2 traceroute ("Checking Port Status and Connectivity" chapter)

–Unidirectional Ethernet port ("Configuring Unidirectional Ethernet" chapter)

–Private VLAN DHCP snooping ("Configuring PVLANs" chapter)

–Port security ("Configuring Port Security" chapter)

•The new Layer 3 features are as follows:

–PBR (policy-based routing) ("Configuring Policy-Based Routing" chapter)

–Dynamic Buffer Limiting ("Understanding and Configuring QoS" chapter)

•Secure access via secure shell (SSH) Protocol

•Intermediate System to Intermediate System (IS-IS)

•NetFlow VLAN Statistics

•NetFlow Statistics Collection

•NetFlow Statistics Export Version 1 and Version 5

•IEEE 802.3ad ("Understanding and Configuring EtherChannel" chapter)

•Enhanced SNMP MIB support

For more information on these features, refer to these publications:

---

Note The chapter references are for the Catalyst 4500 Series Switch Cisco IOS Software Configuration Guide.

---

New Hardware Features in Release 12.1(12c)EW

Release 12.1(12c)EW provides the following new hardware for the Catalyst 4500 series switch:

•PWR-C45-1000AC—Catalyst 4500 1000 Watt AC Power Supply (data only)

•PWR-C45-2800AC—Catalyst 4500 2800 Watt AC Power Supply (with integrated voice)

•WS-C4503—Catalyst 4503 chassis with 3 slots and a fan

•WS-C4506—Catalyst 4506 chassis with 6 slots and a fan

•WS-C4507R—Cisco Catalyst 4507 chassis with 7 slots and a fan (supports Supervisor Engine IV only)

•WS-X4515—Cisco Catalyst 4500 Supervisor Engine IV

•WS-X4515/2—Cisco Catalyst 4507R Redundant Supervisor Engine IV

•CWDM-GBIC-1470—Longwave 1470 nm laser single-mode

•CWDM-GBIC-1490—Longwave 1490 nm laser single-mode

•CWDM-GBIC-1510—Longwave 1510 nm laser single-mode

•CWDM-GBIC-1530—Longwave 1530 nm laser single-mode

•CWDM-GBIC-1550—Longwave 1550 nm laser single-mode

•CWDM-GBIC-1570—Longwave 1570 nm laser single-mode

•CWDM-GBIC-1590—Longwave 1590 nm laser single-mode

•CWDM-GBIC-1610—Longwave 1610 nm laser single-mode

New Software Features in Release 12.1(12c)EW

Release 12.1(12c)EW provides the following Cisco IOS features for the Catalyst 4500 series switch.

•The new Layer 2 features are as follows:

---

Note The chapter references are for the Catalyst 4500 Series Switch Cisco IOS Software Configuration Guide.

---

–Support for 4096 VLANs per switch (refer to the "Understanding and Configuring VLANs" chapter)

–Support for 1600 byte-sized frames to enable two nested 802.1q headers (802.1q in 802.1q pass-through) and Multiprotocol Label Switching (MPLS) on the network (refer to the "Understanding and Configuring VLANs" chapter)

–Spanning-tree Loop guard and PortFast BPDU Filtering (refer to the "Configuring STP Features" chapter)

–802.1s and 802.1w (refer to the "Understanding and Configuring Multiple Spanning Trees" chapter)

–IGMP filtering on trunks

–PVLAN isolated trunk port (refer to the "Configuring PVLANs" chapter)

–DHCP snooping (refer to the "Understanding and Configuring DHCP Snooping" chapter)

–802.1X port-based authentication (refer to the "Configuring 802.1X Port-Based Authentication" chapter)

–VLAN access control lists (refer to the "Configuring Network Security with ACLs" chapter)

•The new Layer 3 features are as follows:

–Software routing IPX and Appletalk

•Supervisor Engine Redundancy (refer to the "Configuring Supervisor Engine Redundancy on the Catalyst 4507R" chapter)

•Support for SPAN sessions with both received and transmitted traffic (refer to the "Configuring SPAN" chapter)

---

Note The chapter references are for the Catalyst 4500 Series Switch Cisco IOS Software Configuration Guide.

---

New Hardware Features in Release 12.1(11b)EW

Release 12.1(11b)EW provides initial support of the Cisco IOS software for the Catalyst 4006 switch with Supervisor Engine III and the following modules:

•WS-X4148-RJ45V—48-port inline power 10/100BASE-TX switching module with inline power support

•WS-X4095-PEM—Catalyst 4000 DC Power Entry Module

•WS-P4603-2PSU—Catalyst 4000 Auxiliary Power Shelf (3-slot) including two WS-X4608 power supplies

•WS-X4608—Catalyst 4603 Power Supply Unit for WS-P4603

New Software Features in Release 12.1(11b)EW

Release 12.1(11b)EW provides initial support of the Cisco IOS software for the Catalyst 4006 switch with Supervisor Engine III.

Release 12.1(11b)EW provides these features:

•Multiple VLAN access port (only for data and voice VLANs)

•Inline power management for Cisco IP phones and Aironet 350 Wireless Access Points on the WS-X4148-RJ45V module.

•Power redundancy

•Multicast flooding suppression for STP changes

•IGMP filtering

New Hardware Features in Release 12.1(8a)EW

Release 12.1(8a)EW provides initial support of the Cisco IOS software for the Catalyst 4006 switch with Supervisor Engine III and the following modules:

•WS-X4124-FX-MT—24-port 100BASE-FX Fast Ethernet switching module

•WS-X4148-FX-MT—48-port 100BASE-FX Fast Ethernet switching module

•WS-X4148-RJ—48-port 10/100 Fast Ethernet RJ-45 switching module

•WS-X4148-RJ21—48-port 10/100-Mbps Fast Ethernet RJ-21 (telco connector) switching module

•WS-X4148-RJ45V—48-port inline power 10/100BASE-TX switching module: data traffic only (inline power not supported in Cisco IOS Release 12.1(8a)EW)

•WS-X4232-GB-RJ—32-port 10/100 Fast Ethernet RJ-45, plus 2-port 1000BASE-X (GBIC) Gigabit Ethernet switching module

•WS-X4232-RJ-XX—32-port 10/100 Fast Ethernet RJ-45 modular uplink switching module

•WS-X4306-GB—6-port 1000BASE-X (GBIC) Gigabit Ethernet switching module

•WS-X4418-GB—18-port 1000BASE-X (GBIC) Gigabit Ethernet switching module

•WS-X4412-2GB-T—12-port 1000BASE-T Gigabit Ethernet and 2-GBIC ports switching module

•WS-X4424-GB-RJ45—24-port 10/100/1000BASE-T Gigabit Ethernet switching module

•WS-X4448-GB-LX—48-port 1000BASE-LX Gigabit Ethernet Fiber Optic interface switching module

•WS-X4448-GB-RJ45—48-port 10/100/1000BASE-T Gigabit Ethernet switching module

New Software Features in Release 12.1(8a)EW

Release 12.1(8a)EW provides initial support of the Cisco IOS software for the Catalyst 4006 switch with Supervisor Engine III.

Release 12.1(8a)EW provides these features:

•The Layer 2 features are as follows:

---

Note The following chapter references are for the Software Configuration Guide for the Catalyst 4006 Switch with Supervisor Engine III.

---

–Layer 2 switch ports and VLAN trunks with the Dynamic Trunking Protocol (DTP) (refer to the "Configuring Layer 2 Ethernet Interfaces" chapter)

–VLANs (refer to the "Understanding and Configuring VLANs" chapter)

–Private VLANs (refer to the "Understanding and Configuring Private VLANs" chapter)

–VLAN Trunk Protocol (VTP) and VTP domains (refer to the "Understanding and Configuring VTP" chapter)

–Spanning Tree Protocol (refer to the "Understanding and Configuring STP" chapter)

–Spanning tree PortFast, UplinkFast, and BackboneFast (refer to the "Configuring STP Features" chapter)

–IGMP snooping (refer to the "Understanding and Configuring IGMP Snooping" chapter)

•Cisco Express Forwarding for IP unicast traffic (refer to the "Configuring CEF" chapter)

•Standard Domain Naming System (DNS) support (refer to the Cisco IOS Network Protocols Configuration Guide, Part 1, and the Cisco IOS Network Protocols Command Reference, Part 1)

•Dynamic Host Configuration Protocol (DHCP); (refer to Cisco IOS IP and IP Routing Configuration Guide, Release 12.1, "Configuring DHCP")

•Bootstrap Protocol (BOOTP) relay (refer to the Cisco IOS Network Protocols Configuration Guide, Part 1, and the Cisco IOS Network Protocols Command Reference, Part 1)

•Cisco Discovery Protocol (CDP); (refer to the "Understanding and Configuring CDP" chapter)

•Standard IP access control lists (ACLs) at wire rate (refer to the "Configuring Network Security" chapter)

•The Layer 3 features are as follows:

–Layer 3 routing protocols (refer to the Cisco IOS Network Protocols Configuration Guides, Parts 1 and 2, and the Cisco IOS Network Protocols Command Reference, Parts 1 and 2):

Static IP routing
IP routing protocols
IP multicast routing protocols

–Layer-3 related protocols (refer to the Cisco IOS Release 12.1 Network Protocols Configuration Guides, Parts 1 and 2, and the Cisco IOS Release 12.1 Network Protocols Command Reference, Parts 1 and 2):

Internet Group Management Protocol (IGMP) v1 and v2
Cisco Group Membership Protocol (CGMP) server support
Full Internet Control Message Protocol (ICMP) support
ICMP Router Discovery Protocol (IRDP)
Multicast Source Discovery Protocol (MSDP)
Multicast Border Gateway Protocol (MBGP)

•Multiple-Hot Standby Routing Protocol (M-HSRP; refer to "Hot Standby Router Protocol" in the Cisco IOS Network Protocols Configuration Guide, Part 1, and the Cisco IOS Network Protocols Command Reference, Part 1)

•Access control using several supported authentication methods (refer to the "Configuring the Switch for the First Time" chapter)

•Switched Port Analyzer (SPAN); (refer to the "Understanding and Configuring SPAN" chapter)

•Quality of Service (QoS); (refer to the "Understanding and Configuring QoS" chapter)

Upgrading the System Software

In most cases, upgrading the switch to a newer release of Cisco IOS software does not require a ROMMON upgrade. However, if you are running an early release of Cisco IOS software and plan to upgrade, refer to the following tables for the minimum Cisco IOS image and the recommended ROMMON release, respectively.

---

Caution Most supervisor engines have the required ROMMON release. However, due to caveat CSCed25996, we recommend that you upgrade your ROMMON to the recommended release.

---

Table 10 Supervisor Engine and Minimum Cisco IOS Release

Supervisor Engine	Minimum Cisco IOS Release
IV	12.1(12c)EW or 12.1(14)E
II-Plus	12.1(19)EW
II-Plus-10GE	12.2(25)SG
V	12.2(18)EW
II-Plus-TS	12.2(20)EWA
V-10GE	12.2(25)EW
ME-X4924-10GE	12.2(31)SGA
6-E	12.2(40)SG
6L-E	12.2(52)XO

Table 11 Supervisor Engine and Recommended ROMMON Release

Supervisor Engine	Minimum ROMMON Release	Recommended ROMMON Release
IV	12.1(12r)EW	12.2(31r)SGA3
II-Plus	12.1(19r)EW	12.2(31r)SGA3
II-Plus-10GE	12.2(25r)SG	12.2(31r)SGA3
V	12.1(20r)EW1	12.2(31r)SGA3
II-Plus-TS	12.2(20r)EW	12.2(31r)SGA3
V-10GE	12.2(25r)EW	12.2(31r)SGA3
6-E	12.2(40r)SG	12.2(44r)SG5
ME-X4924-10GE	12.2(25)EW	12.2(31r)SGA5
6L-E	12.2(31r)SGA5	12.2(31r)SGA5

Table 12 ROMMON Release and Promupgrade Programs

ROMMON Release	Promupgrade Program
12.1(11br)EW	cat4000-sup3-promupgrade-121_11br_EW
12.1(12r)EW	cat4000-sup3-promupgrade-121_12r_ew
12.1(19r)EW	cat4000-ios-promupgrade-121_19r_EW
12.1(20r)EW1	cat4000-ios-promupgrade-121_20r_EW1
12.1(20r)EW2	cat4000-ios-promupgrade-121_20r_EW2
12.2(20r)EW	cat4000-ios-promupgrade-122_20r_EW
12.2(20r)EW1	cat4000-ios-promupgrade-122_20r_EW1
12.2(31r)SG3	cat4500-ios-promupgrade-122_31r_SG3
12.2(31r)SGA1	cat4500-ios-promupgrade-122_31r_SGA1
12.2(31r)SGA	cat4500-e-ios-promupgrade-122_31r_SGA3
12.2(40r)SG	cat4500-e-ios-promupgrade-122_40r_SG
12.2(44r)SG1	cat4500-e-ios-promupgrade-122_44r_SG1

The following sections describe how to upgrade your switch software:

•Guidelines for Upgrading the ROMMON

•Upgrading the Supervisor Engine ROMMON from the Console

•Upgrading the Supervisor Engine ROMMON Remotely Using Telnet

•Upgrading the Cisco IOS Software

Guidelines for Upgrading the ROMMON

---

Caution If your supervisor engine is shipped with a newer version of ROMMON then do not downgrade! The new ROMMON will have board settings based on a hardware revision of components, and old settings will not work.

---

Upgrading the Supervisor Engine ROMMON from the Console

---

Caution To avoid actions that might make your system unable to boot, read this entire section before starting the upgrade.

---

---

Note The examples in this section use the programmable read-only memory (PROM) upgrade version 12.1(20r)EW1 and Cisco IOS Release 12.1(20)EW1. For other releases, replace the ROMMON release and Cisco IOS software release with the appropriate releases and filenames.

---

Follow this procedure to upgrade your supervisor engine ROMMON:

---

Step 1 Directly connect a serial cable to the console port of the supervisor engine.

---

Note This section assumes that the console baud rate is set to 9600 (default). If you want to use a different baud rate, change the configuration register value for your switch.

---

Step 2 Download the cat4000-ios-promupgrade-121_20r_EW1 program from Cisco.com, and place it on a TFTP server in a directory that is accessible from the switch that is upgraded.

The cat4000-ios-promupgrade-121_20r_EW1 programs are available on Cisco.com at the same location from which you download Catalyst 4000 system images.

Step 3 Use the dir bootflash: command to ensure that there is sufficient space in Flash memory to store the PROM upgrade image. If there is insufficient space, delete one or more images, and then enter the
squeeze bootflash: command to reclaim the space.

If you are using a CompactFlash card, replace bootflash: with slot0:.

Step 4 Download the cat4000-ios-promupgrade-121_20r_EW1 program into Flash memory using the copy tftp command.

The following example shows how to download the PROM upgrade image cat4000-ios-promupgrade-121_20r_EW1 from the remote host 172.20.58.78 to bootflash:

Switch# copy tftp: bootflash:
Address or name of remote host [172.20.58.78]?
Source filename [cat4000-ios-promupgrade-121_20r_EW1]?
Destination filename [cat4000-ios-promupgrade-121_20r_EW1]?
Accessing tftp://172.20.58.78/cat4000-ios-promupgrade-121_20r_EW1...
Loading cat4000-ios-promupgrade-121_20r_EW1 from 172.20.58.78 (via

FastEthernet2/1):!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!

[OK - 455620 bytes]

455620 bytes copied in 2.644 secs (172322 bytes/sec)
Switch#

Step 5 Enter the reload command to reset the switch, press Ctrl-C to stop the boot process, and re-enter ROMMON.

The following example shows the output after a reset into ROMMON:

Switch# reload

Proceed with reload? [confirm]

03:57:16:%SYS-5-RELOAD:Reload requested

**********************************************************

 *                                                        *

 * Welcome to Rom Monitor for WS-X4515 System.            *

 * Copyright (c) 2002 by Cisco Systems, Inc.              *

 * All rights reserved.                                   *

 *                                                        *

 **********************************************************

 Rom Monitor Program Version 12.1(12r)EW

.

.(output truncated)

.

 Established physical link 100MB Half Duplex

 Network layer connectivity may take a few seconds

rommon 1 >

Step 6 Run the PROM upgrade program by entering this command:
boot bootflash:cat4000-ios-promupgrade-121_20r_EW1

---

Caution No intervention is necessary to complete the upgrade. To ensure a successful upgrade, do not interrupt the upgrade process. Do not perform a reset, power cycle, or OIR of the supervisor engine until the upgrade is complete.

---

The following example shows the output from a successful upgrade, followed by a system reset:

rommon 2 > boot bootflash:cat4000-ios-promupgrade-121_20r_EW1

**********************************************************

 *                                                        *

 * Rom Monitor Upgrade Utility For WS-X4515 System       *

 * This upgrades flash Rom Monitor image to the latest    *

 *                                                        *

 * Copyright (c) 2002, 2003 by Cisco Systems, Inc.        *

 * All rights reserved.                                   *

 *                                                        *

 **********************************************************

 Image size = 314.236 KBytes

 Maximum allowed size = 511.75 KBytes

 Upgrading your PROM... DO NOT RESET the system

 unless instructed or upgrade of PROM will fail !!!

 Beginning erase of 0x80000 bytes at offset 0x3f80000...  Done!

 Beginning write of prom  (0x4e8ec bytes at offset 0x3f80000)...

 This could take as little as 30 seconds or up to 2 minutes.

 Please DO NOT RESET!

 Success! The prom has been upgraded successfully.

 System will reset itself and reboot in about 15

Step 7 Boot the Cisco IOS software image, and enter the show version command to verify that ROMMON has been upgraded to 12.1(20r)EW1.

Step 8 Use the delete command to delete the PROM upgrade program from bootflash and the squeeze command to reclaim unused space.

The following example shows how to delete the cat4000-ios-promupgrade-121_20r_EW1 image from bootflash and reclaim unused space:

Switch# delete bootflash:cat4000-ios-promupgrade-121_20r_EW1

Switch# squeeze bootflash:

All deleted files will be removed, proceed (y/n) [n]? y

Squeeze operation may take some time, proceed (y/n) [n]? y

Switch#

Step 9 Use the show version command to verify that the ROMMON has been upgraded

Switch#show version

Cisco Internetwork Operating System Software

IOS (tm) Catalyst 4500 L3 Switch Software (cat4500-I9S-M), Version 12.1(20)EW, E

ARLY DEPLOYMENT RELEASE SOFTWARE (fc1)

TAC Support: http://www.cisco.com/tac

Copyright (c) 1986-2003 by cisco Systems, Inc.

Compiled Wed 22-Oct-03 23:42 by kellmill

Image text-base: 0x00000000, data-base: 0x00F56DDC

ROM: 12.1(20r)EW1

Dagobah Revision 86, Swamp Revision 28

Switch uptime is 0 day, 0 hour, 5 minutes

System returned to ROM by reload

System image file is "bootflash:cat4500-i9s-mz.121-20.EW1"

cisco WS-C4503 (XPC8245) processor (revision 7) with 524288K bytes of memory.

Processor board ID FOX06460YD8

Last reset from Reload

3 Ethernet/IEEE 802.3 interface(s)

51 FastEthernet/IEEE 802.3 interface(s)

2 Gigabit Ethernet/IEEE 802.3 interface(s)

403K bytes of non-volatile configuration memory.

Configuration register is 0x2102

Switch#

---

The ROMMON has now been upgraded.

See the "Upgrading the Cisco IOS Software" section for instructions on how to upgrade the Cisco IOS software on your switch.

Upgrading the Supervisor Engine ROMMON Remotely Using Telnet

---

Caution To avoid actions that might make your system unable to boot, read this entire section before starting the upgrade.

---

Follow this procedure to upgrade your supervisor engine ROMMON to Release 12.1(20r)EW1. This procedure can be used when console access is not available and when the ROMMON upgrade must be performed remotely.

---

Note In the following section, use the PROM upgrade version cat4000-ios-promupgrade-121_20r_EW1.

---

---

Step 1 Establish a Telnet session to the supervisor engine.

---

Note In the following discussion, we assume that at least one IP address has been assigned to either an SVI or a routed port.

---

Step 2 Download the cat4000-ios-promupgrade-121_20r_EW1 program from Cisco.com, and place it on a TFTP server in a directory that is accessible from the switch to be upgraded.

The cat4000-ios-promupgrade-121_20r_EW1 programs are available on Cisco.com at the same location from which you download Catalyst 4500 system images.

Step 3 Use the dir bootflash: command to ensure that there is sufficient space in Flash memory to store the PROM upgrade image. If there is insufficient space, delete one or more images, and then enter the
squeeze bootflash: command to reclaim the space.

If you are using a CompactFlash card, replace bootflash: with slot0:.

Step 4 Download the cat4000-ios-promupgrade-121_20r_EW1 program into Flash memory using the
copy tftp command.

The following example shows how to download the PROM upgrade image cat4000-ios-promupgrade-121_20r_EW1 from the remote host 172.20.58.78 to bootflash:

Switch# copy tftp: bootflash:
Address or name of remote host [172.20.58.78]?
Source filename [cat4000-ios-promupgrade-121_20r_EW1]?
Destination filename [cat4000-ios-promupgrade-121_20r_EW1]?
Accessing tftp://172.20.58.78/cat4000-ios-promupgrade-121_20r_EW1...
Loading cat4000-ios-promupgrade-121_20r_EW1 from 172.20.58.78 (via

FastEthernet2/1):!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!
[OK - 455620 bytes]

455620 bytes copied in 2.644 secs (172322 bytes/sec)
Switch#

Step 5 Use the no boot system flash bootflash:file_name command to clear all BOOT variable commands in the configuration file. In this example, the BOOT variable was set to boot the image cat4000-i5s-mz.121-19.EW1.bin from bootflash:

Switch# configure terminal

Switch(config)# no boot system flash bootflash:cat4000-i5s-mz.121-19.EW1.bin

Switch(config)# exit

Switch# write

Building configuration...

Compressed configuration from 3641 to 1244 bytes [OK]

Switch#

Use the boot system flash bootflash:file_name command to set the BOOT variable. You will
use two BOOT commands: one to upgrade the ROMMON and a second to load the Cisco IOS
software image after the ROMMON upgrade is complete. Notice the order of the BOOT
variables in the example below. At bootup the first BOOT variable command upgrades the
ROMMON. When the upgrade is complete the supervisor engine will autoboot, and the second
BOOT variable command will load the Cisco IOS software image specified by the second BOOT
command.

---

Note The config-register must be set to autoboot.

---

In this example, we assume that the console port baud rate is set to 9600 bps and that the
config-register is set to 0x0102.

Use the config-register command to autoboot using image(s) specified by the BOOT variable.
Configure the BOOT variable to upgrade the ROMMON and then autoboot the IOS image after
the ROMMON upgrade is complete. In this example, we are upgrading the ROMMON to version
12.1(20r)EW1. After the ROMMON upgrade is complete, the supervisor engine will boot Cisco
IOS software Release 12.1(20)EW1.

config-register to 0x0102.

Switch# configure terminal

Switch(config)# boot system flash bootflash:cat4000-ios-promupgrade-121_20r_EW1

Switch(config)# boot system flash bootflash:cat4000-i9s-mz.121-20.EW1

Switch(config)# config-register 0x0102

Switch(config)# exit

Switch# write

Building configuration...

Compressed configuration from 3641 to 1244 bytes [OK]

Switch#

Step 6 Use the show bootvar command to verify the boot string. The BOOT variable in this example will first run the PROM upgrade to upgrade ROMMON. Then, the upgrade software will reload and the supervisor engine will load the Cisco IOS software image.

Switch# sh bootvar

BOOT variable = bootflash:cat4000-ios-promupgrade-121_20r_EW1,1;bootflash:cat400

0-i9s-mz.121-20.EW1,1

CONFIG_FILE variable does not exist

BOOTLDR variable does not exist

Configuration register is 0x2102

Step 7 Run the PROM upgrade program by issuing the reload command. Issuing this command will terminate your Telnet session.

---

Caution Verify the boot string in step 6. No intervention is necessary to complete the upgrade. To ensure a successful upgrade, do not interrupt the upgrade process. Do not perform a reset, power cycle, or OIR of the supervisor engine until the upgrade is complete.

---

The following example shows the console port output from a successful ROMMON upgrade followed by a system reset. Your Telnet session is disconnected during the ROMMON upgrade, so you will not see this output. This step could take 2-3 minutes to complete. You will need to reconnect your Telnet session after 2-3 minutes when the Cisco IOS software image and the interfaces are loaded.

Switch#reload

Proceed with reload? [confirm]

1d05h: %SYS-5-RELOAD: Reload requested

 **********************************************************

 *                                                        *

 * Welcome to Rom Monitor for WS-X4515 System.            *

 * Copyright (c) 2002 by Cisco Systems, Inc.              *

 * All rights reserved.                                   *

 *                                                        *

 **********************************************************

 Rom Monitor Program Version 12.1(12r)EW

 Board type 2, Board revision 7

 Swamp FPGA revision 28, Dagobah FPGA revision 86

***** The system will autoboot in 5 seconds *****

 Type control-C to prevent autobooting.

 . . . . .

 Established physical link 100MB Full Duplex

 Network layer connectivity may take a few seconds

 ******** The system will autoboot now ********

 config-register = 0x0102

 Autobooting using BOOT variable specified file.....

 Current BOOT file is --- bootflash:cat4000-ios-promupgrade-121_20r_EW1

 **********************************************************

 *                                                        *

 * Rom Monitor Upgrade Utility For  WS-X4515 System       *

 * This upgrades flash Rom Monitor image to the latest    *

 *                                                        *

 * Copyright (c) 2002, 2003 by Cisco Systems, Inc.        *

 * All rights reserved.                                   *

 *                                                        *

 **********************************************************

 Image size = 314.236 KBytes

 Maximum allowed size = 511.75 KBytes

 Upgrading your PROM... DO NOT RESET the system

 unless instructed or upgrade of PROM will fail !!!

 Beginning erase of 0x80000 bytes at offset 0x3f80000...  Done!

 Beginning write of prom  (0x4e8ec bytes at offset 0x3f80000)...

 This could take as little as 30 seconds or up to 2 minutes.

 Please DO NOT RESET!

 Success! The prom has been upgraded successfully.

 System will reset itself and reboot in about 15

.

.(output truncated)

.

******** The system will autoboot now ********

 config-register = 0x0102

 Autobooting using BOOT variable specified file.....

 Current BOOT file is --- bootflash:cat4000-i9s-mz.121-20.EW1

Rommon reg: 0x56000380

Running IOS...

Decompressing the image

################################################################################

################################################################################

################################################################################

################################################################################

################################################################################

#################################################################### [OK]

Step 8 Use the no boot system flash bootflash:file_name command to clear the BOOT command used to upgrade the ROMMON.

Switch# configure terminal

Switch(config)# no boot system flash bootflash:cat4000-ios-promupgrade-121_20r_EW1

Switch(config)# exit

Switch# write

Building configuration...

Compressed configuration from 3641 to 1244 bytes [OK]

Switch#

Step 9 Use the show version command to verify that the ROMMON has been upgraded.

Switch#show version

Cisco Internetwork Operating System Software

IOS (tm) Catalyst 4000 L3 Switch Software (cat4000-I9S-M), Version 12.1(20)EW, E

ARLY DEPLOYMENT RELEASE SOFTWARE (fc1)

TAC Support: http://www.cisco.com/tac

Copyright (c) 1986-2003 by cisco Systems, Inc.

Compiled Wed 22-Oct-03 23:42 by kellmill

Image text-base: 0x00000000, data-base: 0x00F56DDC

ROM: 12.1(20r)EW1

Dagobah Revision 86, Swamp Revision 28

Switch uptime is 0 day, 0 hour, 5 minutes

System returned to ROM by reload

System image file is "bootflash:cat4000-i9s-mz.121-20.EW1"

cisco WS-C4503 (XPC8245) processor (revision 7) with 524288K bytes of memory.

Processor board ID FOX06460YD8

Last reset from Reload

3 Ethernet/IEEE 802.3 interface(s)

51 FastEthernet/IEEE 802.3 interface(s)

2 Gigabit Ethernet/IEEE 802.3 interface(s)

403K bytes of non-volatile configuration memory.

Configuration register is 0x0102

Switch#

Step 10 Use the delete command to delete the PROM upgrade program from bootflash and the squeeze command to reclaim unused space.

The following example shows how to delete the cat4000-ios-promupgrade-121_20r_EW1 image from bootflash and reclaim unused space:

Switch# delete bootflash:cat4000-ios-promupgrade-121_20r_EW1

Switch# squeeze bootflash:

All deleted files will be removed, proceed (y/n) [n]? y

Squeeze operation may take some time, proceed (y/n) [n]? y

Switch#

Step 11 Use the show bootvar command to verify that the ROMMON upgrade program has been removed from the BOOT variable.

Switch#sh bootvar

BOOT variable = bootflash:cat4000-i9s-mz.121-20.EW1,1

CONFIG_FILE variable does not exist

BOOTLDR variable does not exist

Configuration register is 0x0102

---

The ROMMON has now been upgraded.

See the "Upgrading the Cisco IOS Software" section for instructions on how to upgrade the Cisco IOS software on your switch.

Upgrading the Cisco IOS Software

---

Caution To avoid actions that might make your system unable to boot, please read this entire section before starting the upgrade.

---

Before you proceed, observe the following rules for hostname:

•Do not expect case to be preserved

Uppercase and lowercase characters look the same to many internet software applications. It may seem appropriate to capitalize a name the same way you might do in English, but conventions dictate that computer names appear all lowercase. For more information, refer to RFC 1178, Choosing a Name for Your Computer.

•Must start with a letter and end with a letter or digit.

•Interior characters can only be letters, digits, and hyphens; periods and underscores not allowed.

•Names must be 63 characters or fewer; hostname of fewer than 10 characters is recommended.

•On most systems, a field of 30 characters is used for the host name and the prompt in the CLI. Longer configuration mode prompts may be truncated.

To upgrade the Cisco IOS software on your Catalyst 4500 series switch, use this procedure:

---

Step 1 Download Cisco IOS Release 12.1(20)EW from Cisco.com, and place the image on a TFTP server in a directory that is accessible from the supervisor engine that is upgraded.

Step 2 Use the dir bootflash: command to ensure that there is sufficient space in Flash memory to store the promupgrade image. If there is insufficient space, delete one or more images, and then enter the squeeze bootflash: command to reclaim the space.

If you are using a CompactFlash card, use slot0: instead of bootflash.

Step 3 Download the software image into Flash memory using the copy tftp command.

The following example shows how to download the Cisco IOS software image cat4000-is-mz.121-12c.EW from the remote host 172.20.58.78 to bootflash:

Switch# copy tftp: bootflash:

Address or name of remote host [172.20.58.78]?

Source filename [cat4000-is-mz121_12c.EW]?

Destination filename [cat4000-is-mz.121-12c.EW]?

Accessing tftp://172.20.58.78/cat4000-is-mz.121-12c.EW...

Loading cat4000-is-mz.121-12c.EW from 172.20.58.78 (via

FastEthernet2/1):!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

|!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

[OK - 6923388/13846528 bytes]

6923388 bytes copied in 72.200 secs (96158 bytes/sec)

Switch#

Step 4 Use the no boot system flash bootflash:file_name command to clear the cat4000-is-mz.121-8a.EW file and to save the BOOT variable.

The following example shows how to clear the BOOT variable:

Switch# configure terminal

Switch(config)# no boot system flash bootflash:cat4000-is-mz.121-8a.EW

Switch(config)# exit

Switch# write

Building configuration...

Compressed configuration from 3641 to 1244 bytes [OK]

Switch#

Step 5 Use the boot system flash command to add the Cisco IOS software image to the BOOT variable.

The following example shows how to add the cat4000-is-mz.121-12c.EW image to the BOOT variable:

Switch# configure terminal

Switch(config)# boot system flash bootflash:cat4000-is-mz.121-12c.EW

Switch(config)# exit

Switch# write

Building configuration...

Compressed configuration from 3641 to 1244 bytes [OK]

Switch#

Step 6 Use the config-register command to set the configuration register to 0x2102.

The following example show how to set the second least significant bit in the configuration register:

Switch# configure terminal

Switch(config)# config-register 0x2102

Switch(config)# exit

Switch# write

Building configuration...

Compressed configuration from 3723 to 1312 bytes [OK]

Switch#

Step 7 Enter the reload command to reset the switch and load the software.

---

Caution No intervention is necessary to complete the upgrade. To ensure a successful upgrade, do not interrupt the upgrade process by performing a reset, power cycle, or OIR of the supervisor, for at least five minutes.

---

The following example shows the output from a successful upgrade followed by a system reset:

Switch# reload

Rommon reg: 0x2B004180

Upgrading FPGA...

Decompressing the image

############## [OK]

 *******************************************************

 *                                                        *

 * WS-X4014 FPGA Upgrade Utility For WS-X4014 Machines *

 *                                                        *

 * Copyright (c) 2002 by Cisco Systems, Inc.              *

 * All rights reserved.                                   *

 *                                                        *

 **********************************************************

 Image size = 483.944 KBytes

 Maximum allowed size = 1023.75 KBytes

 Upgrading your FPGA image... DO NOT RESET the system

 unless instructed or upgrade of FPGA will fail !!!

 Beginning erase of 0x100000 bytes at offset 0x3d00000...  Done!

 Beginning write of fpga image  (0x78fb0 bytes at offset 0x3d00000)...

 This could take as little as 30 seconds or up to 2 minutes.

 Please DO NOT RESET!

 Success! FPGA image has been upgraded successfully.

 System will reset itself and reboot in about 15 seconds.

 0

 **********************************************************

 *                                                        *

 * Welcome to Rom Monitor for WS-X4014 System.            *

 * Copyright (c) 2002 by Cisco Systems, Inc.              *

 * All rights reserved.                                   *

 *                                                        *

 **********************************************************

 Rom Monitor Program Version 12.1(12r)EW

 Board type 1, Board revision 5

 Swamp FPGA revision 16, Dagobah FPGA revision 47

 MAC Address  : 00-30-85-XX-XX-XX

 IP Address   : 10.10.10.91

 Netmask      : 255.255.255.0

 Gateway      : 10.10.10.1

 TftpServer   : Not set.

 Main Memory  : 256 MBytes

 ***** The system will autoboot in 5 seconds *****

 Type control-C to prevent autobooting.

Switch#

Step 8 Use the show version command to verify that the new Cisco IOS release is operating on the switch.

---

Limitations and Restrictions

These sections list the limitations and restrictions for the current release of Cisco IOS software on the Catalyst 4500 series switch.

All Supervisor Engines

•When you enter the permit any any ? command you will observe the octal option, which is unsupported in Cisco IOS Release 12.2(52)SG.

CSCsy31324

•A Span destination of fa1 is not supported.

For Supervisor Engines II+Plus through V-10GE

•For the IP Unnumbered feature, the following are not supported:

–Dynamic routing protocols

–HSRP/VRRP

–Static ARP

–Unnumbered interface and numbered interface in different VRFs

•For WCCP version 2, the following are not supported:

–GRE encapsulation forwarding method

–Hash bucket based assignment method

–Redirection on an egress interface (redirection out)

–Redirect-list ACL

•For IPX software routing, the following are not supported:

–NHRP (Next Hop Resolution Protocol)

–NLSP

–Jumbo Frames

•For AppleTalk software routing, the following are not supported:

–AURP

–AppleTalk Control Protocol for PPP

–Jumbo Frames

–EIGRP

•For the NetFlow feature, the following limitations apply:

–NetFlow will not account for control packets, packets that encountered link-level errors, and ARP/RARP packets.

–The software cache for NetFlow is fixed, users cannot change the size.

–The statistical distribution row that displays the distribution across various packet sizes is not available.

•For the PBR feature, the following limitations apply:

–Packet length-based matching policies are not supported.

–IP Precedence, TOS and Qos groups are fixed.

–ACL/Route-map statistics are not updated.

•IGRP is not supported (use EIGRP instead).

•The MAC address table is cleared when you switch between supervisor engines if either the 802.1s or 802.1w Spanning Tree Protocol is configured. To minimize address clearing and subsequent packet flooding, configure the edge ports as spanning-tree portfast and the link type as
spanning-tree link-type point-to-point.

•While running NSF and IS-IS IETF mode, if you enter the issu runversion command within 5 minutes of entering the issu loadversion command, packet loss may occur during an ISSU upgrade.

Workaround: Configure the NSF interval timer to 0 minutes, or delay entering the issu runversion command until the NSF interval timer expires and NSF restarts.

•Routes may not be properly redistributed from one routing protocol to another when NSF is enabled on the switch. The success of the redistribution depends on the order in which the routing protocols converge after an NSF switchover.

Workaround: None.

•IP classful routing is not supported; do not use the no ip classless command; it will have no effect because only classless routing is supported. The ip classless command is not supported because classless routing is enabled by default.

•The Catalyst 4510R switch does not support Supervisor Engines II-Plus, III, IV, and II-Plus-10GE. Installing an unsupported supervisor engine causes unpredictable hardware behavior that cannot be controlled by the software. Using an unsupported supervisor engine in a redundant slot might cause a supported supervisor engine in the other slot to malfunction.

•Supervisor Engine II-Plus cannot read a CompactFlash card formatted by Supervisor Engine III or Supervisor Engine IV in a prior release.

•Catalyst 4500 supervisor engines will not be properly initialized if the VLAN configuration in the startup file does not match the information stored in the VLAN database file. This situation might occur if a backup configuration file was used.

•A Layer 2 LACP channel cannot be configured with the spanning tree PortFast feature.

•Netbooting using a boot loader image is not supported. See the "Troubleshooting" section for alternatives.

•You cannot downgrade to Cisco IOS Release 12.1(8a)EW1 after running Release 12.1(13)EW (or higher). If you need to downgrade, contact your TAC representative for further instructions, and mention caveat CSCdz59058.

•Observe the following standard Cisco IOS software behavior when deploying redundant supervisor engines in a Catalyst 4507R chassis: While the startup configuration file is being parsed, the configuration file is not applied to hardware that does not exist.

For example, if the active supervisor engine is in slot 1, and you have configured interface Gi1/1, the supervisor engine in slot 2 becomes active if you remove the active supervisor engine from the chassis. In addition, while the startup configuration file is being parsed, you will receive an error message indicating that interface Gi1/1 is no longer present. This behavior is correct. When the formerly active supervisor engine is reinserted into slot 1, there is no configuration for interface Gi1/1.

This situation does not occur when both supervisor engines are present in the chassis.

Workaround: Copy the startup configuration file into the running configuration:

Switch# copy startup-config running-config

•An unsupported default CLI for mobile IP is displayed in the HSRP configuration. Although this CLI will not damage your system, you might want to remove it to avoid confusion.

Workaround: Display the configuration with the show standby command, then remove the CLI. Here is an example of the show standby GigabitEthernet1/1 command output:

switch(config)# interface g1/1

switch(config)# no standby 0 name (0 is hsrp group number)

•For HSRP preempt delay to function consistently, you must use the standby delay minimum command. Be sure to set the delay to more than 1 hello interval, which ensures that a hello is received before HSRP leaves the initiate state.

Use the standby delay reload option if the router is rebooting after reloading the image.

•When you attempt to run OSPF between a Cisco router and a third-party router, the two interfaces might get stuck in the Exstart/Exchange state. This problem occurs when the maximum transmission unit (MTU) settings for neighboring router interfaces do not match. If the router with the higher MTU sends a packet larger than the MTU set on the neighboring router, the neighboring router ignores the packet.

Workaround: Because the problem is caused by mismatched MTUs, you should change the MTU on either router to match the other's MTU.

•You can run .1q-in-.1q packet passthrough with a Supervisor Engine III and a Supervisor Engine IV, but you can run only .1q-in-.1q encapsulation with a Supervisor Engine II+10GE, Supervisor Engine V, and Supervisor Engine V-10GE.

•For PVST and Catalyst 4500 E-Series switch VLAN, Cisco IOS Release 12.1(13)EW supports a maximum of 3000 spanning tree port instances. If you want to use more instances, use MST rather than PVST.

•Only ports 1 and 2 on the WS-X4418-GB module and ports 13 and 14 on the WS-X4412-2GB-T module can be set as ISL trunks.

•If an original packet is dropped due to transmit queue shaping or sharing configurations, a SPAN packet copy can still be transmitted on the SPAN port.

•For all software releases, do not use over 100,000 routes.

•All software releases support a maximum of 16,000 IGMP snooping group entries.

•Use the no ip unreachables command on all interfaces with ACLs configured for performance reasons.

•Layer 3 path load-balancing metrics are not supported in Cisco IOS Releases 12.1(8a)EW, 12.1(11b)EW, 12.1(12c)EW, 12.1(13)EW, 12.1(19)EW, and 12.1(20)EW. (CSCdv10578)

•The threshold for the Dynamic ARP Inspection err-disable function is set to 15 ARP packets per second per interface. You should adjust this threshold depending on the network configuration. The CPU should not receive DHCP packets at a sustained rate greater than 1000 pps.

•A limited number of ACL bindings are dynamically installed by the IP source guard feature on a Catalyst 4500 series switch Supervisor Engine II-Plus. To take full advantage of the IP source guard feature, you should use Supervisor Engine IV.

•If you first configure an IP address or IPv6 address on a Layer 3 port, then change the Layer 3 port to a Layer 2 port with the switchport command, and finally change it back to a Layer 3 port, the original IP/IPv6 address is lost.

•By default, IPv6 is not enabled. To route IPv6, you must enter the IPv6 unicast-routing command. If you plan to use IPv6 multicast routing, use the IPv6 multicast-routing command.

•By default, CEF is not enabled for IPv6 (after IPv6 unicast routing is enabled). To prevent IPv6 traffic from being process-switched, use the IPv6 cef command.

•Multicast sources in community VLANs are not supported.

•Two-way community VLANs are not supported.

•Voice VLANs are not supported on community VLAN host interfaces.

•Private VLAN trunks do not carry community VLANs.

•When you use private VLANs on the WS-4516 module, old ARP entries will not tim eout of the ARP cache if you do not manually clear the entry. This event has no affect on production.

•Compact flash formatted in Cisco IOS Release 12.2(20)EW should be reformatted in Release 12.2(25)EW on both Supervisor Engine V-10GE and non-Supervisor V-10GE systems. Compact flash formatted on any other release does not need to be reformatted on non-Supervisor Engine V-10GE systems.

•In a redundant system, do not remove and reinsert the standby supervisor engine while the active supervisor engine is booting up. Doing so may cause a failure in the online diagnostics test.

Workaround: Remove and reinsert the standby supervisor engine after the active supervisor engine boots. (CSCsa66509)

•When used in conjunction with a 10-slot chassis, Supervisor Engine V only supports the
Catalyst 4500 series two-port Gigabit Ethernet line card (WS-X4302-GB) in the 10th slot.

•The maximum number of unique private VLAN pairs supported by the
switchport private-vlan mapping trunk command is 500. For example, one thousand secondary VLANs could map to one primary VLAN, or one thousand secondary VLANs could map one to one to one thousand primary VLANs.

•Support for PoE depends on the use of line cards and power supplies that support PoE.

PoE switching modules:

–WS-X4148-RJ45V

–WS-X4224-RJ45V

–WS-X4248-RJ45V

–WS-X4248-RJ21V

–WS-X4524-GB-RJ45V

–WS-X4548-GB-RJ45V

–'WS-X4548-GB-RJ45V+

PoE-enabled power supplies:

–PWR-C45-1300ACV

–PWR-C45-1400DC

–PWR-C4K-2800AC

–PWR-C45-1400AC

–PWR-C45-1300ACV

–'PWR-C45-6000ACV'

•The maximum number of mappings for configuring PVLAN promiscuous trunk ports is 500 primary VLANs to 500 secondary VLANs.

•The 802.1X inaccessible authentication bypass feature is not supported with the NAC LAN port IP feature.

•Changes to the console speed in line console 0 configuration mode do not affect console speed in ROMMON. To apply the same console speed in ROMMON, use the confreg ROMMON utility.

•Supervisor Engine II-Plus does not support compact flashes formatted by an Cisco IOS image prior to Cisco IOS Release 12.2(19)EW.

•If a Catalyst 4500 series switch requests information from the Cisco Secure Access Control Server (ACS) and the message exchange times out because the server does not respond, a message similar to following appears:

00:02:57:
