Fabric Manager Server


Fabric Manager Server is a platform for advanced MDS monitoring, troubleshooting, and configuration capabilities. No additional software needs to be installed. The server capabilities are an integral part of the Cisco Fabric Manager software.

This chapter contains the following sections:

Fabric Manager Server Overview

Fabric Manager Server Features

Installing and Configuring Fabric Manager Server

Managing a Fabric Manager Server Fabric

Fabric Manager Server Properties File

Modifying Fabric Manager Server

Fabric Manager Server Overview

Install Cisco Fabric Manager Server on a computer that you want to provide centralized MDS management services and performance monitoring. SNMP operations are used to efficiently collect fabric information. The Cisco Fabric Manager software, including the server components, requires about 60 MB of hard disk space on your workstation. Cisco Fabric Manager Server runs on Windows 2000, Windows 2003, Windows XP, Solaris 8 and 10, and Red Hat Enterprise Linux AS Release 4.

Each computer configured as a Cisco Fabric Manager Server can monitor multiple Fibre Channel SAN fabrics. Up to 16 clients (by default) can connect to a single Cisco Fabric Manager Server concurrently. The Cisco Fabric Manager Clients can also connect directly to an MDS switch in fabrics that are not monitored by a Cisco Fabric Manager Server, which ensures you can manage any of your MDS devices from a single console.

Fabric Manager Server Features

Cisco Fabric Manager Server has the following features:

Multiple fabric management— Fabric Manager Server monitors multiple physical fabrics under the same user interface. This facilitates managing redundant fabrics. A licensed Fabric Manager Server maintains up-to-date discovery information on all configured fabrics so device status and interconnections are immediately available when you open the Fabric Manager Client.

Continuous health monitoring—MDS health is monitored continuously, so any events that occurred since the last time you opened the Fabric Manager Client are captured.

Roaming user profiles—The licensed Fabric Manager Server uses the roaming user profile feature to store your preferences and topology map layouts on the server, so that your user interface will be consistent regardless of what computer you use to manage your storage networks.


Note You must have the same release of Fabric Manager Client and Fabric Manager Server.


Installing and Configuring Fabric Manager Server


Note Prior to running Fabric Manage Server, you should create a special Fabric Manager administrative user on each switch in the fabric or on a remote AAA server. Use this user to discover your fabric topology. See the "Best Practices for Discovering a Fabric" section on page 4-3.


To install Fabric Manager Server and set the initial configuration, follow these steps:


Step 1 Install Fabric Manager and Fabric Manager server on your workstation. See the "Installing Fabric Manager Server" section.

Step 2 Log in to Fabric Manager. See the "Launching Fabric Manager Client in Cisco SAN-OS Release 3.2(1) and Later" section on page 5-2.

Step 3 Set Fabric Manager Server to continuously monitor the fabric. See the "Managing a Fabric Manager Server Fabric" section.

Step 4 Repeat Step 2 through Step 3 for each fabric that you want to manage through Fabric Manager Server.

Step 5 Install Fabric Manager Web Server. See the "Verifying Performance Manager Collections" section.

Step 6 Verify Performance Manager is collecting data. See the "Verifying Performance Manager Collections" section.


Installing Fabric Manager Server

When you install Fabric Manager, the basic version of the Fabric Manager Server (unlicensed) is installed with it. After you click the Fabric Manager icon, a dialog box opens and you can enter the IP address of a computer running the Fabric Manager Server component. If you do not see the Fabric Manager Server IP address text box, click Options to expand the list of configuration options. If the server component is running on your local machine, leave localhost in that field. If you try to run Fabric Manager without specifying a valid server, you are prompted to start the Fabric Manager Server locally.

On a Windows PC, you install the Fabric Manager Server as a service. This service can then be administered using Services in the Administrative Tools. The default setting for the Fabric Manager Server service is that the server is automatically started when the Windows PC is rebooted. You can change this behavior by modifying the properties in Services.


Note Starting from NX-OS Release 4.1(3a), when you install a licensed version of the Fabric manager Server, it will automatically install Fabric Manager Client.


Unlicensed Versus Licensed Fabric Manager Server

When you install Fabric Manager, the basic unlicensed version of Fabric Manager Server is installed with it. To get the licensed features, such as Performance Manager, remote client support, and continuously monitored fabrics, you need to buy and install the Fabric Manager Server package.

However, trial versions of these licensed features are available. To enable the trial version of a feature, you run the feature as you would if you had purchased the license. You see a dialog box explaining that this is a demo version of the feature and that it is enabled for a limited time.

If you are evaluating one of these Fabric Manager Server features and want to stop the evaluation period for that feature, you can do that using Device Manager. See the "Fabric Manager Server Licensing" section on page 10-17.

Data Migration in Fabric Manager Server

The database migration should be limited to the existing database. Data collision may occur when you merge the data between the several databases.

When you upgrade a non-clustering mode database to clustering mode database for the first time, we pre-fill the cluster sequence table with the values larger than the corresponding ones in sequence table and conforming to the cluster sequence number format for that server ID.

Verifying Performance Manager Collections

Once Performance Manager collections have been running for five or more minutes, you can verify that the collections are gathering data by choosing Performance Manager > Reports in Fabric Manager. You see the first few data points gathered in the graphs and tables.

Managing a Fabric Manager Server Fabric

You can continuously manage a Fabric Manager Server fabric, whether or not a client has that fabric open. A continuously managed fabric is automatically reloaded and managed by Fabric Manager Server whenever the server starts.

Selecting a Fabric to Manage Continuously

To continuously manage a fabric using Fabric Manager, follow these steps:


Step 1 Choose Server > Admin.

You see the Control Panel dialog box with the Fabrics tab open (see Figure 3-1).


Note The Fabrics tab is only accessible to network administrators.

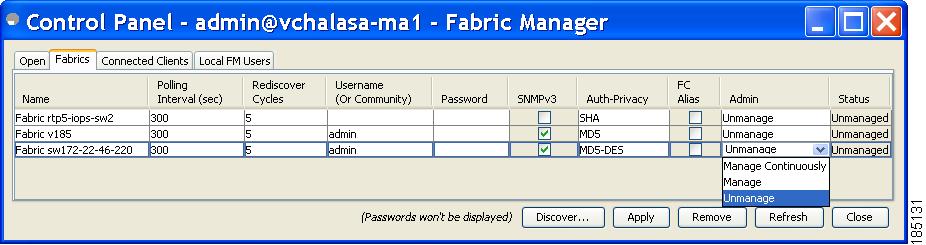

Figure 3-1 Fabrics Tab in Control Panel Dialog Box

Step 2 Select one of the following Admin options:

a. Manage Continuously—The fabric is automatically managed when Fabric Manager Server starts and continues to be managed until this option is changed to Unmanage.

b. Manage—The fabric is managed by Fabric Manager Server until there are no instances of Fabric Manager viewing the fabric.

c. UnmanageFabric Manager Server stops managing this fabric.

Step 3 Click Apply.



Note If you are collecting data on these fabrics using Performance Manager, you should now configure flows and define the data collections. These procedures are described in Chapter 8, "Performance Manager."



Note As of Cisco MDS NX-OS Release 4.1(3a), the Admin option is set to Manage Continuously by default on all the switches that are once discovered.


Fabric Manager Server Properties File

The Fabric Manager Server properties file (MDS 9000\server.properties) contains a list of properties that determine how the Fabric Manager Server will function. You can edit this file with a text editor, or you can set the properties through the Fabric Manager Web Services GUI, under the Admin tab.


Note As of Cisco NX-OS Release 4.1(1b) and later, you can optionally encrypt the password in the server.properties and the AAA.properties files.


The server properties file contains these nine general sections:

GENERAL—Contains the general settings for the server.

SNMP SPECIFIC—Contains the settings for SNMP requests, responses, and traps.

SNMP PROXY SERVER SPECIFIC—Contains the settings for SNMP proxy server configuration and TCP port designation.

GLOBAL FABRIC—Contains the settings for fabrics, such as discovery and loading.

CLIENT SESSION—Contains the settings for Fabric Manager Clients that can log into the server.

EVENTS—Contains the settings for syslog messages.

PERFORMANCE CHART—Contains the settings for defining the end time to generate a Performance Manager chart.

EMC CALL HOME—Contains the settings for the forwarding of traps as XML data using e-mail, according to EMC specifications.

EVENT FORWARD SETUP—Contains the settings for forwarding events logged by Cisco Fabric Manager Server through e-mail.

The following are new or changed server properties for Fabric Manager Release 3.x:

SNMP Specific

snmp.preferTCP—If this option is set to true, TCP will be the default protocol for the Fabric Manager Server to communicate with switches. By default, this setting is true. For those switches that do not have have TCP enabled, the Fabric Manager Server uses UDP. The advantage of this setting is the ability to designate one TCP session for each SNMP user on a switch. It also helps to reduce timeouts and increase scalability.


Note If you set this option to false, the same choice must be set in Fabric Manager. The default value of snmp.preferTCP for Fabric Manager is true.


Performance Chart

pmchart.currenttime—Specifies the end time to generate a Performance Manager chart. This should only be used for debugging purposes.

EMC Call Home

server.callhome.enable—Enables or disables EMC Call Home. By default, it is disabled.

server.callhome.location—Specifies the Location parameter.

server.callhome.fromEmail—Specifies the 'From Email' list.

server.callhome.recipientEmail—Specifies the 'recipientEmail' list.

server.callhome.smtphost—Specifies the SMTP host address for outbound e-mail.

server.callhome.xmlDir—Specifies the path to store the XML message files.

server.callhome.connectType—Specifies the method to use to remotely connect to the server.

server.callhome.accessType—Specifies the method to use to establish remote communication with the server.

server.callhome.version—Specifies the version number of the connection type.

server.callhome.routerIp—Specifies the public IP address of the RSC router.

Event Forwarding

server.forward.event.enable—Enables or disables event forwarding.

server.forward.email.fromAddress—Specifies the 'From Email' list.

server.forward.email.mailCC—Specifies the 'CC Email' list.

server.forward.email.mailBCC—Specifies the 'BCC Email' list.

server.forward.email.smtphost—Specifies the SMTP host address for outbound e-mail.

Deactivation

deactivate.confirm=deactivate—Specific Request for User to type a String for deactivation.

For more information on setting the server properties, read the server.properties file or see the "Configuring Fabric Manager Server Preferences" section on page 7-52.

Modifying Fabric Manager Server

Fabric Manager Release 2.1(2) or later allows you to modify certain Fabric Manager Server settings without stopping and starting the server. These settings include:

Changing the Fabric Manager Server User Name and Password

Changing the Polling Period and Fabric Rediscovery Time

Adding or Removing Fabric Manager Server Users

To add a Fabric Manager Server user or to change the password for an existing user using Fabric Manager, follow these steps:


Step 1 Click the Local FM Users tab in the Control Panel dialog box (see Figure 3-1). You see a list of Fabric Manager users.


Note Only network administrators can manage users.


Step 2 Click New to add a user or click the user name and click Edit to change the password for an existing user.

You see the FM User dialog box as shown in Figure 3-2.

Figure 3-2 FM User Dialog Box

Step 3 Set the user name and password for the new user and then click Apply.


To remove a Fabric Manager Server user using Fabric Manager, follow these steps:


Step 1 Click the Local FM Users tab in the Control Panel dialog box (see Figure 3-1). You see a list of Fabric Manager users.

Step 2 Click the user name you want to delete.

Step 3 Click Remove to delete the user.

Step 4 Click Yes to confirm the deletion or No to cancel it.


Changing the Fabric Manager Server User Name and Password

You can modify the user name or password used to access a fabric from Fabric Manager Client without restarting Fabric Manager Server.

To change the user name or password used by Fabric Manager Server, follow these steps:


Step 1 Choose Server > Admin.

You see the Control Panel dialog box with the Fabrics tab open (see Figure 3-1).

Step 2 Set the Name or Password for each fabric that you are monitoring with Fabric Manager Server.

Step 3 Click Apply to save these changes.


Changing the Polling Period and Fabric Rediscovery Time

Fabric Manager Server periodically polls the monitored fabrics and periodically rediscovers the full fabric at a default interval of five cycles.You can modify these settings from Fabric Manager Client without restarting Fabric Manager Server.

To change the polling period or full fabric rediscovery setting used by Fabric Manager Server using Fabric Manager, follow these steps:


Step 1 Choose Server > Admin.

You see the Control Panel dialog box with the Fabrics tab open (see Figure 3-1).

Step 2 For each fabric that you are monitoring with Fabric Manager Server, set the Polling Interval to determine how frequently Fabric Manager Server polls the fabric elements for status and statistics.

Step 3 For each fabric that you are monitoring with Fabric Manager Server, set the Rediscover Cycles to determine how often Fabric Manager Server rediscovers the full fabric.

Step 4 Click Apply to save these changes.


Using Device Aliases or FC Aliases

You can change whether Fabric Manager uses FC aliases or global device aliases from Fabric Manager Client without restarting Fabric Manager Server.

To change whether Fabric Manager uses FC aliases or global device aliases using Fabric Manager, follow these steps:


Step 1 Choose Server > Admin.

You see the Control Panel dialog box with the Fabrics tab open (see Figure 3-1).

Step 2 For each fabric that you are monitoring with Fabric Manager Server, check the FC alias check box to use FC aliases. Fabric Manager Server uses global device alias by default .

Step 3 Click Apply to save these changes.
