以下は、Cisco IOS XE Catalyst SD-WAN デバイス の Cisco SD-WAN コントローラ からダウンロードされたタグを表示する show sdwan tag-instances from-vsmart コマンドの出力例です。
Device# show sdwan tag-instances from-vsmart
tag-instances-from-vsmart
tag-instance APP_facebook_TAG9
id 60000
app-list apps_facebook
tag-instance APP_office_TAG10
id 70000
app-list apps_ms apps_zoom
tag-instance APP_webex_TAG8
id 50000
app-list apps_webex
lists data-prefix-list multicast_pfx
ip-prefix 10.10.20.30/8
lists data-prefix-list pfx1
ip-prefix 10.20.24.0/24
lists data-prefix-list pfx21
ip-prefix 172.16.10.10/8
lists data-prefix-list pfx22
ip-prefix 172.16.20.20/16
ip-prefix 192.168.10.20/8
lists data-ipv6-prefix-list v6_pfx1
ipv6-prefix 2001::/64
lists data-ipv6-prefix-list v6_pfx21
ipv6-prefix 2001::1/128
ipv6-prefix 2001::/64
lists app-list apps_facebook
app dns
app facebook
lists app-list apps_ms
app ms-office-365
app ms-office-web-apps
app ms-services
app ms-teams
app pop3
lists app-list apps_webex
app sip
app webex-audio
app webex-control
app webex-media
app webex-meeting
app webex-video
lists app-list apps_zoom
app zoom-meetings
以下は、Cisco IOS XE Catalyst SD-WAN デバイス の Cisco SD-WAN コントローラ からダウンロードされたポリシーを表示する show sdwan policy from-vsmart コマンドの出力例です。
Device# show sdwan policy from-vsmart
from-vsmart sla-class SLA1
latency 100
from-vsmart data-policy DATA_POLICY
direction from-service
vpn-list vpn_1
sequence 11
match
destination-port 5060
protocol 17
source-tag-instance DP_V4_TAG1
destination-tag-instance DP_V4_TAG3
action accept
count src_dst_legacy_v4
sequence 21
match
source-tag-instance DP_V4_TAG1
action drop
count src_v4
sequence 31
match
source-tag-instance DP_V4_TAG2
destination-tag-instance DP_V4_TAG3
tag-instance APP_webex_TAG8
action drop
count src_dst_app_v4
sequence 41
match
source-tag-instance DP_V4_TAG1
destination-tag-instance DP_V4_TAG3
tag-instance APP_facebook_TAG9
action accept
count src_dst_app2_v4

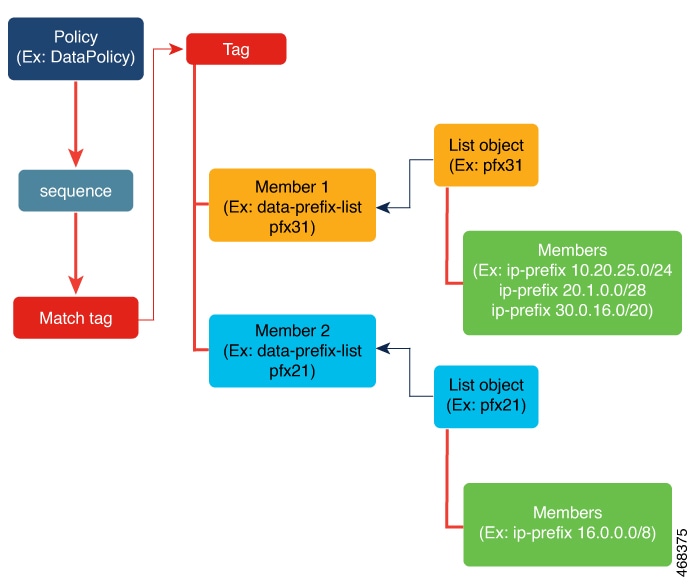

以下は、フォワーディングプレーン（FMAN-FP）のフォワーディングマネージャからのタグ情報を表示する show platform software common-classification コマンドの出力例です。
Device# show platform software common-classification F0 tag all
Total Number of TAGs: 9
tag id tag name tag type num clients num sets num member types total members
---------------------------------------------------------------------------------------------------------
900 special_TAG7 Per Type OR 0 2 1 2
10000 DP_V4_TAG1 Per Type OR 1 1 1 1
11000 DP_V4_TAG2 Per Type OR 1 2 1 2
12000 DP_V4_TAG3 Per Type OR 1 6 1 6
20000 DP_V6_TAG4 Per Type OR 1 1 1 1
21000 DP_V6_TAG5 Per Type OR 1 2 1 2
50000 APP_webex_TAG8 Per Type OR 1 1 1 1
60000 APP_facebook_TAG9 Per Type OR 1 1 1 1
70000 APP_office_TAG10 Per Type OR 1 2 1 2
Device# show platform software common-classification f0 tag 1 summary
TAG ID: 1
TAG TYPE: Per Type OR
TAG Name: net1
Is Dummy: F
client data:
client id client name
----------------------------------
166 SDWAN
member data:
Prefix List 6
App List 3
Device# show platform software common-classification f0 tag 1 prefixList
member details:
member detail type member id member data
------------------------------------------------
IPv4 Prefix List 65537 100
IPv6 Prefix List 65538 101
IPv4 Prefix List 65540 103
IPv6 Prefix List 65541 104
IPv6 Prefix List 65544 107
IPv4 Prefix List 65546 109
Device# show platform software common-classification f0 tag 1 appList
member details:
member detail type member id member data
------------------------------------------------
App List 65539 102
App List 65542 105
App List 65545 108
Device# show platform software common-classification f0 tag 1 set
Total Number of SETs: 18
Set ID member detail type member id member data
--------------------------------------------------------------
1 IPv4 Prefix List 65537 100
1 App List 65539 102
2 IPv4 Prefix List 65537 100
2 App List 65542 105
3 IPv4 Prefix List 65537 100
3 App List 65545 108
4 IPv6 Prefix List 65538 101
4 App List 65539 102
5 IPv6 Prefix List 65538 101
