Access point views


For information about connectors and ports for the AP models, see Types of connectors and ports on the access point.
The documentation set for this product strives to use bias-free language. For the purposes of this documentation set, bias-free is defined as language that does not imply discrimination based on age, disability, gender, racial identity, ethnic identity, sexual orientation, socioeconomic status, and intersectionality. Exceptions may be present in the documentation due to language that is hardcoded in the user interfaces of the product software, language used based on RFP documentation, or language that is used by a referenced third-party product. Learn more about how Cisco is using Inclusive Language.
This chapter describes the hardware features of Cisco Wireless 9179F Wi-Fi 7 Access Point and contains the following sections:
For information about connectors and ports for the AP models, see Types of connectors and ports on the access point.

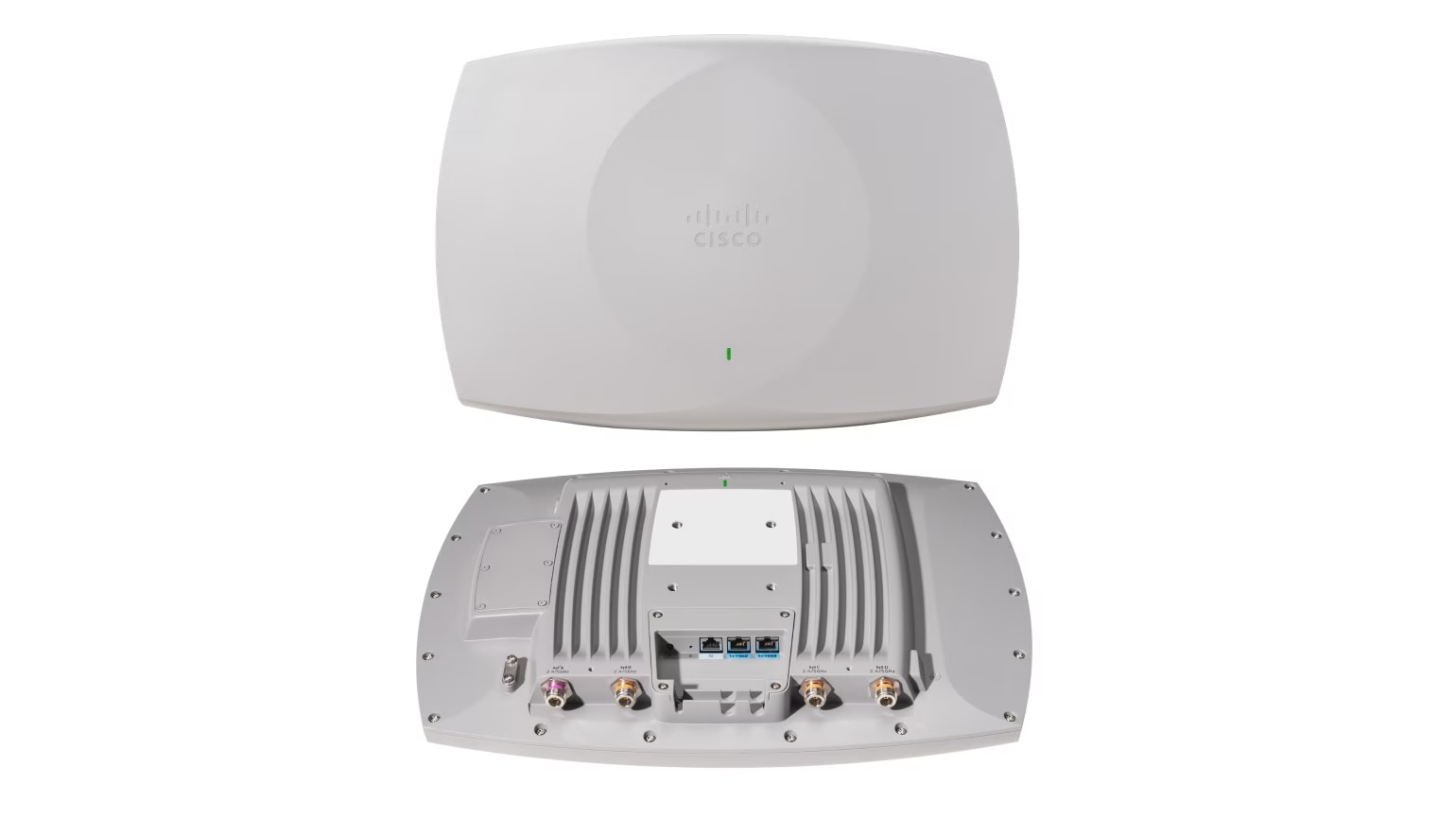

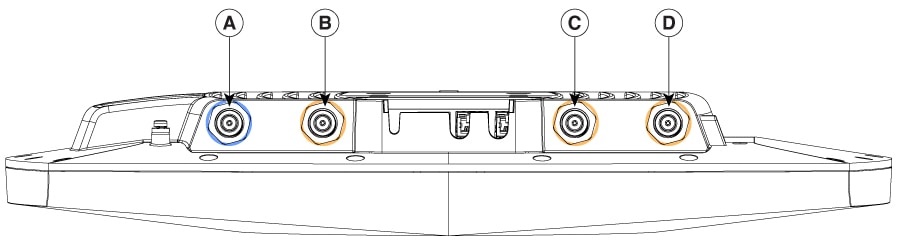

These figures show the available ports on the AP:

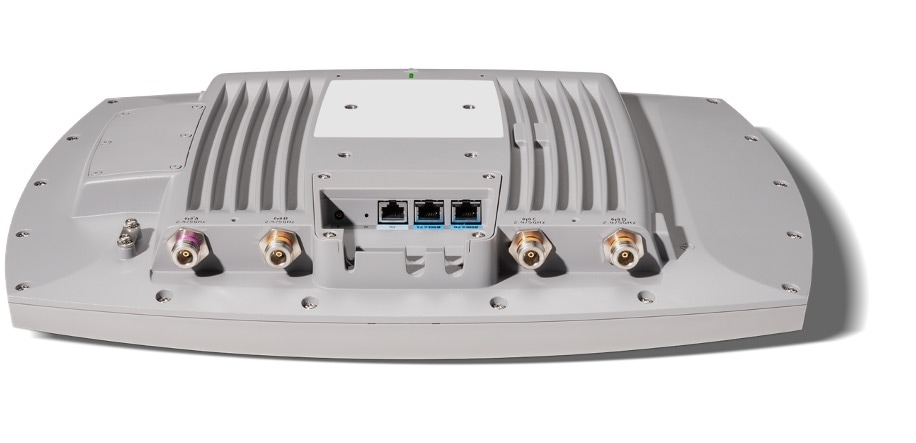

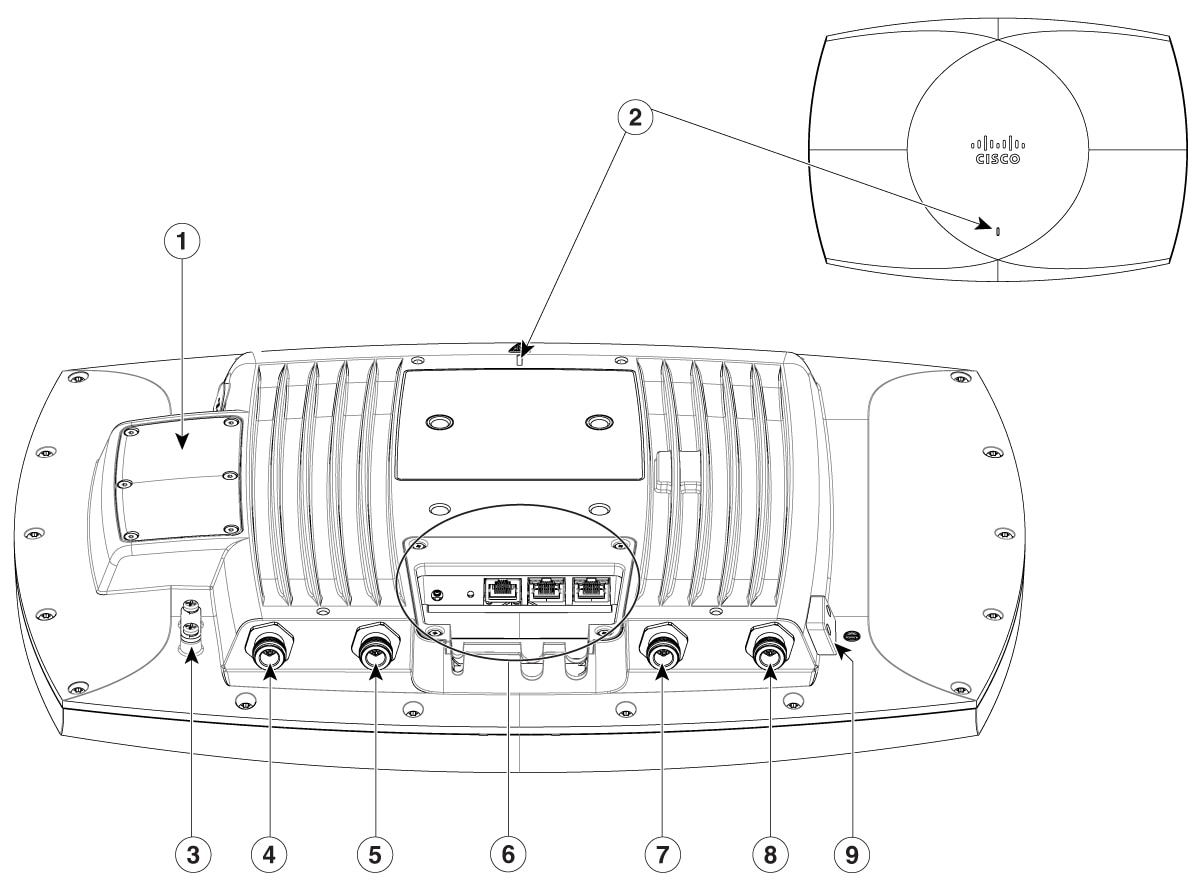

1 |
Internal GNSS Rear Antenna (with non-removable cover) |
6 |
Environment Pack |
2 |
Status LED |
7 |
Port C 2.4/5 GHz (Orange Ring) |
3 |
Safety Tether Anchor |
8 |
Port D 2.4/5 GHz (Orange Ring) |
4 |
Port A 2.4/5 GHz (Purple Ring) |
9 |
Ground Lug Mount |
5 |
Port B 2.4/5 GHz (Orange Ring) |

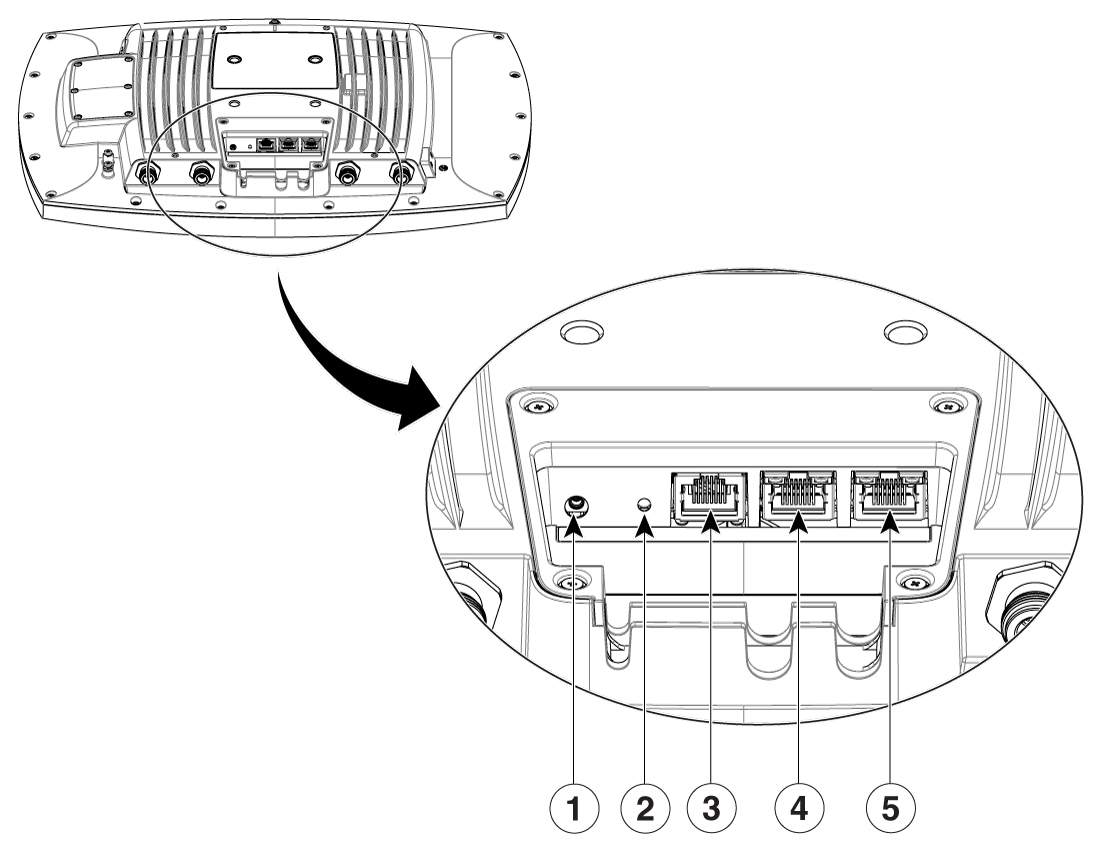

1 |
External GNSS (MMXC) |
4 |
Port 1 |
2 |
Reset Button |
5 |
Port 0 |
3 |
Console Port |
Cisco Wireless 9179F Wi-Fi 7 Access Point supports both indoor and outdoor environment packs. The Environment Pack weatherizes the device and signals to the access point that it is operating at standard power only.
Indoor Environment Pack: CW-ACC-9179-A-00
![]() Note |
The default access point configuration includes a pre-installed indoor environment pack. |
When installed, the access point operates in either LPI or SP mode.
The access point comes with the environment pack installed.
Outdoor Environment Pack: CW-ACC-9179-B-00
When installed, the access point changes to SP-only mode (for 6 GHz, where allowed).
Seal the environment pack cavity and cables to IP65 / IP67 standards.
Includes an environment pack cover with an environmental seal, two rubber cable glands (6–7 mm OD and 7–8 mm OD), and weatherization tape for use with external antenna connections.

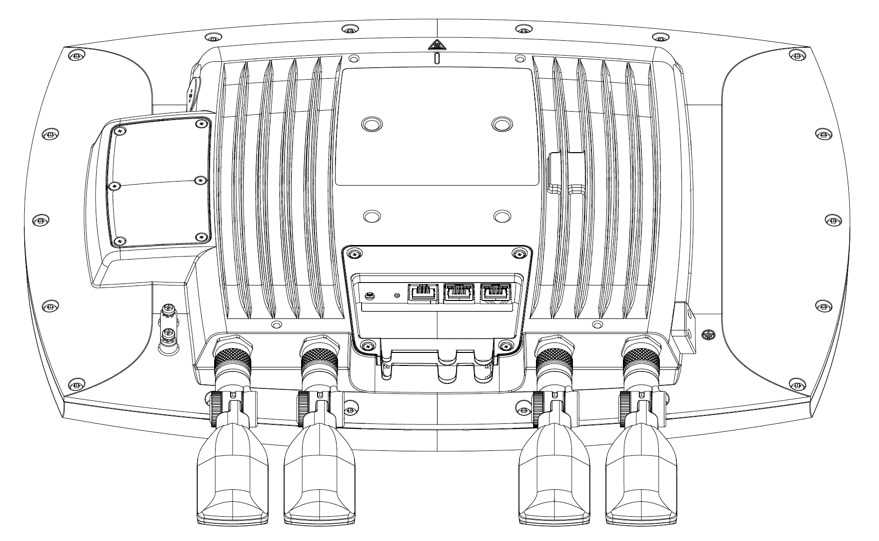

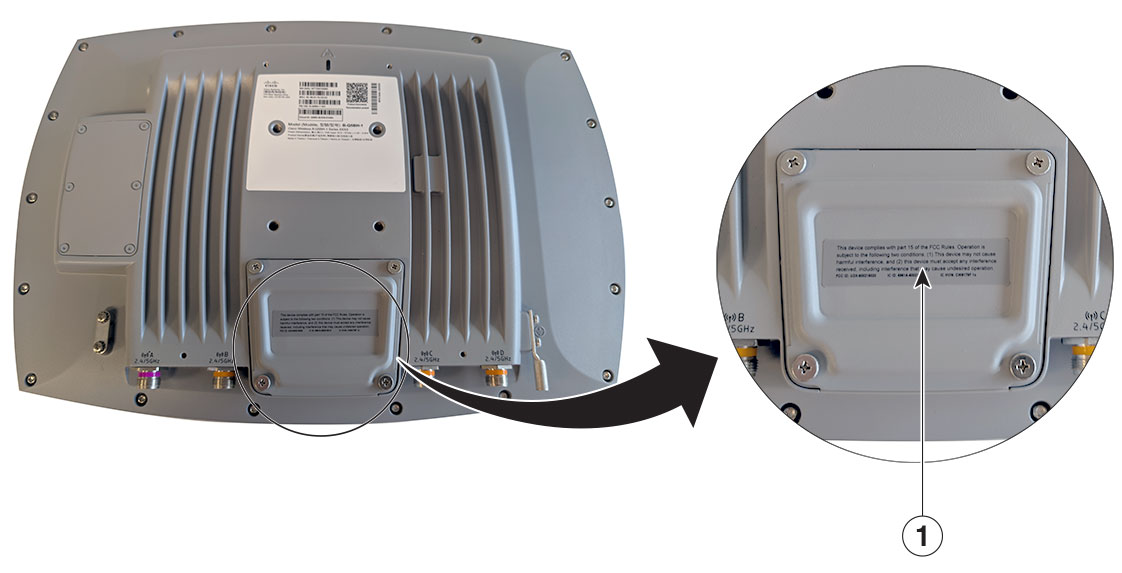

1 |
Outdoor Environment Pack (with an environmental seal) |
The use of proper cable types will enhances the performance of the CW9179F. Since this access point has 10-Gbps ports, it is recommended to use either CAT6 or CAT 6a cable which support speeds of up to 10 Gbps. CAT 5e cables can still be used; however, the access point's performance may get degraded.
This table lists the various cable types that can be used with the CW9179F.
Cable Type | Speeds | Maximum Length |
---|---|---|
CAT 5e |
5 Gigabit |
328 feet (100 meters) |
CAT 6 |
1/2.5/5 Gigabit |
330 feet (100 meters) |
10 Gigabit |
164 feet (50 meters) |
|
CAT 6a |
10 Gigabit |
330 feet (100 meters) |
The location of the access point status LED is shown in Types of connectors and ports on the access point.
![]() Note |
|
The access point status LED indicates various conditions, which are described in the following table.
AP Operating Mode When in on-prem/Catalyst mode |
||
---|---|---|
Message Type |
LED State |
Message Meaning |
Boot loader status |
Blinking green ![]() |
Boot loader executing |
Association status |
Green ![]() |
Normal operating condition, but no wireless client is associated |
Blue ![]() |
Normal operating condition, at least one wireless client is associated |
|
Cycling through Green-red-off ![]() |
Discovery/join in progress |
|
Cycling through Blue-green-red ![]() ![]() ![]() |
AP location command |
|
Blinking red ![]() |
Ethernet link not operational |
|
Red ![]() |
Ethernet failure |
|
Blinking blue ![]() |
Configuration recovery in progress |
|
Boot loader warnings |
Red ![]() |
Image recovery |
Environment pack error |
Cycling through Green-White-Red-Green-White-Red Blinking ![]() |
Error in operating condition of Environment pack |
AP Operating Mode When in GUAPO/Meraki mode |
||
---|---|---|
Message Type |
LED State |
Message Meaning |
Boot/Hardware Issue |
Orange ![]() |
AP is booting (permanent Orange suggests hardware issue) |
Initializing/Scanning |
Rainbow ![]() |
AP is initializing/scanning |
Upgrading |
Blinking Blue ![]() |
AP is upgrading |
Gateway Ready (Idle) |
Green ![]() |
AP in Gateway mode with no clients |
Gateway Active |
Blue ![]() |
AP in Gateway mode with clients |
No Uplink/Connection Issue |
Blinking Orange ![]() |
AP can't find uplink |
Environment pack error |
Cycling through Green-White-Red-Green-White-Red Blinking ![]() |
Error in operating condition of Environment pack |
![]() Important |
Red states relate to manufacturing, RMA, or RI. For some older axe boards or builds, initiate the diagnostic image download process. The LED flashes blue and green while it downloads the diagnostic image. |
Message Type |
LED State |
Message Meaning |
---|---|---|
Ethernet Port 0/1 LED |
Green ![]() |
Ethernet link established at 10G/5G/2.5G/1G/100M |
Orange ![]() |
Ethernet link at 1G/100M |
|
Blinking green ![]() |
Data transmission is at 10G/5G/2.5G |
|
Blinking orange ![]() |
Data transmission at 1G/100M |
Using the Reset button (see Types of connectors and ports on the access point), you can reset the AP to factory default.
To reset the AP to the default factory-shipped configuration, perform the following steps:
Unplug the AP from the power source.
Hold the Reset button.
Power on the AP.
Press, and continue to press the Reset button for the duration corresponding to your requirements listed in the table below:
Reset option |
Reset pin hold time |
LED status |
---|---|---|
0. Mode indication |
~ 5 seconds |
|
1. Config reset |
> 10 seconds |
Solid white |
2. Full reset (maintains management mode) |
> 20 seconds |
Orange |
3. FIPS reset (Catalyst mode only) |
> 30 seconds |
Solid red |
4. Factory reset (back to global use AP onboarding) |
> 60 seconds |
Solid pink |
5. Cancel reset |
> 90 seconds |
Not applicable |
![]() Note |
The reset operation is consistent with traditional Catalyst-managed AP deployments and is now integrated with Meraki-managed deployments. |
