Cisco Expressway Certificate Creation and Use Deployment Guide (X15.0)
Bias-Free Language
The documentation set for this product strives to use bias-free language. For the purposes of this documentation set, bias-free is defined as language that does not imply discrimination based on age, disability, gender, racial identity, ethnic identity, sexual orientation, socioeconomic status, and intersectionality. Exceptions may be present in the documentation due to language that is hardcoded in the user interfaces of the product software, language used based on RFP documentation, or language that is used by a referenced third-party product. Learn more about how Cisco is using Inclusive Language.
From X12.5, the Cisco Expressway Series supports the ACME protocol (Automated Certificate Management Environment) which enables
automatic certificate signing and deployment to the Cisco Expressway-E from a certificate authority such as Let's Encrypt.
The main benefit of this feature is to generate low-cost server certificates to identify the Expressway-E, thereby reducing
the cost of Expressway-based deployments like MRA (Mobile and Remote Access).
Due to the underlying validation mechanism this feature is most likely to be useful for MRA deployments. For Business to Business
(B2B) applications, it's not always practical to include your primary domain in ACME certificates.
The configuration process is simple. You enter some information on the Cisco Expressway-E to create a certificate signing
request (CSR), then the Expressway's ACME client interacts with the certificate authority to request the certificate. Expressway
downloads the certificate and you click a button to deploy it. After this manual step, you can schedule renewal so that the
certificate does not expire—because ACME certificates are deliberately short-lived.
One compromise of the ACME protocol is that it requires an inbound HTTP connection to port 80 on the Cisco Expressway-E. You
can manage this risk with the Expressway's security features or, for highly secure environments, you can disable ACME and
use the traditional CSR procedure with your preferred certificate authority.
No Jabber Guest support with ACME.
Currently, Expressway does not support ACME with Jabber Guest deployments.
For clustered deployments, ACME must be enabled individually on each peer rather than at cluster level. Most certificate operations are performed per node.
How ACME Works
ACME is a client server protocol that enables automated certificate management of web hosts. The Expressway-E has an ACME
client that interacts with an ACME provider, which is under the control of a certificate authority.
We currently work with the Let's Encrypt authority to generate server certificates.
We also use ACME to generate domain certificates for SNI (multitenancy), for which the process is essentially the same as
the server certificate process. Multitenancy is only supported for HCS deployments and more information about using ACME with
SNI is available in the Certificate Management and Service Discovery area of the Collaboration Knowledge Portal.
The ACME Certificate Service on the Expressway-E is a different method of requesting and applying server certificates to Expressway-E
than the method described in the other parts of this document.
The essential signing process is:
Define request > Submit to CA > CA generates and signs the certificate > Apply certificate.
The ACME certificate service follows this process, but it removes the cost and some of the manual effort.
One caveat about the process is that the CA has to interrogate the submitting host to verify that it controls the domains
in the CSR.
Common Configuration
These tasks are always required when using the ACME Certificate Service:
Create a CSR on the Expressway-E.
Configure DNS with the domains from your CSR and map them to the Expressway-E public IP address.
Each domain must have an A record, not just the FQDNs.
Configure the ACME client with the provider details and your email address.
Let's Encrypt Verification Process
For Let’s Encrypt to verify that all the domains requested in the CSR are under the control of requestor, it performs a challenge
for each one. It provides files, containing random strings, that the requestor must be able to serve on port 80 for each domain
in the CSR.
Note
From June 2024, Let's encrypt uses any of the ECDSA or RSA certificates.
Currently, four intermediates in active rotation is maintained.
Subscriber certificates containing an ECDSA public key will be issued from one of the ECDSA intermediates.
Similarly, Subscriber certificates containing an RSA public key will be issued from one of the RSA intermediates.
Let's Encrypt only issues the certificate after it successfully reads all the challenge files.
This is how it works when you manually control the process:
Procedure
Step 1
You initiate the signing process:
The ACME client opens an HTTPS connection to Let’s Encrypt and uploads the CSR.
Let’s Encrypt responds with a list of challenge files, one for each domain in the CSR.
The client places the challenge files on all the peers in the Expressway-E cluster.
Each Expressway-E peer starts a virtual Apache host, configured to serve only the challenge files.
The client notifies Let’s Encrypt it is ready to serve the challenge files.
Let’s Encrypt attempts to retrieve the challenge files.
The client polls Let’s Encrypt to see if the challenge process was successful.
If the challenge exchange was successful, then the client downloads the signed certificate, stores it in a staging area, and
notifies you that the certificate is ready to deploy.
The Expressway-E peers close down the virtual Apache hosts.
Step 2
You initiate the deployment process:
The Expressway-E copies the staged certificate over the existing server certificate.
It copies the private key associated with the CSR over the existing private key.
Expressway-E signals to other internal processes that they need to reload the server certificate. (You do not need to restart
the Expressway-E.)
The Expressway-E now presents the ACME certificate when making TLS connections.
Frequent Expiry and Low Impact Renewal
Let’s Encrypt certificates are only valid for 90 days, by design. This means you need to renew your certificates more frequently, which we address in the ACME Certificate Service by:
Providing an automated renewal mode, that fetches a new certificate when two-thirds of the validity period has expired.
There is no notification at the two-thirds time if the service is not in automated mode. You are responsible for submitting
a new signing request. Let's Encrypt sends expiration warning emails to the account that you use to configure the ACME client
on Expressway-E.
Removing the need to restart the Expressway-E when you use ACME Certificate Service to deploy a new certificate (either automated
or manual deployment).
The Expressway processes that use the certificate can load the new certificate without restarting. Expressway-E does not drop
TLS connections, and presents the new certificate for new connection attempts.
There is no interruption of service for Mobile Remote Access clients.
Note
If you use a different method to upload a new server certificate, you must restart the Expressway-E. That behavior is unchanged
with the introduction of the ACME Certificate Service.
Automated Renewal Mode
You can schedule a particular time, on one or more days of the week, when you configure automated renewal. The schedule is
only used for deploying the certificate, not for requesting a new one.
When you put the service in automated mode, the service requests and receives an initial certificate, then deploys the certificate
at the next scheduled opportunity. When two-thirds of that certificate's validity period has elapsed, the ACME Certificate
Service automatically resubmits the stored CSR to get a new certificate.
There are two automated resubmission opportunities per day. These are deliberately at random times to improve security of
the challenge process. At these times, the Expressway-E must accept requests on port 80, so it is better that they are unpredictable.
After the successful automated signing, the ACME Certificate Service automatically deploys the staged certificate at the next
scheduled opportunity. This takes a few seconds and does not impact running processes that use the certificate.
More About the Virtual Apache Host
Let's Encrypt needs to verify that the certificate requestor controls the domain names in the CSR, using the challenge and
validation process described above. Let's Encrypt must be able to access port 80 on all peers in the cluster because, when
a domain resolves to several IP addresses, Let’s Encrypt will connect to any one of them, at random.
It is impractical to try and restrict access to the Expressway-E port based on the source address, because Let’s Encrypt does
not have a concise list or CIDR containing all their servers.
To reduce the risk of malicious access, the Apache virtual host only runs during the challenge phase, and is also restricted
to allow HTTP access only to the challenge files.
Apache is configured to listen on port 80 (if it is not already listening on that port) and forwards (only) ACME challenge
traffic to the virtual Apache host.
The virtual host only listens on one unprivileged port on its localhost interface. The virtual host is hardened in the usual
way. It denies: directory browsing, symbolic links, all options, and usage of .htaccess files. Due to this, the HTTP to HTTPS
redirect is only supported if the Web Administration port for Expressway E is configured as the default 443 port.
If the Expressway-E is configured to redirect port 80 to 443:
We add an exception to the 80 to 443 redirect rule for ACME challenge traffic. This exception is added automatically in the
background and cannot be manually configured.
The exception filters only on GET requests to the required paths (.well-known/acme-challenge/).
Therefore, only GET requests on port 80 to specific file paths will reach the virtual host. All other requests are redirected
to port 443 as normal.
If port 80 is not enabled on Expressway-E:
We configure Apache to listen on port 80.
We add a rule to redirect GET requests, on port 80, for the ACME challenge files, to the virtual Apache host.
All other requests return HTTP error 404 (not found).
The challenge process can last a few minutes, depending on the number of domains in the CSR and the number of peers in the
Expressway cluster.
When the challenge is complete:
We remove the challenge files.
We remove the exception to the 80 to 443 redirection rule.
We stop Apache from listening on port 80, if it was not configured to allow redirection to 443.
We stop the Apache virtual host.
Deploy ACME Certificate Service
Prerequisites
Check the Let's Encrypt terms and conditions with your legal representative.
Configure DNS with any mappings to Expressway-E that you need as CN or SAN in your certificate.
Create an email account to use with the Let's Encrypt CA.
Append the Let's Encrypt root CA certificate to Expressway trust stores.
Append the Let's Encrypt intermediate CA certificate to Expressway trust stores.
Enable TCP 80 inbound from the internet to your Expressway-Es' public addresses.
Ensure that all domains on the SAN have a valid A record (not just the FQDNs). If the record of a domain is already used by another web server, you can configure the collab-edge domain on the CSR and configure an A record for it.
Append Let's Encrypt Root CA Certificate to Expressway Trust Stores
Let's Encrypt is a relatively new CA, so their own CA root certificate is cross signed by the established IdenTrust CA. Follow
these steps to make sure that all your Expressways trust the Internet Security Research Group Root X1:
For each Expressway-E (and traversal Expressway-C) in the deployment you are securing with certificates signed by Let's Encrypt:
Sign on to the Expressway's web interface.

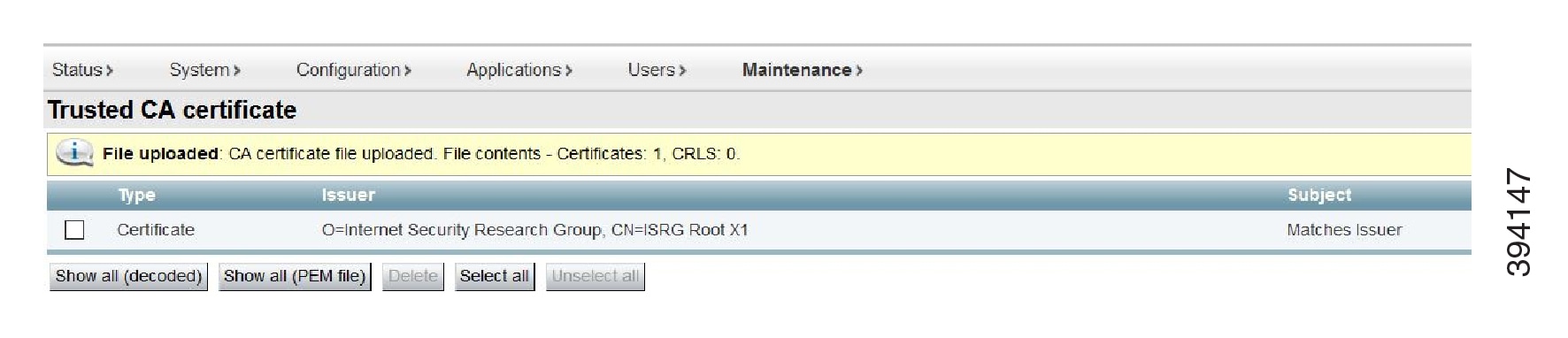

Go to Maintenance > Security > Trusted CA certificate.
In the Upload section of the page, select the certificate file you created.
Click Append CA certificate.

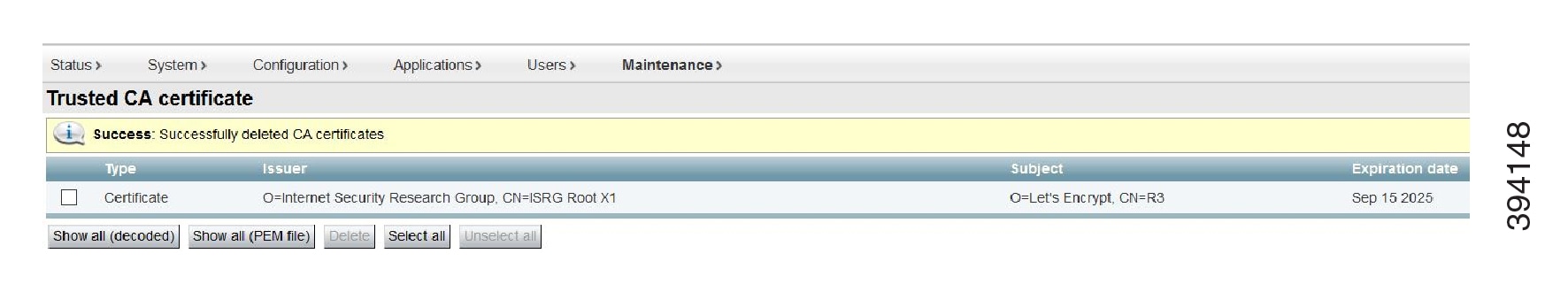

The trusted CA certificate list should now include both the Internet Security Research Group root certificate and the Let's
Encrypt CA certificate.
Configure ACME Certificate Service on Expressway-E
Procedure
Step 1
Sign on to the Expressway-E and go to Maintenance > Security > Server certificate.
Step 2
Scroll down to the ACME Certificate Service section.
Step 3
Select the ACME Provider from the drop-down list.
This is the CA that signs your certificate. Currently, we only work with Let's Encrypt®.
Step 4
Enter an Admin Email address to use with the provider.
This should be a real address, so that you can receive communication from your ACME provider if necessary.
This address is your account name with the provider, and is linked to all certificate signing requests you make with this
provider.
Step 5
Read the terms and conditions.
You may want to save a copy for your legal representatives to review, if they have not yet done that.
Step 6
Click Accept Terms & Conditions.
The ACME client on Expressway-E creates an account with your chosen provider.
The ACME Certificate Service on Expressway-E client is now ready to interact with your ACME provider.
Configure ACME for Each Domain Certificate
The ACME service on the Expressway-E, from version X12.5, can request and deploy domain certificates (used with SNI).
When you go to Maintenance > > Security > Domain certificates, the list of domains has an ACME column that shows the status of the ACME service for each domain.
Click View/Edit next to the domain name to enable the ACME service.
The process of configuring ACME service for domain certificates is the same as it is for the server certificate, only from
a different place in the Expressway-E interface.
Subject Alternate Name = FQDN of only this Expressway peer (generating this CSR), FQDN of cluster
Warning
Ensure you do NOT include every cluster node as a Subject Alternate Name (SAN).
Sign the CSR using ACME Provider
When you have a CSR saved on Expressway-E, and configured the ACME service, then you can submit the CSR to your ACME provider
to verify and sign.
Note
Cluster FQDNs and collab-edge.externaldomain.com records should resolve each Expressway peer's public IP address, and multiple records pointing to different Expressway(s)
is acceptable.
Procedure
Step 1
Go to Maintenance > Security > Server certificate.
Step 2
Scroll down to the ACME Service Configuration.
Step 3
Click Sign CSR with ACME Provider.
The ACME client on Expressway-E submits the saved CSR to the chosen provider.
Step 4
Wait a few minutes for the signing process to complete.
The provider checks DNS for CN and SAN attributes in your CSR, to verify that they match up with the Expressway-E address
from which it received the signing request. The provider signs and returns the certificate, which the ACME client stores on
Expressway-E, waiting for you to deploy it.
Step 5
Manually refresh the Server certificate page.
You see a success banner when the certificate is signed and ready to use.
[Optional] Check the Signed ACME Certificate
Procedure
Step 1
Go to Maintenance > Security > Server certificate and down to the ACME Certificate Service section.
The Status field shows that you have a signed certificate ready to deploy.
Step 2
In the Pending ACME Certificate field, click Show (decoded).
Step 3
Verify the details are as you expected. If they are not, you may have to discard the pending cert and generate a new CSR.
Note
It's possible that Let's Encrypt CA may ignore some of the attributes you provided in the CSR.
Deploy the ACME Certificate
Procedure
Step 1
Go to Maintenance > Security > Server certificate and down to the ACME Certificate Service section.
The Status field shows that you have a signed certificate ready to deploy.
Step 2
Click Deploy Pending Cert.
The Expressway-E starts using this certificate in transactions that require it to authenticate itself to the other party.
There is no need to restart the Expressway-E.
Enable Automated Renewal of the ACME Certificate
ACME certificates are deliberately short-lived as a security precaution. At the time of writing, the validity period is 90
days from the date of issue.
The ACME Certificate Service on Expressway-E monitors the certificate validity, and warns you when two-thirds of the validity
period has elapsed. You can manually respond by following the procedure outlined in previous topics.
To avoid this frequent task, you can use the automated renewal option to have the ACME Certificate Service renew and deploy
your certificate for you.
Procedure
Step 1
Go to Maintenance > Security > Server certificate and down to the ACME Certificate Service section.
Step 2
Change the ACME Automated Scheduler field to On.
Step 3
Select one or more Schedule Days and a Schedule Time.
When two-thirds of the certificate's validity has elapsed, the ACME Certificate Service attempts to renew and deploy the server
certificate at the given time on the next selected day.
Step 4
Click Save.
The Status shows that the service is in Automated mode. The next time it renews and deploys the certificate, it updates the Last Deploy Status and Last Sign Status.
Revoke an ACME Certificate
These are some of the reasons why you might want to revoke an ACME certificate on your Expressway-E:
The Expressway-E has been compromised.
You factory reset the Expressway-E.
The purpose of the Expressway-E changed.
The ACME account is no longer valid.
To revoke an ACME certificate, you need to prove to the provider that you own the Expressway-E's DNS address and that you
control the original entries in the certificate. To do that you need to repeat the signing CSR process used for the certificate,
but you do not need to redeploy the resulting certificate.
You should deploy a new certificate before you revoke the original certificate. Keep a copy of the certificate you want to
revoke.
Caution
Do not revoke a certificate that is in use, because that will interrupt all services that use this certificate.
Procedure
Step 1
Take a backup of the current certificate.
This precaution helps if you inadvertently overwrite your current certificate with one that you intend to revoke.
Step 2
Copy the certificate that you want to revoke into a temporary location on the Expressway-E. Remember the path to the location.
If you do not have a copy of the certificate you want to revoke, you may be able to retrieve it from https://crt.sh/.
Feedback
