Introduction

About the Expressway

Cisco Expressway Series (Expressway) is designed specifically for comprehensive collaboration services. It features established firewall-traversal technology and helps to redefine traditional enterprise collaboration boundaries, to support our Cisco vision of any-to-any collaboration.

Expressway offers the following primary features and benefits:

  • Provides proven, highly secure, firewall-traversal technology.

  • Facilitates connections for business-to-business, business-to-consumer, and business-to-cloud-service-provider.

  • Facilitates session-based access to collaboration services for remote workers, with no need for a separate VPN client.

  • Supports a wide range of devices, including Cisco Jabber for smartphones, tablets, and desktops.

  • Complements bring-your-own-device strategies and policies for remote and mobile workers.

A typical Expressway system is deployed as a pair: an Expressway-C with a trunk and line-side connection to Unified CM, and an Expressway-E deployed in the DMZ and configured with a traversal zone to an Expressway-C.

Expressway is available on a dedicated physical appliance such as a CE12100, or as a virtual machine (VM) on a Cisco UCS server.

Expressway Types

Each Expressway can be configured as one of two types, which offer different capabilities.

Expressway-C

Expressway-C delivers any-to-any enterprise wide conference and session management and interworking capabilities. It extends the reach of telepresence conferences by enabling interworking between Session Initiation Protocol (SIP)- and H.323-compliant endpoints, interworking with third-party endpoints; it integrates with Unified CM and supports third-party IP private branch exchange (IP PBX) solutions. Expressway-C implements the tools required for creative session management, including definition of aspects such as routing, dial plans, and bandwidth usage, while allowing organizations to define call-management applications, customized to their requirements.

Expressway-E

The Expressway-E deployed with the Expressway-C enables smooth video communications easily and securely outside the enterprise. It enables business-to-business video collaboration, improves the productivity of remote and home-based workers, and enables service providers to provide video communications to customers. The application performs securely through standards-based and secure firewall traversal for all SIP and H.323 devices. As a result, organizations benefit from increased employee productivity and enhanced communication with partners and customers.

It uses an intelligent framework that allows endpoints behind firewalls to discover paths through which they can pass media, verify peer-to-peer connectivity through each of these paths, and then select the optimum media connection path, eliminating the need to reconfigure enterprise firewalls.

The Expressway-E is built for high reliability and scalability, supporting multivendor firewalls, and it can traverse any number of firewalls regardless of SIP or H.323 protocol.

Standard Features

Standard features on Expressway include the following:

  • Secure firewall traversal and session-based access to Cisco Unified Communications Manager for remote workers, without the need for a separate VPN client

  • Endpoint registration support.

  • SIP Registrar (requires Room or Desktop SIP Proxy. Note that SIP and H.323 protocols are disabled by default on new installs, and can be enabled from Configuration > Protocols Registration licenses.)

  • SIP and H.323 support, including SIP / H.323 interworking

  • IPv4 and IPv6 support, including IPv4 / IPv6 interworking

  • TURN relay licenses

  • Advanced networking

  • Device provisioning and FindMe services

  • H.323 gatekeeper

  • QoS tagging

  • Bandwidth management on both a per-call and a total usage basis, configurable separately for calls within the local subzones and to external systems and zones

  • Automatic downspeeding option for calls that exceed the available bandwidth

  • URI and ENUM dialing via DNS, enabling global connectivity

  • Rich media session (RMS) support

  • 1000 external zones with up to 2000 matches

  • 1000 subzones and supporting up to 3000 membership rules

  • Flexible zone configuration with prefix, suffix and regex support

  • Can function as a standalone Expressway, or be neighbored with other systems such as other Expressways, gatekeepers and SIP proxies

  • Can be clustered with up to 6 Expressways to provide n+1 redundancy, and up to 4 x individual capacity.

  • Can be clustered with up to 6 Expressways to provide n+2 redundancy, and up to 4 x individual capacity.

  • Intelligent Route Director for single number dialing and network failover facilities

  • Optional endpoint authentication

  • Control over which endpoints are allowed to register

  • Call Policy (also known as Administrator Policy) including support for CPL

  • Support for external policy servers

  • Can be managed with Cisco TelePresence Management Suite 13.2 or later

  • Active Directory authentication

  • Pre-configured neighbor zone defaults for Cisco Unified Communications Manager and for Nortel Communication Server

  • Embedded setup wizard using a serial port for initial configuration

  • System administration using a web interface or SSH, or via the CIMC port for a CEnnnn physical appliance

  • Intrusion protection

Do Not Install Other Cisco or Third-Party Software onto Expressway

Cisco does not support the installation of any additional Cisco or third-party software, applications, or agents on Expressway (VMs or physical appliances), unless we state explicitly otherwise. Non-Expressway products may corrupt the Expressway code and must not be installed.

Hardware Appliance and Virtual Machine Options

Expressway supports on-premises and cloud applications and is available as a dedicated appliance or as a virtualized application on VMware, with additional support for Cisco Unified Computing System (Cisco UCS) platforms.

Virtual Machine Options

Expressway has these virtualized application deployment types:

  • Small (for Cisco Business Edition 6000 or supported VMware ESXi platforms, subject to the required minimum hardware specification)

  • Medium (standard installation)

  • Large (extra performance and scalability capabilities)

See Cisco Expressway Virtual Machine Installation Guide on the Expressway Installation Guides page.

Hardware CE Series Appliances

The Expressway is also available as a dedicated CE Series appliance based on UCS hardware. For example, the CE1200 appliance based on a UCS C220 M5L, operates as a medium capacity or large capacity Expressway.


Note


The Cisco VCS series is not supported on CE1200 appliances.


Changing the default system size

For appliances deployed as Expressway-E you can manually change the default system size of appliances from Large to Medium, or the other way round. This capability was introduced to mitigate an issue with demultiplexing ports for media traversal on appliances with a 1 Gbps NIC (SFP module) that are configured as Medium systems.

To change the size of the appliance, go to System > Administration settings page and select the required size from the Deployment Configuration list.

Installation information

See Cisco Expressway CE1200 Appliance Installation Guide on the Expressway Installation Guides page.

Limitation

Medium Appliances with 1 Gbps NIC - Demultiplexing Ports

If you upgrade a Medium appliance with a 1 Gbps NIC to X8.10 or later, Expressway/Cisco VCS automatically converts the system to a Large system. This means that Expressway-E/Cisco VCS Expressway listens for multiplexed RTP/RTCP traffic on the default demultiplexing ports for Large systems (36000 to 36011) and not on the demultiplexing ports configured for Medium systems. In this case, the Expressway-E/ Cisco VCS Expressway drops the calls because ports 36000 to 36011 are not open on the firewall.

Workaround

From X8.11.4 you can manually change the system size back to Medium, through the System > Administration settings page (select Medium from the Deployment Configuration list).

Before X8.11.4, the workaround is to open the default demultiplexing ports for Large systems on the firewall.

About This Guide

This guide describes the various features, services, and capabilities of Expressway. It assumes a fully equipped version of Expressway, so your deployment may not support all of the items described.

The guide only applies to the Cisco Expressway Series product. For information about Cisco VCS, please refer to the X12.5.x Cisco VCS Administrator Guide on the Cisco TelePresence Video Communication Server Maintain and Operate Guides page.

Most configuration tasks on Expressway can be done through the web user interface or the command line interface (CLI). The guide mainly describes how to use the web user interface. Some features are only available through the CLI, and these are described where relevant.

Web user interface directions are shown in the format Menu > Submenu followed by the Name of the page that you will be taken to.

CLI commands where provided, are shown in the format:

xConfiguration <Element> <SubElement>
xCommand <Command>

Change History

Table 1. Change History

Date

Change

Reason

December 2023

First published for X15.0.

  • Enabling/Disabling the Cross-Site Request Forgery (CSRF) Protection Header

  • Enable PreRoutedRouteHeader (PRRH) on the Expressway Select image

  • LDAP TLS supports different ports other than 636 and 3269

  • Banned ciphers are removed that are offered by default: TLS_DHE_RSA_WITH_AES_128_CCM, TLS_RSA_WITH_AES_256_CCM, TLS_RSA_WITH_AES_128_CCM

  • WebRTC session counter on Web User Interface for Expressway-E.

  • Addressed Customer Defects

  • Log rotation stops in the Expressway

X15.0 release

June 2023

First published for X14.3.

  • Updated the following tables "Capacity Guidelines for Standalone Systems, Capacity Guidelines for Clustered Systems, and Fast Path Registration for MRA (Caching Optimization for Registrations)" in chapter "Expressway Capacity and Sizing".

  • Removed the tables, Standalone Systems, Capacity Guidelines for Clustered Systems, and Fast Path Registration for MRA (Caching Optimization for Registrations) from the chapter "Clustering and Peers." Provided a link to the chapter "Expressway Capacity and Sizing" for details.

  • Support for Elliptic Curve Digital Signature Algorithm (ECDSA) Certificate, Update to the Command Line Interface

  • Route calls to US Suicide Prevention Hotline (988) without RMS licenses

  • Set the Default Value of SIP TLS DH key size to 2048 for Fresh Install and Upgrade

X14.3 release

August 2022

Republished X14.2.

Replaced Bug ID

X14.2 release

August 2022

First published for X14.2.

  • Smart Licensing Export Compliance - Capped at 2500 encrypted signaling sessions to endpoints

  • New REST API - CDB Rest API Access - Enable/Disable CDB REST API Access

  • TLS Verification Mode - Enabled server certificate verification by default

  • TLS 1.3 Support

  • ECDSA Cipher Preference Over RSA

  • Alternate Method of Using xCommand FIPS

  • Reducing Email Notifications

  • XCP Routing Table

  • Support for 4+1 and 5+1 Redundancy Models

X14.2 release

July 2021

Updates for X14.0.2.

  • Updated the section "Certificate Requirements". Traffic Server Enforces Certificate Verification

  • New REST API - Status - fail2banbannedaddress

  • Auto Created CE Zone Status

X14.0.2 release

June 2021

Updates for X14.0.1.

  • Updated a few security related enhancements, MRA Registration issues using a wrong Traversal Zone are fixed

  • New REST API - Alarms - view and acknowledge, SNMP Configuration

X14.0.1 release

May 2021

Changed the MRA Registrations (proxied) value for CE1200 in the Table - Standalone Capacity Guidelines - Single Expressway.

Document correction

April 2021

First published for X14.0.

X14.0 release

December 2020

Updates for X12.7.

X12.7 release

October 2020

  • Update missing and out of date settings in pre-configured zones.

  • Remove duplicated content about HSM.

  • Clarify external/third party gatekeeper meaning in RMS license usage.

Document corrections

October 2020

Update missing and out of date settings in pre-configured zones.

Document correction

October 2020

Updates for X12.6.4 maintenance release (fix for software bug ID CSCvv92477 - configurable DH key length for H.323-SIP interworking).

Changes to Configuring Password Security topic to reflect that Enforce strict passwords applies to all locally-managed accounts since X12.6, not just to local admin accounts.

X12.6.4 maintenance release / document correction

August 2020

Updates for X12.6.2 maintenance release.

X12.6.2 maintenance release

July 2020

Restructure content related to logging and serviceability and integrate content that was formerly in the Expressway Serviceability Guide and is now merged into this guide. Also restructure troubleshooting and diagnostics information into its own chapter.

Document reorganization

July 2020

Updates for X12.6.1 maintenance release including MRA registrations count; and Expressway-E TURN server no longer functions as a generic STUN server.

X12.6.1 maintenance release

June 2020

Update Firewall Traversal section to explain cases of IP address mismatch in STUN packets.

Document clarification

June 2020

Updates for X12.6, add process to restore "Applications" menu if not visible in web UI.

X12.6 release

February 2020

Updates for X12.5.7 maintenance release including "Kari's Law".

Note



X12.5.7 now withdrawn and replaced with X12.5.9.

Clarify option keys for CE1200 appliances.

X12.5.7 maintenance release

January 2020

Update Cluster License Usage and Capacity Guidelines section to clarify no capacity gain from clustering Small VMs.

Document correction

December 2019

Clarify not to install other software onto the product.

Correct location of VM Size field.

Document clarification

Document correction

November 2019

Updates for X12.5.6 maintenance release.

X12.5.6 maintenance release

July 2019

Updated for X12.5.4. Removed references to release key as it is not required to upgrade a system on X8.6.x or later software to 12.5.4 or later.

Fix incorrect default value for "Redirect HTTP requests to HTTPS" in the Network Services section. CSCvq39362 refers.

X12.5.4 release

June 2019

RMS license consumption table updated, now includes only those scenarios which consume RMS licenses.

Document correction

May 2019

Fix incorrect reference to 488 response code in the description of Meeting Server load balancing setting.

Document correction

April 2019

Updates for X12.5.2 maintenance release (includes support for virtualized Small VMs on VMware ESXi platform).

X12.5.2 maintenance release

March 2019

Updates for X12.5.1 maintenance release.

X12.5.1 maintenance release

February 2019

Reinstate "Services That Can be Hosted Together" table in the Introduction.

Documentation correction

January 2019

Updates for X12.5.

X12.5 release

December 2018

Retitle for X8.11.4 (no substantive updates). Adjust B2BUA calls status section for CSCvn73111.

X8.11.4 maintenance release

October 2018

Updates for X8.11.3 maintenance release.

X8.11.3 maintenance release (withdrawn)

September 2018

Updated for Webex and Spark platform rebranding, CE1200 appliance, and X8.11.1 release.

X8.11.1 release (withdrawn)

July 2018

Updates for X8.11.

X8.11 release (withdrawn)

July 2017

Updates for X8.10.

X8.10 release

January 2017

General corrections and updates. New feature added.

X8.9.1 maintenance release

December 2016

New features and general corrections.

X8.9 release

September 2016

Help and admin guide updates including new call policy rule configuration.

X8.8.2 maintenance release

July 2016

Correction in MRA overview and Xconfig SIP Advanced CLI commands added.

X8.8 document corrections

June 2016

Updates for X8.8.

X8.8 release

April 2016

General corrections and updates. New features added.

X8.7.2 Maintenance release

February 2016

General corrections and updates. Document change history (this table) added. DNS zone parameters and alarm reference updated.

X8.7.1 Maintenance release

Training

Training is available online and at our training locations. For more information on all the training we provide and where our training offices are located, visit www.cisco.com/go/telepresencetraining.

Related Documentation

Table 2. Links to Related Documents and Videos

Support videos

Videos provided by Cisco TAC engineers about certain common Expressway configuration procedures are available on the Expressway/VCS Screencast Video List page (search for "Expressway videos")

Installation - virtual machines

Cisco Expressway Virtual Machine Installation Guide on the Expressway Installation Guides page

Installation - physical appliances

Cisco Expressway CE1200 Appliance Installation Guide on the Expressway Installation Guides page.

Basic configuration for single-box systems

Cisco Expressway Registrar Deployment Guide on the Expressway Configuration Guides page

Basic configuration for paired-box systems (firewall traversal)

Cisco Expressway-E and Expressway-C Basic Configuration Deployment Guide on the Expressway Configuration Guides page

Administration and maintenance

Cisco Expressway Administrator Guide on the Expressway Maintain and Operate Guides page (includes Serviceability information)

Clustering

Cisco Expressway Cluster Creation and Maintenance Deployment Guide on the Expressway Configuration Guides page

Certificates

Cisco Expressway Certificate Creation and Use Deployment Guide on the Expressway Configuration Guides page

Ports

Cisco Expressway IP Port Usage Configuration Guide on the Expressway Configuration Guides page

Unified Communications

Mobile and Remote Access Through Cisco Expressway on the Expressway Configuration Guides page

Cisco Meeting Server

Cisco Meeting Server with Cisco Expressway Deployment Guide on the Expressway Configuration Guides page

Cisco Meeting Server API Reference Guide on the Cisco Meeting Server Programming Guides page

Other Cisco Meeting Server guides are available on the Cisco Meeting Server Configuration Guides page

Cisco Webex Hybrid Services

Hybrid Services Knowledge Base

Cisco Hosted Collaboration Solution (HCS)

HCS Customer Documentation

Microsoft infrastructure

Cisco Expressway with Microsoft Infrastructure Deployment Guide on the Expressway Configuration Guides page

Cisco Jabber and Microsoft Skype for Business Infrastructure Configuration Cheatsheet on the Expressway Configuration Guides page

Rest API

Cisco Expressway REST API Summary Guide on the Expressway Configuration Guides page (high-level information only as the API is self-documented)

Multiway Conferencing

Cisco TelePresence Multiway Deployment Guide on the Expressway Configuration Guides page

About the Service Setup Wizard (Service Selection Page)

The Service Setup Wizard makes it easier to configure Expressway for its chosen purpose in your environment, and simplifies the web user interface. As well as running the wizard for initial configuration you can subsequently access its service selection page at any time (Status > Overview). For more details about using the wizard, see the Cisco Expressway-E and Expressway-C - Basic Configuration guide on the Expressway Configuration Guides page.

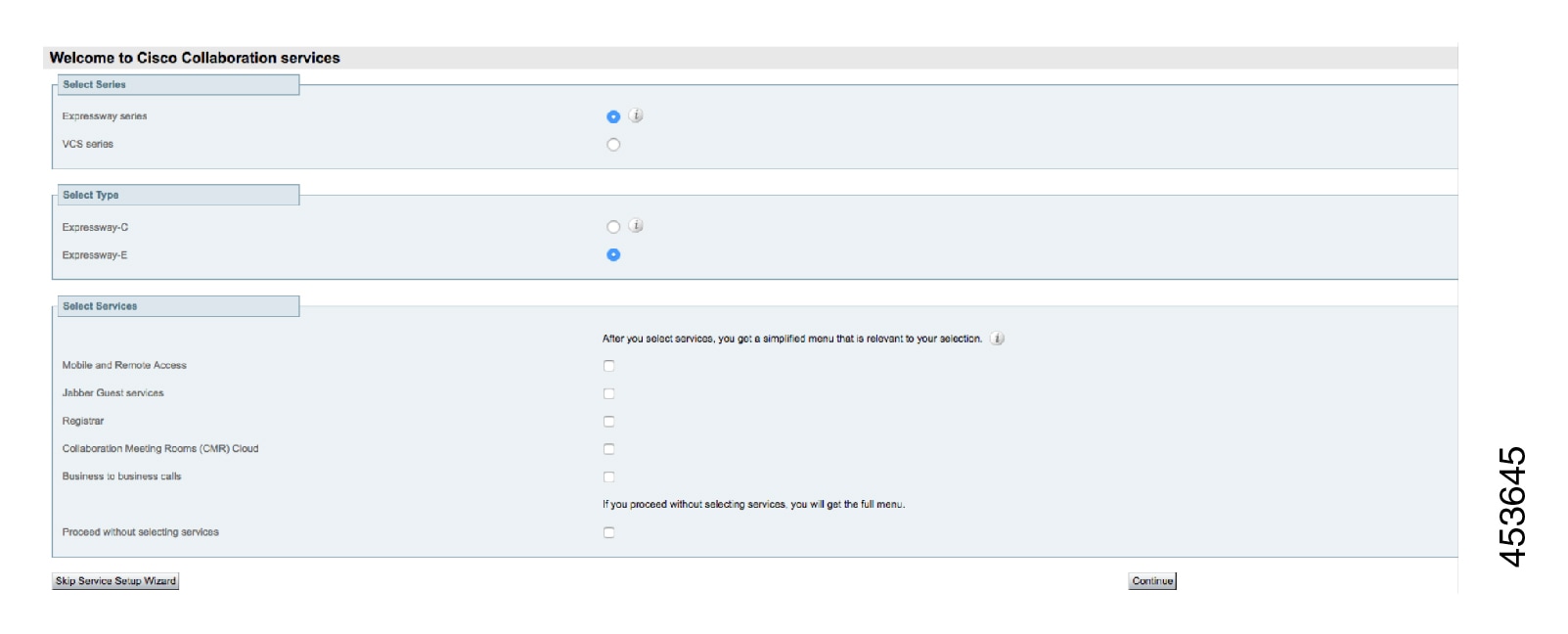

Figure 1. Service Setup Wizard - Example Service Selection Page

Note


If you use Smart Licensing, you cannot change the Series setting from the Service Selection page/wizard (to convert an Expressway to a VCS product). Instead this process must start with a factory reset (to disable Smart Licensing because it's not supported on VCS). Some of the other settings shown in this example are unnecessary with Smart Licensing and do not appear in the wizard on Expressways that use Smart Licensing.


Services That Can Be Hosted Together

Some services are incompatible and cannot be selected together. The following table provides a matrix of compatible services. The matrix specifies which services you can use together on the same system or cluster.

Table 3. Services That Can be Hosted Together

Cisco Webex Hybrid Services (Connectors

Mobile and Remote Access

Jabber

Microsoft gateway server

Registration

CMR Cloud

Business to Business calling (includes Hybrid Call Service)

Cisco Webex Hybrid Services (Connectors)

Y

N

N

N

N

Y

Y

Mobile and Remote Access and/or (from X8.9) Meeting Server Web Proxy

N

Y

N

N

Y

Y

Y*

Jabber Guest Services

N

N

Y

N

Y

Y

Y

Microsoft gateway service

N

N

N

Y

N

N

N

Registrar

N

Y

Y

N

Y

Y

Y

CMR Cloud

Y

Y

Y

N

Y

Y

Y

Business to Business calling (includes Hybrid Call Service)

Y

Y*

Y

N

Y

Y

Y

Key to Table

Y: Yes, these services can be hosted on the same system or cluster

N: No, these services may not be hosted on the same system or cluster

Rules

  • Hybrid Services connectors may co-reside with the Expressway-C of a traversal pair used for Call Service, subject to user number limitations.

    * If your Hybrid Call Service (or B2B) traversal pair is also used for MRA, then the Hybrid Services connectors must be on a separate Expressway-C. This is because we do not support the connectors being hosted on the Expressway-C that is used for MRA.

  • Microsoft gateway service requires a dedicated VCS Control or Expressway-C (called "Gateway VCS" or "Gateway Expressway" in the help and documentation)

  • Jabber Guest cannot work with MRA (technical limitation)

  • MRA is currently not supported in IPv6 only mode. If you want IPv6 B2B calling to co-reside with IPv4 MRA on the same Expressway traversal pair, the Expressway-E and Expressway-C must both be in dual stack mode.
