Smart Licensing

Overview

Cisco Smart Software Licensing is a flexible software licensing model that streamlines the way you activate and manage Cisco software licenses across your organization. Smart Licenses provide greater insight into software license ownership and consumption, so that you know what you own and how the licenses are being used. The solution allows you to easily track the status of your license and software usage trends. It pools the license entitlements in a single account and allows you to move licenses freely across virtual accounts. Smart Licensing is enabled across most of the Cisco products and managed by a direct cloud-based or mediated deployment model.

Smart Licensing registers the Product Instance, reports license usage, and obtains the necessary authorization from Cisco Smart Software Manager (Cisco SSM) or Cisco Smart Software Manager On-Prem (Cisco SSM On-Prem).

You can use Smart Licensing to:

  • View license usage and count.

  • View the status of each license type and the product instance.

  • View the product licenses available on Cisco SSM or Cisco SSM On-Prem.

  • Register or deregister the Product Instance, renew license authorization and license registration.

  • Sign in additional agents to Unified CCX up to the maximum limit that is configured in your OVA.

License Control

Smart Licensing allows you to use more licenses than you have purchased. You will be later asked to deposit the additional licenses in the Smart Account. However, if you want to limit the license usage to the purchased quantity or less, use License Control. With License Control, you can disable Overage Allowance option to restrict the number of agents and ports that can be used in Unified CCX. For different license types, you can restrict the usage of licenses and ports by configuring the following fields:

License Type

Fields

Comments

Perpetual Premium

Agent Seats

Outbound Ports

-

Perpetual Enhanced

Agent Seats

-

Flex and HCS-Flex

Standard Agent Seats

Premium Agent Seats

When an agent signs in, based on the skills that are configured (irrespective of the usage) in the Resource Configuration page in Unified CCX Administration, Standard or Premium license is consumed.

For example, if you have purchased a total of 50 licenses (10 Premium and 40 Standard):

  • Maximum of 10 Premium agents can sign in.

  • Maximum of 50 Standard agents can sign in, if none of the Premium agents have signed in.

  • When 5 Premium agents sign in, you can have maximum of 45 Standard agents sign in.

  • The total of Standard and Premium agents signed in should be 50.

IP-IVR

IVR Ports

-

For more information about OVA Profiles, see the Server Capacities and Limits section in Solution Design Guide for Cisco Unified Contact Center Express.


Note

License Control is not applicable:

  • For Non Production Systems License

  • For Not For Resale License

  • When Specific License Reservation (SLR) is enabled. For more information on SLR, see the Specific License Reservation section in this chapter.

License Management

Smart Licensing can be managed by using Cisco SSM and License Management in Unified CCX Administration portal

  • Cisco SSM—Cisco SSM enables you to manage all your Cisco smart software licenses from a centralized website. With Cisco SSM, you organize and view your licenses in groups called virtual accounts (collections of licenses and product instances).

    You can access Cisco SSM from https://software.cisco.com, by clicking the Smart Software Licensing link under the License menu.

  • License Management in Unified CCX Administration portal—Using the License Management option in the Unified CCX Administration portal, you can register or deregister the product instance, select your license type, set transport settings, or view the licensing consumption summary.

Smart License Deployments

There are two software deployment options for Smart Licensing:

  • Direct - Cisco Smart Software Manager (Cisco SSM)

  • Cisco Smart Software Manager On-Prem (Cisco SSM On-Prem)

Direct - Cisco Smart Software Manager (Cisco SSM)

The Cisco SSM is a cloud-based service that handles your system licensing. The Product Instance can connect either directly to Cisco SSM or through a proxy server.

Cisco SSM allows you to:

  • Create, manage, or view virtual accounts.

  • Manage and track the licenses.

  • Move licenses across the virtual accounts.

  • Create and manage Product Instance Registration Tokens.

For more information about Cisco SSM, go to https://software.cisco.com.

Cisco Smart Software Manager On-Prem (Cisco SSM On-Prem)

Cisco SSM On-Prem is an on-premises component that can handle your licensing needs. When you choose this option, Unified CCX registers and reports license consumption to the Cisco SSM On-Prem, which synchronizes its database regularly with Cisco SSM that is hosted on cisco.com.

You can use the Cisco SSM On-Prem in either Connected or Disconnected mode, depending on whether the Cisco SSM On-Prem can connect directly to cisco.com.

Configure Transport URL for Cisco SSM On-Prem with Smart Call-Home URL: https://<OnpremCSSM_IP>/Transportgateway/services/DeviceRequestHandler

  • Connected—Use when there is connectivity to cisco.com directly from the Cisco SSM On-Prem. Smart account synchronization occurs automatically.

  • Disconnected—Use when there is no connectivity to cisco.com from the Cisco SSM On-Prem. Cisco SSM On-Prem must synchronize with Cisco SSM manually to reflect the latest license entitlements.

    For more information on Cisco SSM On-Prem, see https://www.cisco.com/c/en/us/buy/smart-accounts/software-manager.html.

New Deployments

For new deployments, buy the licenses on Cisco Commerce website at https://apps.cisco.com. Begin to use the product by using the licenses from your Smart Account.

License States

Smart Licensing has the following states:

  • Registration State

    • Unregistered—Product Instance is unregistered.

    • Registered—After you purchase the license, you need to register the Product Instance with Cisco SSM. To register with Cisco SSM, generate a registration token from the Cisco SSM portal. Use the registration token to register your Product Instance.

    • Registration Expired—Product Instance registration has expired because the ID Certificate issued by Cisco SSM is not renewed for more than 12 months. Reregister the Product Instance.

  • Authorization State

    • No licenses in use

    • Evaluation Mode—The Product Instance license has an Evaluation period of 90 days. In the Evaluation period you have unlimited access to the product with highest set of product capabilities and unlimited number of licenses. You must register the system with Cisco SSM or Cisco SSM On-Prem within 90 days. If the system is not registered before the end of the evaluation period, it will be moved to the Enforcement state where certain system functions are restricted.

    • In Compliance—When the license consumption is as per the purchased quantity, the product is compliant.

    • Evaluation expired—Product Instance evaluation period has expired.

    • Authorized—Product Instance is in authorized or in compliance state. Authorization is renewed every 30 days.

    • Out of Compliance—Product Instance reports license usage to Cisco SSM every 15 minutes. If your license consumption is more than the entitlements for five consecutive reporting intervals, the Product Instance is transitioned to the Out of Compliance state. The out-of-compliance period is for 90 days, within which you need to purchase the additional licenses. If you fail to take corrective action within the 90 days period, the Product Instance is transitioned to the Enforcement state.

    • Authorization Expired—Product Instance authorization has expired. This usually happens when the product has not communicated with Cisco SSM for more than 90 days. It is in an overage period for 90 days before restrictions are enforced.

  • Enforcement State

    When the 90 day period of Out-of-Compliance, Evaluation Period or Authorization period has expired, the Product Instance is moved to the Enforcement state in which system operations are impacted for Contact Center components. The Product Instance is in the Enforcement state in the following scenarios:

    • Out-of-Compliance expiry—When the out-of-compliance period of 90 days has expired.

      Purchase new licenses to exit the Enforcement state.

    • Authorization expiry—When the Product Instance has not communicated with Cisco SSM or Cisco SSM On-Prem for 90 days and has not automatically renewed the entitlement authorizations.

      Renew the license authorizations to exit the Authorization expiry state.

    • Evaluation expiry—When the license evaluation period of 90 days has expired and the Product Instance is not registered with Cisco SSM.

      Register the Product Instance with Cisco SSM to exit the evaluation expiry state.

    During the Enforcement mode, synchronization from Unified CM is blocked because of which, any new addition, modification, or deletion of agents is not synchronized with the Unified CCX system.

A pictorial representation of different license states is as follows:

Figure 1. License States

Smart Licensing Task Flow

Complete the following tasks to set up licensing after installing Unified CCX 12.5(1). For more information, see Cisco Unified Contact Center Express Admin and Operations Guide.

Steps

Action

Description

Step 1

Obtain the Product Instance Registration Token

Generate a product instance registration token for your virtual account.

For more information, see Obtain the Product Instance Registration Token.

Step 2

Configure Transport Settings for Smart Licensing

Configure the transport settings through which Unified CCX connects to the Smart Licensing service. By default, the Direct connection option is selected, where the product communicates directly with Cisco licensing servers.

Step 3

Register with Cisco SSM

Register Unified CCX with Cisco SSM or Cisco SSM On-Prem.

Complete the following tasks to set up the system licensing after upgrading to Unified CCX 12.5(1) from previous versions. For more information, see Cisco Unified Contact Center Express Admin and Operations Guide.

Steps

Action

Description

Step 1

Migrate to Smart Licensing

From Classic licensing, you can migrate to Smart Licensing. Once you migrate to Smart Licensing, you cannot use Classic Licensing.

If you want to continue using Cisco WFO, you must remain on Classic Licensing as Cisco WFO does not support Smart Licensing.

Step 2

Choose your License Type

The main license types are as follows:

  • Lab

  • Production

  • HCS

Select any one of the license types that are listed under these main license types.

Step 3

Configure Transport Settings for Smart Licensing

Configure the transport settings through which Unified CCX connects to the Smart Licensing service. By default, the Direct connection option is selected, where the product communicates directly with Cisco SSM.

Step 4

Register with Cisco SSM

Register with Cisco SSM or Cisco SSM On-Prem.

Obtain the Product Instance Registration Token

Obtain the product instance registration token from Cisco SSM or Cisco SSM On-Prem to register the product instance. Generate the registration token with or without enabling the Export-Controlled functionality.


Note

The Allow export-controlled functionality on the products that are registered with this token check box does not appear for Smart Accounts that are not permitted to use the Export-Controlled functionality.

Procedure

Step 1

Log in to your smart account in either Cisco SSM or Cisco SSM On-Prem.

Step 2

Navigate to the virtual account with which you want to associate the product instance.
Step 3

Generate the Product Instance Registration Token.

Note

There is a check box Allow export-controlled functionality on the products registered with this token, which is not applicable for Unified CCX.

Step 4

Copy the generated token. This token is required when registering Smart Licensing with Cisco SSM.

Smart Licensing Tasks

After you successfully register Smart Licensing, you can perform the following tasks as per the requirement:

  • Renew Authorization—The license authorization is renewed automatically every 30 days. Use this option to manually renew the authorization.

  • Renew Registration—The initial registration is valid for one year. Registration is automatically renewed every six months. Use this option to manually renew the registration.

  • Reregister—Use this option to forcefully register the product instance again.

  • Deregister—Use this option to release all the licenses from the current virtual account.

Renew Authorization and Renew Registration are automated tasks that take place at regular intervals. If there is a failure in the automated process, you can manually renew authorization and registration.

License Consumption Calculation

The system reports peak license usage to Cisco SSM every 15 minutes. If in five consecutive reports you are seen to have consumed more licenses than you are authorized to, the Product Instance is pushed to the Out-of-Compliance state. The Out-of-Compliance period is for 90 days, within which you need to purchase additional licenses. If you do not take corrective action within the 90 days period, the Product Instance is pushed to the Enforcement state in which, some of the operations are impacted.

Log in to Cisco SSM to view the detailed license consumption. Cisco SSM reports purchased quantity, in-use quantity, and balance licenses. At a quick glance, you can decide if the consumption of your licenses are in deficit or surplus, based on which you can make the right decision on the number of licenses that are required.

License Computation

Smart Licensing allows you to view the license consumption of your Cisco Unified CCX deployments. License consumption for an agent is computed as per the skills that are configured and login status into Finesse desktop. License consumption is recomputed every 15 min. The aggregated data for all logged-in agents is sent to Cisco SSM or Cisco SSM On-Prem at fixed time intervals and exists in the Unified CCX database. The license consumption details differ based on the system's license type. The following table lists the various license types, features available for each license type, and data sent to Cisco SSM or Cisco SSM On-Prem.

License Type

Features Available for Agents

Data Stored

Data Reported to Cisco SSM

Perpetual Premium

Inbound Voice, Chat and Email, Outbound Direct Preview, and Outbound Predictive and Progressive.

  1. Number of agents logged in to the system.

    Note: All agents are considered as premium agents irrespective of their skill configuration.

  2. Number of Inbound Ports in use.

  3. Number of Outbound Ports and seats in use.

  1. Number of agents logged in to the system.

  2. Number of Outbound Ports in use.

  3. Server license

Perpetual Enhanced

Inbound Voice

  1. Number of agents logged in to the system.

    Note: All agents are considered as standard agents.

  2. Number of Inbound Ports in use.

  1. Number of agents logged in to the system.

  2. Server license

Flex

Standard: Inbound Voice and Outbound Direct Preview.

Premium: Inbound Voice, Outbound Direct Preview, Chat and Email, and Outbound Predictive and Progressive.

  1. Number of agents logged in with Standard and Premium licenses during a set time interval.

  2. Number of Inbound Ports in use.

  3. Number of Outbound Ports and seats in use.

    Note: If an agent has supervisor capabilities, the agent is using premium feature (applicable for both Standard and Premium).

Number of agents logged in with Standard and Premium licenses during a set time interval.

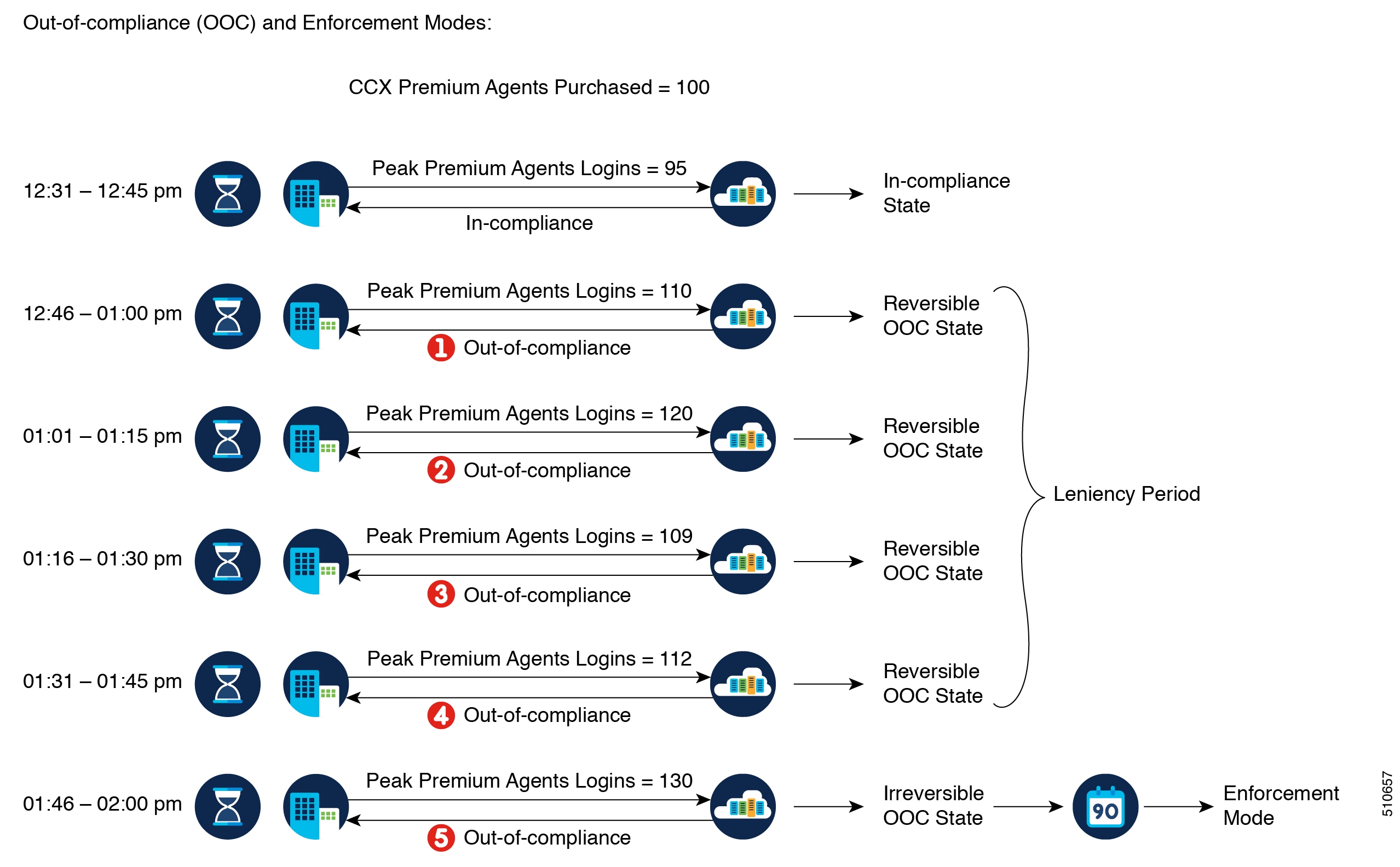

License Computation Scenario 1

License purchased: 100 licenses

Figure 2. License Computation

If Cisco SSM registers consecutive five instances of license over usage, the Product Instance transitions to Out-of-Compliance. Thereafter, the Product Instance reports Locked usage quantity (130 in the above scenario) until the deficit licenses (130-100=30) are purchased. The Locked usage is the highest number of license usage (130) in the Out-of-Compliance state. The Product Instance will not report the actual license usage when the Product Instance is in the Out-of-Compliance state.

Purchase additional licenses from the Cisco Commerce website (CCW) to exit the Out-of-Compliance state.

Reported Usage column in the License Management page displays the locked usage quantity. However, the actual license usage is available in the License Consumption report of CUIC.

For more information, see Cisco Unified Contact Center Express Reporting User Guide.

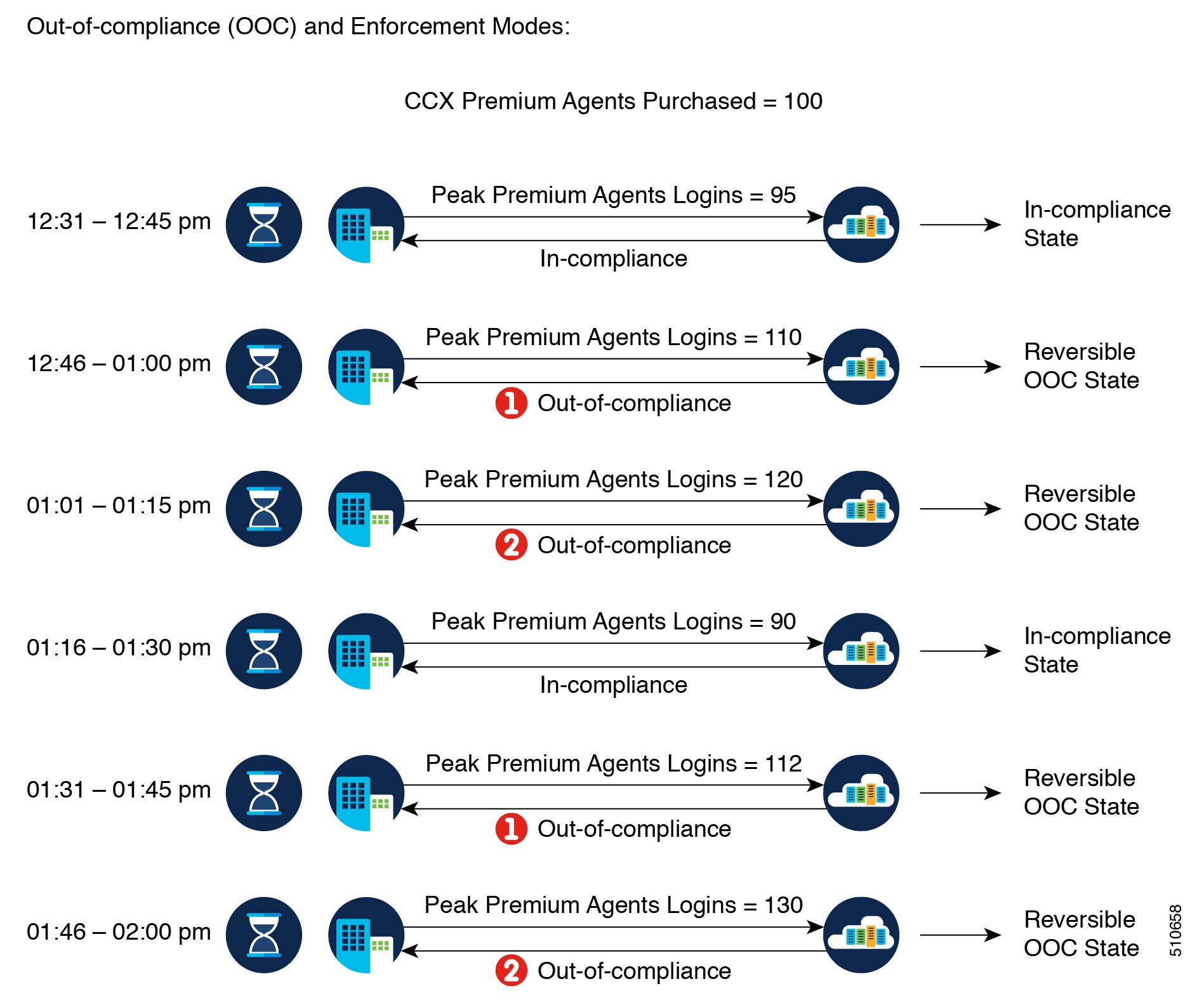

License Computation Scenario 2

If Cisco SSM reports only two consecutive instances of license over usage within a one-hour window, the Product Instance will not transition to Out-of-Compliance. For example:

License Purchased: 100 licenses

Figure 3. License Computation

In the example, the Product Instance is back to In-compliance state after two instances of overage. The next time the Product Instance goes Out-of-Compliance, the count will be 1 of 5. So, you get 45 min (after the first Out-of-Compliance notification from Cisco SSM) to bring back the consumption within the acceptable range to stay in the In-compliance state.

Migrate to Smart Licensing

If you have an active SWSS contract, you can migrate your unconsumed PAKs to Smart Licensing on Cisco SSM portal. If you have already consumed your PAK, you can convert your existing licenses on the device to Smart Licensing by using "Device Based Conversion" on LRP tool. First assign the classic PAK to the Smart Account and Virtual Account to move to Smart Licensing.

To migrate from Unified CCX 10.x to Smart Licensing, upgrade to Unified CCX 11.6 and then to Unified CCX 12.5.

There are two types of migration:

Inactive SWSS contract

If the SWSS contract is inactive, repurchase the licenses or move to Flex, and follow the steps to convert classic licenses to smart licenses.


Note

PUT tool is only for customers who prefer to continue to operate in Classic Licensing mode.

The following table provides the Smart Licensing migration details:

Migration

Description

Fresh Install of 12.5(1)

Place an order on CCW with Smart Account details attached to the order. Licenses get deposited to the Smart Account/Virtual Account.

Note

Smart Licensing is the only option for new deployments.

Fresh Install of 12.0 and 11.6.x

No change in the ordering and fulfillment process.

Upgrade to 12.5(1)

You get an option to either stay on Classic Licensing or move to Smart Licensing.

  • Stay on Classic Licensing

    • With active SWSS contract, upgrade using the PUT tool to receive a PAK, which can be used to generate a Classic Upgrade License.

    • With SWSS expired, repurchase the licenses or move to Flex and follow the aforementioned step to upgrade to 12.5(1).

  • Migrate to smart Licensing

    • Get the 12.5(1) media from Cisco.com with a valid CCO ID.

    • To upgrade from 10.6, 11.6.x or 12.0 to 12.5(1), use Device Based Conversion (DBC) on LRP (License Registration Portal) to convert licenses on your existing system to Smart Licensing.

Upgrade to 11.6 or 12.0

No change in the upgrade mechanism. Follow the regular upgrade process.

PAK-Based Migration

Migrate to Smart Licensing for fulfilled, partially fulfilled, and unfulfilled PAKs.

  1. Log in to the Traditional Licensing Portal at https://tools.cisco.com/SWIFT/LicensingUI/Home.

  2. Locate the PAKs that are to be migrated.

  3. Right click and select Assign to Smart Account and Virtual Account.

  4. Select the Smart Account and Virtual Account to which the PAK will be assigned.

    Once done, the classic PAKs will show assigned Smart Account.

Using LRP

  1. Select the PAK that needs to be converted to smart entitlement.

  2. From the PAK context option, select Convert to Smart Licensing.

  3. Select the SKUs, Quantity to Convert and click on Submit.


    Note

    Classic Licenses that are partially converted will need new Classic License file for managing the remaining Classic Licenses.

    After the licenses are converted to smart entitlements, successful conversion message is shown. The entitlements will be available on Cisco SSM under selected Smart and Virtual Account.

Device-Based Conversion

Use the device-based Smart Licensing to convert the Classic licenses to smart entitlements.

Using LRP

  1. Login to the Traditional Licensing Portal at https://tools.cisco.com/SWIFT/LicensingUI/Home

  2. Go to Devices tab and then Add Device.

  3. Locate the device to be migrated (filter using the device UUID). Once added, the added device shows up under Devices tab.

  4. Select the device and right click Assign to Smart Account to Smart Account and Virtual Account.

  5. Select the Smart Account and the Virtual Account.

    Once done, the table is updated with the Smart Account assigned to the device.

  6. For Classic licenses to be converted to smart entitlements, select the device and select Convert licenses to Smart Licensing option.

  7. Select the SKUs and Quantity to Convert.

    Classic Licenses which are partially converted will need new Classic License file for managing the remaining Classic Licenses.

  8. Confirm and click Submit.

    Once the licenses are fully converted, the device UUID will be removed from the LRP. Once done, the successful conversion message is shown. The entitlements will now be available on Cisco SSM under selected Smart and Virtual Account.

Notifications and Alerts

Real Time Monitoring Tool (RTMT) Alerts for Unified CCX

Administrators are notified by alerts (on the landing page of Unified CCX Administration and RTMT) and event logs (Sys logs). Administrators are also notified through emails (that are configured in Cisco SSM) on the status of licenses in the Smart and Virtual Accounts.

Unified CCX uses RTMT client to bring your attention to actions required to effectively manage your smart products and devices. For Smart Licensing, alerts are triggered in the following scenarios:

  • Renew Authorization—Authorization Failure notification received/timeout

  • Renew Registration—Renew ID cert failure notification received/timeout

  • License Computation—Any exception when trying to compute license usage

  • Entitlement Reporting—Failure to get license type or exception when trying to get entitlements from SDK

  • System to enter in Out-of-Compliance (OOC)—Current state is OOC but OOC tolerance limit of 45 min is not breached

  • System to enter in OOC shortly—System is in OOC state for more than 30 min and the OOC tolerance limit of 45 min is not breached. (System will enter OOC in the next interval of entitlement reporting)

  • OOC—System in OOC and OOC tolerance limit of 45 min breached

  • Enforcement Mode—System in enforcement mode

  • Smart Agent Initialization—Exception when trying to initialize smart agent or Exception when trying to update transport settings or get entitlement tags

Best Practices

Some of the best practices for Smart Licensing are:

  • Before purchasing your licenses, run the License Consumption report on the existing system to understand the consumption pattern to make the right purchase decisions on the license requirement.

  • Configure Admin email address in Cisco SSM to receive notifications and alerts from Cisco SSM.

Specific License Reservation

Devices (Product Instances of Unified CCX) that are registered with Smart Licensing have to share the license information with Cisco Smart Software Manager (Cisco SSM) or Cisco SSM On-Prem at regular intervals. Customer deployments that cannot share license utilization data with Cisco SSM or Cisco SSM On-Prem on a periodic basis due to regulatory reasons can use the Specific License Reservation feature. Cisco offers license reservation as an on-request configuration for such product instances.

You can reserve licenses (including add-on licenses) for your product instance on Cisco SSM or Cisco SSM On-Prem. Specific License Reservation can be enabled by using Unified CCX CLI. For more information on the commands, see the Specific License Reservation Commands section in Cisco Unified Contact Center Express Administration and Operations Guide available at https://www.cisco.com/c/en/us/support/customer-collaboration/unified-contact-center-express/products-maintenance-guides-list.html.


Note

The reserved licenses need not be renewed or reauthorized unless there is a license usage change on the device. License reservation provides limited functionality to certain Smart Licensing features such as, transfer of licenses between products, license usage, and asset management.

License Reservation reduces many of the benefits of Smart Licensing including:

  • Dynamic movement of license consumption between products

  • Real-time license usage visibility and asset management

  • Simplified product registration

Request Specific License Reservation for Your Smart Account

To request for enabling Specific License Reservation feature in Cisco SSM or Cisco SSM On-Prem, contact the Cisco Global Licensing Operations team with the following email template. Fill the template with appropriate information.


Note

Approving Specific License Reservation is at Cisco's discretion.

Email Template:

To: sa-adoption-support@external.cisco.com

Subject: Enabling License Reservation for Smart Account

Cisco.com ID: #####

Justification for requesting license reservation

Smart virtual account name: #####

Smart account domain ID (domain in the form of "xyz.com"): #####

Email Text: XXXXXX

Enable Specific License Reservation

After getting approval from Cisco, use the following procedure to enable Specific License Reservation on a product instance. All the commands must be run in Unified CCX CLI.

Before you begin

Ensure that the product instance is not connected to internet and is in the unregistered state.

Procedure

Step 1

Run the license smart reservation enable command to initiate the reservation process.

Step 2

Run the license smart reservation request command to get the Reservation Request Code.

Step 3

Log in to Cisco SSM or Cisco SSM On-Prem and enter the Reservation Request Code.

Step 4

Select the specific licenses that must be reserved for the product instance.

An Authorization Code is generated which contains a list of entitlement tags and the number of licenses that are reserved for the product instance.
Step 5

Run the license smart reservation install "<authorization code>" command.

The product instance is enabled with Specific License Reservation.

Modify Specific License Reservation

When you want to adjust the quantity of licenses that are used, use the following procedure to modify Specific License Reservation on a product instance. All the commands must be run in Unified CCX CLI.

Before you begin

Specific License Reservation is enabled on the product instance.

Procedure

Step 1

Log in to Cisco SSM or Cisco SSM On-Prem, update the reserved licenses, and generate a new Authorization Code.

Step 2

Run the license smart reservation install "<authorization code>" command.

A Confirmation Code is generated.
Step 3

Use the Confirmation Code in Cisco SSM or Cisco SSM On-Prem and update the Specific License Reservation.

The product instance is modified with the updated licenses.

Remove Specific License Reservation

If you want to stop using the Specific License Reservation, use the following procedure to remove it from a product instance. All the commands must be run in Unified CCX CLI.

Before you begin

Specific License Reservation is enabled on the product instance.

Procedure

Step 1

Run the license smart reservation return command.

The Reservation Return Code is generated.
Step 2

Use the Reservation Return Code in Cisco SSM or Cisco SSM On-Prem.

Reserved licenses are returned to the virtual pool.
Step 3

Run the license smart reservation disable command.

Specific License Reservation is removed from the product instance.
