Diagnostic Indicator

This diagnostic indicator contains the following topics:

Power Supply and DC-SCM Module

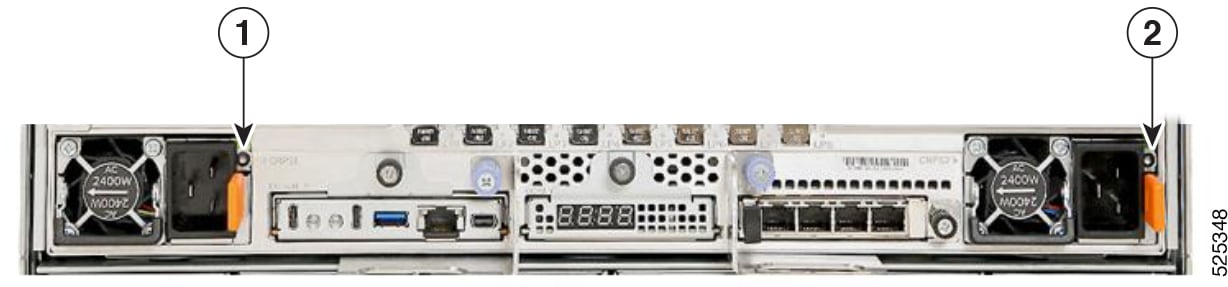

Figure 1. 2400W *2 CRPS Power Supply

1

2400W CRPS Power Supply LED

2

2400W CRPS Power Supply LED
Indicator code Condition
*Off Failure – PSU is not detected or installed / PSU fail
Green Active
*Amber Failure – AC cord unplugged / No AC Power input

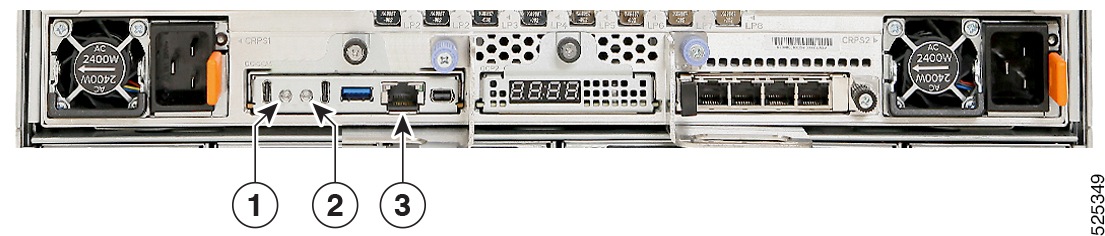

Figure 2. DC-SCM

1

Power and Fault Indicator

2

ID Indicator

3

RJ-45 with LED
Indicator code Condition
Power and Fault Indicator
Off Power Off
Green Fast Blink Pre-S5
Green Slow Blink S5
Green Solid On S0
Amber Solid On Warning
ID Indicator
Off UID is off
Blue Solid On UID is on
RJ-45 with LED
Left and Right - off No connection
Left – Amber Blinking Link and Active on network
Right – Amber Link and run in 100Mbps
Right – Green Link and run in 1Gbps

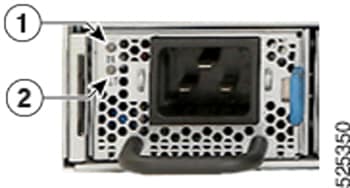

Figure 3. 3000W Power Supply LED

1

3000W Power Supply In LED

2

3000W Power Supply Out LED
Indicator code Condition
LED Off Failure – PSU is not detected or installed / PSU fail
In LED – Green Solid AC Input Active
Out LED – Amber Blinking Output power Standby
Out LED – Amber Solid AC Output Active

System Fan LED

Figure 4. System Fan LED

1

System Fan LED
Indicator code Condition
Off Fan active
Amber solid Fan fail

SSD/NVMe Drivers

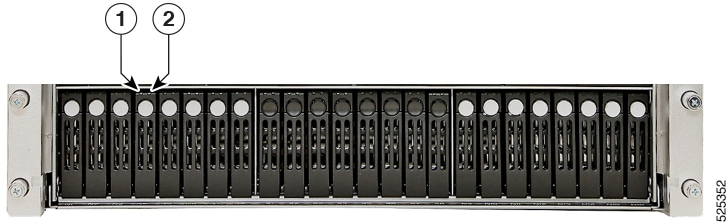

Figure 5. SSD/NVMe Drivers

1

Activity LED

2

Status LED
Indicator Color Blinking Pattern Behavior for Device
Activity LED OFF OFF Drive Not Present
Green Solid ON Drive Present, But no activity
Green Blinking 4Hz Drive Present, I/O Activity
Status LED Amber Blinking 4Hz Locate (Identify)
RED Solid ON Fail
RED Blinking 1Hz Rebuild

Front panel LED Indicators

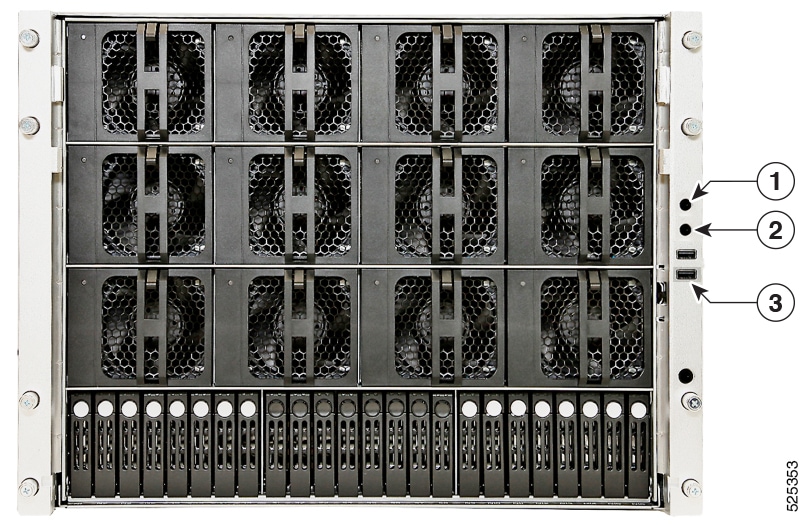

Figure 6. Front panel LED Indicators

1

Power Button with LED

2

UID Button with LED

3

USB2.0 X 2
Table 1. UID Button with LED
Indicator code Condition
Off UID is off
Blue UID is on
Table 2. Power Button with LED
Indicator code Condition
Off Power off
Green slow blink Before BMC initial done(S5)
Green fast blink After BMC initial done to power button(S5)
Green solid After power button triggered(S0)
Amber slow blink Temperature abnormal, fan quantity abnormal, fan speed abnormal

*If any of the warning condition occurs, you will need to re-plug or change the device.
