• For scale environments, the VLAN IDs related to the VRF and Layer-3 VNI (L3VNI) must be reserved with the system vlan nve-overlay id command.

  This is required to optimize the VXLAN resource allocation to scale the following platforms:

  • Cisco Nexus 9300 platform switches

  • Cisco Nexus 9500 platform switches with 9500 line cards

  The following example shows how to reserve the VLAN IDs related to the VRF and the Layer-3 VNI:

  system vlan nve-overlay id 2000

          vlan 2000
            vn-segment 50000

          interface Vlan2000
            vrf member MYVRF_50000
            ip forward
            ipv6 forward

          vrf context MYVRF_50000
            vni 50000

  Note	The system vlan nve-overlay id command should be used for a VRF or a Layer-3 VNI (L3VNI) only. Do not use this command for regular VLANs or Layer-2 VNIs (L2VNI).

• When configuring VXLAN BGP EVPN, the "System Routing Mode: Default" is applicable for the following hardware platforms:

  • Cisco Nexus 9200 platform switches

  • Cisco Nexus 9300 platform switches

  • Cisco Nexus 9300-EX platform switches

  • Cisco Nexus 9300-FX/FX2/FX3 platform switches

  • Cisco Nexus 9300-GX platform switches

  • Cisco Nexus 9500 platform switches with X9500 line cards

  • Cisco Nexus 9500 platform switches with X9700-EX/FX line cards

• The “System Routing Mode: template-vxlan-scale” is not applicable.

• When using VXLAN BGP EVPN in combination with Cisco NX-OS Release 7.0(3)I4(x) or NX-OS Release 7.0(3)I5(1), the “System Routing Mode: template-vxlan-scale” is required on the following hardware platforms:

  • Cisco Nexus 9300-EX Switches

  • Cisco Nexus 9500 Switches with X9700-EX line cards

• Changing the “System Routing Mode” requires a reload of the switch.

• A loopback address is required when using the source-interface config command. The loopback address represents the local VTEP IP.

• During boot-up of a switch, you can use the source-interface hold-down-time hold-down-time command to suppress advertisement of the NVE loopback address until the overlay has converged. The range for the hold-down-time is 0 - 2147483647 seconds. The default is 300 seconds.

  Note	Though the loopback is still down, the traffic is encapsulated and sent to fabric.

• To establish IP multicast routing in the core, IP multicast configuration, PIM configuration, and RP configuration is required.

• VTEP to VTEP unicast reachability can be configured through any IGP protocol.

• In VXLAN flood and learn mode, the default gateway for VXLAN VLAN is recommended to be a centralized gateway on a pair of vPC devices with FHRP (First Hop Redundancy Protocol) running between them.

• While running VXLAN EVPN, with

  • any SVI for a VLAN extended over VXLAN is configured with anycast gateway and

  • any other mode of operation is not supported.

  If one VTEP is configured with an L2VNI and associated (with anycast gateway enabled), then every other VTEP where that L2VNI is locally defined has the SVI with anycast gateway configured.

• For flood and learn mode, only a centralized Layer 3 gateway is supported. Anycast gateway is not supported. The recommended Layer 3 gateway design would be a pair of switches in vPC to be the Layer 3 centralized gateway with FHRP protocol running on the SVIs. The same SVI's cannot span across multiple VTEPs even with different IP addresses used in the same subnet.

  Note

  When configuring SVI with flood and learn mode on the central gateway leaf, it is mandatory to configure hardware access-list tcam region arp-ether size double-wide . (You must decrease the size of an existing TCAM region before using this command.) For example: hardware access-list tcam region arp-ether 256 double-wide

  Note	Configuring the hardware access-list tcam region arp-ether size double-wide is not required on Cisco Nexus 9200 Series switches.

• When configuring ARP suppression with BGP-EVPN, use the hardware access-list tcam region arp-ether size double-wide command to accommodate ARP in this region. (You must decrease the size of an existing TCAM region before using this command.)

  Note	This step is required for Cisco Nexus 9300 switches (NFE/ALE) and Cisco Nexus 9500 switches with N9K-X9564PX, N9K-X9564TX, and N9K-X9536PQ line cards. This step is not needed with Cisco Nexus 9200 switches, Cisco Nexus 9300-EX switches, or Cisco Nexus 9500 switches with N9K-X9732C-EX line cards.

• VXLAN tunnels cannot have more than one underlay next hop on a given underlay port. For example, on a given output underlay port, only one destination MAC address can be derived as the outer MAC on a given output port.

  This is a per-port limitation, not a per-tunnel limitation. This means that two tunnels that are reachable through the same underlay port cannot drive two different outer MAC addresses.

• When changing the IP address of a VTEP device, you must shut the NVE interface before changing the IP address.

• As a best practice, when migrating any sets of VTEP to a multisite BGW, NVE interface must be shut on all the VTEPs where this migration is being performed. NVE interface should be brought back up once the migration is complete and all necessary configurations for multisite are applied to the VTEPs.

• As a best practice, the RP for the multicast group should be configured only on the spine layer. Use the anycast RP for RP load balancing and redundancy.

  The following is an example of an anycast RP configuration on spines:


  ip pim rp-address 1.1.1.10 group-list 224.0.0.0/4
  ip pim anycast-rp 1.1.1.10 1.1.1.1
  ip pim anycast-rp 1.1.1.10 1.1.1.2



  Note	1.1.1.10 is the anycast RP IP address that is configured on all RPs participating in the anycast RP set. 1.1.1.1 is the local RP IP. 1.1.1.2 is the peer RP IP.

• Static ingress replication and BGP EVPN ingress replication do not require any IP Multicast routing in the underlay.

• As a best practice, when feature vpc is enabled or disabled on a VTEP, the NVE interfaces on both the vPC primary and the vPC secondary must be shut down before the change is made. Enabling feature vpc without the vPC domain being properly configured will result in the NVE loopback being held administratively down until the configuration is completed and the vPC peer-link is brought up.

• Bind NVE to a loopback address that is separate from other loopback addresses that are required by Layer 3 protocols. A best practice is to use a dedicated loopback address for VXLAN.

• On vPC VXLAN, it is recommended to increase the delay restore interface-vlan timer under the vPC configuration, if the number of SVIs are scaled up. For example, if there are 1000 VNIs with 1000 SVIs, we recommend to increase the delay restore interface-vlan timer to 45 seconds.

• If a ping is initiated to the attached hosts on VXLAN VLAN from a vPC VTEP node, the source IP address used by default is the anycast IP that is configured on the SVI. This ping can fail to get a response from the host in case the response is hashed to the vPC peer node. This issue can happen when a ping is initiated from a VXLAN vPC node to the attached hosts without using a unique source IP address. As a workaround for this situation, use VXLAN OAM or create a unique loopback on each vPC VTEP and route the unique address via a backdoor path.

• The loopback address used by NVE needs to be configured to have a primary IP address and a secondary IP address.

  The secondary IP address is used for all VXLAN traffic that includes multicast and unicast encapsulated traffic.

• vPC peers must have identical configurations.

  • Consistent VLAN to vn-segment mapping.

  • Consistent NVE1 binding to the same loopback interface

    • Using the same secondary IP address.

    • Using different primary IP addresses.

  • Consistent VNI to group mapping.

• For multicast, the vPC node that receives the (S, G) join from the RP (rendezvous point) becomes the DF (designated forwarder). On the DF node, encap routes are installed for multicast.

  Decap routes are installed based on the election of a decapper from between the vPC primary node and the vPC secondary node. The winner of the decap election is the node with the least cost to the RP. However, if the cost to the RP is the same for both nodes, the vPC primary node is elected.

  The winner of the decap election has the decap mroute installed. The other node does not have a decap route installed.

• On a vPC device, BUM traffic (broadcast, unknown-unicast, and multicast traffic) from hosts is replicated on the peer-link. A copy is made of every native packet and each native packet is sent across the peer-link to service orphan-ports connected to the peer vPC switch.

  To prevent traffic loops in VXLAN networks, native packets ingressing the peer-link cannot be sent to an uplink. However, if the peer switch is the encapper, the copied packet traverses the peer-link and is sent to the uplink.

  Note	Each copied packet is sent on a special internal VLAN (VLAN 4041 or VLAN 4046).

• When the peer-link is shut, the loopback interface used by NVE on the vPC secondary is brought down and the status is Admin Shut. This is done so that the route to the loopback is withdrawn on the upstream and that the upstream can divert all traffic to the vPC primary.

  Note	Orphans connected to the vPC secondary will experience loss of traffic for the period that the peer-link is shut. This is similar to Layer 2 orphans in a vPC secondary of a traditional vPC setup.

• When the vPC domain is shut, the loopback interface used by NVE on the VTEP with shutdown vPC domain is brought down and the status is Admin Shut. This is done so that the route to the loopback is withdrawn on the upstream and that the upstream can divert all traffic to the other vPC VTEP.

• When peer-link is no-shut, the NVE loopback address is brought up again and the route is advertised upstream, attracting traffic.

• For vPC, the loopback interface has two IP addresses: the primary IP address and the secondary IP address.

  The primary IP address is unique and is used by Layer 3 protocols.

  The secondary IP address on loopback is necessary because the interface NVE uses it for the VTEP IP address. The secondary IP address must be same on both vPC peers.

• The vPC peer-gateway feature must be enabled on both peers to facilitate NVE RMAC/VMAC programming on both peers. For peer-gateway functionality, at least one backup routing SVI is required to be enabled across peer-link and also configured with PIM. This provides a backup routing path in the case when VTEP loses complete connectivity to the spine. Remote peer reachability is re-routed over peer-link in his case. In BUD node topologies, the backup SVI needs to be added as a static OIF for each underlay multicast group.

  switch# sh ru int vlan 2

  interface Vlan2
   description backupl_svi_over_peer-link
   no shutdown
   ip address 30.2.1.1/30
   ip router ospf 1 area 0.0.0.0
   ip pim sparse-mode
   ip igmp static-oif route-map match-mcast-groups

   route-map match-mcast-groups permit 1
    match ip multicast group 225.1.1.1/32


  Note	In BUD node topologies, the backup SVI needs to be added as a static OIF for each underlay multicast group. The SVI must be configured on both vPC peers and requires PIM to be enabled.

• When the NVE or loopback is shut in vPC configurations:

  • If the NVE or loopback is shut only on the primary vPC switch, the global VXLAN vPC consistency checker fails. Then the NVE, loopback, and vPCs are taken down on the secondary vPC switch.

  • If the NVE or loopback is shut only on the secondary vPC switch, the global VXLAN vPC consistency checker fails. Then, the NVE, loopback, and secondary vPC are brought down on the secondary. Traffic continues to flow through the primary vPC switch.

  • As a best practice, you should keep both the NVE and loopback up on both the primary and secondary vPC switches.

• Redundant anycast RPs configured in the network for multicast load-balancing and RP redundancy are supported on vPC VTEP topologies.

• As a best practice, when changing the secondary IP address of an anycast vPC VTEP, the NVE interfaces on both the vPC primary and the vPC secondary must be shut before the IP changes are made.

• When SVI is enabled on a VTEP (flood and learn, or EVPN) regardless of ARP suppression, make sure that ARP-ETHER TCAM is carved using the hardware access-list tcam region arp-ether 256 double-wide command. This requirement does not apply to Cisco Nexus 9200, 9300-EX, and 9300-FX/FX2/FX3 and 9300-GX platform switches and Cisco Nexus 9500 platform switches with 9700-EX line cards.

• The show commands with the internal keyword are not supported.

• DHCP snooping (Dynamic Host Configuration Protocol snooping) is not supported on VXLAN VLANs.

• RACLs are not supported on Layer 3 uplinks for VXLAN traffic. Egress VACLs support is not available for de-capsulated packets in the network to access direction on the inner payload.

  As a best practice, use PACLs/VACLs for the access to the network direction.

  See the Cisco Nexus 9000 Series NX-OS Security Configuration Guide, Release 9.3(x) for other guidelines and limitations for the VXLAN ACL feature.

• QoS classification is not supported for VXLAN traffic in the network to access direction on the Layer 3 uplink interface.

  See the Cisco Nexus 9000 Series NX-OS Quality of Service Configuration Guide, Release 9.3(x) for other guidelines and limitations for the VXLAN QoS feature.

• The QoS buffer-boost feature is not applicable for VXLAN traffic.

• Beginning with Cisco NX-OS Release 9.3(5), VTEPs support VXLAN-encapsulated traffic over parent interfaces if subinterfaces are configured.

• VTEPs do not support VXLAN encapsulated traffic over subinterfaces. This is regardless of VRF participation or IEEE802.1Q encapsulation.

• Mixing subinterfaces for VXLAN and non-VXLAN VLANs is not supported.

• Point-to-multipoint Layer 3 and SVI uplinks are not supported.

• Using the ip forward command enables the VTEP to forward the VXLAN de-capsulated packet destined to its router IP to the SUP/CPU.

• Before configuring it as an SVI, the backup VLAN needs to be configured on Cisco Nexus 9200, 9300-EX, and 9300-FX/FX2/FX3 and 9300-GX platform switches as an infra-VLAN with the system nve infra-vlans command.

• VXLAN is supported on Cisco Nexus 9500 platform switches with the following line cards:

  • 9700-EX

  • 9700-FX

• When Cisco Nexus 9500 platform switches are used as VTEPs, 100G line cards are not supported on Cisco Nexus 9500 platform switches. This limitation does not apply to a Cisco Nexus 9500 switch with 9700-EX or -FX line cards.

• Cisco Nexus 9300 platform switches with 100G uplinks only support VXLAN switching/bridging. Cisco Nexus 9200 and Cisco Nexus 9300-EX/FX/FX2 platform switches do not have this restriction.

  Note	For VXLAN routing support, a 40 G uplink module is required.

• The VXLAN UDP port number is used for VXLAN encapsulation. For Cisco Nexus NX-OS, the UDP port number is 4789. It complies with IETF standards and is not configurable.

• For Cisco Nexus 9200 platform switches that have the Application Spine Engine (ASE2). There exists a Layer 3 VXLAN (SVI) throughput issue. There is a data loss for packets of sizes 99 - 122.

• The VXLAN network identifier (VNID) 16777215 is reserved and should not be configured explicitly.

• VXLAN supports In Service Software Upgrade (ISSU).

• VXLAN ISSU is not supported on the Cisco Nexus 9300-GX platform switches.

• VXLAN does not support coexistence with the GRE tunnel feature or the MPLS (static or segment routing) feature.

• VTEP connected to FEX host interface ports is not supported.

• Resilient hashing (port-channel load-balancing resiliency) and VXLAN configurations are not compatible with VTEPs using ALE uplink ports.

  Note	Resilient hashing is disabled by default.

• When ARP suppression is enabled or disabled in a vPC setup, a down time is required because the global VXLAN vPC consistency checker will fail and the VLANs will be suspended if ARP suppression is disabled or enabled on only one side.

Note	For information about VXLAN BGP EVPN scalability, see the Cisco Nexus 9000 Series NX-OS Verified Scalability Guide, Release 9.3(x).

• MTU Size in the Transport Network

  Due to the MAC-to-UDP encapsulation, VXLAN introduces 50-byte overhead to the original frames. Therefore, the maximum transmission unit (MTU) in the transport network needs to be increased by 50 bytes. If the overlays use a 1500-byte MTU, the transport network needs to be configured to accommodate 1550-byte packets at a minimum. Jumbo-frame support in the transport network is required if the overlay applications tend to use larger frame sizes than 1500 bytes.

• ECMP and LACP Hashing Algorithms in the Transport Network

  As described in a previous section, Cisco Nexus 9000 Series Switches introduce a level of entropy in the source UDP port for ECMP and LACP hashing in the transport network. As a way to augment this implementation, the transport network uses an ECMP or LACP hashing algorithm that takes the UDP source port as an input for hashing, which achieves the best load-sharing results for VXLAN encapsulated traffic.

• Multicast Group Scaling

  The VXLAN implementation on Cisco Nexus 9000 Series Switches uses multicast tunnels for broadcast, unknown unicast, and multicast traffic forwarding. Ideally, one VXLAN segment mapping to one IP multicast group is the way to provide the optimal multicast forwarding. It is possible, however, to have multiple VXLAN segments share a single IP multicast group in the core network. VXLAN can support up to 16 million logical Layer 2 segments, using the 24-bit VNID field in the header. With one-to-one mapping between VXLAN segments and IP multicast groups, an increase in the number of VXLAN segments causes a parallel increase in the required multicast address space and the amount of forwarding states on the core network devices. At some point, multicast scalability in the transport network can become a concern. In this case, mapping multiple VXLAN segments to a single multicast group can help conserve multicast control plane resources on the core devices and achieve the desired VXLAN scalability. However, this mapping comes at the cost of suboptimal multicast forwarding. Packets forwarded to the multicast group for one tenant are now sent to the VTEPs of other tenants that are sharing the same multicast group. This causes inefficient utilization of multicast data plane resources. Therefore, this solution is a trade-off between control plane scalability and data plane efficiency.

  Despite the suboptimal multicast replication and forwarding, having multiple-tenant VXLAN networks to share a multicast group does not bring any implications to the Layer 2 isolation between the tenant networks. After receiving an encapsulated packet from the multicast group, a VTEP checks and validates the VNID in the VXLAN header of the packet. The VTEP discards the packet if the VNID is unknown to it. Only when the VNID matches one of the VTEP’s local VXLAN VNIDs, does it forward the packet to that VXLAN segment. Other tenant networks will not receive the packet. Thus, the segregation between VXLAN segments is not compromised.

The following are considerations for the configuration of the transport network:

• On the VTEP device:

  • Enable and configure IP multicast.*

  • Create and configure a loopback interface with a /32 IP address.

    (For vPC VTEPs, you must configure primary and secondary /32 IP addresses.)

  • Enable IP multicast on the loopback interface.*

  • Advertise the loopback interface /32 addresses through the routing protocol (static route) that runs in the transport network.

  • Enable IP multicast on the uplink outgoing physical interface.*

• Throughout the transport network:

  • Enable and configure IP multicast.*

For Cisco Nexus 9200, 9300-EX, and 9300-FX/FX2/FX3 and 9300-GX platform switches, the use of the system nve infra-vlans command is required. Otherwise, VXLAN traffic (IP/UDP 4789) is actively treated by the switch. The following scenarios are a non-exhaustive list but most commonly seen, where the need for a system nve infra-vlans definition is required.

Every VLAN that is not associated with a VNI (vn-segment) is required to be configured as a system nve infra-vlans in the following cases:

In the case of VXLAN flood and learn as well as VXLAN EVPN, the presence of non-VXLAN VLANs could be related to:

• An SVI related to a non-VXLAN VLAN is used for backup underlay routing between vPC peers via a vPC peer-link (backup routing).

• An SVI related to a non-VXLAN VLAN is required for connecting downstream routers (external connectivity, dynamic routing over vPC).

• An SVI related to a non-VXLAN VLAN is required for per Tenant-VRF peering (L3 route sync and traffic between vPC VTEPs in a Tenant VRF).

• An SVI related to a non-VXLAN VLAN is used for first-hop routing toward endpoints (Bud-Node).

In the case of VXLAN flood and learn, the presence of non-VXLAN VLANs could be related to:

• An SVI related to a non-VXLAN VLAN is used for an underlay uplink toward the spine (Core port).

The rule of defining VLANs as system nve infra-vlans can be relaxed for special cases such as:

• An SVI related to a non-VXLAN VLAN that does not transport VXLAN traffic (IP/UDP 4789).

• Non-VXLAN VLANs that are not associated with an SVI or not transporting VXLAN traffic (IP/UDP 4789).

Note	You must not configure certain combinations of infra-VLANs. For example, 2 and 514, 10 and 522, which are 512 apart. This is specifically but not exclusive to the “Core port” scenario that is described for VXLAN flood and learn.

Note	* Not required for static ingress replication or BGP EVPN ingress replication.

DC Fabrics with VXLAN BGP EVPN are becoming the transport infrastructure for overlays. These overlays, often originated on the server (Host Overlay), require integration or transport over the top of the existing transport infrastructure (Network Overlay).

Nested VXLAN (Host Overlay over Network Overlay) support has been added starting with Cisco NX-OS Release 7.0(3)I7(4) and Cisco NX-OS Release 9.2(2) on the Cisco Nexus 9200, 9300-EX, 9300-FX, 9300-FX2, 9500-EX, 9500-FX platform switches. It is also supported for Cisco Nexus 9300-FX3 platform switches starting with Cisco NX-OS Release 9.3(5).

Nested VXLAN is not supported on a Layer 3 interface or a Layer 3 port-channel interface in Cisco NX-OS Release 9.3(4) and prior releases. It is supported on a Layer 3 interface or a Layer 3 port-channel interface from Cisco NX-OS Release 9.3(5) onwards.

To provide Nested VXLAN support, the switch hardware and software must differentiate between two different VXLAN profiles:

• VXLAN originated behind the Hardware VTEP for transport over VXLAN BGP EVPN (nested VXLAN)

• VXLAN originated behind the Hardware VTEP to integrated with VXLAN BGP EVPN (BUD Node)

The detection of the two different VXLAN profiles is automatic and no specific configuration is needed for nested VXLAN. As soon as VXLAN encapsulated traffic arrives in a VXLAN enabled VLAN, the traffic is transported over the VXLAN BGP EVPN enabled DC Fabric.

The following attachment modes are supported for Nested VXLAN:

• Untagged traffic (in native VLAN on a trunk port or on an access port)

• Tagged traffic Layer 2 ports (tagged VLAN on a IEEE 802.1Q trunk port)

• Untagged and tagged traffic that is attached to a vPC domain

• Untagged traffic on a Layer 3 interface or a Layer 3 port-channel interface

• Tagged traffic on Layer 3 interface or a Layer 3 port-channel interface

Cisco NX-OS Release 9.3(6) and later releases support the coexistence of VXLAN and IP-in-IP tunneling.

Coexistence of these features requires isolating IP-in-IP tunnels and VXLAN within their own VRFs. By isolating the VRFs, both VXLAN and the tunnels operate independently. VXLAN tunnel termination isn't reencapsulated as an IP-in-IP tunnel (or conversely) on the same or different VRFs.

By configuring subinterfaces under the interface to isolate VRFs, the same uplinks can be used to carry both VXLAN and IP-in-IP tunnel traffic. The parent port can be on the default VRF and subinterfaces on the non-default VRFs.

To terminate IP-in-IP encapsulated packets received on port-channel sub-interfaces, these sub-interfaces must be configured under the same non-default VRF as the tunnel interface, and can only be member of *one* non-default VRF.

Multiple port-channel sub interfaces from a different parent PC can still be configured under the same non-default VRF to terminate IP-in-IP encapsulation. The limitation only applies for sub-interfaces under one port-channel. This limitation is not applicable for L3 ports.

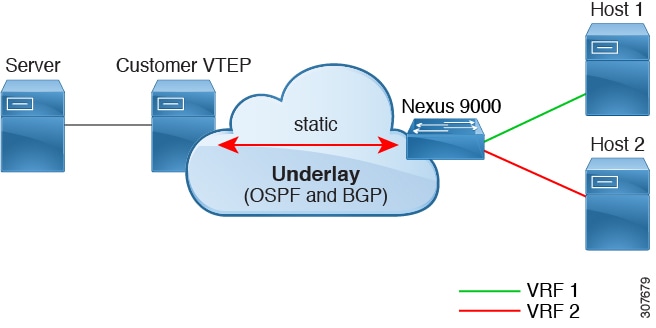

As the following example shows, VXLAN traffic is forwarded on the parent interface (eth1/1) in the default VRF, and IP-in-IP (non-VXLAN) traffic is forwarded on subinterfaces (eth1/1.10) in the tunnel VRF.

Cisco Nexus 9300-FX2 platform switches support the coexistence of VXLAN and IP-in-IP tunneling with the following limitations:

• VXLAN must be configured in the default VRF.

• Coexistence is supported on VXLAN with the EVPN control plane.

• IP-in-IP tunneling must be configured in the non-default VRF and is supported only in decapsulate-any mode.

  Note	If you try to enable VXLAN when a decapsulate-any tunnel is configured in the default VRF, an error message appears. It states that VXLAN and IP-in-IP tunneling can coexist only for a decapsulate-any tunnel in the non-default VRF and to remove the configuration.

• Point-to-point GRE tunnels are not supported. If you try to configure point-to-point tunnels, an error message appears indicating that VXLAN and IP-in-IP tunneling can coexist only for a decapsulate-any tunnel.

• Typically to configure a tunnel, you need to provide the two endpoints. However, decapsulate-any is a receive-only tunnel, so you need to provide only the source IP address or source interface name. The tunnel terminates on any IP interface in the same VRF.

• Tunnel statistics don't support egress counters.

• VXLAN and IP-in-IP tunnels can't share the same source loopback interface. Each tunnel must have its own source loopback interface.

The following example shows a sample configuration:

feature vn-segment-vlan-based
feature nv overlay
feature tunnel
nv overlay evpn

interface ethernet 1/1
    description VXLAN carrying interface
    no switchport
    ip address 10.1.1.1/30

interface ethernet 1/1.10
    description IPinIP carrying interface
    no switchport
    vrf member tunnel
    encapsulation dot1q 100
    ip address 10.10.1.1/30

interface loopback 0
    description VXLAN-loopback
    ip address 125.125.125.125/32

interface loopback 100
    description Tunnel_loopback
    vrf member tunnel
    ip address 5.5.5.5/32

interface Tunnel1
    vrf member tunnel
    ip address 55.55.55.1/24
    tunnel mode ipip decapsulate-any ip
    tunnel source loopback100
    tunnel use-vrf tunnel
    no shutdown

interface nve1
    host-reachability protocol bgp
    source-interface loopback0
    global mcast-group 224.1.1.1 L2
    global mcast-group 225.3.3.3 L3
    member vni 10000
    suppress-arp
    ingress-replication protocol bgp
    member vni 55500 associate-vrf

Beginning with Cisco NX-OS Release 9.3(3), some Cisco Nexus switches can connect to a customer-provided software VTEP over static tunnels. Static tunnels are customer defined and support VXLAN-encapsulated traffic between hosts without requiring a control plane protocol such as BGP EVPN. You can configure static tunnels manually from the Nexus switch or programmatically, such as through a NETCONF client in the underlay.

Static tunnels are supported per VRF. Each VRF can have a dedicated L3VNI to transport a packet with proper encapsulation and decapsulation on the switch and the software VTEP, the static peer. Typically, the static peer is a Cisco Nexus 1000V or bare-metal server with one or more VMs terminating one or more VNIs. However, a static peer can be any customer-developed device that complies with RFC 7348, Virtual eXtensible Local Area Network (VXLAN): A Framework for Overlaying Virtualized Layer 2 Networks over Layer 3 Networks. Because the customer provides the static peer and a control plane protocol is not present, you must ensure that the static peer forwards the VXLAN-related configuration and routes to the correct hosts.

Beginning with Cisco NX-OS Release 9.3(5), this feature supports the handling of packets coming in and going out of the tunnel. Specifically, it allows the Nexus switch to send packets to the hosts or other switches over the tunnel. In Cisco NX-OS Releases 9.3(3) and 9.3(4), VXLAN static tunnels support communication only from the local host to the remote host.
