The Cisco Nexus 9332C switch (N9K-C9332C) is a 1-RU, fixed-port switch designed for deployment in data centers. This switch has 32 40/100-Gigabit QSFP28 ports and 2 SFP ports. Ports 25-32 offer hardware support for MACsec encryption.

To determine how to use and configure these ports, see the Cisco Nexus 9000 Series NX-OS Interfaces Configuration Guide.

To determine which transceivers, adapters, and cables this switch supports, see the Cisco Transceiver Modules Compatibility Information document.

This switch includes the following user-replaceable components:

• Fan modules (five) with the following airflow choices:

  • Port-side exhaust airflow with blue coloring (NXA-FAN-35CFM-PE)

  • Port-side intake airflow with burgundy coloring (NXA-FAN-35CFM-PI)

    Note	Table 1. Fan Speeds for This Switch Port-Side Intake Fan Speed % Port-Side Exhaust Fan Speed % Typical/Minimum 50% 70% Maximum 100% 100%

    Note	Each fan module has two rotors. The switch can function normally if one rotor inside the any one fan module fails. In case of more than one rotor failure, the switch will issue a warning and power down in 2 minute.

• Power supply modules (two—One for operations and one for redundancy [1+1]) with the following choices:

  • 750-W AC power supply with port-side exhaust airflow (blue coloring) (NXA-PAC-750W-PE)

  • 750-W AC power supply with port-side intake airflow (burgundy coloring) (NXA-PAC-750W-PI)

  • 1100-W AC power supply with port-side exhaust airflow (blue coloring) (NXA-PAC-1100W-PE2)

  • 1100-W AC power supply with port-side intake airflow (burgundy coloring) (NXA-PAC-1100W-PI2)

  • 1100-W DC power supply with port-side exhaust airflow (blue coloring) (NXA-PDC-1100W-PE)

  • 1100-W DC power supply with port-side intake airflow (burgundy coloring) (NXA-PDC-1100W-PI)

  • 1100-W HVAC/HVDC power supply with port-side exhaust airflow (blue coloring) (NXA-PHV-1100W-PE)

  • 1100-W HVAC/HVDC power supply with port-side intake airflow (burgundy coloring) (NXA-PHV-1100W-PI)

  Note	The 750-W AC PSU is compatible only with software versions ACI-N9KDK9-14.2 or NXOS-9.3.3 and onwards.

  Note	Both power supplies use the same power source. Do not mix AC and DC power sources.

  Note	All fan modules and power supplies must use the same airflow direction during operations.

  Note

  In the event that only one power supply is operating in an active system and a second power supply is inserted, the system fan will slow down to 50% of Max speed for 12 seconds. It can take up to 10 seconds for the second power supply to become active. Please do not remove the first power supply during this time-frame, in order to avoid system shutdown.

The following figure shows the hardware features seen from the port side of the chassis.

The following figure shows the hardware features seen from the power supply side of the chassis.

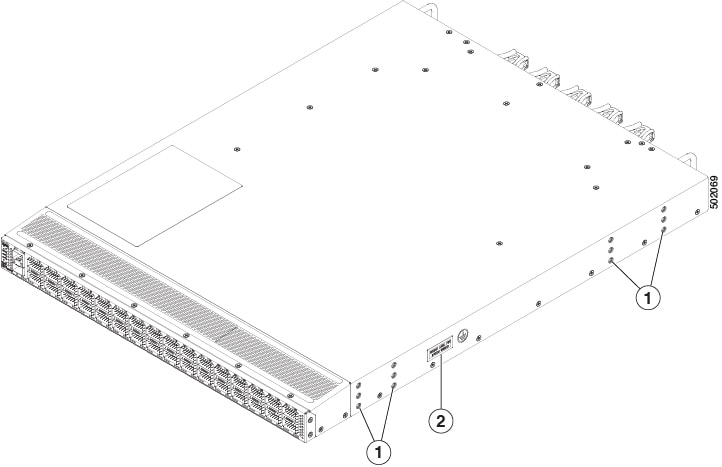

The following figure shows the hardware features seen from the side of the chassis.

Note	The limit for USB support is USB 2.0 devices that use less than 2.5 W (less than 0.5 A inclusive of surge current). Devices, such as external hard drives, that instantaneously draw more than 0.5 A are not supported.

Depending on whether you plan to position the ports in a hot or cold aisle, you can order the fan and power supply modules with port-side intake (burgundy colored) or port-side exhaust (blue colored) airflow. The power supply and fan modules must have the same coloring.

The fan and power supply modules are field replaceable and you can replace one fan module or one power supply module during operations so long as the other modules are operating. If you have only one power supply that is installed, you can install the replacement power supply in the open slot before removing the original power supply.

Note	The fan and power supply modules must have the same direction of airflow. Otherwise, the switch can overheat and shut down.

Caution

If the switch has port-side intake airflow (burgundy coloring for fan modules), you must locate the ports in the cold aisle. If the switch has port-side exhaust airflow (blue coloring for fan modules), you must locate the ports in the hot aisle. If you locate the air intake in a hot aisle, the switch can overheat and shut down.
