Integrate Cisco Meraki Systems Manager

Configure Cisco Meraki Systems Manager

Cisco Meraki Systems Manager supports a variety of platforms, enabling the diverse device ecosystems that are commonplace today. Systems Manager offers centralized, cloud-based tools for endpoint management with far-reaching scalability for growing organizations. Integrate Cisco Meraki Systems Manager as an MDM server in Cisco ISE to leverage the endpoint information that is collected by Cisco Meraki Systems Manager for compliance checks and endpoint policy management.

For more information about Cisco Meraki Systems Manager, see the datasheet.

Cisco Meraki Systems Manager now supports MDM API version 3 and can provide Cisco ISE with a unique device identifier for connected endpoints. If you already have an active Cisco Meraki Systems Manager integration in your Cisco ISE, carry out Steps 8 to 15 for the Cisco ISE-related device profile in your Cisco Meraki Systems Manager.

Configure Cisco Meraki Systems Manager as an MDM/UEM Server

The images in this section display the Cisco Meraki Systems Manager GUI fields that you must work with during this task. The numbers in the images correspond to the step numbers in the task.

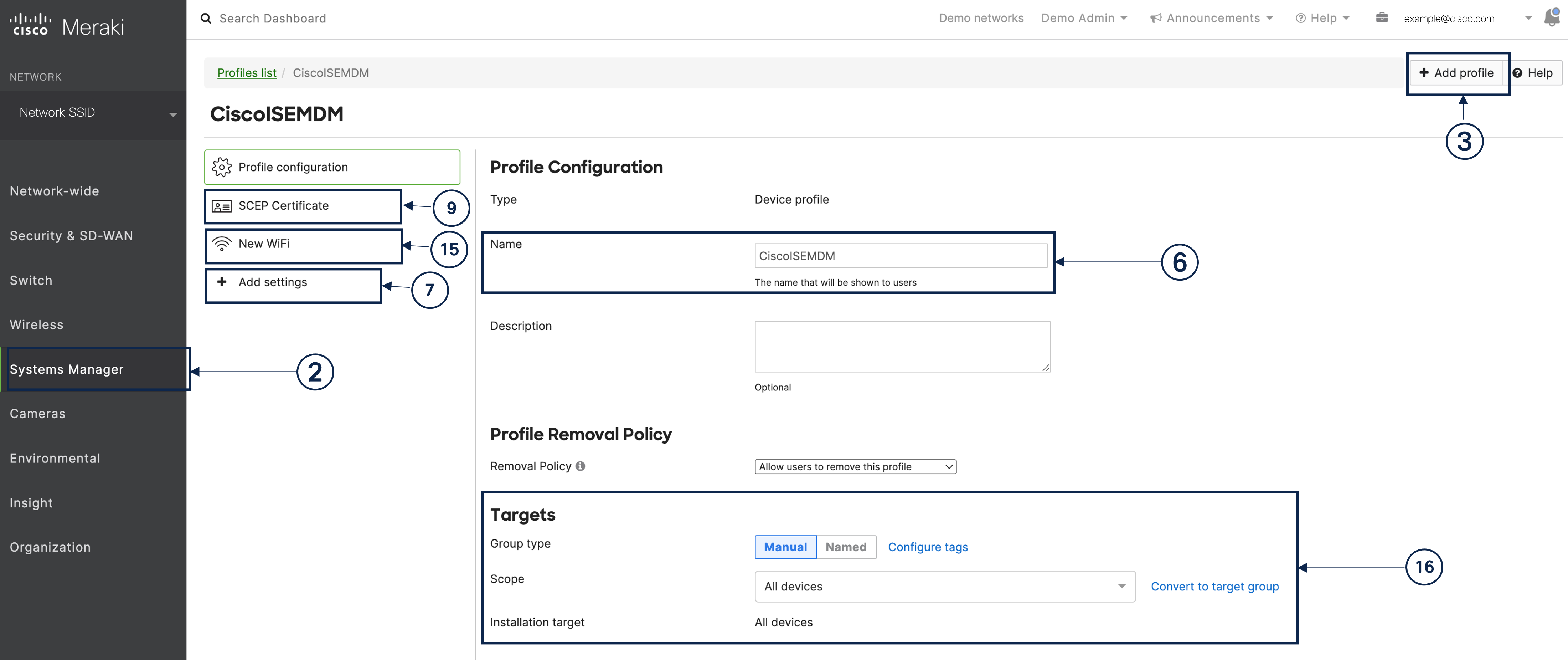

Figure 1. Steps To Configure Cisco Merki Systems Manager
Steps To Configure Cisco Merki Systems Manager To Connect To Cisco ISE

Before you begin

In Cisco ISE, create and export a System Certificate that is configured for Admin usage. You will use this certificate in Step 12 of the following task.

For instructions on how to create and export a system certificate, see the topic "System Certificates" in Chapter "Basic Setup" in the Cisco ISE Administrator Guide for your release.

Procedure

Step 1

Log in to your Cisco Meraki Systems Manager portal.

Step 2

From the main menu, go to Systems Manager > Manage > Settings.

Step 3

Click + Add Profile.

Step 4

In the Add New Profile dialog box that is displayed, click the Device profile (Default) radio button.

Step 5

Click Continue.

Step 6

In the Name and Description fields, enter the required values.

Step 7

Click +Add settings.

Step 8

In the Add New Settings Payload window that is displayed, click SCEP Certificate.

Step 9

In the SCEP Certificate window that is displayed:

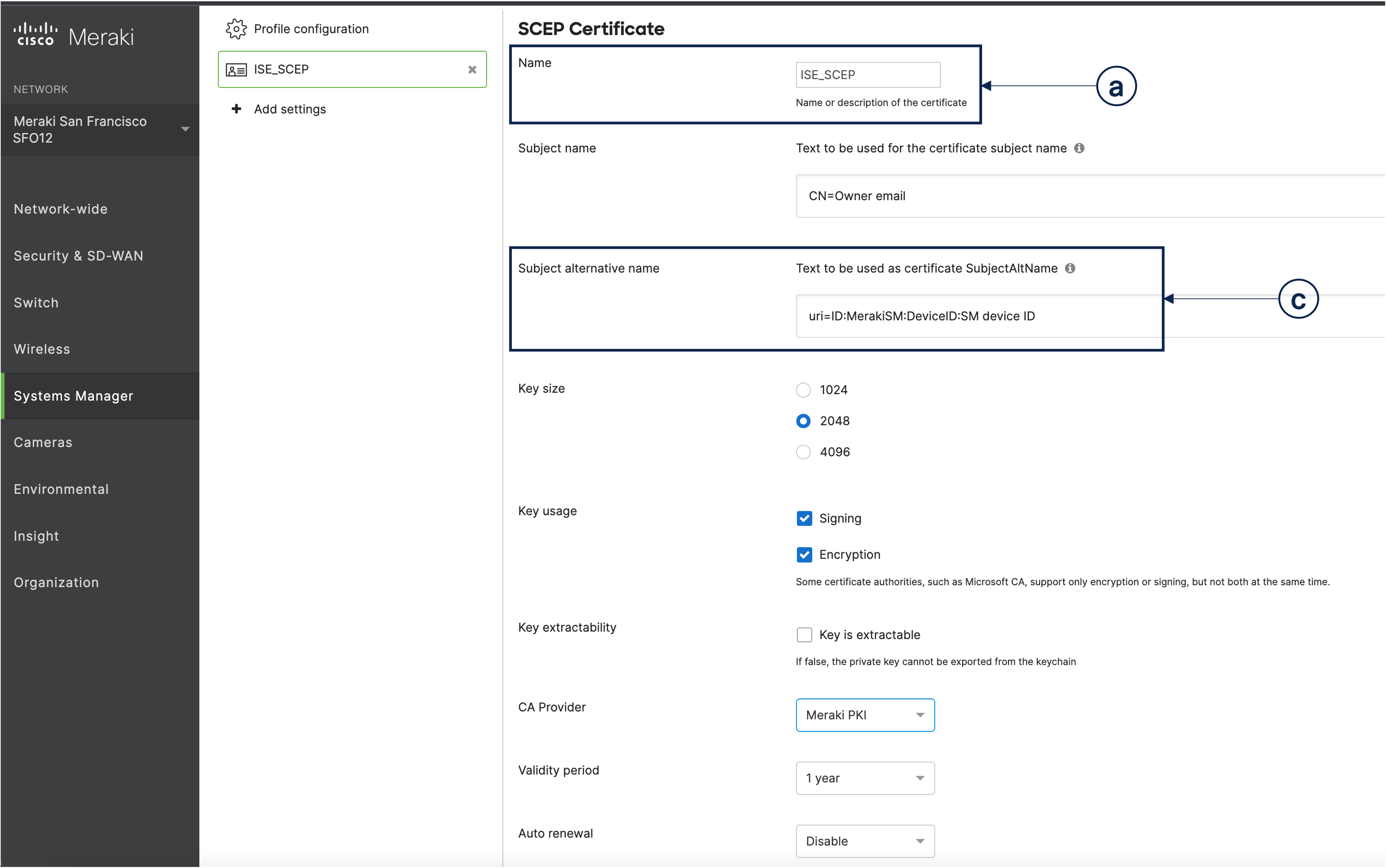

Figure 2. The SCEP Certificate Configuration Window in Cisco Meraki Systems Manager
The SCEP Certificate Configuration Window in Cisco Meraki Systems Manager

  1. In the Name field, enter a name for the SCEP certificate. For example, ISE_SCEP.

  2. In the Subject name field, enter the common name value for the certificate.

  3. In the Subject alternative name field, enter uri=ID:MerakiSM:DeviceID:$SM Device ID.

    When you enter $, a drop-down list of variables is displayed. Choose SM Device ID from the list.

  4. In the Key Size area, click the 2048 radio button.

  5. In the Key Usage area, check the Signing and Encryption check boxes.

  6. In the CA Provider area, choose a CA provider from the drop-down list.

  7. Click Save.

Step 10

Click +Add settings.

Step 11

In the Add New Settings Payload window that is displayed, click Certificate

Step 12

In the Certificate window that is displayed:

  1. In the Name field, enter a name for the certifiate.

  2. From the CertStore drop-down list, choose System.

  3. In the Certificate field, click Choose File and upload the Cisco ISE system certificate that you downloaded as a prerequisite step for this task.

  4. Click Save.

Step 13

Click +Add settings.

Step 14

In the Add New Settings Payload window that is displayed, click WiFi Settings.

Step 15

In the WiFi Settings window that is displayed:

  1. In the SSID field, enter the name of the Wi-Fi network to join.

  2. From the Security drop-down list, choose one of the Wi-Fi Protected Access (WPA) options.

  3. In the Enterprise Settings area that is displayed when you choose an enterprise option from the Security drop-down list:

    1. In the Protocol tab, check the check box of any certificate-based protocol, such as TLS.

    2. In the Authentication tab, in the Identity Certificate area, from the drop-down list, choose the SCEP certificate that you created for the Cisco ISE use case (in Step 10).

    3. In the Trust tab, in the Trusted Certificates area, check the check box next to the Cisco ISE certificate that you uploaded in Step 12.

    4. Click Save.

Step 16

In the Profile Configuration tab, in the Targets area, add a tag for the ISE use case. For information on how to create and manage tags in Meraki Systems Manager, see Manage Tags. The application of tags ensures that the ISE profile with its certificate and Wi-Fi settings is applied to the relevant devices.

Step 17

In the You have unsaved changes dialog box, click Save.

Step 18

From the left menu pane, choose Organization > Configure> MDM

Step 19

From the ISE Settings area:

  1. Take note of the username and password details that must be input in Cisco ISE.

  2. To download the SCEP certificate that you must use in Cisco ISE, click the Download button.

What to do next

Now, connect Cisco Meraki Systems manager as an MDM server in Cisco ISE. For information on how to carry out this task, see "Configure Mobile Device Management Servers in Cisco ISE" in the Chapter "Secure Access" in the Cisco ISE Administrator Guide for your release.
