Fortinet to Multicloud Defense Migration Workflow

End-to-End Procedure

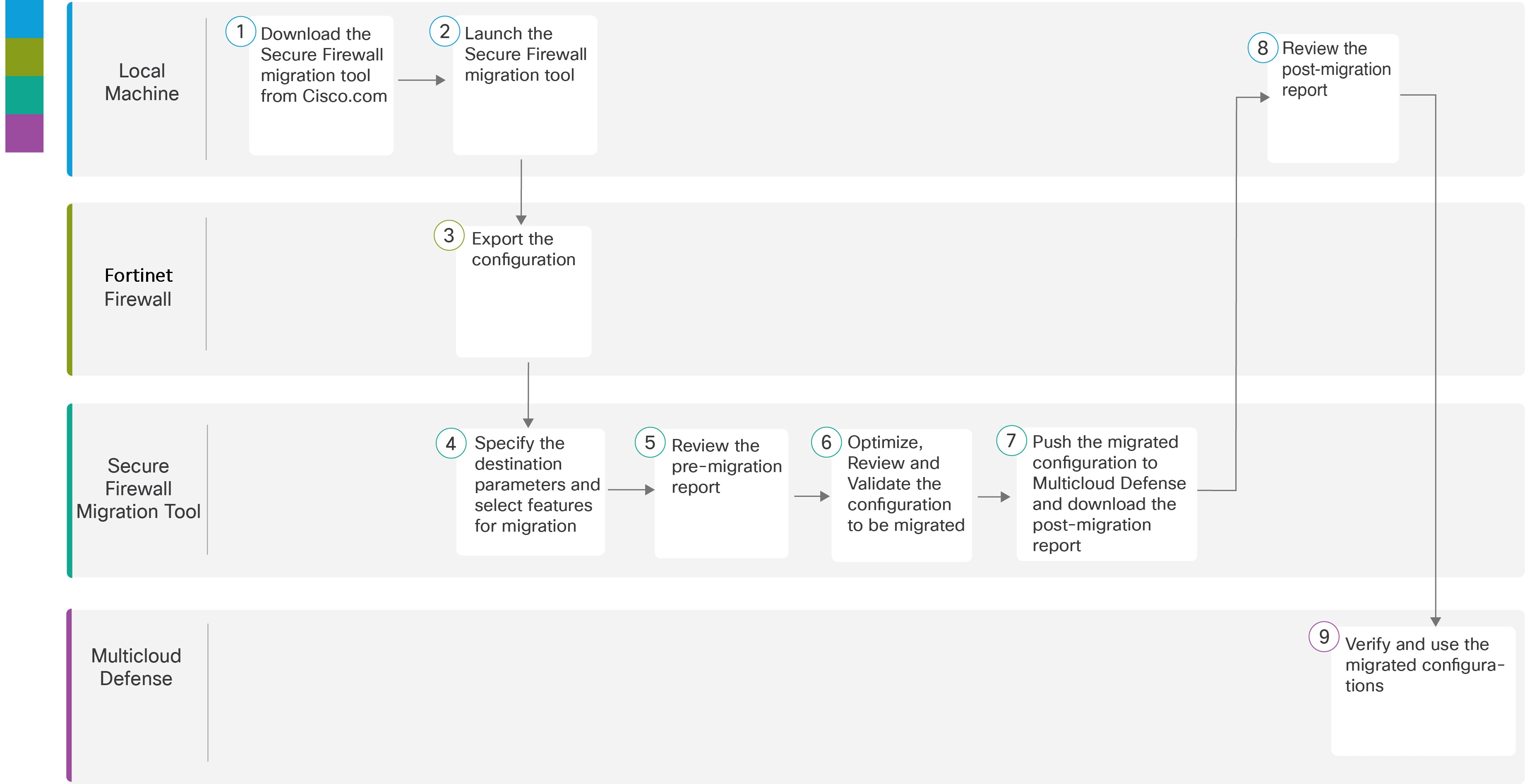

The following flowchart illustrates the workflow for migrating a Fortinet firewall to Multicloud defense using the Secure Firewall Migration Tool.

Workspace

Steps

Local machine

Download the latest version of the Secure Firewall Migration Tool from Cisco.com.

For detailed steps, see Download the Secure Firewall Migration Tool from Cisco.com.

Local Machine

In the local machine, initiate the Secure Firewall Migration tool by double-clicking in the application file that you downloaded from Cisco.com.

Fortinet Firewall

Export the configuration file. To export the configuration from the Fortinet firewall, see Export the Configuration from Fortinet Firewall.

Secure Firewall Migration Tool

During this step, you can specify the destination parameters for Multicloud Defense. For detailed steps, see Specify Destination Parameters for Multicloud Defense.

Secure Firewall Migration Tool

Navigate to the location where you downloaded the premigration report and review the report. For detailed steps, see Review the Pre-Migration Report.

Secure Firewall Migration Tool

Optimize and review the configuration carefully and validate that it is correct. For detailed steps, see Optimize, Review, and Validate the Configuration to be Migrated.

Secure Firewall Migration Tool

This step in the migration process sends the migrated configuration to Multicloud Defense and allows you to download the postmigration report. For detailed steps, see Push the Configuration to Multicloud Defense.

Local Machine

Navigate to the location where you downloaded the postmigration report and review the report. For detailed steps, see Review the Post-Migration Report and Complete the Migration.

Multicloud Defense

Verify the migrated configurations and use them as required in configuring gateways.

Prerequisites for Migration

Before you migrate your configuration, execute the following activities.

Download the Secure Firewall Migration Tool from Cisco.com

Before you begin

You must have a Windows 10 64-bit or macOS version 10.13 or higher machine with an internet connectivity to Cisco.com.

If you want to use the cloud version of the Secure Firewall migration tool hosted on Security Cloud Control, skip to step 4.

Procedure

Step 1

On your computer, create a folder for the Secure Firewall migration tool.

We recommend that you do not store any other files in this folder. When you launch the Secure Firewall migration tool, it places the logs, resources, and all other files in this folder.

Note


Whenever you download the latest version of the Secure Firewall migration tool, ensure, you create a new folder and not use the existing folder.

Step 2

Browse to https://software.cisco.com/download/home/286306503/type and click Firewall Migration Tool.

The above link takes you to the Secure Firewall migration tool under Firewall NGFW Virtual. You can also download the Secure Firewall migration tool from the Firewall Threat Defense device download areas.

Step 3

Download the most recent version of the Secure Firewall migration tool into the folder that you created.

Ensure that you download the appropriate executable of the Secure Firewall migration tool for Windows or macOS machines.

Step 4

If you are a Security Cloud Control user and want to use the migration tool hosted on it, log in to your Security Cloud Control tenant and on the left pane, navigate to Administration > Migration > Firewall Migration Tool to create your migration instance.

Run the Migration

Launch the Secure Firewall Migration Tool

This task is applicable only if you are using the desktop version of the Secure Firewall migration tool. If you are using the cloud version of the migration tool hosted on Security Cloud Control, skip to Upload the Fortinet Configuration File.


Note
When you launch the desktop version of the Secure Firewall migration tool a console opens in a separate window. As you go through the migration, the console displays the progress of the current step in the Secure Firewall migration tool. If you do not see the console on your screen, it is most likely to be behind the Secure Firewall migration tool.

Before you begin

Procedure

Step 1

On your computer, navigate to the folder where you downloaded the Secure Firewall migration tool.

Step 2

Do one of the following:

  • On your Windows machine, double-click the Secure Firewall migration tool executable to launch it in a Google Chrome browser.

    If prompted, click Yes to allow the Secure Firewall migration tool to make changes to your system.

    Note



    Ensure you disable any popup blockers in your browser because they might hinder login popus from appearing.

    The Secure Firewall migration tool creates and stores all related files in the folder where it resides, including the log and resources folders.

  • On your Mac move, the Secure Firewall migration tool *.command file to the desired folder, launch the Terminal application, browse to the folder where the Secure Firewall migration tool is installed and run the following commands:

    # chmod 750 Firewall_Migration_Tool-version_number.command

    # ./Firewall_Migration_Tool-version_number.command

    The Secure Firewall migration tool creates and stores all related files in the folder where it resides, including the log and resources folders.

    Tip


    When you try to open the Secure Firewall migration tool, you get a warning dialog because the Secure Firewall migration tool is not registered with Apple by an identified developer. For information on opening an application from an unidentified developer, see Open an app from an unidentified developer.

    Note



    Use MAC terminal zip method.

Step 3

On the End User License Agreement page, click I agree to share data with Cisco Success Network if you want to share telemetry information with Cisco, else click I'll do later.

When you agree to send statistics to Cisco Success Network, you are prompted to log in using your Cisco.com account. Local credentials are used to log in to the Secure Firewall migration tool if you choose not to send statistics to Cisco Success Network.

Step 4

On the Secure Firewall migration tool's login page, do one of the following:

  • To share statistics with Cisco Success Network, click the Login with CCO link to log in to your Cisco.com account using your single sign-on credentials. If you do not have a Cisco.com account, create it on the Cisco.com login page.

    Proceed to step 8, if you have used your Cisco.com account to log in.

  • If you have deployed your firewall in an air-gapped network that does not have internet access, contact Cisco TAC to receive a build that works with administrator credentials. Note that this build does not send usage statistics to Cisco, and TAC can provide you the credentials.

Step 5

On the Reset Password page, enter the old password, your new password, and confirm the new password.

The new password must have 8 characters or more and must include upper and lowercase letters, numbers, and special characters.

Step 6

Click Reset.

Step 7

Log in with the new password.

Note


If you have forgotten the password, delete all the existing data from the <migration_tool_folder> and reinstall the Secure Firewall migration tool.

Step 8

Review the premigration checklist and make sure you have completed all the items listed.

If you have not completed one or more of the items in the checklist, do not continue until you have done so.

Step 9

Click New Migration.

Step 10

On the Software Update Check screen, if you are not sure you are running the most recent version of the Secure Firewall migration tool, verify the version on Cisco.com.

Step 11

Click Proceed.

What to do next

You can proceed to the following step:

Using the Demo Mode in the Secure Firewall Migration Tool

When you launch the Secure Firewall Migration tool and are on the Select Source Configuration page, you can choose to start performing a migration using Start Migration or enter the Demo Mode.

The demo mode provides an opportunity to perform a demo migration using dummy devices and visualize how an actual migration flow would look like. The migration tool triggers the demo mode based on the selection you make in the Source Firewall Vendor drop-down; you can also upload a configuration file or connect to a live device and continue with the migration. You can proceed performing the demo migration by selecting demo source and target devices such as demo FMC, demo FTD devices, or Multicloud Defense.


Caution

Choosing Demo Mode erases existing migration workflows, if any. If you use the demo mode while you have an active migration in Resume Migration, your active migration is lost and needs to be restarted from first, after you use the demo mode.

You can also download and verify the pre-migration report, and perform all other actions like you would in an actual migration workflow. However, you can only perform a demo migration up to validation of the configurations. You cannot push the configurations to the demo target devices you selected because this is only a demo mode. You can verify the validation status and the summary and click Exit Demo Mode to go the Select Source Configuration page again to start your actual migration.


Note

The demo mode lets you leverage the whole feature set of the Secure Firewall Migration Tool, except pushing of configurations, and do a trial run of the end-to-end migration procedure before performing your actual migration.

Export the Configuration from Fortinet Firewall

Use this procedure to extract configuration from the Fortinet firewall.

Note

We recommend to use the configuration that is directly exported from the device.

Procedure

Step 1

From the FortiGate GUI, choose Admin > Configuration > Backup .

Step 2

Direct the backup to your local PC or to a USB disk.

Note


If VDOMs are enabled, indicate whether the scope of the backup is for the entire FortiGate configuration (Global) or only for a specific VDOM configuration (VDOM).

Step 3

Select the VDOM name from the VDOM list if the back up is a VDOM configuration.

Note


The Secure Firewall migration tool requires an unencrypted file to proceed with the backup process.

Step 4

Select Ok.

The web browser prompts you for a location to save the configuration file.

The configuration file has a .conf extension.

Specify Destination Parameters for Multicloud Defense

Before you begin

  • Ensure that you have a Security Cloud Control tenant with Multicloud Defense enabled on it.

  • Ensure that you have purchased the required operating licenses for Multicloud Defense.


    Note

    You can migrate configurations to Multicloud Defense even during the 90-day free trial because the trial experience offers full functionality of a paid subscription.

  • Ensure that you have obtained the base URL of Multicloud Defense and the Security Cloud Control tenant name.

  • Ensure that you have created an API key and also copied the API Key ID and API Key Secret that Multicloud Defense generates when you create the API key. See Create an API Key in Multicloud Defense for more information.

Procedure

Step 1

On the Select Target window, choose Multicloud Defense.

Step 2

Specify the following parameters in the correponding fields to enable the connection between the migration tool and Multicloud Defense:

  • Enter Base URL: This is the base URL that you see on your browser when you connect to your Multicloud Defense controller. For example, when you are in the controller dashboard, copy the link on your browser, excluding the /dashboard part. The URL looks like https://xxxx.mcd.apj.cdo.cisco.com

  • Enter Tenant Name: The name of your Security Cloud Control tenant. Copy it from the profile drop-down on the top-right corner when you are in the Multicloud Defense window or from Administration > General Settings if you are in the Security Cloud Control window.

  • Enter API Key ID: The API Key ID that Multicloud Defense controller generates when you create an API key by navigating to System and Accounts > API Keys. Specify a name for the key, your email address, the role you want the API key to have, and the API key lifetime to generate a key. The default key lifetime is set to 365 days.

  • Enter API Key Secret: The API Key Secret that Multicloud Defense controller generates when you create an API key.

    Note



    Ensure you copy both the API Key ID and API Key Secret when they are displayed only at the time of creating the API key. If you missed to copy them, delete the API key that you created, generate a new one, and make sure you copy them this time.

Step 3

Click Connect and wait to receive the Successfully gathered message, which confirms that the connection attempt to Multicloud Defense is a success.

Step 4

The Select Features lets you select the configurations that you want to migrate to Multicloud Defense. Access Control and Migrate Only Reference Objects checkboxes are checked by default.

Note that other configurations from the source firewall such as interfaces and routes are not supported for this migration.

Step 5

Click Proceed and Start Conversion. Wait for the migration tool to parse the source configurations.

Step 6

Review the summary of the elements that the Secure Firewall migration tool converted.

To check whether your configuration file is successfully uploaded and parsed, download and verify the Pre-Migration Report before you continue with the migration.

Step 7

Click Download Report and save the Pre-Migration Report.

A copy of the Pre-Migration Report is also saved in the Resources folder in the same location as the Secure Firewall migration tool.

Step 8

Click Next.

Review the Pre-Migration Report

If you have missed to download the Pre-Migration Reports during migration, use the following link to download:

Pre-Migration Report Download Endpoint—http://localhost:8888/api/downloads/pre_migration_summary_html_format


Note
You can download the reports only when the Secure Firewall Migration Tool is running.

Procedure

Step 1

Navigate to the location where you downloaded the Pre-Migration Report.

Note



A copy of the Pre-Migration Report is also saved in the Resources folder in the same location as the Secure Firewall Migration Tool.

Step 2

Open the Pre-Migration Report and carefully review its contents to identify issues, if any, that may cause the migration to fail.

The Pre-Migration Report includes the following information:

  • A summary of the supported configuration elements that can be successfully migrated to Firewall Threat Defense or Multicloud Defense and specific features selected for migration.

  • Configuration Lines with Errors—Details of configuration elements that cannot be successfully migrated because the Secure Firewall Migration Tool could not parse them. Correct these errors in the configuration, export a new configuration file, and then upload the new configuration file to the Secure Firewall Migration Tool before proceeding.

  • Ignored Configuration—Details of configuration elements that are ignored because they are not supported by the Multicloud Defense or the Secure Firewall Migration Tool. The Secure Firewall Migration Tool does not parse these lines. Review these lines, verify whether each feature is supported in Multicloud Defense, and if not supported, plan to configure the features manually.

Step 3

(Optional) If the Pre-Migration Report recommends corrective actions, complete the corrections in the interface, export the configuration file again, and upload the updated configuration file before proceeding.

Step 4

After your configuration file is successfully uploaded and parsed, return to the Secure Firewall Migration Tool, and click Next to continue the migration.

Optimize, Review, and Validate the Configuration to be Migrated

Before you begin

The Optimize, Review and Validate Configuration page lets you review and validate the configuration parameters that you are about to migrate to the target Multicloud Defense. In this step, the migration tool validates the configurations against the existing configuration on Multicloud Defense and suggests changes that need to be performed for the migration to be successful, such as associating access control rules and renaming objects to avoid duplicates on the target Multicloud Defense.

After you validate, a flashing tab indicates that there is action you need to perform on the tab.

Procedure

Step 1

On the Access Control tab that lists all your access control list (ACL) entries, you can do the following:

  • Click Optimize ACL to let the migration tool identify all the shadow and redundant ACLs and choose whether to migrate them as disabled ACLs or to exclude them from being migrated.

    Secure Firewall Migration Tool ACL Optimization Overview

    The Secure Firewall migration tool provides support to identify and segregate ACLs that can be optimized (disabled or deleted) from the firewall rule base without impacting the network functionality.

    The ACL optimization supports the following ACL types:

    • Redundant ACL—When two ACLs have the same set of configurations and rules, then removing the non-base ACL will not impact the network. For example, if any two rule allows FTP and IP traffic on the same network with no rules that are defined for denying access, the first rule can be deleted.

    • Shadow ACL—The first ACL completely shadows the configurations of the second ACL. If two rules have similar traffic, the second rule is not applied to any traffic as it appears later in the access list. If the two rules specify different actions for traffic, you can either move the shadowed rule or edit any one of the rules to implement the required policy. For example, the base rule may deny the IP traffic, and the shadowed rule may allow FTP traffic for a given source or destination.

    The Secure Firewall migration tool uses the following parameters while comparing rules for ACL optimization:

    • The disabled ACLs are not considered during the optimization process.

    • The source ACLs are expanded into the corresponding ACEs (inline values), and then compared for the following parameters:

      • Source and Destination Network

      • Source and Destination Port

    Click Download Report to review the ACL name and the correponding redundant and shadowed ACLs tabulated in an Excel file. Use the Detailed ACL Information sheet to view more ACL information.

    Click Proceed to start the optimization process.

  • For each entry in the table, review the mappings and verify that they are correct.

    A migrated Access Policy Rule uses the ACL name as prefix and appends the ACL rule number to it to make it easier to map back to the configuration file. For example, if an ACL is named "inside_access," then the first rule (or ACE) line in the ACL will be named as "inside_access_#1." If a rule must be expanded because of TCP or UDP combinations, an extended service object, or some other reason, the Secure Firewall migration tool adds a numbered suffix to the name. For example, if the allow rule is expanded into two rules for migration, they are named "inside_access _#1-1" and " inside_access_#1-2".

    For any rule that includes an unsupported object, the Secure Firewall migration tool appends an "_UNSUPPORTED" suffix to the name.

  • If you do not want to migrate or want to migrate a few ACLs as disabled, check the checkboxes against the row, click Actions, and choose the relevant option. Check the Select all entries checkbox to perform bulk changes.

  • To edit an access control list policy, select the row by checking the check box for the policy, and choose Actions > Edit.

    All rules that are not applicable are grayed out in the table.

Step 2

On the Objects tab, you can do the following:

Choose the following tabs and review the mappings:

  • Network Objects

  • Port Objects

  • FQDN Objects

  • URL Objects

If you want to rename an object, check the checkbox against the object row, click Actions, and choose Rename. Check the Select all entries checkbox to perform bulk changes.

Step 3

After you have completed your review, click Validate. Note that the mandatory fields that need your attention keeps flickering until you enter values in them. The Validate button gets enabled only after all the mandatory fields are filled.

During validation, the Secure Firewall migration tool connects to Multicloud Defense, reviews the existing objects, and compares those objects to the list of objects to be migrated. If an object already exists in Multicloud Defense, the Secure Firewall migration tool does the following:

  • If the object has the same name and configuration, the Secure Firewall migration tool reuses the existing object and does not create a new object in Multicloud Defense.

  • If the object has the same name but a different configuration, the Secure Firewall migration tool reports an object conflict.

You can view the validation progress in the console.

Step 4

When the validation is complete, if the Validation Status dialog box shows one or more object conflicts, do the following:

  1. Click Resolve Conflicts.

    The Secure Firewall migration tool displays a warning icon on either or both of the Network Objects or Port Objects tab, depending upon where the object conflicts were reported.

  2. Click the tab and review the objects.

  3. Check the entry for each object that has a conflict and choose Actions > Resolve Conflicts.

  4. In the Resolve Conflicts window, complete the recommended action.

    For example, you might be prompted to add a suffix to the object name to avoid a conflict with the existing Multicloud Defense object. You can accept the default suffix or replace it with one of your own.

  5. Click Resolve.

  6. When you have resolved all object conflicts on a tab, click Save.

  7. Click Validate to revalidate the configuration and confirm that you have resolved all object conflicts.

Step 5

When the validation is complete and the Validation Status dialog box displays the message Successfully Validated, continue with pushing the configuration to Multicloud Defense.

Push the Configuration to Multicloud Defense

Before you begin

You cannot push the configuration to Multicloud Defense if you have not successfully validated the configuration and resolved all object conflicts.


Note

Do not make any configuration changes or deploy to any device while the Secure Firewall migration tool is sending the configuration to Multicloud Defense.

Procedure

Step 1

In the Validation Status dialog box, review the validation summary.

Step 2

Click Push Configuration to send the source firewall configuration to Multicloud Defense.

The Secure Firewall migration tool displays a summary of the progress of the migration. You can view detailed, line-by-line progress of which the components that are being pushed to Multicloud Defense in the console.

Note



If there are configurations with errors when a bulk configuration push is being done, the migration tool throws a warning, prompting you to abort the migration to fix the error manually or to continue the migration leaving out the incorrect configurations. You can choose to view the configurations that have errors and then select Continue with migration or Abort. If you abort the migration, you can download the troubleshooting bundle and share it with Cisco TAC for analysis.

If you continue the migration, the migration tool will treat the migration as a partial success migration. You can download the postmigration report to view the list of configurations that were not migrated because of the push error.

Step 3

After the migration is complete, click Download Report to download and save the post-migration report.

A copy of the Post-Migration Report is also saved in the Resources folder in the same location as the Secure Firewall migration tool.

Step 4

If your migration failed, review the post-migration report, log file, and unparsed the configuration file carefully to understand what caused the failure.

You can also contact the support team for troubleshooting.

Migration Failure Support

If the migration is unsuccessful, contact Support.

  1. On the Complete Migration screen, click the Support button.

    The Help support page appears.

  2. Check the Support Bundle check box and then select the configuration files to download.

    Note


    The Log and dB files are selected for download by default.

  3. Click Download.

    The support bundle file is downloaded as a .zip to your local path. Extract the zip folder to view the log files, DB, and the configuration files.

  4. Click Email us to email the failure details for the technical team.

    You can also attach the downloaded support files to your email.

  5. Click Visit TAC page to create a TAC case in the Cisco support page.

    Note


    You can open a TAC case at any time during the migration from the support page.

Review the Post-Migration Report and Complete the Migration

Before you begin

The post-migration report provides details on ACL count under various categories, ACL optimization, and the overall view of optimization performed on the configuration file.

Procedure

Step 1

Navigate to where you downloaded the Post-Migration Report.

Step 2

Open the post-migration report and carefully review its contents to understand how your source configuration was migrated.

  1. Migration Summary—A summary of the configuration that was successfully migrated from your source firewall to Multicloud Defense.

    You can also view a comparison chart that illustrates the difference between the count of pre-migration and post-migration states.

  2. Object Conflict Handling—Details of the objects that were identified as having conflicts with existing objects in Multicloud Defense. If the objects have the same name and configuration, the Secure Firewall migration tool reused the Multicloud Defense object. If the objects have the same name but a different configuration, you renamed those objects. Review these objects carefully and verify that the conflicts were appropriately resolved.

  3. Access Control Rules That You Chose Not to Migrate—Details of the rules that you choose not to migrate with the Secure Firewall migration tool. Review these rules that were disabled by the Secure Firewall migration tool and were not migrated. Review these lines and verify that all the rules you choose are listed in this section. If desired, you can configure these rules manually.

  4. Partially Migrated Configuration—Details of the rules that were only partially migrated, including rules with advanced options where the rule could be migrated without the advanced options. Review these lines, verify whether the advanced options are supported in Multicloud Defense, and if so, configure these options manually.

  5. Expanded Access Control Policy Rules—Details of the source firewall access control policy rules that were expanded from a single point rule into multiple Multicloud Defense rules during migration.

  6. Actions Taken on Access Control Rules

    • Access Rules You Chose Not to Migrate—Details of the access control rules that you choose not to migrate with the Secure Firewall migration tool. Review these lines and verify that all the rules you choose are listed in this section. If desired, you can configure these rules manually in Multicloud Defense.

    • Access Rules with Rule Action Change—Details of all Access Control Policy Rules that had ‘Rule Action’ changed using the Secure Firewall migration tool. The Rule Action values are - Allow, Trust, Monitor, Block, Block with reset. Review these lines and verify that all the rules you choose are listed in this section. If desired, you can configure these rules manually in Multicloud Defense.

Note


An unsupported rule that was not migrated causes issues with unwanted traffic getting through your firewall. We recommend that you configure a rule in Multicloud Defense to ensure that this traffic is blocked.

Step 3

Open the Pre-Migration Report and make a note of any configuration items that you must migrate manually on Multicloud Defense.

Step 4

Verify and ensure that all the migrated configuration parameters are available on Multicloud Defense.
