SNMP

SNMP Protocol in CyberVision is used for remote monitoring purposes.

Supported versions are:

  • SNMP V2C

  • SNMP V3

Older versions are not supported.


Important

It is highly recommended to use version 3 of the SNMP protocol. Version 2c is available due to a large number of infrastructures still using it. However, take into account that risks in terms of security are higher.

Snmp information:

  • CPU % per core

  • Load 0 to 100 (combination of CPU and I/O loads)

  • RAM kilobytes

  • Swap kilobytes

  • Traffic for all physical interfaces (nb bytes in and out/interface (since the snmp service startup))

  • Data storage (% - 250G)

  • Packets stats (packets/sec/int)

Configure SNMP

This section explains how to configure SNMP on a CyberVision Center.

Procedure

Step 1

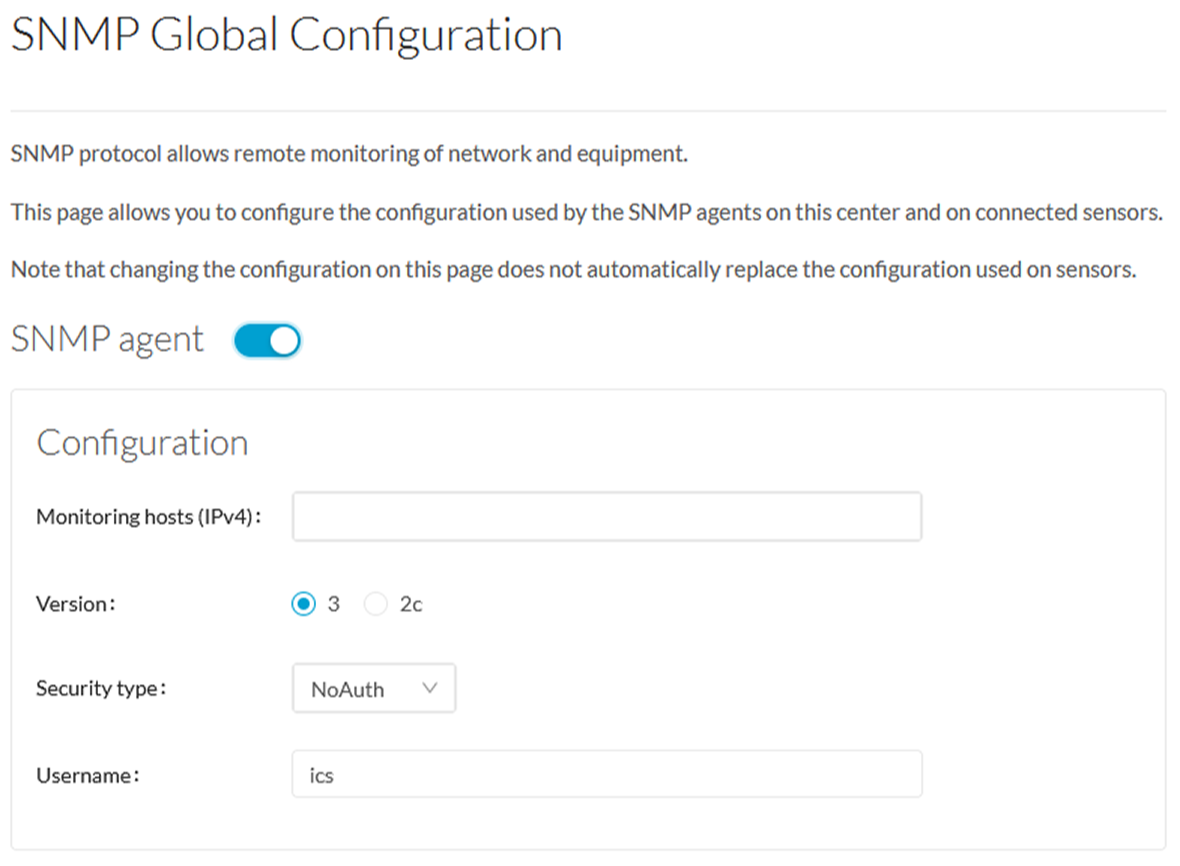

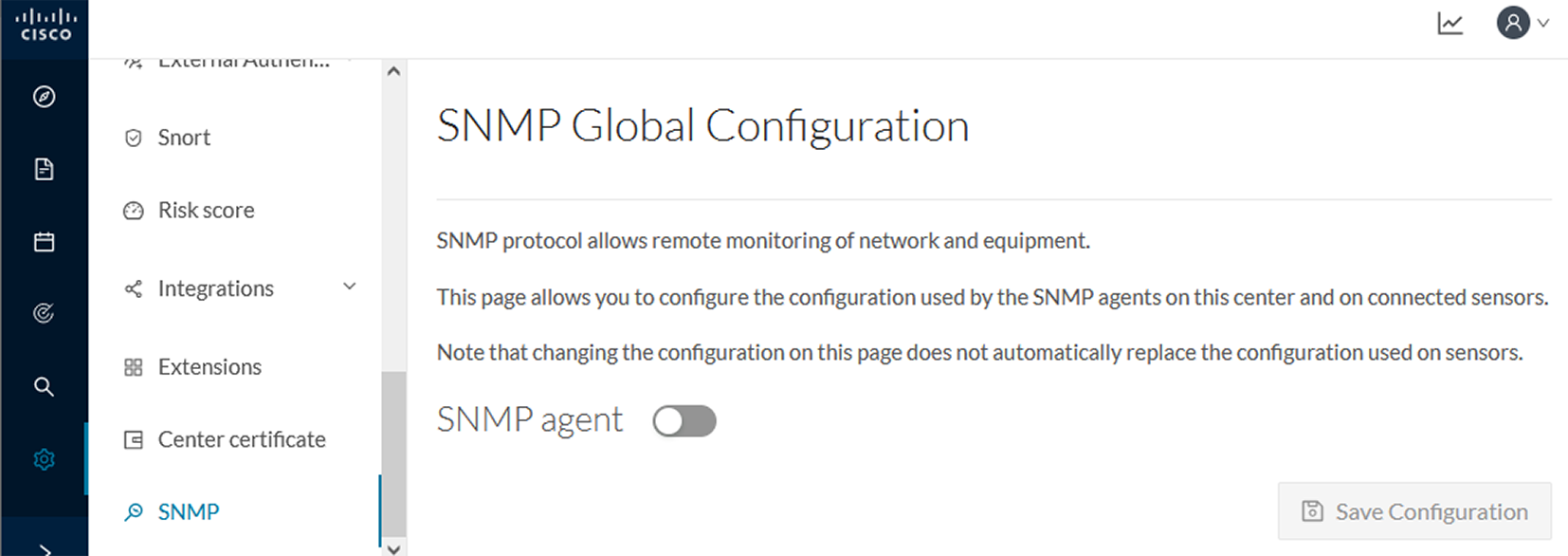

In Cisco Cyber Vision, navigate to Admin > SNMP.
Step 2

Toggle the SNMP agent button.

A configuration menu appears.
Step 3

In the Monitoring hosts (IPv4) field, fill in the IP address of the Monitoring host.
Step 4

Select a version:

  • Version 3
  • Version 2c
Note

For security reasons, it is recommended to use SNMP version 3.

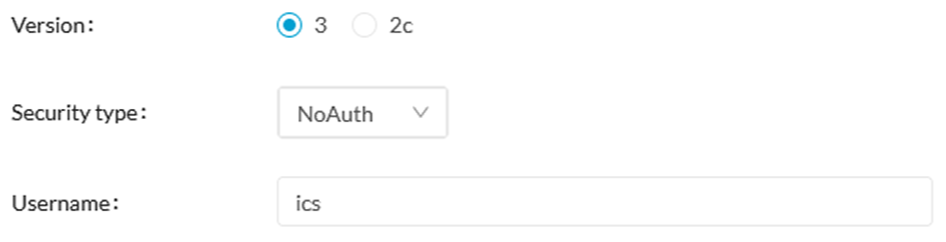

  1. Version 3

    Select a security type:

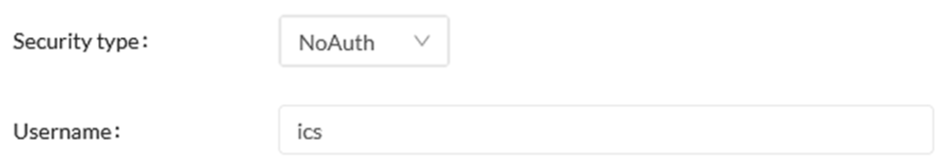

    • NoAuth: Only a username is required. No authentication password required.

      Add the username that will be used for the SNMP authentication. "ics" is used by default.

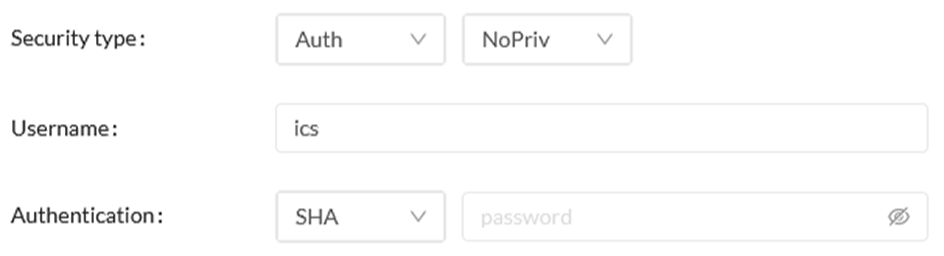

    • Auth with NoPriv : A username and an encrypted password are required.

      Add the username that will be used for the SNMP authentication. "ics" is used by default.

      Add the Hash algorithm needed and its password. It must be at least 8 characters long.

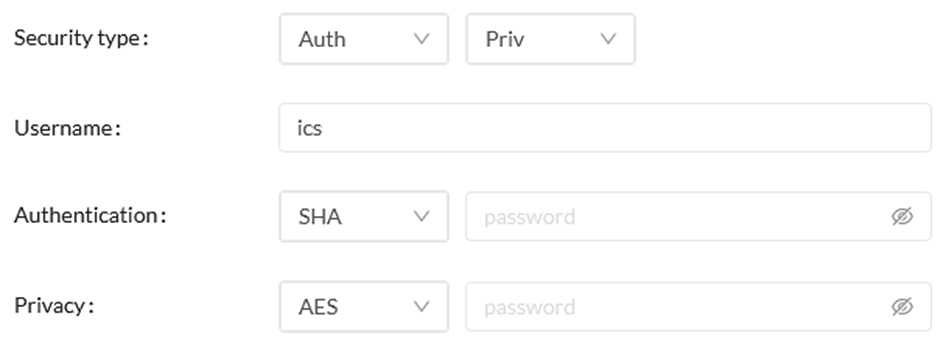

    • Auth with Priv: Only the AES encryption is available. A username, an encrypted password, and an AES encryption are required.

      Add the username that will be used for the SNMP authentication. "ics" is used by default.

      Add the Hash algorithm needed and its password. It must be at least 8 characters long.

      Add the AES password. It must be at least 8 characters long.

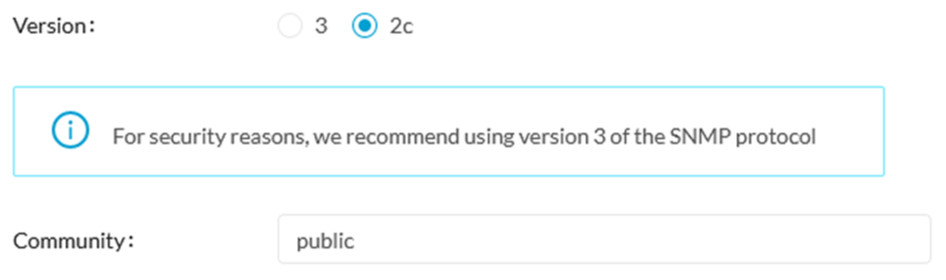

  2. Version 2c

    Add the community string for the Center to communicate with the monitoring host.
Step 5

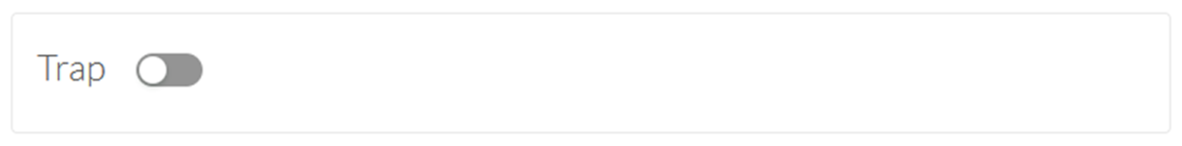

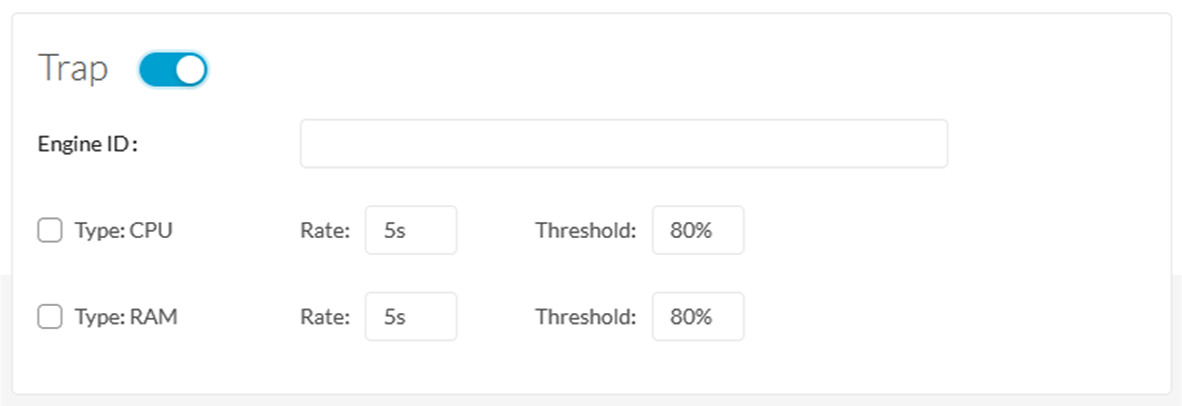

Toggle the Trap button.

The following configuration menu appears:
Step 6

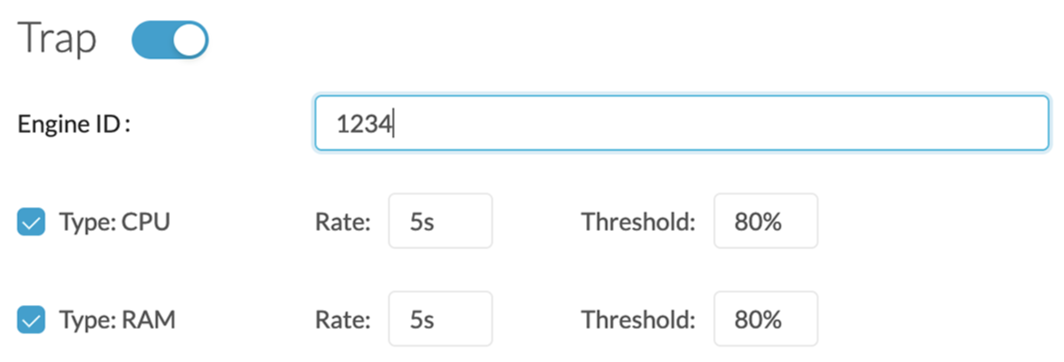

Setup traps to be delivered.

  1. If SNMP v3 has been selected, the Engine ID field (i.e. the Center id) is displayed so you can customize it.

  2. Select and set the CPU and memory rate limit and threshold according to your needs.
Step 7

Click Save Configuration.

SNMP MIB

Table 1.

MIB

OID prefix

Description

*MIB-2*

.1.3.6.1.2.1.1

System

*IF-MIB*

.1.3.6.1.2.1.2.2.1.1

All physical interfaces

*IF-MIB*

.1.3.6.1.2.1.31.1.1

All physical interfaces

*HOST-RESOURCES-MIB*

.1.3.6.1.2.1.25.1

System

*HOST-RESOURCES-MIB*

.1.3.6.1.2.1.25.2.3

Storage

*HOST-RESOURCES-MIB*

.1.3.6.1.2.1.25.3.3

CPU

*HOST-RESOURCES-MIB*

.1.3.6.1.2.1.25.3.6

Disk

*UCD-SNMP-MIB*

.1.3.6.1.4.1.2021.4

Memory

*UCD-SNMP-MIB*

.1.3.6.1.4.1.2021.9

Disk

*UCD-SNMP-MIB*

.1.3.6.1.4.1.2021.10

Load

*UCD-SNMP-MIB*

.1.3.6.1.4.1.2021.11

CPU

*UCD-DISKIO-MIB*

.1.3.6.1.4.1.2021.13.15.1

Disk IO
