Managing System Settings

This section describes how to manage system settings, and includes the following sections:

blank.gifManaging Active Sessions

blank.gifDisplaying the Audit Trail

blank.gifManaging Certificates

blank.gifConfiguring Data Retention

blank.gifManaging Licenses

blank.gifManaging Logs

blank.gifConfiguring Provisioning Settings

blank.gifConfiguring Server Settings

blank.gifManaging the Syslog

Note: To manage system settings, you must be logged in either as root or as a user with Administrative Operations permissions.

System settings are managed from the ADMIN > System Management menu (Admin Menu)


Figure 1 Admin Menu




Managing Active Sessions

IoT FND tracks active user sessions and lets you log out users.

blank.gifViewing Active Sessions

blank.gifLogging Users Out

blank.gifFiltering the Active Sessions List

Viewing Active Sessions

To view active user sessions, choose ADMIN > System Management > Active Sessions. IoT FND displays the Active Sessions page (Active Sessions Page).

Figure 2 Active Sessions Page




Active Session Fields describes the Active Session fields.

Table 1 Active Session Fields

Field
Description

User Name

The user name in the session record. To view user settings, click the user name.

IP

The IP address of the system the user employs to access IoT FND.

Login Time

The log in date and time for the user.

Last Access Time

The last time the user accessed the system.

Tip: Click the Reload button (upper-left hand corner) to update the users list.

Logging Users Out

To log out an IoT FND user:

1.blank.gif Choose ADMIN > System Management > Active Sessions.

2.blank.gif Select the check boxes for those users you want to log out.

3.blank.gif Click Logout Users.

4.blank.gif Click Yes to confirm logout of the users.

Filtering the Active Sessions List

To filter the Active Sessions list using column filtering:

1.blank.gif Choose ADMIN > System Management > Active Sessions.

2.blank.gif Hover the mouse over the User Name column heading to expose the filter icon (triangle). Enter the user name or the first characters of the user name to filter the list.




For example, to list the active sessions for the root user, enter root.

Tip: To remove the filter, from the User Name drop-down menu, clear the Filtersblank.gif check box or click Clear Filter.

Displaying the Audit Trail

Use the audit trail to track IoT Field Network Director user activity.

To display the Audit Trail, choose ADMIN > System Management > Audit Trail

.


Audit Trail Fields describes the Audit Trail fields.

Table 2 Audit Trail Fields

Field
Description

Date/Time

Date and time of the operation.

User Name

The user who performed the operation. To view user settings, click the user name.

IP

IP address of the system that the user employs to access IoT FND.

Operation

Type of operation performed.

Status

Status of the operation.

Details

Operation details.

Tip: Click the Refresh icon (far right) to update the list.

Filtering the Audit Trail List

To filter the Audit Trail list using column filtering:

1.blank.gif Choose ADMIN > System Management > Audit Trail.

2.blank.gif From the User Name drop-down menu, pass over Filters option and in the field that appears enter the user name or the first characters of the user name to filter the list.

For example, to list the Audit Trail entries for the user jane, enter jane.

Tip: To remove the filter, from the User Name drop-down menu, uncheck the Filtersblank.gif check box or click Clear Filter (left of the screen).

Managing Certificates

The Certificates page displays the certificates for CSMP (CoAP Simple Management Protocol), IoT-DM (IoT Device Manager), and Web used by IoT FND and lets you download these certificates.

To display the CSMP, IoT-DM and Web certificates:

1.blank.gif Choose ADMIN > System Management > Certificates.

2.blank.gif To view a certificate, click its corresponding heading (such as Certificate for Routers).




3.blank.gif To download a certificate, select encoding type (Binary or Base64) radio button, and then click Download.

For more information about certificates, see “Generating and Installing Certificates” in the Cisco IoT Field Network Director Installation Guide.

CA Certificate Configuration for App Signature Verification

Allows you to import and add a trust anchor to the default profile for a Cisco IOx device that is being managed by IoT FND such as IC3000 or IR800. (The default profile is not visible to the user). You can enable this capability on the Application Security tab of the Certificate page.

Note: The Application Security tab only appears when both of the following conditions are met:

- User has application management permission; and, at least one IOx device is being managed such as IC3000 or IR800

To import and add a trust anchor to a default profile for a Cisco IOx device:

1.blank.gif Choose ADMIN > System Management > Certificates.

2.blank.gif Select the Application Security tab. The page that appears displays any existing trust anchors.

Noteblank.gif: By default, no information will display for new installations or updates and the fields for Checksum and Trust Anchor will display a value of ‘None’.)

3.blank.gif To import a new a new trust anchor, check the boxes next to App Signature and Import New Trust Anchor and then enter a path to the file. Click the disk icon to Save your entries. File will also be pushed to Fog Director.

Noteblank.gif: After you save and reload the Certificates page, the Checksum and Trust Anchor File name appear on the page replacing the previous values of None.








Configuring Data Retention

The Data Retention page lets you determine the number of days to keep event, issue, and metric data in the IoT FND database.

Note: Data retention prunes events even if they have associated open issues.

To set IoT FND data retention:

1.blank.gif Choose ADMIN > System Management > Data Retention.



2.blank.gif For each of the retention categories, specify the number of days to retain data.

Data Retention Fields Allowable Maximum Values lists the allowable maximum values for each field.

Table 3 Data Retention Fields Allowable Maximum Values

Field
Value in Days
Minimum
Maximum
Default

Keep Event data for

1

90

31

Keep Endpoint Firmware Operation data for

7

180

7

Keep Historical Dashboard data for

1

90

62

Keep Dashboard data for

1

7

7

Keep Historical Endpoint Metrics for

1

7

7

Keep Closed Issues data for

1

90

30

Keep JobEngine data for

1

30

30

Keep Historical Router Statistics data for

1

90

30

Keep Device Network Statistics data for

1

7

7

Keep Service Provider down routers data for

1

31

31

3.blank.gif To save the maximum values, click the disk icon.

4.blank.gif To revert to default settings, click Reset.

Managing Licenses

The License Center page, ADMIN > System Management > License Center, lets you view and manage license files.

blank.gifViewing License Summary

blank.gifViewing License Files

blank.gifAdding License Files

blank.gifDeleting License Files

Note: IoT FND performs license enforcement when importing devices. If you add licenses, IoT FND only allows the permitted number of devices to be imported, as defined in the licenses with the following exception:

blank.gifIf you import more devices than your Classic License allows, the import process will not fail. Any devices imported beyond the license limit, will be marked as ‘unmanaged’

Without licenses, IoT FND allows only 3 routers and 100 mesh endpoints.

Viewing License Summary

To view IoT FND license summary:

1.blank.gif Choose ADMIN > System Management > License Center.

2.blank.gif Click License Summary.




For every license, IoT FND displays the information described in Device License Summary Information.

Note: IR500s use mesh endpoint licenses, and require no special license.

Table 4 Device License Summary Information

Field
Description

Package Name

Name of license package.

CGR1K Count Used/Total

Lists the number of CGR1000 devices currently active in the network and the maximum number of CGR1000s supported by the license.

C800 Count Used/Total

Lists the number of C800 devices currently active in the network and the maximum number of C800 devices supported by the license.

IR800 Count Used/Total

Lists the number of IR800 (IR809 and IR829) devices currently active in the network and the maximum number of IR800 devices supported by the license.

LORAWAN Count Used/Total

Lists the number of Cisco interface modules for LoRaWAN devices currently active in the network and the maximum number of Cisco interface modules for LoRaWAN devices that are supported by the license.

IR500 Count Used/Total

Lists the number of IR509 devices currently active in the network and the maximum number of IR509 devices supported by the license.

Days Until Expiry

Number of days remaining until the license expires.



Viewing License Files

To view IoT FND license files:

1.blank.gif Choose ADMIN > System Management > License Center.

2.blank.gif Click License Files to display details on all active licenses.




For every file, IoT FND displays the fields described in License File Fields.

Table 5 License File Fields

Field
Description

ID

License ID.

PAK

Number for issuing license fulfillment. Displays as N/A.

Added At

Date and time the license was added to IoT FND.

License Filename

Filename of the license.

Adding License Files

To add a license file:

1.blank.gif Choose ADMIN > System Management > License Center.

2.blank.gif Click License Files.

3.blank.gif Click Add to open a search window.



4.blank.gif Click Browse to locate the desired license file and then click Open.

5.blank.gif Click Upload. To cancel the upload, click Reset.

6.blank.gif Click Reset to cancel the selected file and search for another file.

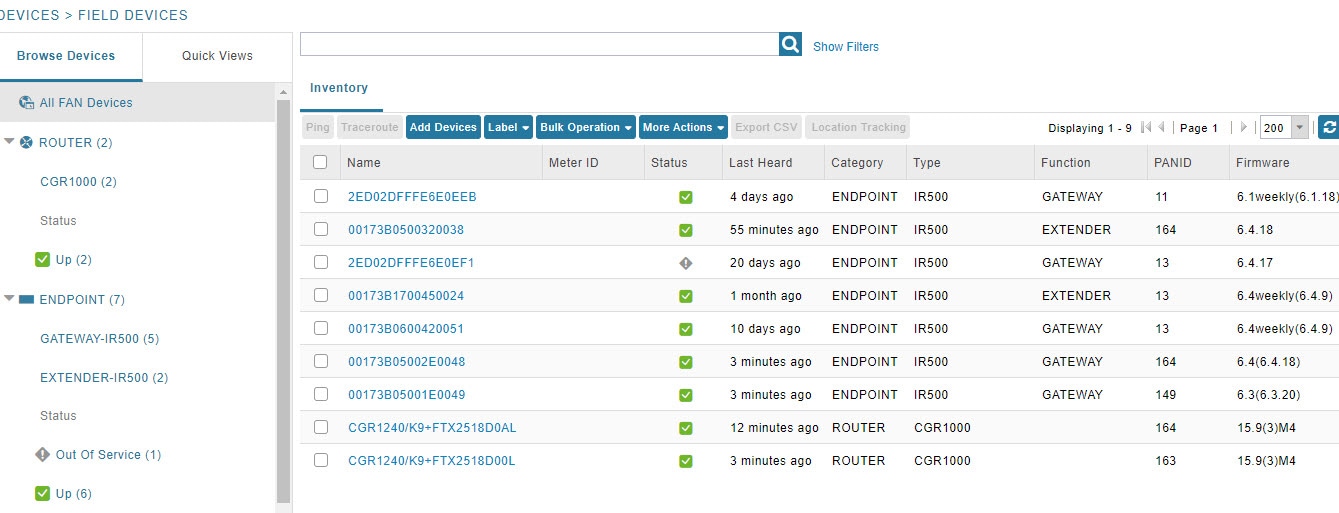

Noteblank.gif: If you import more devices than your Classic License allows, the import process will not fail. Any devices imported beyond the license limit will be marked as ‘unmanaged’ and listed under Status in the Browse Devices panel. No other license types other than Classic Licenses support this capability.


Deleting License Files

Note: Ensure that you have access to license files before deleting existing license files. Without licenses, IoT FND only allows registration of 3 routers and 100 mesh endpoints.

To delete a single license or multiple license files:

1.blank.gif Choose ADMIN > System Management > License Center.

2.blank.gif Click License Files.

3.blank.gif Select the box next to each license file that you want to delete.

4.blank.gif Click Delete. To confirm deletion, click Yes. To cancel the action, click No.

Managing Logs

blank.gifConfiguring Log Settings

blank.gifDownloading Logs

Configuring Log Settings

IoT FND lets you change the logging level for the various log categories and download the logs. Logs incur a certain amount of disk space. For example, for 5 million meters at an 8-hour reporting interval and 5000 routers at a 60-minute periodic inventory notification, disk consumption is approximately 7MB/sec. Ensure that your server has enough disk space to contain your logs.

To configure the logging level:

1.blank.gif Choose ADMIN > System Management > Logging.

2.blank.gif Select Log Level Settings.

3.blank.gif Check the check boxes of all logging categories to configure.



.


4.blank.gif From the Change Log Level to drop-down menu, choose the logging level setting (Debug or Informational).

blank.gifTo generate all possible logging messages, use the Debug level.

Note: Running the Debugblank.gif logging category can impact performance.

blank.gifTo generate a subset of these messages, use the Informational logging level.

Note: The Informationalblank.gif logging level is the default for all categories when IoT FND opens. Custom logging level settings are retained between log-in sessions, but not after IoT FND restarts.

5.blank.gif To apply the configuration, click Go.

Note: The server.log file is rotated based on size.

6.blank.gif Click the disk icon to save the configuration.

Downloading Logs

To download logs:

1.blank.gif Choose ADMIN > System Management > Logging.

2.blank.gif Click the Download Logs tab.



3.blank.gif Click the Download Logs button.

blank.gifWhen you click this button in a single-server deployment, IoT FND compresses the log files into a single zip file and adds an entry to the Download Logs pane with a link to the zip file.

blank.gifIn IoT FND cluster deployments, when you click this button, the IoT FND server to which you are connected:

blank.gifCompresses the log files on the server into a single zip file and adds an entry to the Download Logs pane with a link to the zip file.

blank.gifInitiates the transfer of the log files in.zip format from the other servers to this server. As files become available, the server adds entries for these files to the Download Logs pane.

4.blank.gif To download a zip file locally, click its file name.

Tip: In a cluster environment, if you need to send log files to Cisco Support, ensure that you send the log files of all cluster servers.

Configuring Provisioning Settings

The Provisioning Settings page (ADMIN > System Management > Provisioning Settings) lets you configure the IoT FND URL, DHCPv4 Proxy Client, and DHCPv6 Proxy Client settings required for IoT FND to create tunnels between routers and ASRs (Provisioning Settings Page). For an example of tunnels as used in the IoT FND architecture. See “Tunnel Provisioning Configuration Process for information on provisioning tunnels in the “Managing Tunnel Provisioning” chapter in the IoT FND 4.2 Installation Guide.

During Zero Touch Deployment (ZTD), you can add DHCP calls to the device configuration template for leased IP addresses.

Note: For Red Hat Linux 7.x server installations, you must configure specific IPv4 and IPv6 addresses from the IoT FND Linux host server to which to bind DHCP IPv4 and IPv6 clients by setting the following values in IoT FND:

blank.gif ADMIN > Provisioning Settings > DHCPv6 Proxy Client > Client Listen Address : Set the value to the IPv6 address of the interface to use to obtain IPv6 DHCP leases from the DHCP server. The default value is “::”. Change the default setting to an actual IPv6 address on the Linux host machine.

blank.gif ADMIN > Provisioning Settings > DHCPv4 Proxy Client > Client Listen Address : Set the value to the IPv4 address of the interface to use to obtain IPv4 DHCP leases from the DHCP server. The default value is “0.0.0.0”. Change the default setting to an actual IPv4 address on the Linux host machine.

Note: To configure tunnel and proxy settings, you must be logged in either as root or as a user with Administrative Operations permissions.

Figure 3 Provisioning Settings Page




This section provides the following topics for configuring tunnel settings:

blank.gifConfiguring the IoT FND Server URL

blank.gifConfiguring DHCP Option 43 on Cisco IOS DHCP Server

blank.gifConfiguring DHCPv6 Proxy Client

blank.gifConfiguring DHCPv4 Proxy Client

Configuring the IoT FND Server URL

The IoT FND URL is the URL that routers use to access with IoT FND after the tunnel is established. This URL is also accessed during periodic inventories. During ZTD, routers transition from accessing IoT FND through the TPS proxy to using this URL, which must be appropriate for use through the tunnel.

To configure the IoT FND URL:

1.blank.gif Choose ADMIN > System Management > Provisioning Settings.

2.blank.gif In the IoT FND URL field, enter the URL of the IoT FND server.

The URL must use the HTTPS protocol and include the port number designated to receive registration requests. By default, the port number is 9121. For example:

https://nms.sgbu.example.com:9121

3.blank.gif Click Save.

Configuring DHCP Option 43 on Cisco IOS DHCP Server

To configure for IPv4, enter:

ip dhcp pool fnd-pool
network 192.0.2.0 255.255.255.0
default-router 192.0.2.1
option 43 ascii "5A;K4;B2;I192.0.2.215;J9125"

5 – DHCP type code 5
A – Active feature operation code
K4 – HTTP transport protocol
B2 – PnP/FND server IP address type is IPv4
I - 192.0.2.215 – PnP/FND server IP address
J9125 – Port number 9125


Configuring DHCPv6 Proxy Client

To configure DHCPv6 Proxy Client settings:

1.blank.gif Choose ADMIN > System Management > Provisioning Settings.

2.blank.gif Configure the DHCPv6 Proxy Client settings:

a.blank.gif In the Server Address field, enter the address of the DHCPv6 server that provides tunnel IP addresses.

You can enter multiple addresses separated by commas. However, in most cases, you only need one server. IoT FND tries to get the tunnel IP addresses using DHCP protocols. If it cannot, it goes to the next server in the list and so on.

b.blank.gif In the Server Port field, enter the port address on the DHCP server to send DHCPv6 requests.

Note: Do not change the default port number (547) unless you have configured your DHCP server to operate on a non-standard port.

c.blank.gif In the Client Listen Address field, enter the address to bind to for DHCPv6 send and receive messages.

This is the address of the interface that the DHCP server uses to communicate with IoT FND. You can enter multiple backup addresses separated by commas.

Tip: For IoT FND installations where the host has multiple interfaces, the client sends requests using each listed source address. The default values, “0.0.0.0” (IPv4) and “::” (IPv6), cause the client to send requests out each interface. Usually, one interface faces the DHCP server(s). In these installations, setting the Client Listen Address field to the IP address of the facing interface sends all client requests out that interface.

3.blank.gif Click Save.

Configuring DHCPv4 Proxy Client

To configure DHCPv4 Proxy Client settings:

1.blank.gif Choose ADMIN > System Management > Provisioning Settings.

2.blank.gif Configure the DHCPv4 Proxy Client settings:

a.blank.gif In the Server Address field, enter the address of the DHCPv4 server that provides tunnel IP addresses.

You can enter multiple addresses separated by commas. However, in most cases, you only need one server. IoT FND tries to get the tunnel IP addresses from the first server in the list. If it cannot, it moves to the next server in the list, and so on.

b.blank.gif In the Server Port field, enter the port address on the DHCP server to send DHCPv4 requests to.

Note: Do not change the default port number (67) unless you have configured your DHCP server to operate on a non-standard port.

c.blank.gif In the Client Listen Address field, enter the address to bind to for send and receive DHCPv4 messages.

This is the address of the interface that the DHCP server uses to communicate with IoT FND. You can enter multiple backup addresses separated by commas.

3.blank.gif Click Save.

Configuring Server Settings

The Server Settings page (ADMIN > System Management > Server Settings) lets you view and manage server settings.

blank.gifConfiguring Download Logs Settings

blank.gifConfiguring Web Sessions

blank.gifConfiguring Device Down Timeouts

blank.gifConfiguring Billing Period Settings

blank.gifConfiguring RPL Tree Polling

blank.gifConfiguring the Issue Status Bar

Configuring Download Logs Settings

Note: Configuring download log settings is only required for IoT FND cluster setup.

The Download Logs page lets you configure the Keystore settings.

To configure Download Logs settings:

1.blank.gif Choose ADMIN > System Management > Server Settings.

2.blank.gif Click the Download Logs tab.

3.blank.gif Configure these settings:

Table 6 Keystore Settings

Field
Description

Keystore Filename

Click Upload Keystore File to upload a Keystore file with the public key of the X.509 certificate that IoT FND uses. You can reuse the same Keystore file.

Keystore Password

Enter the password that IoT FND uses to access the Keystore file on start up.

Confirm Keystore Password

FTP Password

Enter the FTP password.

Confirm FTP Password

4.blank.gif To save the configuration, click the disk icon.

Configuring Web Sessions

The Web Sessions page lets you specify the number of timeout seconds after which IoT FND terminates web sessions and logs users out.

To configure web session timeout:

1.blank.gif Choose ADMIN > System Management > Server Settings.

2.blank.gif Click the Web Session tab.



3.blank.gif Enter the number of timeout seconds. Valid values are 0–86400 (24 hours).

If a web session is idle for the specified amount of time, IoT FND terminates the session and logs the user out.

4.blank.gif To save the configuration, click the disk icon.

Configuring Device Down Timeouts

The Device Down Timeouts page lets you specify the number of timeout seconds after which the status of Head-end routers (ASR) and Routers (CGR1000, IR800, C800, ESR) and Endpoints changes to Down in IoT FND. The device down poll interval is five minutes. The system uses the device down timeouts values and the last heard time to decide whether to change the device status to Down. For example, if the router device down timeout value is set to two hours (7200 seconds), all routers with a last heard time older than 2 hours are marked as status Down.

You can also configure the device timeout setting for router Config groups and Endpoint Config Groups.

Device status changes to Up when IoT FND detects any of the following:

blank.gifPeriodic inventory notifications

blank.gifEvents

blank.gifManual metric refreshes

blank.gifDevice registrations

To configure device down timeout settings:

1.blank.gif Choose ADMIN > System Management > Server Settings.

2.blank.gif Click the Device Down Timeouts tab.




3.blank.gif For each device type listed, enter the number of seconds after which the device status changes to Down in IoT FND.

The parameter value must be greater than the corresponding polling intervals. For example, the default polling interval for endpoints is 8 hours (28800 seconds), so the value in the Mark {ACT | BACT | CAM | Cellular | IR500> Meter} Endpoints Down After (secs) field must be greater than 28800.

4.blank.gif To save the configuration, click the disk icon.

Device Down Timeout Settings for Router Config Groups and Endpoint Config Groups

To configure device down timeout settings for Router Config groups or Endpoint Config Groups:

1.blank.gif Choose CONFIG > Device Configuration.

2.blank.gif Select the Device you want to configure { ROUTER | ENDPOINT} in the left pane.

3.blank.gif Click the Group Properties tab.



4.blank.gif In the Mark Routers Down After (secs) field, enter the number of seconds after which the status of the devices (router or endpoints) in the group changes to Down in IoT FND.

This value must be greater than the corresponding polling interval.

For example, the default polling interval for routers is 30 minutes (1800 seconds), so the value in the Mark Routers Down After (secs) field must be 1801 or greater.

The default polling interval for ENDPOINTS is 960 minutes (57600 seconds), so the value in the Mark Routers Down After (secs) field must be greater than 57600 seconds.

5.blank.gif To save the configuration, click the disk icon.

Configuring Billing Period Settings

IoT FND lets you configure the start day of the monthly billing periods for cellular and Ethernet (satellite) services.

To configure the billing period settings:

1.blank.gif Choose ADMIN > System Management > Server Settings.

2.blank.gif Click the Billing Period Settings tab.

3.blank.gif Enter the starting days for the cellular and Ethernet billing periods.

4.blank.gif From the drop-down menu, choose the time zone for the billing period.

5.blank.gif To save the configuration, click the disk icon.

Configuring RPL Tree Polling

RPL tree polls are derived from router periodic notification events. Since the RPL tree is not pushed from the router with the periodic notification event, IoT FND must explicitly poll for the RPL tree at the configured intervals. IoT FND lets you configure the RPL tree polling cycle (that is, how many periodic notification events occur between RPL tree polls), and set the maximum amount of time between tree polls.

Caution: CG-NMS 1.1(5) release does not support router RPL tree updates. Do not enable RPL tree updates from Routers.

To configure RPL tree polling settings:

1.blank.gif Choose ADMIN > System Management > Server Settings.

2.blank.gif Choose the RPL Tree Settings tab.



3.blank.gif Choose the Enable RPL tree update from radio button for Mesh Nodes to receive the RPL tree update from those devices.

4.blank.gif To save the configuration, click the disk icon.

Configuring the Issue Status Bar

The Issue Status bar displays issues by device type (as set in user preferences) and severity level in the lower-left browser frame.

To enable the Issue Status bar and configure the refresh interval:

1.blank.gif Choose ADMIN > System Management > Sever Settings > Issue Settings.

2.blank.gif To display the Issue status bar in the browser frame, check the Enable/Disable Issue Status Bar check box.

3.blank.gif In the Issue Status Bar Refresh Interval (seconds) field, enter a refresh value in seconds.

blank.gifValid values are 30 secs (default) to 300 secs (5 minutes).

4.blank.gif In the Certificate Expiry Threshold (days) field for all supported routers or an IoT FND application server, enter a value in days.

blank.gifValid value is 180 days (default) to 365 days.

Note: When the configured Certificate Expiry Threshold default date is met, a Major event, certificateExpiration, is created. When the Certificate has expired (>180 days), a Critical event, certificateExpired, is created.

Managing the Syslog

When IoT FND receives device events it stores them in its database and sends syslog messages to a syslog server that allows third-party application integration.

To configure Syslog forwarding:

1.blank.gif Choose ADMIN > System Management > Syslog Settings.

2.blank.gif In the Syslog Server IP Address field, enter the IP address of the Syslog server.

3.blank.gif In the Syslog Server Port Number field, enter the port number (default is 514) over which to receive device events.

blank.gifTo enable message forwarding to the Syslog server, click Enable Syslog Sending Events.

blank.gifTo disable message forwarding to the Syslog server, click Disable Syslog Sending Events.

For IoT FND cluster solutions, each server in the cluster sends events to the same Syslog server.
