Working with Router Views

Unless you select the Default to map view option in user preferences (see Setting User Preferences for User Interface Display) the Field Devices page defaults to the List view, which contains basic device properties. Select a router or group of routers in the Browse Devices pane (left pane) to display tabs in the main pane.

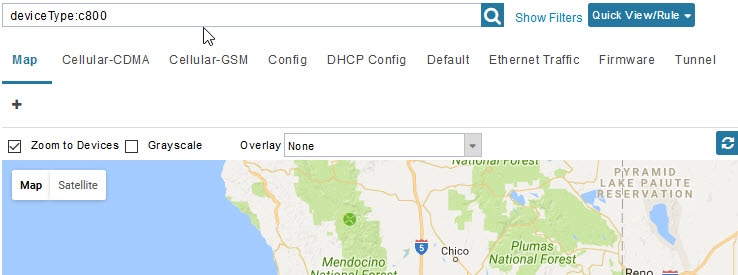

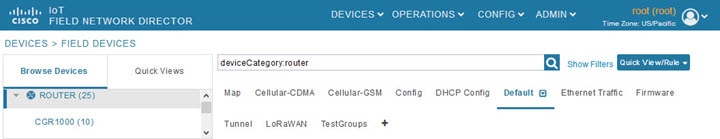

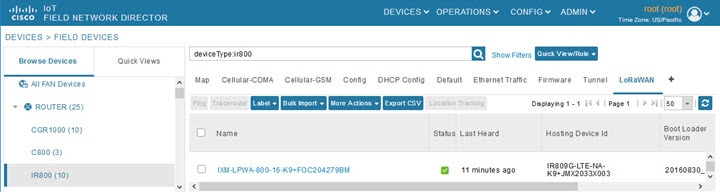

The router or routers you select determine which tabs display.

Note: Listed below are all the possible tabs:

■Cellular-CDMA

■Cellular-GSM

■Config

■DHCP Config

■Default

■Ethernet Traffic

■Firmware

■LoRaWAN

■Mesh

■Mesh Config

■Physical

■Tunnel

■WiMAX

Each of the tab views above displays different sets of device properties. For example, the Default view displays basic device properties, and the Cellular-GSM view displays device properties particular to the cellular network.

For information on how to customize router views, see Customizing Device Views.

For information about the device properties that display in each view, see Device Properties.

For information about common actions performed in these views (for example, adding labels and changing device properties), see Common Device Operations.

Viewing Routers in Map View

To view routers in Map view, check the Enable map check box in <user> > Preferences (see Setting User Preferences for User Interface Display), and then click the Map tab (see Map View) in the main pane.

Figure 2 Setting User Preferences for User Interface Display

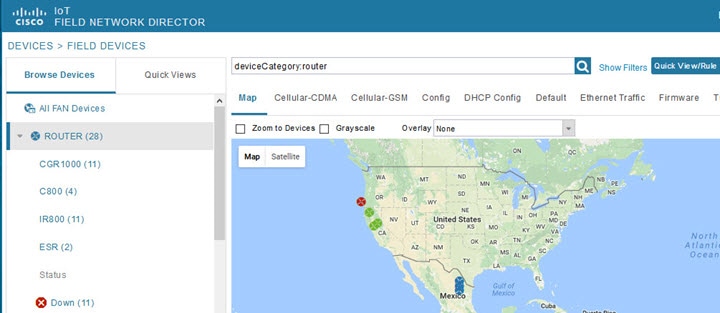

Figure 3 Map View

Note: You can view any RPL tree by clicking the device in Map view, and closing the information popup window.

The RPL tree connection displays data traffic flow as blue or orange lines, as follows:

■Orange lines indicate that the link is an uplink: data traffic flows in the up direction on the map.

■Blue lines indicate that the link is a downlink: data traffic flows in the down direction on the map.

Migrating Router Operating Systems

You can migrate CGR operating systems from CG-OS to IOS on the CONFIG > Firmware Update page, using the procedure in Performing OS Migrations.

Creating Work Orders

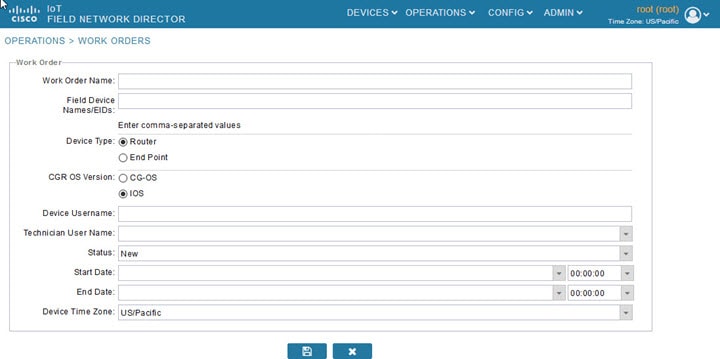

Create work orders in IoT FND to deploy field technicians for device inspections. Field technicians use the IoT-DM client to connect to IoT FND and download the work order.

Note: The Work Orders feature works with Release 3.0 or later of Device Manager (IoT-DM) only. See “Accessing Work Authorizations” in the Cisco Connected Grid Device Manager Installation and User Guide, Release 3.1 for integration instructions for CG-OS installations. For Cisco IOS installations, please refer to the Cisco Connected Grid Device Manager Installation and User Guide, Release 4.0 or later.

Note: Before you can create a work order, your user account must have Work Order Management permissions enabled. See Managing Roles.

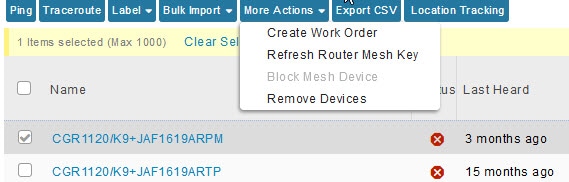

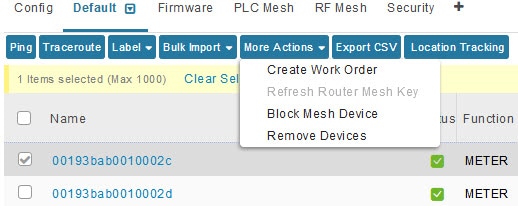

Figure 4 More Actions > Create Work Order

To create work orders for CGRs, select a router or group of routers in the Browse Devices pane, and then in Default view:

1. Check the check box of the faulty CGR.

2. Choose More Actions > Create Work Order.

The Operations > Work Orders page appears. IoT Field Network Director adds the names of the selected field device to the Field Device Names/EIDs field as a comma-separated list.

3. Follow the steps in Creating Work Orders to create the work order.

For more information about work orders, see Managing Work Orders.

Refreshing the Router Mesh Key

If you suspect unauthorized access attempts to a router, refresh its mesh key.

Caution: Refreshing the router mesh key can result in mesh endpoints being unable to communicate with the router for a period of time until the mesh endpoints re-register with the router, which happens automatically.

To refresh the router mesh key, select a router or group of routers in the Browse Devices pane, and then in Default view:

1. Check the check boxes of the of the routers to refresh.

2. Choose More Actions > Refresh Router Mesh Key from the drop-down menu

3. Click Yes to continue.

Managing Embedded Access Points on Cisco C819 and Cisco IR829 ISRs

IoT Field Network Director allows you to manage the following embedded access point (AP) attributes on C819 and IR829 ISRs:

Note: IoT Field Network Director can only manage APs when operating in Autonomous mode.

■Discovery

■AP configuration

■Periodic inventory collection

■Firmware update of APs when operating in Autonomous Mode

■Event Management over SNMP

Note: Not all C800 Series and IR800 routers have embedded APs. A C800 ISR features matrix is here. The IR800 ISR features matrix is here.

Using Router Filters

To refine the list of displayed routers, use the built-in router filters under ROUTERS in the Browse Devices pane or saved custom searches in the Quick View pane (left pane). For example, to display all operational routers, click the Up group under ROUTERS in the Browse Devices pane. Click a filter to insert the corresponding search string in the Search Devices field. For example, clicking the Up group under ROUTERS inserts the search string status:up in the Search Devices field.

Displaying Router Configuration Groups

At the DEVICES > Field Devices page, use the Browse Devices pane to display routers that belong to one of the groups (such as CGR1000) listed under ROUTERS.

Displaying Router Firmware Groups

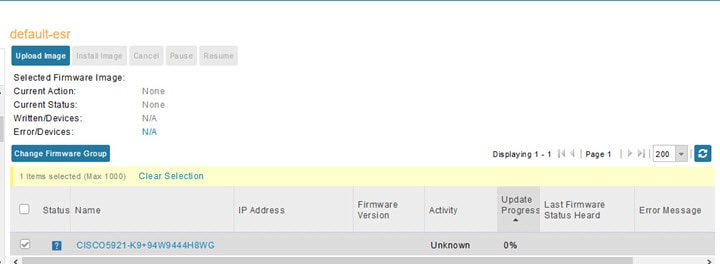

Select a router (such as ESR) from the Browse Devices pane to display all of that router type (such as CISCO5921) that belong to one of the Firmware Groups (select from top-level menu).

At the DEVICES > FIELD DEVICES page, use the Browse Devices pane to display

Displaying Router Tunnel Groups

Use the Browse Devices pane to display the router devices that belong to one of the groups listed under ROUTER TUNNEL GROUPS.

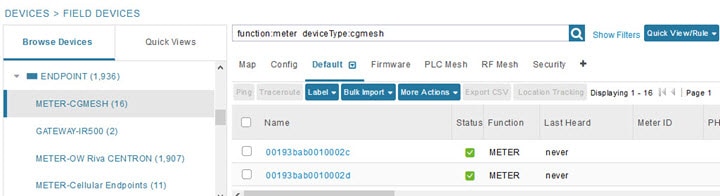

Viewing Endpoints in Default View

When you open the DEVICES > Field Devices page in Default view, IoT FND lists All FAN Devices such as Routers, Endpoints (meters, gateways) and IoT Gateway and their basic device properties.

When you select an ENDPOINT device or group in the Browse Devices pane, IoT FND provides tabs to display additional endpoint property views:

■Config

■Firmware

■Default

■PLC Mesh

■RF Mesh

■Group

■Security

■Cellular Endpoints

Each one of these views displays different sets of device properties.

For information on how to customize endpoint views, see Customizing Device Views.

For information about the device properties displayed in each view, see Device Properties.

For information about the common actions in these views (for example, adding labels and changing device properties) that also apply to other devices, see Common Device Operations.

Viewing Mesh Endpoints in Map View

To view mesh endpoints in Map view, select Enable map in <user> > Preferences, and click the Map tab.

Blocking Mesh Devices

If you suspect unauthorized access attempts to a mesh device, block it from accessing IoT FND.

Caution: If you block a mesh endpoint, you cannot unblock it using IoT FND. To re-register the mesh endpoints with IoT FND, you must escalate and get your mesh endpoints administrator involved.

To block a mesh endpoint device, in Default view (DEVICES > Field Devices > METER > CG-MESH):

1. Check the check boxes of the mesh devices to refresh.

2. Choose More Actions > Block Mesh Device from the drop-down menu.

3. Click Yes in the Confirm dialog box.

4. Delete the mesh endpoint from the NPS server to prevent the device from rejoining the mesh network.

Displaying Mesh Endpoint Configuration Groups

You can view available defined configuration groups for mesh endpoints at the CONFIG > Device Configuration page.

Displaying Mesh Endpoint Firmware Groups

You can use the Browse Devices pane to display the mesh endpoint devices that belong to one of the groups listed under ENDPOINTS.

DSCP Configuration

To configure DSCP on the IR509:

1. Choose CONFIG > Device Configuration.

2. Select Default-ir500 under ENDPOINT in the left-pane.

3. Choose Edit Configuration Template (Setting DSCP Markings on Ethernet Interface and Setting DSCP Markings on DCE and DTEs)

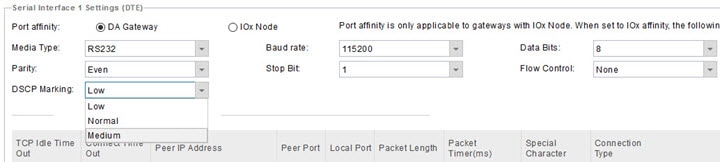

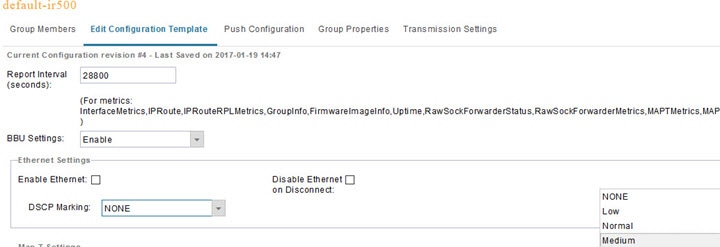

Figure 5 Setting DSCP Markings on Ethernet Interface

Figure 6 Setting DSCP Markings on DCE and DTEs

Configuration Notes:

■Set DSCP (QoS) markings for all interfaces - Ethernet, DTE and DCE. Options: Low Priority (0), Normal Priority (10), Medium Priority (18).

■DSCP is applied on interfaces. Default values for DCE and DTE are Low Priority (0). There are no default value for Ethernet. Traffic will flow unmarked if you do not configure any value on the Configuration Template.

■Only one Raw Socket session can flow through DCE and DTE interfaces at a time. The DSCP value will be the same throughout.

Raw Socket Configuration

To configure Raw Socket on the IR509:

1. Choose CONFIG > Device Configuration.

2. Select default-ir500 under ENDPOINT in the left-pane.

3. Choose Edit Configuration Template.

Configuration Notes:

■Update Raw Socket settings to support UDP sockets.

■Set stop bit values for serial devices. Values 1 to 4.

■Set minimum periodic notification interval for device. Values 1 to 5 minutes.

Managing NMS and Database Servers

In the Browse Devices pane, both NMS and Database servers appear under the All Server Devices heading.

In single NMS or Database server deployments, only one server appears under the NMS and/or Database Servers heading. In cluster deployments, multiple NMS servers appear under the NMS Servers heading. To filter the list pane:

■To display all NMS servers, click Devices > Servers in the top-level menu and then select NMS Servers within the Browse Devices pane. In single NMS server deployments, only one server appears under the NMS Servers heading. In cluster deployments, multiple NMS servers appear under the NMS Servers heading.

■To display all Database servers, click Devices > Servers in the top-level menu and then select Database Servers within the Browse Devices pane. In single-server deployments, only one database server appears under Database Servers. If a secondary database is configured, it also appears under the same entry.

■By default, only those NMS and Database Servers in an Up state display.

Selecting Devices

In List view, IoT FND lets you select devices on a single page and across pages. When you select devices, a yellow bar displays that maintains a count of selected devices and has the Clear Selection and Select All commands. The maximum number of devices you can select is 1000. Perform the following to select devices:

■To select all devices listed on a page, check the check box next to Name.

■To select devices across all pages, click Select All.

■To select a group of devices, check the check boxes of individual devices listed on a page and across pages. The count increments with every device selected, and selections on all pages are retained.

Customizing Device Views

IoT FND lets you customize device views. For List views you can:

■Add and delete tabs

■Specify the properties to display in the columns for each view (see Device Properties by Category for available properties)

■Change the order of columns

Adding Device Views

To add a custom device view tab to a device page in list view:

1. Click the + tab.

2. In the Add New View dialog box, enter the name of the new tab.

3. Add properties to the Active Columns list by selecting them from the Available Columns list, and then clicking the left arrow button, or dragging them into the Active Columns list.

4. Click Save View.

Editing Device Views

To edit a device view:

1. Select a device type under the Browse Devices pane, and click the Default drop-down arrow to open the Edit/Delete View.

2. In the Edit/Delete View dialog box:

a. To remove properties from the Active Columns list, select those properties and click the right-arrow button or drag them out of the Active Columns list.

b. To add properties to the Active Columns list, select those properties from the Available Columns list and click the left-arrow button, or drag them into position in the Active Columns list.

c. To change the sort order of the active columns, use the up- and down-arrow buttons, or drag them to the desired position.

To close the View without making any changes, select x icon. ==

3. Click disk image to Save View.

Deleting a Device View

To remove a View entirely

1. Select a device type under the Browse Devices pane, and click the Default drop-down arrow to open the Edit/Delete View.

2. In the Edit/Delete View dialog box, select the desired label in the Active Columns pane.

3. To delete the view, click the trash icon.

Viewing Devices in Map View

IoT FND provides a map view for visualizing device information based on geographic location. In Map view, IoT FND displays a Geographic Information System (GIS) map and uses GIS Map services to show device icons on the map based on the latitude and longitude information of the device. When this information is not defined for a device, IoT FND does not display the device on the map.

To view devices in Map view:

1. Choose <user> > Preferences (upper-right hand corner).

2. Select the Enable map check box, and click Apply.

3. Choose DEVICES > Field Devices.

4. Click the Map tab.

By default, IoT FND displays all devices registered in its database on the map. Depending on the zoom level of the map and the device count, individual device icons might not display. Instead, IoT FND displays device group icons.

To view individual devices, zoom in until the device icons appear. You can also click on a device to display a popup window that includes the Zoom In link to move the map display to the device level.

IoT FND displays the device count next to each device group or category in the Browse Devices pane (left pane).

A popup window displays listing basic device or group information.

You can also ping the device, perform a trace route, and create a work order from this window.

5. Close the Device popup window to view the RPL tree associated with the device. See Configuring RPL Tree Polling

The RPL tree connection displays as blue or orange lines; where blue indicates that the link is down, and orange indicates that the link is up.

6. Click the refresh button ( ) to update the Map view.

Configuring Map Settings

In Map view, IoT FND lets you configure these settings for maps:

■Automatically zoom to devices

■Display the map in grayscale

■Default map location (set to North America by default)

To configure map settings:

1. Choose DEVICES > Field Devices.

2. Click the Map tab.

3. Click OK.

Changing the Sorting Order of Devices

To change the sorting order of devices, click the arrowhead icon in the column heading to list the entries in an ascending (upward pointing) or descending manner (downward pointing).

Exporting Device Information

IoT FND lets you export the device properties of the selected devices in List view. IoT FND exports only properties in the current view.

To export device information displayed in the current view, in List view:

1. Select the devices to export by checking their corresponding check boxes.

2. Click Export CSV.

3. Click Yes in the confirmation dialog box.

IoT FND creates a CSV file, export.csv, containing the information that displays in the List view pane. By default, IoT FND saves this file to your default download directory. When a file with the same name exists, IoT FND adds a number to the default filename (for example, export-1.csv and export-2.csv).

The export.csv file consists of one header line defining the exported fields followed by one or more lines, each representing a device. Here is an example of an export of selected devices from the Field Devices page:

Pinging Devices

When troubleshooting device issues, ping registered devices to rule out network connectivity issues. If you can ping a device, it is accessible over the network.

To ping selected devices, in List view:

1. Check the check boxes of the devices to ping.

Note: If the status of a device is Unheard, a ping gets no response.

2. Click Ping button in heading above List view entries.

A window displays the ping results. If you check the check box for Auto Refresh, IoT FND pings the device at predefined intervals until you close the window. Click the Refresh button (far right) to ping the device at any time.

3. To close ping display, click X icon.

Tracing Routes to Devices

The Traceroute command lets you determine the route used to reach a device IP address.

Note: You cannot use the Traceroute command with the Itron OpenWay RIVA CAM module or the Itron OpenWay RIVA Electric devices and Itron OpenWay RIVA G-W (Gas-Water) devices.

To trace routes to selected devices, in List view:

1. Check the check boxes of the devices to trace.

Note: You can only trace routes to devices registered with IoT FND. If the status of a device is Unheard, you cannot trace the route to it.

2. Click Traceroute.

A window displays with the route-tracing results.

Expand the Result column to view complete route information.

Click the Refresh button to resend the Traceroute command. Check the Auto Refresh check box to resend the Traceroute command at predefined intervals until you close the window.

3. Click X to close the window.

Managing Device Labels

You use labels to create logical groups of devices to facilitate locating devices and device management.

Managing Labels

You use the Label Management window to display all custom labels, label properties, and search for custom labels.

To manage labels, in the Browse Device pane on any devices page:

1. Hover your mouse over LABELS and click the edit icon ().

2. Click Update to accept label property changes or Cancel to retain label properties.

3. Click Close.

Adding Labels

To add labels to selected devices, in List view:

1. Check the check boxes of the devices to label.

Choose Label > Add Label.

2. Enter the name of the label or choose an existing label from the drop-down menu.

3. Click Add Label.

Tip: You can add multiple labels to one device.

4. Click OK.

To add labels in bulk, see Adding Labels in Bulk.

Removing Labels

To remove labels from selected devices, in List view:

1. Check the check boxes of the devices from which to remove the label.

2. Choose Label > Remove Label.

3. Click OK.

To remove labels in bulk, see Removing Labels in Bulk.

Removing Devices

Caution: When you remove routers, IoT FND returns all the leased IP addresses associated with these devices to the Cisco Network Registrar (CNR) server and removes the corresponding tunnels from the head-end routers.

To remove devices, in List view:

1. Check the check boxes of the devices to remove.

2. Choose More Actions > Remove Devices.

3. Click Yes.

Displaying Detailed Device Information

IoT FND keeps detailed information about every device in the system. To access detailed information about a device, click its name or EID.

■Detailed Device Information Displayed

■Actions You Can Perform from the Detailed Device Information Page

Detailed Device Information Displayed

■Server Information

■Head-end Router, Router, and Endpoint Information

Note: IoT FND automatically refreshes the detailed device information without the need to reload the page.

Server Information

Select DEVICES > Servers and click the Name of the server to open a page to display the following information about the NMS servers.

Head-end Router, Router, and Endpoint Information

Select DEVICES > Field Devices and then select a device type (router, head-end router or endpoint) from the Browse Devices pane. Then, click on the Name of a specific system from the device list to see the available information (such as Device Info, Events, Config Properties, etc.) for that system type as shown in the screen shot below.

A detailed summary for each device is summarized in the table below.

Actions You Can Perform from the Detailed Device Information Page

Depending on device type, the Detailed Device Information page lets you perform the actions summarized in the table below:

Using Filters to Control the Display of Devices

Depending on your deployment, the number of devices managed by IoT FND can be very large (IoT FND supports up to 10 million devices). To facilitate locating and displaying devices in Map View and List view, IoT FND provides filters and lets you add customized filters. Filters are listed in the Browse Devices and Quick View tabs.

Browse Devices Filters

Built-in device filters display in the Browse Devices pane. These filters control the display of devices in List and Map views. For every filter entry, IoT FND provides a device count in parenthesis. IoT FND automatically updates the device count without having to reload the page. In the example in Built-in Filter to Search for Mesh Endpoints, the top-level Endpoints label is selected, which inserts the following built-in filter in the Search Devices field: deviceType:cgmesh firmwareGroup:default-cgmesh.

Figure 8 Built-in Filter to Search for Mesh Endpoints

Creating and Editing Quick View Filters

The Quick View pane displays custom filters. Click a filter in this pane to view the devices that fulfill the search criteria defined in the filter.

Creating a Quick View Filter

To create a Quick View filter:

1. On any device page, click Show Filters and add filters to the Search field.

For more information about adding filters, see Adding a Filter.

2. From the Quick View/Rule drop-down menu, choose Create Quick View.

3. In the Create Quick View dialog box that opens, enter a Name for the view.

4. Click the disk icon to save the view. To close without saving, click the x.

Editing a Quick View Filter

To edit or delete a Quick View filter:

1. Click the Quick View tab and select the filter to edit.

2. From the Quick View/Rule drop-down menu, choose Edit Quick View.

3. In the Update Quick View dialog box, make the necessary modifications, and then click Save.

4. To delete the Quick View, click the Delete button.

Adding a Filter

To add a filter to the Search field:

1. If the Add Filter fields are not present under the Search field, click Show Filters.

2. From the Label drop-down menu, choose a filter.

The drop-down menu defines filters for all device information categories. For more information about these categories, see Working with Router Views.

3. From the Operator (:) drop-down menu, choose an operator.

For more information about operators, see Filter Operators. If you choose a numeric metric from the Label menu (for example, Transmit Speed), you can specify a range of values in the filter you are adding. For date/time filters, “between” is the operator. Use the calendar buttons to specify the date range for the filter.

4. In the Value field, enter a value to match or a range of values in the case of numeric metrics or select an available value from the drop-down menu.

5. Click the Add (+) button to add the filter to the existing filter syntax in the Search field.

6. (Optional) Repeat the process to continue adding filters.

Filter Operators

Filter Operators describes the operators you can use to create filters.

Search Syntax

IoT FND supports this simple query language syntax:

Search := filter [filter...]

Filter := fieldname operator value

operator := < | <= | > | >= | <> | = | :

Note the following when creating filters to search fields:

■Each field has a data type (String, Number, Boolean, and Date).

■String fields can contain a string, and you can search them using string equality (“:”).

■Numeric fields can contain a decimal number (stored as a double-precision float), and you can search them using the numeric comparison operators (“>”, “>=”, “<“, “<=”, “<>”).

■Boolean fields can contain the strings “true” or “false”.

■Date fields can contain a date in this format: yyyy-MM-dd HH:mm:ss:SSS. You can search dates using numeric comparison operators.

Filter Examples describes filter examples.

Performing Bulk Import Actions

In IoT FND, you can perform these bulk import device actions:

■Adding Devices in Bulk

■ Adding HERs to IoT FND

■Changing Device Properties in Bulk

■Adding Labels in Bulk

■Removing Labels in Bulk

Adding Devices in Bulk

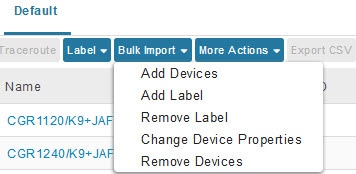

The Add Devices option in the Bulk Import drop-down menu lets you add routers and head-end routers to IoT Field Network Director in bulk using a CSV file.

To add devices in bulk:

1. On any device page, from the Bulk Import drop-down menu, choose Add Devices.

2. In the Add Devices window, click Browse to locate the CSV file containing the device information to import, and then click Open.

For more information about adding HERs, see Adding HERs to IoT FND.

For more information about adding routers, see Adding Routers to IoT FND.

Note: For routers, you can also use the Notice-of-Shipment XML file provided by your Cisco partner to import routers.

3. Click Add.

4. Click Close.

Adding HERs to IoT FND

Configuring HERs Before Adding them to IoT FND

Before you can add an HER to IoT FND, configure the HER to allow management by IoT FND using Netconf over SSH as follows:

Where <her_hostname> is the hostname or IP address of the IoT FND server, and <domain.com> is the name of the domain name where the HER and IoT FND reside. The time-out value of 120 is required for large networks.

After configuring the HER to allow management by IoT FND, ensure that you can:

■Ping the management interface of the HER.

■Access the management interface of the HER over SSH and vice versa.

Adding HERs

To add HERs, create a CSV file like the following example that consists of a header line followed by one or more lines, each representing an HER:

HER Import Fields describes the fields to include in the CSV file.

Note: For device configuration field descriptions, see Device Properties.

When you add an HER, IoT FND displays its status as Unheard. IoT FND changes the status to Up after it polls the HER. IoT FND polls HERs in the background every 15 minutes to collect device metrics, so it should take no more than 15 minutes for the status of HERs to change to Up after you add them to IoT FND. However, you can trigger the polling of HERs by clicking Refresh Metrics (Refresh Metrics).

Adding Routers to IoT FND

Typically, when adding routers to IoT FND, you use the Notice-of-Shipment XML file sent to you by your Cisco partner. This file contains an R record for every router shipped to you. This is an example of an R record for a CGR:

Note: For a list of all Device Properties that you can configure using the XML configuration template go to Device Properties.

Router Import Fields describes the router properties defined in the R record used in this example:

Mapping Routers to HERs

After you determine the Router-to-HER mapping, which is essential for tunnel provisioning, you can configure the mapping in IoT FND in one of two ways:

■Adding the mapping information to every router record in the Notice-of-Shipment XML file.

■Creating a CSV file specifying the mapping of routers to HERs.

Adding Router-to-HER Mappings to the Notice-of-Shipment XML File

To map a router to an HER, add the tunnelHerEid and ipsecTunnelDestAddr1 HER properties to the router record in the Notice-of-Shipment XML file.

■The tunnelHerEid property specifies the EID of the HER

■The ipsecTunnelDestAddr1 property specifies the tunnel IP address of the HER.

For example:

Adding Router-to-HER Mappings to a CSV File

To map routers to HERs using a CSV file, add a line for every router-to-HER mapping. The line must specify the EID of the router, the EID of the corresponding HER, and the tunnel IP address of the HER, as in this example for a CGR:

Removing Devices in Bulk

You can remove devices in bulk using a CSV file listing the EIDs of the devices to remove.

Caution: When you remove routers, IoT FND returns all the leased IP addresses associated with these devices to CNR and removes the corresponding tunnels from the HERs.

To remove devices in bulk:

1. Choose Devices > Device Type.

2. Choose Bulk Import > Remove Devices.

3. Click Browse to locate the CSV file containing the devices to delete, and then click Choose.

This is an example of the CSV format expected. In this case, the CSV file specifies three CGRs and one HER:

4. Click Remove.

The Status section of the Remove Devices window displays the status of the operation. The History section describes additional information about the operation. If there was any failure, click the corresponding link in the Failure# column to get more information about the error.

5. Click Close when done.

Changing Device Properties in Bulk

IoT FND lets you configure device properties in bulk using a CSV file. For example, this CSV file changes the latitude and longitude for the specified HER:

To configure device properties in bulk:

1. On any device page, choose Bulk Import > Change Device Properties.

2. Click Browse to locate the CSV containing the list of devices and corresponding properties to configure, and then click Open.

3. Click Change.

4. Click Close when done.

Adding Labels in Bulk

You can group devices logically by assigning them labels. Labels are independent of device type, and devices of any type can belong to any label. A device can also have multiple labels. Unlike configuration groups and firmware groups, there are no policies or metadata associated with labels.

IoT FND lets you add labels in bulk using a CSV file. In the CSV file, specify the list of devices to be labeled.

To add device labels:

1. On any device page, choose Bulk Import > Add Label.

2. Click Browse to locate the CSV file that contains the list of devices to label, and then click Open.

This is an example of the expected CSV format:

3. In the Label field, enter the label or choose one from the drop-down menu.

4. Click Add Label.

The label appears in the Browse Devices tab (left pane) under LABELS.

5. Click Close when done.

Removing Labels in Bulk

IoT FND lets you delete labels in bulk using a CSV file.

To delete device labels:

1. On any device page, choose Bulk Import > Remove Label.

2. Click Browse to locate the CSV containing the list of devices to remove the label from, and then click Open.

3. From the drop-down menu, choose the label to remove.

4. Click Remove Label.

5. Click Close.

Viewing and Editing Rules

To view rules:

1. Choose CONFIG > Rules.

IoT FND displays the list of rules stored in its database. Rule Fields describes the fields displayed in the list.

2. To edit a rule, click its name.

For information on how to edit rules, see Creating a Rule.

Creating a Rule

To add a rule:

1. Choose CONFIG > Rules.

2. Click Add.

3. Enter a name for the rule.

Note: If you enter invalid characters (for example, “=”, “+”, and “~”), IoT FND displays a red alert icon, highlights the field in red, and disables the OK button.

4. To activate the rule, check the Active check box.

5. In the Construct Rule panel, enter the syntax of the rule.

Use the same syntax used for creating filters. See Search Syntax.

6. In the Create Rule panel, check the check box of at least one action:

7. Click the disk icon to save changes.

Activating Rules

IoT FND only applies rules that you activate.

To activate a rule:

1. Choose CONFIG > Rules.

2. Check the check boxes of the rules to activate.

3. Click Activate.

4. Click Yes to activate the rule.

5. Click OK.

Deactivating Rules

If you deactivate a rule, IoT FND does not apply it.

To deactivate rules:

1. Choose CONFIG > Rules.

2. Check the check boxes of the rules to deactivate.

3. Click Yes to deactivate the rule.

4. Click OK.

Deleting Rules

To delete rules:

1. Choose CONFIG > Rules.

2. Check the check boxes of the rules to delete.

3. Click Delete.

4. Click Yes to delete the rule.

5. Click OK.

Configuring Device Group Settings

IoT FND uses groups to manage devices in bulk. When you add routers to IoT Field Network Director, IoT FND automatically adds them to the appropriate default ROUTER configuration groups, for example, default-cgr1000. When you add MEs (meters and range extenders), IoT FND adds them to the default ENDPOINT configuration group, default-cgmesh.

■Creating Device Groups

■Changing Device Configuration Properties

■Moving Devices to Another Group

■Listing Devices in a Configuration Group

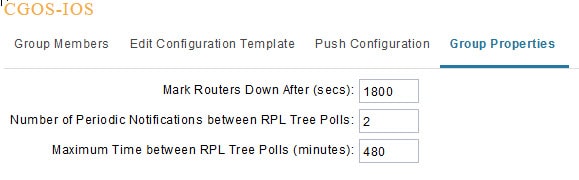

■Configuring Periodic Inventory Notification and Mark-Down Time

■Renaming a Device Configuration Group

■Deleting Device Groups

Creating Device Groups

By default, IoT FND defines the following device groups listed on the CONFIG > Device Configuration page left tree as follows:

Each default group defines a default configuration template that you can push to all devices in that group. However, if you need to apply a different template to a group of devices, create a new group and modify its default configuration template as needed.

Note: You cannot delete the default groups, but you can change their names, although we do not recommend it. Also, the default ROUTER and ENDPOINT groups use the same icon, while custom groups use a different icon. See IoT FND Icons for icon definitions.

■Creating ROUTER Groups

■Creating Endpoint Groups

Creating ROUTER Groups

Note: CGRs, IR800s, and C800s can coexist on a network; however, you must create custom templates that includes all router types.

To create a ROUTER configuration group:

1. Choose CONFIG > Device Configuration.

2. Select the default Configuration Group: default-cgr1000 default-ir800. or default-c800

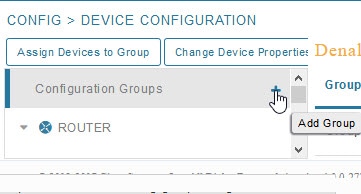

3. Click the + icon to open the Add Group entry window.

4. Enter the name of the group. The Device Category auto-fills by default.

Note: If you enter invalid characters (for example, “=”, “+”, and “~”), IoT FND displays a red alert icon, highlights the field in red, and disables the Add button.

5. Click Add.

The new group entry appears in the ROUTER list (left pane).

■To change the name of a group, see Renaming a Device Configuration Group.

■To remove a group, see Deleting Device Groups.

Creating Endpoint Groups

To create an Endpoint configuration group:

1. Choose CONFIG > Device Configuration.

2. Select the default group (default-cgmesh, default-act, default-cam)

3. Click the + icon to open the Add Group entry panel.

4. Enter a name for the group. The device category (such as endpoint or router) auto-populates.

Note: If you enter invalid characters (for example, “=”, “+”, and “~”), IoT FND displays a red alert icon, highlights the field in red, and disables the OK button.

5. Click Add.

The new group entry appears in the ENDPOINT list (left pane).

■To change the name of a group, see Renaming a Device Configuration Group.

■To remove a group, see Deleting Device Groups.

Changing Device Configuration Properties

You can change the configurable properties of devices by uploading a Device Properties CSV file with modified values for the devices.

To change device configuration properties:

1. Choose CONFIG > Device Configuration.

2. Click Change Device Properties.

3. Click Browse and select the Device Properties CSV or XML file to upload.

4. Click Change.

5. Click Close when done.

■For a list of configurable device properties in IoT FND, see Device Properties.

Moving Devices to Another Group

There are two ways to move devices from one configuration group to another:

■Moving Devices to Another Configuration Group Manually

■Moving Devices to Another Configuration Group in Bulk

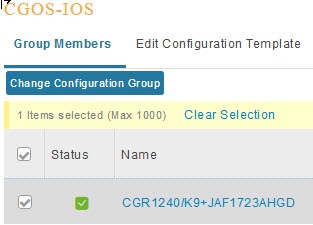

Moving Devices to Another Configuration Group Manually

To move devices to another configuration group:

1. Choose CONFIG > Device Configuration.

2. Select a group from the list of configuration groups (left pane).

3. Select the check box of the devices to move.

4. Click Change Configuration Group.

5. From the drop-down menu in the dialog box, choose the target group for the devices.

6. Click Change Config Group.

7. Click OK.

Moving Devices to Another Configuration Group in Bulk

To move a large number of devices from one group to another, you can import a CSV file containing the list of the devices to move.

For example, this CSV file specifies the EIDs of three CGRs to move:

To move devices to another configuration group in bulk:

1. Choose CONFIG > Device Configuration.

2. Click Assign Devices to Group.

3. Click Browse to locate the CSV or XML file containing the list of devices to move, and then click Open.

4. From the Group drop-down menu, choose the target group for the devices.

5. Click Assign to Group.

6. Click OK.

Listing Devices in a Configuration Group

To list the devices in a configuration group:

1. Choose CONFIG > Device Configuration.

2. Select a group from the list of configuration groups (left pane).

3. To get more information about a device in the list, click its EID (for example: CGR1240/K9+JAF1723AHGD).

Configuring Periodic Inventory Notification and Mark-Down Time

You can change the periodic inventory notification interval for a configuration group of routers without affecting the logic that IoT FND uses to mark those routers as Down. However, for this to happen, you must enable the periodic configuration notification frequency for the router group so that it is less than the mark-down timer.

You can configure the mark-down timer by clicking the Group Properties tab for the group and modifying the value of the Mark Routers Down After field.

■Configuring Periodic Inventory Notification

■Configuring the Mark-Down Timer

Configuring Periodic Inventory Notification

To configure the periodic inventory notification interval for a ROUTER configuration group:

1. Click CONFIG > Device Configuration.

2. Select a ROUTER configuration group.

3. Click Edit Configuration Template.

4. This step is OS-specific:

5. Click disk icon to save changes.

Configuring the Mark-Down Timer

To configure the mark-down timer for a ROUTER configuration group:

1. Click CONFIG > Device Configuration.

2. Select a ROUTER configuration group.

3. Click Group Properties.

4. In the Mark Routers Down After field, enter the number of seconds after which IoT FND marks the routers as down if they do not send periodic configuration notifications (heartbeats) to IoT FND during that time.

Note: We recommend a 1:3 ratio of heartbeat interval to mark-down timer.

5. Click the disk icon to save changes.

6. Ensure that the periodic-configuration notification frequency in the configuration template is less than the value you entered the Mark Routers Down After field:

a. Click Edit Configuration Template.

b. Ensure that the value of the periodic-configuration notification frequency parameter is less than the Mark Routers Down After value.

Use a notification value that is at most one-third of the mark-down value. For example, if you choose a mark-down value of 3600 seconds (60 minutes), set the periodic-configuration notification frequency parameter to 20 minutes:

Note: The ability to control the periodic inventory notification interval and the periodic-configuration notification frequency applies to CGR image version 3.2.

Renaming a Device Configuration Group

To rename a device configuration group:

1. Choose CONFIG > Device Configuration.

2. Select a group from the list of configuration groups (left pane).

3. Hover over the name of the group in the list. A pencil icon appears.

4. Click on the pencil icon to open the Edit Group panel.

5. Enter the new name in the Rename Group dialog box, and then click OK.

Note: If you enter invalid characters (for example, “=”, “+”, and “~”), IoT FND displays a red alert icon, highlights the field in red, and disables the OK button.

Deleting Device Groups

Note: Before deleting a group, move all devices in that group to another group. You cannot delete a non-empty group.

To delete a configuration group:

1. Choose CONFIG > Device Configuration.

2. Select a group from the list of configuration groups (left pane).

3. Ensure that the group is empty.

4. Click Delete Group ().

The Delete icon displays as a red minus sign when you hover over the name of the group in the list.

5. Click Yes to confirm, and then click OK.

Synchronizing Endpoint Membership

Endpoints maintain information about the IoT FND group to which they belong. If the group information changes, the endpoint becomes out of sync. For example, if you rename an endpoint group, the members of the group might not be modified immediately (for example, due to a packet loss). If a device is out of sync, any operation you perform on the group through IoT FND does not reach the device. To ensure that the endpoints remain in sync, use the Sync Membership button to push the group information to group members.

Note: Devices sync for the first time after they register with IoT FND.

To send group information to endpoints:

1. Choose CONFIG > Device Configuration.

2. Select an ENDPOINT group (left pane).

3. In the Group Members pane, click on the name of an endpoint.

4. Click Sync Config Membership button on the page that appears.

5. When prompted, click Yes to confirm synchronization.

6. Click OK.

Editing the ROUTER Configuration Template

IoT FND lets you configure routers in bulk using a configuration template. When a router registers with IoT FND, IoT Field Network Director pushes the configuration defined in the default template to the device and commits the changes to the router startup configuration. IoT FND then retrieves the running configuration from the router before changing the device status to Up.

To edit a ROUTER group configuration template:

1. Choose CONFIG > Device Configuration.

2. Under CONFIGURATION GROUPS (left pane), select the group with the template to edit.

3. Click Edit Configuration Template.

4. Edit the template.

The template is expressed in FreeMarker syntax.

Note: The router configuration template does not validate the configuration data entered. Verify the configuration before saving.

5. Click Save Changes.

IoT FND commits the changes to the database and increases the template version number.

Editing the AP Configuration Template

IoT FND lets you configure APs in bulk using a configuration template. When the AP registers with IoT FND, it pushes the configuration defined in the default template to devices and commits the changes to the startup configuration. IoT FND then retrieves the running configuration from the AP before changing the device status to Up.

To edit a AP group configuration template:

1. Choose CONFIG > Device Configuration.

2. Under CONFIGURATION GROUPS (left pane), select the C800 device group with embedded AP devices with the template to edit.

3. Click Edit AP Configuration Template.

4. Edit the template.

The template is expressed in FreeMarker syntax. For more information about FreeMarker.

AP TEMPLATE EXAMPLE

Note: The AP configuration template does not validate the configuration data entered. Verify the configuration before saving.

5. Click Save Changes.

IoT FND commits the changes to the database and increases the template revision number.

Enabling Dual PHY Support

You can configure CGR master and slave interfaces. For more information about configuring a dual-PHY WPAN interface, refer to Cisco Connected Grid WPAN Module for CGR 1000 Series Installation and CG-Mesh Configuration Guide (Cisco IOS).

Enabling Router GPS Tracking

You can enable GPS traps to trigger an event if the router moves a distance threshold, after a time threshold, or both. For example, you can configure stationary, pole-top CGR monitoring for a distance threshold, to detect movement from theft or pole incident; for mobile routers, set both thresholds to determine distance over time. The recommended distance threshold is 100 feet (30 m).

To enable GPS traps, uncomment these lines in the default configuration template.

Tip: Because GPS traps only generate Informational logs, we recommend that you create a rule-based event with high severity (such as CRITICAL) to inform the administrator of router movement. An example of this type of rule definition is: configGroup:name eventName:deviceLocChanged (see Creating a Rule).

Configuring SNMP v3 Informational Events

For Cisco IOS routers you configure SNMP v3 Informational Events to replace the default SNMP v3 traps. In CG-OS by default, SNMP v3 traps are configured for any IoT FND event-related changes that generate a trap on the router. IoT FND maps these traps to the corresponding event. For Cisco IOS routers, converting these SNMP v3 traps to SNMP v3 Informational Events sends an acknowledgment to the router for every event received from the router. The router then verifies that the trap was received by IoT FND. To enable SNMP v3 Informational Events, uncomment the following lines in the default configuration file and push the new configuration file to all router(s) in the group:

Editing the ENDPOINT Configuration Template

To edit an ENDPOINT configuration template:

1. Choose CONFIG > Device Configuration.

2. Under CONFIGURATION GROUPS (left pane), select the ENDPOINT group with the template to edit.

3. Click Edit Configuration Template.

4. Edit the template.

For example, in the Report Interval field, you can enter the number of seconds between data updates. By default, mesh endpoints send a new set of metrics every 28,800 seconds (8 hours).

You can change the following values on the Edit Configuration Template tab:

5. Click Save Changes.

IoT FND commits the changes to the database and increases the version number.

Pushing Configurations to Routers

Note: CGRs, C800s, IR800s, and ISR 800s can coexist on a network; however, you must create custom configuration templates that includes both router types.

To push the configuration to routers:

1. Choose CONFIG > Device Configuration.

2. Select the group or subset of a group to push the configuration to in the CONFIGURATION GROUPS pane.

3. Click the Push Configuration tab to display that window.

4. In the Select Operation drop-down menu, choose Push Router Configuration.

For C800 and IR800 groups with embedded AP devices, choose Push AP Configuration to push the AP configuration template.

5. In the Select Operation drop-down menu, choose Push Endpoint Configuration. Click Start.

6. Click Start.

The Push Configuration page displays the status of the push operation for every device in the group. If an error occurs while pushing configuration to a device, the error and its details display in the relevant columns.

In the Status column, one of these values appear:

Tip: To refresh the status information, click the Refresh button.

Enabling CGR SD Card Password Protection

Password protection for the SD card in the CGR helps prevent unauthorized access and prevents transference of the CGR SD card to another system with a different password.

Note: This does not apply to C800s or IR800s.

The Device Info pane displays CGR SD card password protection status in the Inventory section. The Config Properties tab displays the SD card password in the Router Credentials section.

To enable CGR SD card password protection:

1. Choose CONFIG > Device Configuration.

2. Select the CGR group or CGRs to push the configuration to in the Configuration Groups pane.

3. Select the Push Configuration tab.

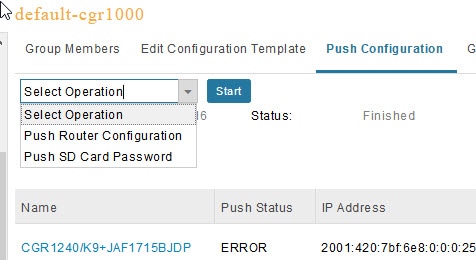

4. In the Select Operation drop-down menu, choose Push SD Card Password.

5. Click Start. Click Yes to confirm action or No to stop action.

6. Select SD Card protection > Enable.

7. Select the desired protection method:

8. Click Push SD Card Password.

Pushing Configurations to Endpoints

To push configuration to mesh endpoints:

1. Choose CONFIG > Device Configuration.

2. Select the group or subset of a group to push the configuration to in the ENDPOINT list.

3. Click the Push Configuration tab.

Note: The Push Configuration tab supports a subnet view for cgmesh Endpoints that summarizes:

4. In the Select Operation drop-down menu, choose Push Endpoint Configuration.

5. Click Start. Confirm action by clicking Yes button or stop the action by clicking the No button.

The Push Configuration page displays the status of the push operation for every device in the group. If an error occurs while pushing configuration to a device, the error and its details display in the relevant columns.

In the Status column, one of these values appear:

To refresh the status information, click the Refresh button.

Installing a GOS

Depending on CGR factory configuration, a GOS may be present in the VM instance. The GOS installs with the Cisco IOS firmware bundle (see Router Firmware Updates). The GOS, Hypervisor, and Cisco IOS all upgrade when you perform a Cisco IOS image bundle installation or update.

After any Cisco IOS install or upgrade, when IoT FND discovers a GOS, it checks if the initial communications setup is complete before it performs the required setup. The CGR must have a DHCP pool and Gigabit Ethernet 0/1 interface configured to provide an IP address and act as the gateway for the Guest OS. See the Cisco 1000 Series Connected Grid Routers Configuration Guides web portal for information on configuring the CGR.

Note: if the router is configured with Guest-OS CLI during the router’s registration with FND, FND detects that Guest-OS is running and will populate a new Guest OS tab on the Device Info page for that particular router.

Restarting a GOS

From that page, we could also trigger a Guest-OS restart by selecting the Restart GOS button and selecting Yes to confirm restart. Once the Guest-OS is restarted a pop-up with the status of the operation would be seen on the UI and messages would be logged in the server.log file.

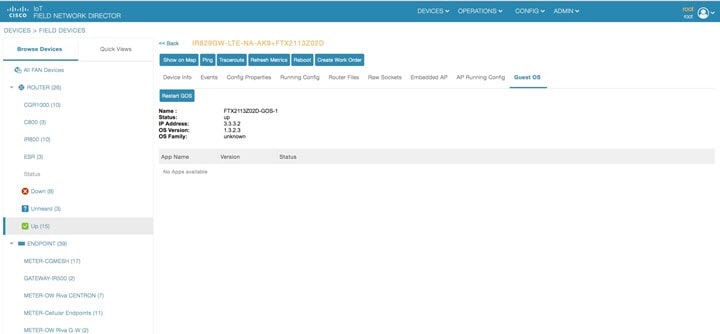

Figure 9 DEVICES > Field Devices Information Page Showing Guest OS tab and Restart GOS Button

This section includes the following topics:

■ Pushing GOS Configurations

Installing a GOS

Depending on CGR factory configuration, a GOS may be present in the VM instance. The GOS installs with the Cisco IOS firmware bundle (see Router Firmware Updates). The GOS, Hypervisor, and Cisco IOS all upgrade when you perform a Cisco IOS image bundle installation or update.

After any Cisco IOS install or upgrade, when IoT FND discovers a GOS, it checks if the initial communications setup is complete before it performs the required setup. The CGR must have a DHCP pool and Gigabit Ethernet 0/1 interface configured to provide an IP address and act as the gateway for the Guest OS. See the Cisco 1000 Series Connected Grid Routers Configuration Guides web portal for information on configuring the CGR.

if the router is configured with Guest-OS CLI during the router’s registration with FND, FND would detect that Guest-OS is running and will populate a new Guest OS tab on the Device Info page for that particular router)DEVICES. From that page, we could also trigger a Guest-OS restart. Once the Guest-OS is restarted a pop-up with the status of the operation would be seen on the UI and messages would be logged in the server.log file.

Pushing GOS Configurations

You can push the GOS configuration to the CGR using the IoT FND config template. This is the only way to configure the DHCP pool.

File Types and Attributes

Two types of EEM scripts are used on the router: an embedded applet, and Tool Command Language (TCL) scripts that execute on the router individually. You can upload and run new EEM TCL scripts on the router without doing a firmware upgrade. EEM files upload to the eem directory in router flash memory. These scripts display in the Import File page File Type column as eem script. You must edit the configuration template file to activate the EEM TCL scripts (see Editing the ROUTER Configuration Template). This feature works with all router OS versions currently supported by IoT FND.

You can also transfer other file types to the router for better file management capability. You must first import the files to IoT FND to upload files to the router. IoT FND processes the file and stores it in the IoT FND database with the following attributes:

■Filename

■Description

■Import Date/Time

■Size

■Sha1 Checksum

■MD5 Checksum

■File Content

Adding a File to IoT FND

To add a file to IoT FND:

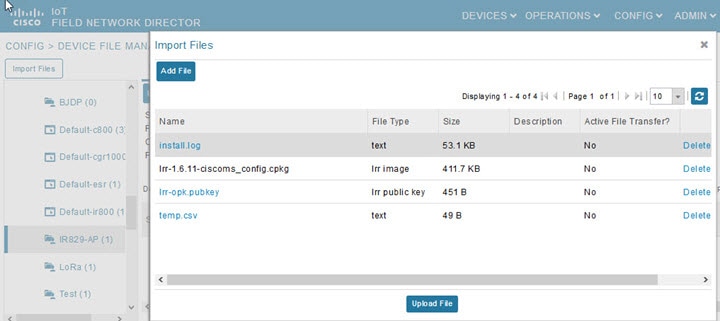

1. On the CONFIG > Device File Management page, click Import Files or Upload (Actions tab) to open a selected file from List dialog box (far-left panel).

2. Click Add File and browse to the file location.

Note: The maximum import file size is 200 MB.

3. (Optional) Type a description for the file.

4. Click Add File.

When the upload completes, the file name displays in the Select File From List dialog box.

5. Repeat steps 2 through 4 to add another file, or see Transferring Files to upload the file to the selected device or group, or close the Select File From List dialog box.

Note: At the Select File from List dialog box, you can also delete imported files from the IoT FND database if the file is not in an active file transfer. This action only removes the file from the IoT FND database, not from any routers that contain the file. Click the Name hyperlink to view uploaded text files (file size must be less than 100KB).

Deleting a File from IoT FND

You can also delete imported files from the IoT FND database if the file is not in an active file transfer. This action only removes the file from the IoT FND database, not from any routers that contain the file. Click the Name hyperlink to view uploaded text files (file size must be less than 100KB).

To delete a file to IoT FND:

1. On the CONFIG > Device File Management page, select a file from List dialog box (far-left panel).

2. At the Actions tab, click Delete button.

3. At the Delete from List panel, select a file and click Delete File.

Transferring Files

You can transfer files from the NMS database to any firmware, configuration or tunnel provisioning group, or to individual routers. The maximum import file size is 200 MB.

To perform a file transfer:

1. On the CONFIG > Device File Management page, select the group to transfer the file to from the Browse Devices left pane.

2. Click Import Files or Upload on the Actions tab. The Select File from List dialog box displays.

3. Select the file to transfer to the routers in the selected group.

4. Click Upload File.

The Upload File to Routers dialog box displays.

5. Check the check boxes of the routers to which you want to transfer the file.

6. Click Upload.

If there is no file transfer or deletion, configuration push, firmware upload, or install or reprovision operations in progress for the group, the upload starts.

You can choose to transfer files to all routers in the selected group or select only a subset of the routers in the group. You can also select another group and file to perform a separate file transfer or deletion simultaneously.

All files transferred from IoT FND reside on the router in flash:/managed/files/ for Cisco IOS CGRs, and bootflash:/managed/files/ for CG-OS CGRs.

The status of the last file transfer is saved with the group, as well as the operation (firmware update, configuration push, and so on) and status of the group.

Viewing Files

To view imported text file content:

1. Select CONFIG > Device File Management.

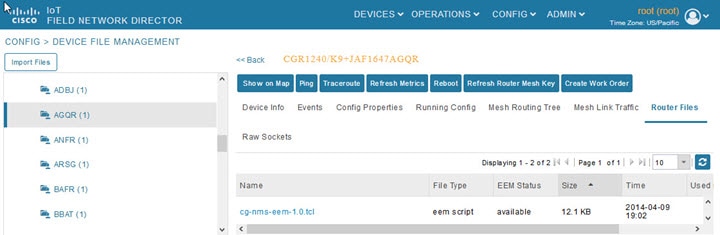

2. Click the EID link to display the Device Info pane.

3. Click the Router Files tab.

4. Click the file name link to view the content in a new window.

Note: IoT FND only displays files saved as plain text that are under 100 KB are viewable. You cannot view larger text files or binary files of any size. Those file types do not have a hyperlink.

Monitoring Files

On the CONFIG > Device File Management page, click the Managed Files tab to view a list of routers and the files uploaded to their.../managed/files/ directories. Devices listed in the main pane are members of the selected group.

The following information is included in this list:

■EID link (Name) to the Device Info page

■Number of files stored on the device

■File Names uploaded

You can use the Filter By File Name drop-down menu to only view devices that contain a particular file. Select All to include all devices in the group. Click the refresh button to update the list during file transfer or deletion processes.

Monitoring Actions

On the CONFIG > Device File Management page, click the Actions tab to view the status of the last file transfer or last file deleted for routers in the selected group. You can click the Cancel button to terminate any active file operation.

The Actions tab lists the following attributes:

■Start Time and Finish time of the last transfer

■File name

■Status of the process: UNKNOWN, AWAITING_DELETE, DELETE_IN_PROGRESS, DELETE_COMPLETE, CANCELLED, NONE, NOTSTARTED, UPLOAD_IN_PROGRESS, UPLOAD_COMPLETE, STOPPING, STOPPED

■Completed Devices (upload complete/total number of target devices)

■Error/Devices: Number of errors and errored device count

■File path

■Name (EID link to Device Info page)

■Activity performed: UPLOAD, DELETE, NONE

■File name

■Progress (percentage number)

■Messages regarding any issues discovered during the process

■Error details

Deleting Files

To delete files from routers:

1. On the CONFIG > Device File Management page, select the group to transfer the file to in the Browse Devices pane.

2. On the Actions tab, click Delete.

3. In the Delete file from List dialog, select a file to delete.

You can delete the file from all routers in the selected group or any subset of routers in the group.

4. Click Delete File.

The Delete File from Routers dialog box displays.

5. Check the check boxes of the routers from which you want to delete the file.

6. Click Delete.

If there are no file transfer or deletion, configuration push, firmware upload, or install or reprovision operations in progress for the group, the delete operation begins. IoT FND searches the.../managed/files/ directory on the devices for the specified file name.

Note: On deletion, all file content is purged from the selected devices, but not from the IoT FND database. File clean-up status displays for the selected group.

You can select another group and file to perform a separate file deletion while file transfer or deletion processes are in progress for this group. When you cancel file deletion processes before they complete, the currently running file deletion process completes and all waiting file deletion processes are canceled.

Viewing Work Orders

To view work orders in IoT FND, choose OPERATIONS > Work Orders.

Work Orders Page Fields lists the fields that display on the Work Orders page.

Searching Work Orders

To refine your search, use the following syntax in the Search Work Order field (OPERATIONS > Work Orders):

For example, to search for completed work orders that have a user with an admin role assigned to them, use this syntax:

role:admin workOrderStatus:Completed

To search work orders in IoT FND:

1. Choose OPERATIONS > Work Orders.

2. In the Search Work Order field, enter the search syntax and click Search Work Orders.

Creating User Accounts for Device Manager (IoT-DM) Users

Before creating work orders, you must create user accounts for the field technicians who use IoT-DM to download work orders from IoT FND.

To create a Device Manager user account:

1. If not defined, create a Device Manager User role:

a. Choose ADMIN > Access Management > Roles.

b. Click Add.

c. (CG-OS only) In the Role Name field, enter a name for the role.

d. Check the check box for Device Manager User, and click the disk icon to save the changes.

2. Create the user account:

a. Choose ADMIN > Access Management > Users, and then click + to add a user.

b. Enter the user name, new password, confirm password and time zone information.

c. Select Time Zone.

d. Click Assign Domain. In the panel that appears, check the check boxes for Monitor Only and the Device Manager User role you created in Step 1.

e. Click Assign.

Creating Work Orders

If you need a technician to inspect a deployed router (CGR 1120 or CGR 1240) or DA Gateway (IR509) in the field, create a work order. A work order includes the WiFi credentials required for the technician to connect to the router.

BEFORE YOU BEGIN

■Your user account must have the Work Order Management permissions enabled.

■To provide a signed work order to IoT-DM on request, you must import IoT-DM certificates to cgms_keystore using the alias cgms.

■Create the user account for the field technician. (See Creating User Accounts for Device Manager (IoT-DM) Users)

Note: You can only create work orders for CGRs and IR509 devices.

DETAILED STEPS

To create a work order for Router (CGR1000) or Endpoint (IR509):

1. Choose OPERATIONS > Work Orders.

2. Click Add Work Order.

3. In the Work Order Name field, enter the name of the work order.

4. In the Field Device Names/EIDs field, enter a comma-separated list of router names or EIDs.

For every router in the list, IoT FND creates a separate work order.

5. Device Type (Router or Endpoint) and CGR OS version (CG-OS or IOS) auto-populate.

6. Enter the IoT-DM system name in the Device Username field.

Select the Technician User Name for the IoT-DM from the drop-down menu.This menu only lists users with IoT-DM User permissions enabled.

7. From the Status drop-down menu, choose the status of the work order (New, Assigned, In Service, Completed, or InComplete). The New option auto-populates.

Note: For a IoT-DM user to retrieve a work order, the work order must be in the Assigned state in IoT FND for that user. If the work order is in any other state, IoT-DM cannot retrieve the signed work order.

Note: After the work order has been successfully requested by the IoT-DM user, the state of work order changes to In Service.

8. In the Start Date and End Date fields, specify the starting and ending dates for which the work order is valid.

If the work order is not valid, the technician cannot access the router.

9. In the Device Time Zone field, choose the time zone of the device from the drop-down menu.

10. To save your entries, click the disk icon. (To cancel your entries, click x)

11. Click OK.

You can also create work orders on the Field Devices page (DEVICES > Field Devices > More Actions menu), as described in Creating Work Orders, and on the Device Info page.

Downloading Work Orders

To download the work orders created by IoT FND, a field technician uses Cisco IoT-DM, which is a Windows-based application used to manage a single Cisco CGR 1000 router. The technician can download all work orders in the Assigned state.

Field technicians use IoT-DM to update work order status, which is sent to IoT FND.

Note: Certificates are not included in the work order and are preinstalled on the IoT-DM field laptop prior to downloading work orders from IoT FND.

For more information about IoT-DM, see the Cisco IoT Device Manager User Guide.

Editing Work Orders

To edit work order details:

1. Choose OPERATIONS > Work Orders.

2. Click the box next to the work order you want to edit. Click Edit Work Order.

Alternatively, click the work order number to open the page displaying the work order details.

3. After editing the work order, click Save.

Deleting Work Orders

To delete work orders:

1. Choose OPERATIONS > Work Orders.

2. Check the check box of the work order(s) to delete.

3. Click Delete Work Order.

4. Click Yes to confirm or to cancel action click No.

Types of Device Properties

IoT FND stores two types of device properties in its database:

■Actual device properties—These are the properties defined by the device, such as IP Address, Transmit Speed, and SSID.

■IoT FND device properties—These are properties defined by IoT FND for devices, such Latitude and Longitude properties, which IoT FND uses to display device locations on its GIS map.

Note: The Key column provides the version of the property name in the IoT FND database that you can use in filters. For example, to search for the device with an IP address of 10.33.0.30, enter ip:10.33.0.30 in the Search Devices field.

Device Properties by Category

This section presents IoT FND device properties by category:

■Cellular Link Settings

■Cellular Link Metrics for CGRs

■DA Gateway Properties

■Dual PHY WPAN Properties

■Embedded Access Point Credentials

■Embedded AP Properties

■Ethernet Link Metrics

■Guest OS Properties

■Head-End Routers > Netconf Config

■Head-End Routers > Tunnel 1 Config

■Head-End Routers > Tunnel 2 Config

■Inventory

■Mesh Link Config

■Mesh Device Health

■Mesh Link Keys

■Mesh Link Settings

■Mesh Link Metrics

■NAT44 Metrics

■PLC Mesh Info

■Raw Sockets Metrics and Sessions

■Router Battery

■Router Config

■Router Credentials

■Router DHCP Proxy Config

■Router Health

■Router Tunnel Config

■Router Tunnel 1 Config

■Router Tunnel 2 Config

■SCADA Metrics

■User-defined Properties

■WiFi Interface Config

■WiMAX Config

■WiMAX Link Metrics

■WiMAX Link Settings

Every device in IoT FND presents a list of fields, which are used for device searches. The available fields for a device are defined in the Device Type field. Fields are either configurable or discovered. Configurable fields are set using XML and CSV files; the device EID is the lookup key. Discovered fields are presented from the device. Fields are also accessible in the device configuration templates for routers.

Cellular Link Settings

Cellular Link Settings Fields lists the fields in the Cellular Link area of the Device Detail page for all Cellular interfaces.

Note: Beginning with IoT FND 3.2, Cisco routers IR829, CGR1240, CGR1120 and Cisco 819 4G LTE ISRs (C819) support a new dual-active radio module that support dual modems and 2 physical interfaces (interfaces 0 and 1, interfaces 2 and 3) per modem. See SKUs below:

■IR829GW-2LTE-K9

■CGM-LTE-LA for CGR 1000 routers

■C819HG-LTE-MNA-K9

Cellular properties supported on the dual modems and their two physical interfaces (and four logical interfaces 0, 1, 2 and 3), display as follows:

Additionally, the 4G LTE dual-active radio module does not support or display all fields summarized in Cellular Link Settings Fields

Cellular Link Metrics for CGRs

Cellular Link Metrics Area Fields describes the fields in the Cellular Link Metrics area of the Device Info view.

DA Gateway Properties

DA Gateway Metrics Area Fields describe the fields in the DA Gateway area of the Device Info view.

Dual PHY WPAN Properties

Dual PHY Metrics Area Fields describes the fields in the Dual PHY area of the Device Info view.

Embedded Access Point Credentials

Embedded Access Point Credentials Fields describes the fields in the Embedded Access Point Credentials area of the Device Info view.

Embedded AP Properties

Embedded AP Properties describes the fields on the Embedded AP tab of the C800 or IR800 Device Info view.

Ethernet Link Metrics

Ethernet Link Metrics Area Fields describes the fields in the Ethernet link traffic area of the Device Info view.

Guest OS Properties

Guest OS Properties Fields describes the fields in the Guest OS Properties area of the Config Properties page.

Head-End Routers > Netconf Config

Head-End Routers > Netconf Config Client Fields describes the fields in the Netconf Client area of the Head-End Routers > Config Properties page.

Head-End Routers > Tunnel 1 Config

Head-End Routers > Tunnel 1 Config Fields describes the fields in the Tunnel 1 Config area of the Head-End Routers > Config Properties page.

Head-End Routers > Tunnel 2 Config

Head-End Routers > Tunnel 2 Config Device Fields describes the fields in the Tunnel 2 Config area of the Head-End Routers > Config Properties page.

Inventory

Inventory Fields describes the fields in the Inventory area of the Device Info page.

EXAMPLE PATH to Device Info page which summarizes the Inventory details: DEVICES> Field Devices > ROUTERS > CGR1000 > EID Name

Mesh Link Config

Mesh Link Config Fields describes the fields in the Mesh Link Config area of the Routers > Config Properties page.

Mesh Device Health

Mesh Device Health Fields describes the fields in the Mesh Device Health area of the Device Info view.

Mesh Link Keys

Mesh Link Keys Fields describes the fields in the Mesh Link Keys area of the Device Info view.

Mesh Link Settings

Mesh Link Settings Fields describes the fields in the Mesh Link Settings area of the Device Info view.
