The OPT-PRE card has reached end of support.

Note	For OPT-PRE card safety labels, see Class 1M Laser Product Cards.

The OPT-PRE is a C-band, DWDM, two-stage erbium-doped fiber amplifier (EDFA) with midamplifier loss (MAL) that can be connected to a dispersion compensating unit (DCU). The OPT-PRE is equipped with a built-in variable optical attenuator (VOA) that controls the gain tilt and can also be used to pad the DCU to a reference value. The card is designed to support up to 80 channels at 50-GHz channel spacing. The OPT-PRE card features include:

• Fixed gain mode with programmable tilt

• True variable gain

• Fast transient suppression

• Nondistorting low-frequency transfer function

• Settable maximum output power

• Fixed output power mode (mode used during provisioning)

• MAL for fiber-based DCU

• Amplified spontaneous emissions (ASE) compensation in fixed gain mode

• Full monitoring and alarm handling with settable thresholds

• Four signal photodiodes to monitor the input and output optical power of the two amplifier stages through CTC

• An optical output port for external monitoring

  Note	The optical splitter has a ratio of 1:99, resulting in about 20 dB-lower power at the MON port than at the COM TX port.

You can install the OPT-PRE card in the following slots.

• Slots 2 and 3 in NCS 2002

• Slots 2 to 7 in NCS 2006

• Slots 2 to 16 in NCS 2015.

For more information about the OPT-PRE Amplifier card, see http://www.cisco.com/en/US/prod/collateral/optical/ps5724/ps2006/product_data_sheet0900aecd800e4d24.html and Card Features.

The OPT-BST card has reached end of support.

Note	For OPT-BST and OPT-BST-E cards safety labels, see "Class 1M Laser Product Cards". .

The OPT-BST is designed to ultimately support up to 80 channels at 50-GHz channel spacing. The OPT-BST-E amplifier card is a gain-enhanced version of the OPT-BST card. It is designed to support up to 80 channels at 50-GHz channel spacing. Both the cards are C-band, DWDM EDFA with optical service channel (OSC) add-and-drop capability. When an OPT-BST or an OPT-BST-E is installed, an OSCM card is also needed to process the OSC. The OPT-BST cards features include:

• Fixed gain mode (with programmable tilt)

• Gain range of 5 to 20 dB in constant gain mode and output power mode for an OPT-BST card

• Gain range of 8 to 23 dBm with the tilt managed at 0 dBm in constant gain mode and output power mode for an OPT-BST-E card

• Enhanced gain range of 23 to 26 dBm with unmanaged tilt with OPT-BST-E card

• True variable gain

• Built-in VOA to control gain tilt

• Fast transient suppression

• Nondistorting low-frequency transfer function

• Settable maximum output power

• Fixed output power mode (mode used during provisioning)

• ASE compensation in fixed gain mode

• Full monitoring and alarm handling with settable thresholds

• Optical Safety Remote Interlock (OSRI), a CTC software feature capable of shutting down optical output power or reducing the power to a safe level (automatic power reduction)

• Automatic laser shutdown (ALS), a safety mechanism used in the event of a fiber cut. For information about using the card to implement ALS in a network, see "Network Optical Safety". .

  Note	The optical splitters each have a ratio of 1:99. The result is that MON TX and MON RX port power is about 20 dB lower than COM TX and COM RX port power.

You can install the OPT-BST and OPT-BST-E cards in the following slots.

• Slots 2 and 3 in NCS 2002

• Slots 2 to 7 in NCS 2006

• Slots 2 to 16 in NCS 2015.

For more information about the OPT-BST and OPT-BST-E Amplifier cards, see http://www.cisco.com/en/US/prod/collateral/optical/ps5724/ps2006/product_data_sheet0900aecd802be30a.html and Card Features.

Note	For OPT-AMP-17-C safety labels, see "Class 1M Laser Product Cards"..

The OPT-AMP-17-C is a 17-dB gain, C-band, DWDM EDFA amplifier/preamplifier with OSC add-and-drop capability. It supports 80 channels at 50-GHz channel spacing in the C-band (that is, the 1529 nm to 1562.5 nm wavelength range). When the system has an OPT-AMP-17-C installed, an OSCM card is needed to process the OSC.

The card features include:

• Fixed gain mode (no programmable tilt)

• Standard gain range of 14 to 20 dB at startup when configured as a preamplifier

• Standard gain range of 20 to 23 dB in the transient mode when configured as a preamplifier

• Gain range of 14 to 23 dB (with no transient gain range) when configured as a booster amplifier

• True variable gain

• Fast transient suppression

• Nondistorting low-frequency transfer function

• Settable maximum output power

• Fixed output power mode (mode used during provisioning)

• ASE compensation in fixed gain mode

• Full monitoring and alarm handling with settable thresholds

• OSRI

• ALS

You can install the OPT-AMP-17-C card in the following slots.

• Slots 2 and 3 in NCS 2002

• Slots 2 to 7 in NCS 2006

• Slots 2 to 16 in NCS 2015.

For more information about the OPT-AMP-17-C card, see http://www.cisco.com/en/US/prod/collateral/optical/ps5724/ps2006/product_data_sheet0900aecd800e4d24.html and Card Features.

Note	For OPT-AMP-C card safety labels, see "Class 1M Laser Product Cards".

The OPT-AMP-C card is a 20-dB output power, C-band, DWDM EDFA amplifier or preamplifier. It contains midstage access loss for a Dispersion Compensation Unit (DCU). To control gain tilt, a VOA is used. The VOA can also be used to attenuate the signal to the DCU to a reference value. The amplifier module also includes the OSC add (TX direction) and drop (RX direction) optical filters.

The features of the card include:

• Fast transient suppression

• Nondistorting low-frequency transfer function

• Mid-stage access for DCU

• Constant pump current mode (test mode)

• Fixed output power mode (mode used during provisioning)

• Constant gain mode

• ASE compensation in Constant Gain and Constant Output Power modes

• Programmable tilt

• Full monitoring and alarm handling capability

• Gain range with gain tilt control of 12 to 24 dB

• Extended gain range (with uncontrolled tilt) of 24 to 35 dB

• Full monitoring and alarm handling with settable thresholds

• OSRI

• ALS

You can install the OPT-AMP-C card in the following slots:

• Slots 2 and 3 in NCS 2002

• Slots 2 to 7 in NCS 2006

• Slots 2 to 16 in NCS 2015

For more information about the OPT-AMP-C card, see http://www.cisco.com/en/US/prod/collateral/optical/ps5724/ps2006/prod_data_sheet0900aecd8072b322.html. and Card Features .

Note	For OPT-RAMP-C or OPT-RAMP-CE card safety labels, see "Class 1M Laser Product Cards".

The OPT-RAMP-C card is a double-slot card that improves unregenerated sections in long spans using the span fiber to amplify the optical signal. Different wavelengths in C-band receive different gain values. To achieve Raman amplification, two Raman signals (that do not carry any payload or overhead) are required to be transmitted on the optical fiber because the gain generated by one signal is not flat. The energy of these Raman signals transfer to the higher region of the spectrum thereby amplifying the signals transmitted at higher wavelengths. The Raman effect reduces span loss but does not compensate it completely.

When the Raman optical powers are set correctly, a gain profile with limited ripple is achieved. The wavelengths of the Raman signals are not in the C-band of the spectrum (used by MSTP for payload signals). The two Raman wavelengths are fixed and always the same. Due to a limited Raman gain, an EDFA amplifier is embedded into the card to generate a higher total gain. An embedded EDFA gain block provides a first amplification stage, while the mid stage access (MSA) is used for DCU loss compensation.

The OPT-RAMP-CE card is a 20 dBm output power, gain-enhanced version of the OPT-RAMP-C card and is optimized for short spans. The OPT-RAMP-C and OPT-RAMP-CE cards can support up to 80 optical transmission channels at 50-GHz channel spacing over the C-band of the optical spectrum (wavelengths from 1529 nm to 1562.5 nm). To provide a counter-propagating Raman pump into the transmission fiber, the Raman amplifier provides up to 500 mW at the LINE-RX connector. The OPT-RAMP-C or OPT-RAMP-CE card can be installed in Slots 1 to 5 and 12 to 16, and supports all network configurations. However, the OPT-RAMP-C or OPT-RAMP-CE card must be equipped on both endpoints of a span.

The Raman total power and Raman ratio can be configured using CTC. The Raman configuration can be viewed on the Maintenance > Installation tab.

The features of the OPT-RAMP-C and OPT-RAMP-CE card include:

• Raman pump with embedded EDFA gain block

• Raman section: 500 mW total pump power for two pump wavelengths

• EDFA section:

  • OPT-RAMP-C: 16 dB gain and 17 dB output power

  • OPT-RAMP-CE: 11 dB gain and 20 dB output power

• Gain Flattening Filter (GFF) for Raman plus EDFA ripple compensation

• MSA for DC units

• VOA for DC input power control

• Full monitoring of pump, OSC, and signal power

• Fast gain control for transient suppression

• Low-FIT (hardware-managed) optical laser safety

• Hardware output signals for LOS monitoring at input photodiodes

• Optical service channel add and drop filters

• Raman pump back-reflection detector

You can install the OPT-RAMP-C and OPT-RAMP-CE cards in the following slots.

• Slots 2 and 3 in NCS 2002

• Slots 2 to 7 in NCS 2006

• Slots 2 to 7 in Cisco 2015 chassis. These cards upgrade to a new bootcode automatically when they are installed between slots 2 and 7.

  After the bootcode upgrade, the cards can be installed in Slots from 2 to 16 in Cisco NCS 2015 chassis.

For more information about the OPT-RAMP-C and OPT-RAMP-CE cards, see http://www.cisco.com/en/US/prod/collateral/optical/ps5724/ps2006/data_sheet_c78-500925.html. and Card Features.

Note	The RAMAN-CTP and RAMAN-COP cards are supported in R9.3.02 and later.

Caution

LASER ENERGY - EXPOSURE NEAR APERTURE MAY CAUSE BURNS

The single-slot RAMAN-CTP and RAMAN-COP cards support counter and co-propagating Raman amplification on very long unregenerated spans.

The cards manage up to 96 ITU-T 50-GHz spaced channels over the C-band of the optical spectrum (wavelengths from 1528.77 nm to 1566.72 nm). The counter-propagating RAMAN-CTP card is the primary unit. The co-propagating RAMAN-COP card is the secondary unit and can be used only when the counter-propagating unit is present. The RAMAN-CTP card and the RAMAN-COP card must be installed in adjacent slots for Cisco NCS 2000 Series chassis. For example, you can install in Slots 2 and 3, 4 and 5, or 6 and 7 in NCS 2006 . However, these adjacent slots must not be used to install two RAMAN-CTP or two RAMAN-COP cards.

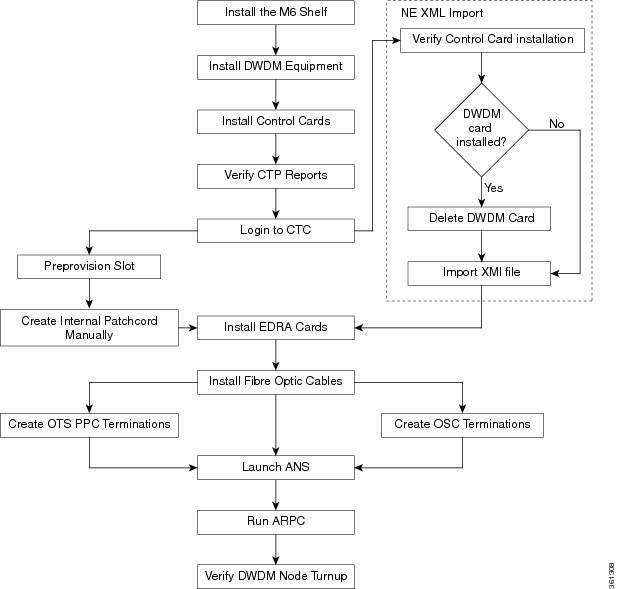

The RAMAN-CTP card can be calibrated either manually or using the Automatic Raman Pump Amplification (ARPC) procedure from the Card tab in the Provisioning panel in CTC. When the RAMAN-COP card is used, the RAMAN-CTP card can be calibrated only using the manual option. ARPC is supported only in the NCS Flex package.

The features of the RAMAN-CTP and RAMAN-COP cards include:

• Raman section: 1000 mW total pump power for four pumps and two wavelengths

• Embedded distributed feedback (DFB) laser at 1568.77 nm to be used for optical safety and link continuity (in RAMAN-CTP card only)

• Photodiodes to enable monitoring of Raman pump power

• Photodiodes to enable monitoring of the DFB laser and signal power (in RAMAN-CTP card only)

• Hardware managed automatic laser shutdown (ALS) for optical laser safety

• Hardware output signals for loss of signal (LOS) monitoring at input photodiodes

• Raman pump back reflection detector to check for excessive back reflection

You can install the RAMAN-CTP and RAMAN-COP cards in the following slots.

• Slots 2 and 3 in NCS 2002

• Slots 2 to 7 in NCS 2006

• Slots 2 to 16 in NCS 2015.

Note	For OPT-EDFA-17, OPT-EDFA-35, or OPT-EDFA-24 card safety labels, see "Class 1M Laser Product Cards."

Note	OPT-EDFA-35 card is supported only in NCS Flex and NCS SSON packages.

The OPT-EDFA-17, OPT-EDFA-24, and OPT-EDFA-35 cards are C-band DWDM EDFA amplifiers and preamplifiers. The cards are true variable gain amplifiers, offering an optimal equalization of the transmitted optical channels over a wide gain range. They support 96 channels at 50-GHz channel spacing in the C-band (that is, 1528.77 to 1566.72-nm wavelength range). The OPT-EDFA-17 and OPT-EDFA-24 cards deliver 20-dBm output powers and the OPT-EDFA-35 card delivers +23-dBm output power. These cards do not contain mid-stage access loss for a Dispersion Compensation Unit (DCU). The cards provide a noise-figure optimized version of the EDFA amplifiers to cope with new modulation formats like PM-DQPSK, which do not need dispersion compensation. To control gain tilt, a VOA is used. The amplifier module also includes the OSC add (TX direction) and drop (RX direction) optical filters.

The OPT-EDFA-17, and OPT-EDFA-24 cards share the same hardware platform and firmware architecture, but they differ in their operative optical gain range, which is 17 and 24 dB respectively.

The OPT-EDFA-35 card includes two identical amplification sections to serve two fiber directions simultaneously. Each section has a switchable gain range that allows its usage over a wide gain range. The OPT-EDFA-35 card is bidirectional. The card acts on both pairs of fibers entering and exiting from the node.

The OPT-EDFA-35 card has two possible gain ranges: gain range 1 from 12–24, gain range 2 from 20–35. The card also has extended gain range up to 40 dB without tilt control.

The OPT-EDFA-35 card is managed in a similar way as the OPT-EDFA-17 and OPT-EDFA-24 cards. For each EDFA unit inside the OPT-EDFA-35 card, the following settings are allowed:

• Configuration of PRE or BST role

• Configuration of Constant Gain working mode

• Configuration of Gain Range

The main functionalities of the OPT-EDFA-17, OPT-EDFA-24, and OPT-EDFA-35 cards are:

• (OPT-EDFA-17 and OPT-EDFA-24) Amplification of the input signal at the COM-RX port toward the LINE-TX port through a true-variable gain EDFA block.

  (OPT-EDFA-35) Two EDFA amplifier units embedded into the card, amplification of the input signal at the LINE-1-RX port toward the LINE-2-TX port through a true-variable gain EDFA-2 block, and amplification of the input signal at the LINE-2-RX port toward the LINE-1-TX port through a true-variable gain EDFA-1 block.

• Multiplexing the OSC to the LINE-TX port

• Demultiplexing the OSC from the LINE-RX port

• Monitoring of the LINE input or output signal with 1% TAP splitters

The features of the OPT-EDFA-17, OPT-EDFA-24, and OPT-EDFA-35 cards are:

• Embedded Gain Flattening Filter

• Constant pump current mode (test mode)

• Constant output power mode

• Constant gain mode

• Nondistorting low-frequency transfer function

• ASE compensation in Constant Gain and Constant Output Power modes

• Fast transient suppression

• Programmable tilt

• Full monitoring and alarm handling capability

• Gain range with gain tilt control of 5–17 dB (for OPT-EDFA-17 card) , 12 to 24 dB and 20 to 35 dB (for OPT-EDFA-35 card), and 12–24 dB (for OPT-EDFA-24 card).

• Extended gain range (with uncontrolled tilt) of 17–20 dB (for OPT-EDFA-17 card) , (for OPT-EDFA-35 card) of upto 27dB (for Gain Range1) and 40dB (for Gain Range2), and 24–27 dB (for OPT-EDFA-24 card).

• Optical Safety Remote Interlock (OSRI)

• Automatic Laser Shutdown (ALS)

You can install the OPT-EDFA-17 and OPT-EDFA-24 cards in slots 1–6 and 12–17 in ONS 15454 M12.

You can install the OPT-EDFA-17, OPT-EDFA-24, and OPT-EDFA-35 cards in the following slots:

• Slots 2 and 3 in NCS 2002

• Slots 2–7 in NCS 2006

• Slots 2–16 in NCS 2015
