Modeled Network Examples
This chapter provides examples of typical optical networks you can model using Cisco TransportPlanner.
This chapter contains the following sections:
Supported Cisco TransportPlanner Topologies
Hubbed Ring Topology
3.1 Supported Cisco TransportPlanner Topologies
Cisco TransportPlanner supports the following topologies:
•Bus (single span, point-to-point, and linear)
•Open (or hubbed) ring
•Closed (or meshed) ring
An example of each topology is given in this chapter.
3.2 Bus Topologies
Bus topologies comprise three types of topologies: single span, point-to-point, and linear.
3.2.1 Single-Span Topology
Figure 3-1 shows an example of a single-span topology. Single-span topologies are characterized by a single span link. The single-span configuration only supports two terminal sites (full terminal or flexible channel-count terminal) without any intermediate line amplifier or optical add/drop multiplexing (OADM) sites.
Figure 3-1 Single-Span Topology Example
3.2.2 Point-to-Point Topology
Figure 3-2 shows an example of a point-to-point topology. In a point-to-point topology, all the wavelengths are terminated at the same point in the chain. In the point-to-point configuration, no channels are added or dropped in intermediate sites.
Figure 3-2 Point-to-Point Topology Example
3.2.3 Linear Topology
Figure 3-3 shows an example of a linear topology. Linear configurations are characterized by the presence of two terminal sites (full terminal or flexible channel-count terminal). Between the two terminal sites, OADM or line amplifiers nodes can be inserted. In a linear configuration, specific wavelengths are terminated at different points in the chain and only unprotected traffic can be provisioned.
Figure 3-3 Linear Topology Example
3.3 Hubbed Ring Topology
Figure 3-4 shows an example of a hubbed ring topology. In this configuration, at least one of the sites must be a hub site, where all channels are terminated.
Figure 3-4 Hubbed Ring Topology Example
3.4 Meshed Topology
Figure 3-5 provides an example of a meshed ring topology. A meshed ring is characterized by the absence of a hub node.

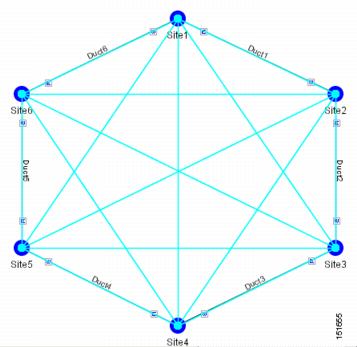

Figure 3-5 Meshed Ring Topology Example
