Services and Networking

This chapter contains the following topics:

Load Balancing Kubernetes Services using NGINX

Cisco Container Platform uses NGINX to offer advanced layer 7 load balancing solutions. NGINX can handle a large number of requests and at the same time, it can be run on Kubernetes containers.

The NGINX load balancer is automatically provisioned as part of Kubernetes cluster creation. Each Kubernetes cluster is provisioned with a single L7 NGINX load balancer. You can access the load balancer using its virtual IP address, which can be found by running the command kubectl get svc -n ccp.

To use the NGINX load balancer, you must create an Ingress resource. Ingress is a Kubernetes object that allows you to define HTTP load balancing rules to allow inbound connections to reach the cluster services. You can configure Ingress to create external URLs for services, load balance traffic, terminate SSL, offer name-based virtual hosting, and so on.

L7 Ingress

Cisco Container Platform supports the following types of L7 Ingresses:

  • Simple fanout

    It enables you to access the website using http.

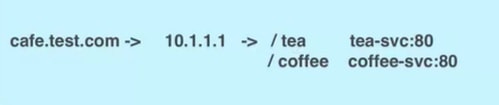

    For example:

    For this type of Ingress, you need to create a yaml file that defines the Ingress rules.

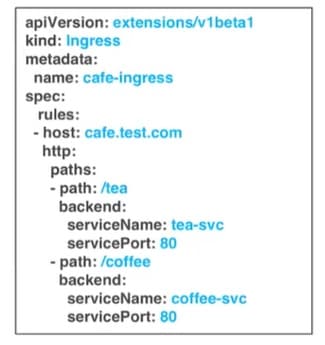

    Figure 1. Sample yaml file

  • Simple fanout with SSL termination

    It enables you to access the website using https.

    For example:

    For this type of Ingress, you need to create the following yaml files:

    • A yaml file that defines the Secret

      Figure 2. Sample yaml file

    • A yaml file that defines the Ingress rules

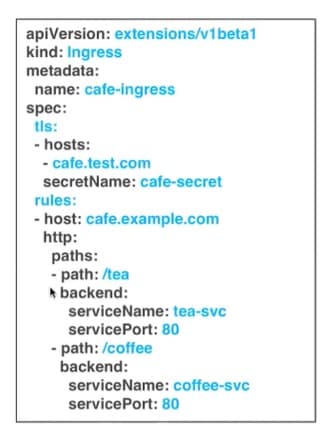

      Figure 3. Sample yaml file

  • Name based virtual hosting

    It enables you to access the website using multiple host names.

    For example:

    For this type of Ingress, you need to create a yaml file that defines the Ingress rules.

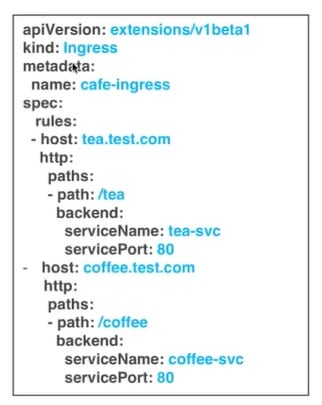

    Figure 4. Sample yaml file

Note

You can download the yaml files that are shown in this topic from the following link:

https://github.com/nginxinc/kubernetes-ingress/tree/master/examples/complete-example

For more information on a sample scenario of implementing Ingress, see Deploying Cafe Application with Ingress.

L4 Ingress

NGINX supports L4 TCP and UDP Ingress load balancing. It uses the NGINX helm chart that contains the TCP or UDP service mappings, instead of the Ingress resources as in the case of L7 support.

Configuring L4 Load Balancing


Note
NGINX supports either TCP or UDP L4 load balancing, but not both simultaneously.
Procedure
Step 1

Access the Kubernetes cluster master node using ssh.

ssh -l <username> <IP address of master node>
Note
Once you create a Kubernetes cluster, it may take a few minutes for the necessary services to start. If ssh to a cluster fails, we recommend that you try again after a few minutes.
Step 2

Get the current helm configuration values.

helm get values --all ccp-addons > /tmp/ccp_addons.yaml
Step 3

Navigate to the following location:

cd /tmp
Step 4

Edit the ccp_addons.yaml file.

You can search for tcp or udp in the ccp_addons.yaml file, and then add your L4 services.
The following example shows adding the tcp-test-svc TCP service that uses port 3333.
tcp:
    "9000": default/tcp-test-svc:3333
The following example shows adding the udp-test-svc UDP service that uses port 5005.
udp:
    "9001": default/udp-test-svc:5005
Step 5

Update the NGINX helm chart with the L4 service mappings.

helm upgrade --install ccp-addons /opt/ccp/charts/ccp-agent.tgz -f ccp_addons.yaml
Note
You need to restart the NGINX Ingress controller pods for the new configuration to take effect.
Step 6

Verify that ingress has successfully mapped the port.

kubectl get svc -n ccp | grep ingress-controller

Ingress CA

Cisco Container Platform by default creates an L7 Ingress service in order to support Monitoring Health of Cluster Deployments, Monitoring Logs from Cluster Deployments, and Setting up Kubernetes Dashboard. All of these services are exposed with TLS enabled, and the certificate authority (CA) that is used to sign the Ingress controller server certificate is self-signed and per cluster based.

In order to reach the services without triggering SSL warning, you can either add the CA as part of your application that needs to interact with services behind Cisco Container Platform ingress (preferred), or add the CA to your system trusted CA list. The following section describes how to obtain the CA certificate.

Procedure

Step 1

Login to the Kubernetes dashboard from browser as described in Setting up Kubernetes Dashboard section, download the kubeconfig file, and then use it to login to the Kubernetes dashboard.

Step 2

From the right pane, click the dropdown box under Namespace, click the ccp namespace.

Figure 5. Kubernetes Dashboard
Step 3

Go to the Secrets panel.

Figure 6. Secrets Tab
Step 4

Open the ccp-ingress-tls-ca secret and find the data for tls.crt.

You can save the CA data into a file, and use it when a client is trying to connect to the Ingress service.
The following example uses curl to get to the dashboard using the saved CA certificate.
$ curl --cacert ./ca.crt -I https://10.10.99.185/dashboard
HTTP/1.1 200 OK
Server: nginx/1.13.12
Date: Mon, 30 Jul 2018 19:08:11 GMT
Content-Type: text/html; charset=utf-8
Connection: keep-alive
Vary: Accept-Encoding
Accept-Ranges: bytes
Cache-Control: no-store
Strict-Transport-Security: max-age=15724800; includeSubDomains

Network Policies

Cisco Container Platform supports Kubernetes NetworkPolicies. The NetworkPolicies are independent of the underlying container network plugin.

Load Balancer Services

Cisco Container Platform supports load balancer services on tenant clusters.

While creating a tenant cluster, you need to choose the number of load balancer IP addresses that you want to allocate for a tenant cluster from a VIP pool that you want to use.


Note
The cluster creation operation fails if the number of requested load balancer IP addresses is more than the available IP addresses in the pool.

For more information, see Creating Kubernetes Clusters.

Once load balancer IP addresses are allocated for a tenant cluster, externally reachable load balancer IP addresses are automatically provisioned for the load balancer services.

For more information on creating a service of type LoadBalancer, see Kubernetes LoadBalancer.

You can update the number of available load balancer IP addresses from the Edit Cluster screen. You need to be aware of the number of used addresses in order to update the number of allocated load balancer IP addresses.

For example:

Suppose the current tenant is allocated with five load balancer IP addresses. If there are three load balanced services running, you cannot reduce the number of load balancer IP addresses to three or less as there are services using those IP addresses already.


Note
When you delete a tenant cluster, the allocated load balancer IP addresses are recycled to the VIP pool.
