Configuring NCE for Multipoint Interfaces

Use the following configuration examples when referring to routers A, B, and C in Figure 5-1.

Router A

interface Transport-Opt-Service-Engine 0/1

 ip unnumbered g0/1

 service-module ip address 10.1.1.102 255.255.255.0

 service-module ip default-gateway 10.1.1.101

!

interface GigabitEthernet 0/0/1

 ip address 2.1.1.1 255.255.255.0

 transport-opt multipoint interface Transport-Opt-Service-Engine 0/1

!

interface GE 0/1

 ip address 10.1.1.101 255.255.255.0

Router B

interface Transport-Opt-Service-Engine 0/1

 ip unnumbered GigabitEthernet 0/1

 service-module ip address 10.10.10.1 255.255.255.0

 service-module ip default-gateway 10.10.10.2

!

interface GigabitEthernet 0/0/1

 ip address 2.1.1.3 255.255.255.0

 transport-opt 5 interface Transport-Opt-Service-Engine 0/1

!

interface GE 0/1

 ip address 10.10.10.2 255.255.255.0

Router C

interface Transport-Opt-Service-Engine 0/1

 ip unnumbered GigabitEthernet 0/1

 service-module ip address 11.11.11.1 255.255.255.0

 service-module ip default-gateway 11.11.11.2

!

interface GigabitEthernet 0/0/1

 ip address 2.1.1.2 255.255.255.0

 transport-opt 5 interface Transport-Opt-Service-Engine 0/1

!

interface GE 0/1

 ip address 11.11.11.2 255.255.255.0

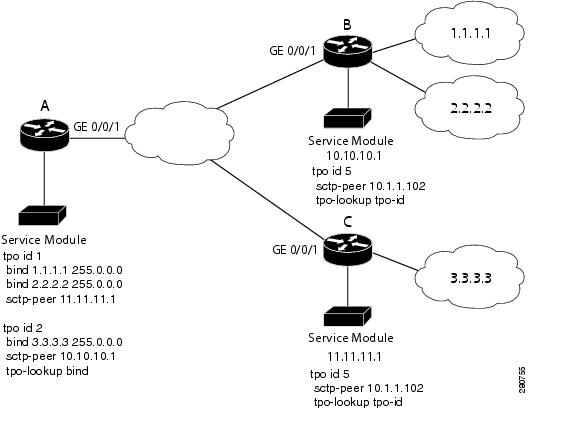

Figure 5-1 Multipoint Configuration Example
