SD-Access Fabric
Fabric technology is an integral part of SD-Access. A fabric network is a logical group of devices that is managed as a single entity in one or multiple locations. Having a fabric network in place enables several capabilities, such as the creation of virtual networks and user and device groups, and advanced reporting. Other capabilities include intelligent services for application recognition, traffic analytics, traffic prioritization, and steering for optimum performance and operational effectiveness.
Cisco DNA Center allows you to add devices to a fabric network. These devices can be configured to act as control plane, border, or edge devices within the fabric network.

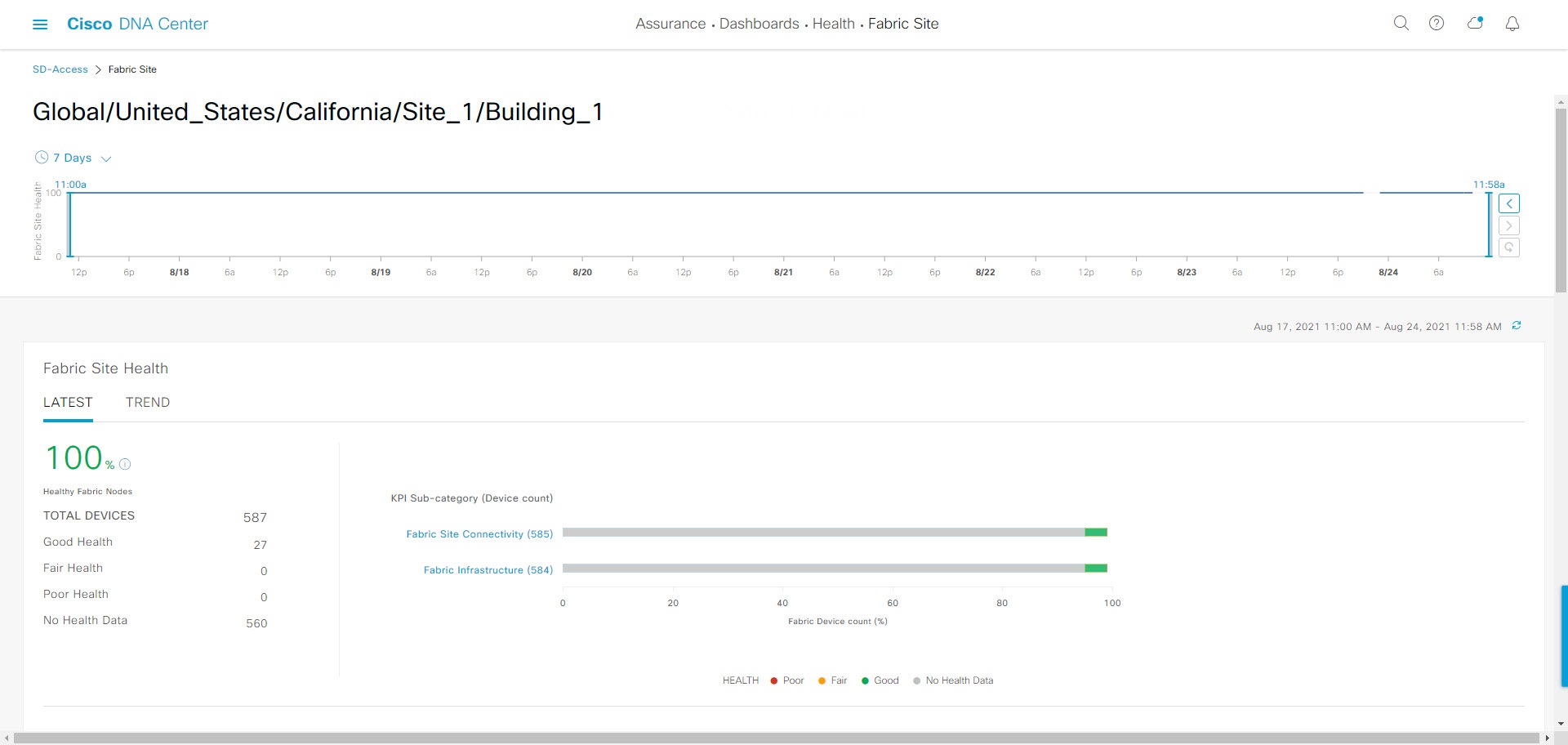

Add a Fabric Site
Before you begin
You can create a fabric site only if IP Device Tracking (IPDT) is already configured for the site.
Procedure
Step 1 |
Click the menu icon () and choose . |
Step 2 |

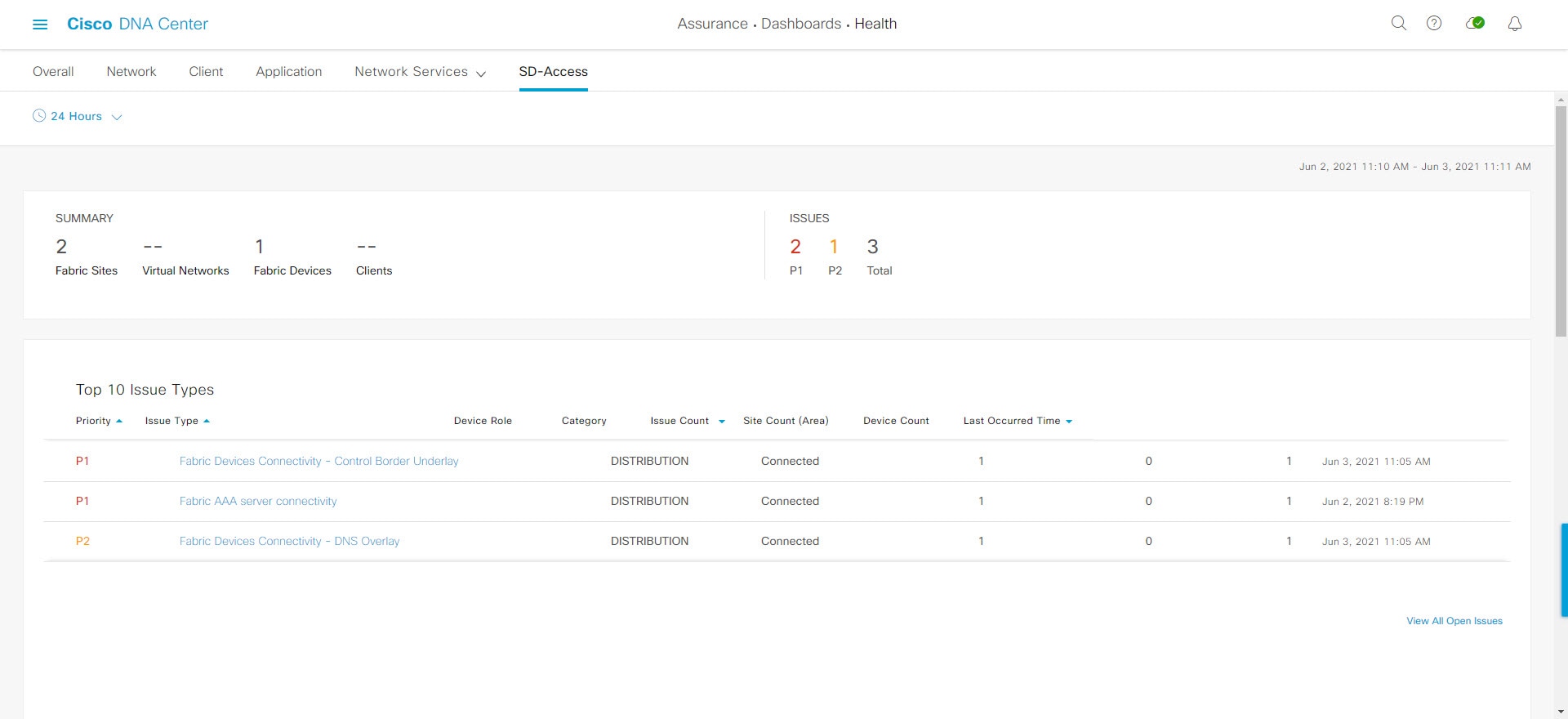

Under SUMMARY, click the number that indicates the count of the fabric sites. |
Step 3 |
Click Create Fabric Sites and Fabric Zones. Alternatively, instead of the first three steps, click the menu icon ( ) and choose . |
Step 4 |
In the Create Fabric Sites and Fabric Zones window, click Let’s Do it to go directly to the workflow. |
Step 5 |
In the Fabric Site Location window, choose an area, building, or floor to add as a fabric site. |
Step 6 |
In the Wired Endpoint Data Collection window, ensure that the Wired Endpoint Data Collection check box is checked. |
Step 7 |
In the Authentication Template window, do the following: |
Step 8 |
In the Fabric Zones window, choose one of the following options:
|
Step 9 |
In the Summary window, review the fabric site settings. You can edit any of the fabric site or zone settings here. |
Step 10 |
Click Deploy. It takes a few seconds for the site and zones to be provisioned. Upon successful creation of the site, a Success! Your fabric site is created message is displayed. |
Add a Device to a Fabric
After you have created a fabric site, you can add devices to the fabric site. You can also specify whether the device should act as a control plane node, an edge node, or a border node.
You can add a new device to the fabric site only if IP Device Tracking (IPDT) is configured for the fabric site.
A device which is assigned the Access role and has been provisioned before enabling IPDT on the site can’t be added to the fabric. Reprovision such devices before adding them to the fabric site. Check the Provision workflow to confirm the status of Deployment of IPDT on the device.
Note |
|
Before you begin
Provision the device if you haven’t already provisioned it:
-
The
window displays the discovered devices. -
The topology view shows a device in gray color if it has passed the fabric readiness checks and is ready to be provisioned.
-
If an error is detected during any of the fabric readiness checks, an error notification is displayed on the topology area. Click See more details to check the problem area listed in the resulting window. Correct the problem and click Re-check to ensure that the problem is resolved.
-
If you update the device configuration as part of problem resolution, ensure that you resynchronize the device information by performing an
for the device.
Note |
You can continue to provision a device that has failed the fabric readiness checks. |
Procedure
Step 1 |
Click the menu icon () and choose . |
||||||||
Step 2 |
Under SUMMARY, click the number that indicates the count of fabric sites. |
||||||||
Step 3 |
Select the fabric site to add a device. The resulting topology view displays all devices in the network that have been inventoried. In the topology view, any device that is added to the fabric is shown in blue. |
||||||||
Step 4 |
From the List view under the Fabric Infrastructure tab, click a device. A slide-in pane displays the following Fabric options:
To configure a device as a fabric-in-a-box, select the Control Plane Node, Border Node, and Edge Node options. To configure the device as a control plane and a border node, select both Control Plane Node and Border Node. |
||||||||
Step 5 |
Click Add. |
What to do next
After a device is added to the fabric, fabric compliance checks are automatically performed to ensure that the device is fabric-compliant. The topology displays a device that has failed the fabric compliance check in blue color with a cross-mark beside it. Click See more details on the error notification to identify the problem area and correct it.
