Introduction
This document describes configuring static NAT on a TLOC Extension Router using NAT Overload to work with peers behind Symmetric NAT.
Recommendations
Cisco recommends that you have knowledge of these topics:
- Cisco Catalyst Software-Defined Wide Area Network (SD-WAN)
- Network Address Translation (NAT)
- TLOC Extension
Components Used
The information in this document is based on these software and hardware versions.
- C8000V version 17.15.1a
The information in this document was created from the devices in a specific lab environment. All of the devices used in this document started with a cleared (default) configuration. If your network is live, ensure that you understand the potential impact of any command.
Problem
The Cisco Catalyst SD-WAN Design Guide highlights that certain types of Network Address Translation (NAT) can impact the formation of Control Connections and BFD Tunnels.
The two types of NAT which do not work together are Port/Address Restricted NAT and Symmetric NAT. These NAT types require that sessions be initiated from the internal network to allow traffic on each port. This means external traffic cannot initiate a connection to the internal network without a prior request from the inside.
Sites behind a symmetric NAT frequently experience difficulties establishing BFD sessions with peer sites. This is particularly challenging when peering with a site using TLOC Extension behind NAT Overload (also known as Port/Address Restricted NAT).

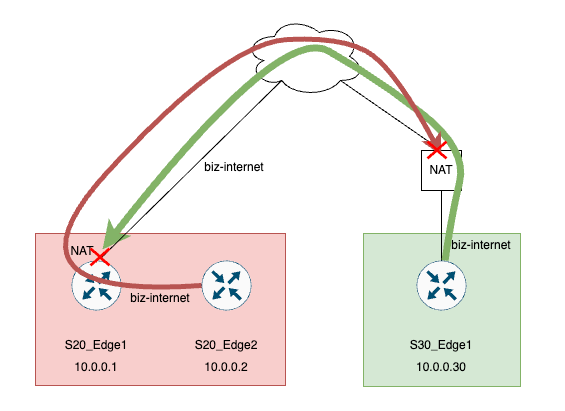

Topology
Conditions
1. S30_Edge1 is behind a Symmetric NAT
2. S20_Edge2 is behind the TLOC Extension where S20_Edge1 is using NAT Overload (PAT) to NAT the flows from Edge2.
This results in the BFD hellos getting dropped on the Symmetric NAT device and the S20_Edge1 due to no session is present for the unknown port from the peer.
The S20_Edge1 device shows Implicit ACL Drop for these hellos due to they do not match any session in the NAT table.
Identify the Issue
Step 1. Check BFD Sessions
From the show sdwan bfd sessions output on S30_Edge1, it is seen that the BFD session to S20_Edge2, 10.0.0.2 is down.
S30_Edge1#show sdwan bfd sessions
SOURCE TLOC REMOTE TLOC DST PUBLIC DST PUBLIC DETECT TX
SYSTEM IP SITE ID STATE COLOR COLOR SOURCE IP IP PORT ENCAP MULTIPLIER INTERVAL(msec UPTIME TRANSITIONS
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
10.0.0.2 20 down biz-internet biz-internet 192.168.30.2 172.16.1.18 5063 ipsec 7 1000 NA 0
10.0.0.1 20 up biz-internet biz-internet 192.168.30.2 172.16.1.18 12346 ipsec 7 1000 0:00:44:29 0 Step 2. Check the NAT Type
At the bottom of the output, the NAT Type A is seen on S30_Edge1. This indicates Symmetric NAT. Also note the public IP 172.16.1.34 and port 31048.
S30_Edge1# show sdwan control local-properties
<SNIP>
site-id 30
domain-id 1
protocol dtls
tls-port 0
system-ip 10.0.0.30
<SNIP>
NAT TYPE: E -- indicates End-point independent mapping
A -- indicates Address-port dependent mapping
N -- indicates Not learned
Note: Requires minimum two vbonds to learn the NAT type
PUBLIC PUBLIC PRIVATE PRIVATE PRIVATE WAN MAX RESTRICT/ LAST SPI TIME NAT VM BIND
INTERFACE IPv4 PORT IPv4 IPv6 PORT VS/VM COLOR STATE CNTRL CONTROL/ LR/LB CONNECTION REMAINING TYPE CON REG INTERFACE
STUN PRF IDs
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
GigabitEthernet1 172.16.1.34 31048 192.168.30.2 :: 12346 2/1 biz-internet up 2 yes/yes/no No/No 0:00:49:18 0:11:10:25 A 5 Default N/A
Step 3. Check the NAT configuration
From the topology it is known that S20_Edge2 is behind the TLOC Extension. At this point we can check for the PAT configuration on the S20_Edge1.
NAT overload configuration is already present on S20_Edge1
S20_Edge1#sh run int gi1
interface GigabitEthernet1
description biz-internet
ip dhcp client default-router distance 1
ip address 192.168.20.2 255.255.255.0
no ip redirects
ip nat outside
load-interval 30
negotiation auto
arp timeout 1200
end
S20_Edge1#sh run | i nat
<SNIP>
ip nat inside source list nat-dia-vpn-hop-access-list interface GigabitEthernet1 overloadStep 4. Check the public IP and port
Check show sdwan control local properties output on S20_Edge2 to see the public IP and port 172.16.1.18 and port 5063
S20_Edge2#show sdwan control local-properties
<SNIP>
site-id 20
domain-id 1
protocol dtls
tls-port 0
system-ip 10.0.0.2
<SNIP>
NAT TYPE: E -- indicates End-point independent mapping
A -- indicates Address-port dependent mapping
N -- indicates Not learned
Note: Requires minimum two vbonds to learn the NAT type
PUBLIC PUBLIC PRIVATE PRIVATE PRIVATE WAN MAX RESTRICT/ LAST SPI TIME NAT VM BIND
INTERFACE IPv4 PORT IPv4 IPv6 PORT VS/VM COLOR STATE CNTRL CONTROL/ LR/LB CONNECTION REMAINING TYPE CON REG INTERFACE
STUN PRF IDs
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
GigabitEthernet2.100 172.16.1.18 5063 192.168.100.2 :: 12346 2/0 biz-internet up 2 yes/yes/no No/No 0:00:50:29 0:11:09:15 E 5 Default N/A
Step 5. Check the NAT translations
Now check the NAT translations on the S20_Edge1 device. There is only a NAT session to the advertised IP and port for S30_Edge1, IP 172.16.1.34 and port 31048. Considering what we know about symmetric NAT, this is not be the case. There must be at least one different port than 31048 (not a standard SD-WAN port like 12346), if not a different IP AND port combination.
S20_Edge1#sh ip nat translations
Pro Inside global Inside local Outside local Outside global
udp 192.168.20.2:5063 192.168.100.2:12346 172.16.1.69:12346 172.16.1.69:12346
udp 192.168.20.2:5063 192.168.100.2:12346 172.16.0.102:12446 172.16.0.102:12446
udp 192.168.20.2:5063 192.168.100.2:12346 172.16.1.50:12346 172.16.1.50:12346
udp 192.168.20.2:5063 192.168.100.2:12346 172.16.0.202:12346 172.16.0.202:12346
udp 192.168.20.2:5063 192.168.100.2:12346 172.16.1.82:12346 172.16.1.82:12346
udp 192.168.20.2:5063 192.168.100.2:12346 172.16.1.34:31048 172.16.1.34:31048
udp 192.168.20.2:5063 192.168.100.2:12346 172.16.0.201:12346 172.16.0.201:12346
udp 192.168.20.2:5063 192.168.100.2:12346 172.16.0.101:12446 172.16.0.101:12446
udp 192.168.20.2:5063 192.168.100.2:12346 172.16.1.98:12346 172.16.1.98:12346
Step 6. Check FIA trace
Run a FIA trace just to check that packets are getting dropped on S20_Edge1. Keep in mind that the IP does not have to be the same as the advertised one, but in this case for simplicity, it is.
S20_Edge1#debug platform condition ipv4 172.16.1.34/32 both
S20_Edge1#debug platform condition start
S20_Edge1#debug platform packet packet 1024 fia
S20_Edge1#debug platform packet packet 1024 fia-trace
S20_Edge1#show platform packet summary
Pkt Input Output State Reason
0 Gi2.100 Gi1 FWD
1 internal0/0/recycle:0 Gi1 FWD
2 Gi2.100 Gi1 FWD
3 internal0/0/recycle:0 Gi1 FWD
4 Gi2.100 Gi1 FWD
5 internal0/0/recycle:0 Gi1 FWD
6 Gi2.100 Gi1 FWD
7 internal0/0/recycle:0 Gi1 FWD
8 Gi1 Gi1 DROP 479 (SdwanImplicitAclDrop)Check packet 8 to see if this is the suspected packet.
S20_Edge1#show platform packet packet 8
Packet: 8 CBUG ID: 482
Summary
Input : GigabitEthernet1
Output : GigabitEthernet1
State : DROP 479 (SdwanImplicitAclDrop)
Timestamp
Start : 6120860350139 ns (04/18/2025 02:35:03.873687 UTC)
Stop : 6120860374021 ns (04/18/2025 02:35:03.873710 UTC)
Path Trace
Feature: IPV4(Input)
Input : GigabitEthernet1
Output : <unknown>
Source : 172.16.1.34
Destination : 192.168.20.2
Protocol : 17 (UDP)
SrcPort : 3618
DstPort : 12346
<SNIP>This does seem to be the packet from S30_Edge1.
Checking back on the NAT table in step 6, we can see there is no session for this packet. That is the reason for the drop.
Step 7. Check BFD counters
BFD packets from S20_Edge2 are not be seen at S30_Edge1 due to they are dropped outside the device, on the NAT device. The BFD Tx/Rx counters can be checked via show sdwan tunnel statistics command.
S30_Edge1#show sdwan tunnel statistics
tunnel stats ipsec 192.168.30.2 172.16.1.18 12346 12347
system-ip 10.0.0.2
local-color biz-internet
remote-color biz-internet
tunnel-mtu 1438
tx_pkts 10
tx_octets 1060
rx_pkts 0 <<<<<<<<<<<<<
rx_octets 0
tcp-mss-adjust 1358
ipv6_tx_pkts 0
ipv6_tx_octets 0
ipv6_rx_pkts 0
ipv6_rx_octets 0
tx_ipv4_mcast_pkts 0
tx_ipv4_mcast_octets 0
rx_ipv4_mcast_pkts 0
rx_ipv4_mcast_octets 0
tx-ipv6-mcast-pkts 0
tx-ipv6-mcast-octets 0
rx-ipv6-mcast-pkts 0
rx-ipv6-mcast-octets 0Solution
To solve this, a static NAT can be configured on top of the NAT Overload (PAT) on S20_Edge1 to NAT all Control and BFD Packets to a single IP/Port combination.
1. First, it is be necessary to disable port-hopping on this color, or system-wide on S20_Edge2.
A port-offset is also be added as a best practice for S20_Edge2 so S20_Edge1 and S10_Edge2 do not use the same source port for control connections or BFD tunnels.
Note: This configuration can be performed through the router CLI or through a vManage CLI Add-On template.
S20_Edge2#config-t
S20_Edge2(config)# system
S20_Edge2(config-system)# no port-hop
S20_Edge2(config-system)# port-offset 1
S20_Edge2(config-system)# commit
Note: Ensure that the S20_Edge2 is using the base port 12347 after this configuration by checking show sdwan control local-properties. If it is not using the base port, use the command clear sdwan control port-index to reset the port back to the base port. This prevents the port from changing if it were running on a higher port and then reboots later. The clear command resets control connections and bfd tunnels.
2. Configure the Static NAT on S20_Edge1.
S20_Edge1#config-t
S20_Edge1(config)# ip nat inside source static udp 192.168.100.2 12347 192.168.20.2 12347 egress-interface GigabitEthernet1
S20_Edge1(config)# commit3. Clear the NAT Translations on S20_Edge1.
S20_Edge1#clear ip nat translation *Verification
1. Check the BFD Sessions on one of the peers.
S30_Edge1#show sdwan bfd sessions
SOURCE TLOC REMOTE TLOC DST PUBLIC DST PUBLIC DETECT TX
SYSTEM IP SITE ID STATE COLOR COLOR SOURCE IP IP PORT ENCAP MULTIPLIER INTERVAL(msec UPTIME TRANSITIONS
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
10.0.0.2 20 up biz-internet biz-internet 192.168.30.2 172.16.1.18 12347 ipsec 7 1000 0:00:00:37 0
2. Check the NAT sessions on S20_Edge1.
S20_Edge1#sh ip nat translations
Pro Inside global Inside local Outside local Outside global
udp 192.168.20.2:12347 192.168.100.2:12347 --- ---
udp 192.168.20.2:12347 192.168.100.2:12347 172.16.0.202:12346 172.16.0.202:12346
udp 192.168.20.2:12347 192.168.100.2:12347 172.16.1.50:12346 172.16.1.50:12346
udp 192.168.20.2:12347 192.168.100.2:12347 172.16.0.102:12446 172.16.0.102:12446
udp 192.168.20.2:12347 192.168.100.2:12347 172.16.1.34:50890 172.16.1.34:50890
udp 192.168.20.2:12347 192.168.100.2:12347 172.16.1.69:12346 172.16.1.69:12346
udp 192.168.20.2:12347 192.168.100.2:12347 172.16.1.98:12346 172.16.1.98:12346
udp 192.168.20.2:12347 192.168.100.2:12347 172.16.0.101:12446 172.16.0.101:12446
udp 192.168.20.2:12347 192.168.100.2:12347 172.16.0.201:12346 172.16.0.201:12346
udp 192.168.20.2:12347 192.168.100.2:12347 172.16.1.82:12346 172.16.1.82:12346
udp 192.168.20.2:12347 192.168.100.2:12347 172.16.0.1:13046 172.16.0.1:13046
Total number of translations: 11
Now it is seen that all the control connections and BFD Tunnels are NAT to the configured IP and port, 192.168.20.2:12347. Also the connection to 172.16.1.34 is to a completely different port than advertised to vSmart by S30_Edge1. See port 50890.
3. Notice in the show sdwan control local properties output from S30_Edge1 that the advertised IP and port are 172.16.1.34 and port 60506.
S30_Edge1#show sdwan control local-properties
<SNIP>
site-id 30
domain-id 1
protocol dtls
tls-port 0
system-ip 10.0.0.30
<SNIP>
NAT TYPE: E -- indicates End-point independent mapping
A -- indicates Address-port dependent mapping
N -- indicates Not learned
Note: Requires minimum two vbonds to learn the NAT type
PUBLIC PUBLIC PRIVATE PRIVATE PRIVATE WAN MAX RESTRICT/ LAST SPI TIME NAT VM BIND
INTERFACE IPv4 PORT IPv4 IPv6 PORT VS/VM COLOR STATE CNTRL CONTROL/ LR/LB CONNECTION REMAINING TYPE CON REG INTERFACE
STUN PRF IDs
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
GigabitEthernet1 172.16.1.34 60506 192.168.30.2 :: 12346 2/0 biz-internet up 2 yes/yes/no No/No 0:00:21:13 0:11:38:30 A 5 Default N/A
