Troubleshoot Hybrid Calendar with Exchange Connector Error "Pending Activation by Admin"

Introduction

This document describes how to identity and repair errors while enabling Scheduling with Hybrid Calendar with Exchange for Webex users in Control Hub.

Prerequisites

Requirements

Cisco recommends that you have knowledge of these topics:

• A Webex Organization.
• Webex Hybrid Calendar.
• Microsoft Exchange Admin Console.

Components Used

The information in this document is based on these software and hardware versions:

• Webex Control Hub build 20240919-84b27c9
• Microsoft Exchange 15.2 (Build 529.5)
• Chrome browser 129.0.6668.58 (Official Build) (arm64)

The information in this document was created from the devices in a specific lab environment. All of the devices used in this document started with a cleared (default) configuration. If your network is live, ensure that you understand the potential impact of any command.

Background

When enabling Hybrid Calendar with Exchange for Webex users in Control Hub, the status does not change to Activated and is stuck in error: "Pending Activation by admin..."

Control Hub error

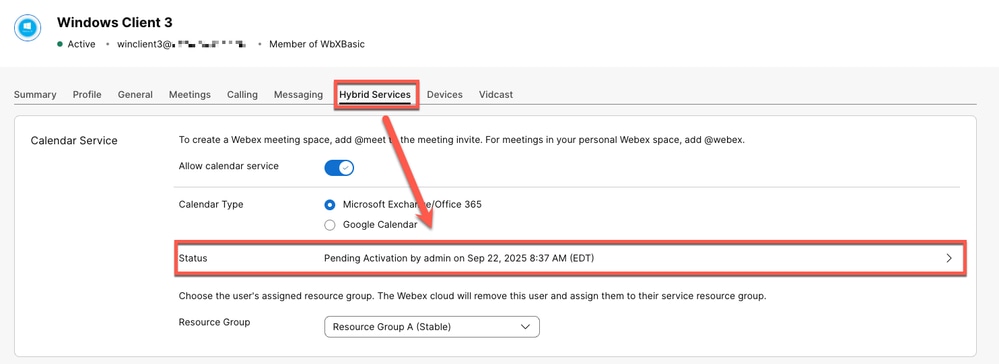

At Control Hub > Management > Users > User affected > Hybrid Services > Calendar Service, the status is stuck on "Pending Activation by admin ..."

Control Hub error

Gathering logs

Control Hub

From your browser (preferably in incognito mode) :

Chrome: Open DevTools > Network

FireFox: Open Web Developer Tools > Network.

Navogate to admin.webex.com > Management > Users > User affected > Hybrid Services > Calendar Service.

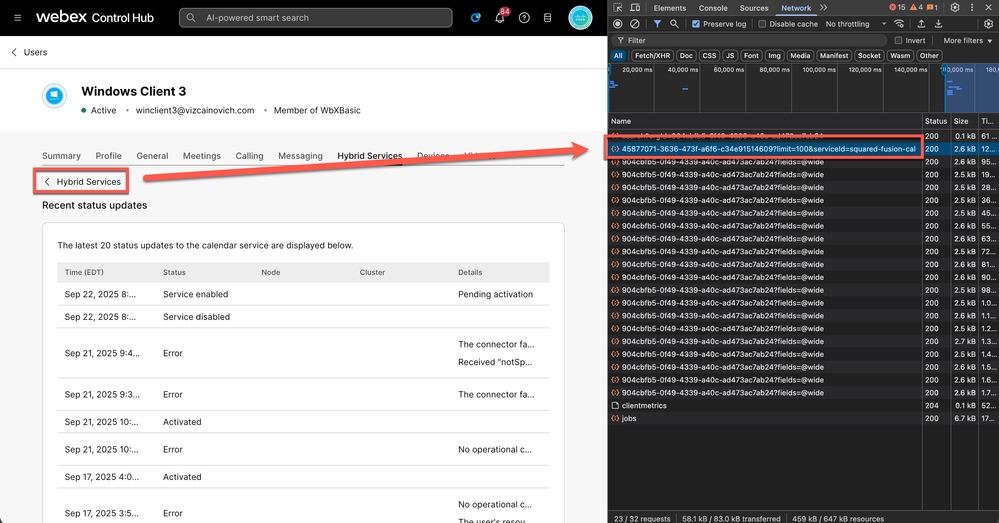

Click Status and locate the Request URL which ends with &serviceId=squared-fusion-cal.

Request URL

Request URL

https://uss-a.wbx2.com/uss/api/v1/orgs/904cbfb5-0f49-4339-a40c-ad473ac7ab24/userJournal/45877071-3636-473f-a6f6-c34e91514609?limit=100&serviceId=squared-fusion-cal

The userId appears after /userJournal/ and before the ?limit parameter. This identifier is needed to lookup inside of the Expressway Logs.

45877071-3636-473f-a6f6-c34e91514609

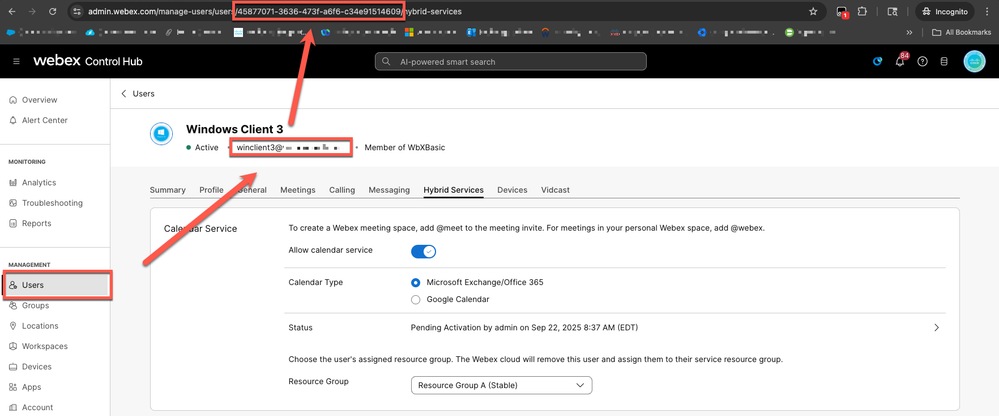

Tip: The fastest way to find the user ID is by checking the URL in the address bar.

Address Bar

Expressway Connector

With the userId from Control Hub, proceed to enable Diagnostic Logging, deactivate and reactivate the user, wait roughly five (5) minutes, and then collect the logs.

Navigate to Maintenance > Diagnostics > Diagnostic logging.

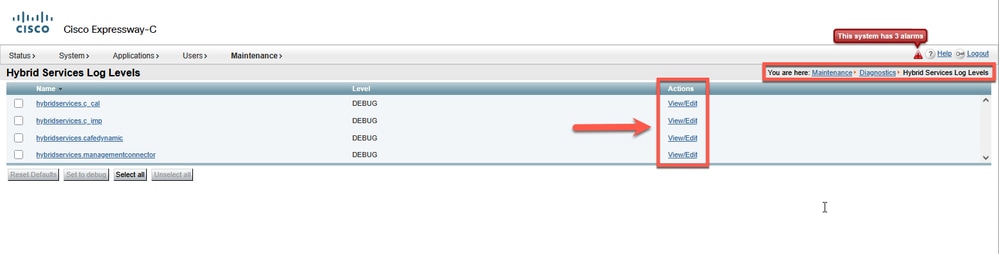

Caution: Make sure to set Log Levels to DEBUG or WARNING to trap the required logs. Go to Maintenance > Diagnostics > Hybrid Services Log Levels.

Hybrid Services Log Levels

Understanding Logging Levels

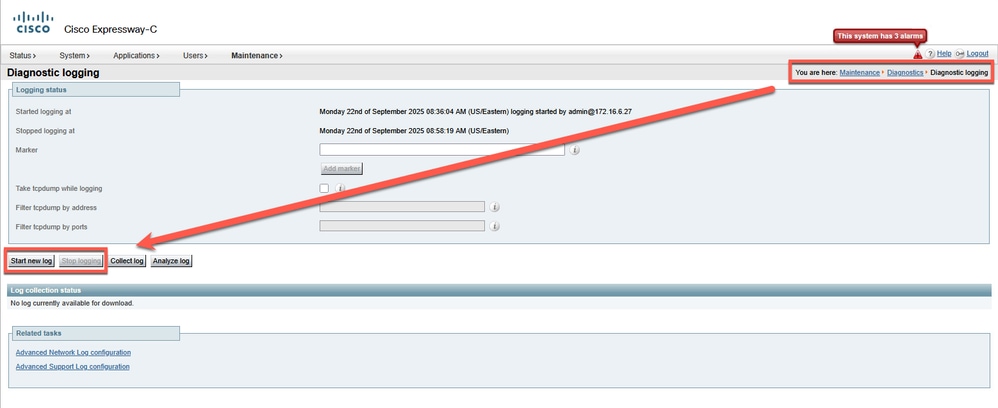

Navigate to Maintenance > Diagnostics > Diagnostic logging and click Start new log button to initiate logging. If Expressways are part of a Cluster, enable them in the primary node.

Diagnostic logging

Deactivate the user affected from Control Hub and wait 4 -7  minutes, then click Stop logging button.

Stop logging

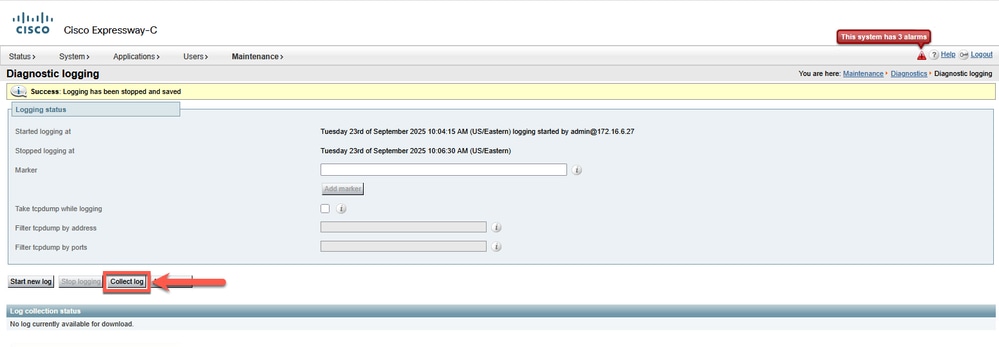

Click Collect log to initiate the process of gathering and compiling diagnostic information into a downloadable archive.

Collect log

After the archive is created, the Download log button appears, allowing the administrator to save the file to their local machine. This file is typically uploaded to a Cisco TAC (Technical Assistance Center) case for analysis.

Download log

Expressway Connector log analysis

With the userId of the affected user collected from Control Hub:

Extract the Expressway logs locally and locate and open the file loggingsnapshot_<Expressway-HostName>_<Date>.txt

diagnostic_log_ccnp-expressway-hybrid1_2025-09-22_12/58/19 > loggingsnapshot_ccnp-expressway-hybrid1_2025-09-22_12/58/19.txt

Filter out userId and locate the EWSServices.bindToCalendar request right after the discover event containing the userId.

2025-09-22T08:38:08.654-04:00 localhost UTCTime="2025-09-22 12:38:08,654" Module="hybridservices.c_cal" Level="ERROR" Thread="pool-4474-thread-1" TrackingId="" Detail="EWSServices.bindToCalendar(00000000-0000-0000-0000-000000000000, https://srv-xchge.vizcainovich.com/ews/exchange.asmx) threw ServiceRequest exception.The request failed. microsoft.exchange.webservices.data.ServiceResponseException: The account does not have permission to impersonate the requested user."

2025-09-22T08:38:08.657-04:00 localhost UTCTime="2025-09-22 12:38:08,656" Module="hybridservices.c_cal" Level="DEBUG" Thread="DiscoveryExecutor-1" TrackingId="ATLAS_91cf6741-7fb2-4687-8fcb-f5d07def961d_t:b2efac54_82" Detail="Sending 14 discover events for e34d8673-d937-4d0a-b5f3-ea5b83c7600bDiscoverEvent{userId=fd7a4d33-baae-4051-9f6e-afafa06460f8, serviceType=squared-fusion-cal, clusterId=bd300d7d-40f2-4b68-91df-22e516074d59, score=-1, isOperational=false}DiscoverEvent{userId=313b303a-607e-41cb-bdd5-a8142b5e304a, serviceType=squared-fusion-cal, clusterId=bd300d7d-40f2-4b68-91df-22e516074d59, score=-1, isOperational=false}DiscoverEvent{userId=b2d5da40-9457-4a05-8cfc-b0659df7cce2, serviceType=squared-fusion-cal, clusterId=bd300d7d-40f2-4b68-91df-22e516074d59, score=-1, isOperational=false}DiscoverEvent{userId=c71fb15e-e1dd-4de1-8217-0747afeb7484, serviceType=squared-fusion-cal, clusterId=bd300d7d-40f2-4b68-91df-22e516074d59, score=-1, isOperational=false}DiscoverEvent{userId=45877071-3636-473f-a6f6-c34e91514609, serviceType=squared-fusion-cal, clusterId=bd300d7d-40f2-4b68-91df-22e516074d59, score=-1, isOperational=false}DiscoverEvent{userId=005cc3e4-2c55-466a-8350-8a9dba37effb, serviceType=squared-fusion-cal, clusterId=bd300d7d-40f2-4b68-91df-22e516074d59, score=-1, isOperational=false}DiscoverEvent{userId=7235db5d-102b-4e77-b0a8-8b6dc0a6d554, serviceType=squared-fusion-cal, clusterId=bd300d7d-40f2-4b68-91df-22e516074d59, score=-1, isOperational=false}DiscoverEvent{userId=9df909c1-e737-49f6-ba75-f6c5e2e6e668, serviceType=squared-fusion-cal, clusterId=bd300d7d-40f2-4b68-91df-22e516074d59, score=-1, isOperational=false}DiscoverEvent{userId=fc74df95-8a56-45b2-83b7-c4bb0b561ec9, serviceType=squared-fusion-cal, clusterId=bd300d7d-40f2-4b68-91df-22e516074d59, score=-1, isOperational=false}DiscoverEvent{userId=6e0ae1de-463c-44fa-97cf-02ec70888d0c, serviceType=squared-fusion-cal, clusterId=bd300d7d-40f2-4b68-91df-22e516074d59, score=-1, isOperational=false}DiscoverEvent{userId=c6df9679-ef9f-49b2-8ca9-19167b4ef2e0, serviceType=squared-fusion-cal, clusterId=bd300d7d-40f2-4b68-91df-22e516074d59, score=-1, isOperational=false}DiscoverEvent{userId=34b0ebf5-000c-48ee-944f-e0c04318c8c3, serviceType=squared-fusion-cal, clusterId=bd300d7d-40f2-4b68-91df-22e516074d59, score=-1, isOperational=false}DiscoverEvent{userId=63e5774b-8c8e-4232-bba2-c2ca67f7575c, serviceType=squared-fusion-cal, clusterId=bd300d7d-40f2-4b68-91df-22e516074d59, score=-1, isOperational=false}DiscoverEvent{userId=022f9f11-6590-4f43-83ab-5789bc62d11b, serviceType=squared-fusion-cal, clusterId=bd300d7d-40f2-4b68-91df-22e516074d59, score=-1, isOperational=false}"

Log snippets show multiple attempts including usedId 45877071-3636-473f-a6f6-c34e91514609 pointing out to the impersonation account used to commnicate between Expressway Connector and the Exchange server showing this error :

The account does not have permission to impersonate the requested user.

Validation

Exchange server

Validate the impersonation account from the Exchange server running this Exchange Server PowerShell command to list all ApplicationImpersonation role assignments :

Get -ManagementRoleAssignment -Role ApplicationImpersonation

Management Role Assignment

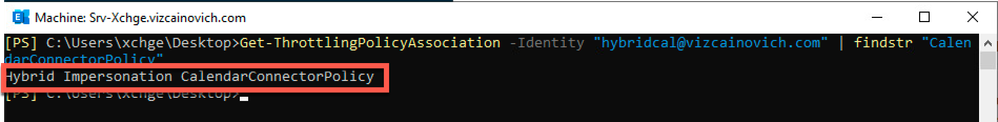

Confirm that the impersonation mailbox is using the Throttling Policy for Hybrid Calendar from Exchange server running this Exchange Server PowerShell command:

Get -ThrottlingPolicyAssociation -Identity "impersonation account" | findstr "ThrottlingPolicy"

Throttling Policy Association

Lookup at your Hybrid Calendar deployment records to identify the RoleAssignment given to the impersonation account during the first time setup. In this scenario, the RoleAssignment is:

CalendarConnectorAcct

MSExchange Event Viewer logs

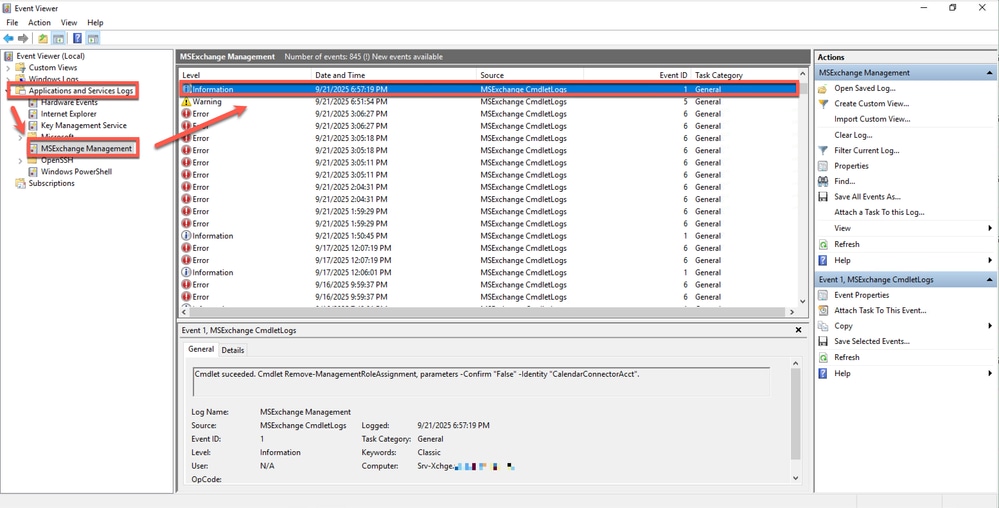

From the Exchange server, go to Event Viewer > Applications and Services Logs > MSExchange Management and filter out Information level events containing "CmdletLogs" and/or name of the RoleAssignment "CalendarConnectorAcct if any.

Event Viewer logs

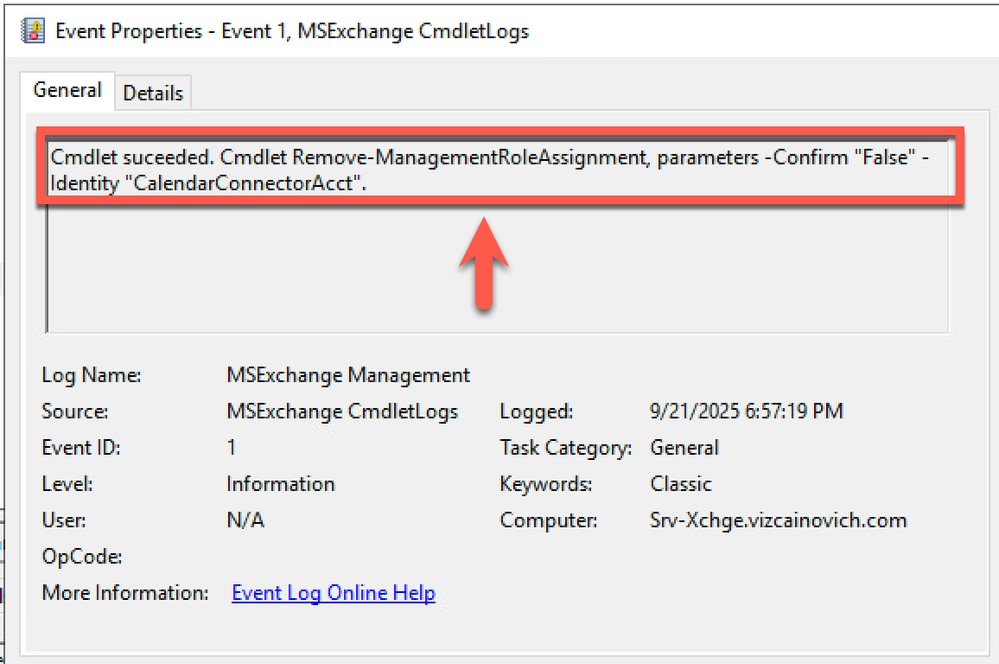

Double click on the event to open its properties.

Event Properties

Exchange Management Shell

By using the build-in session history of Exchange Server PowerShell, commands used in the current session can be tracked.

The history is not available to other sessions and is deleted when the session ends.

Using the PSReadLine history tracks the commands used in all PowerShell sessions.

The history is written to a central file per host. That history file is available to all sessions and contains all past history. The history is not deleted when the session ends.

In this scenario, the built-in session is showing this output after running this command:

Get-History

Get-History

Root Cause

Exchange admin deleted the RoleAssignment for the impersonation account using this Exchange Server PowerShell command:

Remove-ManagementRoleAssignment "CalendarConnectorAcct" -Confirm:$false

This action breaks the impersonation account role unable to subscribe users in Exchange server and causes users and workspaces activation to fail.

Solution

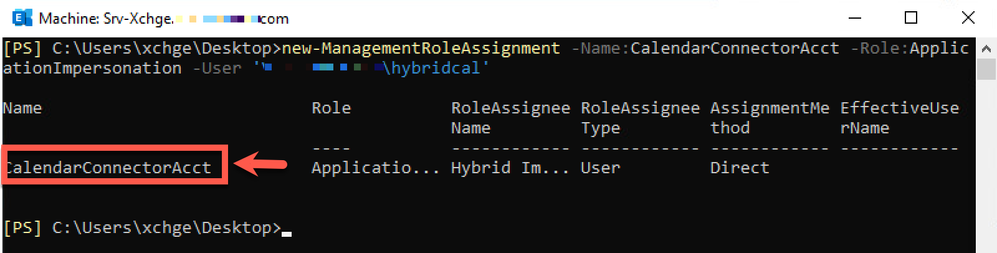

From Exchange Server PowerShell, run this command to create a new ManagementRomeAssignment with name "CalendarConnectorAcct" and assign it to impersonation account hybridcal.

new-ManagementRoleAssignment -Name:CalendarConnectorAcct -Role:ApplicationImpersonation -User 'VIZCAINOVICH\hybridcal'

new-ManagementRoleAssignment

From Expressway server, restart the Calendar connector to accelerate the activation process for the affecter user(s) and/or workspace(s).

Navigate to Applications > Hybrid Services > Connector Management > Calendar Connector > Enabled hyperlink.

Connector Management

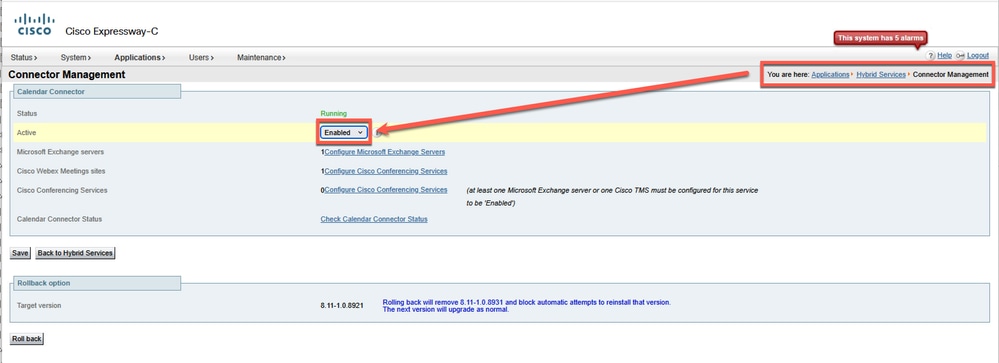

Inside of Calendar Connector, click the Enable to open the drop down menu.

Enabled button

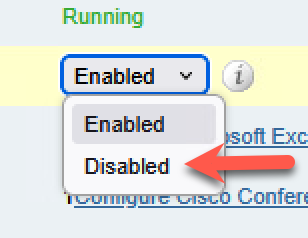

Select Disabled from the drop-down menu.

drop-down menu

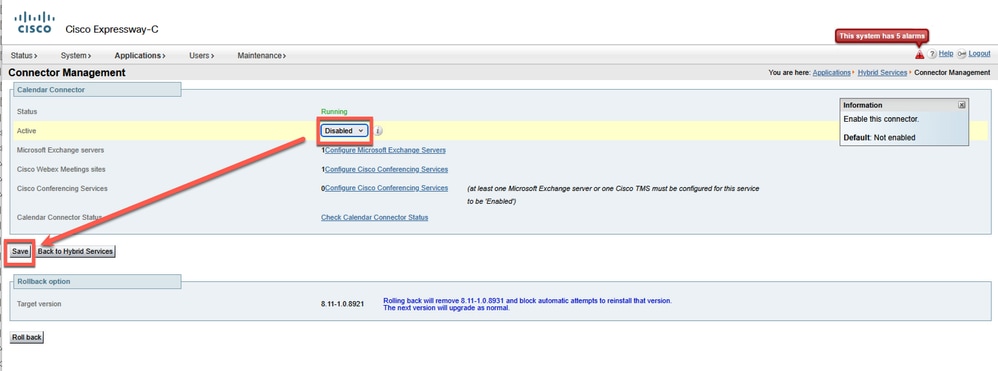

Click Save button to apply the changes in the Calendar Connector.

Save

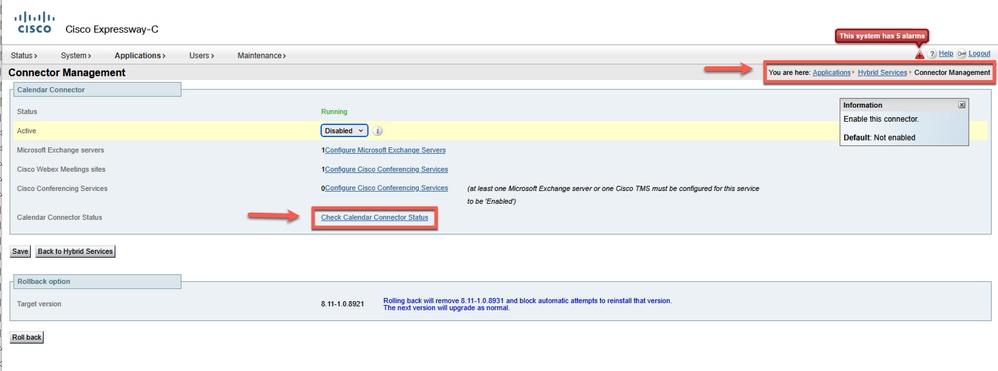

After changes are saved, it lands in Connector Management. Click Check Calendar Connector Status at the bottom of the Calendar Connector service.

Calendar Connector Status

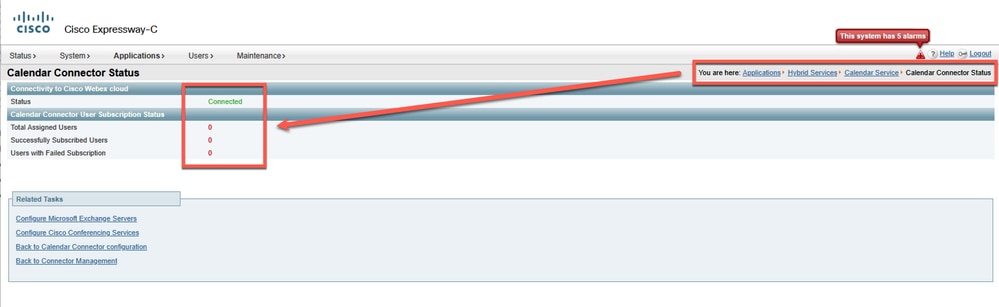

Wait a few minutes until the Calendar Connector initializes.

Restarted

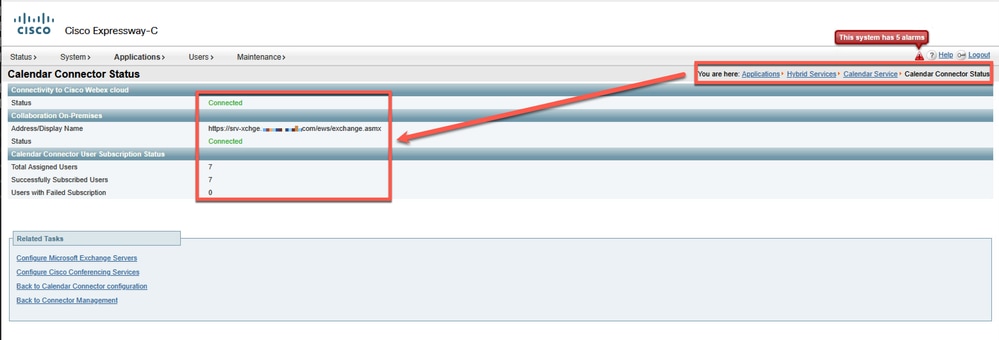

Once Calendar Connector initializes, Expressway connectivity shows Exchange address and users successfully subscribed.

Connected

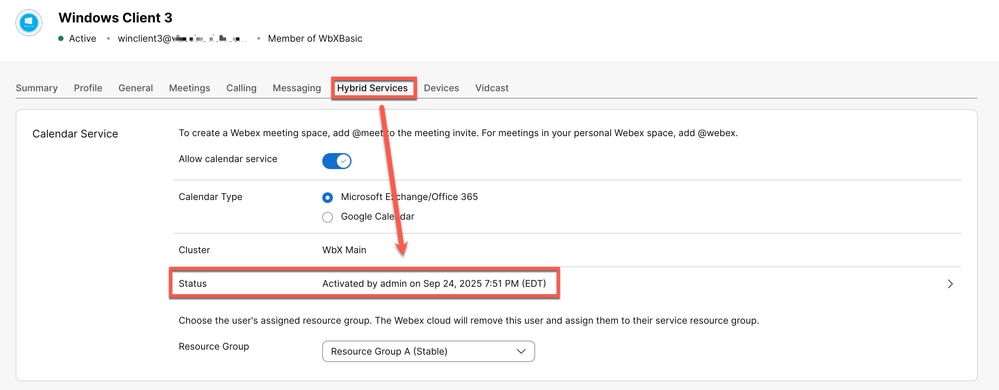

Return to Control Hub > Management > Users > Affected user shows Calendar service fully activated.

Activated

Expressway logs showing affected userId 45877071-3636-473f-a6f6-c34e91514609 getting a valid subscription from Exchange server:

2025-09-24T20:03:55.984-04:00 localhost UTCTime="2025-09-25 00:03:55,984" Module="hybridservices.c_cal" Level="DEBUG" Thread="ews-subscription-0" TrackingId="EXP_d5913454-640d-495e-b132-60ac0C76050F_t:5718eca5" Detail="Creating subscription for user 45877071-3636-473f-a6f6-c34e91514609 in group com.cisco.wx2.calendar.connector.ews.EWSServices$EWSSubscriptionConnection@4fce863b"

2025-09-24T20:03:55.984-04:00 localhost UTCTime="2025-09-25 00:03:55,984" Module="hybridservices.c_cal" Level="DEBUG" Thread="ews-subscription-0" TrackingId="EXP_d5913454-640d-495e-b132-60ac0C76050F_t:5718eca5" Detail="Binding user 45877071-3636-473f-a6f6-c34e91514609"

2025-09-24T20:03:56.049-04:00 localhost UTCTime="2025-09-25 00:03:56,049" Module="hybridservices.c_cal" Level="DEBUG" Thread="ews-subscription-0" TrackingId="EXP_d5913454-640d-495e-b132-60ac0C76050F_t:5718eca5" Detail="DAS.core:  activateUser: 45877071-3636-473f-a6f6-c34e91514609"

Note: The alarm ‘The account does not have permission to impersonate the requested user’ can have multiple causes; however, all of them are related to the impersonation account configuration or the Exchange server.
