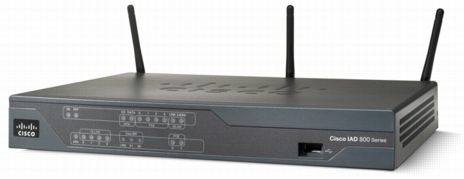

The Cisco® IAD880 Series Integrated Access Devices are cost-effective fixed configuration customer premises equipment for service providers offering managed voice and data services. The Cisco IAD880 Series offers cost-effective platforms for providing interconnect solutions for accelerating the migration from time-division multiplexing (TDM) to voice over IP (VoIP). The Cisco IAD880 Series provides secure concurrent services, including firewall, content filtering, VPNs, and WLANs, at broadband speeds to small offices. The Cisco IAD880 Series includes fixed-configuration platforms with voice ports, WAN uplinks, embedded encryption acceleration, voice digital-signal-processor (DSP) slots on the motherboard, and intrusion-prevention-system (IPS) and IP Security (IPsec) features while maintaining a desktop form factor for space-saving service provider managed services deployments.
Powered by Cisco IOS® Software, the Cisco IAD880 Series supports TDM and VoIP, with proven quality-of-service (QoS) tools, multiple call-control protocols (such as Session Initiation Protocol [SIP], Media Gateway Control Protocol [MGCP], and H.323), and diverse VoIP codecs. The choice of Basic Rate Interface (BRI) voice ports over asymmetric DSL (ADSL) or G.SHDSL furthers the appeal of the Cisco IAD880 Series to service providers for providing managed services.
Primary Features and Benefits to Service Providers
Cost Effectiveness
The Cisco IAD880 Series offers the entire gamut of industry-leading features at a very cost-effective price for service providers. With flexible support for a variety of WAN interfaces and line-side voice interfaces, wireless services, as well as integrated security services, the Cisco IAD880 Series is customized to the unique requirements for the small and medium-sized business. Priced with the small and medium-sized business customer in mind, the feature-rich Cisco IAD880 Series offers superior value to a service provider interested in taking advantage of the growing managed small and medium-sized business services market.
Transparent Service Migration
The Cisco IAD880 Series can help service providers transparently migrate end customers from TDM-based voice service to call agent-based packet voice services without the need for a complete equipment upgrade at the end-customer site. The provider can choose SIP, MGCP or H.323 for VoIP protocols, based on the services that need to be delivered.
Flexibility
The Cisco IAD880 Series offers both TDM and VoIP with rich VoIP signaling protocol support. Combined with the option for call agent- and BRI-based network designs, the Cisco IAD880 Series offers powerful flexibility in the design of next-generation multiservice networks.
Functional Intelligence
When used with the popular Cisco Configuration Express tool, the autoinstallation technology offers true ready-to-use installation. In addition, the Cisco IAD880 Series is based on Cisco IOS Software and provides the same IP features that power more than 80 percent of the Internet infrastructure. Cisco IOS Software delivers rich data services, allowing service providers to gain additional data revenue, in addition to proven industry-tested voice features.
Operational Efficiencies
The new Cisco IAD880 Series can increase operational efficiencies by reducing or eliminating the necessity for complete hardware upgrades, warehousing, complete equipment upgrades, and highly skilled technician involvement. Service providers that deploy these devices with other Cisco equipment and Cisco IOS Software can cost-effectively extend training, administration, and maintenance activities across the entire network.
End-to-End Solution
Because the Cisco IAD880 Series is compatible with a wide range of industry-leading DSL access multiplexers (DSLAMs) and voice gateways and offers world-class data features of Cisco IOS Software, service providers can deploy a highly efficient and scalable end-to-end multiservice network. The Cisco IAD880 Series is an integral part of Cisco packet voice solutions.
Primary Benefits to End Users
Robust Voice Quality
The Cisco experience in providing toll-quality packet-voice service helps ensure that the Cisco IAD880 Series provides the clear, robust voice quality that users have come to expect from telephony services.
Reliability
Cisco products are renowned for their exceptional reliability earned through years of proven industry service. The Cisco IAD880 Series extends the same reliability standards to managed service environments to provide end users with high levels of dependability.
Service Flexibility
Today's rapidly changing business environment leads to constant change in network requirements of small and medium-sized businesses. The Cisco IAD880 Series allows service providers to add or remove service offerings remotely based on end-user needs.
Primary Applications
The Cisco IAD880 Series is primarily for managed service provider offerings. You can deploy the devices only in one the following deployment scenarios:
• Private-branch-exchange (PBX) or IP PBX interconnects (Figure 2)
• Managed SIP Trunking for IP PBX interconnects (Figure 3)
Figure 2. PBX or IP PBX Interconnects: Cisco IAD880 Series Is Targeted at Providing BRI Interconnects to PBXs and IP PBXs
Figure 3. Managed SIP Trunking for IP PBX Interconnects: Cisco IAD880 Series Is Targeted at Providing Network Address Translation ALG (Application Layer Gateway) Functions for the Managed SIP Trunking IP PBX Interconnect
Features and Benefits
The Cisco IAD880 Series architecture is designed specifically to meet the expanding requirements of service providers providing managed services to commercial offices and small and medium-sized businesses for today's and future applications. The Cisco IAD880 Series offers DSL connectivity options combined with leading-edge availability and reliability features. In addition, Cisco IOS Software supports a complete suite of transport protocols, QoS tools, and advanced security and voice applications for wired and wireless deployments. Table 2 gives features and benefits of the Cisco IAD880 Series.
Table 2. Features and Benefits
Feature
Benefit
Increased performance to run concurrent services
• The performance in a Cisco IAD880 Series router allows customers to take advantage of broadband network speeds while running secure, concurrent data, voice, and video services.
Enhanced security*
• Integrated sStateful iInspection fFirewall for network perimeter security
• High-speed IPSec 3DES and AES encryption for data privacy over the Internet
• Intrusion pPrevention to enforce security policy in a larger enterprise or service provider network
• Content fFiltering offers category-based URL classification and blocking, thus providing increased productivity and better use of company resources.
Redundant WAN links
• Provides business continuity, WAN diversity, and load balancing with multiple WAN links: Fast Ethernet, G.SHDSL, ISDN.
4-Port 10/100-Mbps managed switch
• Allows multiple devices to be connected in a small office, with the ability to designate a port as network edge.
• Optional external Power over Ethernet (PoE) adapter for powering IP phones, to avoid individual power supplies or power injectors.
• VLANs allow for secure segmentation of network resources.
AUX/CON port
• Provides direct connection to a console or external modem for management or backup.
Optional 802.11b/g/n WLANs
• Broadband router with secure integrated APaccess point in a single device.
• 802.11n features for increased throughput and range including MIMO (multiple input multiple output) antennas for optimizing coverage in a small office
• Supports both autonomous and uUnified modes
Real-time clock
• Built-in real-time clock maintains an accurate date and time for applications that require an accurate time stamp such as logging and digital certificates.
* Depending on Cisco IOS Software feature set selected below in Tables 3 and 6.
Note: The Cisco IAD880 Series does not support Cisco Unified Communications Manager integration, Cisco Unified Communications Manager Express, or Cisco Unified Survivable Remote Site Telephony (SRST).
Product Specifications
As service providers strive to lower the cost of running their network and increase the productivity of their end customers with network applications, more intelligent small office solutions are required of service providers. The Cisco IAD880 Series offers these solutions by providing enhanced performance and increased modular density to support multiple services at wire speed. The Cisco IAD880 Series is designed to consolidate the functions of many separate devices into a single, compact package that you can manage remotely. The Cisco IAD880 Series offers powerful flexibility and an adaptable infrastructure to meet both today's and tomorrow's business requirements for maximum investment protection.
Tables 3 through 6 describe features of the Cisco IAD880 Series in various configurations.
Product Specifications
Table 3. Cisco IOS Software Features on Cisco IAD880 Series Routers: Advanced Security Feature Set (Default)
• ATM Unspecified Bit Rate (UBR), Constant Bit Rate (CBR), and Variable Bit Rate/non-real-time (VBR-nrt)
• ATM Operation, Administration, and Maintenance (OAM) Support for F5 Continuity Check; segment and end-to-end loopback; and Interim Local Management Interface (ILMI) support
• Dial backup with external modem through virtual auxiliary port
• Dial backup with ISDN S/T port (DSL models only)
Table 4. Cisco IOS Software Features on Cisco IAD880 Series Routers: Voice Features
Feature
Description and Benefits
Voice Gateway
• Provides gateway to PSTN for traditional PBXs, phones, fax machines, and key communication systems connected to a voice, data, and video infrastructure.
Toll Bypass
• Reduces or eliminates toll charges assessed by long-distance and local carriers by transporting voice and fax traffic across the enterprise intranet, LAN, metropolitan-area network (MAN), or WAN.
• Works with existing phones, faxes, PBXs, and key systems.
• Interoperates end-to-end with Cisco IP phones, analog phones, fax machine connections, and PBX or PABX connections to and from other Cisco voice-enabled products.
Voice over Packet Transport
• Voice/fax over IP-VoIP traffic at Layer 3 can travel over any Layer 1 or Layer 2 media, including Ethernet and DSL.
• Compressed Real-Time Protocol (cRTP) offers RTP header compression and packet fragmentation techniques that allow toll-quality voice and fax transmissions over any WAN connection.
Call Control Signaling
Supports H.323 V1/V2/V3/V4, MGCP 0.1/1.0, and SIP call control protocols.
International Telecommunications Union (ITU) Standard Voice Codecs
G.711, G.729, G.729a/b, G.723.1, G.726 and G.728. These are standards-based compression technologies allowing transmission of voice across IP, Frame Relay, and ATM. The G.711 standard employs 64-kbps PCM modulation using either u-law or A-law. Other codecs employ lower bit rates.
Telephony Interface Signaling Support
Supports the following signaling protocols:
• FXS loop-start and ground-start signaling
• Inbound signaling (such as dual-tone multifrequency [DTMF], multifrequency support)
• BRI QSIG
Voice features
• Echo Cancellation: Cancels echo on tail circuits up to 32 msec (configurable tail length)
• Silence suppression, voice activity detection (VAD): Bandwidth is used only when someone is speaking. During silent periods of a phone call, bandwidth is available for data traffic.
• Comfort Noise Generation: This feature reassures the phone user that the connection is being maintained, even when no voice packets are being transmitted.
• Private Line Automatic Ring-Down (PLAR): Provides a direct connection to another digital or analog voice port by lifting a telephone handset on one end.
• Caller ID Support: Per-port configurable caller ID (with per call un-blocking) over analog FXS.
• Dial Plan Mapping: Simplifies configuration and management through automatic mapping of dialed phone numbers to IP addresses.
Voice Port Interfaces
Support FXS and BRI (S/T, NT/T).
Voice Port-Specific features
• FXS: Provides battery polarity reversal detection and initiation for disconnect supervision and far-end answer supervision.
• ISDN BRI Network Side and Phantom Power: The BRI port provides the ability to connect a PBX or PABX configured as user side directly to the router. Also provides phantom power to accommodate equipment that requires it.
• LED indicators for voice-processing resources and port status.
Fax and Modem
• Fax and Modem Pass-Through: Allows fax and modem traffic to pass through a voice port.
• Fax Relay: Provides a more robust protocol for fax transmission over packet networks. Also supports the T.37 and T.38 fax protocols.
High-Performance Flexible Digital Signal Processor (DSP) Architecture
• Flexible DSP Architecture: There is no need to specify codec complexity at configuration. An appropriate codec is dynamically selected when a call is established, while allocating DSP resources optimally.
• Feature Upgrades: The DSP architecture allows for addition of new features through simple code updates.
Table 5. Cisco IOS Software Features on Cisco IAD880 Series Routers: WLAN Features (Available with Wireless Option)
Feature
Description
WLAN Hardware
• 802.11g/n
• Automatic rate selection for 802.11g/n
• Captive omnidirectional 2dBi gain dipole antennas
• 2x3 MIMO radio operation
• Wi-Fi 802.11n Draft v2.0 certified
WLAN Software Features
• Autonomous or uUnified access point
• WCS support for monitoring of autonomous mode access points
• Maximize throughput or maximize range option
• Software-configurable transmit power
• Radio roles include access point, root bridge, non-root bridge, and workgroup bridge
• Wireless Multi Media Certification (WMM)
• TSPEC Call Admission Control to ensure voice quality is maintained
• Unscheduled Automatic Power Save Delivery (UPSD) to reduce latency
