Basic, Affordable, IP Phone for Business or Home Office
Highlights
• Basic 1-line business-class IP phone
• Connects directly to an Internet telephone service provider or to an IP private branch exchange (PBX)
• Easy installation and secure remote provisioning, as well as web-based configuration
• Supports both Session Initiation Protocol (SIP) and Smart Phone Control Protocol (SPCP) with the Cisco® Unified Communications 500 Series

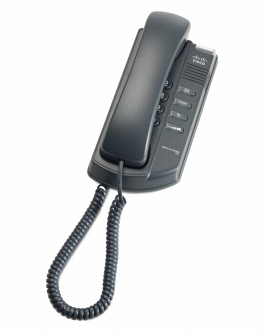

Figure 1. Cisco SPA 301 1-Line IP Phone
Comprehensive Interoperability and SIP-Based Feature Set
Based on SIP, the Cisco SPA 301 1-Line IP Phone has been tested to help ensure comprehensive interoperability with equipment from voice over IP (VoIP) infrastructure leaders, enabling service providers to quickly roll out competitive, feature-rich services to their customers.
With hundreds of features and configurable service parameters, the Cisco SPA 301 addresses the requirements of traditional business users while building on the advantages of IP telephony. Features such as easy station moves and shared line appearance (across local and geographically dispersed locations) are just some of the many advantages of the SPA 301.
Carrier-Grade Security, Provisioning, and Management
The Cisco SPA 301 uses standard encryption protocols to perform highly secure remote provisioning and unobtrusive in-service software upgrades. Remote provisioning tools include detailed performance measurement and troubleshooting features, enabling network providers to deliver high-quality support to their subscribers. Remote provisioning also saves service providers the time and expense of managing, preloading, and reconfiguring customer premises equipment.
Telephony Features
• One voice line
• Music on hold*
• Call waiting
• Outbound caller ID blocking**
• Call transfer: attended and blind** ( SIP Only )
• Three-way call conferencing with local mixing
• Multiparty conferencing via external conference bridge
• Automatic redial of last calling and last called numbers
• Call pickup: selective and group*
• Call swap
• Call back on busy**
• Call blocking: anonymous and selective**
• Call forwarding: unconditional, no answer, and on busy**
• Hot line and warm line automatic calling
• Digits dialed with number auto-completion
• Anonymous caller blocking**
• Support for Uniform Resource Identifier (URI) (IP) dialing (vanity numbers)
• Multiple ring tones with selectable ring tone per line
• Call duration and start time stored in call logs in web GUI
• Distinctive ringing based on calling and called number
• 10 user-downloadable ring tones
• Speed dialing, eight entries
• Configurable dial/numbering plan support
• Intercom*
• Group paging
• Network Address Translation (NAT) Traversal, including Serial Tunnel (STUN) support
• DNS SRV and multiple A records for proxy lookup and proxy redundancy
• Syslog, debug, report generation, and event logging
• Support for highly secure encrypted voice communications
• Built-in web server for administration and configuration, with multiple security levels
• Automated remote provisioning, multiple methods; up to 256 bit encryption (HTTP, HTTPS, Trivial File Transfer Protocol [TFTP])
• Option to require administrator password to reset unit to factory defaults
**Feature requires support by call server.
**Feature activated via feature code
Hardware Features
• Voicemail message waiting indicator light
• Voicemail message retrieval button
• Volume control
• Redial Button
• Flash Button
• Standard 12-button dialing pad
• High-quality handset
• One Ethernet WAN port 10/100BASE-T RJ-45
• 5 VDC universal (100-240V) switching power adaptor included
Regulatory Compliance
• FCC (Part 15, Class B) ,UL, CE Mark, A-Tick
Security Features
• Password-protected system, preset to factory defaults
• Password-protected access to administrator and user-level features
• HTTPS with factory-installed client certificate
• HTTP digest: encrypted authentication via MD5 (RFC 1321)
• Up to 256-bit Advanced Encryption Standard (AES) encryption
Documentation
• Quick-start installation and configuration guide
• User guide
• Administration guide
• Provisioning guide (for service providers only)
Package Contents
• Cisco SPA 301 IP phone, handset
• Handset cord
• RJ-45 Ethernet cable
• Power adapter
• Quick installation guide
• CD
Specifications
Table 1 provides specifications for the Cisco SPA 301 1-Line IP Phone.
Table 1. Specifications for the Cisco SPA 301 1-Line IP Phone Note: Many features are programmable within a defined range or list of options. Please see the SPA Administration Guide for details. The target configuration profile is uploaded to the SPA 301 at the time of provisioning.
• Flexible dial plan support with interdigit timers
• IP address/URI dialing support
• Call progress tone generation
• Jitter buffer: adaptive
• Frame loss concealment
• Voice activity detection (VAD) with silence suppression
• Attenuation/gain adjustments
• Message waiting indicator (MWI) tones
• Voicemail waiting indicator (VMWI), via NOTIFY, SUBSCRIBE
• Caller ID support (name and number)
• Third-party call control (RFC 3725)
Provisioning, administration, and maintenance
• Integrated web server provides web-based administration and configuration
• Automated provisioning and upgrade via TFTP, HTTP or HTTPS
• Asynchronous notification of upgrade availability via NOTIFY
• Nonintrusive in-service upgrades
• Report generation and event logging
• Statistics transmitted in BYE message
• RTCP-XR
• Syslog and debug server records: configurable per line
Power supply
• Switching type (100-240V) automatic
• DC input voltage: +5 VDC at 1.0A maximum
Physical interfaces
• One 10/100BASE-T RJ-45 Ethernet port (IEEE 802.3)
• Handset: RJ-9 connector
Indicator lights/LED
• Message waiting indicator LED
Dimensions (W x H x D)
7.76 x 3.82 x 1.77 inches (194 x 97 x 45 mm)
Unit weight
1.7 lb ( 0.7711 kg)
Operating temperature
32º ~ 113ºF (0º ~ 40ºC)
Storage temperature
-13º ~ 185ºF (-20º ~ 70ºC)
Operating humidity
5% to 95% noncondensing
Storage humidity
5% to 95% noncondensing
Table 2 compares the SPA 301 with other Cisco Small Business 500 Series IP Phones.
Table 2. Cisco Small Business 500 and 300 Series IP Phones Comparison
Model
Voice Lines
Ethernet Ports
High-Resolution Graphical Display
Power over Ethernet (PoE) Support
SPA 301G
1
1
No
No
SPA 303G
3
2
Yes
No
SPA 501G
8
2
No
Yes
SPA 502G
1
2
Yes
Yes
SPA 504G
4
2
Yes
Yes
SPA 508G
8
2
Yes
Yes
SPA 509G
12
2
Yes
Yes
SPA 525G
5
2
Color
Yes
Tables 3 and 4 provide ordering information for the Cisco SPA 301 and accessories.
Table 3. Ordering Information
Part Number
Description
SPA301-G1
Cisco SPA 301G, North America power adapter
SPA301-G2
Cisco SPA 301G, Europe power adapter
SPA301-G3
Cisco SPA 301G, UK power adapter
SPA301-G4
Cisco SPA 301G, Australia power adapter
CON-SBS-SVC1
3-year Cisco Small Business Support Service
Table 4. Optional Accessories
Part Number
Description
MB100
Wall-mount brackets for SPA 300, SPA 500, CP 500, and SPA 900 Series
Service & Support
The Cisco Small Business Support Service provides three years affordable peace of mind coverage, to help protect your investment and derive maximum value from Cisco Small Business solution. The subscription-based service offers software updates, access to the Cisco Small Business Support Center, online chat support, and expedited hardware replacement.
Warranty
Cisco Small Business IP Phones are covered by a Cisco 1-year limited hardware warranty
with return to factory replacement and a 90-day limited software warranty. In addition, Cisco offers software updates for bug fixes for the warranty term, and telephone technical support at no charge for the first 12 months following the date of purchase.
