The Cisco Nexus® 7000 48-Port 1 and 10 Gigabit Ethernet F2-Series Module (referred to as the Cisco Nexus 7000 F2-Series Module in this document) offers outstanding flexibility and wire-rate performance on each port. The module enables the deployment of high-density, low-latency, scalable data center architectures.
The Cisco Nexus 7000 Series Switches provide the foundation of the Cisco® Unified Fabric. They are a modular data center-class product line designed for highly scalable 10 Gigabit Ethernet networks. The fabric architecture scales beyond 15 terabits per second (Tbps), designed to support future 40 and 100 Gigabit Ethernet interfaces. To meet the requirements of the most mission-critical network environments, the switches deliver continuous system operations and virtualized services. The Cisco Nexus 7000 Series is powered by the proven Cisco NX-OS Software operating system, with enhanced features to deliver real-time system upgrades with exceptional manageability and serviceability. Its innovative unified fabric design is purpose built to support consolidation of IP and storage networks on a single lossless Ethernet fabric.
Features and Benefits
The Cisco Nexus 7000 F2-Series Module (Figure 1) is a low-latency, high-performance, high-density 10 Gigabit Ethernet module designed for mission-critical data center networks. Up to 768 wire-rate 10 Gigabit Ethernet ports are supported in a single system through the use of the Cisco Nexus 7000 18-Slot Switch chassis, providing the highest-density of wire-rate 10 Gigabit Ethernet ports on the market (Table 1).

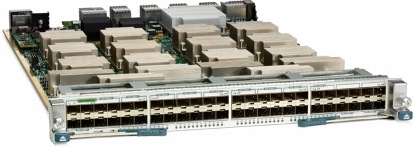

Figure 1. Cisco Nexus 7000 F2-Series Module
Table 1. Wire-Rate Port Density
Cisco Nexus 7000 Series Chassis
Maximum 10G port density
Cisco Nexus 7000 18-Slot Switch
Cisco Nexus 7000 10-Slot Switch
Cisco Nexus 7000 9-Slot Switch
Cisco Nexus 7000 4-Slot Switch
The Cisco Nexus 7000 F2-Series Module is built with switch-on-chip (SoC) architecture, in which a single ASIC implements all the module functions: from ingress buffering, to forwarding lookups and access control lists (ACLs) and quality-of-service (QoS) tables, to fabric interfaces and virtual output queuing (VOQ). Each SoC manages four front-panel interfaces. This type of design increases performance while lowering the power and cooling requirements of the module.
Powered by the Cisco Nexus 7000 F2-Series SoC architecture, the module delivers 720 million packets per second (mpps) of distributed Layer 2 and Layer 3 forwarding and up to 480 Gbps of data throughput. A Cisco Nexus 7000 18-Slot Switch fully populated with the Cisco Nexus 7000 F2-Series Module has the capability to deliver up to 11.5 billion packets per second and 15.4 terabits per second (Tbps) of switching performance, with a typical power consumption of around 7.5 watts (W) per port.
The module protects investments with standards-based 10 Gigabit Ethernet, Fibre Channel over Ethernet (FCoE) features, and virtual machine-awareness features that allow IT departments to consolidate networks based on their own unique requirements and timing. Each port can also be used at 1 Gigabit Ethernet speed, allowing IT departments to migrate to 10 Gigabit Ethernet based on the specific needs of their networks.
With the Cisco Nexus 7000 F-Series module, FCoE can be deployed in director-class modular platforms for the access and core of converged networks. In addition to FCoE host and target support, the module provides VE-port support, allowing creating of FCoE Inter-Switch Links (ISLs) and enabling scalable, multi-hop FCoE topologies. The FCoE traffic in a Cisco Nexus 7000 Series Switch can be segmented using a dedicated storage virtual device context (VDC), providing isolation within the shared physical infrastructure. Cisco Nexus 7000 Series FCoE converged networks can be transparently bridged to Cisco® MDS 9500 Series Fibre Channel SANs with the Cisco MDS 10-Gbps 8-Port FCoE Module. This capability preserves existing and continued investments in Fibre Channel SANs and offers a single unified OS (Cisco NX-OS Software) and management platform (Cisco Data Center Network Manager [DCNM]) for both the LAN and SAN.
The comprehensive feature set of the Cisco Nexus 7000 F2-Series Module includes classic Layer 2 and Layer 3 forwarding, with the feature richness offered by Cisco NX-OS Software: a modular multitasking and multithreaded operating system built with high availability, granular fault management, resiliency, and nondisruptive serviceability at its foundation. This extremely comprehensive set of Layer 2 and Layer 3 functions makes this module ideal for data center networks, where density, performance, and continuous system operation are critical.
Besides the classic Layer 2 and Layer 3 forwarding capability, the Cisco Nexus 7000 F2-Series Module delivers Cisco FabricPath technology based on IETF TRILL. Cisco FabricPath consists of a set of multipath Ethernet technologies, combining the reliability and scalability benefits of Layer 3 routing with the flexibility and "plug-and-play" aspects of Layer 2 Ethernet networks.
With Cisco FabricPath, organizations can now build resilient, flexible, and, when needed, massively scalable Layer 2 networks, no longer relying on Spanning Tree Protocol and its inherent bisectional bandwidth limitations. Cisco FabricPath protects enterprises' investments by allowing existing Ethernet infrastructure to be connected to a Cisco FabricPath network. Enhanced virtual PortChannel (vPC+) technology is part of Cisco FabricPath and allows the redundant interconnection of classic Spanning Tree Protocol-based Layer 2 environments.
The benefits of Cisco FabricPath include:
• Operational simplicity: Cisco FabricPath embeds an autodiscovery mechanism that does not require any additional platform configuration. By offering Layer 2 connectivity, this "VLAN anywhere" characteristic simplifies provisioning and offers workload flexibility across the network.
• High resiliency and performance: Since Cisco FabricPath is a Layer 2 routed protocol, it offers stability, scalability, and optimized resiliency along with network failure containment.
• Massively scalable fabric: By building a forwarding model on 16-way equal-cost multipath (ECMP), Cisco FabricPath helps prevent bandwidth bottlenecks and allows capacity to be added dynamically, without network disruption.
The Cisco Nexus 7000 F2-Series Module can also be used in conjunction with the Cisco Nexus 2000 Series Fabric Extenders (Figure 2).

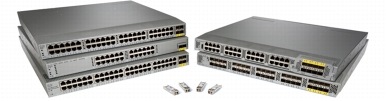

Figure 2. Cisco Nexus 2000 Series Fabric Extenders
The Cisco Nexus 2000 Series Fabric Extenders comprise a category of data center products that provide a server-access platform that scales across a multitude of 1 Gigabit Ethernet, 10 Gigabit Ethernet, unified fabric, rack, and blade server environments. The Cisco Nexus 2000 Series Fabric Extenders are designed to simplify data center architecture and operations by dramatically reducing the points of management and by meeting the business and application needs of a data center. Working in conjunction with Cisco Nexus switches, the Cisco Nexus 2000 Series Fabric Extenders offer a cost-effective and efficient way to support today's Gigabit Ethernet environments while allowing easy migration to 10 Gigabit Ethernet, virtual machine-aware Cisco unified fabric technologies.
The Cisco Nexus 7000 F2-Series Module also delivers integrated FCoE, greatly simplifying the network infrastructure and reducing costs by enabling the deployment of unified data center fabrics to consolidate data center traffic onto a single, general-purpose, high-performance, highly available network. With the Cisco Nexus 7000 F2-Series Module, FCoE can be deployed in director-class modular platforms for the access and core of converged networks. In addition to FCoE host and target support, the module provides virtual expansion port (VE-port) support, allowing creation of FCoE Inter-Switch Links (ISLs) and enabling scalable, multi-hop FCoE topologies.
Table 2 summarizes the features and benefits of the Cisco Nexus 7000 F2-Series Module.
Table 2. Features and Benefits
Support for 1 and 10 Gigabit Ethernet
Each port can be used at 1 or 10 Gigabit Ethernet speed, allowing IT departments to migrate to 10 Gigabit Ethernet based on the unique requirements of their networks.
The comprehensive set of Layer 2 and Layer 3 functions makes this module ideal for data center networks.
Virtual Device Context (VDC)
The F2-Series Cisco's VDC feature helps enable the virtualization of a single physical device in one or more logical devices. Each of the provisioned logical devices is configured and managed as if it were a separate physical device2.
Cisco FabricPath technology based on IETF TRILL
Cisco FabricPath uses routing principles in the data plane and control plane to bring reliability and scalability to transparent bridging while maintaining flexibility and ease of use.
Support for Cisco Nexus 2000 Series
The Cisco Nexus 2000 Series Fabric Extenders are designed to simplify data center architectures and operations by dramatically reducing the points of management.
I/O consolidation at the access layer and core of the network reduces the physical infrastructure that needs to be acquired, managed, and maintained.
Ideally suited for deployment in latency-sensitive environments
Port-to-port latency is less than 6 microseconds, enabling support for latency-sensitive applications.
Interface flexibility with SFP and SFP+ support
Interface flexibility allows fulfillment of any Gigabit Ethernet and 10 Gigabit Ethernet deployment needs, per port, with a variety of media types.
Efficient power use combined with high performance
Power consumption is exceptionally low, typically less than 9W per port.
VOQ with centralized arbitration
This feature enables fairness when one or more destinations is congested and support for lossless unified fabric.
Load sharing across all fabric modules
Through the high-availability design, bandwidth is shared across all fabric modules simultaneously for optimal performance.
Online insertion and removal (OIR)
Hot insertion and removal is supported for continuous system operation.
Identification (ID) LED
Through the beacon feature, administrators can clearly identify the module for a service condition; ports on the I/O module can send beacons as well.
1Refer to Cisco NX-OS release notes for up-to-date software version information and feature support. Initial software releases may support a subset of the overall hardware capabilities.
2A separate Virtual Device Context (VDC) is needed when deploying the F2-Series in a chassis that contains other modules. There is no need for the VDC license when the Nexus 7000 chassis contains only F2-Series modules.
Table 3 lists product specifications for the Cisco Nexus 7000 F2-Series Module. Tables 4 and 5 list specifications for transceivers. Not all optics are supported in the first software release. Refer to the release notes for up-to-date software version information to see what optics are supported.
Table 3. Product Specifications
• Supported in all Cisco Nexus 7000 Series chassis
• Cisco NX-OS Software Release 6.0 or later (minimum requirement)
• Status: Green (operational), red (faulty), or orange (module booting)
• Link: Green (port enabled and connected), orange (port disabled), off (port enabled and not connected), or blinking green and orange in conjunction with ID LED blue (port flagged for identification; beacon)
• ID: Blue (operator has flagged this card for identification; beacon) or off (module not flagged)
• Scriptable command-line interface (CLI)
• Cisco Data Center Network Manager (DCNM) GUI
• 48 ports of 1 and 10 Gigabit Ethernet (SFP or SFP+ pluggable optic modules)
Maximum port density
• 768 ports of Gigabit Ethernet and 10 Gigabit Ethernet for 18-slot chassis
• 384 ports of Gigabit Ethernet and 10 Gigabit Ethernet for 10-slot chassis
• 336 ports of Gigabit Ethernet and 10 Gigabit Ethernet for 9-slot chassis
• 96 ports of Gigabit Ethernet and 10 Gigabit Ethernet for 4-slot chassis
Queues per port
Configurable template-based queuing modes:
• Ingress (4q1t and 2q1t)
• Egress (1p3q1t, 2p2q1t, and 3p1q1t)
• 72 MB per module
• Deficit-Weighted Round-Robin (DWRR)
Jumbo frame support for bridged and routed packets
• Up to 9216 bytes
Switch On Chip (SoC)
• 720-mpps Layer 2 and Layer 3 forwarding capacity for both IPv4 and IPv6 packets
MAC address entries
• 16,384 per SoC, and up to 196,608 per module (depending on VLAN allocation)
• 4096 simultaneous VLANs per virtual device context (VDC)
• 16,384 per SoC, and up to 196,608 per module (depending on ACL type and interface configuration)
• T11 VF-, VN-, and VE-port for multi-hop FCoE
• T11 FCoE Initialization Protocol (FIP)
• Fibre Channel Forwarder (FCF)
Advanced FCoE features
• Virtual SANs (VSANs)
• Inter-VSAN Routing (IVR)
• PortChannels (up to 16 links)
• SAN trunking
• Storage VDC
• 1024 per SoC
Control Plane Policing (CPP)
• Up to 256 programmable sampling rates
Switch fabric interface
• 550 Gbps in each direction (1.1 Tbps full duplex) distributed across up to five fabric modules
• Online insertion and removal
IEEE Data Center Bridging (DCB)
• Priority-based flow control (PFC): IEEE P802.1Qbb
Cisco offers a wide range of services to help accelerate your success in deploying and optimizing Cisco Nexus 7000 Series Switches in your data center. Our innovative services are delivered through a unique combination of people, processes, tools, and partners and are focused on helping you increase operating efficiency and improve your data center network. Cisco Advanced Services uses an architecture-led approach to help you align your data center infrastructure with your business goals and provide long-term value. Cisco SMARTnet® Service helps you resolve mission-critical problems with direct access at any time to Cisco network experts and award-winning resources. With this service, you can take advantage of the Cisco Smart Call Home service capability, which offers proactive diagnostics and real-time alerts on your Cisco Nexus 7000 Series Switches. Spanning the entire network lifecycle, Cisco Services helps increase investment protection, optimize network operations, support migration, and strengthen your IT expertise. For more information about Cisco Data Center Services, visit http://www.cisco.com/go/dcservices.
For More Information
For more information about the Cisco Nexus 7000 Series, visit the product homepage at http://www.cisco.com/go/nexus or contact your local account representative.
