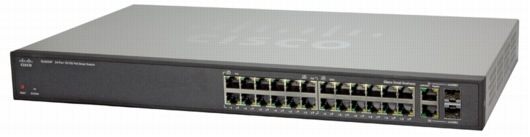

The Cisco® Small Business Smart Switches are cost-effective switching solutions that are ideal for small businesses, the network edge, or workgroups within larger organizations. These easy-to-install, high-speed switches offer many of the same quality of service (QoS) and security features found in more expensive full Layer 2 managed switches, but without their complexity. The Cisco SLM224P 24-Port 10/100 + 2-Port Gigabit Smart Switch (Figure 1) offers twenty-four 10/100 copper ports with two shared Gigabit copper or optical Small Form-Factor Pluggable (SFP) uplink interfaces for connecting the switch to the core network. The simplified user interface is an intuitive management tool that enables you to quickly utilize the comprehensive feature set of the switch, resulting in a better-optimized network.
The Cisco SLM224P includes numerous QoS features to help ensure that traffic is prioritized properly to deliver the best possible user experience for real-time applications such as voice and video or bandwidth-intensive graphic/video file uploads or downloads. With its Internet Group Management Protocol (IGMP) snooping feature, the Cisco SLM224P limits IP multicast traffic (such as real-time presentations, video conferences, and online gaming) to only the ports that have requested it, enabling the rest of the network to operate at peak efficiency. Additional QoS capabilities such as IEEE 802.1p priority tagging, differentiated services code point (DSCP), and four hardware queues also maintain quality for real-time applications such as voice and video. Network traffic can be optimized with the switch's 802.1Q VLAN support, which enables you to quickly segregate network traffic by department or workgroup. VLANs also provide an additional layer of security by keeping sensitive data separated from other workgroups on the network.
For wireless or voice over IP (VoIP) deployments, the Cisco SLM224P supports the IEEE 802.3af standard for Power over Ethernet (PoE). This eliminates the need for additional power cables or a nearby power outlet, making installation simple and inexpensive and allowing networking devices such as cameras and wireless access points to be positioned in optimal locations, like ceilings and walls - even outdoors.
Network security is an absolute requirement for any business, and preventing unauthorized access to the company network is critical. The Cisco SLM224P secures the network through 802.1X port authentication, which prompts end users to provide their username and password before they are permitted to pass data. User access can also be controlled through the switch's MAC-based filtering capability, which allows network access only to those devices or workstations that have been authorized as identified by their MAC address. The many-to-one or one-to-one port mirroring feature of the Cisco SLM224P enables you to monitor the type of traffic being transmitted on the network.
The Cisco SLM224P includes features for quickly expanding and growing your network. To substantially increase network throughput speeds, especially useful for companies whose employees are routinely backing up their hard drives to a company server or storage platform, the switch supports link aggregation, which allows multiple high-bandwidth trunks between switches to be set up. Link aggregation also provides a level of availability and redundancy, as traffic will continue to flow even if one of the network links breaks. The Cisco SLM224P's Spanning Tree Protocol (STP) support and storm control features help to control planned or inadvertent cable loops when switches are connected to one another. These loops can cause broadcast or multicast storms in the network that severely limit its performance. With these features, you can confidently build a mesh of switches and quickly expand your network to support your growing workforce.
• Twenty-four 10/100 switched RJ-45 ports deliver up to 200 Mbps of throughput per port
• Two 10/100/1000 switched RJ-45 Gigabit uplink ports with two shared SFP ports (combo ports)
• PoE on twelve 10/100 ports (ports 1 through 6 and 13 through 18) compatible with IEEE 802.3af, with 100W dedicated internal power, enough to support 7.5W for 12 PoE ports or 15.4W on 6 ports
• Simplified QoS management enabled by advanced queuing techniques using 802.1p, IPv4/v6 Differentiated Services (DiffServ)/DSCP traffic prioritization specifications
• Configuration and monitoring from a standard web browser with a simplified management interface
• 802.1Q-based VLANs enable segmentation of networks for improved performance and security
• Port-level security via 802.1X authentication and MAC-based filtering
• Increased bandwidth (up to 8x) and added link redundancy with Link Aggregation Control Protocol (LACP)
• Multicast and broadcast storm control
• Port mirroring for noninvasive monitoring of switch traffic
• Fully rack-mountable using the included rack-mounting hardware
Table 1 shows the specifications, package contents, and minimum requirements for the Cisco SLM224P 24-Port 10/100 + 2-Port Gigabit Smart Switch.
Table 1. Specifications for the Cisco SLM224P 24-Port 10/100 + 2-Port Gigabit Smart Switch: SFPs/PoE
• 24 RJ-45 connectors for 10BASE-T/100BASE-TX, 2 combo ports with RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T, and mini Gigabit Interface Converter (mini-GBIC) /SFP slots
• Auto medium dependent interface (MDI) and MDI crossover (MDI-X)
• Auto-negotiate/manual setting
Unshielded twisted pair (UTP) Category 5 or better for 10BASE-T/100BASE-TX, UTP Category 5 Ethernet or better for 1000BASE-T
System, 10/100 Link/Act and PoE or Speed, Gigabit Link/Act and Speed
• IEEE 802.3af compatible
• Power can be dynamically allocated to the PoE ports according to the powered device's power demand and power priority setting.
8.8 Gbps nonblocking
6.55 mpps wire-speed performance
MAC table size
Number of VLANs
128 active VLANs (4096 range)
Port-based and 802.1Q tag-based VLANs
Head-of-line (HOL) blocking
HOL blocking prevention
Web user interface
Built-in web user interface for easy browser-based configuration (HTTP)
Web browser upgrade (HTTP) and Trivial File Transfer Protocol (TFTP)
Traffic on a port can be mirrored to another port for analysis with a network analyzer
• Port mirroring
• DHCP/BOOTP client
• System log
• Configuration upload and backup via HTTP or TFTP
• 802.1X - RADIUS authentication; MD5 encryption
• Port security - MAC-based filtering
• Management access control
Link aggregation using IEEE 802.3ad LACP
Up to 4 groups with up to 8 ports per group
Broadcast and multicast
IEEE 802.1D Spanning Tree and PortFast
IGMP (v1/v2) snooping provides for fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffic to only the requestors. Supports 32 multicast groups.
4 hardware queues
Priority queuing and weighted round-robin (WRR)
Class of service
• Port based
• 802.1p VLAN priority based
• IPv4/v6 IP DSCP based
• 802.3 10BASE-T Ethernet
• 802.3u 100BASE-TX Fast Ethernet
• 802.3ab 1000BASE-T Gigabit Ethernet
• 802.3z Gigabit Ethernet
• 802.3x flow control
• 802.3ad LACP
• 802.3af PoE
• 802.1D STP
• 802.1Q/p VLAN
• 802.1X port access authentication
W x H x D
17.32 x 1.70 x 10.12 in.
(440 x 43.2 x 257 mm)
7.28 lb (3.3 kg)
Internal power, 100-240V
FCC Part 15 Class A, CE Class A, UL, cUL, CE mark, CB
32° to 122°F (0° to 50°C)
32° to 158°F (0° to 70°C)
10% to 90%, noncondensing
10% to 90%, noncondensing
• Cisco SLM224P 24-Port 10/100 + 2-Port Gigabit Smart Switch with 2 combo SFPs and PoE
• AC power cord
• Rack-mounting kits with bracket and hardware
• CD with user guide in PDF format
• Online registration card
• Web-based utility: Microsoft Internet Explorer (version 5.5 or later)
• Cat5 Ethernet network cable
Limited lifetime warranty with return to factory replacement, one year telephone support and software fixes for the warranty term.
