Secure Remote Access at the Heart of the Small Business Network
Highlights
• Multi-WAN connectivity -- up to 7 ports can be set up for load balancing and connection redundancy
• 16 switched 10/100 Ethernet ports
• Full IPsec VPN capabilities for up to 100 remote connections
• Advanced stateful packet inspection firewall to help keep your network safe
Figure 1. Cisco RV016 Multi WAN VPN Router
Product Overview
The Cisco® RV016 Multi WAN VPN Router (Figure 1) is an advanced connection-sharing network solution for your small business needs. Like any router, it lets multiple computers in your office share a connection to a public or private network. However, the 16 ports on this router feature unprecedented versatility. Up to seven of the switched ports can be set up for load balancing or backup connections to help you stay connected and to reduce network bottlenecks. In addition, a dedicated network edge (DMZ) port gives you a publicly accessible channel so you can set up a web or FTP server, unimpeded by the powerful security features of the router.

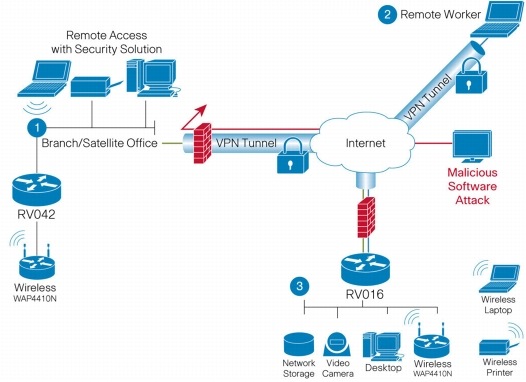

The VPN capability creates encrypted "tunnels" through the Internet, providing highly secure connections into your office network for up to 100 remote-office or traveling users. Users connecting through a VPN tunnel are attached to your company's network -- with secure access to files, email, and your intranet -- just as if they were in the building. You can also use the VPN capability to allow users on your small office network to securely connect out to a corporate network.
The Cisco RV016 can serve as a Dynamic Host Configuration Protocol (DHCP) server and has a powerful stateful packet inspection (SPI) firewall to help protect your PCs against intruders and most known Internet attacks. It also supports the Trend Micro ProtectLink Gateway Security Service, which enables you to dynamically block unwanted or unsafe URLs and emails. Configuration is a snap with the web browser-based configuration utility.
As the heart of your small office network, the connection-redundant Cisco RV016 Multi WAN VPN Router gives you the connection reliability your business needs.
Features
• SPI firewall for maximum security
• 16-port 10/100 switch supports automatic medium dependent interface (MDI) and MDI crossover (MDI-X) and up to 200 Mbps of throughput per port
• 5 of the 16 ports can be configured as WAN/LAN ports
• Two dedicated WAN ports for load-balanced connectivity to the Internet
• Dynamic URL and email scanning through Trend Micro ProtectLink Gateway Security Service (optional)
• Full IP Security (IPsec) VPN capability using Data Encryption Standard (DES) and Triple DES (3DES) encryption
• Support for MD5 and SHA authentications algorithms
• Allows up to 100 simultaneous IPsec VPN tunnels
• Management via web, Simple Network Management Protocol (SNMP), and setup wizards for easy setup by administrators
• Bandwidth management capabilities for improved quality of service (QoS)
• Supports up to 50 QuickVPN users
Specifications
Table 1 contains the specifications, package contents, and minimum requirements for the Cisco RV016 Multi WAN VPN Router.
Table 1. Specifications for the Cisco RV016 Multi WAN VPN Router
Specifications
Standards
IEEE 802.3, 802.3u
Ports
Sixteen 10/100 RJ-45 ports, including 2 Internet ports, 1 DMZ port, 8 LAN ports, and 5 configurable Internet/LAN ports
Buttons
Reset
Cabling type
Category 5 Ethernet
LEDs
Diag, System, LAN/Act 1 through 13, Internet/Act 1 through 7, DMZ
Universal Plug and Play (UPnP) able/certified
Certified
Operating system
Linux
Performance
Network Address Translation (NAT) throughput
200 Mbps
IPsec throughput
97 Mbps
Security
Firewall
SPI firewall
Denial-of-service (DoS) prevention
Blocks various DoS attacks
Access rules
Up to 50 entries
Port forwarding
Up to 30 entries
Port triggering
Up to 30 entries
URL filtering
Static list by domain or keywords (included), dynamic filtering through Trend Micro ProtectLink Gateway Security Service (optional)
Network
Multi-WANs
Supports up to 7 WAN ports with load balancing, allowing certain WAN ports to be dedicated to specified IP ranges and services
WAN type
DHCP, static IP, Point-to-Point Protocol over Ethernet (PPPoE), Point-to-Point Tunneling Protocol (PPTP), Telstra BigPond, Dynamic DNS
Protocol binding
Protocols can be bound to a particular WAN port
DHCP
DHCP server, DHCP client
DNS
DNS proxy, Dynamic DNS (DynDNS, 3322, PeanutHull)
NAT
Many-to-one, one-to-one
DMZ
DMZ port, DMZ host
Routing
Static and Routing Information Protocol (RIP) versions 1 and 2
Quality of Service
Port-based QoS
Configurable per LAN port
Service-based QoS
Supports rate control or priority
Rate control
Upstream/downstream bandwidth can be configured per service
Priority
Each service can be mapped to one of the 3 priority levels
VPN
IPsec
100 IPsec tunnels for branch office connectivity
QuickVPN
50 QuickVPN users for remote client access
PPTP
Built-in PPTP server supporting 10 PPTP clients
Encryption
DES, 3DES, Advanced Encryption Standard (AES)-128, AES-192, AES-256
Authentication
MD5, SHA1
Internet Key Exchange (IKE)
Supports IKE
IPsec NAT Traversal (NAT-T)
Supported for gateway-to-gateway and client-to-gateway tunnels
Dead peer detection (DPD)
Support for DPD
VPN pass-through
PPTP, Layer 2 Tunnelling Protocol (L2TP), IPsec
Management
Web based
HTTPS
SNMP
Supports SNMP versions 1 and 2c
Log/monitoring
Syslog, email alert, VPN tunnels status monitor
Environmental
Dimensions
W x H x D
11 x 1.75 x 9.50 in.
(279.4 x 44.45 x 241.3 mm)
Weight
3.25 lb (1.475 kg)
Power
AC 100~240V, 50-60 Hz
Certification
FCC Class B, CE Class B
Operating temperature
32° to 104°F (0° to 40°C)
Storage temperature
32° to 158°F (0° to 70°C)
Operating humidity
10% to 85%, noncondensing
Storage humidity
5% to 90%, noncondensing
Package Contents
• Cisco RV016 Multi WAN VPN Router
• AC power cable
• CD with user guide in PDF format and QuickVPN client
• Registration card
• Rack-mounting kit
Minimum Requirements
• Broadband connection for Internet connection sharing
• Network adapter with Ethernet network cable and TCP/IP installed per PC
• Web-based configuration: Java/cookies/SSL-enabled web browser
Product Warranty
3-year limited hardware warranty with return to factory replacement and 90-day limited software warranty.
Cisco Limited Warranty for Cisco Small Business Series Products
This Cisco Small Business product comes with a 3-year limited hardware warranty with return to factory replacement and a 90-day limited software warranty. In addition, Cisco offers software application updates for bug fixes and telephone technical support at no charge for the first 12 months following the date of purchase. To download software updates, go to: http://www.cisco.com/go/smallbiz.
