This guide provides an overview and guidance for ordering and configuring the Cisco® ASR 1000 Series Aggregation Services Routers with their respective hardware components, Cisco IOS® XE Software, and feature licenses. It first addresses ordering of individual components, including hardware, software, and licenses. Secondly, there are several ordering examples, as well as a step-by-step walk-through of the Cisco Dynamic Configuration Tool, of a typical deployment, including bundles. Finally, a list of part numbers, also referred to as product identifiers (PIDs), is included.
The Cisco ASR 1000 Series consists of six different versions: the Cisco ASR 1001 Router, the Cisco ASR 1002 Router, the Cisco ASR 1002-X Router, the Cisco ASR 1004 Router, the Cisco ASR 1006 Router, and the Cisco ASR 1013 Router. All six models use the innovative and powerful Cisco QuantumFlow Processor (QFP), which provides a huge leap in performance and resiliency for network processors.
The Cisco ASR 1000 Series delivers multiple services embedded in the Cisco QFP at wire speeds from 2.5 to 100 Gbps. The services supported on the Cisco QFP include security services (for example, encryption and firewall), quality of service (QoS), Network-Based Application Recognition (NBAR), Cisco IOS Flexible Packet Matching (FPM), broadband aggregation, and Cisco Unified Border Element (SP Edition) (formerly called Session Border Controller, or SBC), among others.
With separation of the control and data planes in the Cisco ASR 1000 Series Router architecture, software redundancy (on the Cisco ASR 1001, ASR 1002, ASR 1002-X, and ASR 1004 Routers), and hardware redundancy (on the Cisco ASR 1006 and ASR 1013 Routers), the Cisco ASR 1000 Series is highly reliable and demonstrates a consistently high throughput, even when new services are added. Additionally, the modular Cisco IOS XE Software that is introduced with the Cisco ASR 1000 Series facilitates In-Service Software Upgrade (ISSU).
Getting Started
To ensure that you order the correct Cisco ASR 1000, you must first know the answers to the following questions:
1. Is there a form factor requirement? How many rack units (RUs) are required?
2. What is the total throughput needed in the router?
3. Is hardware or software redundancy required?
4. What types of, and how many, interfaces are needed?
5. What services are to be enabled?
6. Is this deployment for a service provider or an enterprise?
Cisco ASR 1000 Series High-Level Overview and Part Numbers
This section gives a brief overview of the Cisco ASR 1000 Series Router hardware components.
For quick lookups, please view the index of tables located in the "Contents" section.
• Chassis: The chassis houses all of the router components.
– Route processors: Route processors provide advanced routing features and also monitor and manage other resources on the Cisco ASR 1000. They comprise the memory, hard disk, and USB flash memory token.
– Cisco ASR 1000 Series Embedded Services Processor (ESP): Based on the Cisco QuantumFlow Processor, the ESP performs network security, deep packet inspection, firewalling, and many other advanced features.
– Shared port adapters (SPAs): These media modules connect to a variety of service provider and enterprise media types. All SPAs connect to the Cisco ASR 1000 Series Routers through the SPA interface processor (SIP) modules.
– Cisco ASR 1000 Series SPA Interface Processors (SIPs): The SIPs house and interconenct up to 4 SPAs each, depending on the router model.
• Cisco IOS XE Software:
There is a change in paradigm between the Cisco ASR 1001/ASR 1002-X (universal image with Product Activation Keys [PAKs]) and all other Cisco ASR 1000 Series Routers (six consolidated images). When reading the software and license sections, make sure you are reading the correct section.
– IP Base with and without crypto
– Advanced IP services with and without crypto
– Advanced Enterprise services with and without crypto
• Cisco ASR 1000 Series feature licenses
– Certain functions supported on the Cisco ASR 1000 Series require feature licenses.
– All Cisco ASR 1000 feature licenses are honor-based; that is, they are not enforced through a PAK, with the exception of the Technology package licenses and the Performance upgrade license used to upgrade the Cisco ASR 1001 from 2.5 to 5 Gbps. Note: As of Cisco IOS XE Software Release 3.6S, Technology package licenses are honor-based. In addition, as of IOS XE release 3.7S, Performance upgrade license is also honor-based.
Table 1 lists system part numbers for chassis, route processors, ESPs, SIPs, and SPAs.
Table 1. Chassis, Route-Processor, ESP, SIP, and SPA Part Numbers
Chassis
Name
Part Number
Cisco ASR 1001
ASR1001
Cisco ASR 1002 Modular
ASR1002
Cisco ASR 1002-X
ASR1002-X
Cisco ASR 1004
ASR1004
Cisco ASR 1006
ASR1006
Cisco ASR 1013
ASR10013
Route Processors (RP)
Route Processor 1
ASR1000-RP1
Route Processor 2
ASR1000-RP2
Embedded Services Processors (ESP)
ESP5, 5 Gbps
ASR1000-ESP5
ESP10, 10 Gbps
ASR1000-ESP10
ESP10-N (non-encryption), 10 Gbps
ASR1000-ESP10-N
ESP20, 20Gbps
ASR1000-ESP20
ESP40, 40 Gbps
ASR1000-ESP40
ESP100, 100 Gbps
ASR1000-ESP100
SPA Interface Processors (SIP)
SIP10, 10 Gbps
ASR1000-SIP10
SIP40, 40 Gbps
ASR1000-SIP40
Shared Port Adapters (SPA)
8-port Channelized T1/E1 to DS0
SPA-8XCHT1/E1
4-port Channelized T3 to DS0
SPA-4XCT3/DS0
2-port Channelized T3 to DS0
SPA-2XCT3/DS0
2-port Clear Channel T3/E3
SPA-2XT3/E3
h4-port Clear Channel T3/E3
SPA-4XT3/E3
Cisco 4-Port Fast Ethernet (TX)
SPA-4X1FE-TX-V2
Cisco 8-Port Fast Ethernet (TX)
SPA-8X1FE-TX-V2
Cisco 2-Port Gigabit Ethernet
SPA-2X1GE-V2
Cisco 5-Port Gigabit Ethernet
SPA-5X1GE-V2
Cisco 8-Port Gigabit Ethernet
SPA-8X1GE-V2
Cisco 10-Port Gigabit Ethernet
SPA-10X1GE-V2
Cisco 1-Port 10GE LAN-PHY
SPA-1X10GE-L-V2
2-port OC3/STM1 POS
SPA-2XOC3-POS
4-port OC3/STM1 POS
SPA-4XOC3-POS
1-port OC12/STM4 POS
SPA-1XOC12-POS
Cisco 4 port serial SPA
SPA-4XT-SERIAL
1-port Channelized STM-1/OC-3c to DS0
SPA-1XCHSTM1/OC3
2-port OC48/STM16 POS/RPR
SPA-2XOC48POS/RPR
4-port OC48/STM16 POS/RPR
SPA-4XOC48POS/RPR
Cisco SPA, WebEx Node
SPA-WMA-K9
1 port OC-3c/STM-1 ATM
SPA-1XOC3-ATM-V2
3 port OC-3c/STM-1 ATM
SPA-3XOC3-ATM-V2
1-port OC48/STM16 POS/RPR
SPA-1XOC48POS/RPR
2-port OC12/STM4 POS
SPA-2XOC12-POS
4-port OC-12/STM-4 POS
SPA-4XOC12-POS
8-port OC12/STM4 POS
SPA-8XOC12-POS
8-port OC-3/STM-1 POS
SPA-8XOC3-POS
1-port OC192/STM64 POS/RPR XFP Optics
SPA-OC192POS-XFP
1 port OC12 STM
SPA-1XOC12-ATM-V2
Synchronous Ethernet
SPA-2X1GE-SYNCE
Digital Signal Processor
SPA-DSP
1-port Channelized OC12 to DS0
SPA-1XCHOC12/DS0
Cisco 1-port 10GE LAN/WAN-PHY
SPA-1X10GE-WL-V2
1 Port Channelized OC3/STM-1 ATM and Circuit Emulation
SPA-1CHOC3-CE-ATM
2 Port Channelized T3/E3 ATM and Circuit Emulation
SPA-2CHT3-CE-ATM
24 Port Channelized T1/E1/J1 ATM and Circuit Emulation
SPA-24CHT1-CE-ATM
Cisco ASR 1000 Series Router Hardware Rules
This section discusses Cisco ASR 1000 hardware rules, including the default and maximum values for chassis, modules, power supplies, and accessories.
Chassis
Cisco ASR 1000 Series Routers have five form factors. Table 2 lists the rack-unit (RU) height for he Cisco ASR 1000 chassis.
Table 2. Cisco ASR 1000 Chassis Rack-Unit Sizes
Form Factor
Chassis
Rack Units (RU)
ASR1001
1
ASR1002
2
ASR1002-X
2
ASR1004
4
ASR1006
6
ASR1013
13

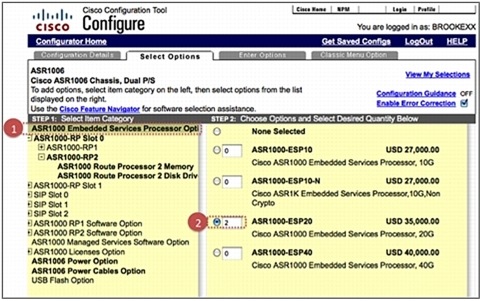

Embedded Services Processor
Depending on the Cisco ASR 1000 Series model, the ESP is either integrated into the chassis or modular.
Depending on the overall throughput or encryption performance needed, you can choose among seven different modular ESP versions: 2.5-, 5-, 10-, 10-N-, 20, 40, and 100-Gbps ESPs.
Table 3 lists relevant ESP specifics.
Table 3. ESP Specifics
ESP Specifics
Chassis
Bandwidth
Max ESP
ESP-2.5
ESP-5
ESP-10
ESP-10-N
ESP-20
ESP-40
ESP-100
ASR1001
2.5 upgradable to 5Gbps
1
Integrated
Integrated
ASR1002
5-10 Gbps
1
Integrated
Module
Module
ASR1002-X**
5, upgradable to 10, 20, or 36 Gbps
1
ASR1004
10-40 Gbps
1
Module
Module
Module
Module
ASR1006
10-100 Gbps
2: Redundant
Module
Module
Module
Module
Module
ASR1013
40-100 Gbps
2: Redundant
Module
Module
* You can upgrade the Cisco ASR 1001 throughput from 2.5 to 5 Gbps by purchasing one of the following licenses: system paper license: FLS-ASR1001-5G; spare paper license; and electronic license: L-FLS-ASR1001-5G=.
** ASR1002-X has its own built-in ESP; you can upgrade the Cisco ASR1002-X throughput from 5 to 10, 20, or 36 Gbps by purchasing one of the following licenses:
Part Number
Description
FLSA1-2X-5-10G
Upgrade from 5 Gbps to 10Gbps License for ASR 1002-X
FLSA1-2X-5-10G=
Upgrade from 5 Gbps to 10Gbps Paper PAK for ASR 1002-X
L-FLSA1-2X-5-10G=
Upgrade from 5 Gbps to 10Gbps E-Delivery PAK for ASR 1002-X
FLSA1-2X-5-20G
Upgrade from 5 Gbps to 20Gbps License for ASR 1002-X
FLSA1-2X-5-20G=
Upgrade from 5 Gbps to 20Gbps Paper PAK for ASR 1002-X
L-FLSA1-2X-5-20G=
Upgrade from 5 Gbps to 20Gbps E-Delivery PAK for ASR 1002-X
FLSA1-2X-5-36G
Upgrade from 5 Gbps to 36Gbps License for ASR 1002-X
FLSA1-2X-5-36G=
Upgrade from 5 Gbps to 36Gbps Paper PAK for ASR 1002-X
L-FLSA1-2X-5-36G=
Upgrade from 5 Gbps to 36Gbps E-Delivery PAK for ASR 1002-X
FLSA1-2X-10-20G
Upgrade from 10 Gbps to 20Gbps License for ASR 1002-X
FLSA1-2X-10-20G=
Upgrade from 10 Gbps to 20Gbps Paper PAK for ASR 1002-X
L-FLSA1-2X-10-20G=
Upgrade from 10 Gbps to 20Gbps E-Delivery PAK for ASR 1002-X
FLSA1-2X-10-36G
Upgrade from 10Gbps to 36Gbps License for ASR 1002-X
FLSA1-2X-10-36G=
Upgrade from 10Gbps to 36Gbps Paper PAK for ASR 1002-X
L-FLSA1-2X-10-36G=
Upgrade from 10Gbps to 36Gbps E-Delivery PAK for ASR 1002-X
FLSA1-2X-20-36G
Upgrade from 20Gbps to 36Gbps License for ASR 1002-X
FLSA1-2X-20-36G=
Upgrade from 20Gbps to 36Gbps Paper PAK for ASR 1002-X
L-FLSA1-2X-20-36G=
Upgrade from 20Gbps to 36Gbps E-Delivery PAK for ASR 1002-X
Release Information:
The 100-Gbps ESP is supported only on the following software releases:
• Cisco ASR 1006 and ASR 1013 support begins as of Cisco IOS XE Software Release 3.7S.
The 40-Gbps ESP is supported only on the following software releases:
• Cisco ASR 1004 support begins as of Cisco IOS XE Software Release 3.2S.
• Cisco ASR 1006 and ASR 1013 support begins as of Cisco IOS XE Software Release 3.1S.
Route Processor
The disk drive on the route processor is used for storage purposes, such as for the Cisco IOS XE Software consolidated package, logs, and core dump files.

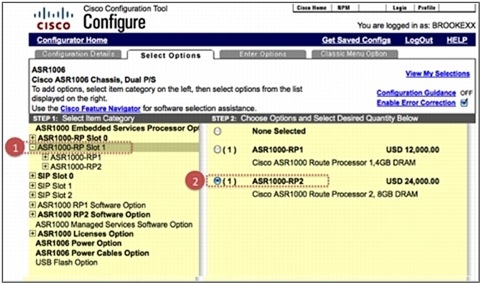

Route-Processor Types
Route processors come in two main categories, integrated and modular. Depending on the chassis type, one or two can be running in a redundant mode. Table 4 lists relevant route-processor specifics.
Table 4. Route-Processor Specifics
RP Specifics
Chassis
Max Number Of RPs
ASR1001 RP
ASR1002-X RP
RP1
RP2
ASR1001
1
Integrated*
ASR1002
1
Integrated*
ASR1002-X
1
Integrated*
ASR1004
1
Module
Module
ASR1006
2
Module
Module
ASR1013
2
Module
* Because the Cisco ASR 1001, ASR1002-X, and ASR 1002 have integrated route processors, configuring or adding a separate route processor at the time of ordering is not necessary.

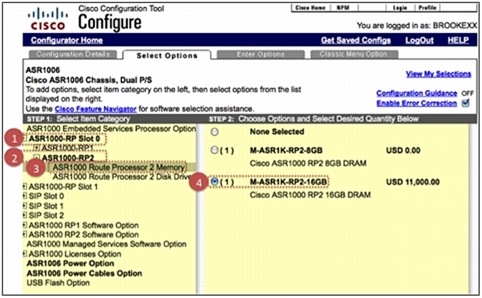

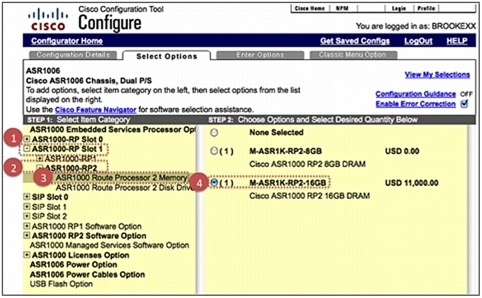

Route-Processor Memory and Storage
When ordering a route-processor module, please consider the following components: memory, storage device, and USB flash memory token.
Table 5 lists relevant route-processor memory and storage specifics.
Table 5. Route-Processor Memory and Storage Specifics
RP Memory
Chassis
Default Memory
Max memory
Default/Max Storage
ASR1001
4G
16G
8G EUSB*
ASR1002
4G
4G
8G EUSB*
ASR1002-X
4G
16G
8G EUSB*
ASR1004
RP1/RP1-N 4G, RP1-N, RP2 8G
RP1/RP1-N 4G, RP2 16G
RP1/RP1-N 40GB; 1G EUSB: RP2 80 GB; 1G EUSB**
ASR1006
RP1/RP1-N 4G, RP1-N, RP2 8G
RP1/RP1-N 4G, RP2 16G
RP1/RP1-N 40GB; 1G EUSB: RP2 80 GB; 1G EUSB**
ASR1013
RP2 8G
RP2 16G
RP2 80 GB; 1G EUSB**
* There is no hard disk on the Cisco ASR1001, and ASR 1002. Instead, the integrated Route Processors on the Cisco ASR 1001 and ASR 1002 come with an 8-GB embedded USB (EUSB) flash drive for mass storage and for booting images. This EUSB is not field-replaceable. ASR1002-X also comes with an 8-GB embedded USG (EUSB) flash drive; in addition, ASR1002-X has an optional 160-GB Hard-Disk Drive (HDD), orderable with part number MASR1002X-HD-160G or MASR1002X-HD-160G=.
** The RP1/RP1-N module comes with a 1-GB EUSB flash drive, which is field-replaceable (part number M-ASR1K-EUSB-1GB=). The RP2 module comes with a 2-GB EUSB flash drive, which is field-replaceable (part number M-ASR1K-EUSB-2GB=).
Release Information:
• Maximum DRAM increased on Cisco ASR 1001 from 8 to 16 Gbps as of Cisco IOS XE Software Release 3.3S.
• As of Cisco IOS XE Software Release 3.3S, the Cisco ASR 1004, ASR 1006, and ASR 1013 Routers can be booted from the hard disk drive that is on the RP1 or RP2 module.
Note: All of the Cisco ASR 1000 spare route processors (ASR1000-RP1= and ASR1000-RP2=) and the route processors in spare chassis orders (ASR1001= and ASR1002=) are not configurable at the time of order, and they ship without any software.
Route Processor Redundancy
The Cisco ASR 1000 is a highly redundant router; the type of redundancy depends on the model. Table 6 lists relevant route-processor memory redundancy requirements.
Table 6. Memory Requirements for Route-Processor Redundancy
Redundancy Requirements
Chassis
Inbox
Redundancy Type
Default Memory
Minimum Memory for Redundancy
Redundancy Feature License
ASR1001
SW No ISSU*
4G
8G
FLSASR1-IOSRED(=) or L-FLSASR1-IOSRED=
ASR1002
SW No ISSU*
4G
4G
FLASR1-IOSRED-RTU(=)
ASR1002-X
SW No ISSU*
4G
8G
FLSASR1-IOSRED(=) or L-FLSASR1-IOSRED=
ASR1004
SW No ISSU*
RP1/RP1-N 4G, RP1-N, RP2 8G
RP1/RP1-N 4G, RP2 8G
FLASR1-IOSRED-RTU(=)
ASR1006
HW ISSU**
RP1/RP1-N 4G, RP1-N, RP2 8G
RP1/RP1-N 4G, RP2 8G
N/A
ASR1013
HW ISSU**
RP2 8G
RP2 8G
N/A
* Supports dual Cisco IOS Software redundancy.
** Supports hardware route processor and ESP redundancies, but does not support software redundancy.
USB Flash Memory Token
You can order a 1-GB USB flash memory token (MEMUSB-1024FT) separately for Cisco ASR 1000 Series Routers to store configurations or Cisco IOS XE Software consolidated packages.

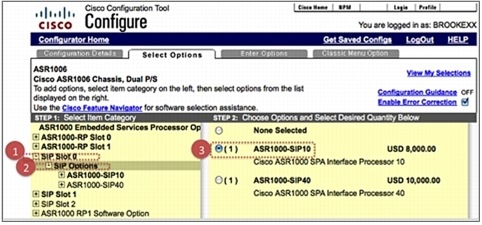

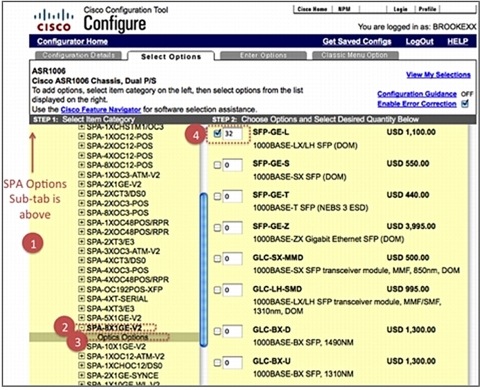

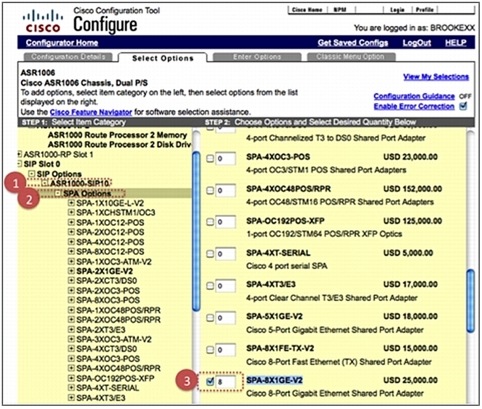

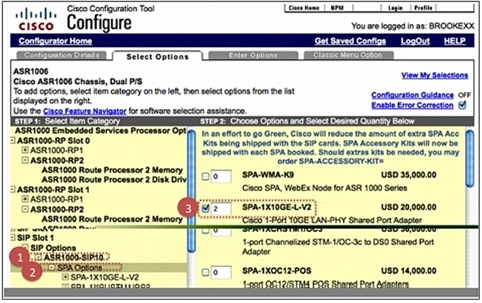

Ports and Media Interface Modules: SIP and SPA
The media port adapter SPAs are housed by the SIP modules. The maximum number of SPA modules depends on both the type and number of SIPs supported by each router. SPA cards on the same SIP card do not need to be of the same type. Please refer to the Cisco ASR 1000 Series Shared Port Adapter Support data sheet for details about supported SPAs.
Certain routers have built-in Gigabit Ethernet ports. These built-in ports require Small Form-Factor Pluggable (SFP) optic or copper media. An SFP is a hot-swappable input/output device that plugs into a Gigabit Ethernet port, linking the port with the network. You can order the SFP at the same time you order the SPAs or later as a spare. Table 7 lists relevant SIP and SPA specifics.
Table 7. SIP and SPA Specifics
SIPS, SPAs and Port Specifics
Chassis
Max SPA Slots
Max SIP
SIP10
SIP40
Built in GE/SFP
ASR1001
1
N/A
Integrated
4
ASR1002
3
N/A
Integrated
4
ASR1002-X
3
N.A
Integrated
6
ASR1004
8
2
Module
N/A
ASR1006
12
3
Module
N/A
ASR1013
24
6
Module
N/A
Release Information: The Cisco ASR 1000 Series 40-Gbps SIP (ASR1000-SIP40) is supported on the following routers:
• Cisco ASR 1004 as of Cisco IOS XE Software Release 3.2S
• Cisco ASR 1006 and 1013 as of Cisco IOS XE Software Release 3.1S

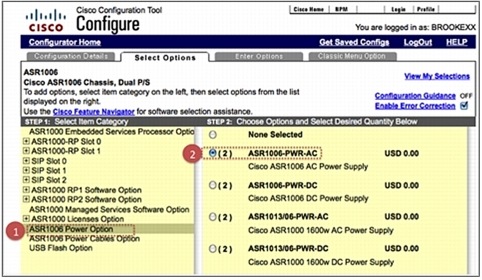

Power Supplies
All Cisco ASR 1000 chassis come by default with either dual AC or dual DC power supplies. At the time of ordering, you can choose between dual AC or dual DC power supplies. AC and DC in the same chassis is not supported. Table 8 lists relevant power-supply specifics.
Table 8. Power-Supply Specifics
Power Supplies
Chassis
Default Number
Max Number
AC
DC
Mix OF AC And DC
ASR1001
2: Redundant
2: Redundant
Yes
Yes
No
ASR1002
2: Redundant
2: Redundant
Yes
Yes
No
ASR1002-X
2: Redundant
2: Redundant
Yes
Yes
No
ASR1004
2: Redundant
2: Redundant
Yes
Yes
No
ASR1006
2: Redundant
2: Redundant
Yes
Yes
No
ASR1013
4: 2 redundant pairs
4: 2 redundant pairs
Yes
Yes
No
Note: The dual power supplies for a spare chassis are optional, and they must either be configured with the spare chassis or ordered separately as power-supply spares.
Accessories
Every router chassis comes by default with an accessory kit. The accessory kit for a spare chassis is optional, and you must configure the spare chassis with it at the time of purchase or order it separately as a spare.
The Cisco ASR 1000 accessory kit comes as a default on all Cisco ASR 1000 models and can be bought as a spare.
The Federal Information Processing Standards (FIPS) kits are sold only as spares.
Table 9 lists the accessories that come with the routers.
Table 9. Accessories
Accessories
Description
Part Number
Cisco ASR1006 Accessory Kit, Spare
ASR1006-ACS=
Cisco ASR1004 Accessory Kit, Spare
ASR1004-ACS=
Cisco ASR1002 Accessory Kit, Spare
ASR1002-ACS=
ASR1006 FIPS Opacity Kit
ASR1006-FIPS-KIT=
ASR1004 FIPS Opacity Kit
ASR1004-FIPS-KIT=
ASR1002 FIPS Opacity Kit
ASR1002-FIPS-KIT=
Cisco ASR1001 Accessory Kit, Spare
ASR1001-ACS=
Cisco ASR1013 Accessory Kit, Spare
ASR1013-ACS=
Cisco ASR1013 Accessory Kit
ASR1013-ACS
Cisco ASR1001 Accessory Kit
ASR1001-ACS
Blank Cover ASR1000 SIP, Spare
ASR1000-SIP-BLANK=
Blank Cover for ASR1000 ESP, spare
ASR1000-ESP-BLANK=
Blank Cover for ASR1000 RP, spare
ASR1000-RP-BLANK=
Blank Cover for regular SPA
SPA-BLANK=
Cisco ASR1002-X Accessory Kit
ASR1002X-ACS
Cisco ASR1002-X Accessory Kit, Spare
ASR1002X-ACS=
Blank Cover for ASR1002-X HDD
ASR1002X-HD-BLANK
Blank Cover for ASR1002-X HDD, Spare
ASR1002X-HD-BLANK=
FIPS140-2 requires that routers have tamper-evident labels affixed across all removable component seams. In addition to tamper-evident labels, FIPS specifies that the view of internal components where cryptography is processed must be obscured.
Ordering Cisco ASR 1000 Series Router Software: Cisco ASR 1000 RP1 and RP2 Software
Twelve consolidated packages are provided in each Cisco IOS XE Software release starting with Cisco IOS XE Software Release 2.3. The same set of six consolidated packages is available for RP1 (the RP1 module or the integrated RP1 on Cisco ASR 1002 Routers) in a 32-bit version and for RP2 in a 64-bit version.
The six consolidated packages (six for RP1 and six for RP2) follow:
• IP Base without crypto
• IP Base
• Advanced IP Services without crypto
• Advanced IP Services
• Advanced Enterprise Services without crypto
• Advanced Enterprise Services
Note: For managed service providers, software part numbers (part number ends with "...-MS") that default to the latest shipping release for the respective software image are in place.
For the Cisco ASR 1001 and ASR 1002-X, the concept of universal images is introduced as well as three different technology package licenses (IP Base, Advanced IP Services, and Advanced Enterprise Services) to enable the respective feature sets. Please refer to the section "Ordering Cisco ASR 1000 Series Router Software: Cisco ASR 1001/ASR 1002-X Software", in particular Tables 11, 12, and 13).
Table 10 describes the Cisco IOS XE Software consolidated packages for the Cisco ASR 1000 RP1 and RP2.
Table 10. Cisco IOS XE Consolidated Packages for Cisco ASR 1000 RP1 and RP2
Cisco IOS XE Consolidated Packages
Image Type
Part Number
Description
Cisco ASR 1000 Series RP1 IP Base w/o crypto
32-bit (RP1)
SASR1R1-IPB
• Offers low-cost base image
• Offers only basic IP feature support
• Satisfies export requirements for non-cryptographic software
Cisco ASR 1000 Series RP2 IP Base w/o crypto
64-bit (RP2)
SASR1R2-IPB
Cisco ASR 1000 Series RP1 IP Base
32-bit (RP1)
SASR1R1-IPBK9
• Offers low-cost base image
• Offers only basic IP feature support, including Secure Shell (SSH) protocol support
Cisco ASR 1000 Series RP2 IP Base
64-bit (RP2)
SASR1R2-IPBK9
Cisco ASR 1000 Series RP1 Advanced IP Services w/o crypto
32-bit (RP1)
SASR1R1-AIS
• Targeted for export restricted customers
• Targeted for service provider customers
• Supports all features, including Lawful Intercept, and CUBE(SP Edition) and CUBE (Enterprise Edition) (SBC (Session Border Controller) functionality)
• Does not include support for legacy protocols
• Does not support encryption (SSH, IP Security [IPsec], Digital Encryption Standard [DES], Triple Digital Encryption Standard [3DES], and Advanced Encryption Standard [AES])
Cisco ASR 1000 Series RP2 Advanced IP Services w/o crypto
64-bit (RP2)
SASR1R2-AIS
Cisco ASR 1000 Series RP1 Advanced IP Services
32-bit (RP1)
SASR1R1-AISK9*
• Targeted for service provider customers
• Supports all features, including encryption (SSH, IPsec, 1 DES, 3DES, AES, Lawful Intercept, CUBE (SP Edition), and CUBE (Enterprise Edition) - (SBC (Session Border Controller) functionality)
• Does not include support for legacy protocols
Cisco ASR 1000 Series RP2 Advanced IP Services
64-bit (RP2)
SASR1R2-AISK9
Cisco ASR 1000 Series RP1 Advanced Enterprise Services w/o crypto
32-bit (RP1)
SASR1R1-AES
• Targeted for export restricted customers
• Supports all features, including Lawful Intercept, and CUBE (SP Edition) and CUBE (Enterprise Edition) (SBC (Session Border Controller) functionality), as well as legacy protocols
• Does not support encryption (SSH, IPsec DES, 3DES and AES)
Cisco ASR 1000 Series RP2 Advanced Enterprise Services w/o crypto
64-bit (RP2)
SASR1R2-AES
Cisco ASR 1000 Series RP1 Advanced Enterprise Services
32-bit (RP1)
SASR1R1-AESK9
• Targeted for enterprise customers
• Supports all features, including encryption (SSH, IPsec DES, 3DES and AES), Lawful Intercept, and CUBE (SP Edition) and CUBE (Enterprise Edition) (SBC (Session Border Controller) Functionality), as well as legacy protocols
Cisco ASR 1000 Series RP2 Advanced Enterprise Services
64-bit (RP2)
SASR1R2-AESK9
* The "K9" consolidated packages include software developed by Cavium Networks.
Service provider or enterprise: In general, one should apply the following rules:
• If you have Cisco ASR 1000 Series Routers deployed in your enterprise environment, you should order the Advanced Enterprise Services consolidated package.
• If one Cisco ASR 1000 Series Router is deployed in your service provider environment, you should order the Advanced IP Services consolidated package. The Advanced IP Services RP1 and RP2 consolidated packages and the Advanced IP Services technology package feature license (for the Cisco ASR 1001) do not support traditional protocols (for example, DECnet and AppleTalk), whereas the Advanced Enterprise Services version does.
Ordering Cisco ASR 1000 Series Router Software: Cisco ASR 1001/ASR 1002-X Software
With the Cisco ASR 1001 and ASR 1002-X, the concept of a universal software image in combination with a technology package license to enforce a certain feature set by software activiation, that is, with a PAK, has been introduced. However, for ASR 1001, as of Cisco IOS XE Software Release 3.6S, technology package licenses, and as of 3.7S, performance upgrade license to upgrade from 2.5 to 5 Gbps, are both now honor-based. For ASR 1002-X, both technology package licenses and performance upgrades licenses are honor-based.
In summary:
• A PAK or license key enforces two types of licenses on the Cisco ASR 1001 prior to IOS XE release 3.6S:
– Technology package licenses (feature set licenses); part numbers and descriptions follow:
– SLASR1-IPB: Cisco ASR 1000 IP Base license
– SLASR1-AIS: Cisco ASR 1000 Advanced IP Services license
– SLASR1-AES: Cisco ASR 1000 Advanced Enterprise Services license
– Performance Upgrade license; part number FLS-ASR1001-5G to upgrade from 2.5 to 5 Gbps
• To enable a certain feature set on the Cisco ASR 1001 or ASR 1002-X, you must order a universal image in combination with a technology package license.
Note: As of IOS XE 3.7S, the technology package licenses, the performance upgrade licenses, and all other licenses required for certain features on the Cisco ASR 1001 and ASR 1002-X are not enforced.
Table 11 lists the part numbers you must purchase to enable feature sets; Table 12 lists the part numbers for universal Cisco IOS XE Software consolidated packages with an integrated route processor; and Table 13 gives part numbers for the technology package licenses for the Cisco ASR 1001/ASR 1002-X.
Table 11. Part Numbers for Cisco ASR 1001/ASR 1002-X Software Feature Set Enablement
For the Equivalent Feature Set on ASR 1000 Series (Cisco ASR 1002/ASR1004/ASR1006/ASR1013)
To Order Universal Software Image Part Number
With Technology Package License Part Number
IP Base without crypto (IPB)
SASR1001U/SASR1K2XU
SLASR1-IPB
IP Base (IPBK9)
SASR1001NPEK9/SASR1K2XNPEK9
SLASR1-IPB
Advanced IP Services without crypto (AIS)
SASR1001U//SASR1K2XU
SLASR1-AIS
Advanced IP Services (AISK9)
SASR1001UK9/SASR1K2XUK9
SLASR1-AIS
Advanced Enterprise Services without crypto (AES)
SASR1001U/SASR1K2XU
SLASR1-AES
Advanced Enterprise Services (AESK9)
SASR1001UK9/SASR1K2XUK9
SLASR1-AES
Table 12. Descriptions of Universal Cisco IOS XE Software Consolidated Packages for Cisco ASR 1001/ASR 1002-X with an Integrated Route Processor
Cisco IOS XE Consolidated Package
Part Number
Description
Cisco IOS XE UNIVERSAL ASR1001/ASR 1002-X
SASR1001U/SASR1K2XU
• Provides low-cost base consolidated package
• Offers only basic IP feature support - in combination with IPB Technology Package License
• Satisfies export requirements for noncryptographic software
Cisco IOS XE - NO PAYLOAD ENCRYPTION UNIVERSAL ASR1001/ASR 1002-X
SASR1001NPEK9/SASR1K2XNPEK9
• Provides low-cost base consolidated package
• Offers only basic IP feature support, including Secure Shell (SSH) Protocol and Simple Network Management Protocol Version 3 (SNMPv3) support - in combination with IPB Technology Package License
• Supports all features, including encryption (IPsec, Triple Digital Encryption Standard [3DES], Advanced Encryption Standard [AES], and SSH), Lawful Intercept, and SBC as well as older protocols - in combination with AIS or AES Technology Package License (with AES Technology Package License, older protocols are supported, e.g. DecNet, AppleTalk, etc.)
Table 13. Descriptions of Cisco ASR 1001/ASR 1002-X Technology Package Licenses
ASR1001 Technology Package Licenses: Enforced with PAK
SLASR1-IPB
Cisco ASR 1000 IP BASE License
SLASR1-AIS
Cisco ASR 1000 Advanced IP Services License
SLASR1-AES
Cisco ASR 1000 Advanced Enterprise Services License
SLASR1-IPB=
Cisco ASR 1000 IP BASE Paper PAK
L-SLASR1-IPB=
Cisco ASR 1000 IP BASE E-Delivery PAK
SLASR1-IPB-AIS=
Cisco ASR 1000 IPB to AIS Upgrade Paper PAK
SLASR1-IPB-AES=
Cisco ASR 1000 IPB to AES Upgrade Paper PAK
SLASR1-AIS-AES=
Cisco ASR 1000 AIS to AES Upgrade Paper PAK
L-SLASR1-IPB-AIS=
Cisco ASR 1000 IPB to AIS Upgrade E-Delivery PAK
L-SLASR1-IPB-AES=
Cisco ASR 1000 IPB to AES Upgrade E-Delivery PAK
L-SLASR1-AIS-AES=
Cisco ASR 1000 AIS to AES Upgrade E-Delivery PAK
Ordering Cisco ASR 1000 Series Router Feature Licenses
Software feature licenses are required to turn on services on Cisco ASR 1000 Series Routers, in addition to the appropriate Cisco IOS XE Software as described in the previous section.
Currently, two types of feature licenses are available. Certain services require only a right-to-use (RTU) license, whereas other services require both a RTU license and one or more number-of-sessions licenses.
All the licenses on the Cisco ASR 1000 Series (with some exceptions for the Cisco ASR 1001 licenses prior to Cisco IOS XE release 3.6S; refer to the section "Ordering Cisco ASR 1001 Series Feature Licenses") are honor-based; that is, the licenses are not enforced through a product activation or license key.
Services that require only an RTU license include the following:
• IP Security (IPsec) service: The Cisco ASR 1000 Series Router IPsec application requires an RTU license (FLASR1-IPSEC-RTU(=), and FLSA1-2X-IPS4G(=) on ASR 1002-X), which allows you to enable IPsec Triple Digital Encryption Standard (3DES) and Advanced Encryption Standard (AES), Dynamic Multipoint VPN (DMVPN), and Easy VPN.
• Firewall service: The Cisco ASR 1000 Series Router Firewall application requires an RTU license (FLASR1-FW-RTU(=)), which allows you to enable Firewall Services at Layer 4. Additionally:
– To enable per-subscriber or user firewall in broadband and enterprise deployments, the firewall RTU license as well as the number-of-sessions licenses listed in the "Broadband service" bullet later in this list are required. Please refer to the "Per-subscriber or -user firewall service" bullet.
– To enable GPRS Tunnelling Protocol (GTP) Application Inspection Services (available as of Cisco IOS XE Software Release 3.4S), an add-on RTU License (FLASR1-FW-GTP-RTU(=)) is required. This RTU license covers existing and future GTP versions and enhancements.
• Firewall or Network Address Translation (NAT) stateful interchassis redundancy: Enabling interchassis redundancy for firewall and NAT requires an RTU license (FLASR1-FWNAT-RED(=)) on any Cisco ASR 1000 Router that supports interchassis redundancy.
• Stateful Network Address Translation 64 (Stateful NAT64) service (available as of Cisco IOS XE Software Release 3.4S): The Cisco ASR 1000 Series Router NAT64 service helps solve the IPv4 exhaust problem, enables IPv6 adoption, and requires an RTU license (FLASR1-NAT64-2M (=)) that enables up to 2M translations depending on the selected ESP (for example, ESP20 or ESP40 supports 2M translations whereas ESP10 supports 1M). Stateless NAT64 service that is available as of Cisco IOS XE Software Release 3.2S does not require any license. Stateful NAT64 service is available as of Cisco IOS XE Software Release 3.4S.
• Carrier Grade Network Address Translation 44 (CGN) service (available as of Cisco IOS XE Software Release 3.6S): The Cisco ASR 1000 Series Router CGN is positioned between a private and public IP network and uses nonglobal, private IP addresses and a public IP address for translation. Carrier Grade NAT dynamically maps one or more private IP addresses into one or more public (globally routable) IP addresses that use Network Address and Port Translation (NAPT) techniques. Traditionally, NAT boxes are deployed in residential home gateways (HGWs) to translate multiple private IP addresses that are configured on multiple devices inside the home to a single public IP address that is configured and provisioned on the HGW by the service provider. Service providers deploy NAT in such a way that multiple subscribers can share a single global IP address. The Carrier Grade NAT scales to several millions of NAT translations, making it a Carrier Grade NAT (CGN). CGN on the Cisco ASR 1000 Series Router requires an RTU license (FLASR1-CGN-2M (=)) that enables up to 2M translations or (FLASR1-CGN-6M (=)) that enables up to 6M translations depending on the selected ESP. For hardware models that support more than 2M or 6M translations, you can order more than one licenses. For example, with ASR1000-ESP100, you can have up to 12M translations, so you can order 2 x FLASR1-CGN-6M(=) to give you RTU of up to 12M translations. You can configure CGN by using the ip nat settings mode cgn command. Use the ip nat settings mode default command to change to the default or traditional NAT operating mode. In the default mode, you do not need any license. In CGN mode, you will need one of the following part numbers: FLASR1-CGN-2M (=) or FLASR1-CGN-6M (=).
• Cisco IOS Flexible Packet Inspection (FPI) service: The Cisco ASR 1000 Series Router FPI application requires an RTU license (FLASR1-FPI-RTU(=)), which allows you to enable Flexible Packet Matching (FPM). As of Cisco IOS XE Software Release 3.4S, NBAR requires the Application Visibility and Control license and is no longer covered under the FPI license.
• Cisco Application Visibility and Control (AVC) (available as of Cisco IOS XE Software Release 3.4S): Cisco AVC provides a powerful pervasive, integrated service management solution based on stateful deep packet inspection (DPI). With Cisco AVC, instead of processing packets as individual events, the Cisco ASR 1000 Series Router fully reconstructs flows and the Layer 7 state of each application flow for application- and session-based classification and management of IP traffic.
– The Cisco ASR 1000 Series Router Application Visibility and Control RTU license (FLASR1-AVC-RTU(=)) enables you to configure NBAR and advanced application awareness on the Cisco ASR 1000 Series Routers or application reporting (visibility) and usage in application control in QoS policies.
– The Cisco ASR 1000 Series Router Application Visibility and Control Upgrade license (FLASR1-AVC-UPG(=)) enables you to upgrade from your current existing FPI licence to the new advanced Application Visibility and Control (AVC) licence.
– The Cisco Insight reporting RTU licence ((FLASR1-NSIGHT-RTU(=)) is a complementary external software component to the Cisco ASR 1000 Series Router Application Visibility and Control RTU license - the Cisco Insight is an external web-based reporting tool that can be installed on any external generic server that complies to its prerequisites; the licence is per Cisco ASR 1000 unit.
• Cisco IOS Software redundancy: The Cisco ASR 1000 Series Router software redundancy requires an RTU license (FLASR1- IOSRED-RTU(=), and FLSASR1-IOSRED(=) on ASR 1001 and ASR 1002-X), which allows you to enable software redundancy on the Cisco ASR 1001, 1002, ASR 1002-X, and ASR 1004 chassis. Software redundancy requires 4-GB DRAM on the RP1, and 8-GB DRAM on ASR 1001 or ASR 1002-X. The Cisco ASR 1001, ASR 1002, and ASR 1002-X come by default with 4-GB DRAM on the built-in route processor.
Broadband and Service Provider Wi-Fi
Broadband and Service Provider Wi-Fi service: An RTU license must be ordered in order to enable Broadband, Service Provider Wi-Fi (SP Wi-Fi), Intelligent Services Gateway (ISG), and Intelligent Wireless Access Gateway (iWAG) applications on the Cisco ASR 1000 Series Router. The FLASR1-BB-RTU(=) license will allow you to enable Broadband, SP Wi-Fi, ISG, and iWAG applications for up to 500 sessions. To increase the number of sessions, you will need to order one or more number-of-sessions licenses. Part numbers for these licenses follow:
• FLASR1-BB-4K(=)
• FLASR1-BB-16K(=)
• FLASR1-BB-32K(=)
• FLASR1-BB-48K(=)
• FLASR1-BB-64K(=)
For example, FLASR1-BB-4K(=) will allow you enable up to 4,000 sessions (+500 from RTU), whereas FLASR1-BB-64K(=) will allow you to enable up to 64,000 (+500 from RTU) sessions.
• You can combine multiple session licenses for the session count desired; for example, you can purchase two 4,000-session licenses for 8,000 additional sessions, and you can combine a 16,000-session license with a 4,000-session license for 20,000 additional sessions.
Cisco ASR 1000 Broadband Bundles are created to provide ordering convenience. Depending on the number of users supported, you can choose the following bundles:
• Part number ASR1006-10G-B16/K9: Supports 16,000 sessions
• Part number ASR1006-10G-B24/K9: Supports 24,000 sessions
• Part number ASR1K6R2-20G-B32/K9: Supports 32,000 sessions
• For Cisco ASR 1000 Series bundles, please refer to the Cisco ASR 1000 Series Price List or contact your local Cisco representative.
LAC and LNS: For Layer 2 Tunneling Protocol access concentrator (LAC) and L2TP Network Server (LNS) functions, sessions are counted as the number of Point-to-Point Protocol (PPP) sessions. The numbers of Layer 2 Tunneling Protocol (L2TP) tunnels are not counted as sessions and do not require an additional license.
L2TS: For L2TP Tunnel Switch (L2TS) functions, session licenses required are based on the number of L2TP tunnels being switched. For example, if the Cisco ASR 1000 Series Router is used to switch 8,000 L2TP tunnels, you must order two 4,000-session licenses (FLASR1-BB-4K(=)).
ISG: The ISG feature set is covered under the Broadband RTU license. Session licenses apply similar to LAC and LNS based on PPP or IPoE sessions being enabled.
PMIPv6 MAG: The PMIPv6 MAG feature set is covered under the Broadband RTU license. Session licenses are required in addition, based on the number of subscribers tunneled using PMIPv6.
iWAG: The iWAG feature set is covered under the Broadband RTU license. Session licenses are required in addition, based on the number of subscribers supported by iWAG. The number of tunnels coming in and out of the Cisco ASR 1000 as an iWAG are not counted toward the sessions or licenses. For example, if the Cisco ASR 1000 Series Router is aggregating 8,000 subscribers, then you must order two 4,000-session licenses (FLASR1-BB-4K(=)). In cases where the ISG Walk-By subscriber management feature is used, the required session count is based only on the maximum number of active subscriber sessions being supported.
Per-Subscriber Firewall: The Cisco ASR 1000 Series Router per-subscriber or per-user firewall service requires both an RTU license (FLASR1-FW-RTU(=)) and one or more session licenses.
Services that require only number-of-sessions licenses follow:
• Cisco Unified Border Element (SP Edition) service: Cisco Unified Border Element (SP Edition) is a highly scalable, carrier-grade SBC integrated into Cisco ASR 1000 Series Routers.
– Cisco Unified Border Element (SP Edition) licenses authorize the use of both distributed and unified SBC deployment models.
– For the purpose of session license ordering, an SBC session is a bidirectional media flow and associated signaling. A session represents a complete voice call through the SBC: two call legs consisting of two media legs for a bidirectional media flow and associated signaling on both call legs.
A videophone call uses two sessions: one session for a bidirectional media flow and associated signaling (as in a voice call) and one more sessions for the second bidirectional media flow for video.
An instant messaging session consists of signaling between two endpoints through the SBC; there is typically no associated media.
• You can combine multiple session licenses for the session count desired. Part numbers for these licenses follow:
– FLASR1-CUBES-250P(=)
– FLASR1-CUBES-2KP(=)
– FLASR1-CUBES-4KP(=)
– FLASR1-CUBES-16KP(=)
– FLASR1-CUBES-32KP(=)
– FLASR1-CUBES-LAB(=)
– FLASR1-CUBES-TPEX(=)
• When using an ACTIVE/STANDBY pair of routers, a single license for both is required for redundancy:
– CUBESP-250P-RED (=)
– CUBESP-2K-RED (=)
– CUBESP-4K-RED (=)
– CUBESP-10K-RED (=)
– CUBESP-16K-RED (=)
– CUBESO-32K-RED (=)
– CUBESP-TPEX-RED (=)
• Cisco Unified Border Element (Enterprise Edition) service: In the Cisco Unified Border Element (Enterprise Edition), the SBC functions are integrated into Cisco ASR 1000 Series Routers. Cisco Unified Border Element (Enterprise Edition) licenses authorize the use of SBC for enterprise deployments. These licenses are session-count-based licenses.
• Part numbers for these licenses follow:
– FLASR1-CUBEE-100P
– FLASR1-CUBEE-100P=
– FLASR1-CUBEE-500P
– FLASR1-CUBEE-500P=
– FLASR1-CUBEE-1KP
– FLASR1-CUBEE-1KP=
– FLASR1-CUBEE-4KP
– FLASR1-CUBEE-4KP=
– FLASR1-CUBEE-16KP
– FLASR1-CUBEE-16KP=
• When using an ACTIVE/STANDBY pair of routers, a single license for both is required for redundancy:
– FLASR1-CUBEE-100R
– FLASR1-CUBEE-100R=
– FLASR1-CUBEE-500R
– FLASR1-CUBEE-500R=
– FLASR1-CUBEE-1K-R
– FLASR1-CUBEE-1K-R=
– FLASR1-CUBEE-4K-R
– FLASR1-CUBEE-4K-R=
– FLASR1-CUBEE-16K-R
– FLASR1-CUBEE-16K-R=
Note: For Cisco ASR 1000 demo licenses to test the Cisco ASR 1000 (ASR1001, ASR1002, ASR1002-X, ASR1004, ASR1006, and ASR1013) in the lab, please contact your local Cisco representative.
Ordering Cisco ASR 1001/ASR 1002-X Series Feature Licenses
In order to turn on services on the Cisco ASR 1001 or ASR 1002-X Router, software feature licenses are required as on the other Cisco ASR 1000 Series Routers (ASR1002, ASR1004, ASR1006, and ASR1013).
However, withthe Cisco ASR 1001 and AR 1002-X, the concept of a universal software image and a feature license to enable and enforce a certain feature set through a license (referred to as a technology package license) is introduced.
The technology package licenses as well as the performance upgrade license to upgrade from 2.5 to 5 Gbps on the Cisco ASR 1001 are enforced through a PAK prior to IOS XE release 3.6S. All the other feature licenses that are required on the rest of the Cisco ASR 1000 Series are also required on the Cisco ASR 1001, but those licenses are all honor-based; that is, there is no enforcement. For ASR 1002-X, all licenses, including technology package licenses, performance upgrade licenses from 5 to 10, 20, 36 Gbps, are honor-based.
• Please take note, though, that for the feature licenses on the Cisco ASR 1001, you must order different part numbers for the same type of functions. All the Cisco ASR 1001 feature set license part numbers are listed on the Cisco ASR 1000 Series Price List.
Following is also an example related to the part numbers: If you want to deploy firewall on a Cisco ASR 1001 or ASR 1002-X, you must order part number FLSASR1-FW when you purchase the router.
The part number for deployment of firewall on the other Cisco ASR 1000 chassis (ASR1002, ASR1004, ASR1006, and ASR1013) is FLASR1-FW-RTU.
If you want to upgrade to firewall after the time of purchase of the router, for the Cisco ASR 1001 or ASR 1002-X you must order either part number FLSASR1-FW= (license file delivered by mail) or L-FLSASR1-FW= (license file delivered by email).
For the other Cisco ASR 1000 chassis (ASR1002, ASR1004, ASR1006, and ASR1013), you must order part number FLASR1-FW-RTU. All of the Cisco ASR 1001 and ASR 1002-X feature license part numbers are listed on the Cisco ASR 1000 Price List.
If a customer needs to purchase a Cisco ASR 1001 or ASR 1002-X spare license (for example, for a technology package upgrade from IP Base to Advanced Enterprise Services, for a performance upgrade from 2.5 to 5 Gbps on the Cisco ASR 1001 chassis, or for a feature that requires a license and the license was not purchased at the time of order), two types of spare licenses are available. The SLASR1-xxx-= license provides a PAK or licence file with paper delivery and the L-SLASR1-xxx-= license provides a PAK or license file through e-delivery.
• The spares can also be purchased as a "multiuse PAK: by either ordering SLFL-ASR1= (for paper delivery) or L-SLFL-ASR1= (for e-delivery).
Note: For Cisco ASR 1001 demo licenses to test the Cisco ASR 1001 in the lab, please contact your local Cisco representative.
Ordering Cisco ASR 1000 Series Bundles
Numerous Cisco ASR 1000 bundle part numbers are available to ease the ordering process. All bundles come by default with dual power supplies and power cable (if AC power supply is chosen), an ESP, a route processor module, and a SIP. The ESP, route processor, or SIP is either fixed in the chassis or added as a default component to the bundle, depending on the type of chassis.
All bundles are in general further configurable and related to hardware components:
• Additional route processor and ESP (applicable only to the Cisco ASR 1006 and ASR 1013 bundles)
• Additional SIP (applicable only to Cisco ASR 1004, ASR 1006, and ASR 1013 bundles)
• SPAs
• Additional feature licenses
• Dual AC or DC power supplies
• Type of power cord
• USB flash memory
Following are the categories of Cisco ASR 1000 bundles:
• Base bundles - no license included
• HA bundles - Software redundancy license for Cisco ASR 1002, ASR 1002-X, and ASR 1004, or redundant route processors and ESPs for Cisco ASR 1006 and ASR 1013
• SHA (Security + HA) bundles - IPsec, firewall, FPI, and software redundancy license for Cisco ASR 1002, ASR 1002-X, and ASR 1004, or redundant route processors and ESPs for Cisco ASR 1006 and ASR 1013
• Broadband bundles - Broadband RTU license (covers up to 500 BB sessions) and broadband session licenses
The Cisco IOS XE Software in the Cisco ASR 1000 bundles are not configurable. In general they come with the latest Cisco IOS XE Software release, but it is subject to change without further notice.
All Cisco ASR 1000 bundles come with the AESK9 consolidated package except the broadband bundles, which come with the AISK9 consolidated package.
Note: For the Cisco ASR 1001 and ASR 1002-X, one universal software image and one technology package license is included in the bundle. For example, the "equivalent" software image AESK9 on the Cisco ASR 1002, ASR 1004, ASR 1006, and ASR 1013 is obtained for the Cisco ASR 1001 or ASR 1002-X with the UK9 universal image and the AES technology package license.
Please go to the "Ordering Information" section of this document for the complete listing of available bundles (refer to Table 33).
Configuration Examples
The following examples describe the products you need for certain network deployments, and they list the part numbes to order.
Note: These examples are not exhaustive, and you should not follow them exactly as presented. You should customize your order based on your needs.
Example 1: Cisco ASR 1000 Series Router as a Broadband Aggregation Router
In this example, a Cisco ASR 1000 Series Router is used for broadband aggregation, such as a Point-to-Point Termination and Aggregation (PTA) device or as a(n):
• IP-over-Ethernet broadband remote access server
• LAC
• LNS
• L2TS
A 6RU chassis (Cisco ASR 1006) with redundant RP2s and 20-Gbps ESPs is configured in order to achieve five-nines availability. The Cisco ASR 1000 Series RP2 comes by default with an 80-GB hard disk. You should select RP2 16-GB DRAM memory (part number M-ASR1K-RP2-16GB). Additional memory is required when the broadband RTU license (part number FLASR1-BB-RTU) is selected with RP2 (part number ASR1000-RP2). You need three SIP cards to host two double-height, 10 Gigabit Ethernet SPA cards and four single-height, 8-Gigabit Ethernet SPA cards.
The Cisco IOS XE Advanced IP Services consolidated package facilitates broadband and Multiprotocol Label Switching (MPLS) features on the router.
A 32,000-subscriber broadband number-of-sessions license and the broadband RTU license allow you to scale up to 32,000 subscribers on the system.
Table 14 lists the part numbers to order for this scenario.
Table 14. Cisco ASR 1000 Series Router as a Broadband Aggregation Router
Part Number
Product Description
Quantity
ASR1006
Cisco ASR1006 Chassis, Dual P/S
1
ASR1006-PWR-AC
Cisco ASR1006 AC Power Supply
2
Part number depends on required power cable
Power Cable
2
ASR1000-RP2
Cisco ASR1000 Route Processor 2, 8GB DRAM
2
M-ASR1K-RP2-16GB
Cisco ASR1000 RP2 16GB DRAM
2
M-ASR1K-HDD-80GB
Cisco ASR1000 RP2 80GB HDD
2
ASR1000-ESP20
Cisco ASR1000 Embedded Services Processor, 20Gbps
2
ASR1000-SIP10
Cisco ASR1000 SPA Interface Processor 10
3
SPA-1X10GE-L-V2
Cisco 1-Port 10GE LAN-PHY Shared Port Adapter
2
XFP-10GLR-OC192SR
Multirate XFP module for 10GBASE-LR and OC192 SR-1
2
SPA-8X1GE-V2
Cisco 8-Port Gigabit Ethernet Shared Port Adapter
4
SFP-GE-L
1000BASE-LX/LH SFP (DOM)
32
SASR1R2-AISK9-23
Cisco ASR1000 Series RP2 Advanced IP SERVICES
1
FLASR1-BB-RTU
Broadband Right-To-Use with 500 BB Sessions Lic for ASR1000
1
FLASR1-BB-32K
Broadband 32K Sessions Feature License for ASR1000 Series
Multirate XFP module for 10GBASE-LR and OC192 SR-1
2
SPA-8X1GE-V2
Cisco 8-Port Gigabit Ethernet Shared Port Adapter
4
SFP-GE-L
1000BASE-LX/LH SFP (DOM)
32

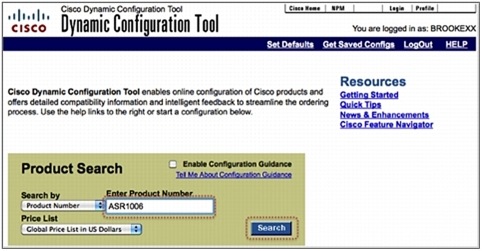

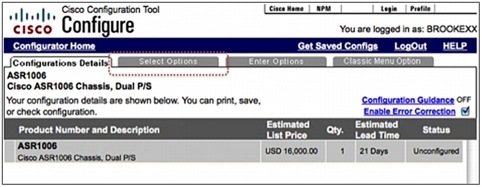

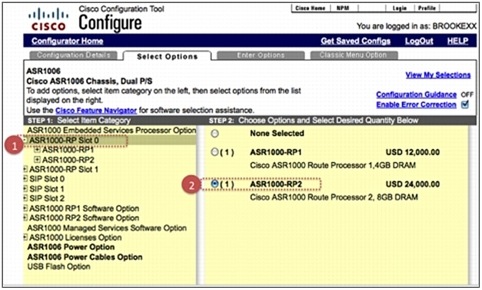

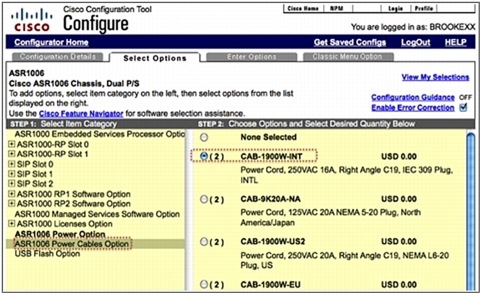

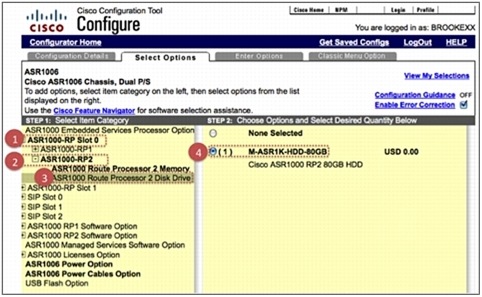

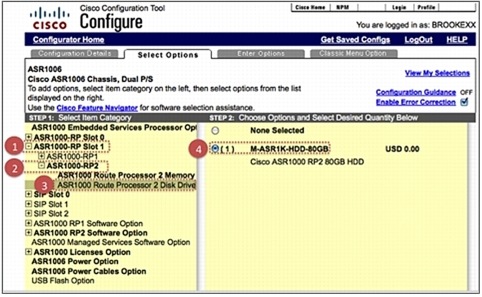

The only difference, in terms of navigating the Cisco Dynamic Config Tool, is that for the route processor and SIP modules the PID you select will end in "-BUN".
Example 2: Cisco ASR 1000 Series Router as a Quadruple-Play Edge Router
In this example, a Cisco ASR 1000 Series Router provides quadruple-play (data, voice, video, and mobility) services, including voice over IP (VoIP), videoconferencing, Internet Protocol Television (IPTV), and Internet, to subscribers. A Cisco ASR 1006 chassis with redundant route processors and 20-Gbps ESPs is configured in order to achieve five-nines availability. The Cisco ASR 1000 Series RP2 comes with an 80-GB hard disk. You should select RP2 16-GB DRAM memory (part number M-ASR1K-RP2-16GB). Additional memory is required when the broadband RTU license (part number FLASR1-BB-RTU) is selected with RP2 (part number ASR1000-RP2). You need three SIP cards to host two full-height 10 Gigabit Ethernet SPA cards and four half-height 8 Gigabit Ethernet SPA cards.
The Cisco IOS XE Advanced IP Services consolidated package facilitates broadband, Cisco Unified Border Element (SP Edition), and MPLS features on the router.
You need a 16,000-subscriber broadband number-of-sessions license and a broadband RTU license to scale up to 16,000 broadband subscribers on the Cisco ASR 1000 Series Router. In addition, you must order Cisco Unified Border Element (SP Edition) licenses to enable the SBC services: You need a 16,000-subscriber Cisco Unified Border Element number-of-sessions license to scale up to 16,000 SBC sessions. Table 16 lists the components you need for using a Cisco ASR 1000 Series Router as a quadruple-play edge router.
Table 16. Cisco ASR 1000 Series Router as a Quadruple-Play Edge Router
Multirate XFP module for 10GBASE-LR and OC192 SR-1
2
SPA-8X1GE-V2
Cisco 8-Port Gigabit Ethernet Shared Port Adapter
4
SFP-GE-L
1000BASE-LX/LH SFP (DOM)
32
SASR1R1-AISK9
Cisco ASR1000 Series RP1 Advanced IP Services
1
FLASR1-BB-RTU
Broadband Right-To-Use with 500 BB Sessions Lic for ASR1000
1
FLASR1-BB-16K
Broadband 16K Sessions Feature Lic for ASR1000 Series
1
FLASR1-CUBES-16KP
CUBE(SP) 16K Calls Perpetual Lic for ASR 1000 Series
1
Example 3: Cisco ASR 1000 Series Router as an LNS Router with Per-Subscriber Firewall
In this example, a Cisco ASR 1000 Series Router provides per-subscriber firewall service to end users on an LNS router. A Cisco ASR 1006 chassis with redundant route processors and 10-Gbps ESPs is configured in order to achieve six-nines high availability. The Cisco ASR 1000 Series RP1 comes with a 40-GB hard disk. You need three SIP cards to host two full-height 10 Gigabit Ethernet SPA cards and four half-height 8 Gigabit Ethernet SPA cards.
The Cisco IOS XE Advanced IP Services consolidated package facilitates broadband, firewall, and MPLS features on the router.
You need a 16,000-subscriber broadband number-of-sessions license, in addition to the broadband and firewall RTU license, to scale up to 16,000 broadband subscribers and provide per-subscriber firewall services to the end users on the Cisco ASR 1000 Series Router.
Table 17 lists the components for using a Cisco ASR 1000 Series Router as an LNS router with per-subscriber firewall.
Table 17. Cisco ASR 1000 Series Router as an LNS Router with Per-Subscriber Firewall
Multirate XFP module for 10GBASE-LR and OC192 SR-1
2
SPA-8X1GE-V2
Cisco 8-Port Gigabit Ethernet Shared Port Adapter
4
SFP-GE-L
1000BASE-LX/LH SFP (DOM)
32
FLASR1-FW-RTU
Firewall Right-To-Use Feature Lic for ASR1000 Series
1
Example 4: Cisco ASR 1000 Series Router as High-End Customer Premises Equipment
In this example, a Cisco ASR 1000 Series Router is used as managed high-end customer premises equipment (CPE). A 2RU chassis with a 5-Gbps ESP is configured, offering a great price-performance ratio.
The Cisco ASR 1002 comes with four built-in Gigabit Ethernet ports and 4-GB DRAM by default. The SIP card and the route processor are built into the chassis. The 3-slot 2RU chassis can host up to three SPAs; for example, it can host two single-height Channelized T3-to-DS-0 SPA cards and one single-height 8-port Fast Ethernet SPA card.
The Cisco IOS XE Advanced Enterprise Services consolidated package facilitates IPsec, firewall, and other advanced features on the router.
IPsec and firewall RTU licenses allow service providers to provide advanced services such as IPsec and firewall service to their end customers.
Table 19 lists the part numbers for deployment of this scenario. Alternatively, you can use the Cisco ASR 1002 security bundles to build the same BOM, as shown in Table 20. Another great high-end branch-office router solution is the compact-form-factor 1RU Cisco ASR 1001. Table 21 lists the part numbers for a possible deployment based on the Cisco ASR 1001 chassis with four built-in Gigabit Ethernet ports and an additional four integrated T3 ports (example listed is with the ASR1001-4XT3).
Table 19. Cisco ASR 1000 Series Router as High-End Customer Premises Equipment
Part Number
Product Description
Quantity
ASR1002
Cisco ASR1002 Chassis, 4 built-in GE, Dual P/S, 4GB DRAM
1
ASR1002-PWR-AC
Cisco ASR1002 AC Power Supply
2
Part number depends on required power cable
Power Cable
2
ASR1000-ESP5
ASR1K Embedded Services Processor, 5Gbps, Crypto, ASR1002 only
1
SPA-4XCT3/DS0
4-port Channelized T3 to DS0 Shared Port Adapter
2
SPA-8X1FE-TX-V2
Cisco 8-Port Faste Ethernet (TX) Shared Port Adapter
1
SASR1R1-AESK9
Cisco ASR1000 Series RP1 Advanced Enterprise Services
1
FLASR1-IPSEC-RTU
Encryption Right-To-Use Feature Lic for ASR1000 Series
1
FLASR1-FW-RTU
Firewall Right-To-Use Feature Lic for ASR1000 Series
1
Table 20. Cisco ASR 1000 Series Router as High-End Customer Premises Equipment (with Bundle PID)
Part Number
Product Description
Quantity
ASR1002-5G-SEC/K9
ASR1002 VPN+FW Bundle w/ESP-5G, AESK9, License, 4GB DRAM
1
SPA-4XCT3/DS0
4-port Channelized T3 to DS0 Shared Port Adapter
2
SPA-8X1FE-TX-V2
Cisco 8-Port Fast Ethernet (TX) Shared Port Adapter
1
Table 21. Cisco ASR 1000 Series Router as High-End Customer Premises Equipment (Example Based on Chassis with Part Number ASR1001-4XT3)
Example 5: Cisco ASR 1000 Series Router as a Provider-Edge Router
In this example, a Cisco ASR 1000 Series Router is used as a provider-edge router in a service provider network. A 6RU chassis with redundant route processors and ESPs is configured in order to achieve six-nines high availability. The Cisco ASR 1000 Series RP2 comes with an 80-GB hard disk.
You need three SIP cards to host two full-height 10 Gigabit Ethernet SPA cards and four half-height 8-port Gigabit Ethernet SPA cards.
A Cisco IOS XE Advanced IP Services consolidated package facilitates MPLS and other advanced features on the router.
Table 22 lists the part numbers for deployment of this scenario.
Table 22. Cisco ASR 1000 Series Router as a Provider-Edge Router
Multirate XFP module for 10GBASE-LR and OC192 SR-1
2
SPA-8X1GE-V2
Cisco 8-Port Gigabit Ethernet Shared Port Adapter
4
SFP-GE-L
1000BASE-LX/LH SFP (DOM)
32
SASR1R1-AISK9
Cisco ASR1000 Series RP1 Advanced IP Services
1
Example 6: Cisco ASR 1000 Series Router as a Route Reflector
In this example, a Cisco ASR 1000 Series Router is used as a route reflector because of its high and scalable control-plane performance. A Cisco ASR 1001 chassis with an integrated route processor is chosen because of its great control-plane scaling and great price-performance ratio.
The Cisco ASR 1001 and Cisco IOS Software redundancy license for the Cisco ASR 1001 (FLSASR1-IOSRED) in combination with 8-GB DRAM allow configuration of software redundancy. The performance upgrade license allows the Cisco ASR 1001 chassis to be upgraded to 5-Gbps total aggregate throughput without any hardware module exchange.
A Cisco IOS XE Advanced Enterprise Services technology package license in combination with the Cisco ASR 1001 universal K9 software image facilitates Border Gateway Protocol (BGP), Multiprotocol BGP (MBGP), MPLS, and other advanced features on the router.
Table 23 lists the part numbers for deployment of this scenario.
Table 23. Cisco ASR 1000 Series Router as a Route Reflector
ESP is integrated into the ASR1001 chassis-upgradeable from 2.5-Gbps to 5-Gbps via a license
NA
NA
RP is integrated into the ASR1001
NA
NA
SIP is integrated into the ASR1001 chassis
NA
NA
M-ASR1K-1001-16GB
Cisco ASR1001 16GB DRAM
1
SPA-5X1GE-V2
Cisco 5-Port Gigabit Ethernet Shared Port Adapter
1
SFP-GE-L
1000BASE-LX/LH SFP (DOM)
9
SASR1001UK9-32S
Cisco ASR 1001 IOS XE UNIVERSAL - ENCRYPTION
1
SLASR1-AES
Cisco ASR 1000 Advanced Enterprise Services License
1
FLS-ASR1001-5G
Upgrade from 2.5 Gbps to 5Gbps License for ASR 1001
1
FLSASR1-IOSRED
SW Redundancy License for ASR1000 Series
1
Example 7: Cisco ASR 1000 Series Router as a Secure Headend Router
In this example, a Cisco ASR 1000 Series Router is used as a secure headend router in an enterprise network. A 6RU chassis with redundant route processors and ESPs is configured in order to achieve six-nines high availability. The Cisco ASR 1000 Series RP1 comes with a 40-GB hard disk.
You need one SIP card to host one single-height, 5-port Gigabit Ethernet SPA card and one single-height Packet over SONET/SDH (PoS) OC-12 SPA card.
A Cisco IOS XE Advanced Enterprise consolidated package facilitates advanced security features on the router.
Table 24 lists the part numbers for deployment of this scenario.
Table 24. Cisco ASR 1000 Series Router as a Secure Headend Router
Cisco ASR1000 Series RP1 Advanced Enterprise Services
1
FLASR1-IPSEC-RTU
Encryption Right-To-Use Feature Lic for ASR1000 Series
1
Example 8: Cisco ASR 1000 Series Router as an Internet Gateway Router
In this example, a Cisco ASR 1000 Series Router is used as an Internet gateway router in an enterprise network. A 4RU router (Cisco ASR 1004) chassis is configured. The Cisco ASR 1000 Series RP1 is upgraded to 4-GB memory, and the Cisco IOS Software redundancy RTU license (FLASR1-IOSRED-RTU) allows you to configure software redundancy.
You need one SIP card to host one single-height 8-port Gigabit Ethernet SPA card.
A Cisco IOS XE Advanced Enterprise consolidated package facilitates advanced security features on the router.
Firewall, IPsec, and FPI RTU licenses facilitate firewall, IPsec, and FPM functions on the router.
Table 25 lists the part numbers for deployment of this scenario.
Table 25. Cisco ASR 1000 Series Router as an Internet Gateway Router
Example 9.1: Cisco ASR 1000 Series Router as an SBC in a Centralized SIP Trunking Data CenterDeployment
In this example, a Cisco ASR 1006 Series Router is used as an SBC in an enterprise data center, where it performs session control and security, demarcation, and interworking with a SIP trunk service provider to support the real-time voice transmission of the enterprise user for up to 16,000 SIP sessions.
The router uses a 6RU chassis with redundant route processors and ESPs in order to achieve high availability. The Cisco ASR 1000 Series RP2 comes with an 80-GB hard disk.
You need two SIP cards to host two full-height 10 Gigabit Ethernet SPA cards.
A Cisco IOS XE Advanced IP Services consolidated package facilitates the Cisco Unified Border Element (SP Edition) feature on the router.
Multirate XFP module for 10GBASE-LR and OC192 SR-1
2
SASR1R2-AISK9
Cisco ASR1000 Series RP2 ADVANCED IP SERVICES
1
FLASR1-CUBEE-16KP
CUBE(ENT) Perpetual Lic for ASR 1000 Series
1
Example 9.2: Cisco ASR 1000 Series Router as an SBC in an Intercompany Telepresence SolutionDeployed in a Service Provider Data Center
In this example, a Cisco ASR 1000 Series Router is used as an SBC in a service provider data center (also referred to as a Cisco TelePresence® Intercompany Exchange), where it enables business-to-business telepresence service provided by the service provider to its enterprise customers. The router uses a 6RU chassis with redundant route processors and ESPs in order to achieve high availability. The Cisco ASR 1000 Series RP2 comes with an 80-GB hard disk.
You need two SIP cards to host two full-height 10 Gigabit Ethernet SPA cards.
A Cisco IOS XE Advanced IP Services consolidated package facilitates the Cisco Unified Border Element (SP Edition) feature on the router.
Table 28 lists the part numbers for deployment of this scenario.
Table 28. Cisco ASR 1000 Series Router as a Provider-Edge Router
Multirate XFP module for 10GBASE-LR and OC192 SR-1
2
SASR1R2-AISK9
Cisco ASR1000 Series RP2 ADVANCED IP SERVICES
1
FLASR1-CUBES-TPEX
CUBE(SP) Perpetual Lic for ASR 1000 Series in B2BTP Exchange
1
Example 10: Cisco ASR 1000 Series Router as a Stateful NAT64 Translator (Cloud Provider Edge)
In this example, a Cisco ASR 1000 Series Router is used as a provider-edge router in a cloud provider network. The Stateful NAT64 translation solution allowe the cloud provider to deploy new enterprises with IPv6 networks (helps IPv6 adoption) and enable them to reach the IPv4 Internet or networks (helps IPv4 exhaust through Port Address Translation [PAT]). A 6RU chassis with redundant route processors and ESPs is configured in order to achieve six-nines high availability. The Cisco ASR 1000 Series RP2 comes with an 80-GB hard disk.
A Cisco IOS XE IP Base consolidated package facilitates the NAT64 feature on the router.
Table 29 lists the part numbers for deployment of this scenario.
Table 29. Cisco ASR 1000 Series Router as a Cloud Provider-Edge Router
Multirate XFP module for 10GBASE-LR and OC192 SR-1
1
SPA-8X1GE-V2
Cisco 8-Port Gigabit Ethernet Shared Port Adapter
1
SFP-GE-L
1000BASE-LX/LH SFP (DOM)
8
SASR1R2-IPBK9-31S
Cisco ASR 1000 Series RP2 IP BASE
1
FLASR1-NAT64-2M
NAT64 RTU Feature License for up to 2M Sessions on ASR1000
1
Example 11: Cisco ASR 1000 Series Router as a Mobile Border Gateway
In this example, a Cisco ASR 1000 Series Router is used as a mobile border gateway, where it inspects the GTP traffic from users who roam in another mobile provider's network.
A 2RU chassis with a ASR1002-10G-SEC/K9 bundle offers a great price-performance ratio.
The Cisco ASR 1002 comes with four built-in Gigabit Ethernet ports and 4-GB DRAM by default. The SIP card and the route processor are built into the chassis. The 3-slot 2RU chassis can host up to three SPAs.
The Cisco IOS XE Advanced Enterprise Services consolidated package facilitates IPsec, firewall, and other advanced features on the router.
The add-on GTP AIC RTU license (FLASR1-FW-GTP-RTU(=))allows inspection of GTP traffic from users roaming into another mobile provider's network.
Table 30 lists the part numbers for deployment of this scenario using four ASR1002 SEC bundles.
Table 30. Cisco ASR 1000 Series Router as a Mobile Border Gateway
Part Number
Product Description
Quantity
ASR1002-10G-SEC/K9
ASR1002 VPN+FW Bundle w/ESP-10G, AESK9, License, 4GB DRAM
4
SPA-5X1GE-V2
Cisco 5-Port Gigabit Ethernet Shared Port Adapter
4
SFP-GE-L
1000BASE-LX/LH SFP (DOM)
20
SFP-GE-S
1000BASE-SX SFP (DOM)
16
FLASR1-FW-GTP-RTU
GTP add-on to Firewall RTU Feature License for ASR1000
4
Example 12: Cisco ASR 1000 Series Router as a Carrier-Grade NAT Router
In this example, a Cisco ASR 1000 Series Router is used as a CGN router in a service provider network. A 6RU chassis with redundant route processors and ESPs is configured in order to achieve six-nines high availability. The Cisco ASR 1000 Series RP2 comes with an 80-GB hard disk.
A Cisco IOS XE IP Base consolidated package and CGN lincense facilitate the CGN feature on the router.
Table 31 lists the part numbers for deployment of this scenario.
Table 31. Cisco ASR 1000 Series Router as a CGN Router
Multirate XFP module for 10GBASE-LR and OC192 SR-1
1
SPA-8X1GE-V2
Cisco 8-Port Gigabit Ethernet Shared Port Adapter
1
SFP-GE-L
1000BASE-LX/LH SFP (DOM)
8
SASR1R2-IPBK9-36S
Cisco ASR 1000 Series RP2 IP BASE
1
FLASR1-CGN-2M
CGN RTU Feature License for up to 2M Sessions on ASR1000
2
Ordering Information
Table 32 lists the part numbers of the hardware components you need for a Cisco ASR 1000 Series Router.
For more details and available bundles, please contact your local Cisco account representative. The Cisco ASR 1000 Series supports most Cisco SPAs. For details about the supported SPAs on the Cisco ASR 1000 Series, please refer to the Cisco ASR 1000 Series Shared Port Adapter Support data sheet.
Table 33 lists the Cisco ASR 1000 software and software licenses (execpt for the Cisco ASR 1001 and ASR 1002-X); Table 34 lists the Cisco ASR 1001 and ASR 1002-X software and software licenses; and Table 35 lists the Cisco ASR 1000 bundles.
Table 32. Ordering Information for Cisco ASR 1000 Series Hardware
Cisco ASR 1000 Series Licenses - Cisco Unified Border Element (Enterprise Edition)
FLASR1-CUBEE-100P
Unified Border Element - Enterprise Edition 100 Sessions
FLASR1-CUBEE-100P=
Unified Border Element - Enterprise Edition 100 Sessions, Spare
FLASR1-CUBEE-500P
Unified Border Element - Enterprise Edition 500 Sessions
FLASR1-CUBEE-500P=
Unified Border Element - Enterprise Edition 500 Sessions, Spare
FLASR1-CUBEE-1KP
Unified Border Element - Enterprise Edition 1000 Sessions
FLASR1-CUBEE-1KP=
Unified Border Element - Enterprise Edition 1000 Sessions, Spare
FLASR1-CUBEE-4KP
Unified Border Element - Enterprise Edition 4000 Sessions
FLASR1-CUBEE-4PP=
Unified Border Element - Enterprise Edition 4000 Sessions, Spare
FLASR1-CUBEE-100R
Unified Border Element Ent Lic, 100 Sessions, Redundancy
FLASR1-CUBEE-100R=
Unified Border Element Ent Lic, 100 Sessions, Redundancy, Spare
FLASR1-CUBEE-500R
Unified Border Element Ent Lic, 500 Sessions, Redundancy
FLASR1-CUBEE-500R=
Unified Border Element Ent Lic, 500 Sessions, Redundancy, Spare
FLASR1-CUBEE-1K-R
Unified Border Element Ent Lic, 1000 Sessions, Redundancy
FLASR1-CUBEE-1K-R=
Unified Border Element Ent Lic, 1000 Sessions, Redundancy, Spare
FLASR1-CUBEE-4K-R
Unified Border Element Ent Lic, 4000 Sessions, Redundancy
FLASR1-CUBEE-4K-R=
Unified Border Element Ent Lic, 4000 Sessions, Redundancy, Spare
FLASR1-CUBEE-16K-R
Unified Border Element Ent Lic, 16000 Sessions, Redundancy
FLASR1-CUBEE-16K-R=
Unified Border Element Ent Lic, 16000 Sessions, Redundancy, Spare
Cisco ASR 1000 Series Licenses - Lawful Intercept License
FLASR1-LI
Cisco ASR1000 Lawful Intercept License
* For part numbers of specific releases, please refer to Cisco ASR 1000 Series Global Price List.
** These are software part numbers for Cisoc IOS XE Software Release 3.2S - as examples of software part numbers to order for the Cisco ASR 1000 Series, with the exception of the Cisco ASR 1001 and ASR 1002-X. For Cisco ASR 1001 and ASR 1002-X software part numbers, please refer to Table 34.
***** The application visibility and control feature licenses for the Cisco ASR 1000 (ASR1002, ASR1004, ASR1006, and ASR1013) and Cisco ASR 1001 are available as of Cisco IOS XE Software Release 3.4S.
Table 34. Ordering Information for Cisco ASR 1001/ASR 1002-X Software and Software Licenses
Firewall/NAT Stateful Inter-Chassis Redundancy Paper PAK for ASR1000 Series
L-FLSASR1-FWNAT-R=
Firewall/NAT Stateful Inter-Chassis Redundancy E-Delivery PAK for ASR1000 Series
Application Visibility and Control*****
FLSASR1-AVC
Appl. Visibility & Control License for ASR1000 Series
FLSASR1-AVC=
Appl. Visibility & Control Paper PAK for ASR1000 Series
L-FLSASR1-AVC=
Appl. Visibility & Control E-Delivery PAK for ASR1000 Series
Lawful Intercept
FLSASR1-LI
Lawful Intercept License for ASR1000 Series
FLSASR1-LI=
Lawful Intercept Paper PAK for ASR1000 Series
L-FLSASR1-LI=
Lawful Intercept E-Delivery PAK for ASR1000 Series
Broadband
FLSASR1-BB
Broadband License for ASR1000 Series
FLSASR1-BB=
Broadband Paper PAK for ASR1000 Series
L-FLSASR1-BB=
Broadband E-Delivery PAK for ASR1000 Series
FLSASR1-BB-4K
Broadband 4K Sessions for ASR1000 Series
FLSASR1-BB-4K=
Broadband 4K Sessions Paper PAK for ASR1000 Series
L-FLSASR1-BB-4K=
Broadband 4K Sessions E-Delivery PAK for ASR1000 Series
FLSASR1-BB-16K
Broadband 16K Sessions for ASR1000 Series
FLSASR1-BB-16K=
Broadband 16K Sessions Paper PAK for ASR1000 Series
L-FLSASR1-BB-16K=
Broadband 16K Sessions E-Delivery PAK for ASR1000 Series
FLSASR1-BB-32K
Broadband 32K Sessions for ASR1000 Series
FLSASR1-BB-32K=
Broadband 32K Sessions Paper PAK for ASR1000 Series
L-FLSASR1-BB-32K=
Broadband 32K Sessions E-Delivery PAK for ASR1000 Series
NOTE: For the complete list of Feature Licenses not enforced via Software Activation, please consult the Cisco ASR 1000 Price List since new licenses might be made available and this table does not represent the complete list.
*** These are software part numbers for Cisco IOS XE Software Release 3.2S for the Cisco ASR 1001- as examples of software part numbers to order for the Cisco ASR 1001.
***** The application visibility and control feature licenses for the Cisco ASR 1000 Series (ASR1002, ASR1004, ASR1006, and ASR1013) and Cisco ASR 1001 are available as of Cisco IOS XE Software Release 3.4S.
Table 35. Ordering Information for Cisco ASR 1000 Bundles
Part Number
Default Components
Cisco ASR 1000 Series Base Bundles
ASR1002-5G/K9
Hardware
• Chassis: ASR1002 with 4-built-in GE ports
• ESP: ASR1000-ESP5
• RP1 and SIP-10 are an integral part of the ASR1002 chassis
Software
• Consolidated Package: SASR1R1-AESK9-XYS
ASR1002-10G/K9
Hardware
• Chassis: ASR1002 with 4 built-in GE ports
• ESP: ASR1000-ESP10
• RP1 and SIP-10 are an integral part of the ASR1002 chassis
Software
• Consolidated Package: SASR1R1-AESK9-XYS
ASR1004-10G/K9
Hardware
• Chassis: ASR1004
• ESP: ASR1000-ESP10
• RP: ASR1000-RP1
• SIP: 1XASR1000-SIP10
Software
• Consolidated Package: SASR1R1-AESK9-XYS
ASR1004-20G/K9
Hardware
• Chassis: ASR1004
• ESP: ASR1000-ESP20
• RP: ASR1000-RP1
• SIP: 1XASR1000-SIP10
Software
• Consolidated Package: SASR1R1-AESK9-XYS
Cisco ASR 1001 Series VPN Bundles**
ASR1001-2.5G-VPNK9
Hardware
• ASR1001
• ESP: Integrated at default of 2.5-Gbps - not configurable with 5-Gbps upgrade license
• RP and SIP are an integral part of the ASR1001 chassis
Software
• Universal Image: SASR1001UK9-XYS
• Technology Package License: FLASR1-AES
• Feature License: FLSASR1-IPSEC
ASR1001-5G-VPNK9
Hardware
• ASR1001
• ESP: Integrated and performance is enforced to up to 5-Gbps via license
• RP and SIP are an integral part of the ASR1001 chassis
Software
• Universal Image: SASR1001UK9-XYS
• Technology Package License: FLASR1-AES
• Feature License: FLSASR1-IPSEC, FLS-ASR1001-5G
Cisco ASR 1000 Series VPN Bundles
ASR1002F-VPN/K9
Hardware
• Chassis: ASR1002-F with 4-built-in GE
• ESP-2.5, RP1 and SIP-10 are an integral part of the ASR1002-F chassis
Software
• Consolidated Package: SASR1R1-AESK9-XYS
• Feature License: FLASR1-IPSEC-RTU
ASR1002-5G-VPN/K9
Hardware
• Chassis: ASR1002 with 4-built-in GE
• ESP: ASR1000-ESP5
• RP1 and SIP-10 are an integral part of the ASR1002 chassis
Software
• Consolidated Package: SASR1R1-AESK9-XYS
• Feature License: FLASR1-IPSEC-RTU
ASR1002-10G-VPN/K9
Hardware
• Chassis: ASR1002 with 4-built-in GE
• ESP: ASR1000-ESP10
• RP1 and SIP-10 are an integral part of the ASR1002 chassis
* The letters "XY" in the image name (for example, SASR1R1-AESK9-XYS and SASR1001UK9-XYS) are denoted as the latest major Cisco IOS XE Software release (for example, 32 means Cisco IOS XE Software Release 3.2S). However, the actual release is subject to change without notice.
** Available with Cisco IOS XE Software Release 3.3S.
*** The ASR1002-X bundles will be orderable in mid-November 2012.
Cisco ASR1001 IOS XE Software Universal Software***
