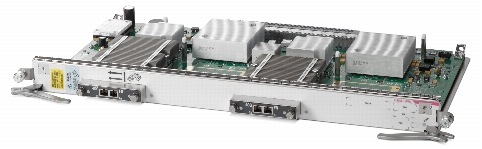

This data sheet provides detailed product specifications for an important element of the Cisco® Ethernet Optimized solutions: the Cisco CRS 2-Port 40GE LAN/OTN Interface Module (Figure 1). The module connects directly into any 40 Gigabit Ethernet transport network, including traditional OC-768 transport networks, and provides two ports at 40 Gbps of data per port for 40 Gigabit Ethernet LAN physical layer (LAN-PHY) or Optical Transport Network (OTN) Transport Unit Level 3 (OTU-3) transport.
Significant dense Packet over SONET (POS) deployments exist despite the overwhelming industry trend toward Ethernet. Operators are looking for POS-like operations, administration, and maintenance (OAM) functions at Ethernet price points with technologies such as OTN G.709 encapsulation. Some operators have traditional transponder systems that can operate only in OC-768 and OTU-3 modes.
In addition, bandwidth growth is leading all markets, including data center operators, to move to 40 Gigabit Ethernet the in aggregation layer to handle growth in the data center.
The Cisco CRS 2-Port 40GE LAN/OTN Interface Module addresses both these needs.
The 2-port 40 Gigabit Ethernet module in OTN mode with multirate serial C Form-Factor Pluggable (CFP) Fiber with Scrambled Encoding (FR) optics addresses the requirements for POS such as OAM functions at Ethernet prices, and the 2-port 40 Gigabit Ethernet module in LAN mode with CFP Long-Reach (LR) or CFP Short-Reach (SR) optics provides a dense 40 Gigabit Ethernet solution for data centers and 10 Gigabit Ethernet aggregation.
Table 1 lists specifications for the Cisco CRS 2-Port 40GE LAN/OTN Interface Module.
Table 1. Product Specifications
Compatible with all current Cisco CRS-1 and CRS-3 line-card chassis
Cisco IOS® XR Software Release 4.2.3 or later for Cisco CRS-3 platform
• 40 Gigabit Ethernet
• Encapsulations: ARPA, IEEE 802.2/SAP, and IEEE 802.3/SNAP
• IEEE 802.x flow control
• IEEE 802.1q VLAN support and jumbo frames
• IEEE 802.1p tagging
• Source and destination MAC address accounting and VLAN accounting
Four ports of 40 Gigabit Ethernet per physical-layer interface module (PLIM) slot
POS feature summary
OTN (G.709) feature summary
• ITU G.709
• Alarm reporting: Loss of signal (LOF), loss of OTN frame (LOF), and loss of OTN multiframe (LOM)
• OTU alarm indication signal (OTU-AIS), OTU backward defect indication (OTU-BDI), ODU alarm indication signal (ODU-AIS), ODU open connection indication (ODU-OCI), ODU locked (ODU-LCK), ODU backwards defect indication (ODU-BDI), ODU payload type identifier mismatch (ODU-PTIM), OTU signal fail (OTU_SF_BER), and OTU signal degrade (OTU_SD_BER)
• OTU_SF_BER and OTU_SD_BER alarms are based on monitoring of OTU BIP errors with a user-configurable threshold crossing
• Error counts: OTU BIP, OTU BEI, ODU BIP, and ODU BEI
• Threshold crossing alerts (TCAs) for OTU BIP errors (SM-TCA) and ODU BIP errors (PM-TCA) with user-configurable threshold
• Local (internal) and line (network) loopback
Reliability and availability
• Online insertion and removal (OIR) without affecting system traffic
Cisco 40GBASE-FR transceiver module in a CFP form factor that supports 2km reach on a single mode fiber
