The Cisco® CRS-1 Carrier Routing System is the industry's first carrier router offering continuous system operation, unprecedented service flexibility, and system longevity. The Cisco CRS-1 is powered by Cisco IOS® XR Software-a unique self-healing, distributed operating system. As part of a video-enabled IP Next-Generation Network (NGN), the Cisco CRS-1 Series delivers continuous, always-on operation that easily scales to support the massive bandwidth requirements of visual networking experiences such as high-definition IPTV and Cisco TelePresence. These services demand a platform that delivers predictable forwarding performance and efficient, intelligent, fabric-based multicast replication. The Cisco CRS-1 Series enables the Internet and NGNs to handle the approaching zettabyte era of carrier IP communications while protecting network investments for decades to come.

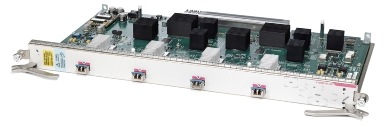

The Cisco CRS-1 Series 4-Port 10GE LAN/WAN-PHY Interface Module (Figure 1) provides four line-rate, IEEE 802.3-compliant 10 Gigabit Ethernet interfaces. Physical connections can be made using modular 10-Gbps Small Form-Factor Pluggable (XFP) pluggable optics.
This data sheet provides detailed product specifications for the Cisco CRS-1 Series 4-Port 10GE LAN/WAN-PHY Interface Module (4-10GBE-WL-XFP). For more information about the Cisco CRS Family or about other available interfaces, visit: http://www.cisco.com/go/crs.
• Occupies one-half slot on a Cisco CRS-3 and CRS-1 chassis
• Weight: 7.85 lb (3.55 kg)
• Height: 20.6 in. (52.2 cm)
• Depth: 11.2 in. (28.4 cm)
• Width: 1.8 in. (4.49 cm)
• Storage temperature: -40 to 70°C (-40 to 158°F)
• Operating temperature:
• Normal: 5 to 40°C (41 to 104°F)
• Short-term: -5 to 50°C (23 to 122°F)
• Relative humidity:
• Normal: 5 to 85%
• Short-term: 5 to 90% but not to exceed 0.024 kg water/kg of dry air
Short-term refers to a period of not more than 96 consecutive hours and a total of not more than 15 days in 1 year. (This refers to a total of 360 hours in any given year, but no more than 15 occurrences during that 1-year period.)
Approvals and Compliance
Table 2 gives standards compliance information for the Cisco CRS-1 4-Port 10GE LAN/WAN-PHY Interface Module.
Table 2. Compliance and Agency Approvals
• UL/CSA/IEC/EN 60950-1
• AS/NZS 60950.1
• IEC/EN 60825 Laser Safety
• FDA-Code of Federal Regulations Laser Safety
• FCC Class A
• ICES 003 Class A
• AS/NZS CISPR 22 Class A
• CISPR 22 (EN55022) Class A
• VCCI Class A
• IEC/EN 61000-3-2: Power Line Harmonics
• IEC/EN 61000-3-3: Voltage Fluctuations and Flicker
Low Power multirate XFP supporting 10GBASE-LR and OC-192 SR
Low Power multirate XFP supporting 10GBASE-ER and OC-192 IR
Cisco 10 Gigabit Ethernet ZR (80 km) Optics
Cisco 10 Gigabit DWDM (80 km) Optics
Cisco Services make networks, applications, and the people who use them work better together.
Today, the network is a strategic platform in a world that demands better integration among people, information, and ideas. The network works better when services, together with products, create solutions aligned with business needs and opportunities.
The Cisco Lifecycle Services approach to services defines the requisite activities at each phase of the network lifecycle to help ensure service excellence. With a collaborative delivery methodology that joins the forces of Cisco, our skilled network of partners, and our customers, we achieve the best results.
For More Information
For more information about the Cisco CRS-1 Series 4-Port 10GE LAN/WAN-PHY Interface Module, contact your local Cisco representative or visit: http://www.cisco.com/go/crs.
