Cisco TelePresence Touch Devices Datasheet

Hierarchical Navigation

Downloads

Product Overview

Cisco TelePresence® Touch devices take ease-of-use and user interaction benefits to the next level by adding touch interfaces to Cisco TelePresence endpoints (Figure 1). These devices are optimized for function, form factor, and ergonomics to offer you easy launch and manageability during a Cisco TelePresence call. The portfolio features 8-, 12-, and 23-inch touch-screen devices:
  • Touch 8-inch devices support the Cisco TelePresence System EX Series (EX Series), Cisco TelePresence System Profile Series (Profile Series), Cisco TelePresence MX200), Cisco TelePresence System Integrator C Series (Integrator C Series), and Cisco TelePresence System Quick Set C20 (Quick Set C20).
  • Touch 12-inch devices support Cisco TelePresence System 3010 (3010), Cisco TelePresence System 3210 (3210), Cisco TelePresence System 1300 Series (1300 Series), Cisco TelePresence System 1100 (1100), and Cisco TelePresence System 500 Series (500 Series) endpoints.
  • The touch 23-inch device supports Cisco TelePresence System T3 (T3).

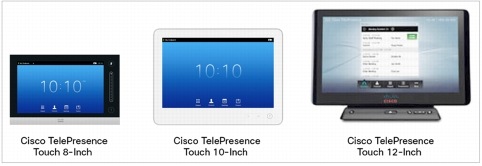

Figure 1. Cisco TelePresence Touch

Cisco TelePresence Touch devices feature a revolutionary user interface focused on people and how they communicate in one-on-one and group settings. Work environments today demand interactions that are distributed across communication mediums and vary with the changing context, contacts, and content. With Cisco TelePresence Touch devices, you can quickly and easily access the most common tasks in the context of your interaction. The innovative design allows effortless integration with the various forms of synchronous and asynchronous communication that are already part of the workflow.

Features and Benefits

Cisco TelePresence Touch devices enhance the ease of connection and communication by providing instant access to meeting, contacts, directories, and content. These devices enable you to launch and manage calls, share content, and access advanced features - all with a simple touch of the finger:

• Effortless user interaction: Visually appealing and inviting device

• Consistent experience: Unified user interface design (Figure 2)

• Reduced learning curve: Clear, context-based interaction

• Ergonomic fit: Size and form factor optimization for the endpoint use case

• Simple setup: One cable connection to the network

• Easy call launch: One-button-to-push meeting access for scheduled calls and easy-to-access contact list for impromptu usage

• Cohesive collaboration: Ability to select the content you want to share

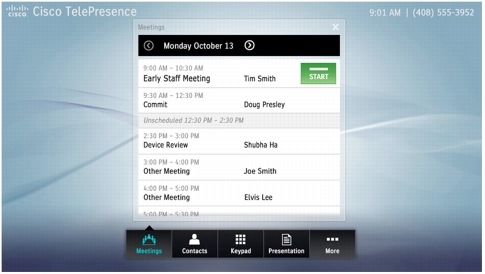

Figure 2. User Interface Displaying Meeting Information

Table 1 gives specifications of the Cisco TelePresence Touch devices.

Table 1. Product Specifications



Cisco TelePresence Touch 8-inch

Cisco TelePresence Touch 12-inch

Cisco TelePresence Touch 23-inch

Product compatibility

8-inch device (three configurations):

• EX: for the EX Series products
• CS: for the Profile Series, Integrator C Series, and Quick Set C20
• MX200

12-inch device:

• Cisco TelePresence System 3010, 3210, 1300, 1100, and 500 Series

23-inch device:

• Cisco TelePresence System T3

Software compatibility

For EX: TC3.1 or later

For C Series: TC 4.1 or later

Cisco TelePresence System Software Version 1.8 or later

Telepresence Control Unit1.0 or later

Call-control compatibility

Controlled by codec

Cisco® Unified Communications Manager 8.0 or later

TCU and codec

Signaling protocols

TCP/IP



TCP/IP

Display
• Capacitive touch LCD
• 8-inch diagonal
• Capacitive touch LCD
• 11.6-inch diagonal
• Capacitive touch LCD
• 23-inch diagonal

Resolution

800 x 480

1366 x 768

1920 x 1080

Connectivity
• EX and MX200: Connected through codec
• Profile Series, C Series, and Quick Set C Series: Ethernet

Connected through codec



Memory

-

256 MB

-

Language support

English

For TC5.0 and later: Finnish, French, German, Japanese, and Russian

English

English

Physical dimensions (H x L x D)

With Handset: 3.0 x 11.4 x7.4 in. (7.7 x 29.0 x 18.7 cm)

Without Handset: 1.7 x 9.0 x 5.7 in. (4.4 x 22.8 x 14.5 cm)

Maximum height when display is at 80° angle: 8.24 x 12.10 x 7.38 in. (20.94 x 30.4 x 18.74 cm)

Minimum height when display is at 5° angle: 1.94 x 12.10 x 7.38 in. (4.92 x 30.4 x 18.74 cm)

33 x 55.5 x 4.4 cm

Weight

With Handset: 2.1lb (0.94 kg)

Without Handset: 1.4lb (0.64 kg)

4.11 lb (1.866 kg)

Integrated part for T3 table

Power

EX: Power from codec

Profile Series, C Series, and Quick Set: Separate power supply

MX200: Power from codec

Power over Ethernet (PoE)

Custom power supply

Temperature range

0° C to 35° C (32° F to 95° F)

(5° C to 35° C

(41° F to 95° F)

0° C to 35° C (32° F to 95° F)

Warranty Information

Warranty information is available on Cisco.com at the Product Warranties page.

Ordering Information

Cisco TelePresence Touch devices are available as a part of an endpoint order.
To place an order, visit the Cisco® Ordering Home Page and refer to Table 2. To download software, visit the Cisco Software Center.

Table 2. Ordering Information

See individual endpoint data sheets for whether Cisco TelePresence Touch comes standard with product.

Product Name

Part Number

Cisco TelePresence Touch 8-inch for EX Series

CTS-CTRL-DV8=

Cisco TelePresence Touch 8-inch for C Series, Profile Series, Quick Set C20

CTS-CTRL-DVC8=

Cisco TelePresence Touch 8-inch for MX200

CTS-CTRL-DVP8=

Cisco TelePresence Touch 12-inch for CTS-500-32 and CTS-1300-47

CTS-CTRL-DV12-A=

Cisco TelePresence Touch 12-inch for CTS-1100, CTS-1300-65, CTS-3xxx

CTS-CTRL-DV12-B=

Cisco TelePresence Touch 12-inch for CTS-500 (37")

CTS-CTRL-DV12-C=

Cisco TelePresence Touch 23-inch for T3

CTS-CTRL-DVC23=

Note: Many of the products and features described herein remain in varying stages of development and will be offered on a when-and-if-available basis. This roadmap is subject to change at the sole discretion of Cisco, and Cisco will have no liability for delay in the delivery or failure to deliver any of the products or features set forth in this document.

Cisco Services

Cisco and our partners provide a broad portfolio of smart, personalized services and support that can help you realize the full business value of your Cisco TelePresence investment by increasing business agility and network availability. This portfolio of services accelerates business innovation by harnessing the network as a powerful business platform. For more information about these services, visit: http://www.cisco.com/go/telepresenceservices.

For More Information

For more information about the Cisco TelePresence Touch devices, please visit http://www.cisco.com/go/telepresence or contact your local Cisco account representative.
