Installing the Router
This chapter describes how to install your Cisco MWR 1941-DC router and connect it to networks and external devices. It contains the following sections:
•
Installing Network Modules and Interface Cards
•
•
•
•
•
Warning
Installing Network Modules and Interface Cards
Cisco routers are normally shipped with network modules, voice and WAN interface cards (VWICs), and WAN interface cards (WICs) already installed. If you need to remove or install any of these items, refer to the applicable documents online.
For network modules:
•
•
For VWICs:
•
For WICs:
•
•
If there are modules, interface cards, or power supplies to be removed or installed, Cisco suggests that you perform the installation or removal before you install the chassis. If a chassis cover needs to be removed, the chassis may have to be removed from the rack to permit cover removal.
Rack Mounting the Chassis
You can mount the Cisco MWR 1941-DC router in a 19-inch rack that conforms to EIA-310-D specification (the inside width of the rack should be 17.72 to 17.80 inches per the EIA-310-D specification). The MWR 1941-DC router requires this minimum width and occupies 1U (1.75 inches) of vertical space.
Warning
•
•
•
Attaching the Brackets
Attach the mounting brackets to the chassis as shown, using the screws provided in the bracket kit. Attach the second bracket to the opposite side of the chassis. Use a number 2 Phillips screwdriver to install the bracket screws.
Three screws are required on each side. Figure 3-1 shows how the bracket is attached.

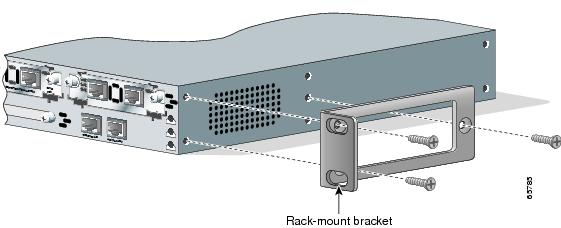

Figure 3-1 Attaching the Bracket
Installing the Router in the Rack
Install the chassis in the rack. Rack-mounting screws are not provided with the router. Use three screws for each side (supplied with the rack).
Connecting the Console Terminal and Modem
This section describes how to connect a console terminal and a modem to the router. You can connect only a terminal to the console port. Use the auxiliary port with a terminal or a modem for remote access to the router.
These ports provide administrative access to your router either locally (with a console terminal) or remotely (with a modem).
Identifying a Rollover Cable
Use a rollover cable to connect to the asynchronous serial console and auxiliary ports. You can identify a rollover cable by comparing the two modular ends of the cable. Holding the cables side-by-side, with the tab at the back, the wire connected to the pin on the outside of the left plug should be the same color as the wire connected to the pin on the outside of the right plug. (See Figure 3-2.) If your cable came from Cisco, pin 1 will be white on one connector, and pin 8 will be white on the other (a rollover cable reverses pins 1 and 8, 2 and 7, 3 and 6, and 4 and 5).
Figure 3-2 Identifying a Rollover Cable
Console Port
Take the following steps to connect a terminal or a PC running terminal emulation software to the console port on the router:
Step 1
Note
Step 2
Note
Auxiliary Port
Take the following steps to connect a modem to the auxiliary port on the router:
Step 1
Step 2
Connecting the Network Cables
This section describes connecting the following support MWR 1941-DC router interfaces:
•
•
•
•
Connecting the Fixed FE Interface Cables
The RJ-45 port supports standard straight-through and crossover Category 5 unshielded twisted-pair (UTP) cables (refer to Figure 3-15). Cisco Systems does not supply Category 5 UTP cables; these cables are available commercially.
Step 1
Step 2
Step 3
Figure 3-3 shows the RJ-45 port and connector.
Figure 3-3 RJ-45 Port and Plug
Table 3-1 lists the pinouts and signals for the RJ-45 port.
Table 3-1 RJ-45 Pinout
1
Receive Data + (RxD+)
2
RxD-
3
Transmit Data + (TxD+)
6
TxD-
Connecting the VWIC Interface Cables
How you connect the ports of the T1/E1 Multiflex VWIC depends on whether you are using the MWR 1941-DC router in a redundant (IP-RAN implementations only) or a non-redundant configuration.
For redundant configurations, use a Y-cable (as described in Y-Cable Specifications).
Note
Step 1
Step 2
Step 3
Step 4
Step 5
Step 6
For non-redundant configurations, use a straight-through, shielded RJ-48C-to-RJ-48C cable.
Note
Step 1
Step 2
Step 3
Step 4
Step 5
The T1/E1 Multiflex VWIC uses an RJ-48C connection, as shown in Figure 3-4.
Figure 3-4 RJ-48C Connection
Table 3-2 shows the pinout configuration of the RJ-48C connectors on the T1/E1 Multiflex VWIC.
Table 3-2 RJ-48C Pinout
1
receive tip
2
receive ring
3
receive shield
4
transmit tip
5
transmit ring
6
transmit shield
7
not used
8
not used
Y-Cable Specifications
Although it can be used in a standalone MWR 1941-DC router, the T1/E1 Multiflex VWIC is designed to be used in redundant configurations in an IP-RAN implementation. Such configurations require a special Y-cable for connecting the active and standby routers. The Y-cable provides a dual E1 or T1 PRI connection.
This section describes the specifications of the Y-cable used in redundant configurations in an IP-RAN implementation.
•
•
•
•
•
Connecting the WIC-2A/S Interface Cables
This section describes how to connect the 2-port asynchronous/synchronous (A/S) serial modules (WIC-2A/S) when using with the MWR 1941-DC router in a Cell Site DCN implementation.
The 2-port A/S serial module has "smart" serial ports. The serial cable attached to one of the module's ports can determine the electrical interface type and mode (DTE or DCE).
Six types of serial cables (also called serial adapter cables or serial transition cables) are available from Cisco Systems for use with the 2-port A/S serial module:
•
•
•
•
•
•
All serial cables have a universal plug at the interface module end. The network end of each cable provides the physical connectors that are most commonly used for the interface. For example, the network end of the EIA/TIA-232 serial cable is a DB-25 connector, which is the most widely used EIA/TIA-232 connector.
All serial interface types, except EIA-530, are available in DTE or DCE mode: DTE with a plug connector at the network end and DCE with a receptacle at the network end. The V.35 assembly is available in either mode with either gender at the network end. The EIA/TIA-530 assembly is available in DTE only.
After you install the 2-port A/S serial module, use the appropriate serial cable to connect the serial port on the module to one of the following types of equipment (see Figure 3-5):
•
•
•
To connect the 2-port A/S serial module, perform these steps:
Step 1
Step 2
Step 3
Step 4
Step 5

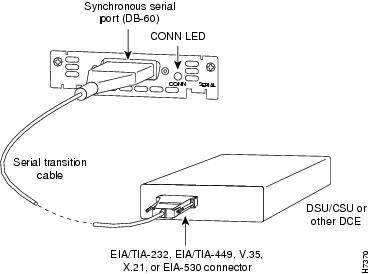

Figure 3-5 Connecting a 2-Port A/S Serial Module (WIC-2A/S)
Connecting the Network Module Interface Cables
With Cisco IOS Release 12.2(15)MC1a and later, the MWR 1941-DC router supports certain Cisco network modules for implementation in a Cell-Site DCN.
For a list of supported network modules, see the "Cisco Network Modules" section on page 1-7.
For information on connecting the interface cables for the Cisco network modules supported on the Cisco MWR 1941-DC router, see the Quick Start Guide, Network Modules for Cisco 2600 Series, Cisco 3600 Series, Cisco 3700 Series and Cisco MWR 1941-DC Routers and the Cisco Network Modules Hardware Installation Guide.
Connecting the MWR 1941-DC Router to a DC-Input Power Supply
This section contains instructions for:
•
Required Tools and Equipment
You need the following tools and equipment:
•
•
•
•
•
•
Grounding the Router
Follow these steps to ground the router to earth ground. Make sure to follow any grounding requirements at your site.
Warning
Warning
Step 1
Step 2
Step 3
Step 4
Step 5
Step 6
Step 7
Wiring the DC-Input Power Source
Warning
10A minimum, 60VDC
Caution
Note
To connect the DC power supply to the Cisco MWR 1941-DC router, do the following:
Step 1
Step 2
Step 3
Step 4
Warning
Warning
Powering On the Router
Warning
Warning
Warning
To power on the router, do the following:
Step 1
Step 2
If you encounter problems when you power on the router, see Appendix A, "Troubleshooting."
Replacing or Upgrading the CF
This section describes how to remove, install, and format the external Compact Flash (CF).
The MWR 1941-DC router is shipped with a 32MB CF included (64MB CF separately orderable for Cell Site DCN implementations). The CF contains the appropriate IOS software image. However, you may need to replace or upgrade the CF at some point. If you do, follow the steps outlined below. This procedure can also be used to make copies of the CF.
Step 1
Step 2
Step 3
Step 4
Step 5
Step 6
Step 7
Step 8
Note
Step 9
Step 10
Step 11
Removing a CF Memory Card from an External Slot
Complete the following steps to remove a CF memory card from an external slot:
Caution
Step 1
Step 2
Step 3
Step 4
Installing a CF Memory Card in an External Slot
Complete the following steps to install a CF memory card:
Step 1
Step 2
Step 3
Step 4
Formatting Procedures for CF Memory Cards
For the Cisco MWR 1941-DC router, Cisco recommends that you format/erase new CF memory cards to initialize them with a Class C Flash file system. This ensures proper formatting and enables the ROM monitor to recognize and boot the Flash.
The Class C Flash file system is similar to the standard DOS file system; however, a CF memory card formatted with the standard DOS file system does not support booting from the ROM monitor.
Formatting CF Memory as a DOS File System
To format a new external CF memory card, or to remove the files from a previously installed external CF memory card, enter the format slot0: command.
The following example shows output for formatting a CF memory card formatted with a Class C Flash file system:
Router# format slot0:Format operation may take a while. Continue? [confirm]Format operation will destroy all data in "slot0:". Continue? [confirm]Enter volume ID (up to 64 chars)[default slot0]:Current Low End File System flash card in flash will be formatted into DOSFile System flash card! Continue? [confirm]Format:Drive communication & 1st Sector Write OK...Writing Monlib sectors ...................................................................Monlib write complete..Format:All system sectors written. OK...Format:Total sectors in formatted partition:250592Format:Total bytes in formatted partition:128303104Format:Operation completed successfully.Format of flash completeFile and Directory Procedures
The following sections describe file and directory procedures for external CF memory cards formatted with a Class C Flash file system.
Copy Files
To copy the files to another location, use the copy slot0: source-filename { slot0: | tfp: | lex: | null: | nvram: | pram: | rcp: | system: | tftp: | xmodem: | ymodem: | running-config | startup-config} destination-filename command.
The following example shows output for copying a Cisco IOS file from an external CF memory card to a TFTP server:
Router# copy slot0:mwr1900-i-mz.tmp tftp:Destination filename [mwr1941-i-mz.tmp]?CCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCC6458584 bytes copied in 202.940 secs (31973 bytes/sec)Display the Contents of a CF Card
To display the contents (directories and files) of a CF memory card formatted with a Class C Flash file system, use the dir slot0: command.
The following example shows output for displaying the contents of an external CF memory card with a Class C Flash file system:
Router# dir slot0:Directory of slot0:/3 -rw- 6455048 Mar 01 2001 00:04:06 mwr1900-i-mz1579 -rw- 6458584 Mar 01 2001 00:24:38 mwr1900-i-mz.new15912960 bytes total (2998272 bytes free)Display Geometry and Format Information
To display the geometry and format information of a CF memory card formatted with a Class C Flash file system, use the show slot0: command.
The following example shows output for displaying the geometry and format information of an external CF memory card formatted with a Class C Flash file system:
Router# show slot0:******** ATA Flash Card Geometry/Format Info ********ATA CARD GEOMETRYNumber of Heads: 2Number of Cylinders 490Sectors per Cylinder 32Sector Size 512Total Sectors 31360ATA CARD FORMATNumber of FAT Sectors 12Sectors Per Cluster 8Number of Clusters 3885Number of Data Sectors 31264Base Root Sector 152Base FAT Sector 128Base Data Sector 184Please use "dir" command to display the contents of the card.Delete Files from Flash
To delete a file from a CF memory card, use the delete slot0: filename command.
The following example shows output for deleting a Cisco IOS file from an external CF card:
Router# delete slot0:mwr1900-i-mz.tmpDelete filename [mwr1941-i-mz.tmp]?Delete slot0:mwr1941-i-mz.tmp? [confirm]Router# dir slot0:Directory of slot0:/No files in directory128094208 bytes total (128094208 bytes free)Rename a File in Flash
To rename a file in a CF memory card, use the rename slot0: original-filename slot0: new-filename command.
The following example shows output for renaming a Cisco IOS file in an external CF card:
Router# rename slot0:mwr1900-i-mz.tmp slot0:mwr1900-i-mzDestination filename [mwr1900-i-mz]?Router# dir slot0:Directory of slot0:/1580 -rw- 6462268 Mar 06 1993 06:14:02 mwr1900-i-mz.1941ata3 -rw- 6458388 Mar 01 1993 00:01:24 mwr1900-i-mz63930368 bytes total (51007488 bytes free)Display File Content
To display the content of a file in a CF memory card, use the more slot0: filename command.
The following example shows output from the more command on an external CF card:
Router# more slot0:mwr1900-i-mz.tmp00000000: 7F454C46 01020100 00000000 00000000 .ELF .... .... ....00000010: 00020061 00000001 80008000 00000034 ...a .... .... ...400000020: 00000054 20000001 00340020 00010028 ...T ... .4. ...(00000030: 00050008 00000001 0000011C 80008000 .... .... .... ....00000040: 80008000 00628A44 00650EEC 00000007 .... .b.D .e.l ....00000050: 0000011C 0000001B 00000001 00000006 .... .... .... ....00000060: 80008000 0000011C 00004000 00000000 .... .... ..@. ....00000070: 00000000 00000008 00000000 00000021 .... .... .... ...!00000080: 00000001 00000002 8000C000 0000411C .... .... ..@. ..A.00000090: 00000700 00000000 00000000 00000004 .... .... .... ....000000A0: 00000000 00000029 00000001 00000003 .... ...) .... ....000000B0: 8000C700 0000481C 00000380 00000000 ..G. ..H. .... ....000000C0: 00000000 00000004 00000000 0000002F .... .... .... .../000000D0: 00000001 10000003 8000CA80 00004B9C .... .... ..J. ..K.000000E0: 00000020 00000000 00000000 00000008 ... .... .... ....000000F0: 00000000 0000002F 00000001 10000003 .... .../ .... ....00000100: 8000CAA0 00004BBC 00623FA4 00000000 ..J ..K< .b?$ ....00000110: 00000000 00000008 00000000 3C1C8001 .... .... .... <...00000120: 679C4A80 3C018001 AC3DC70C 3C018001 g.J. <... ,=G. <...00000130: AC3FC710 3C018001 AC24C714 3C018001 ,?G. <... ,$G. <...00000140: AC25C718 3C018001 AC26C71C 3C018001 ,%G. <... ,&G. <...00000150: AC27C720 3C018001 AC30C724 3C018001 ,'G <... ,0G$ <...00000160: AC31C728 3C018001 AC32C72C 3C018001 ,1G( <... ,2G, <...--More-- qCreate a New Directory
To create a directory in CF memory, use the mkdir slot0: directory-name command.
The following example shows output for first displaying the contents of an external CF card, and then creating a directory named config and a subdirectory named test-config:
Router# dir slot0:Directory of slot0:/3 -rw- 6458208 Mar 01 1993 00:04:08 mwr1941-i-mz.tmp128094208 bytes total (121634816 bytes free)Router# mkdir slot0:/configCreate directory filename [config]?Created dir slot0:/configRouter# mkdir slot0:/config/test-configCreate directory filename [/config/test-config]?Created dir slot0:/config/test-configRouter# dir slot0:Directory of slot0:/3 -rw- 6458208 Mar 01 1993 00:04:08 mwr1941-i-mz.tmp1580 drw- 0 Mar 01 1993 23:48:36 config128094208 bytes total (121626624 bytes free)Router# cd slot0:/configRouter# dir slot0:Directory of slot0:/config/1581 drw- 0 Mar 01 1993 23:50:08 test-config128094208 bytes total (121626624 bytes free)Remove a Directory
To remove a directory from CF memory, use the rmdir slot0:/directory-name command.
Before you can remove a directory, all files and subdirectories must be removed from the directory.
The following example shows output for displaying the contents of an external CF card, then removing the subdirectory named test-config:
Router# dir slot0:Directory of slot0:/config/1581 drw- 0 Mar 01 1993 23:50:08 test-config128094208 bytes total (121626624 bytes free)Router# rmdir slot0:/config/test-configRemove directory filename [/config/test-config]?Delete slot0:/config/test-config? [confirm]Removed dir slot0:/config/test-configRouter# dir slot0:Directory of slot0:/config/No files in directory128094208 bytes total (121630720 bytes free)Enter a Directory and Determine the Current Directory
To enter a directory in CF memory, use the cd slot0:/directory-name command. To determine which directory you are in, use the pwd command.
The following example shows output for the following actions:
•
•
Router# cd slot0:Router# pwdslot0:/What to Do After Installing the Hardware
When you have installed the router hardware, see the Cisco MWR 1941-DC Software Configuration Guide for initial software configuration information.
