A MediaSense cluster may contain
up to five servers, each capable of recording up to a specific
number of simultaneous calls. The method differs slightly for
Unified Communications Manager and CUBE calls.
Conceptually, there are two phases
involved. First, the call controller (Unified Communications Manager or CUBE) selects a
MediaSense server (the pilot server) to send the
initial invitation to. Second, the pilot server redirects the
invitation to another server (the home
server) to handle the call. Since any server may function as the
pilot server for any call, the first phase is designed to prevent
any single point of failure for the initial invitation.
phase allows MediaSense servers to balance the load among
themselves without any active support from the call controller. The
algorithm is aware of the state of all recording servers
within the cluster and does not direct recordings to failed
servers or servers with critically low disk space or other
impacted conditions. It also ensures that the two media streams
associated with a given call are recorded on the same server.
Unified Communications Manager is configured so that it sends invitations
to each server in succession, in round-robin fashion. This ensures
equal distribution of initial SIP invitation preference to all recording servers and avoids situations where one
server receives the bulk of the invitations. As CUBE does not support a
round-robin distribution, instead it is configured to always
deliver invitations to one particular MediaSense server, with
a second and perhaps a third server configured as lower preference
alternatives. If possible, it is best to target an expansion server
rather than a primary or secondary server for the pilot role
because expansion servers are typically doing less work at any
If any recording server is down or its network is disconnected,
it cannot respond to the call controller's SIP invitation. The usual
SIP processing for both Unified Communications Manager and CUBE in this case is to
deliver the invitation to the next server in the preference list. However, the call controller must wait for at least one
timeout to expire before trying another
Communications Manager and CUBE only involve recording servers after the
primary media path has already been established, such operations
can take much too long for the resulting recording to be
useful. (Unified Communications Manager sets a time limit beyond which, if the
recording hasn't begun, it will stop trying.)
The result is that
if Unified Communications Manager selects a recording server that is not responding,
the call in question will most likely not be recorded. CUBE does
not have such a time limit; therefore such calls will end up being recorded,
but a substantial initial segment of the call will be clipped.
To reduce the likelihood of lost recordings due to a recording
server failure, MediaSense works with Unified Communications Manager and CUBE to
support a facility known as "SIP Options Ping". This facility enables the
call controller to periodically probe each recording server to make
sure it is up and running without having to wait until a call is ready to be recorded. Once the call controller is aware
that a given MediaSense server is not running, it skips that server in the round-robin or
sequential list of recording servers. However, in single-node
deployments, SIP Options Ping is not recommended. Not only
is it not helpful, but it can in fact result in unnecessary failure
The MediaSense User Guide contains
instructions for configuring the SIP Options Ping facility as well
as other CUBE and Unified Communications Manager SIP parameters.
From a sizing perspective, be sure to provision enough recording
ports so that if one server fails, you still have enough capacity
to capture all the expected concurrent calls and that there is enough storage space for recording session retention.
Recording server redundancy - recordings in progress
If a recording server fails, all calls that are currently being
captured on that server are changed from an ACTIVE state to an
ERROR state, and the contents are discarded.
detection of the failure of the call and the subsequent state change to error may
not occur for some time (in the order of an hour or two).
There is currently no capability to continue or transfer
in-progress recordings to an alternate server.
Recording server redundancy - saved recordings
After a recording is complete, MediaSense retains the recording on the same server that captured it. If that server goes out of service, none of its recordings are available for playback, conversion, or download (even though information about them can still be found in the metadata).
Metadata database redundancy
The primary and secondary servers (the 'database servers' in this section) each maintain a database for metadata and configuration data. They also each implement the MediaSense API and include the capability to publish events to subscribed clients. Once deployed, the two database servers are fully symmetric; the databases are fully replicated such that writing to either one causes the other to be updated as well. Clients address their HTTP API requests to either server and use the alternate server as a fallback in case of failure.
If either the primary or secondary server fails, the surviving
server remains available for use. Once the failed server returns to
service, the data replication mechanism automatically begins its
catch-up operation without any user intervention.
Depending on the duration of the outage and the amount of churn
that occurred, the catch-up operation could take
some time. The actual duration depends on many factors; but in
tests, it has taken close to an hour to transfer 150,000 recording
failure lasts for an extended period of time, the system will
raise an alarm and disable replication completely, then reestablish it when the failed server recovers.
During the recovery period, some irregularities and
inconsistencies between the two servers may occur. Do not rely on the recovering server for API
operations until the catch-up operation is complete. You can determine the state of the recovering server using CLI commands.
An event is
generated by an individual database server when specific actions take place on
the server. For example, when a recording server begins a recording, it
initiates a session record in one of the database servers. Although the
database update is replicated to its peer, only that one database server
generates the event. This holds true for all types of events-- from recording
session events to disk storage threshold events.
A client cannot
know ahead of time which server will generate the events it is interested in.
Each client must subscribe to both database servers in order to be sure it
receives all events (the two subscriptions may designate the same target URI).
provides the capability for each database server to subscribe to events that
are generated by the other database server and forward them together to
subscribers (a flag is included in the event body that identifies these
forwarded events). This capability is enabled in the MediaSense administration
facility. If forwarding is enabled, a client need only subscribe to one
database server; but doing so may sacrifice reliability. If the client's chosen
database server goes down, the client must quickly subscribe to the alternate
server in order to avoid any missed events. This risk should not be
underestimated, especially considering that there is no reliable way for the
client to detect such a loss without periodically issuing subscription
When a client
receives an event, there is an implicit guarantee that the database update
associated with that event has already been committed to the database on the
server which generated the event. Clients that need to execute API queries
should check the event forwarding flag to ensure that they are querying the
database server that generated the event.
Uploaded video playback redundancy
The load balancing and redundancy mechanism that is used to
distribute incoming recording calls is very similar to the one used to
distribute incoming video playback calls. The calls arrive at a
pilot node and are immediately redirected to a
home node. MediaSense can play an uploaded video as
long as at least one of its nodes can play it.
Typically, all nodes in a cluster are able to handle
a request and uploaded videos are distributed to
all nodes. However, it is possible for a node to encounter some
sort of error during the distribution or processing phases, or even
for one node to simply be slower than the others in performing
these duties. Therefore, incoming media playback calls get
redirected to a node that is in service, has
available capacity, and is ready to play the specific video
selected by the appropriate incoming call handling rule.
Throttling of requests for video playback is also similar to throttling of requests for recording audio. Like an audio recording
attempt, MediaSense treats incoming video playback
requests at a higher priority than
RTSP play and monitoring requests. Even though RTSP play and
monitoring requests are subjected to a lower capacity throttling
threshold than recording and video playback requests, it
is possible for a given node to accept RTSP requests while recording and video playback requests are redirected to other nodes.
Unified Communications Manager failure while playing uploaded videos
If Unified Communications Manager fails while MediaSense is playing back uploaded
videos, the media stream remains active but SIP signaling is no
longer available. With no SIP signaling, there is no way
for MediaSense to know when the endpoint device hangs
up; therefore, the video plays until
it comes to the end and then it terminates and releases all resources.
However, in the case of videos
configured to playback repetitively (if configured as such in an incoming call handling
rule), the playback may never terminate. For those
cases, Unified Communications Manager sends MediaSense a session keep-alive
message twice every 30 minutes by default. If MediaSense does not receive two of these timers in succession, it
assumes that Unified Communications Manager has failed and terminates the
playback and releases all resources.
As a result, repetitive video play-backs can remain active for up to
30 minutes following a Unified Communications Manager failure. MediaSense considers those media streaming
resources to be in use, or unavailable, for the purposes of determining whether new
incoming calls and streaming requests can be accepted.
The 30 minute figure is a default Unified Communications Manager service parameter that can
nodes within a MediaSense cluster act in such a way so that if one node fails,
the remaining nodes in the cluster automatically take up the slack—assuming
they have available capacity. MediaSense clusters can also be configured to
take over for one another in the event of an entire cluster failure. There are
two general topologies that can be used, however in both cases, there is no
load balancing across clusters. These are strictly hot standby arrangements in
order to satisfy cluster failover requirements. They do not, for example, allow
calls to be taken by one cluster if another cluster reaches its capacity.
Ring with spare

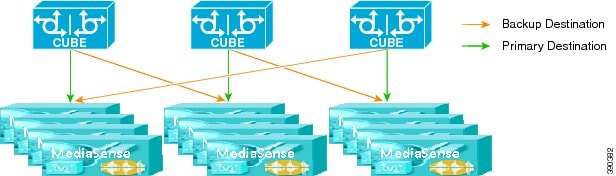

In this topology,
two or more clusters are arranged in a failover ring. Normally, all calls meant
to be handled by Cluster A are handled by Cluster A, and ditto for Cluster B
and Cluster C. However, the call controller (CUBE or Unified Communications
Manager) is configured such that if it cannot send a call's recording to its
usual target MediaSense cluster, it sends the recording instead to the next one
in the ring. Calls for Cluster A would end up going to Cluster B, calls for
Cluster B go to Cluster C, and calls for Cluster C would go to Cluster A. This
requires that each cluster be provisioned with enough excess capacity to handle
its own load plus the load on the preceding cluster. It is possible, but
complicated, to configure failed-over calls to be distributed across all the
remaining clusters, rather than only to the next cluster in the ring.

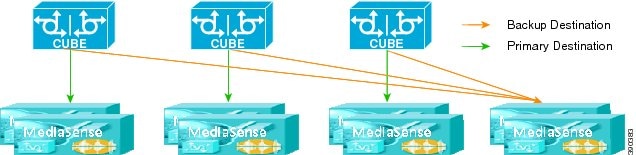

In this topology,
an entire extra cluster is provisioned and is not used except when one of the
other clusters fails. Cluster D in this diagram is the spare one; Clusters A,
B, and C are configured to fail over to Cluster D.
These two failover
topologies use the same technique. They rely on SIP Options Ping (or rather the
lack of it) to let the call controller know when an entire cluster is down. The
technique works for both CUBE and Unified Communications Manager phone forking,
but the configuration differs somewhat between the two.
For CUBE forking,
each CUBE must be configured to fork recordings to two different nodes in the
same cluster, followed by two different nodes in the designated failover
cluster. Normally, all of the invitations first go to the targeted node in the
first cluster and that node ensures that they get balanced evenly across all
the nodes in the cluster. If the first targeted node goes down, it stops
responding to SIP Options Pings. CUBE then stops sending invitations to it and
sends them instead to the second targeted node in the first cluster. That node
then ensures that the invitations get balanced across all the remaining nodes
in the cluster.
If the entire
cluster fails, then both of the first two nodes stop responding to SIP Options
Pings. CUBE starts sending its invitations to the third targeted node, which is
in the designated failover cluster.
Whenever any node
comes back online, it starts respond to SIP Options Pings again and CUBE
reverts to sending its invitations to that node, effectively restoring normal
recording profiles in a round robin fashion (that is, successive invitations
are delivered to successive configured nodes, with the first node in the
sequence following the last) does not work for implementing cluster failover,
but you can use Unified Communication Manager's top-down approach instead. You
can configure the first two destinations as nodes in the first cluster,
followed by two more nodes in the second cluster. Failover and recovery then
will work just as they do in the CUBE scenario above.
not provide its own built-in backup and restore capability, instead it permits
the use of VM backup mechanisms for the system, metadata, and media disks.
However, because of unpredictable performance impact, the VMWare virtual
machine snapshot capability should not be employed with MediaSense except as
part of the software upgrade process.
When using VM
backups for MediaSense, it is important to know that VMs are only backed up on
a node-by-node basis, but MediaSense functions in a cluster model.
example, when you backup an expansion node, you are not capturing any of the
metadata for recordings on that node since the metadata is stored on the
primary and secondary nodes. Similarly, if you backup the primary node, you are
only capturing those recordings that physically reside on that primary node.
As in other normal
restore scenarios, you can only recover information captured up until the last
backup of that node (information captured after the last backup is lost). With
MediaSense, recordings captured on that node since the last backup of that node
are lost, but not their metadata. The metadata stored on the primary or
secondary nodes (even if it is the primary or secondary node being restored)
If you want to
selectively preserve individual media files, convert them individually to .mp4
or .wav format and download them to another separate server for backup.
Network redundancy and NAT
Network redundancy capabilities (such as NIC Teaming) may be
provided at the hardware level and be managed by the hypervisor.
MediaSense itself plays no role in network redundancy and is
completely unaware of it.
Network Address Translation (NAT) cannot be used between MediaSense and any peer device, including an API client machine. A
given MediaSense node may only be known by one IP address.
Various API responses and redirections include full URLs for
accessing internal media resources. URLs that embed IP addresses that are not known to the
clients using them will not work properly.
