Preparing AXSM Cards and Lines for Communication
Managing Firmware Version Levels for AXSM Cards
Locating Cards that Need the Firmware Version Set
Verifying Card Firmware Version Levels
Establishing Redundancy Between Two AXSM Cards
Selecting and Viewing Service Class Templates
Establishing Redundancy Between Two Lines with APS
Preparing AXSM Cards and Lines for Communication
This chapter describes how to prepare AXSM cards and lines for physical connectivity to other switches. Chapter 5, "Provisioning AXSM Communication Links," describes how to add ports and connections that support ATM communications across the cards and lines configured in this chapter.
This chapter provides a quickstart procedure for configuring AXSM cards and lines and describes the following:
•
Managing Firmware Version Levels for AXSM Cards
•
•
•
Configuration Quickstart
The quickstart procedure in this section provides a summary of the tasks required to prepare AXSM cards and lines for configuration as ATM trunks and lines. This procedure is provided as an overview and as a quick reference for those who already have configured MGX 8850 and MGX 8950 switches.
Step 1
username
<password>
Start a configuration session.
Note
Step 2
setrev <slot> <version>
Related commands:
dspcds
Initialize AXSM cards by setting the firmware version level for each AXSM card.
See "Managing Firmware Version Levels for AXSM Cards," which appears later in this chapter.
Step 3
addred <options>
Define which AXSM cards are operating as redundant cards.
See "Establishing Redundancy Between Two AXSM Cards," which appears later in this chapter.
Step 4
cnfcdsct <sctid>
Related commands:
dspcd
Applies ATM communications parameters from a preconfigured Service Class Template (SCT) file to all communications between the card you are configuring and the other AXSM cards in the switch.
For PNNI communications, use SCT ID 2 or 4 for policing applications and use SCT ID 3 or 5 for non-policing applications. If MPLS will be used on any card link, use SCT ID 4 for policing applications and use SCT ID 5 for non-policing applications.
See "Selecting and Viewing Service Class Templates," which appears later in this chapter.
Step 5
upln <bay.line>
Related commands:
dsplns
dspln -type <bay.line>
Bring up and configure lines. This step establishes physical layer connectivity between two switches.
See "Setting Up Lines," which appears later in this chapter.
Step 6
cnfln <options>
Related commands:
dsplns
dspln -type <bay.line>
Configure lines.
See "Configuring SONET Lines," which appears later in this chapter.
Step 7
addapsln <workingIndex> <protectIndex> <archmode>
Configure a redundant relationship between two AXSM lines.
See "Establishing Redundancy Between Two Lines with APS," which appears later in this chapter.
Managing Firmware Version Levels for AXSM Cards
The AXSM cards within the switch run two types of firmware: boot firmware and runtime firmware. The boot firmware provides the startup information the card needs. The boot firmware is installed on the board at the factory. The runtime firmware controls the operation of the card after startup. The runtime firmware file is stored on the PXM45 hard disk.
After the AXSM cards are installed in the switch, you must specify the correct runtime firmware version for each card before the switch can begin using the card. The following sections explain how to
•
•
•
Locating Cards that Need the Firmware Version Set
When an AXSM card is installed and the firmware version needs to be set, the System Status LED on the front of the card blinks red. The dspcds command shows that the card status is Failed. Other events can display these symptoms, but if the AXSM card is new, the problem is probably that the firmware version number has not been set. To locate the cards that need to have the firmware version set, use the following procedure.
Step 1
Step 2
8850_NY.7.PXM.a > dspcdsThe following example shows the display for this command. The card state for the card in slot 2 is listed as Failed/Active. This is how a card appears when the runtime firmware version has not been selected.
M8850_LA.7.PXM.a > dspcdsM8850_LA System Rev: 02.01 Sep. 27, 2001 20:33:09 PSTChassis Serial No: SAA03230375 Chassis Rev: B0 GMT Offset: -8Node Alarm: NONECard Front/Back Card Alarm Redundant RedundancySlot Card State Type Status Slot Type--- ---------- -------- -------- ------- -----01 Active/Active AXSM_4OC12 NONE NA NO REDUNDANCY02 Empty --- --- --- ---03 Active/Active AXSM_16T3E3 NONE NA NO REDUNDANCY04 Empty --- --- --- ---05 Active/Active AXSME_2OC12 NONE NA NO REDUNDANCY06 Active/Active AXSM_16OC3_B NONE NA NO REDUNDANCY07 Active/Active PXM45 NONE 08 PRIMARY SLOT08 Standby/Active PXM45 NONE 07 SECONDARY SLOT09 Active/Active RPM_PR NONE NA NO REDUNDANCY10 Empty --- --- --- ---11 Empty --- --- --- ---12 Empty --- --- --- ---13 Empty --- --- --- ---14 Empty --- --- --- ---Note the slot number, card type, and redundancy type for each card that needs to have the firmware version set. You will need this information to activate these cards as described in the next section, "Initializing AXSM Cards."
Note
Initializing AXSM Cards
Before an AXSM card can operate, it must be initialized in a switch slot. The initialization process defines the AXSM runtime software version that will run on the card and identifies the slot in which the card operates. To initialize an AXSM card, use the following procedure.
Note
Step 1
Tips
Step 2
Step 3
mgx8850a.7.PXM.a > setrev <slot> <version>
Note
Replace <slot> with the card slot number and replace <version> with the software version number. For example:
mgx8850a.7.PXM.a > setrev 1 2.1(60)After you enter the setrev command, the System status LED blinks red until the firmware load is complete, and then it changes to non-blinking green.
Step 4
Verifying Card Firmware Version Levels
When you are having problems with your switch, or when you have taken delivery of a new switch but delayed installation, it is wise to verify the firmware versions installed on the switch. If newer versions of this firmware are available, installing the updated firmware can prevent switch problems.
To verify the firmware versions in use on your switch, use the following procedure.
Step 1
M8850_LA.7.PXM.a > dsprevsM8850_LA System Rev: 02.01 Sep. 27, 2001 20:36:15 PSTMGX8850 Node Alarm: NONEPhysical Logical Inserted Cur Sw Boot FWSlot Slot Card Revision Revision-------- ------- -------- -------- --------01 01 AXSM_4OC12 2.1(60) 2.1(60)02 02 --- --- ---03 03 AXSM_16T3E3 2.1(60) 2.1(60)04 04 --- --- ---05 05 AXSME_2OC12 2.1(60) 2.1(60)06 06 AXSM_16OC3_B 2.1(60) 2.1(60)07 07 PXM45 2.1(60) 2.1(60)08 07 PXM45 2.1(60) 2.1(60)09 09 RPM_PR --- ---10 10 --- --- ---11 11 --- --- ---12 12 --- --- ---13 13 --- --- ---14 14 --- --- ---Step 2
8850_NY.1.AXSM.a > dspversionImage Type Shelf Type Card Type Version Built On---------- ---------- ---------- ------------ ------------Runtime MGX AXSM 2.1(0) Feb 13 2001, 07:47:35Boot MGX AXSM 2.1(0) -Step 3
M8850_LA.7.PXM.a > dspcd 1M8850_LA System Rev: 02.01 Sep. 27, 2001 20:38:48 PSTMGX8850 Node Alarm: NONESlot Number: 1 Redundant Slot: NONEFront Card Upper Card Lower Card---------- ---------- ----------Inserted Card: AXSM_4OC12 SMFIR_2_OC12 SMFIR_2_OC12Reserved Card: AXSM_4OC12 SMFIR_2_OC12 SMFIR_2_OC12State: Active Active ActiveSerial Number: SAK0350007N SAK0346003F SBK0406001VPrim SW Rev: 2.1(60) --- ---Sec SW Rev: 2.1(60) --- ---Cur SW Rev: 2.1(60) --- ---Boot FW Rev: 2.1(60) --- ---800-level Rev:800-level Part#: 800-05774-05 800-05383-01 800-05383-01CLEI Code: BAA1BADAAA 0000000000 BAI9ADTAAAReset Reason: On Power upCard Alarm: NONEFailed Reason: NoneMiscellaneous Information:Type <CR> to continue, Q<CR> to stop:Step 4
Step 5
Step 6
Establishing Redundancy Between Two AXSM Cards
To establish redundancy between two AXSM cards, use the following procedure.
Step 1
Step 2
Step 3
Step 4
pop20one.7.PXM.a > addred <redPrimarySlotNum> <redSecondarySlotNum> <redType>Replace <redPrimarySlotNum> with the slot number of the AXSM card that will be the primary card, and replace <redSecondarySlotNum> with the slot number of the secondary AXSM card. Replace <redType> with the number 1, which selects 1:1 Y cable redundancy. Although the online help lists other redundancy types, 1:1 Y cable redundancy is the only type supported on AXSM cards in this release.
Note
Tips
Step 5
pop20two.7.PXM.a > dspredpop20two System Rev: 02.01 Feb. 06, 2001 11:24:53 PSTMGX8850 Node Alarm: NONEPrimary Primary Primary Secondary Secondary Secondary RedundancySlotNum Type State SlotNum Type State Type------- ------- --------- --------- --------- --------- ----------1 AXSM Active 2 AXSM Standby 1-17 PXM45 Active 8 PXM45 Standby 1-115 SRM-3T3 Empty Res 16 SRM-3T3 Empty Resvd 1-131 SRM-3T3 Empty Res 32 SRM-3T3 Empty Resvd 1-1The secondary state for the card in the secondary slot changes to Standby only when the secondary card is ready to take over as active card. After you enter the addred command, the switch resets the secondary card. When you first view the redundancy status, the state may be Empty Resvd or Init. The secondary card may require one or two minutes to transition to standby.
Note
For information on managing redundant cards, refer to "Managing Redundant Cards," in Chapter 7, "Switch Operating Procedures."
Selecting and Viewing Service Class Templates
A Service Class Template (SCT) is a collection of ATM configuration parameter settings that are stored in a single file and can be applied to multiple lines or ports. Instead of retyping configuration data for identical lines or trunks, you can specify an SCT to apply those settings to additional lines and trunks. SCT files include the following types of configuration data:
•
•
•
•
•
Two types of SCTs are card SCTs and port SCTs. Card SCTs define parameters that apply to all communications traffic between an AXSM card and the other AXSM cards in the switch. Port SCTs define parameters that apply to communications traffic on a single line or port. You can apply the same SCT to multiple cards or ports.
SCTs are also classified as policing or non-policing. Typically, policing SCTs are used on UNI lines at the edge of the ATM network and control traffic entering the network. Non-policing SCTs are typically used between switches within the network to reduce communications overhead. If traffic is properly controlled at the edges of an ATM network, there should be no need for policing within the network.
To enable ATM communications, you must assign a card SCT to every card and a port SCT to every port you use. The SCT files are stored in the C:\SCT\AXSM directory. Card SCT files are named AXSM_SCT.CARD.n, where n is the SCT ID number. Similarly, port SCT files are named AXSM_SCT.PORT.n. Cisco provides default SCT files for policed connections and non-policed connections.
To create additional SCT files or change the configuration of existing SCT files, you need to use Cisco WAN Manager (CWM). You cannot create or modify SCT files using the CLI.
Note
Note
The following sections describe how to select SCTs for cards and ports.
Selecting a Card SCT
A card SCT defines ATM parameters that apply to communications between the card you are configuring and the other AXSM cards in the switch. You can use the same SCT for multiple cards. To select an SCT for a card, use the following procedure.
Step 1
Step 2
pop20two.1.AXSM.a > cnfcdsct <sctID>
Note
Replace sctID with the number of the SCT that you want to assign to the card. For PNNI communications, use SCT ID 2 or 4 for policing applications and use SCT ID 3 or 5 for non-policing applications. If MPLS will be used on any card link, use SCT ID 4 for policing applications and use SCT ID 5 for non-policing applications.
Note
Step 3
pop20two.1.AXSM.a > dspcdThe display card report displays a row labeled "Card SCT Id," which identifies the SCT assigned to the card.
Selecting a Port SCT
A port SCT defines ATM parameters that apply to communications through a single port. You can use the same port SCT for multiple ports. To select an SCT for a port, use the addport command as described in "Adding ATM Ports" in Chapter 5, "Provisioning AXSM Communication Links."
Setting Up Lines
The first step in configuring AXSM lines is to define the physical lines that are connected to the switch. The following sections describe how to do the following:
•
•
•
Bringing Up Lines
Installing an AXSM card can add from 1 to 16 lines to your switch. You must bring up a line before you can configure the line or provision services on the line.
Before a line is brought up, or after it is brought down, the switch does not monitor the line. The AXSM port status light for the line is unlit, and all line alarms are cleared.
When you bring up a line, the switch starts monitoring the line. The AXSM port status light is green when physical layer communications are established with a remote switch. If physical layer communications problems are detected, the port status light turns red, and alarms are reported.
Note
Tips
To bring up a line on the switch, use the following procedure.
Step 1
Step 2
mgx8850a.7.PXM.a > cc <slotnumber>Replace <slotnumber> with the number of the slot in which the AXSM card is installed. Valid slot numbers are from 1 to 6 and 9 to 14. Verify your card selection by viewing the switch prompt, which should list the slot number and the AXSM card type.
Step 3
mgx8850a.10.AXSM.a > upln <bay.line>Replace <bay> with 1 if the line is connected to a back card in the upper bay, or replace it with 2 if the line is connected to a back card in the lower bay. Replace <line> with the number that corresponds to the back card port to which the line is connected. Table 3-1 lists the valid bay numbers and line numbers for each AXSM card. Figure 3-1 illustrates the bay and line numbers used on the MGX 8850 and MGX 8950 switches.
Step 4
8850_NY.7.PXM.a > dsplnsThe line state column shows whether each line is up or down as shown in the following example:
8850_NY.7.PXM.a > dsplnsMedium MediumSonet Line Line Line Frame Line Line Alarm APSLine State Type Lpbk Scramble Coding Type State Enabled----- ----- ------------ ------ -------- ------ ------- ----- --------1.1 Up sonetSts12c NoLoop Enable Other ShortSMF Clear Disable1.2 Up sonetSts12c NoLoop Enable Other ShortSMF Clear Disable2.1 Up sonetSts12c NoLoop Enable Other ShortSMF Clear Disable2.2 Up sonetSts12c NoLoop Enable Other ShortSMF Clear DisableThe line state, which is either Up or Down, represents the administrative intent for the line. For example, a line is reported as Down until an administrator brings up the line. Once the administrator brings up the line, the line state remains Up until the administrator brings the line down with the dnln command).
The alarm state indicates whether the line is communicating with a remote switch. When the alarm state is reported as Clear, the physical devices at each end of the line have established physical layer communications. ATM connectivity is established later when interfaces or ports are configured on the line.

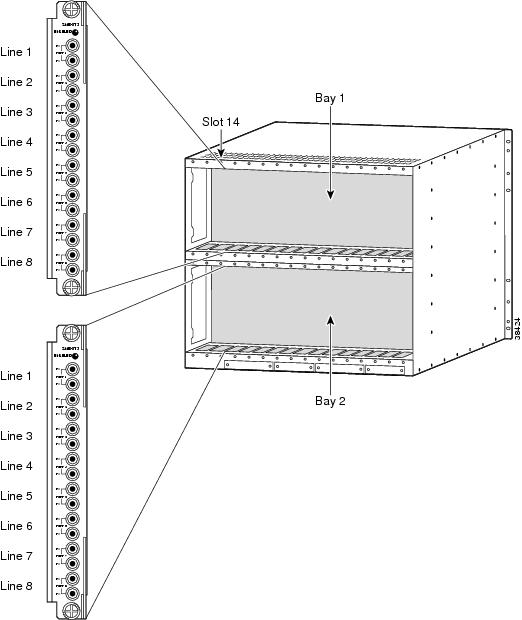

Figure 3-1 Bay and Line Numbers
Configuring SONET Lines
All line types are brought up with a default configuration. When configuring trunks between two MGX 8850 or MGX 8950 switches, you may be able to accept the defaults for each switch and thus minimize configuration time. When configuring a line to another type of device, ensure that both devices are using the same configuration parameters on the shared line.
At the physical communications level, you can configure the following options for SONET lines:
•
•
The following procedure describes how to configure SONET lines.
Step 1
Step 2
8850_NY.1.AXSM.a > dsplnsRemember that you cannot configure a line until you have brought it up as described in the previous section, "Bringing Up Lines."
Step 3
8850_NY.1.AXSM.a > dspln -sonet 1.2Line Number : 1.2Admin Status : Up Alarm Status : CriticalLoopback : NoLoop APS enabled : DisableFrame Scrambling : Enable Number of ports : 1Xmt Clock source : localTiming Number of partitions: 1Line Type : sonetSts12c Number of SPVC : 1Medium Type(SONET/SDH) : SONET Number of SPVP : 0Medium Time Elapsed : 528464 Number of SVC : 0Medium Valid Intervals : 96Medium Line Type : ShortSMFFor more information, see "Verifying Line Configuration," which appears later in this chapter.
Step 4
8850_NY.1.AXSM.a > cnfln -sonet <bay.line> -slt <LineType> -clk <clockSource>Table 3-2 lists the parameter descriptions for configuring SONET, DS3 and E3 lines. Be sure to use only the parameters listed for SONET lines.
Step 5
Table 3-2 Parameters for cnfln Command
AIScBitsCheck
T3
The -cb option defines C-bit checking. Set <AIScBitsCheck> to 1 to enable C-bit checking. Set it to 2 to ignore the C-bit.
bay.line
T3
E3
SONETReplace bay with 1 if the line is connected to a back card in the upper bay, or replace it with 2 if the line is connected to a back card in the lower bay.
Replace line with the number that corresponds to the back card port to which the line is connected. Table 3-1 lists the valid line numbers for each AXSM card.
clockSource
T3
E3
SONETThe -clk option selects the source timing for transmitting messages over the line. Replace <clockSource> with 1 to use the clock signal received over this line from a remote node, or specify 2 to use the local timing defined for the local switch. For information on defining the clock source for the local switch, see "Managing Network Clock Sources" in Chapter 7, "Switch Operating Procedures."
LineLength
T3
E3The -len option specifies the length of a T3 line from the local node to a remote node in meters. Enter a value from 0 to 64000 meters.
LineType
SONET
Enter -slt 1 for SONET or -slt 2 for SDH.
LineType
T3
Enter -lt 1 for ds3cbitadm or -lt 2 for ds3cbitplcp.
OOFCriteria
T3
Out of Frame (OOF) alarm criteria. Replace <OOFCriteria> with 1 to select 3 out of 8 and 2 to select 3 out of 16.
RcvFEACValidation
T3
Replace <RcvFEACValidation> with 1 to select 4 out of 5 and 2 to select 8 out of 10.
Turning Down a SONET Line
Use the dnln command to turn down a SONET line. Before you execute this command, make sure that you have deleted all connections, partitions, or ports on that line. In the following example, the user turns down the physical line 1 on an AXSM lower back card.
8850_NY.1.AXSM.a > dnln 1.2Configuring T3 Lines
All line types are brought up with a default configuration. When configuring trunks between two MGX 8850 or MGX 8950 switches, you may be able to accept the defaults for each switch and thus minimize configuration time. When configuring a line to another type of device, ensure that both devices are using the same configuration parameters on the shared line.
At the physical communications level, you can configure the following options for DS3 lines:
•
•
•
•
•
•
The following procedure describes how to configure T3 lines.
Step 1
Step 2
8850_LA.3.AXSM.a > dsplnsRemember that you cannot configure a line until you have brought it up as described in the previous section, "Bringing Up Lines."
Step 3
8850_LA.3.AXSM.a > dspln -ds3 1.1Line Number : 1.1Admin Status : Up Alarm Status : ClearLine Type : ds3cbitadm Number of ports : 1Line Coding : ds3B3ZS Number of partitions: 0Line Length(meters) : 0 Number of SPVC : 0OOFCriteria : 3Of8Bits Number of SPVP : 0AIS c-Bits Check : Check Number of SVC : 0Loopback : NoLoopXmt. Clock source : localTimingRcv FEAC Validation : 4 out of 5 FEAC codesFor more information, see "Verifying Line Configuration," which appears later in this chapter.
Step 4
8850_LA.3.AXSM.a > cnfln -ds3 <bay.line> -len <LineLength> -clk <clockSource> -lt <LineType> -oof <OOFCriteria> -cb <AIScBitsCheck> -rfeac <RcvFEACValidation>Table 3-2 lists the parameter descriptions for configuring SONET, T3 and E3 lines. Be sure to use only the parameters listed for T3 lines.
Step 5
Configuring E3 Lines
All line types are brought up with a default configuration. When configuring trunks between two MGX 8850 or MGX 8950 switches, you may be able to accept the defaults for each switch and thus minimize configuration time. When configuring a line to another type of device, ensure that both devices are using the same configuration parameters on the shared line.
At the physical communications level, you can configure the following options for E3 lines:
•
•
The following procedure describes how to configure E3 lines.
Step 1
Step 2
Step 3
8850_LA.4.AXSM.a > dsplnsRemember that you cannot configure a line until you have brought it up as described in the previous section, "Bringing Up Lines."
Step 4
8850_LA.4.AXSM.a > cnfln -ds3 <bay.line> -len <LineLength> -clk <clockSource>Table 3-2 lists the parameter descriptions for configuring SONET, DS3 and E3 lines. Be sure to use only the parameters listed for E3 lines.
Step 5
Verifying Line Configuration
To display the configuration of a line, use the following procedure.
Step 1
Step 2
mgx8850a.10.AXSM.a > dsplnsStep 3
mgx8850a.10.AXSM.a > dspln -type <bay.line>Table 3-3 describes the command parameters. The line configuration appears as follows:
pop2one.10.AXSM.a > dspln -sonet 2.1Line Number : 2.1Admin Status : Up Alarm Status : ClearLoopback : NoLoop APS enabled : DisableFrame Scrambling : Enable Number of ports : 1Xmt Clock source : localTiming Number of partitions: 1Line Type : sonetSts12c Number of SPVC : 0Medium Type(SONET/SDH) : SONET Number of SVC : 4Medium Time Elapsed : 248198Medium Valid Intervals : 96Medium Line Type : ShortSMF
Table 3-3 dspln Command Parameters
type
The parameter specifies the type of line that is connected to the switch. Replace <type> with -sonet or -ds3. The -ds3 option works for DS3 and E3 lines.
bay
Replace <bay> with 1 if the line is connected to a back card in the upper bay, or replace it with 2 if the line is connected to a back card in the lower bay.
line
Replace <line> with the number that corresponds to the back card port to which the line is connected. Table 3-1 lists the valid line numbers for each AXSM card.
Establishing Redundancy Between Two Lines with APS
The switch supports two types of line redundancy:
•
•
The following sections describe how to add redundancy for these types of APS lines.
Adding Intracard APS Lines
To establish redundancy between two lines on the same card, use the following procedure.
Step 1
Step 2
Step 3
pop20two.1.AXSM.a > addapsln <workingIndex> <protectIndex> <archmode>Replace <workingIndex> with the location of the working line using the format "slot.bay.line." For example, to specify the line on card 2, bay 1, line 2, enter 2.1.2.
Replace <protectIndex> with the location of the protection line, using the same format used for the working line.
Note
Replace <archmode> with the option number that selects the automatic protection switching (APS) architecture mode you want to use. Table 3-4 shows the option numbers and the architecture modes they select.
The following example shows assigns 1+1 APS redundancy to two lines on the same card:
pop20one.9.AXSM.a > addapsln 9.2.1 9.2.2 1Step 4
Step 5
For information on managing redundant APS lines, refer to "Managing Redundant APS Lines," in Chapter 7, "Switch Operating Procedures."
Adding Intercard APS Lines
To establish redundancy between two lines on different cards, use the following procedure.
Note
Note
Step 1
Step 2
Step 3
Step 4
Step 5
pop20one.7.PXM.a > addapsln <workingIndex> <protectIndex> <archmode>Replace <workingIndex> with the location of the working line using the format slot.bay.line. For example, to specify the line on card 2, bay 1, line 2, enter 2.1.2.
Replace <protectIndex> with the location of the protection line, using the same format used for the working line.
Note
Replace <archmode> with an option number that defines the type of line redundancy you want to use. Table 3-4 shows the option numbers and the types of redundancy they select.
The following example shows assigns 1+1 APS redundancy to lines on different cards:
pop20one.1.AXSM.a > addapsln 1.1.2 2.1.2 1Step 6
Note
Step 7
For information on managing redundant APS lines, refer to "Managing Redundant APS Lines," in Chapter 7, "Switch Operating Procedures."
