Power Supply Specifications
This appendix provides the specifications for the Cisco ME 6500 series Ethernet switch power supplies. Two power supply models are available:
•
400 W DC-Input Power Supply
•400 W AC-Input Power Supply
Note The ME6524 switches support mixing AC-input and DC-input power supplies in the same chassis.
400 W DC-Input Power Supply

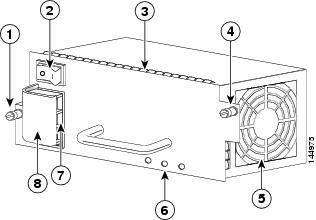

Figure A-1 shows the 400 W DC-input power supply (PWR-400W-DC) with the major features identified.
Figure A-1 400 W DC-Input Power Supply (PWR-400W-DC)
1
|
Captive installation screw
|
5
|
Power supply fan
|
2
|
Power on/off switch
|
6
|
Status LEDs
|
3
|
EMI gasket
|
7
|
Terminal block
|
4
|
Captive installation screw
|
8
|
Terminal block cover
|
Table A-1 lists the specifications for the 400 W DC-input power supply (PWR-400W-DC).
Table A-1 400 W DC-Input Power Supply Specifications
Item
|
Specification
|
DC-input voltage
|
•-48 VDC @ 37 A for nominal -48 V battery backup system (operating range: -40.5 VDC to -56 VDC)
•-60 VDC @ 29 A for nominal -60 V battery backup system (operating range: -55 VDC to -72 VDC)
|
DC-input current
|
•11 A @ -48 VDC
•9 A @ -60 VDC
|
Power supply output capacity
|
400 W maximum
|
Power supply output
|
34 A @ +11.75 V
|
Output holdup time
|
4 ms
|
Heat dissipation
|
133.33 W per hour (454.92 BTU per hour)
|
Front panel LEDs
|
|
•INPUT OK
|
•Green—The source DC voltage is OK. (-38.25 VDC or greater.)
•Off—The source DC voltage has dropped below -33 VDC or is not present.
Note In dual power supply configurations with the alternate power supply powered up, the INPUT OK LED may be lit red to indicate that the DC input voltage is less than -33 VDC or that the power supply is switched off.
|
•FAN OK
|
•Green—The power supply fan is operating properly.
•Red—A power supply fan failure is detected.
|
•OUTPUT OK
|
•Red—A problem with the DC-output voltage from the power supply is detected.
•Green—The DC-output voltage is within acceptable margins.
|
Weight
|
4.41 lb (2.0 kg)
|
400 W AC-Input Power Supply

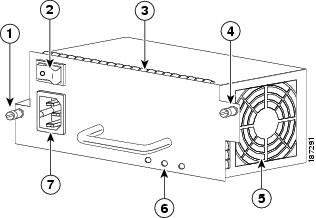

Figure A-2 shows the 400 W AC-input power supply (PWR-400W-AC) with the major features identified.
Figure A-2 AC-Input Power Supply (PWR-400W-AC)
1
|
Captive installation screw
|
5
|
Power supply fan
|
2
|
Power on/off switch
|
6
|
Status LEDs
|
3
|
EMI gasket
|
7
|
AC in receptacle (IEC60320 C15)
|
4
|
Captive installation screw
|
|
|
Table A-2 lists the specifications for the 400 W AC-input power supply (PWR-400W-AC).
Table A-2 400 W AC-Input Power Supply Specifications
Specification
|
Description
|
AC-input type
|
Autoranging input with power factor correction (PFC)
Power factor correction (PFC) reduces the reactive component in the source AC current allowing higher power factors (typically 99 percent or better) and lower harmonic current components.
|
AC-input voltage
|
•Low-line (120 VAC nominal)—85 VAC (min) to 132 VAC (max)
•High-line (230 VAC nominal)—170 VAC (min) to 264 VAC (max)
|
AC-input current
|
5 A
|
AC-input frequency
|
50/60 Hz (nominal) (±3% for full range)
|
Branch circuit requirement
|
Each chassis power supply should have its own dedicated, fused-branch circuit:
•For North America—10 A
•For International—Circuits sized to local and national codes
•All AC power supply inputs are fully isolated.
–Source AC can be out of phase between multiple power supplies in the same chassis, which means that PS1 can be operating from phase A and PS2 can be operating from phase B.
–For high-line operation, the power supply operates with the hot conductor wired to a source AC phase and the neutral conductor wired either to ground or to another source AC phase as long as the net input voltage is in the range of 170 to 264 VAC.
|
Power supply output
|
34.00 A @ +12 VDC
|
Output holdup time
|
10 ms minimum
|
Front panel LEDs
|
|
INPUT OK
|
•Green—Source AC voltage is OK. (Input voltage is 82 VAC or greater.)
•Red—Source AC voltage is less than 73 VAC (±3 VAC)
•Off—Source AC voltage falls below 70 VAC, is not present, or the power supply is turned off.
Note In chassis equipped with dual power supplies, if one power supply is powered on and the other power supply is powered off, the INPUT OK LED is lit red rather than unlit on the power supply that is powered off.
|
FAN OK
|
•Green—Power supply fan is operating properly.
•Red—Power supply fan failure is detected.
•Off—Power supply is powered off.
Note In chassis equipped with dual power supplies, if one power supply is powered on and the other power supply is powered off, the FAN OK LED is lit red rather than unlit on the power supply that is powered off.
|
OUTPUT OK
|
Green—The 12 VDC output is within margins.
Red—The 12 VDC output is out of tolerance (less than 11.15 VDC or more than 13.10 VDC).
Off—The power supply is off.
Note In chassis equipped with dual power supplies, if one power supply is powered on and the other power supply is powered off, the OUTPUT OK LED is lit red rather than unlit on the power supply that is powered off.
|
Weight
|
4.41 lb (2 kg)
|
400 W Power Supply AC Power Cords
Table A-3 lists the specifications for the AC power cords that are available for the 400 W AC-input power supply. The table includes references to power cord illustrations.
Note All 400 W power supply power cords have an IEC60320/C13 appliance plug at one end.
Table A-3 400 W AC-input Power Supply Power Cords
Locale
|
Power Cord
Part Number
|
AC Source Plug Type
|
Cordset Rating
|
Power Cord Reference Illustration
|
Argentina
|
CAB-ACR
|
IRAM 2073
|
10 A, 250 VAC
|
Figure A-3
|
Australia, New Zealand
|
CAB-ACA
|
SAA AS 3112
|
10 A, 250 VAC
|
Figure A-4
|
People's Republic of China
|
CP-PWR-CORD-CN
|
GB16C
|
10 A, 250 VAC
|
Figure A-5
|
Italy
|
CAB-ACI
|
CEI 23-16/7
|
10 A, 250 VAC
|
Figure A-6
|
Continental Europe
|
CAB-ACE
|
CEE 7/7
|
10 A, 250 VAC
|
Figure A-7
|
North America
|
CAB-AC-125V/13A
|
NEMA 5-15P
|
13 A, 125 VAC
|
Figure A-8
|
North America
|
CAB-AC-250V/13A
|
NEMA 6-20P
|
13 A, 250 VAC
|
Figure A-9
|
United Kingdom
|
CAB-ACU
|
BS 13631
|
10 A, 250 VAC
|
Figure A-10
|
Japan
|
CP-PWR-CORD-JP
|
JIS C8303
|
12 A, 125 VAC
|
Figure A-11
|
Switzerland
|
CAB-ACS
|
IEC 60884-1
|
10 A, 250 VAC
|
Figure A-12
|

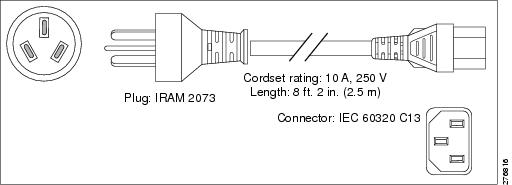

Figure A-3 CAB-ACR (Argentina) Power Cord

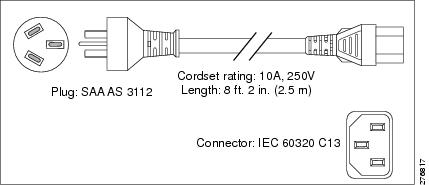

Figure A-4 CAB-ACA (Australia and New Zealand) Power Cord
Figure A-5 CP-PWR-CORD-CN (People's Republic of China) Power Cord

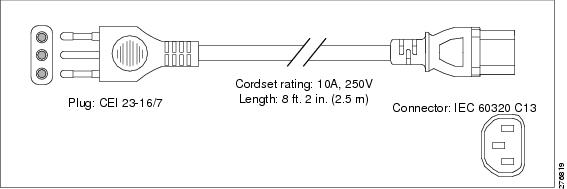

Figure A-6 CAB-ACI (Italy) Power Cord

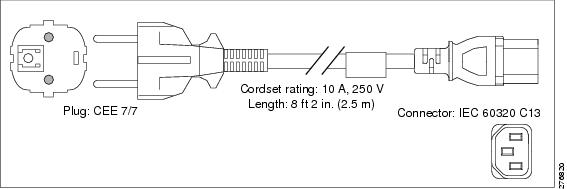

Figure A-7 CAB-ACE (Continental Europe) Power Cord

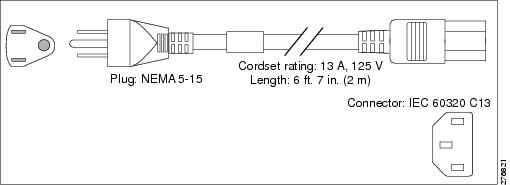

Figure A-8 CAB-AC-125V/13A(North America) Power Cord
Figure A-9 CAB-AC-250V/13A(North America) Power Cord
Figure A-10 CAB-ACU (United Kingdom) Power Cord

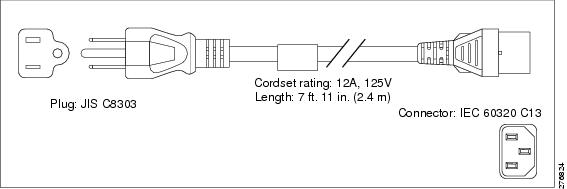

Figure A-11 CP-PWR-CORD-JP (Japan) Power Cord

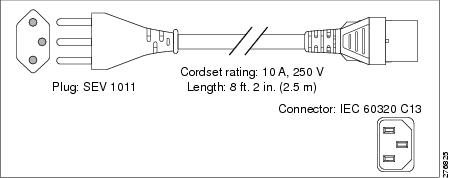

Figure A-12 CAB-ACS (Switzerland) Power Cord
